Pneumatic Torsional Shaft Fatigue Rig – 10K in-lb, Festo, Honeywell Torque Sensors

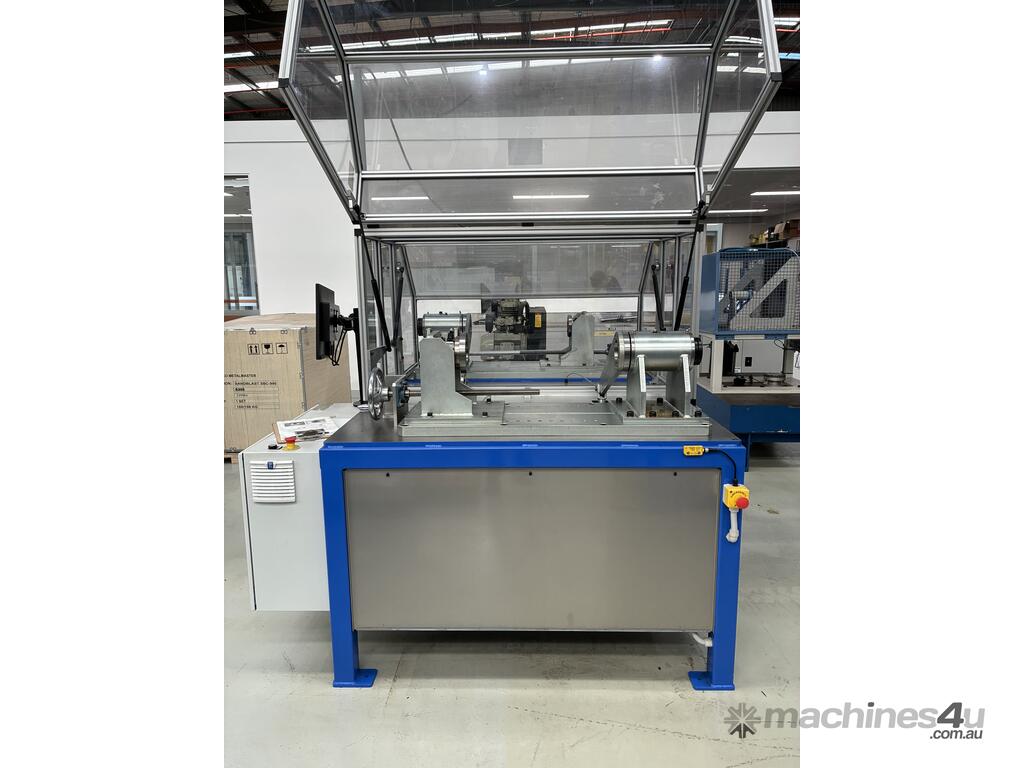

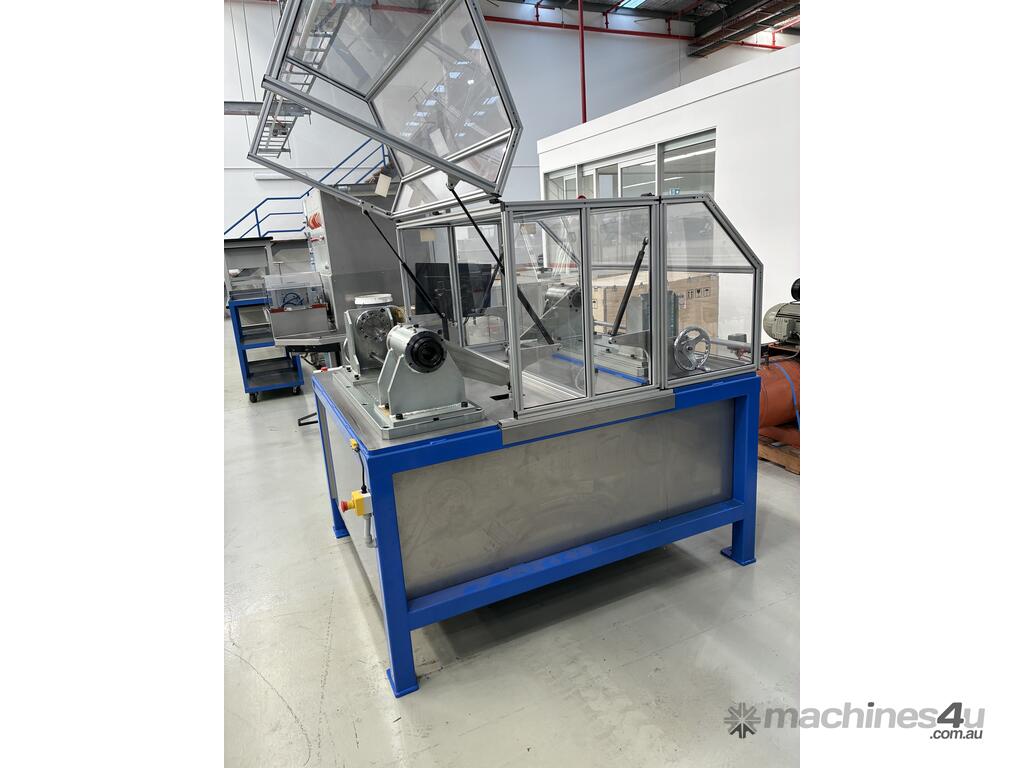

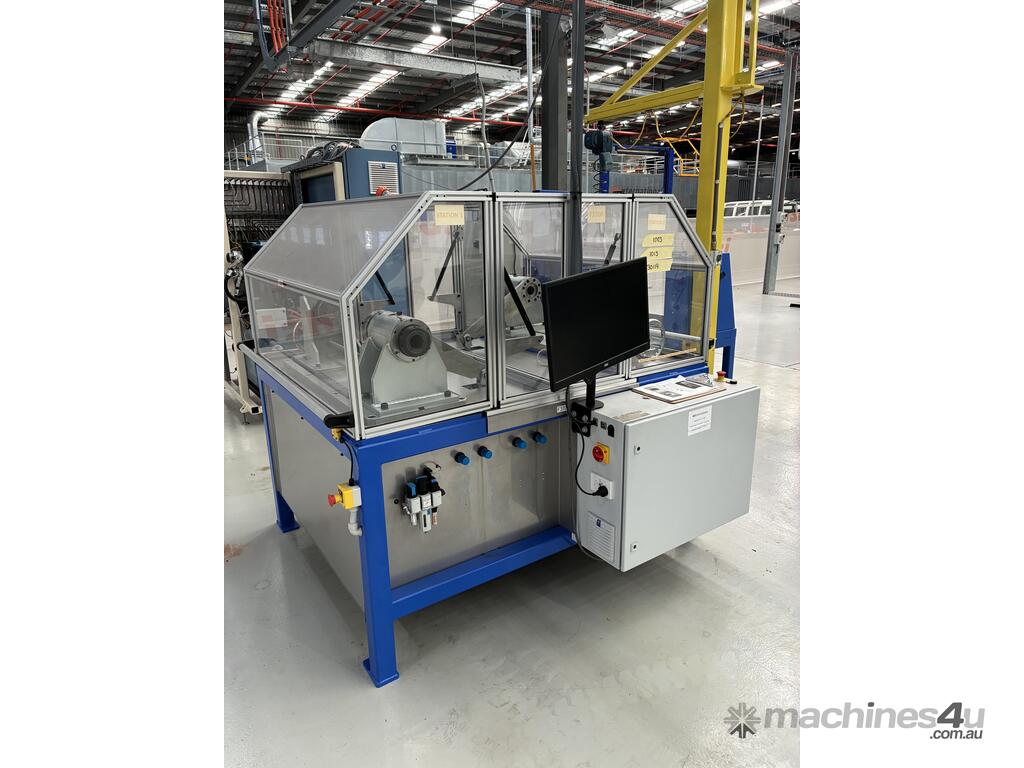

This precision-engineered pneumatic torsional fatigue testing rig is purpose-built for evaluating shafts, axles and rotating components under controlled cyclic torque loading. Combining Festo pneumatic actuation with Honeywell reaction torque measurement, the system delivers reliable and repeatable results suitable for automotive, aerospace and industrial R&D or QA environments.

Possible use cases

- Torsional fatigue life testing of shafts, axles and couplings

- Validation of drivetrain and torque-transmitting components

- Material durability analysis under cyclic loading

- Industrial, automotive and aerospace R&D laboratories

- Technical Description

- Torque capacity: up to 10,000 in-lb (approx. 1,130 N·m) using 500mm lever arm geometry

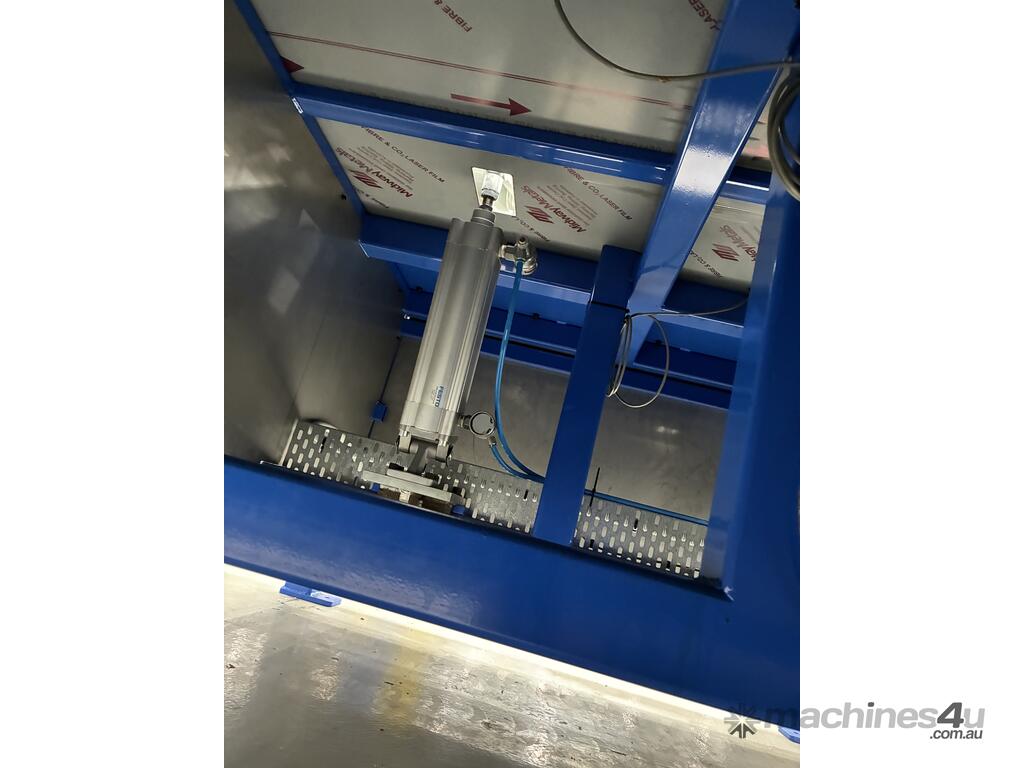

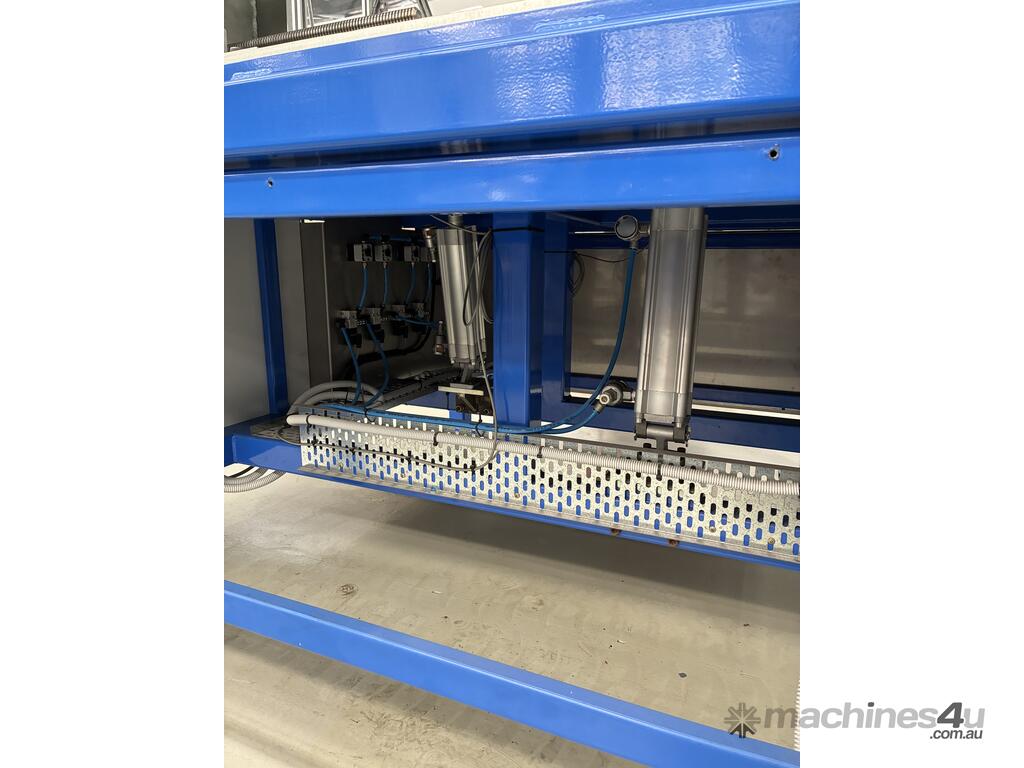

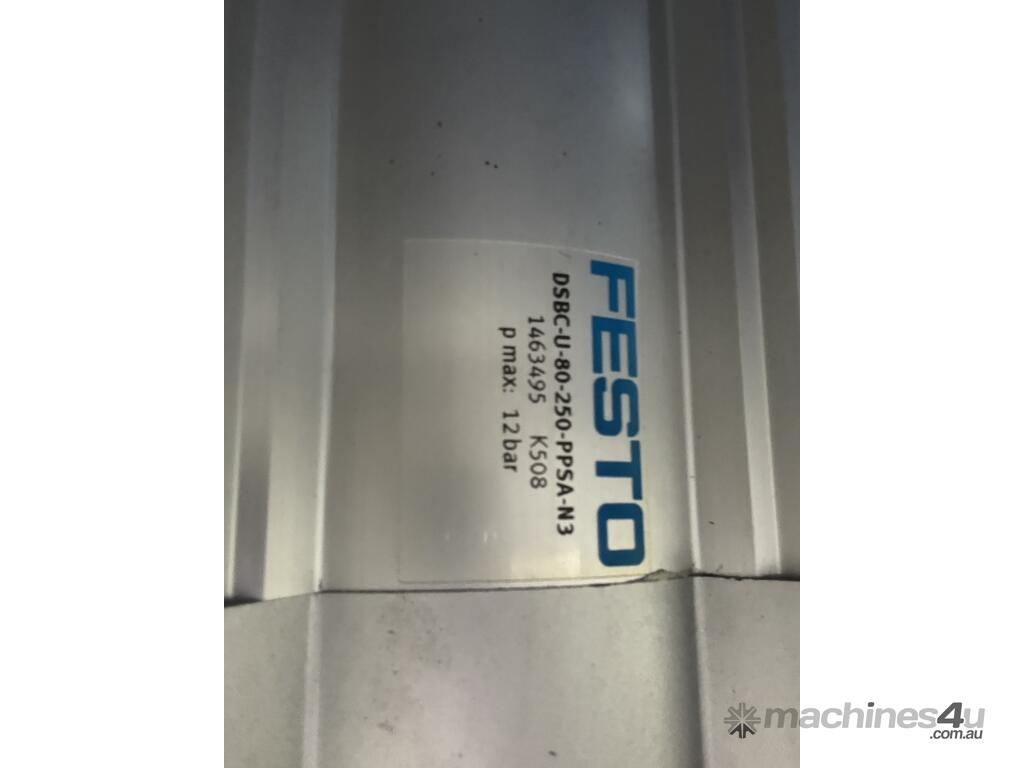

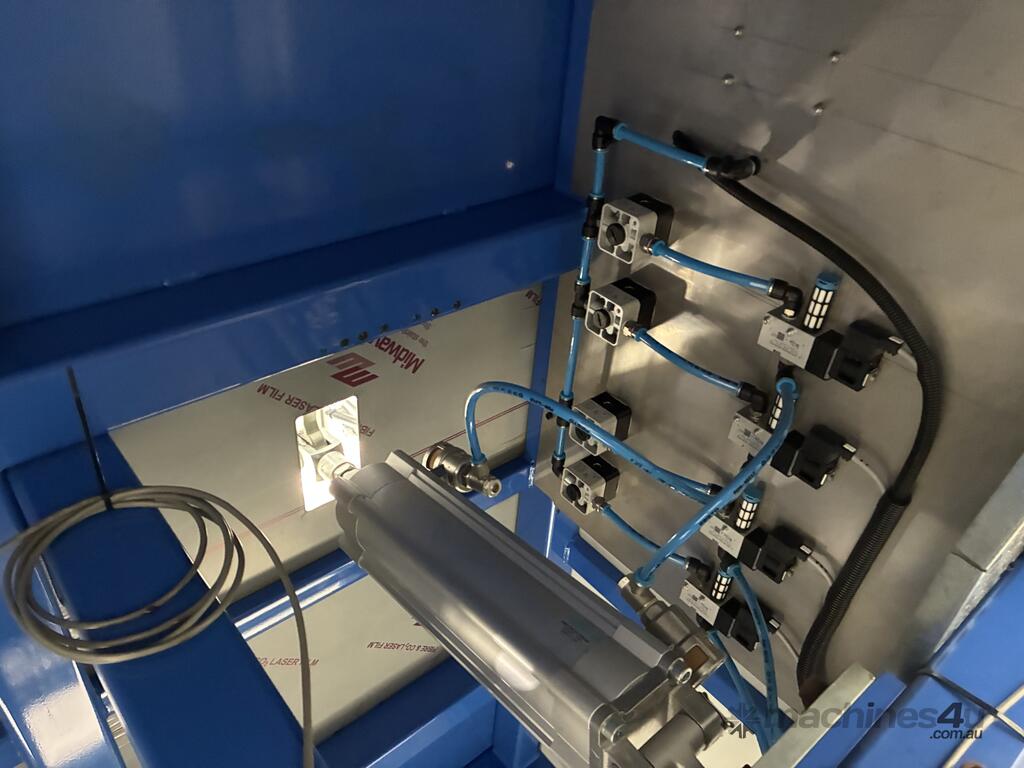

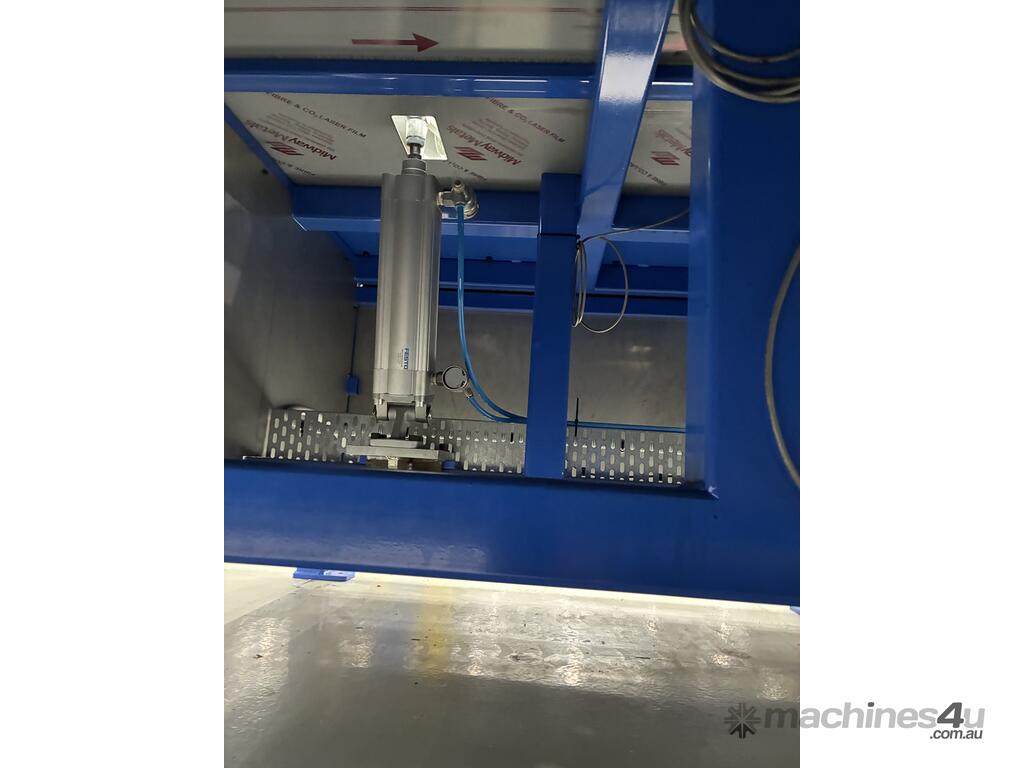

- 2 x Festo DSBC-80-250-PPSA-N3 pneumatic cylinders

- 80mm bore, 250mm stroke, ISO 15552 compliant

- PPS self-adjusting cushioning for smooth motion control

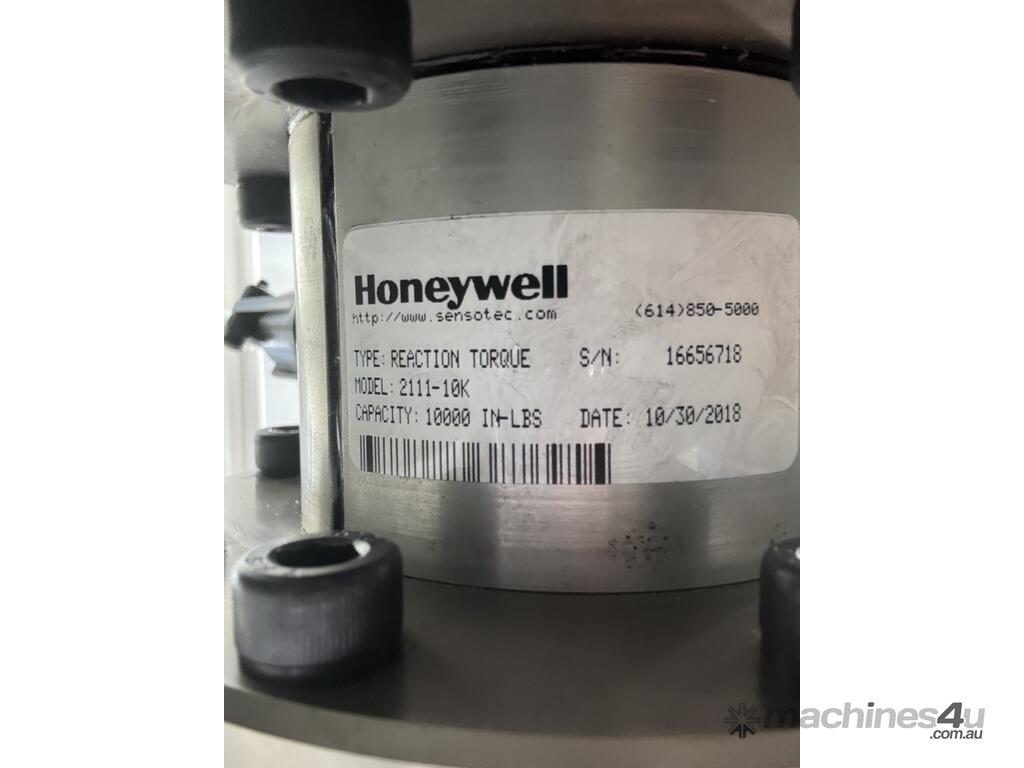

- 2 x Honeywell 2111-10K reaction torque sensors

- 10,000 in-lb capacity, ±0.1% non-linearity

- High-stiffness, flange-mount configuration for accurate bidirectional torque feedback

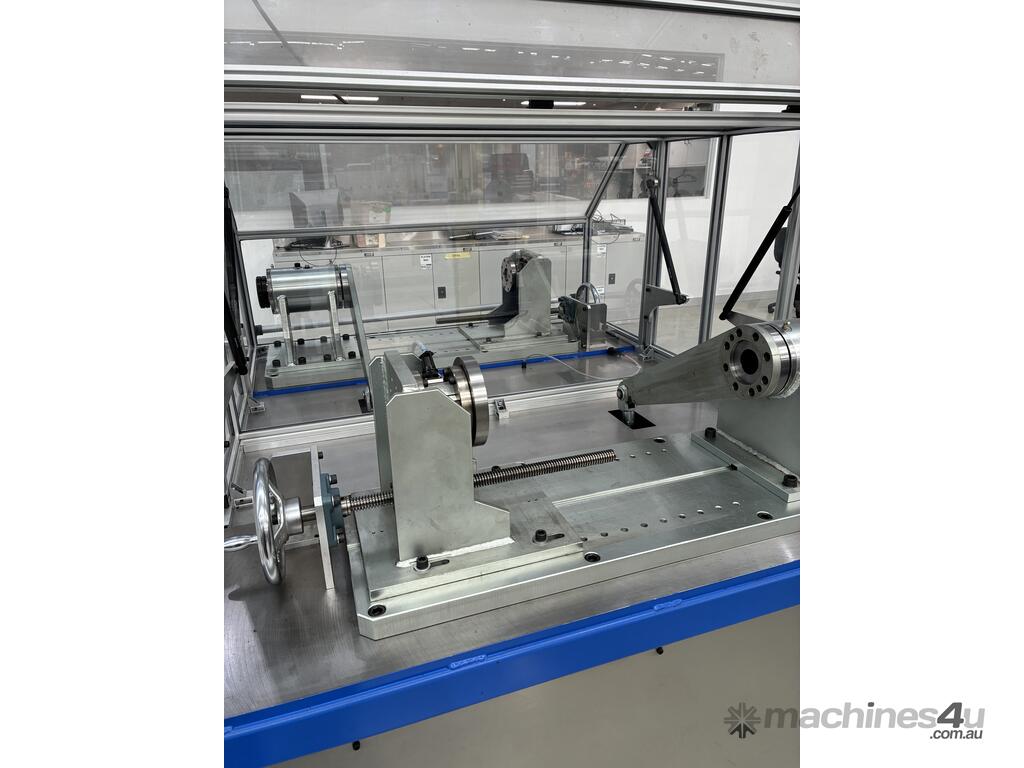

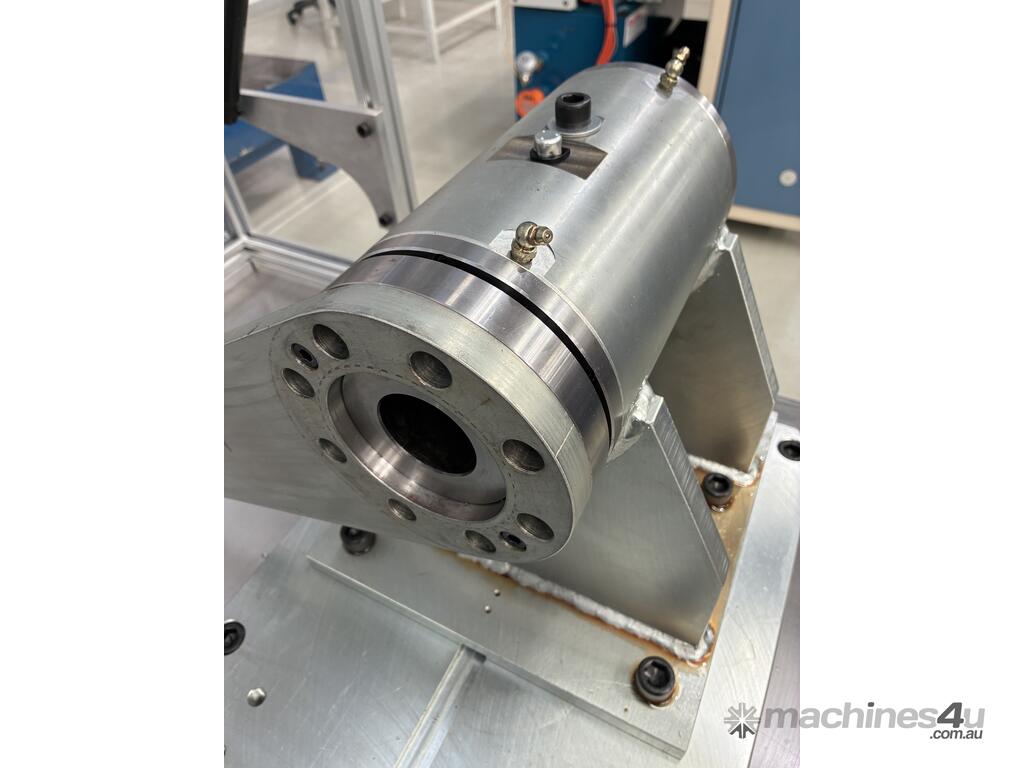

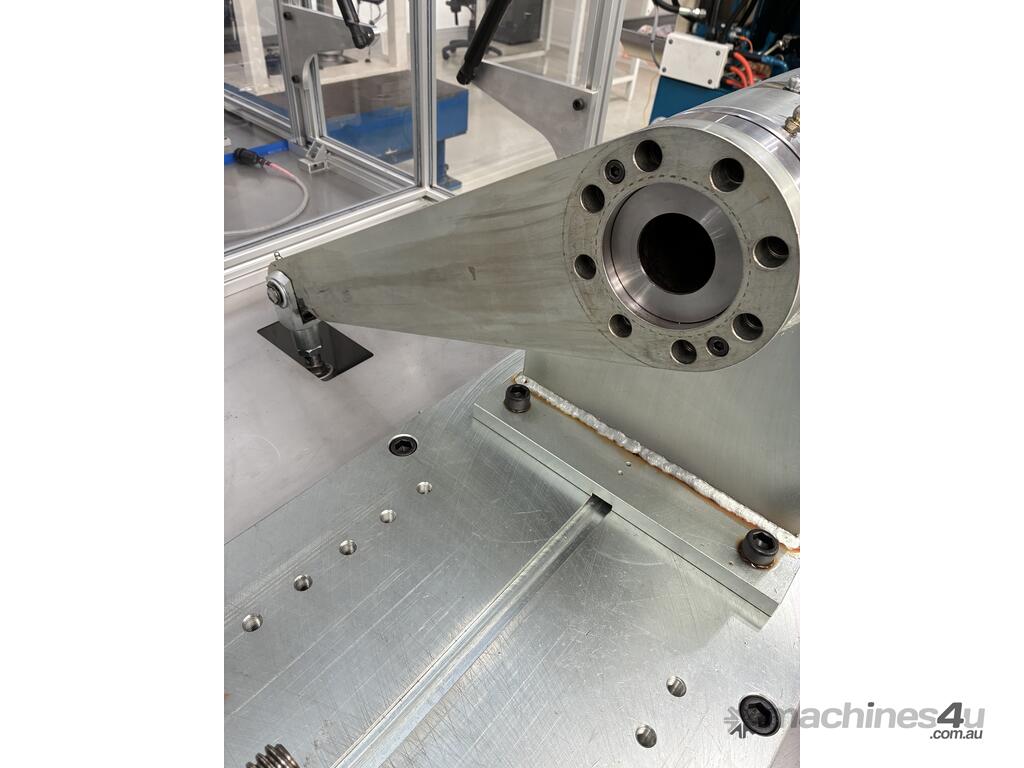

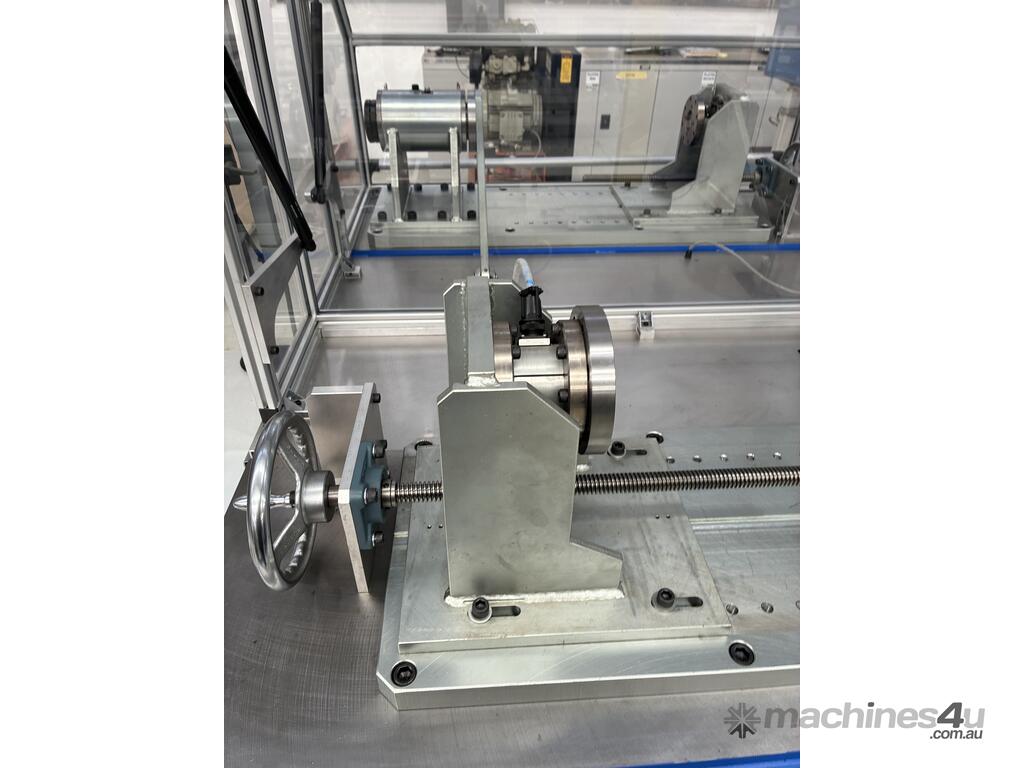

- Dual hub-type bearing stands provide robust support for rotational test specimens

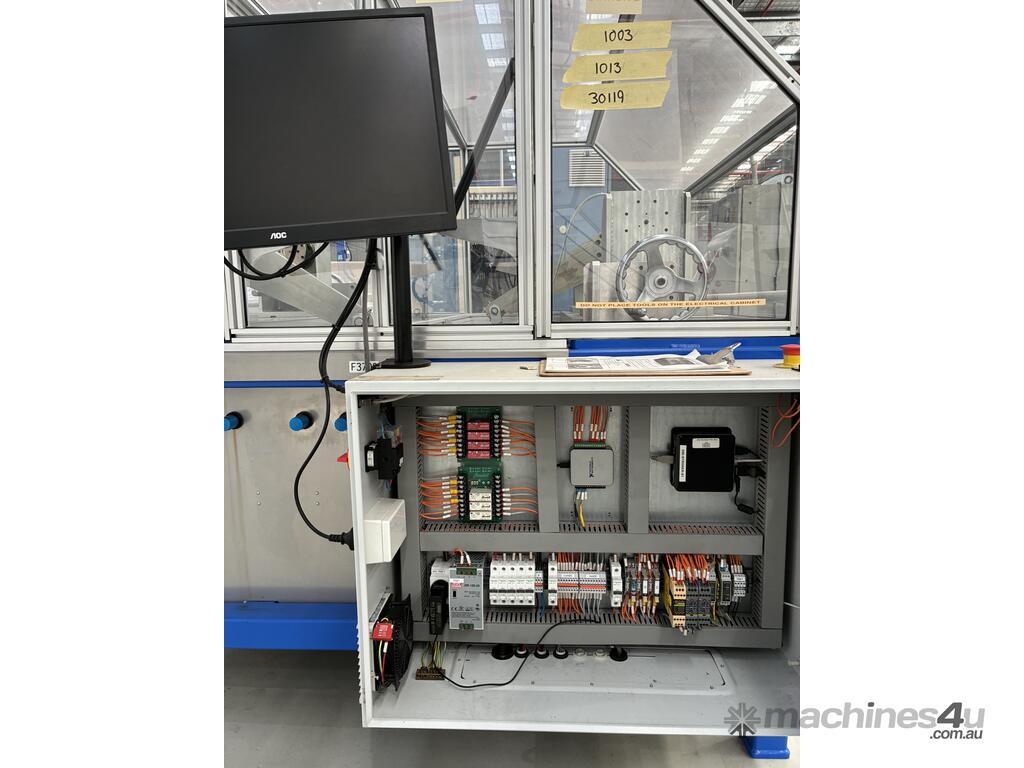

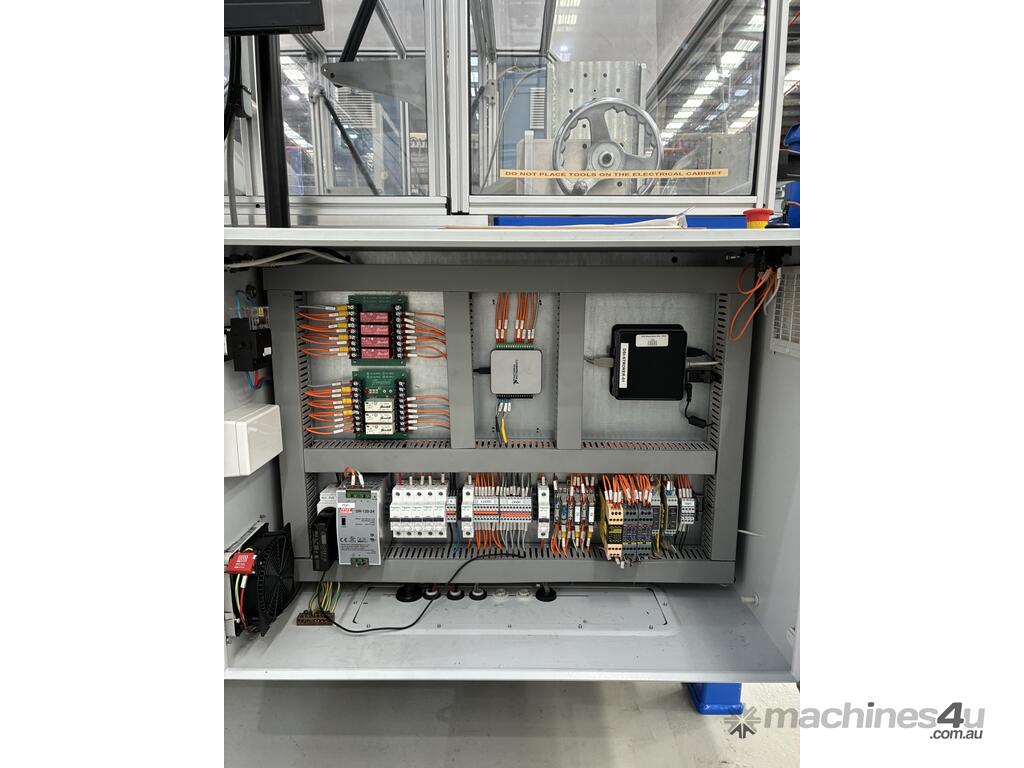

- Electrical switchboard with safety interlocks and relay-based pneumatic control system

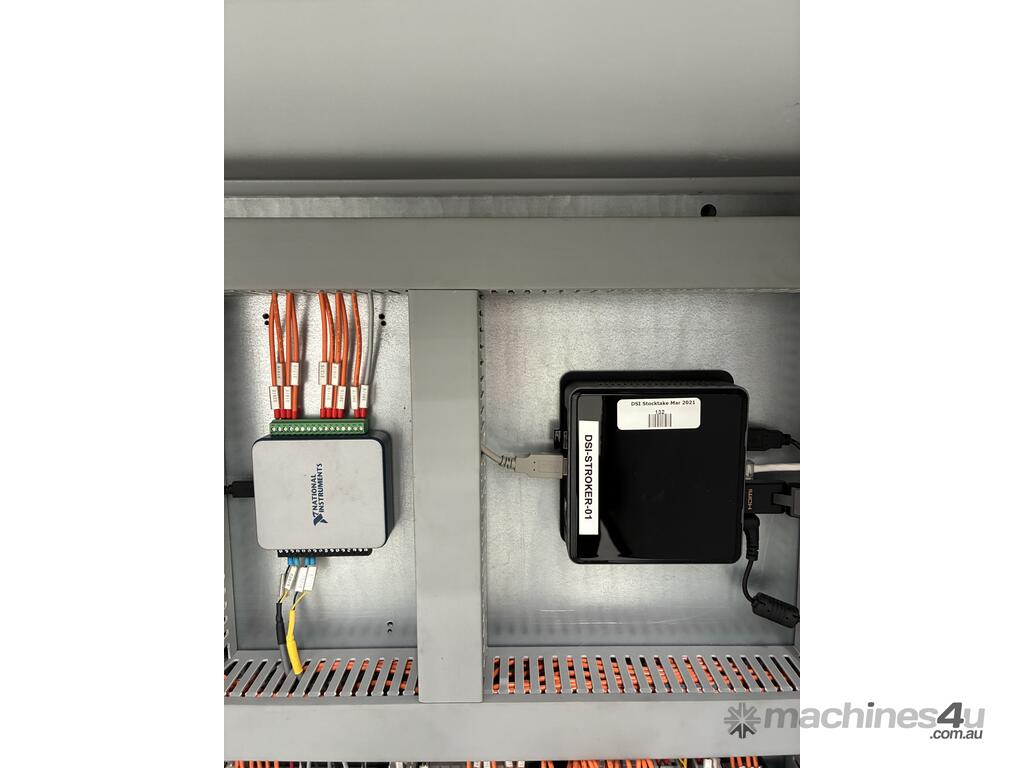

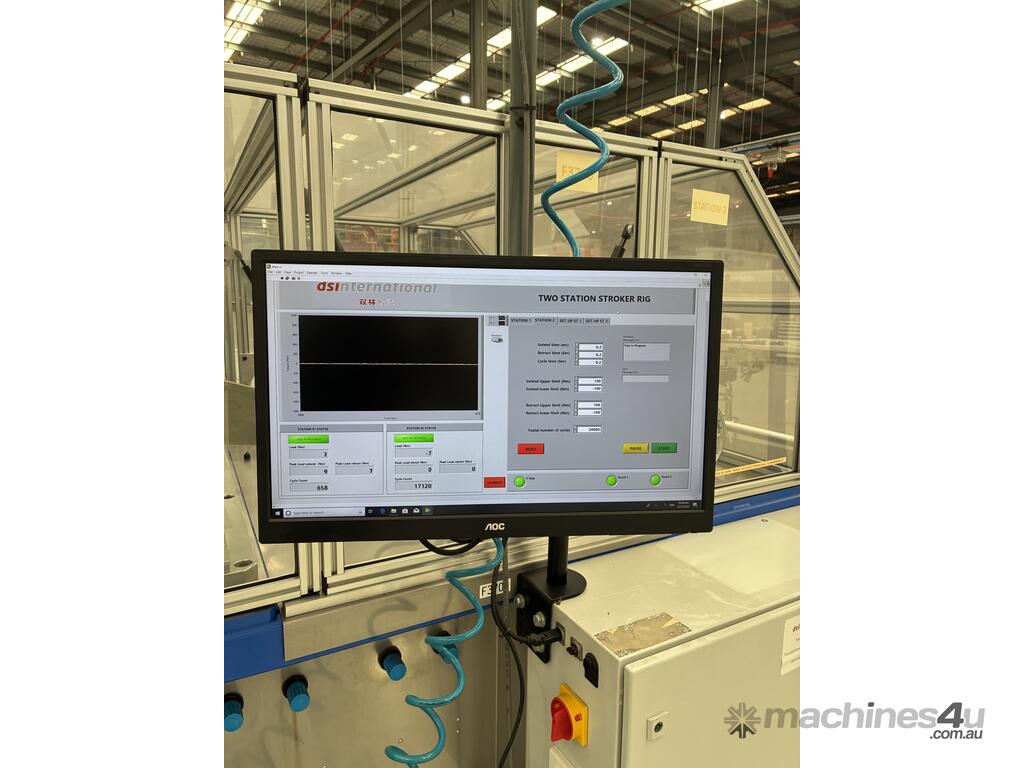

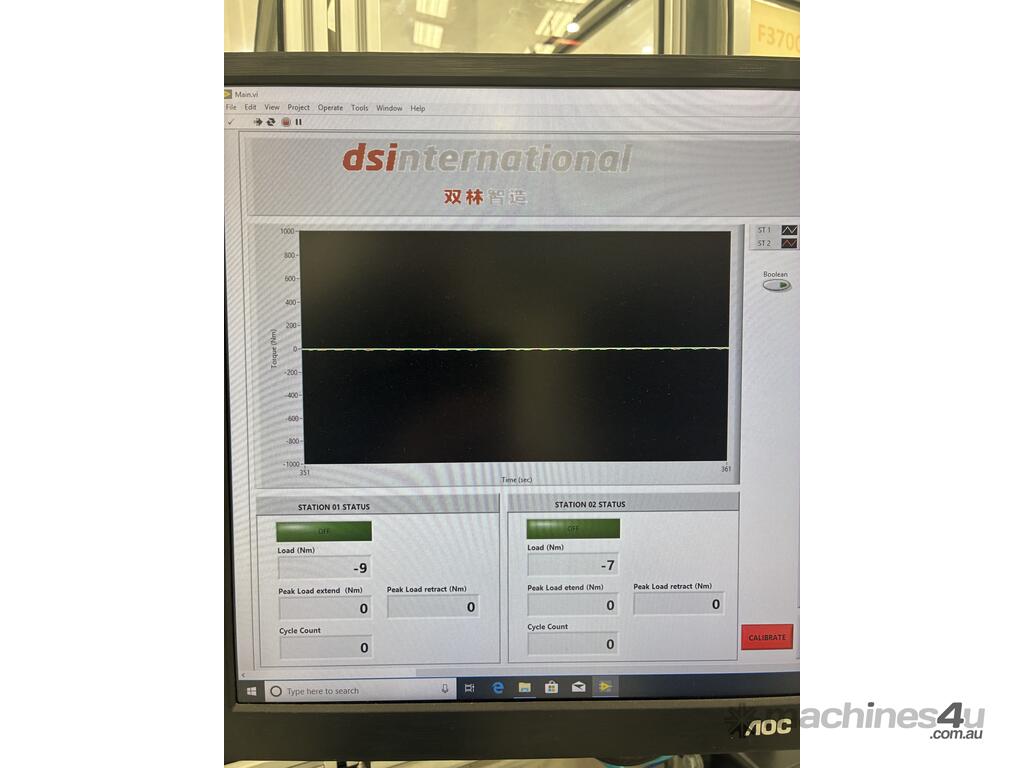

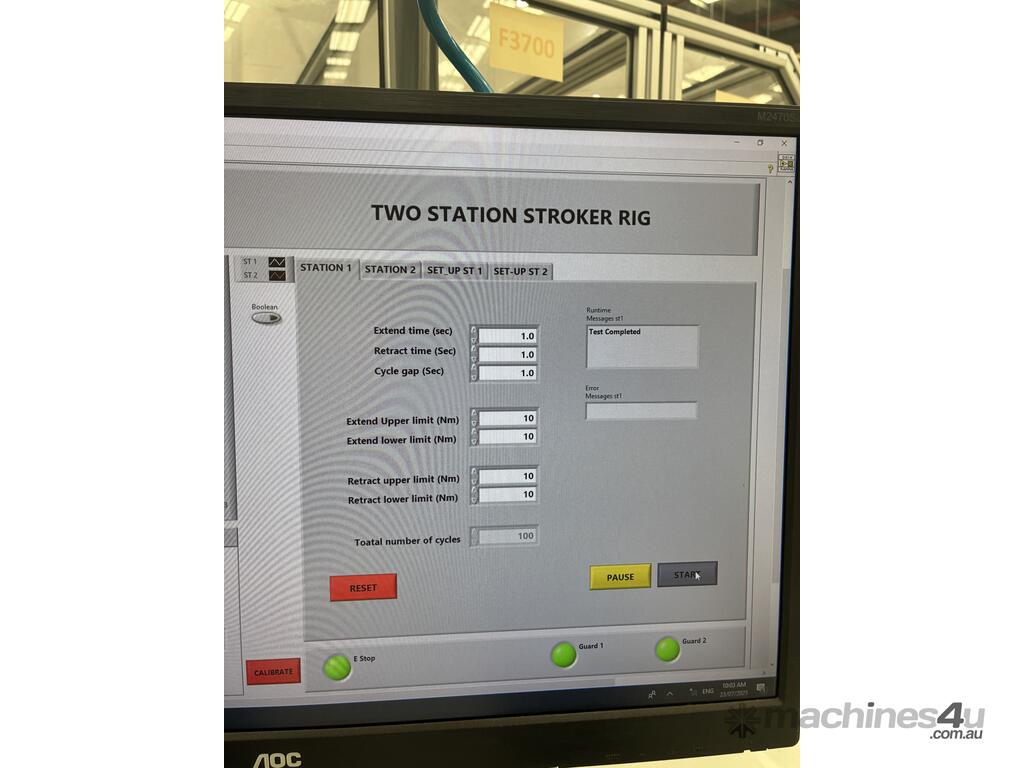

- Industrial NUC PC with monitor and mounting bracket configured for data acquisition and control

- Designed for automated or manual cyclic torque testing applications in research or production environments

Notes on condition
This system was previously utilised in a drivetrain R&D environment. It presents clean and complete, showing light use and industrial-grade build quality.

Item is from a factory closing sale and priced to sell. It is in used condition and untested, sold on an as is, where is basis. Photos form part of the description.
Pickup only. We can assist with loading and have a forklift onsite. In special circumstances, freight may be organised at the buyer’s cost.

Inspection available upon request prior to purchase.
