KANG Industrial Mini Band Saw BS-85

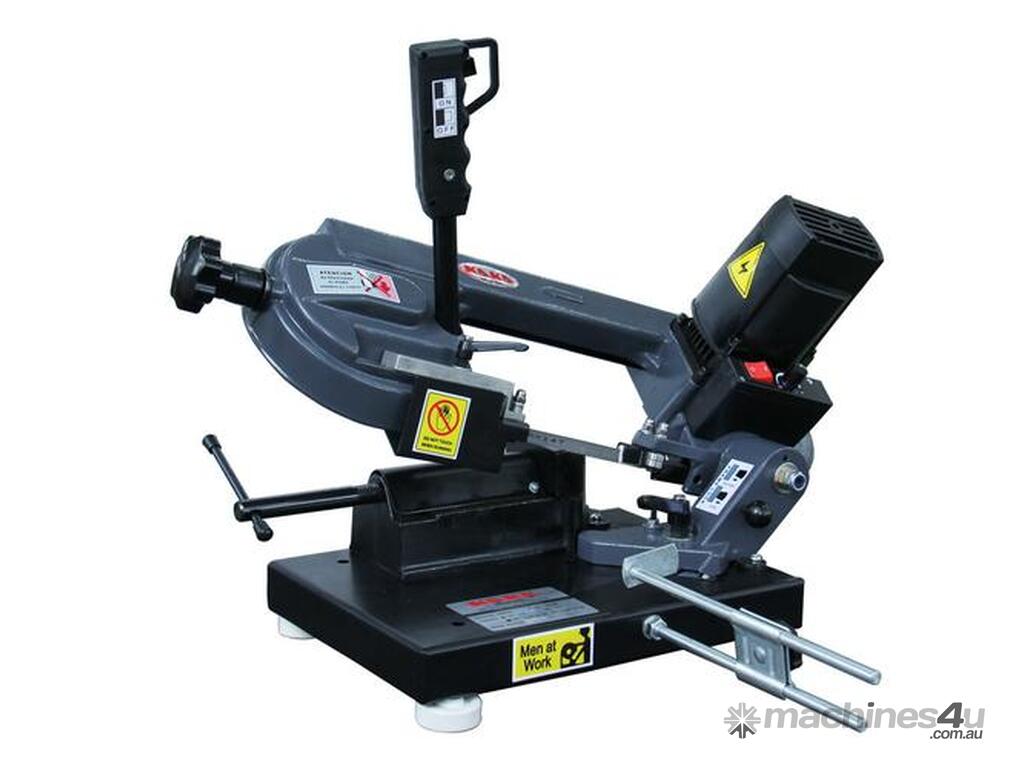

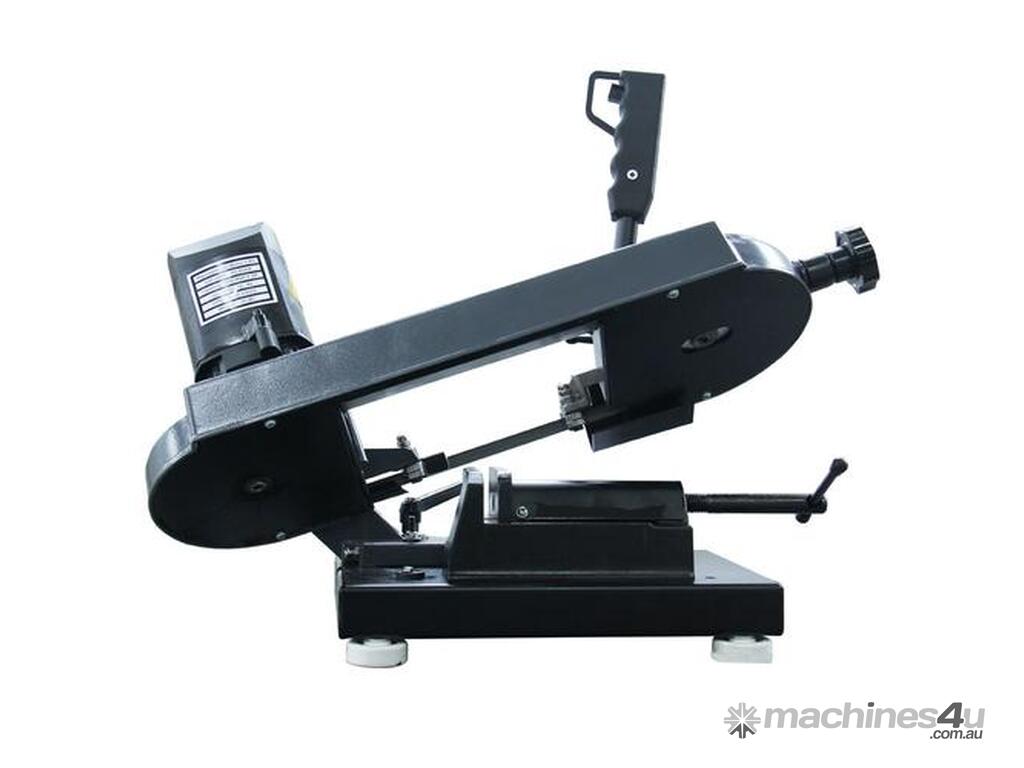

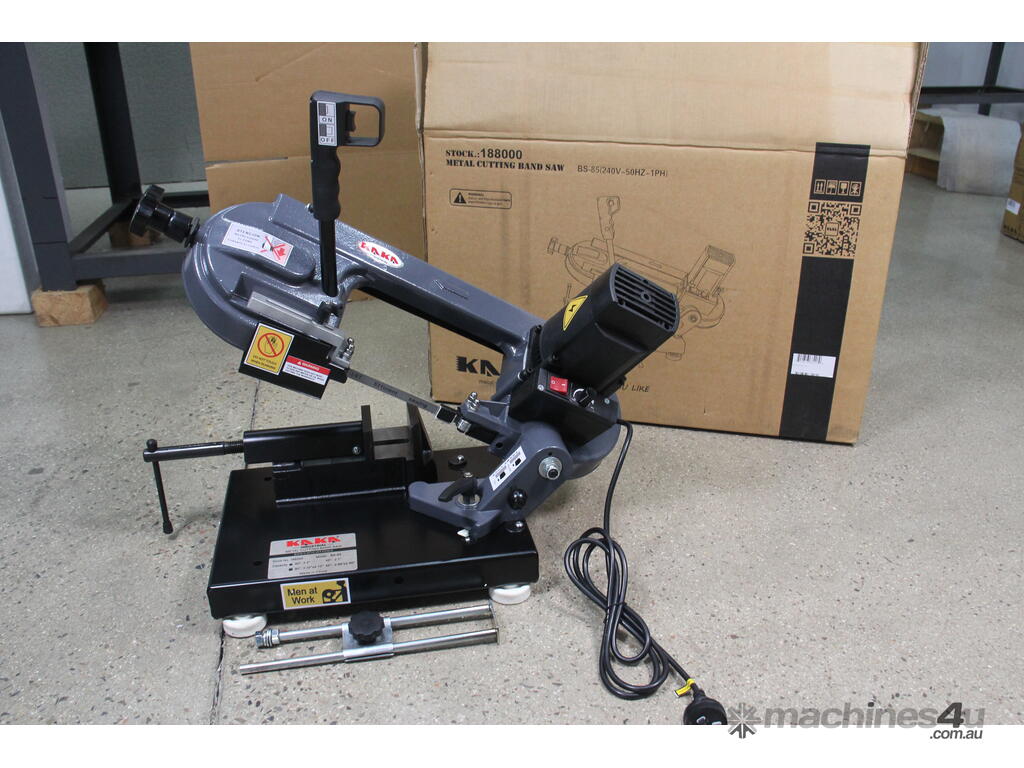

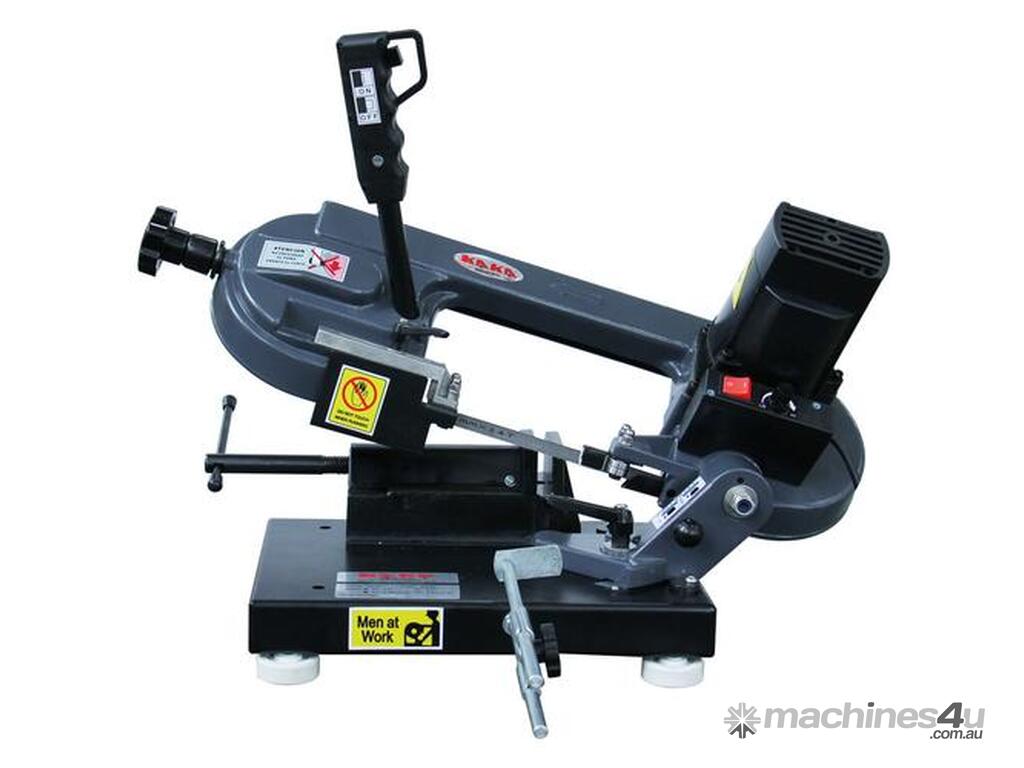

The kang Bandsaw BS-85 is a compact, portable metal-cutting bandsaw designed for hobbyists and small workshops. This hand-operated machine features a powered blade with electronic variable speed control, making it suitable for precise straight and mitre cuts in metal. It includes a built-in vice for secure workpiece holding and allows cutting angles from 0° to 45°.

Cutting Versatility: This Metal Cutting Saw is capable of straight cuts at 90 degrees and mitre cuts up to 45 degrees, ideal for angled fittings in pipework or structural steel

Electronic Speed Control: Variable blade speed adjustment (via a dial on the motor housing) from approximately 40-88 MPM, optimising cut for soft metals or hard alloys to minimise heat  buildup and blade wear

Manual Blade Tension System: The Bandsaw with manual tension adjustment, allowing the user to maintain optimal blade tension for different materials & thickness cutting.

User Friendly: Ergonomic pistol-grip handle for controlled manual reciprocating action, reducing operator fatigue during extended use.

Features

Portable design for smaller workshops or home use

Runs on 240V power, 1.0 kW motor

Mitre saw frame up to 45°

Max. cut 85 mm round bar at 90 degrees

Variable cutting speed

Gear drive band saw



Included Components

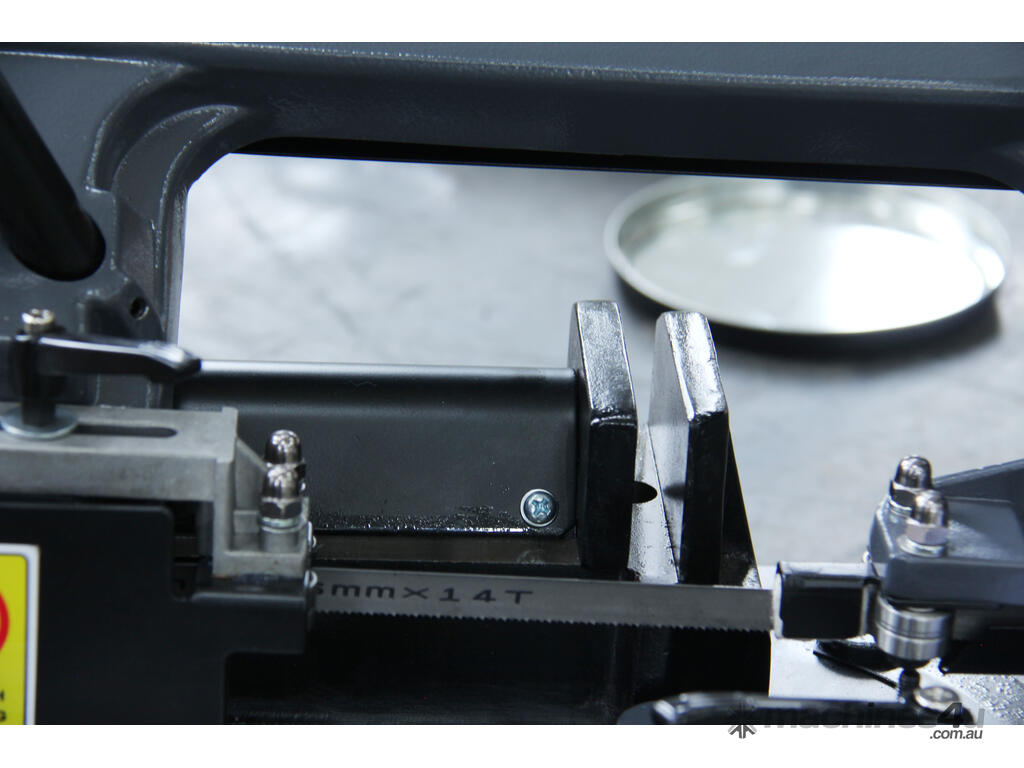

Bandsaw Body with integrated vice and blade guard
Standard 14TPI Bandsaw Blade, installed on the machine


Optional TPI 10/14 Bandsaw Blade is available

Optional TPI 8/12 Bandsaw Blade is available

Specifications
SKU 188000
Model BS-85
Cut circular 90° 85 mm
Cut rectangular 90° 85x105 mm
Cut circular 45° 70 mm
Cut rectangular 45° 65x75 mm
Blade speed 40-88 MPM
Blade size 13x0.65x1325 mm
Motor power 1000 W
Drive Gear
Packing size 72x37x46 cm
N.W./G.W. 19/21 kg
