System was purchased in 2015 and is in excellent order and well looked after, Used for powder coating our internal work only and is still being used until the end of the year ending 2025

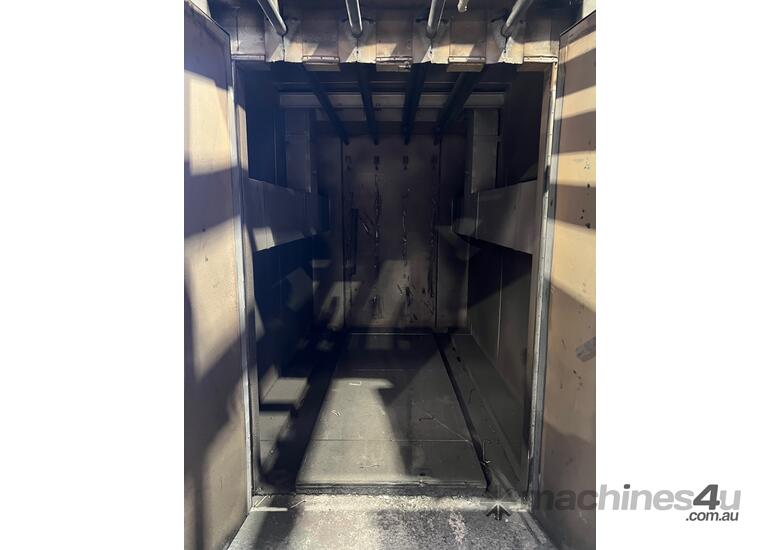

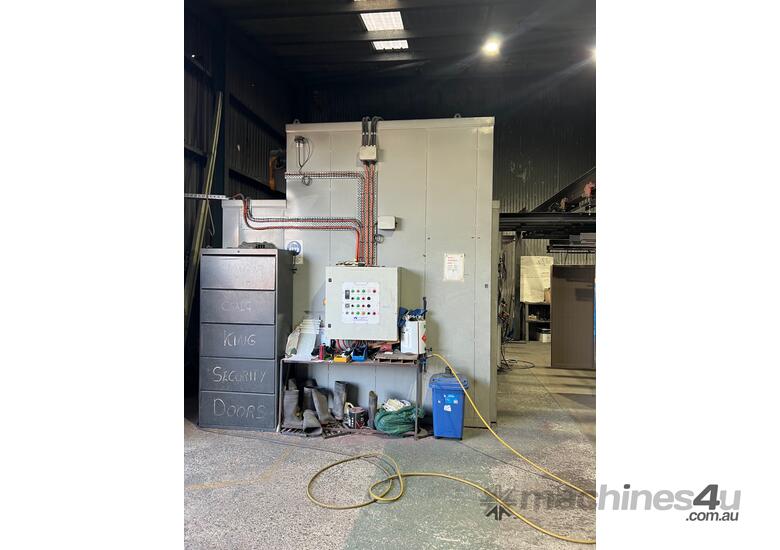

Powder Cure Oven.
Electriy heated forced convection batch oven with double access doors to both ends of the work
chamber.
Clear Internal- 1200W x 2200H x 3000D.
Oven is double case fabrication with 100mm insulation
Infill. The inner case and ductwork is aluminised steel,
complete with insulated floor and wheel grooves to suit clients
work trolley.

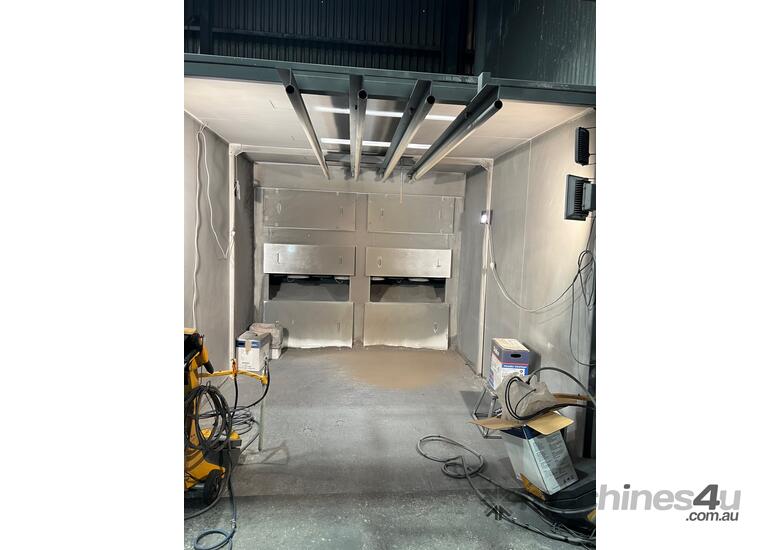

Dry Cartridge Spray Booth (automatic reverse pulse cleaning)
Booth Size: 2200W x 2400H x 3500D
Construction: Preformed zinc anneal panels finished white powder coat.
Cartridges: 8 off, 350 dia x 660 long polyester cartridges.
Fan: Direct drive centrifugal fan.
Secondary Filter: DG2 filter media exhausting clean air in to factor area.
Reverse Pulse: 8 off Goyen reverse pulse blow nozzles.
Electrical: Sheet metal cabinet with controls and timer for automatic sequential pulse
cleaning of cartridges by compressed air.
Collection Hopper: Collect waste powder in powder supply box and plastic bags.
Enclosure: Preformed Panel enclosure 3500 deep
Lighting: 1 only twin 40 Watt fluro lights behind safety laminated glass.

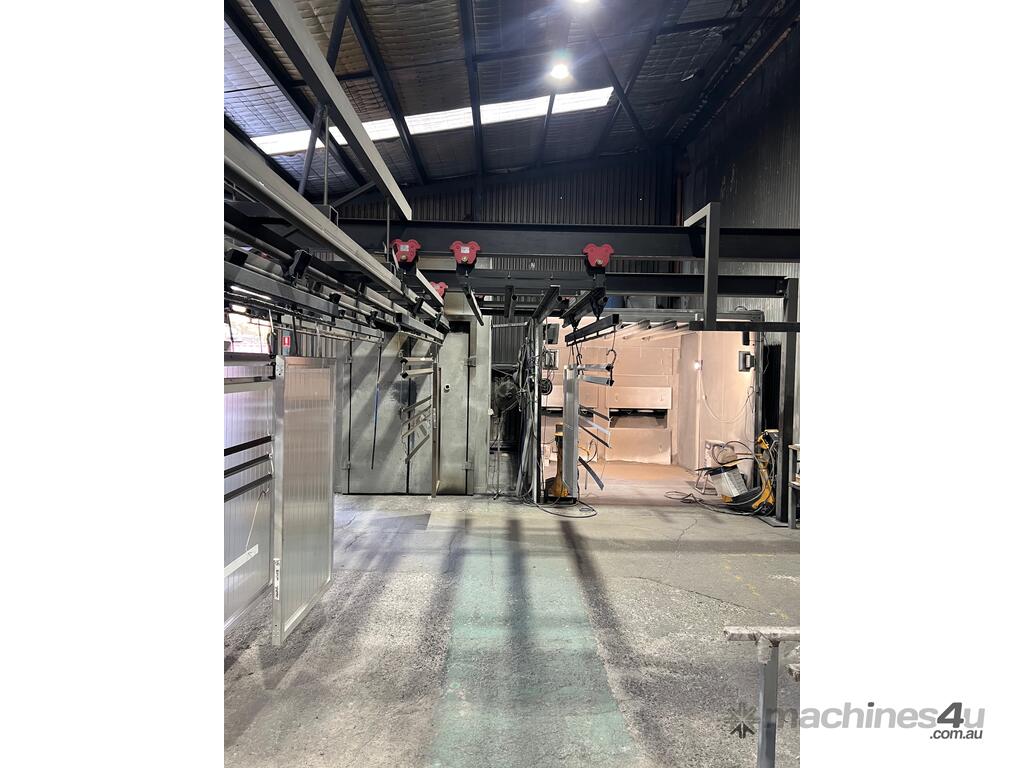

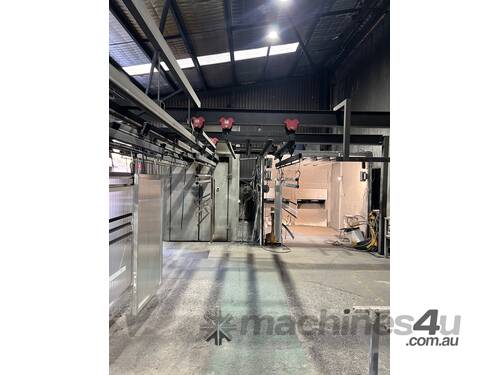

Overhead Track System.
Overhead manual push track system,
The system includes 6 off x 3 metre long load bars each fitted with two 250 kg SWL
pipe trolleys.
59 metres of track with stiffeners.
2 transfer carriage with lock assemblies.
Inspections welcome
Location is Minto NSW 2566
