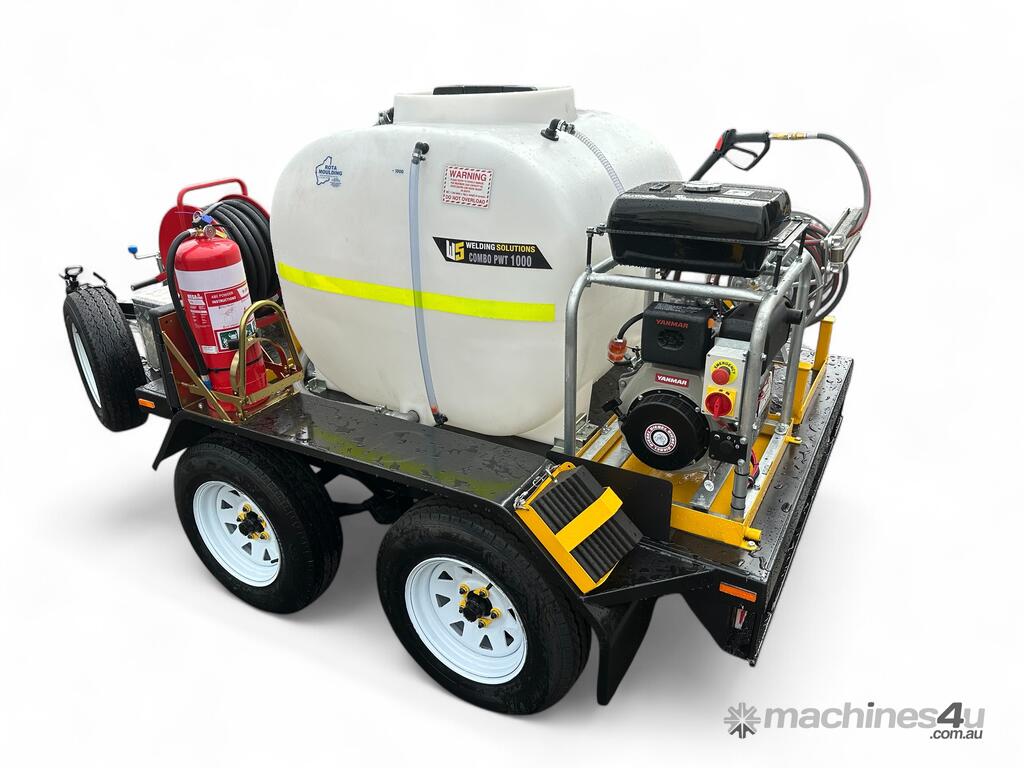

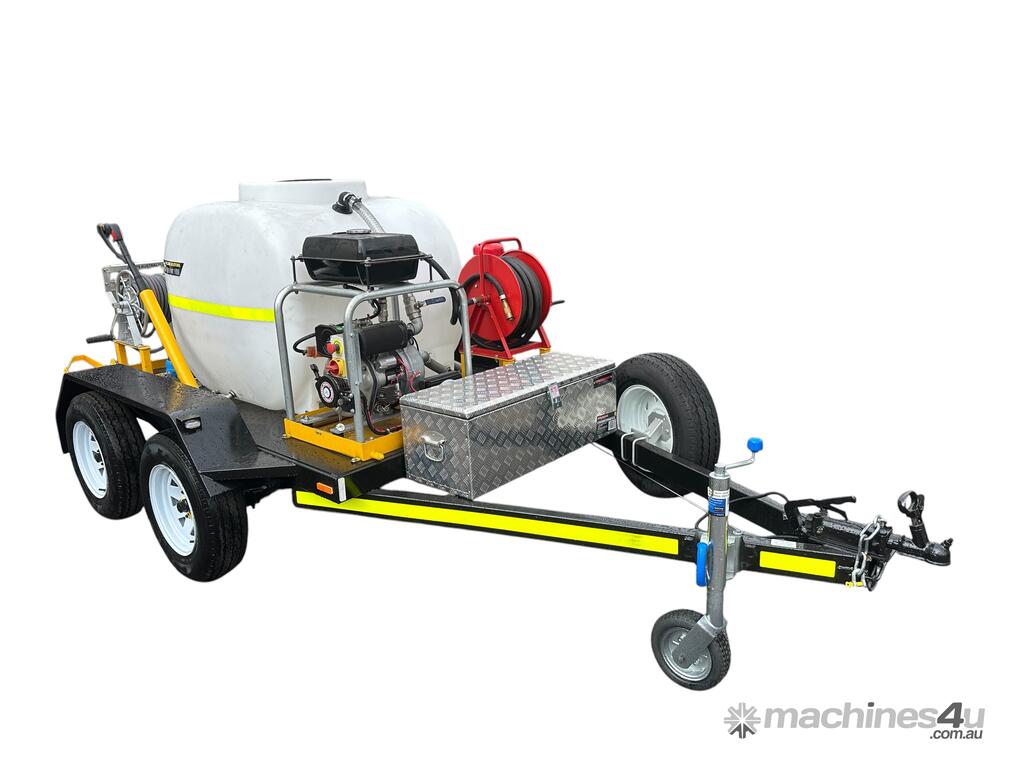

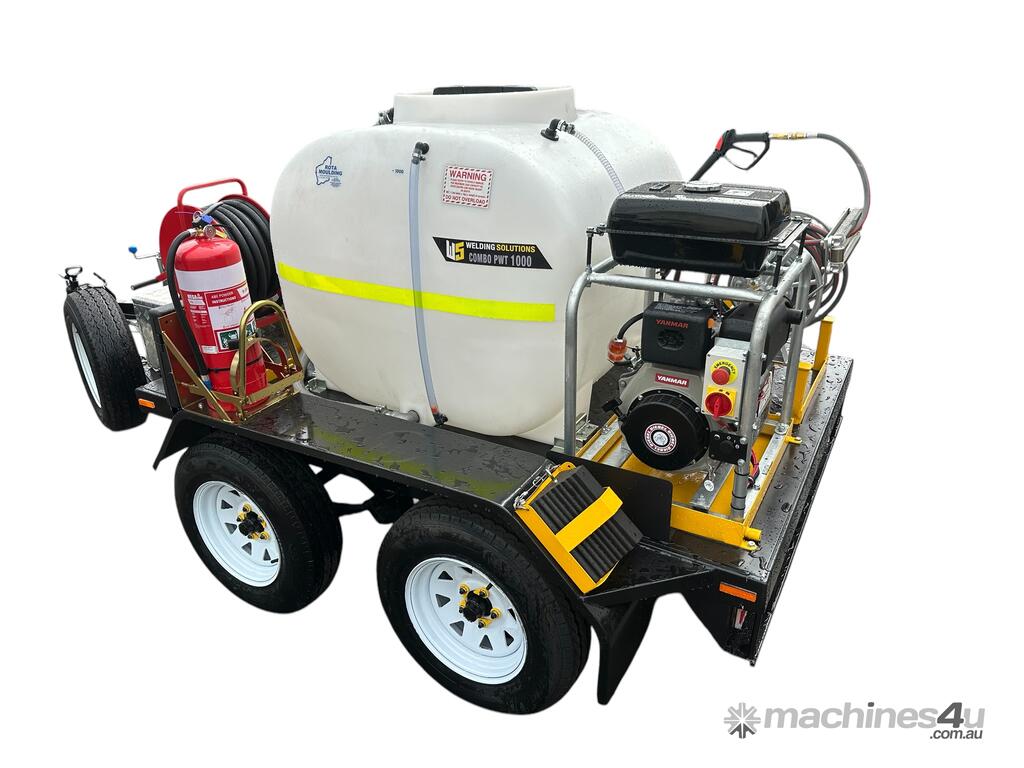

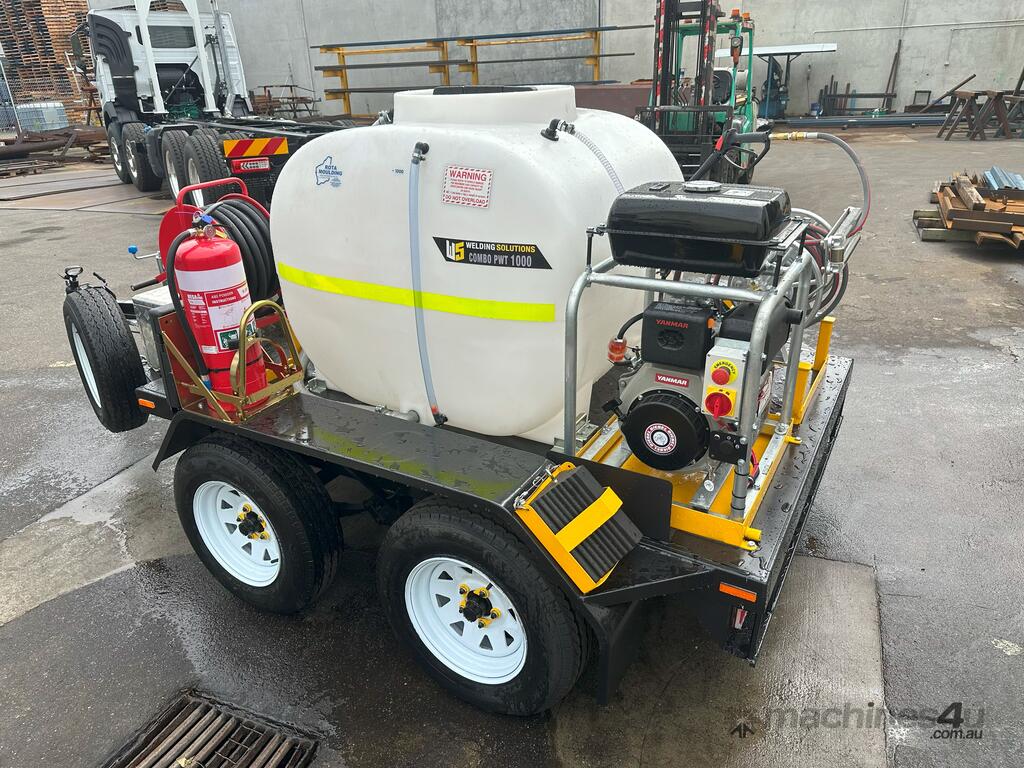

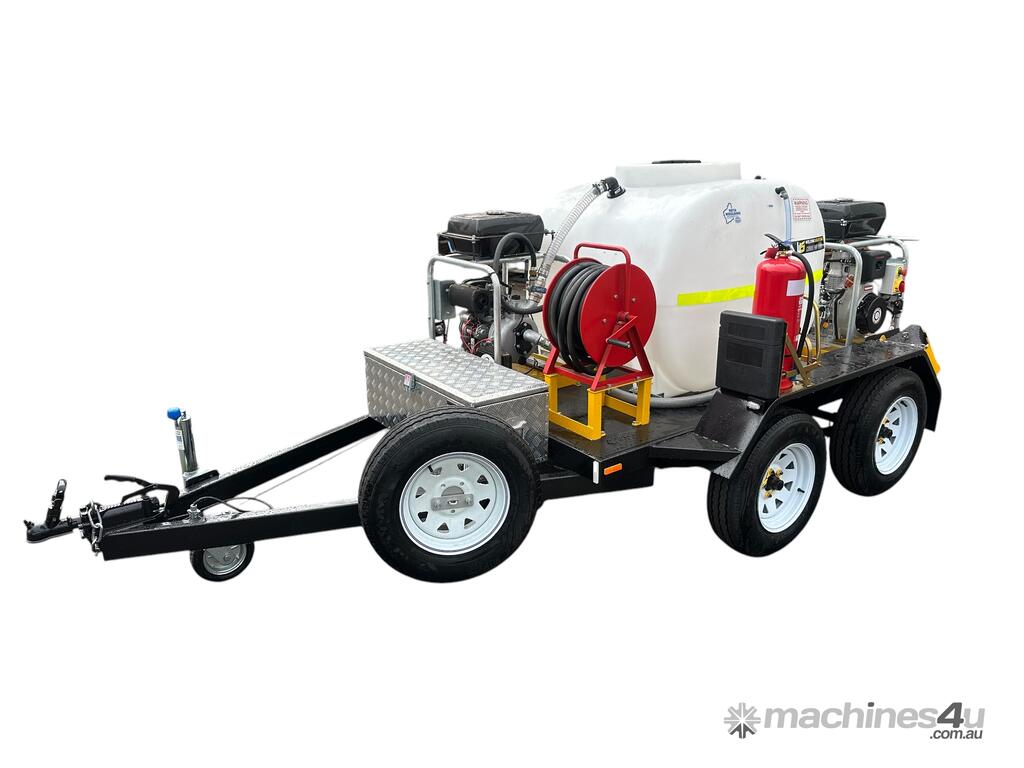

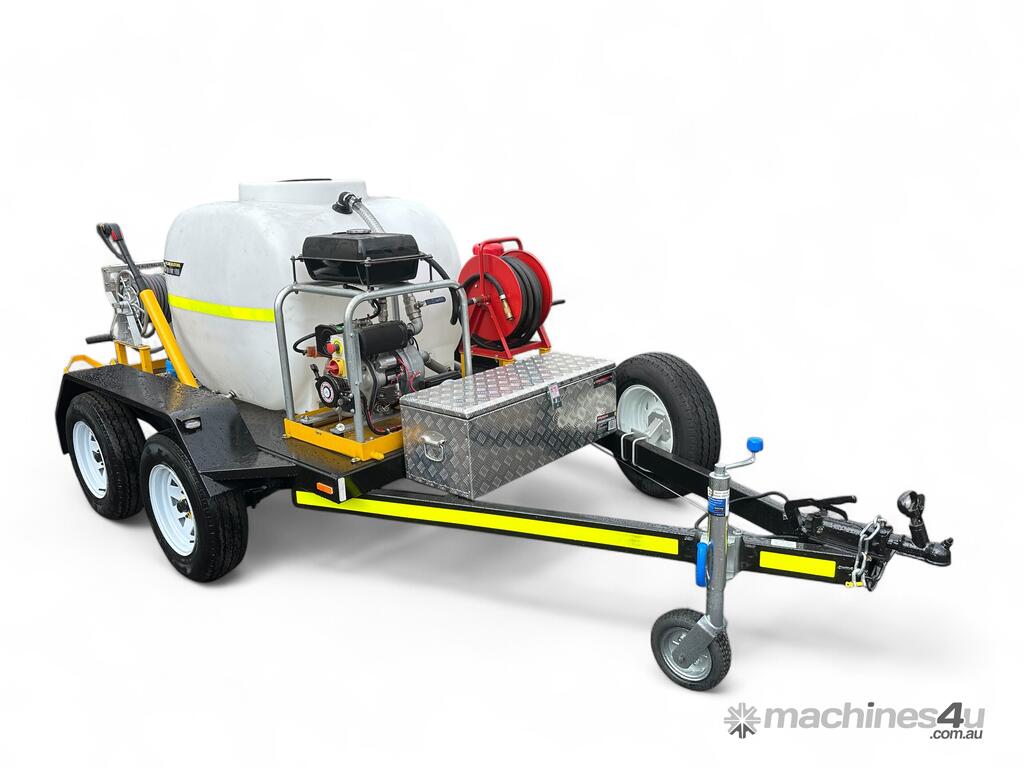

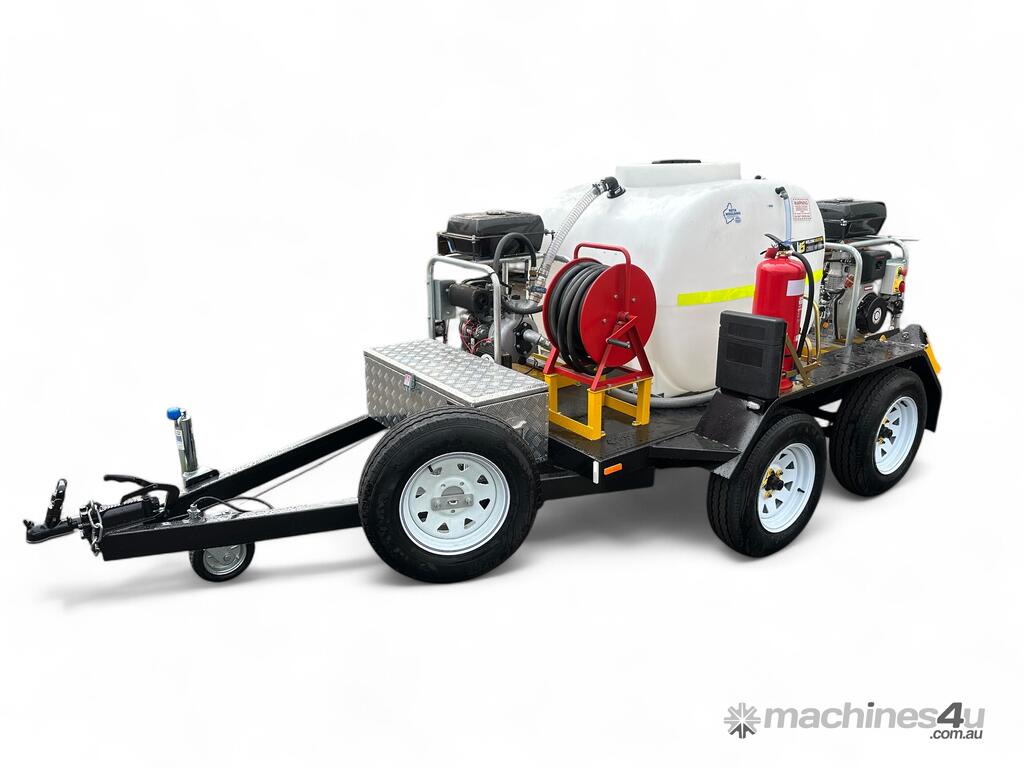

Pressure washer Trailer

Specifications for New 2025 1000L Combo Pressure Washer Trailer.

TRAILER
? Tandem axle flat top trailer
• Painted black
• Atm 2000 kg
• Heavy duty 40mm square axles
• Mechanical disk brakes mechanical override.
• 2 Ton rocker springs
• New 14” 5 Stud rims with 185 x14” LT tyres
• Solid checker plate floor and guards.
• Heavy duty swing up jockey wheel
• LED Rear lights
• Spare wheel on bracket at front
• 7 pin round plug connector
• 12 months structural warranty on trailer

WATER TANK
• 1000 Litre Poly water tank mounted to trailer
• Litres marked on rear of tank
• Clear sight gauge at one end of tank.
• Tested all water pump functions with water before delivery
• 5 Year Warranty on Poly Tank

PRESSURE WASHER PUMP – HIGH PRESSURE
• L100 YANMAR 10HP Diesel engine electric start
• 4000psi 13LPM
• Long range 15ltr fuel tank
• Industrial Grade AR pump with ceramic pistons, stainless steel valves
• Relief valve and unloader valve with hose plumbed to return to tank to protect pump
• Heavy Duty hose reel with 30 metres of 3/8” high pressure hose
• Stainless-steel high-pressure lance
• Galvanised engine mounted frame with vibration mounts

LOW PRESSURE PUMP AND REEL
• L48 YANMAR 4.8hp Diesel engine Electric start
• 1 ½” Fire pump
• 65mtr Head 400lpm max flow
• Long range 15Ltr Fuel tank
• Fire/washdown hose reel 25Mtrs of ¾ Hose with brass fire nozzle
• Galvanised engine frame with vibration mounts
• 6 months warranty on engine/pump set-up

MINE SPEC OPTIONS INCLUDED IN BUILD
• Raised hose reels to assist with material handling.
• Safety heat guard over rear engine exhaust
• 9 KG tested and tagged fire extinguisher fitted with bracket
• Front mounted Aluminium toolbox
• Emergency stop fitted to both pumps
• Battery isolator fitted to both pumps
• MSDS Document Holder
• Reflective tape 50 mm wide around the trailer
• Turbo nozzle for pressure washer
• Inline water filter fitted
• Pressure gauge fitted to 10HP Pressure washer
• 2 x Wheel chocks fitted
• Bunding tray to hold 110% of pump engine fluids
• Wheel nut indicators
