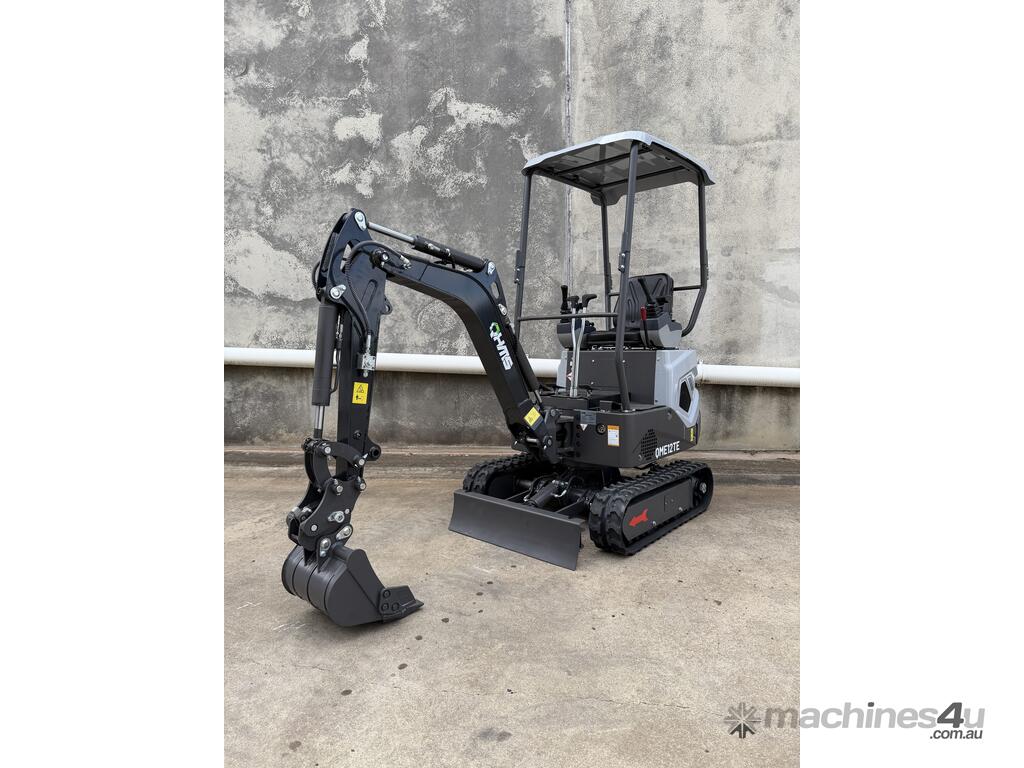

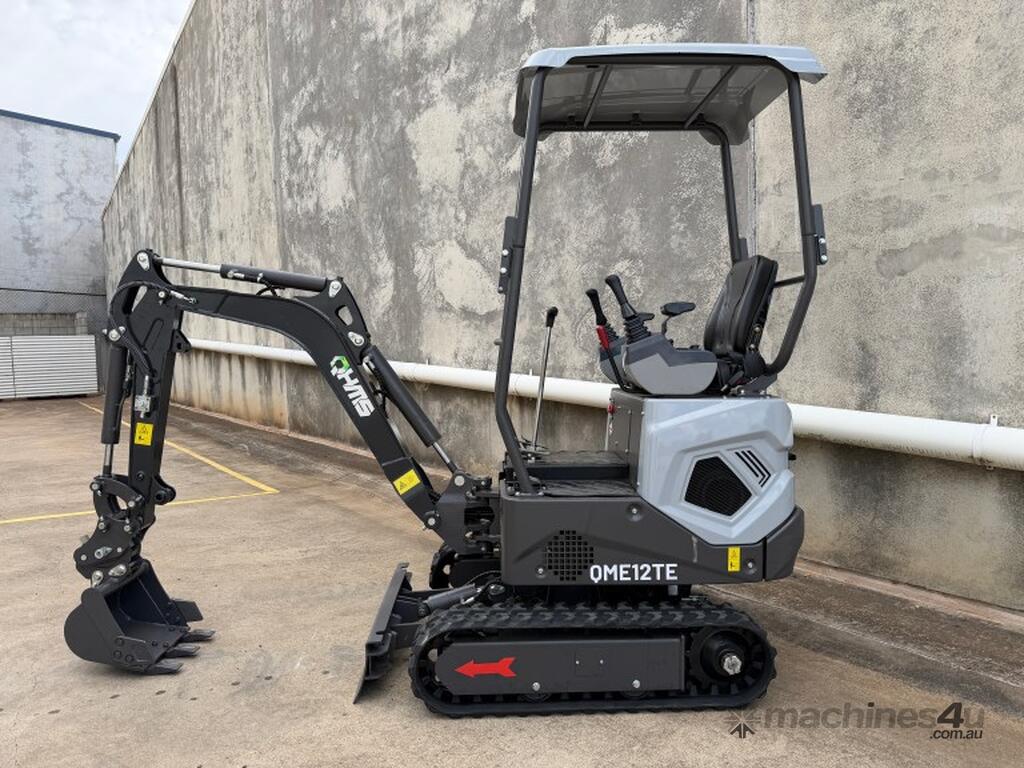

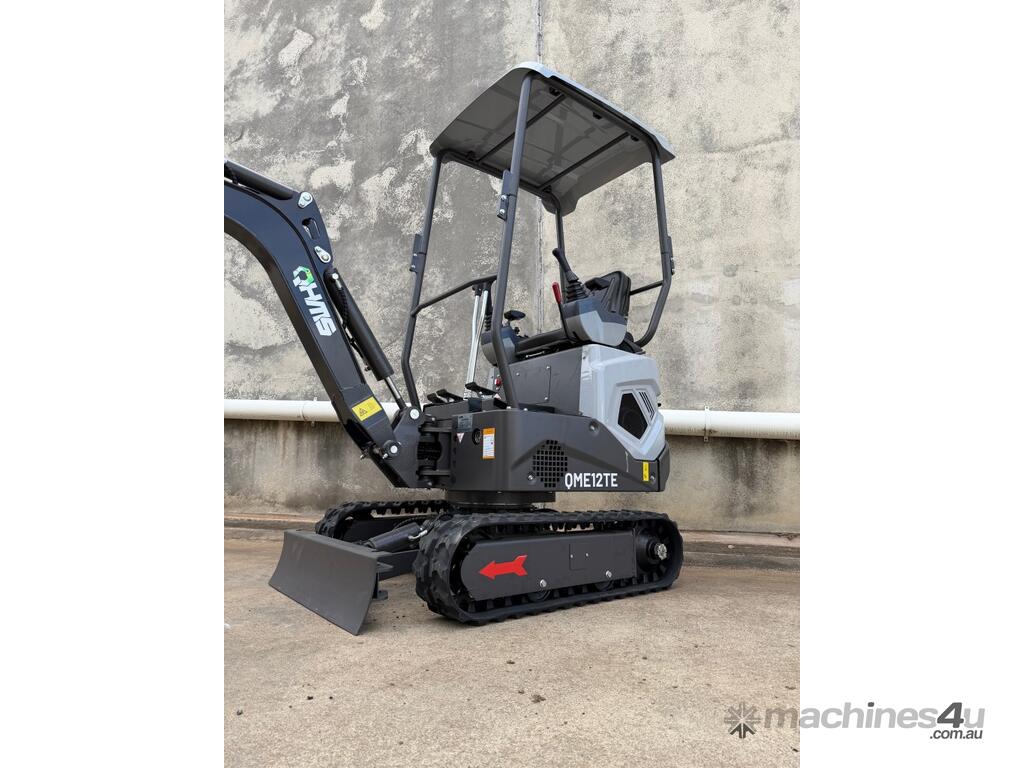

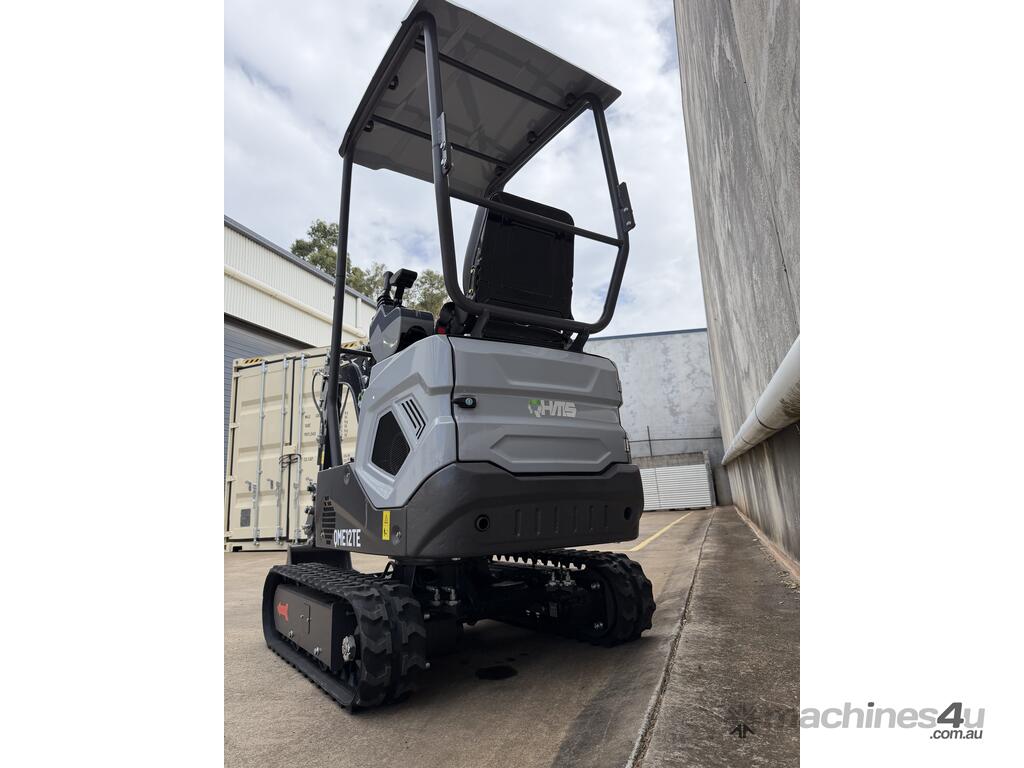

Key Features:
Expandable Tracks: 880-1100mm
Swing Boom
Operating Weight 1200kg
Koop Diesel Engine

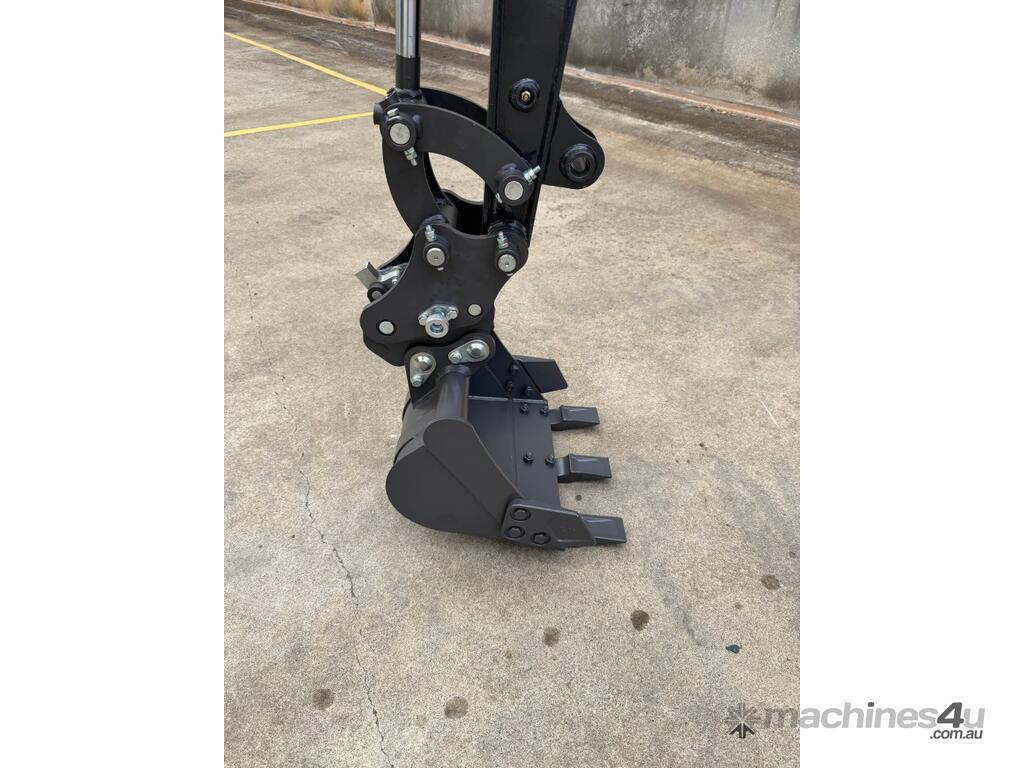

Package Price includes 7 Attachments – 200mm Bucket, 400mm Bucket, 600mm Toothless Bucket, Ripper, Wood Grapple, Hydraulic Auger with 200mm Drill pipe & Semi-Auto Quick Hitch
General:
Bucket Capacity: 0.02 m³
Operating Weight: 1200 kg
Total Length: 2890 mm
Total Width: 930 mm
Track Width (Expandable): 880–1100 mm
Total Height (with/without canopy): 2285 mm / 2030 mm
Swing Speed: 9 rpm
Max. Torque: 25/250 N·m/r/min
Max. Gradeability: 30°
Max. Travel Speed: 1.8 km/h

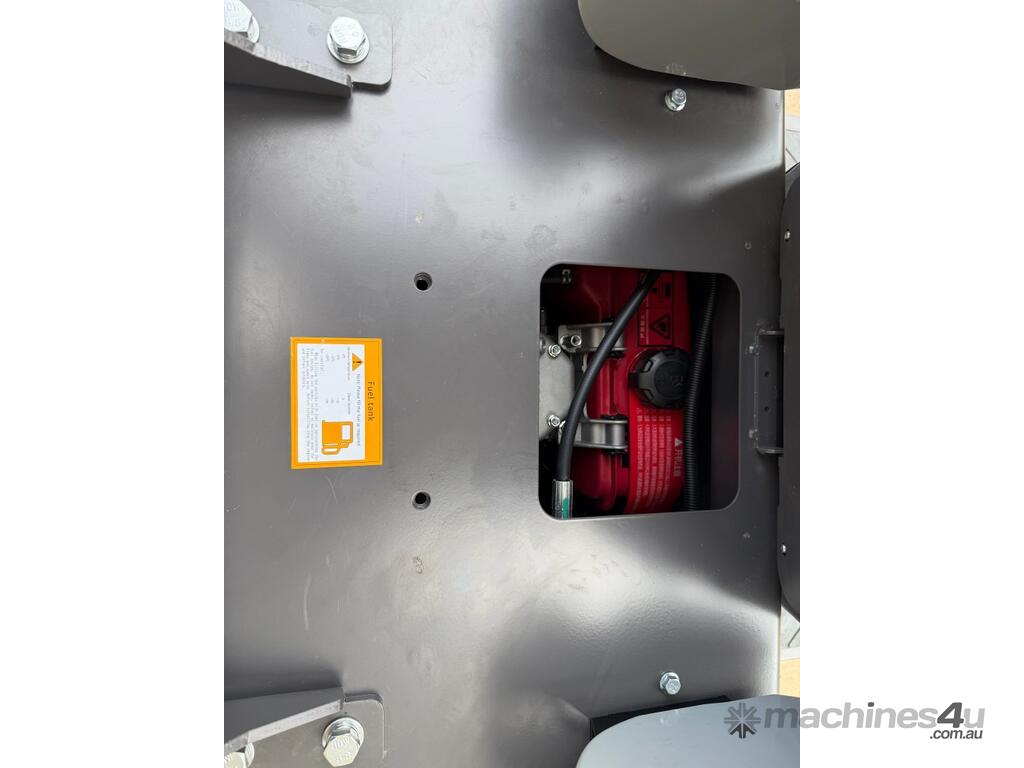

Engine:
Model: Koop 192FA
Power: 7.6 kW 3000 rpm
Performance:
Max. Digging Force: 6.5 kN
Max. Digging Height: 2490 mm
Max. Unloading Height: 1745 mm
Max. Digging Depth: 1760 mm
Max. Excavation Distance: 3030 mm
Max. Vertical Digging Depth: 1655 mm
Min. Turning Circle: 1490 mm
Max. Digging Ground Distance: 2940 mm
Max. Dozing Height: 170 mm
Max. Dozing Depth: 240 mm
Configuration:
Control Valve: NHI Multi-Way Valve
Hydraulic Pump: Tianjin Walking Gear Pump
Walking Motor: Zhenjiang Vigorously Walking Motor
