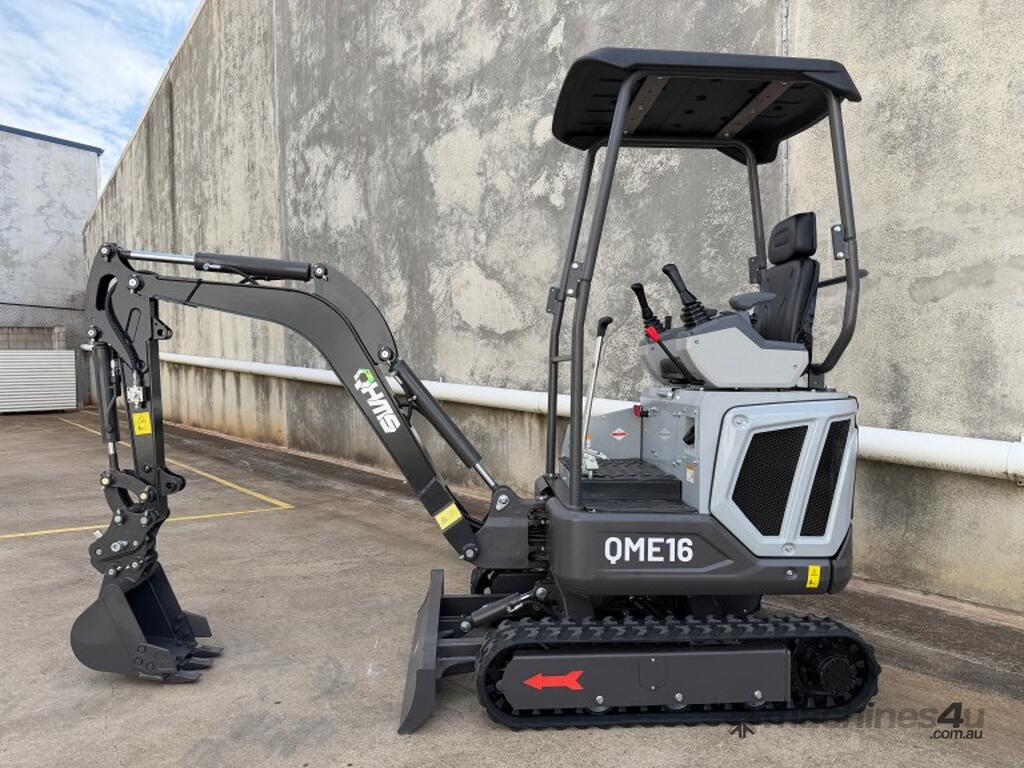

Key Features:
Kubota Engine
Swing Boom
Operating Weight 1600kg

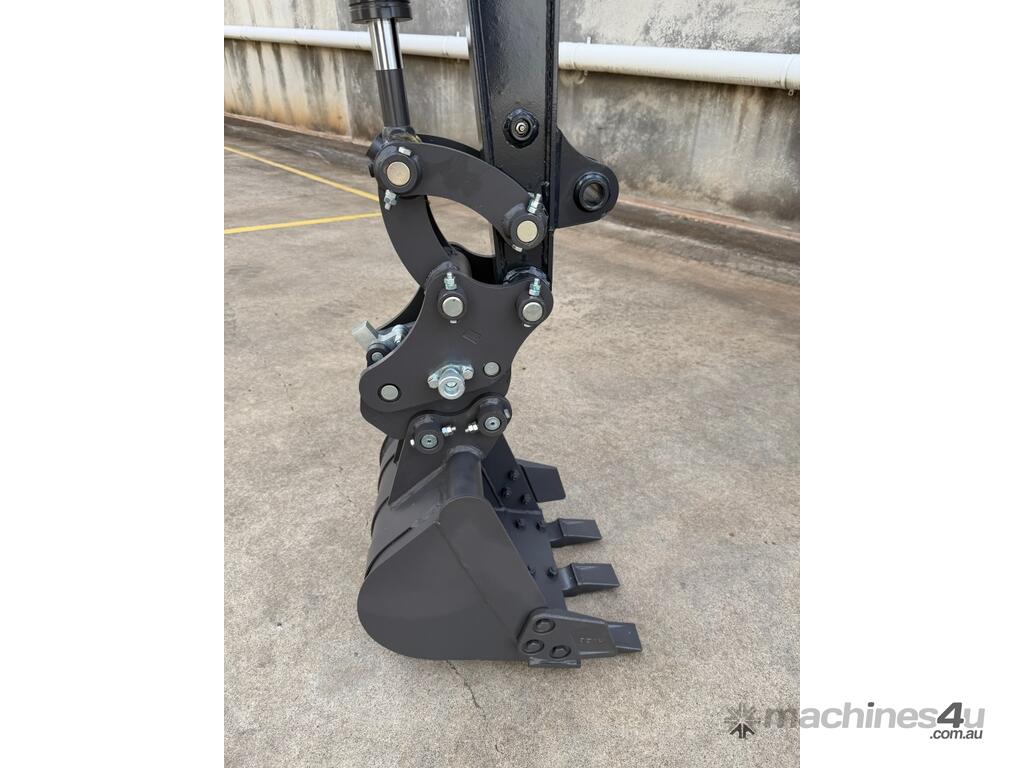

Package Price includes 7 Attachments – 200mm Bucket, 400mm Bucket, 600mm Toothless Bucket, Ripper, Wood Grapple, Hydraulic Auger with 200mm Drill pipe & Semi-Auto Quick Hitch
Bucket Capacity: 0.03 m³
Operating Weight: 1600 kg
Total Length: 2950 mm
Total Width: 1100 mm
Total Height (with/without ceiling): 2220 mm

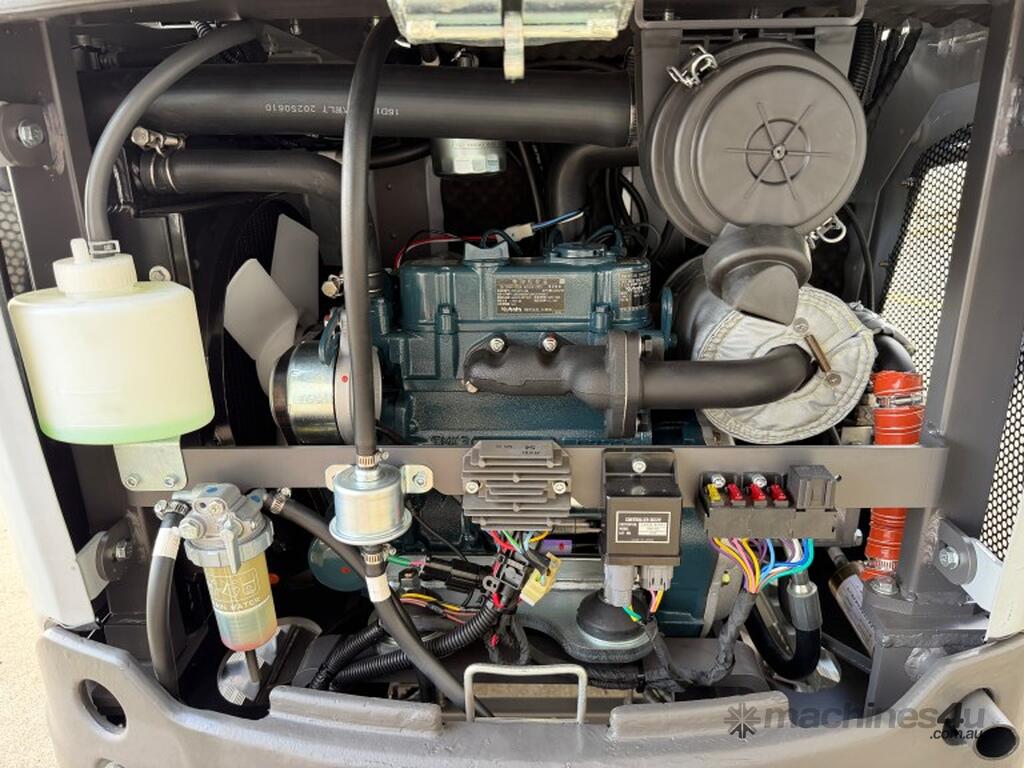

Engine: Kubota D722
Engine Power: 10.2 kW

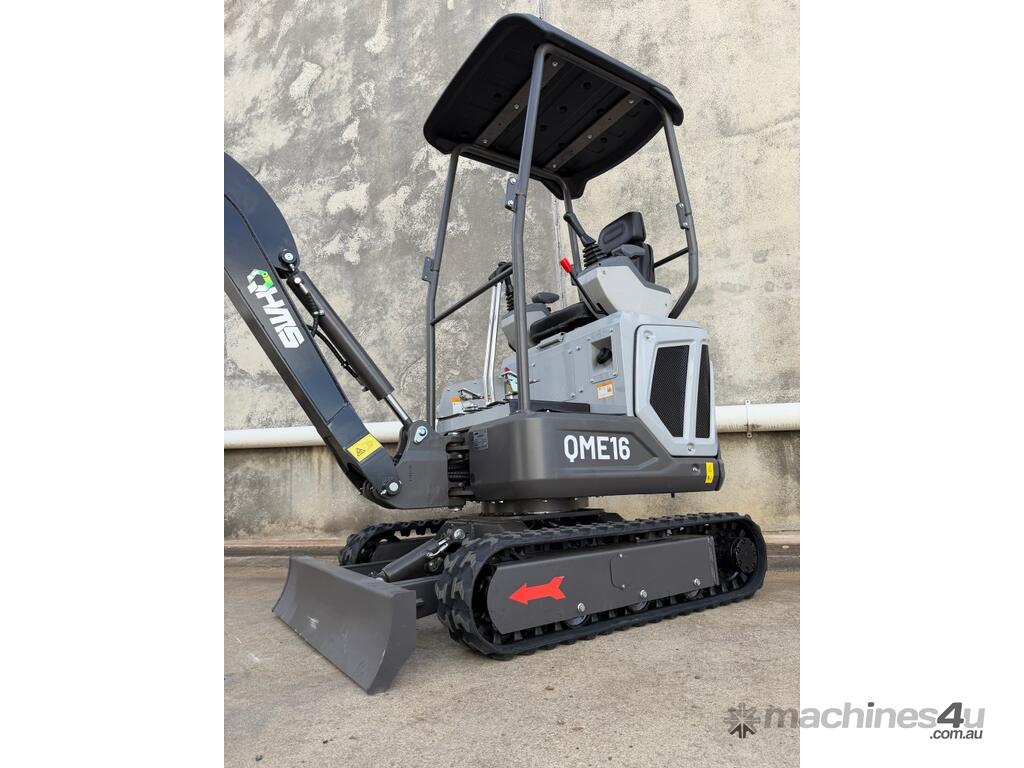

Bulldozer Blade Width: 1100 mm
Bulldozer Blade Height: 210 mm
Track Centre Distance (transportation): 920 mm
Standard Track Width: 180 mm
Platform Clearance: 400 mm
Standard Bucket Width (with/without teeth): 350 / 380 mm
Total Track Length: 1390 mm
Max. Excavation Height: 2970 mm
Max. Unloading Height: 2030 mm
Max. Excavation Depth: 1780 mm
Max. Vertical Arm Excavation Depth: 1550 mm
Max. Excavation Distance: 3420 mm
Min. Turning Radius at Front End: 1350 mm
Max. Excavation Ground Distance: 3380 mm
Max. Dozing Height: 150 mm
Max. Dozing Depth: 220 mm
