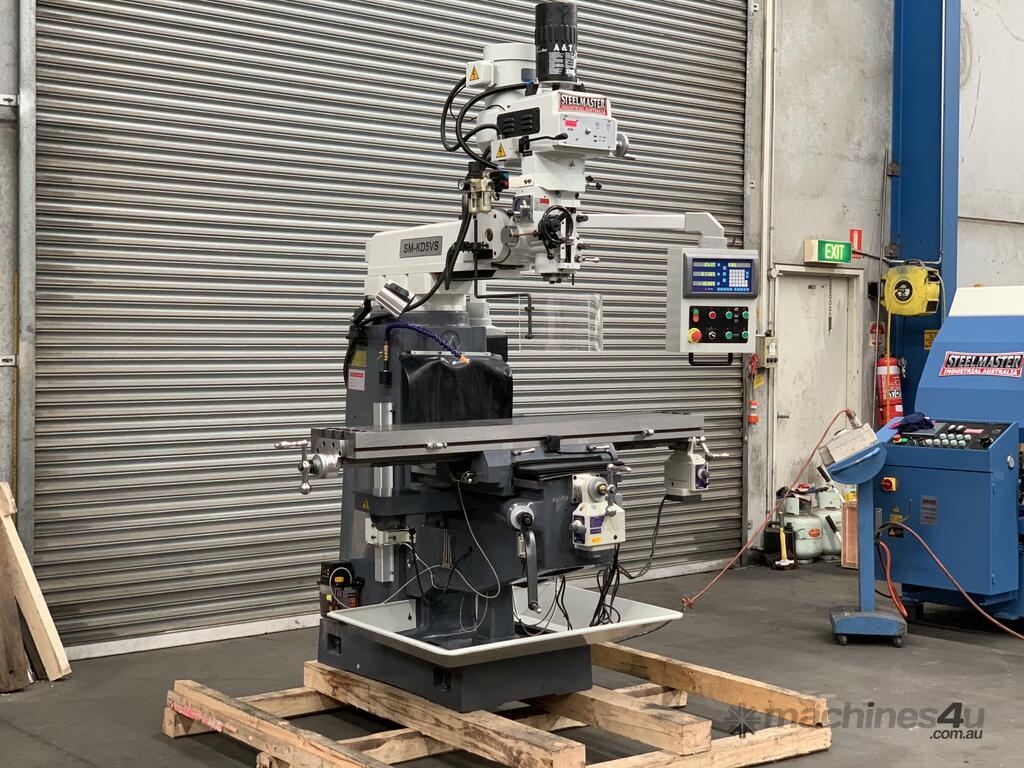

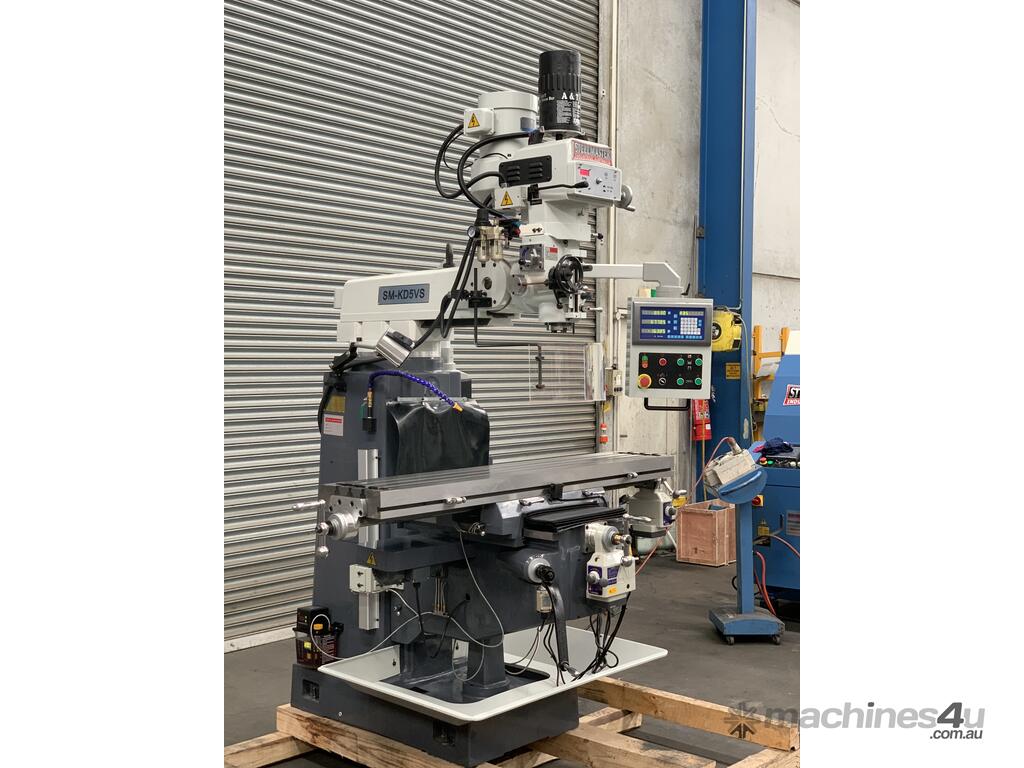

Quality ISO40 Turret Milling Machine Power Knee & 3 Axis Digital Read Out

SM-KD4VS. Turret Mill Steelmaster. Pwr Draw Bar, ISO40 Spindle, 2 Axis Power Feed, 3 Axis DRO.

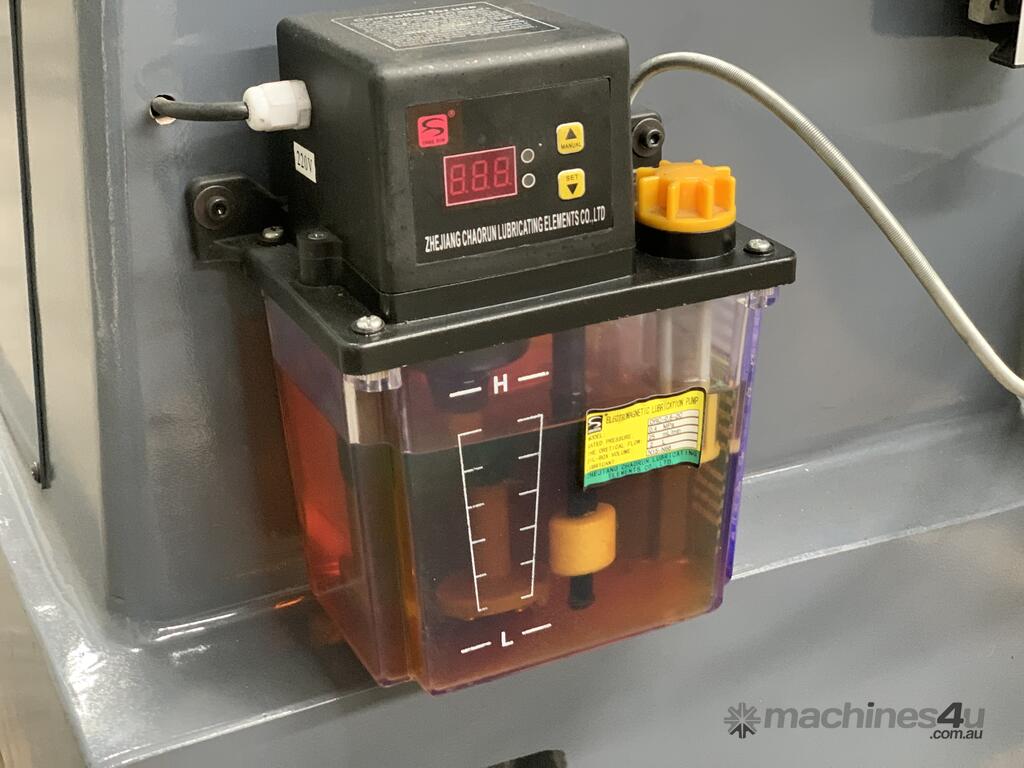

1270mm x 254mm Table, 80 ~ 4200 Variable Speed. Coolant, Lube System, Splash Tray & Tool Kit - V

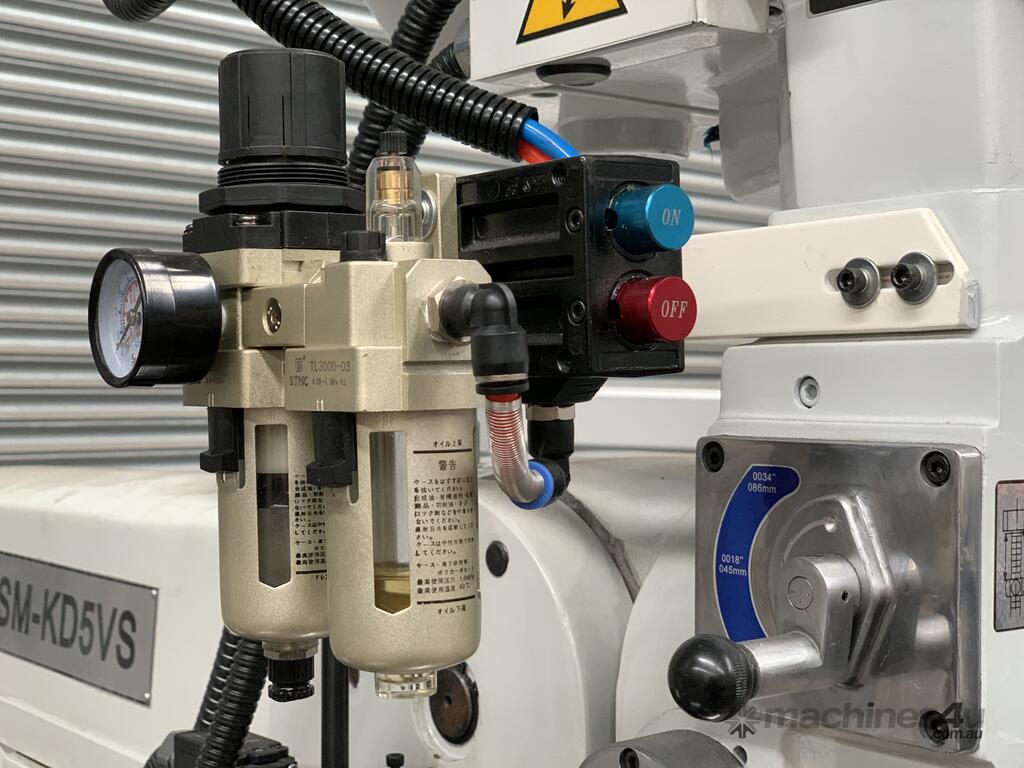

## POWER DRAW BAR FITTED FOR EASE OF TOOL CHANGE & OPERATOR SAFTEY ##
Description
This Mill is made with uncompromising quality Hardened and ground table, chromed quill & Turcite coated ways mean built-in durability for years of service. Check out the capacities, features & specifications below! This is the machine to have for years of accurate, trouble-free operation. Fitted with Easson 3 axis digital read out. two axis table feed, power knee, variable speed head, quill feed all combine to serve you well.

Features
?power draw bar

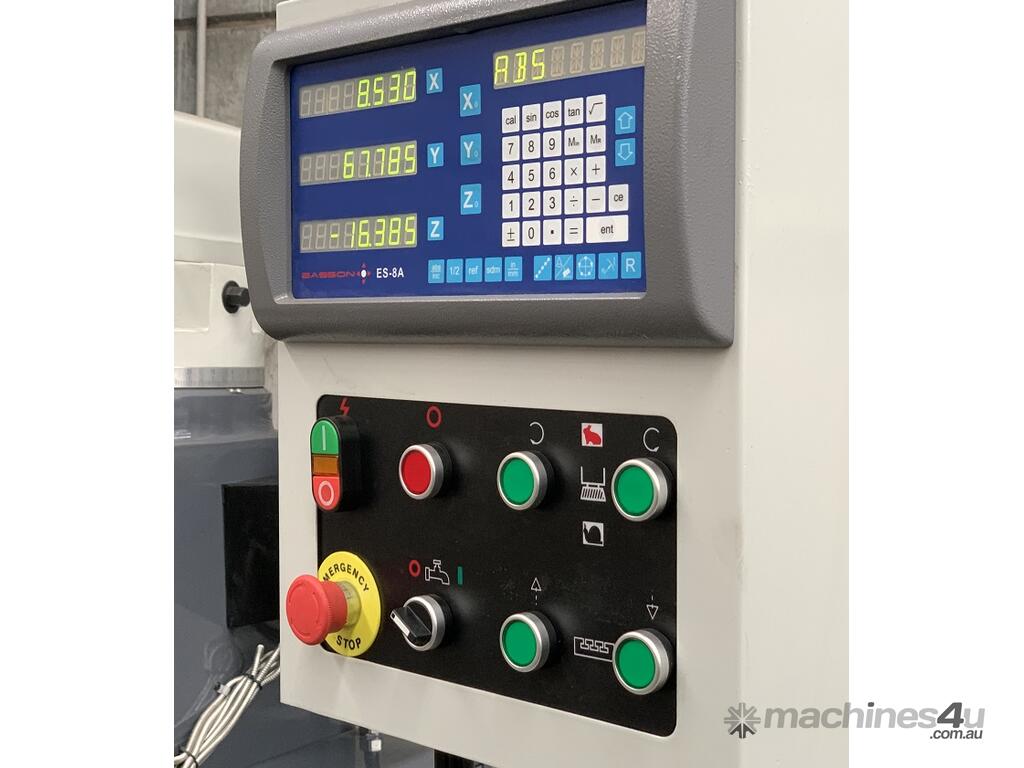

? 3 axis DRO fitted standard
? infinitely variable speed drive head with digital display
? Taiwanese head and quality Meehanite cast frame

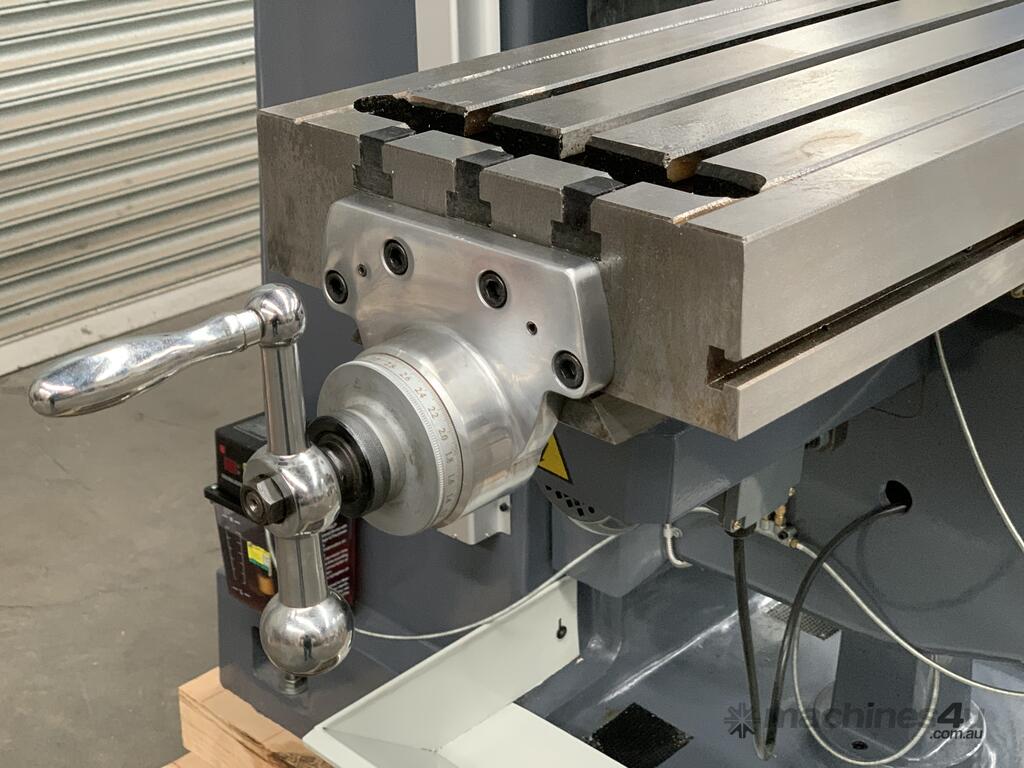

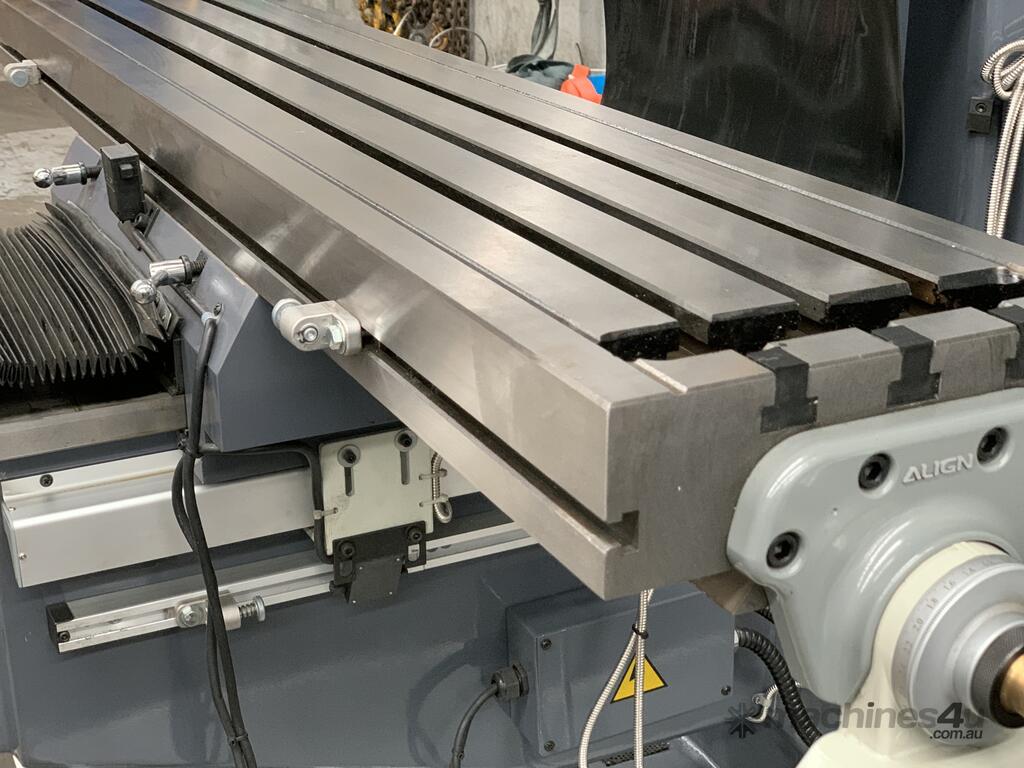

? solid, precise cross table with ground surface
? precisely ground carriage guides with adjustable square guides

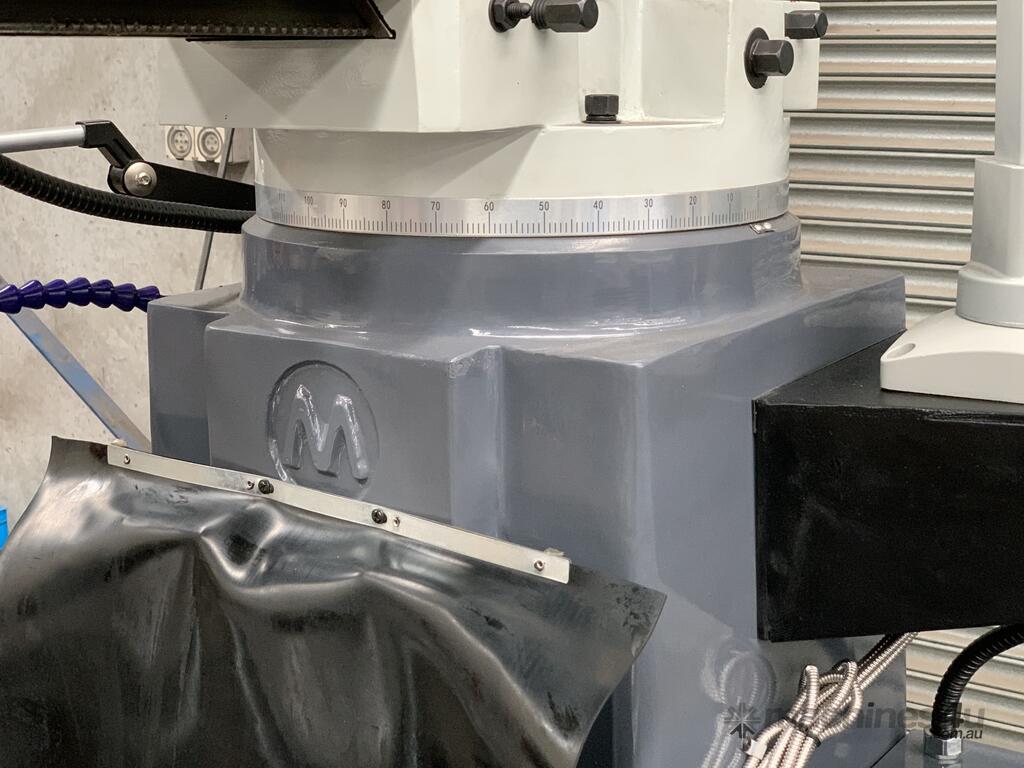

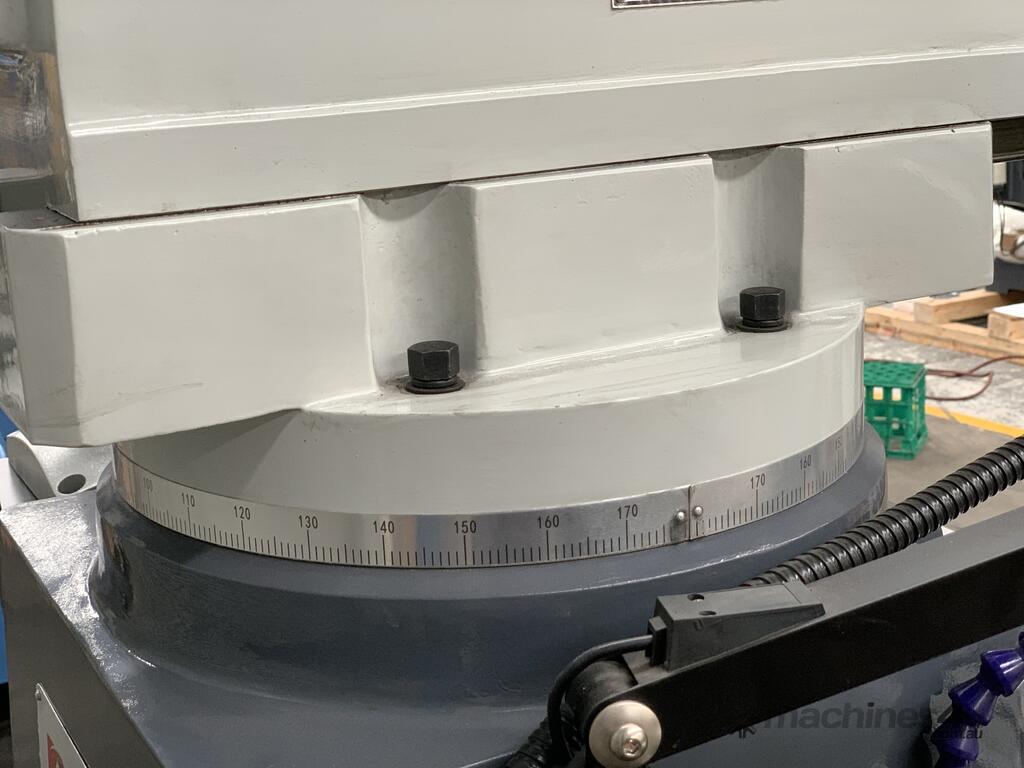

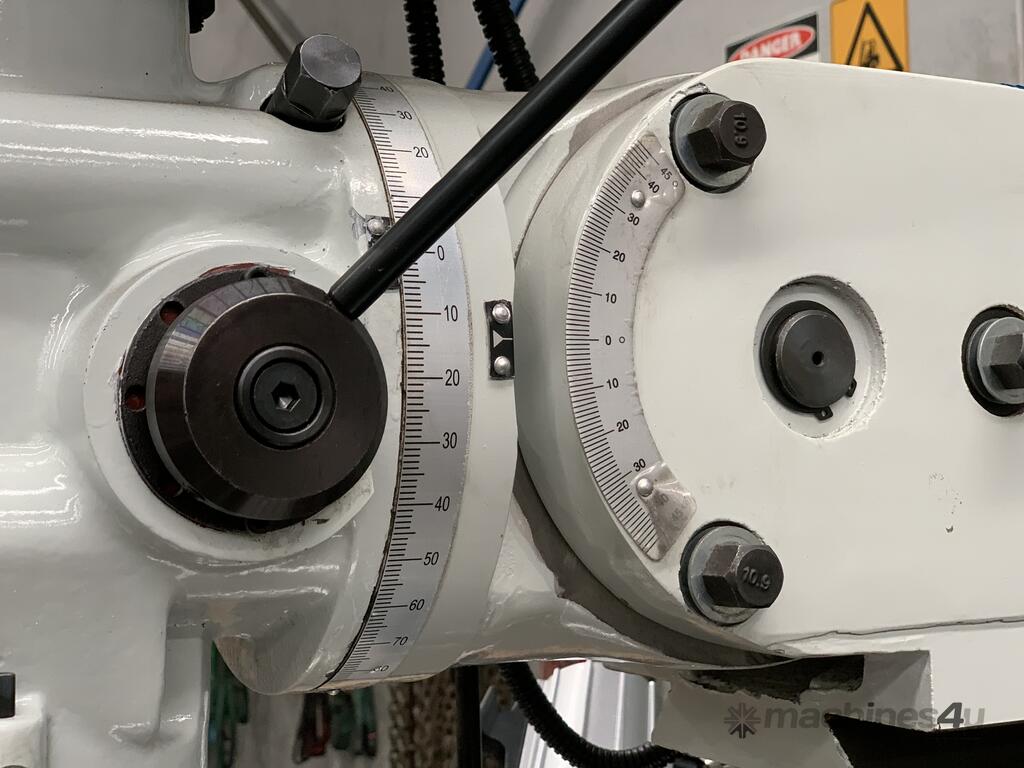

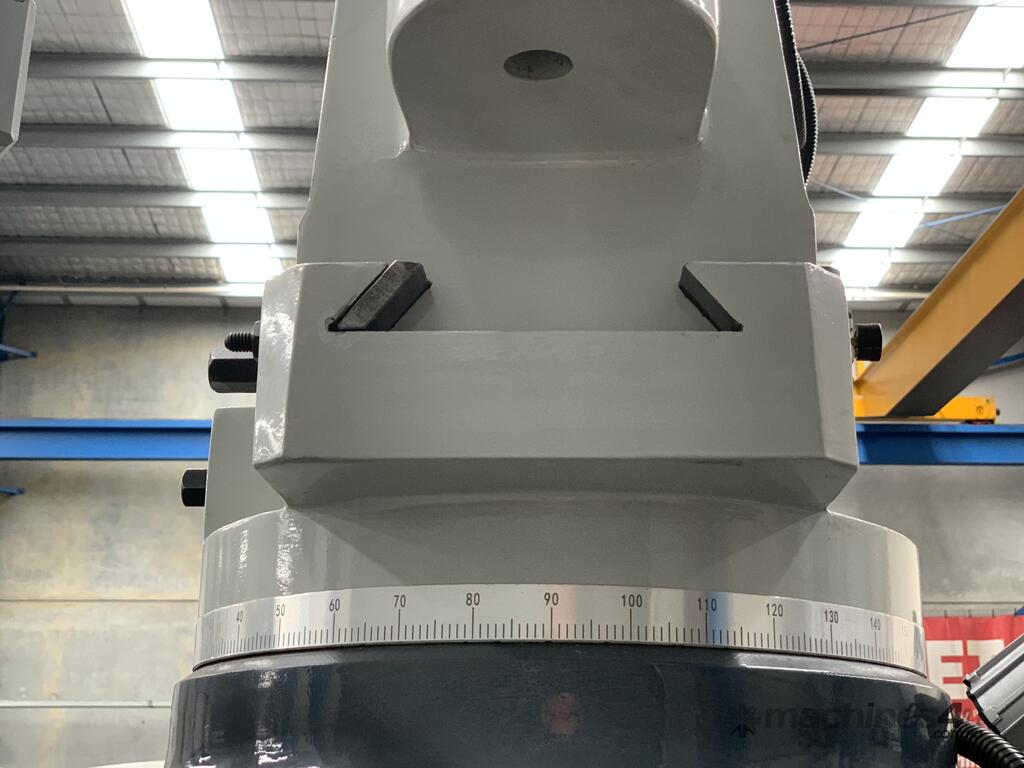

? head swivels to left and to right

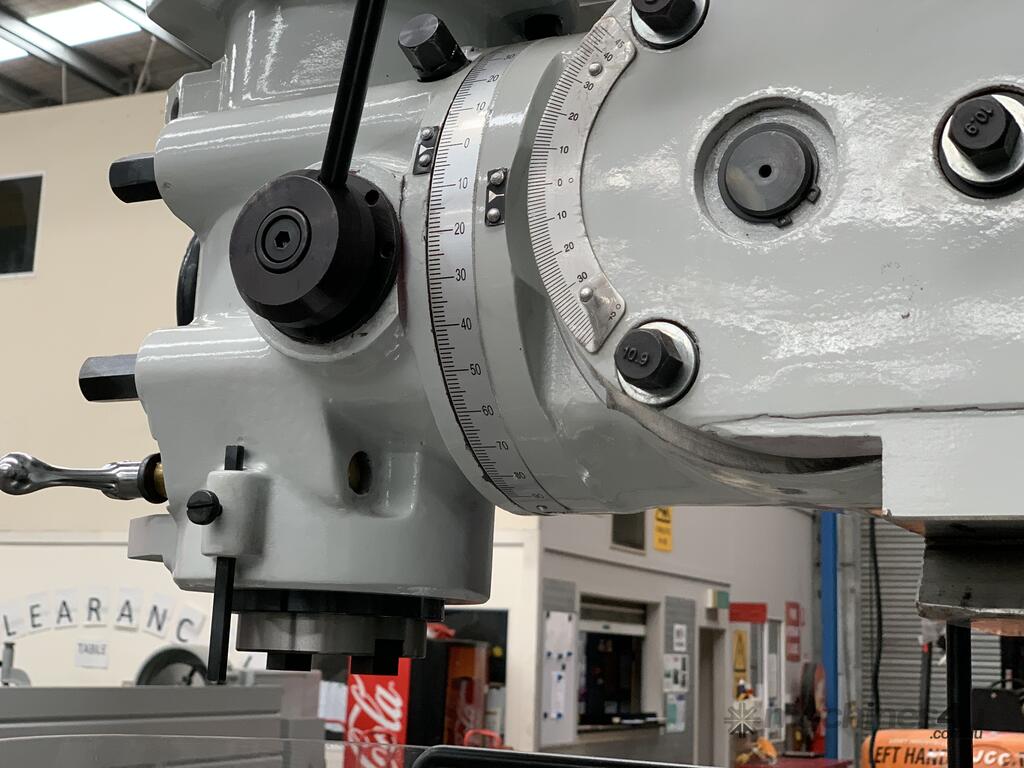

? head tilts ±45° front to back

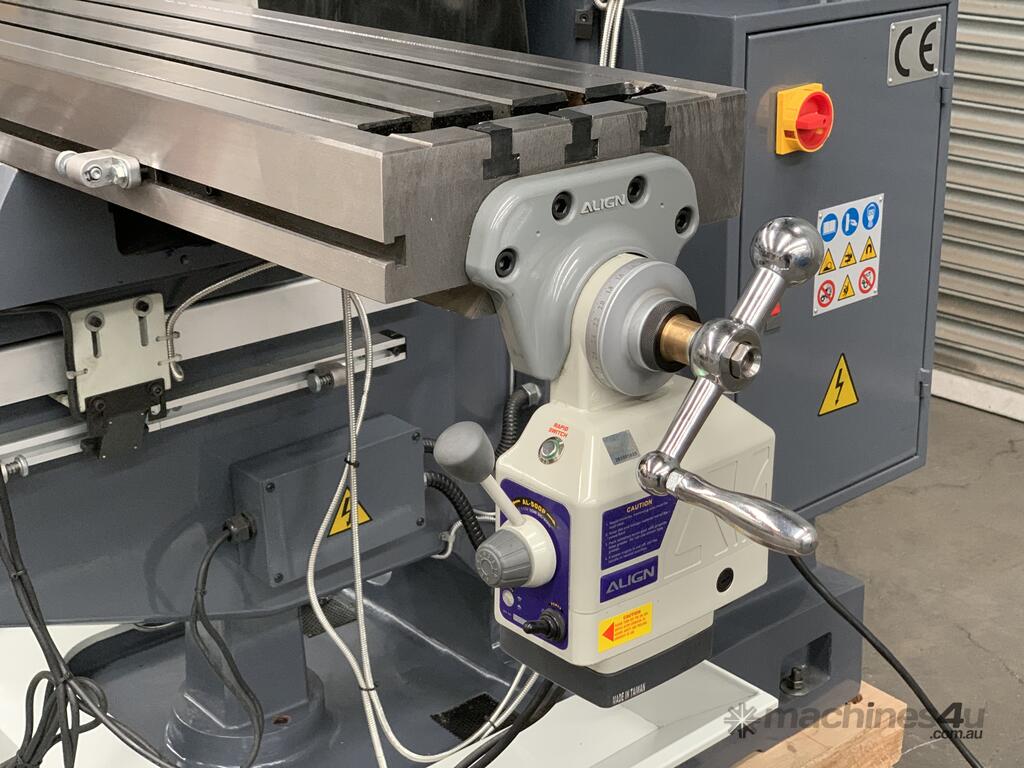

? x & y axis feed standard

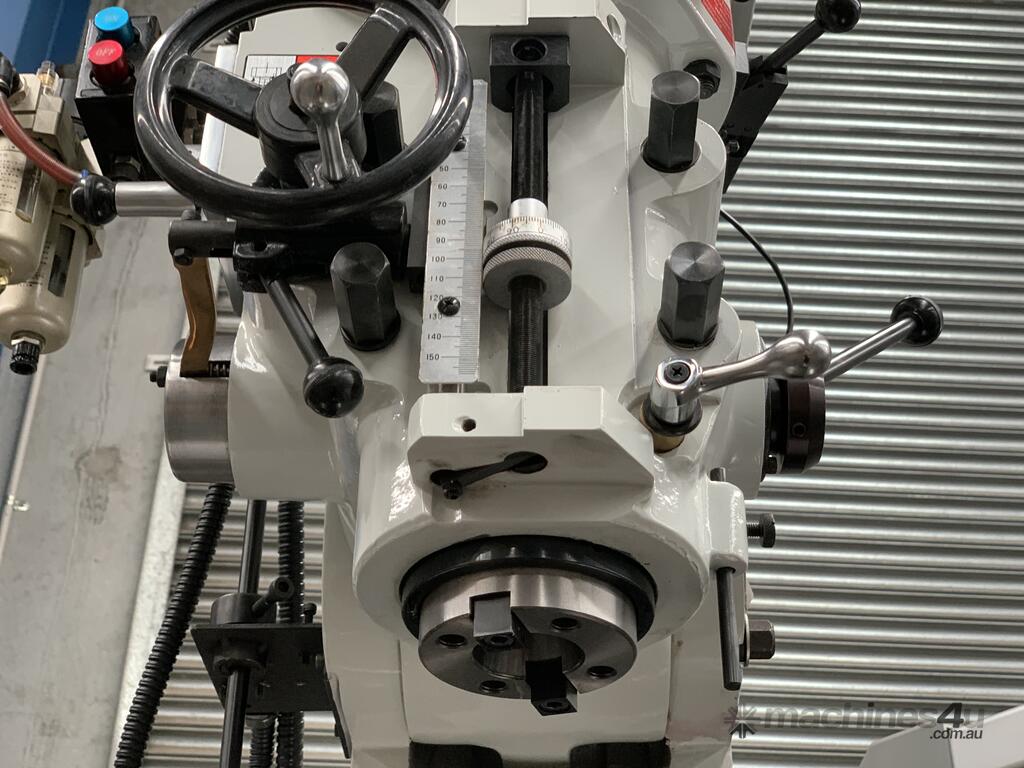

? fine feed on spindle
? power raise and lower of knee on SM-KD4VS & SM-KD5VS models
? 147 mm quill travel (SM-KD5VS)
? chrome-plated sleeve with extremely long cutting stroke
? large spindle bearings guarantee stability during milling
? guaranteed true run out on spindle taper 0.01 mm

Automatic sleeve stroke
? spindle with right or left-handed rotation function
? cutter head with reduction gear for high torque
? mechanical spindle brake

Technical Data - Snap Shot
?table size - 1370mm x 254mm
?X / Y / Z travel - 850mm / 400mm / 400mm
?power draw bar
?spindle quill travel - 127mm
?quill diameter - 105mm
?max. spindle to table - 480mm
?holding fixture - ISO / INT-40
?vertical speeds - 80 ~ 4200 - variable
?motor capacity - 3.75Kw x Volt
?shipping dimensions - 2000mm x 2000mm x 2250mm
?approx weight: 1550kg

Includes
?power draw bar

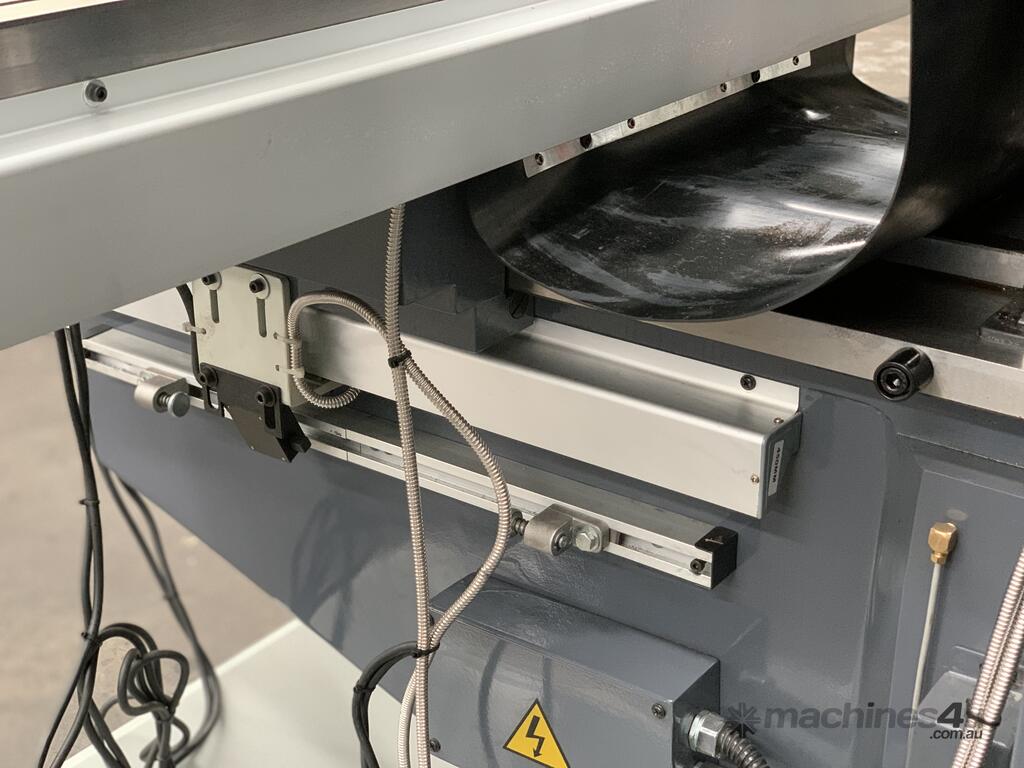

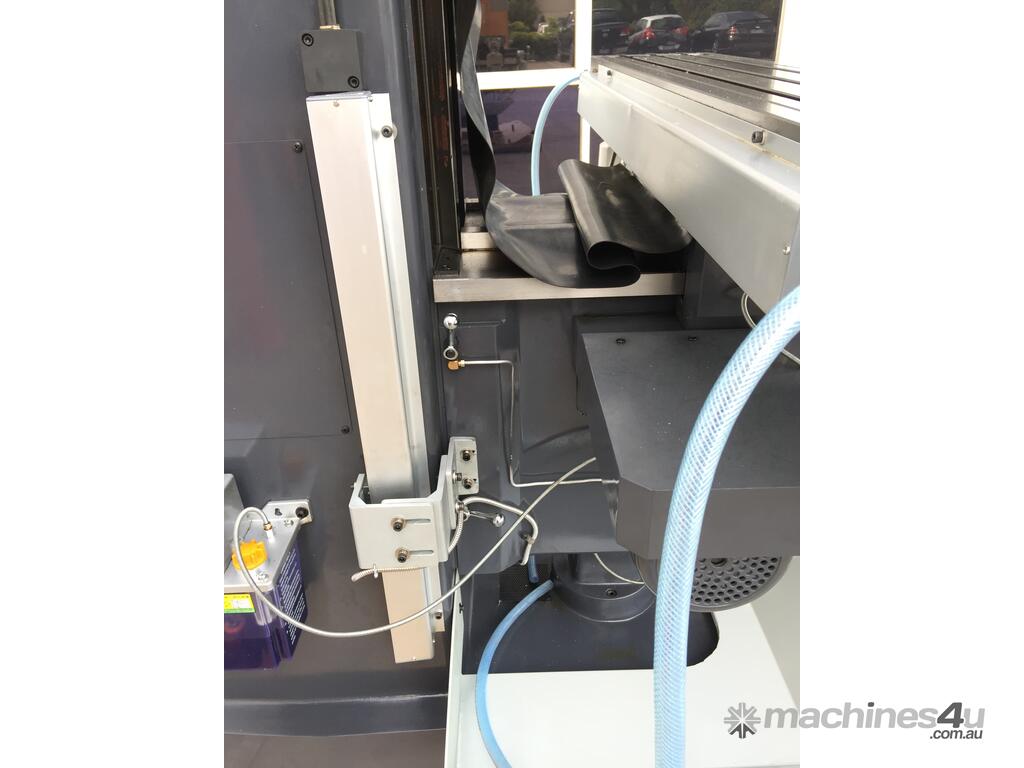

? 3 Axis digital readout system
? 2 x Axis power-feed
? safety cutter guard
? swarf tray
? coolant system
? LED lamp
? toolbox and operation manual

Recommended Add On Accessories
?13+0114 - Machine Vice Swivel Base - 160mm Jaw Width. 125mm Jaw Opening.
?13+0127 - Industrial Series Clamping Kit - 58 Piece - 16mm T-Slot, M14 Thread.
?13+0148 – ISO40 Collet Set - 15 Piece Quick Change System.
?13+0153 - End Mill & Slot Drill Set: 20 Piece 2 & 4 Flute. Quality Cutters.
?13+0550 – Indexable Square Shoulder Mill - Positive Approach - 80mm
?13+0561 – Face Mill Arbor – ISO40 x 27mm.
?13+0167 - Boring Head Set – ISO40, 50mm Cutter Dia. 10 Piece Set Complete with Shank.
?13+0182 – Rotary Table. 160mm Table Diameter. 2MT, Horizontal Set Up.
?13+0063 - Semi Universal Dividing Head BS-1, Comes With 6" with 160mm 3 jaw Chuck.
?50+0121 - Measuring Tool Set. 5 Piece, Vernier, Micrometer, Square, Depth Gauge & Steel Edge.
?15+0187 - Coolant Mineral Based XDP-1000 5Lt Drum Metalium - Soluble - 20:1 Mix
?30+0116 - PM-55 Pivoted Mounts. 160mm Diameter, M16 x 120mm Stud Size, 800Kg Per Unit Load Capacity.
