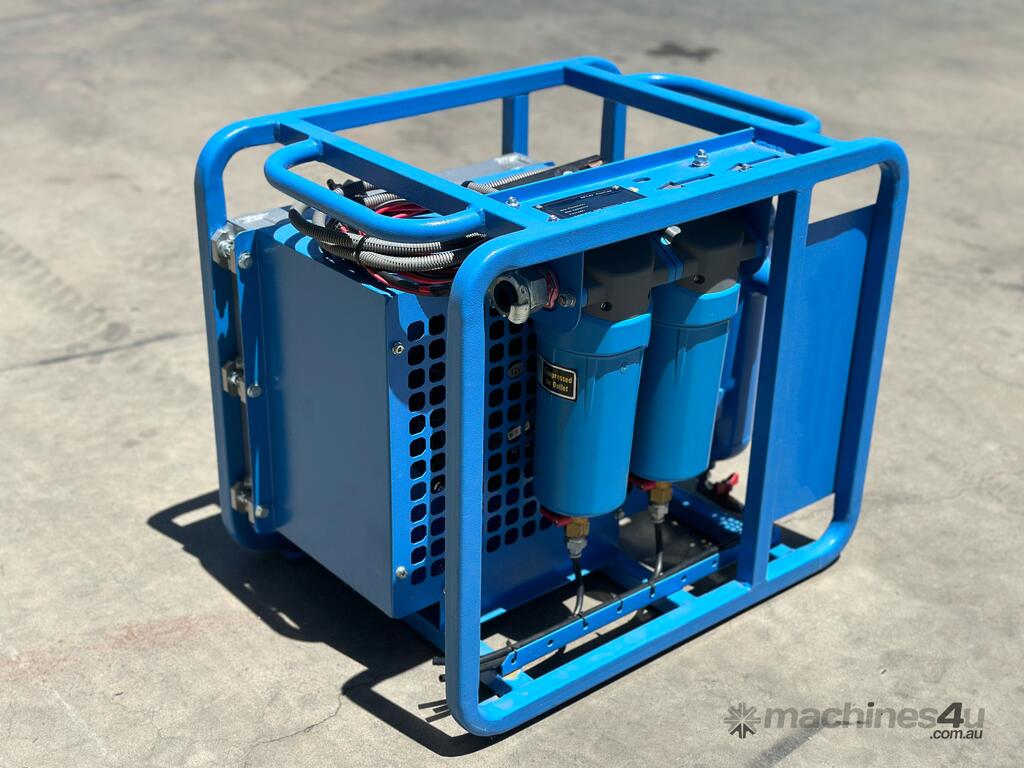

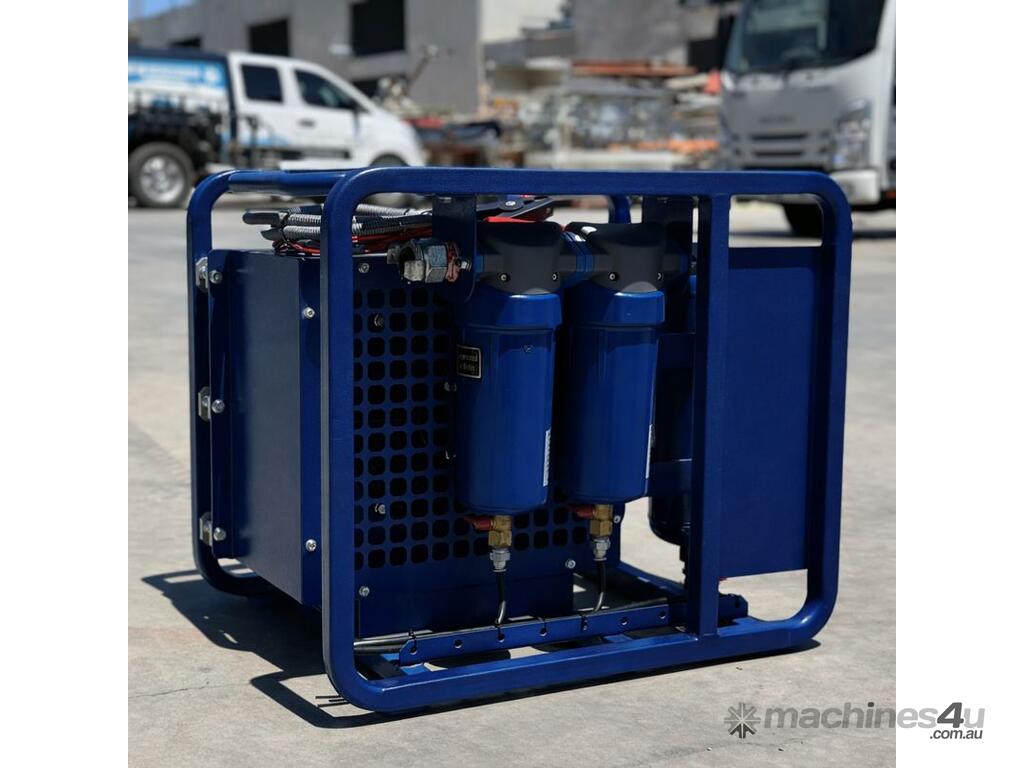

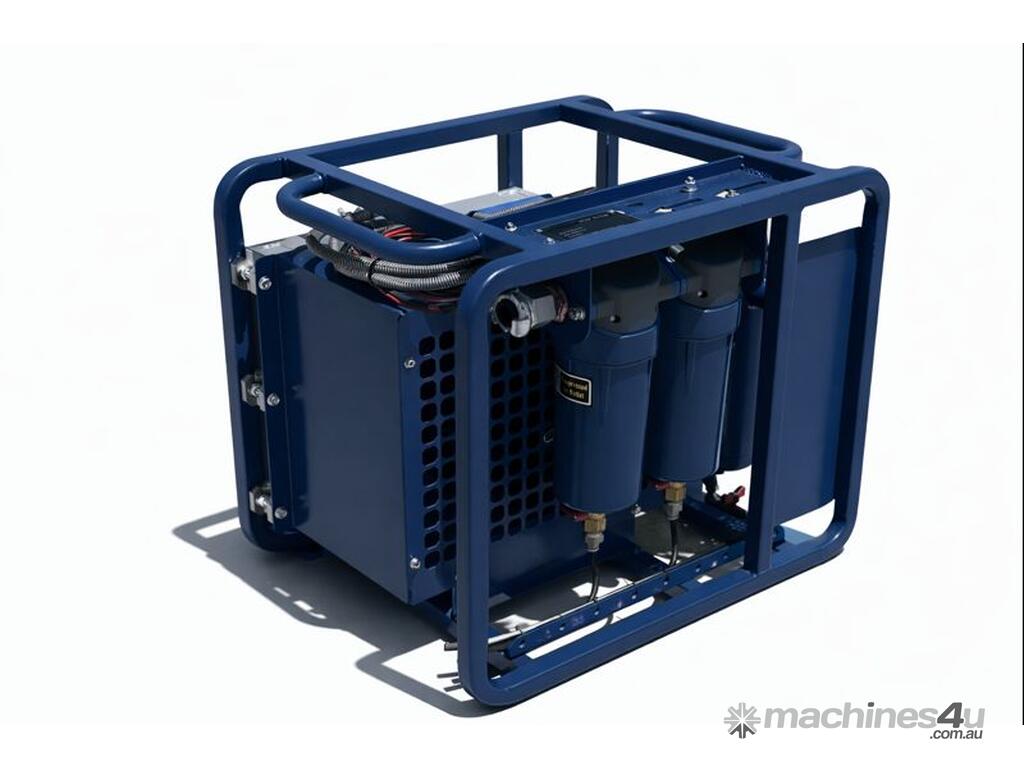

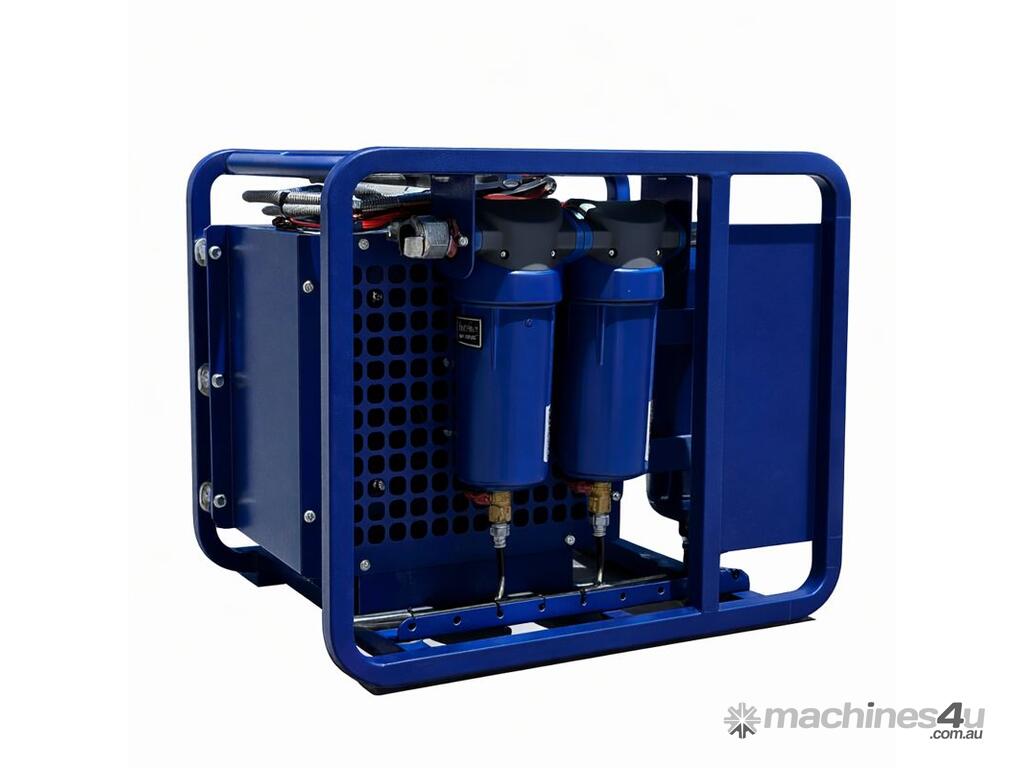

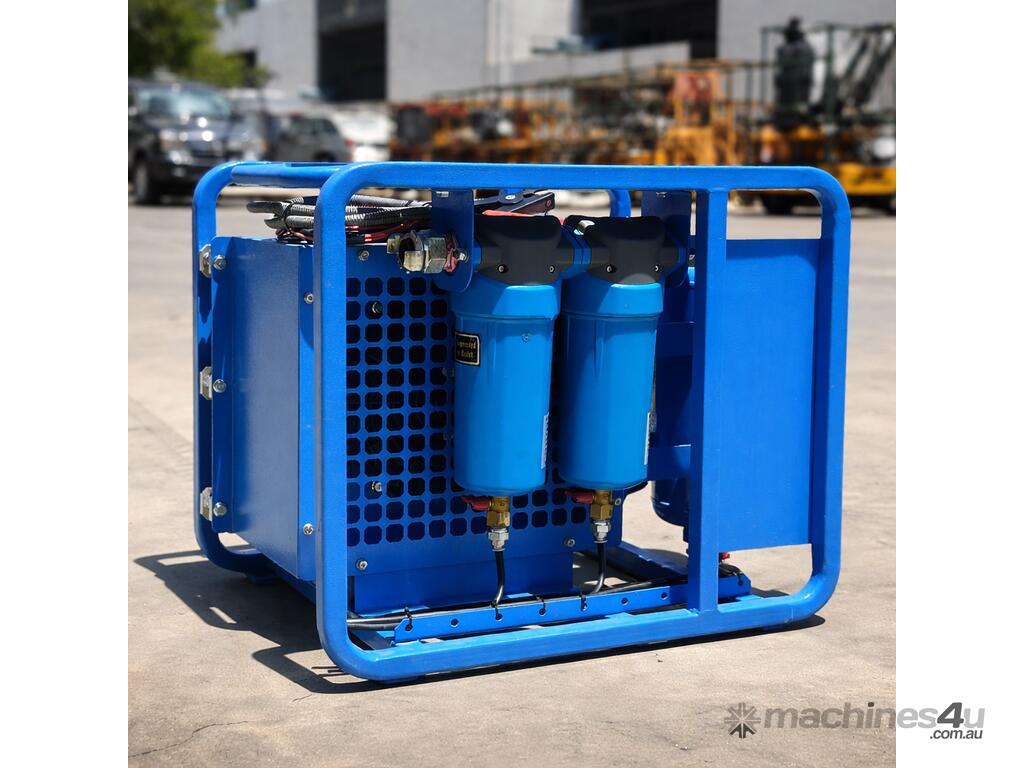

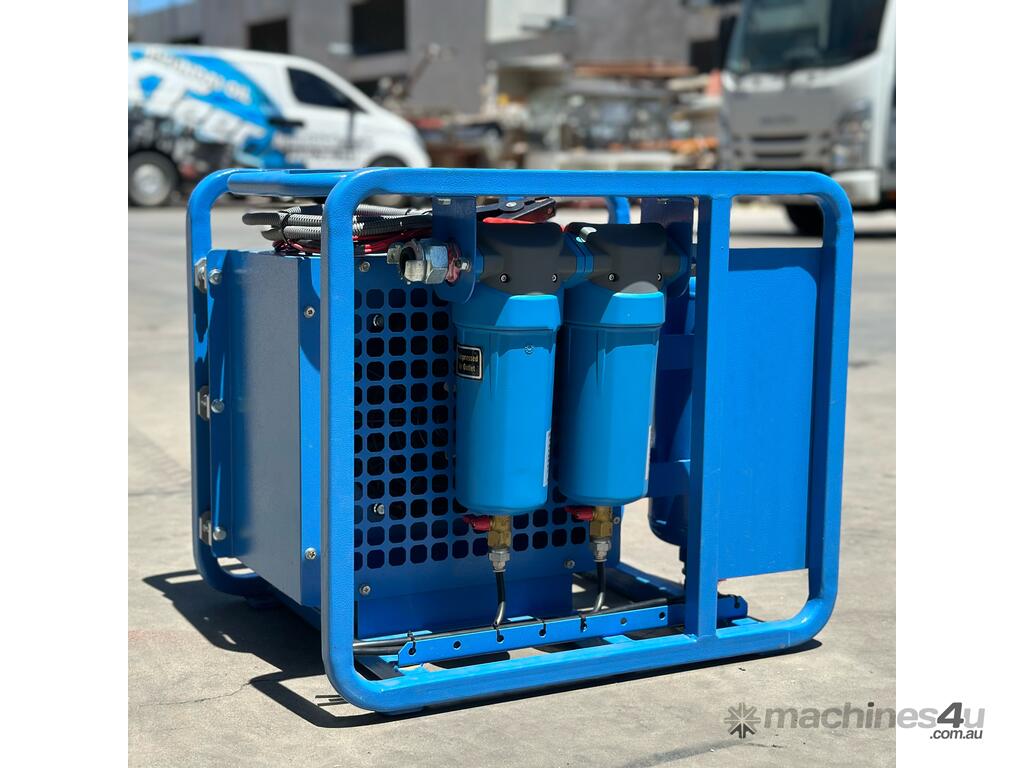

Quantum Portable Aftercooler - 420CFM (For Clean & Dry Air)

QUANTUM AFTERCOOLER

PORTABLE AFTERCOOLING SOLUTIONS FOR BULK WATER REMOVAL

The Quantum Aftercooler is engineered to significantly enhance the cooling efficiency and cleanliness of your

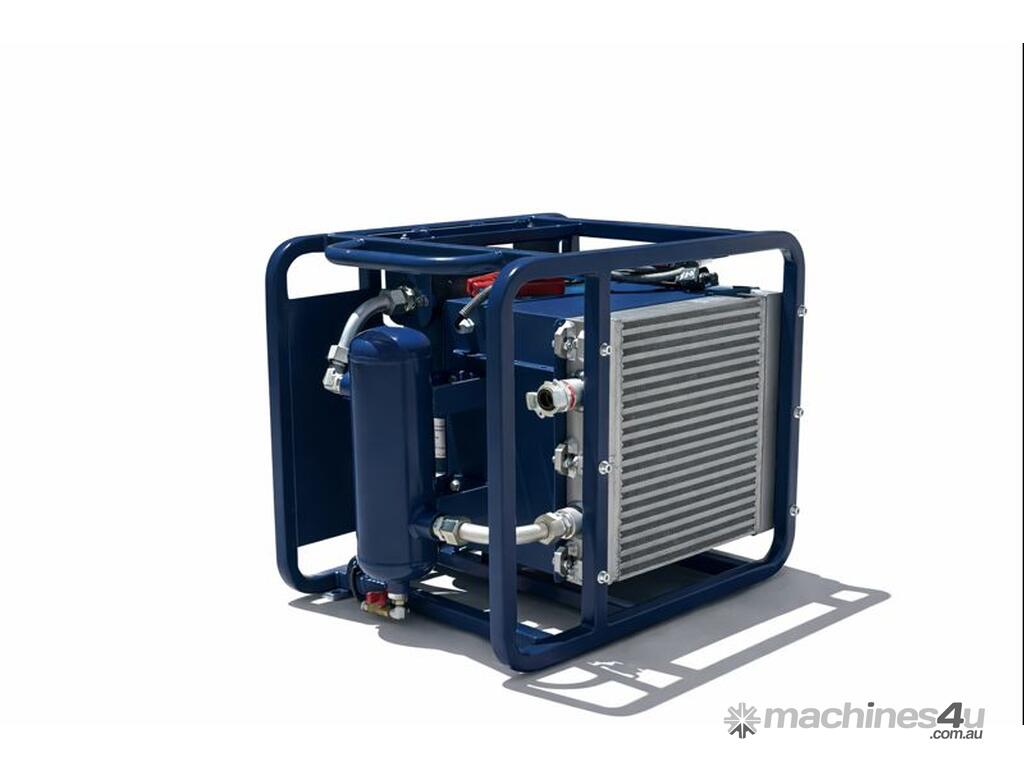

compressed air system. Featuring a high-performance heat exchanger, it effectively cools compressed air to optimal temperatures, maximizing system efficiency.
Its dual filtration system combines a cyclonic filter, which eliminates 80-90% of moisture, with a particle filter that
captures oil, dirt and other contaminants..

A water separator tank, equipped with a manual drain, simplifies the removal of accumulated moisture, ensuring the supply of clean, dry air. Built for versatility and portability, the durable frame is mountable on trailers and comes with heavy duty caster wheels for easy manoeuvrability.
Available in 12V and 24V configurations, the unit powers a large fan that drives optimal cooling across the heat exchanger. This compact and portable aftercooler is an ideal choice for industries requiring reliable, high-quality compressed air delivering exceptional performance and durability.

TECHNICAL SPECIFICATIONS:
Model No: QB-420CFM-24V
Power Supply: 24V
Air In/ Out Thread: Inlet 1-1/4" BSP | Outlet 2x1" BSP
Flow Rate (LPM): 11,886
Flow Rate (CFM): 420
Dimensions (mm): 700 x 500 x 600
Weight (kg): 60
