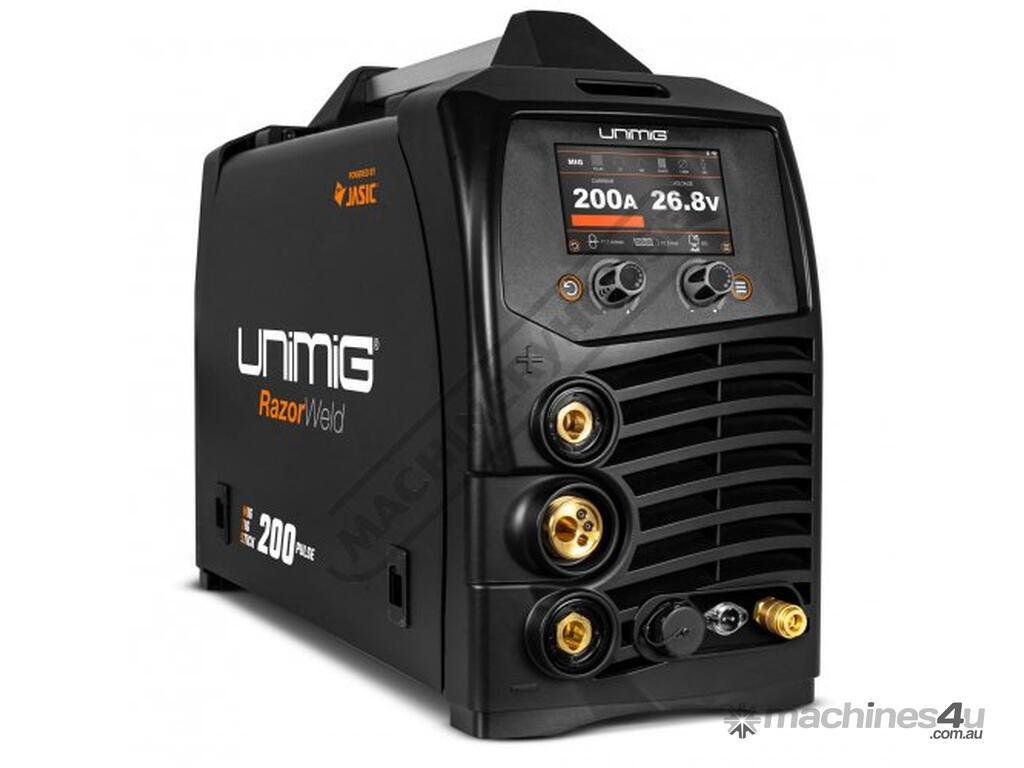

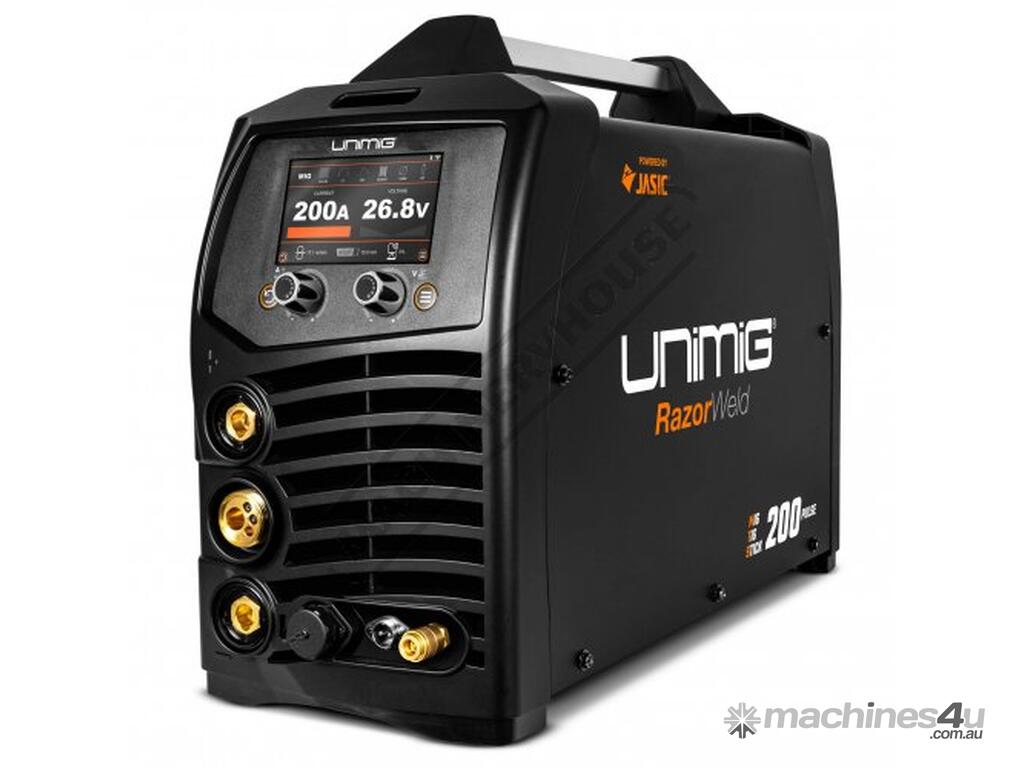

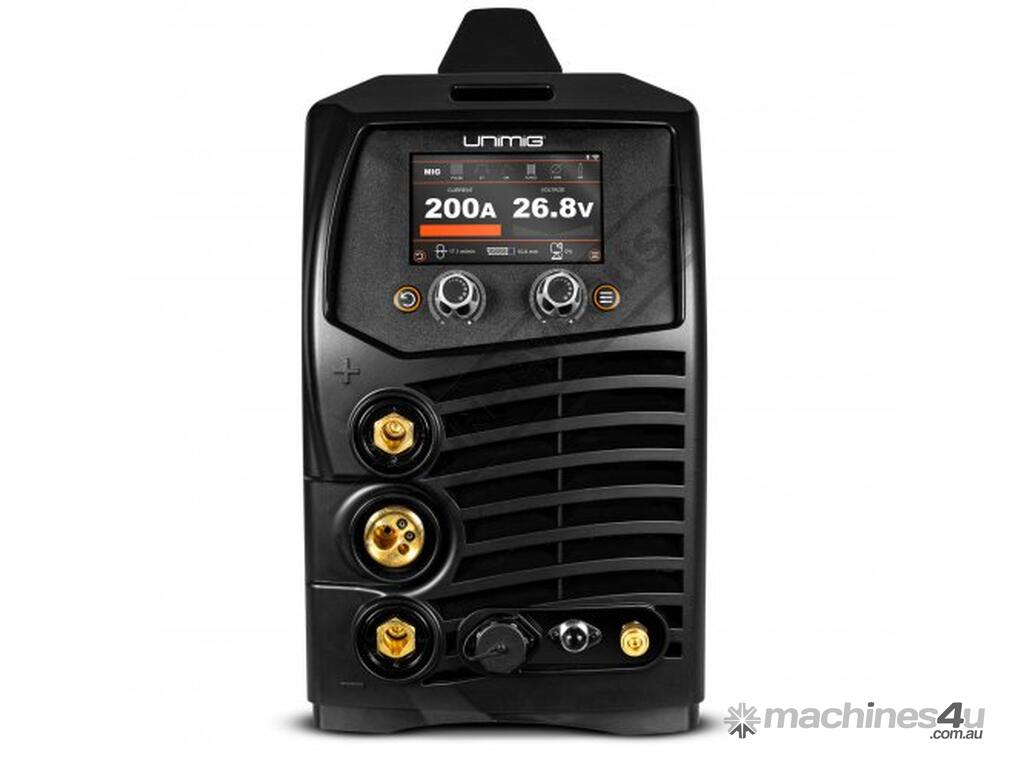

RAZOR™ 200 PULSE MIG/TIG/STICK WELDER SINGLE & DOUBLE PULSE MIG 40-200 Amps MIG 5-200 Amps TIG

UNIMIG WELDERS RAZOR™ 200 PULSE MIG/TIG/STICK WELDER SINGLE & DOUBLE PULSE MIG 40-200 Amps MIG
5-200 Amps TIG
CALL NOW AND DO A DEAL! ADD THIS ASSET TO YOUR WORKSHOP
WE OFFER MACHINERY SOLUTIONS AT AFFORDABLE PRICES.
Order Code: W194

The RAZOR 250 is a new inverter-based portable MIG welding machine with added MMA and TIG function. The MIG function allows you to weld with both Gas Shielded and Gasless wire applications. Easy stepless adjustment of voltage and wire feed make for easy setting of welding parameters giving excellent, professional welding results.

Wire inch gives easy feeding of the wire during set up without gas wastage and the Burn Back adjustment leaves the wire out ready for the next weld. MMA welding capability delivers easy electrode welding with high quality results, including cast Iron, stainless and low hydrogen. Connection of the 26V TIG torch provides quality DC TIG with Lift Arc start for welding of steel, stainless steel and copper. An additional feature is the Spoolgun ready function that allows the simple connection of the SPG200II Spoolgun for the use of thin or softer wires that don’t have the column strength to feed through standard MIG torches, such as aluminium wire.

This an industrial machine that is lightweight and portable, an optional trolley with tool drawer and cylinder rack provides off the floor operation and better manoeuvrability around the workshop. Being 240v single phase gives great portability. Ideal for general engineers, maintenance workshop and rural workshop. Designed and built to our specification. Certified to - AS/NZ60974-1

Features:
Single & Double Pulse MIG
Pulse welding reduces the heat and minimises spatter without compromising penetration so its perfect for thin and soft materials like aluminium.
A single pulse weld alternates between a peak current and a background current. Double pulse welding works the same way but with a second background current to add even more control over the arc.
Reduced heat input so you can weld thinner than standard MIG perfect for aluminium
Weld faster than a TIG weld but with the same aesthetic appearance of TIG
Spatter free welding cutting your clean-up time to nothing
Great penetration even with lower heat
5” LCD Touch Screen Display
Choosing your weld parameters or changing your settings mid weld has never been easier. The large touch screen display is clear with an easy to navigate interface. You won’t even need a manual to work it out.
Over 100+ Synergic Programs
With over 100 preset synergic programs setting up for a weld has never been faster. Just select your metal wire size and gas and you’re good to go.
Hot Start and Crater Fill
Hot Start gives you a boost in current at the start of your weld eliminating issues with starting on cold metal and makes welding on thicker materials and aluminium easier.
Crater Fill ramps your welding current and voltage down at the end of a weld so you can fill in the end of a weld at a lower power eliminating craters and pinholes.
Crater Fill and Hot Start functions on MIG TIG and STICK mean your welds start strong and end just as strong.
4 Geared Wire Drive
With four geared wire drive rollers you will get a more consistent and smoother wire feeding experience.
The internal housing also features storage space for additional rollers so they’re always in reach. It also comes with an internal spool light for max visibility in any lighting.
High Frequency DC TIG
You can maintain complete control over your TIG welds with the RAZOR 200 PULSE. The high frequency DC TIG welding mode comes with a full set of adjustable parameters like pre- and post-flow up and down slopes as well as all things pulse. Everything you need right at your fingertips.
STICK (MMA)
You’ll be able to STICK weld anything including cellulosic electrodes plus with the addition of Anti Stick you’ll never struggle to strike an arc again.
The Arc Force function helps to keep the arc stabilised throughout the weld so it won’t cut out and stops the electrode from sticking.
Power Limit works to keep the amperage constant throughout the weld by preventing the voltage from exceeding the set value.
GLICK Heat Control
When using the GLICK function set a base current which you can switch to at any time during a weld by pressing the trigger button. GLICK is great for manual heat input control as you go.
Job Memory (100 Jobs)
Save your favourite weld settings with the jobs function.
Digital Control Torch
Adjust your amps current and voltage right on the MIG torch itself. Plus if you plug in a TIG torch pressing the trigger will automatically switch you to the TIG screen and vice versa.
2T / 4T / SPOT
Choose between two-touch four-touch and spot modes to maximise operator comfort on every weld.
Adjustable Arc Length
Increase or decrease your arc length while in the synergic and pulse MIG modes to suit your weld style.
Inductance Control
Change the frequency of your short circuit MIG welds with the Inductance settings so you can choose your preferred arc characteristics.
Generator Compatible
Going off the grid? The RAZOR 200 PULSE can be connected to a generator we recommend one with an 11kVA rating.

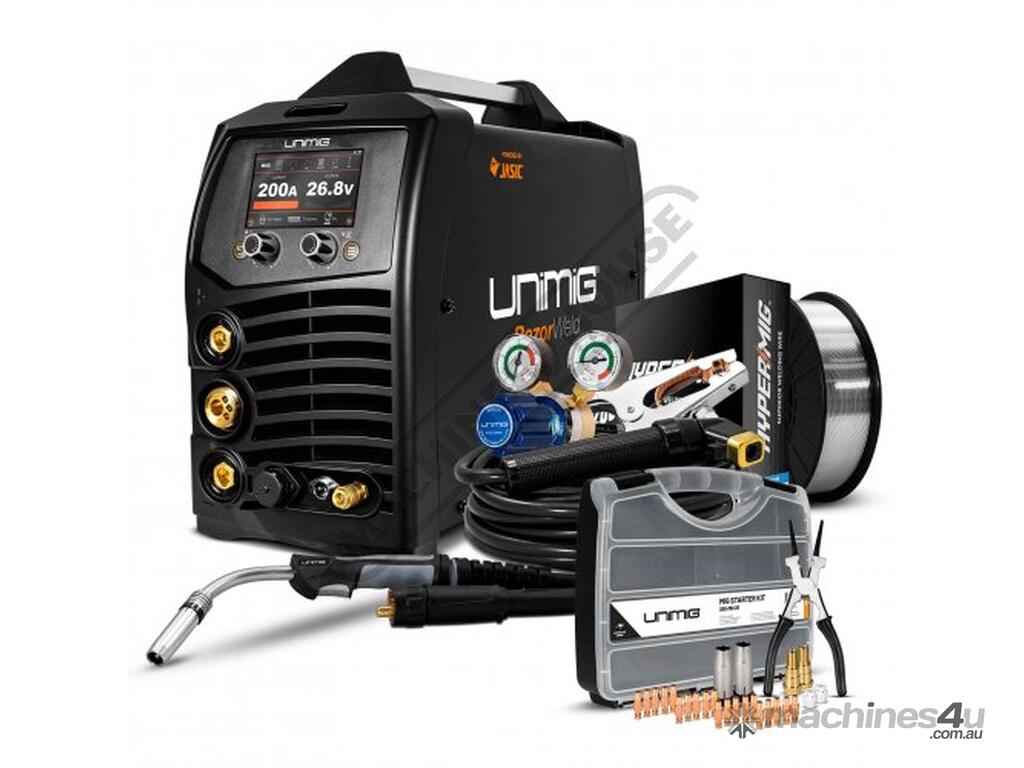

Includes:
- RAZOR™ 200 PULSE MIG/TIG/STICK Welder
- 3m DM26 Digital MIG Torch fitted with a carbon-polyamide liner
- 3m Twist Lock Electrode Holder
- 3m 300 Amp Earth Clamp & Lead
- Twin Gauge Argon Regulator
- 1.8m Gas Hose Complete with fittings
- Operating Manual
- 2kg 1.2mm 5356 HYPERARC Aluminium Wire
- DM26 Consumable Starter Kit



Specifications:
ORDER CODE: W194
MODEL: RAZOR 200 PULSE
Type: MIG / TIG / STICK
Type: Multifunction Welder
Part Number: U11003K
Voltage (V): 240
Recommended Plug Amperage (amp): 15
Welding Current Range - MIG (amp): 40 - 200
Welding Current Range - STICK (amp): 20 - 180
Welding Current Range - TIG (amp): 5 - 200
Duty Cycle (% amp): 15 200 MIG
Duty Cycle (% amp): 15 180 TIG
Wire Spool Size (kg): 1 / 5
Ferrous Wire Size - Range (mm): 0.6 - 1.2
Stainless Steel Wire Size - Range (mm): 0.6 - 1.2
Aluminium Wire Size - Range (mm): 0.6 - 1.2
Recommended Generator (KVA): 11.0 Minimum
Dimensions (mm): 605 x 230 x 400
Nett Weight (kg): 17
