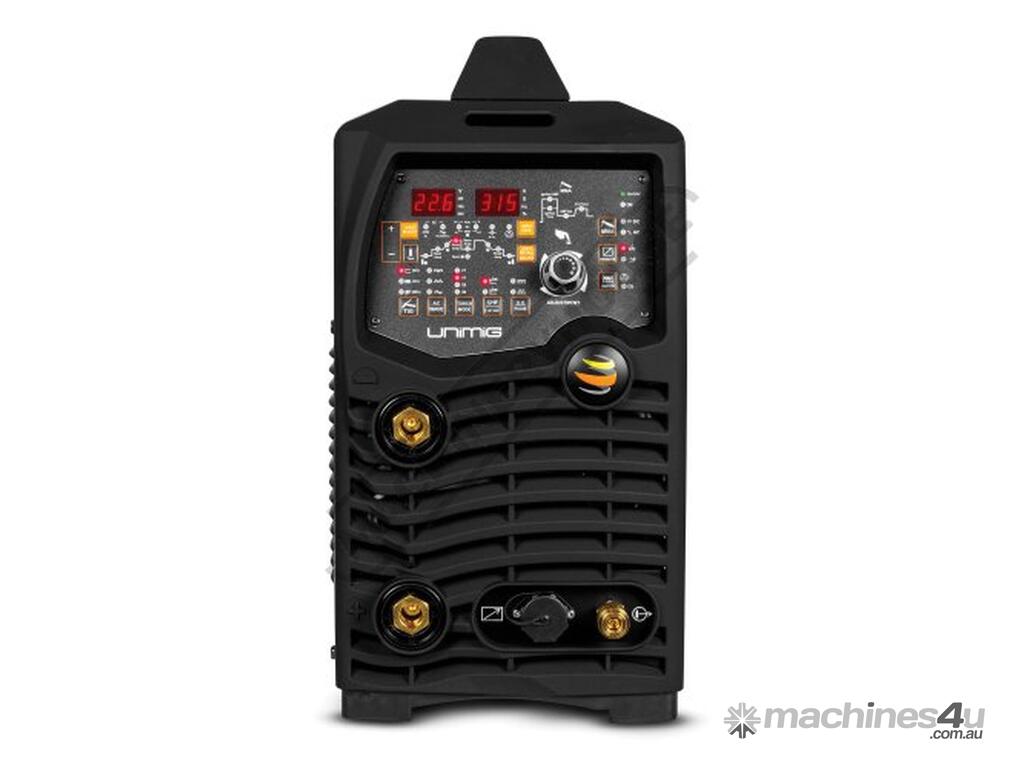

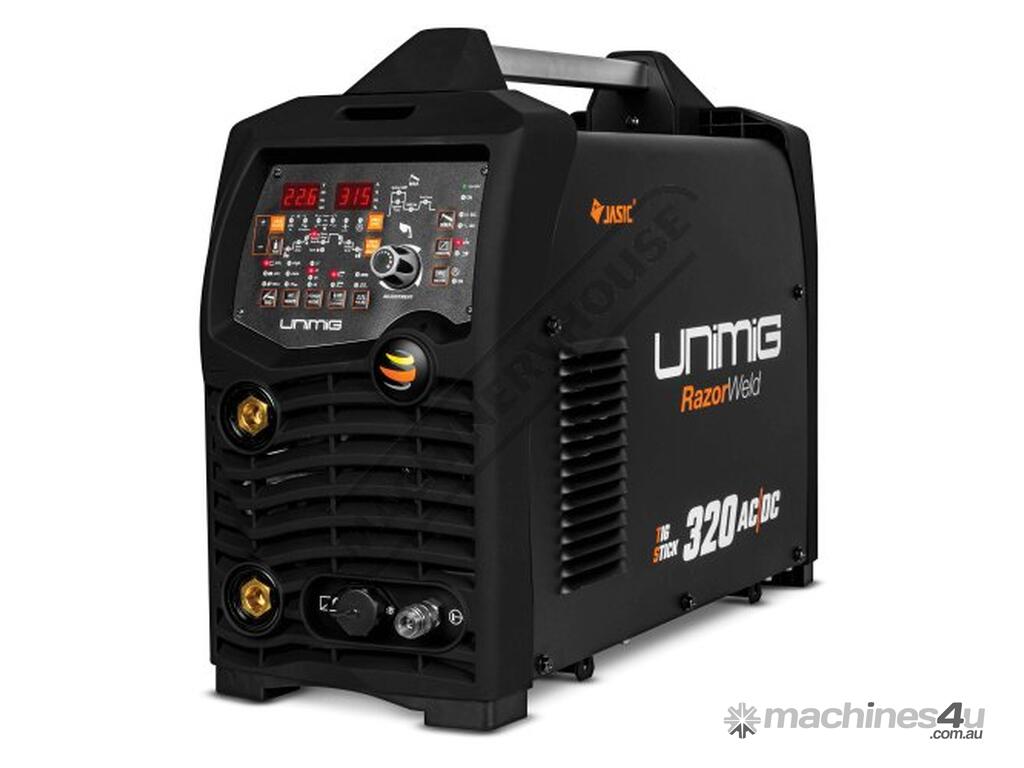

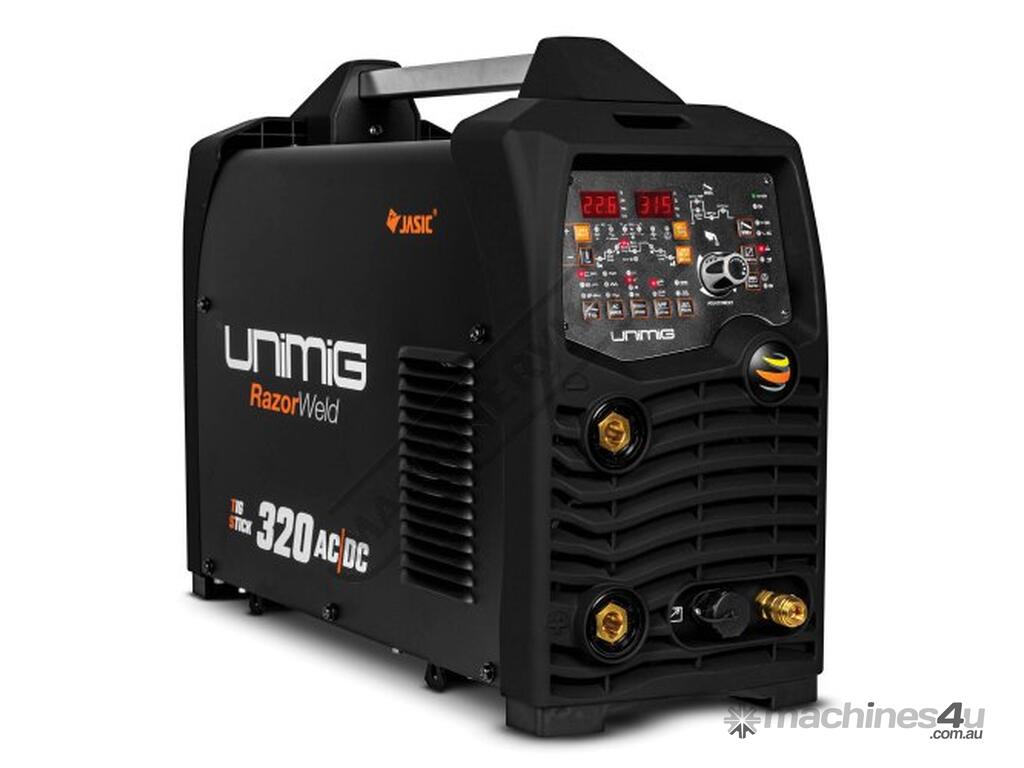

RAZOR™ 320 AC/DC TIG WELDER TIG WELDER #KUMJRRW320ACDC 10-320 Amps Welding Current Range

UNIMIG WELDERS RAZOR™ 320 AC/DC TIG WELDER TIG WELDER #KUMJRRW320ACDC 10-320 Amps Welding Current Range
CALL NOW AND DO A DEAL! ADD THIS ASSET TO YOUR WORKSHOP
WE OFFER MACHINERY SOLUTIONS AT AFFORDABLE PRICES.
Order Code: W176

The RAZOR 320 AC/DC is a new generation inverter welder with a primary function of AC/DC TIG. AC TIG: Featuring multiple AC output waveforms of Square, Trapezoidal and Sine, combined with AC Balance and AC Frequency control you have the ultimate tool in AC TIG Welding mode to suit all your AC TIG welding requirements. DC TIG: Latest 43KHz inverter frequency technology provides the ultimate in smooth and stable arc condition for DC TIG welding mode, coupled with the Digital Weld Sequence Program provides complete and professional DC TIG Welding function. MIX ARC: This function of MIX AC/DC makes it possible to modulate the welding current, alternating a period of TIG AC with a period of TIG DC-. This means that the efficiency of AC TIG welding can be combined with the high penetration of DC TIG welding, obtaining higher welding speeds and establishing the weld puddle quicker on cold work-pieces. The operator adjustable parameter is the percentage of AC waveform compared to DC- waveform over the entire period, which can be varied from 5~95%. MMA: Full attention is given to MMA welding, providing both DC and AC output modes. Ignition AMP and Ignition Time provide for an operator-controlled Hot Start of the weld by applying extra current to the set weld current over a preset time. Arc force allows adjustment of the arc transfer from a digging action through to a softer layering effect.

The complete and professional MMA function allows you to set the ideal arc condition no matter what the electrode and welding situation. Weld Sequence Control: The Digital Weld Sequence Program and intelligent MCU software provide full TIG functionality in AC, DC and MIX modes. Adjustable pre-sets include Pre-Gas time, Start Current, Up Slope, Down Slope, Finish Current level and Post-Gas time. Digital Pulse parameter presets include Peak & Base current; Pulse Frequency & Pulse Width. HF and Lift Arc Ignition. Torch Mode: Multiple torch trigger selections of 2T, 2S, 4T, 4S provide complete flexibility and operator control over the weld sequence from start to ?nish. Remote Control: The Remote Interface allows connection of either Torch Remote or Foot Pedal for remote control of amperage output. Job Memory: Job memory function allows you to enter and store weld parameter settings under job numbers. The job number can be recalled to reveal and use the weld parameters stored, and weld parameters can be further adjusted and stored as required. A total of 50 Jobs can be memorised and stored for recall. Water Cooler Control: Activating the water cooler control allows for the water cooler to operate when welding current is available during welding and will switch off automatically after 5 minutes of no welding current. The RAZOR 320 AC/DC is a complete and professional TIG /MMA welding machine that is ideal for all high-end aluminium, stainless steel fabrication, marine and industrial engineering welding situations. Designed and built to our speci?cation and manufactured in compliance with AS/ NZ60974-1.

Features:
AC TIG
DC TIG
MIX ARC TIG
STICK
WELD SEQUENCE CONTROL
2T/2S/4T/4S Torch Mode
Foot Control Ready
Water Cooler Ready

AC TIG: Featuring multiple AC output waveforms of Square Trapezoidal and Sine combined with AC Balance and AC Frequency control you have the ultimate tool in AC TIG Welding mode to suit all your AC TIG welding requirements.

DC TIG: Latest 43KHz inverter frequency technology provides the ultimate in smooth and stable arc condition for DC TIG welding mode coupled with the Digital Weld Sequence Program provides complete and professional DC TIG Welding function.

MIX ARC: This function of MIX AC/DC makes it possible to modulate the welding current alternating a period of TIG AC with a period of TIG DC-. This means that the e?ciency of AC TIG welding can be combined with the high penetration of DC TIG welding obtaining higher welding speeds and establishing the weld puddle quicker on cold work-pieces. The operator adjustable parameter is the percentage of AC waveform compared to DC- waveform over the entire period which can be varied from 5-95%.

MMA: Full attention is given to MMA welding providing both DC and AC output modes. Ignition AMP and Ignition Time provide for an operator-controlled Hot Start of the weld by applying extra current to the set weld current over a preset time. Arc force allows adjustment of the arc transfer from a digging action through to a softer layering effect. The complete and professional MMA function allows you to set the ideal arc condition no matter what the electrode and welding situation.

Weld Sequence Control: The Digital Weld Sequence Program and intelligent MCU software provide full TIG functionality in AC DC and MIX modes. Adjustable pre-sets include Pre-Gas time Start Current Up Slope Down Slope Finish Current level and Post-Gas time. Digital Pulse parameter presets include Peak & Base current; Pulse Frequency & Pulse Width. HF and Lift Arc Ignition.

Torch Mode: Multiple torch trigger selections of 2T 2S 4T 4S provide complete ?exibility and operator control over the weld sequence from start to ?nish.

Remote Control: The Remote Interface allows connection of either Torch Remote or Foot Pedal for remote control of amperage output. Job Memory: Job memory function allows you to enter and store weld parameter settings under job numbers. The job number can be recalled to reveal and use the weld parameters stored and weld parameters can be further adjusted and stored as required. A total of 50 Jobs can be memorised and stored for recall.

Water Cooler Control: Activating the water cooler control allows for the water cooler to operate when welding current is available during welding and will switch off automatically after 5 minutes of no welding current.



AC Wave Forms:

AC Square Wave: Allows the current to change from electrode (+ positive) to electrode (- negative) very quickly. This produces high voltage as the current switches polarities allowing the arc to restart
easily. The arc can be maintained without the use of high-frequency and the fast transitions provide for responsive dynamic and focused arc for better directional control.

AC Triangle Wave: Characterised by a particularly soft and concentrated arc combining the effect of peak amperage while reducing overall heat input. Leads to quick puddle formation and because
of lowered heat input reduced weld distortion especially on thin material. This waveform is ideal for very precise welding of thin Aluminium plate.

AC Sine Wave: It is the standard waveform characterised by low noise and excellent arc control it also gives the soft-arc feel of a conventional power source while using square transitions to
eliminate the need for continuous HF.

AC MIX ARC: This function of MIX AC/DC makes it possible to modulate the welding current alternating a period of TIG AC with a period of TIG DC-. This means that the efficiency of AC TIG
welding can be combined with the high penetration of DC TIG welding obtaining higher welding speeds and establishing the weld puddle quicker on cold work-pieces. The operator adjustable
parameter is the percentage of AC waveform compared to DC- waveform over the entire period which can be varied from 5~95%. Ideal for welding heavier gauge material with less current than
AC welding.

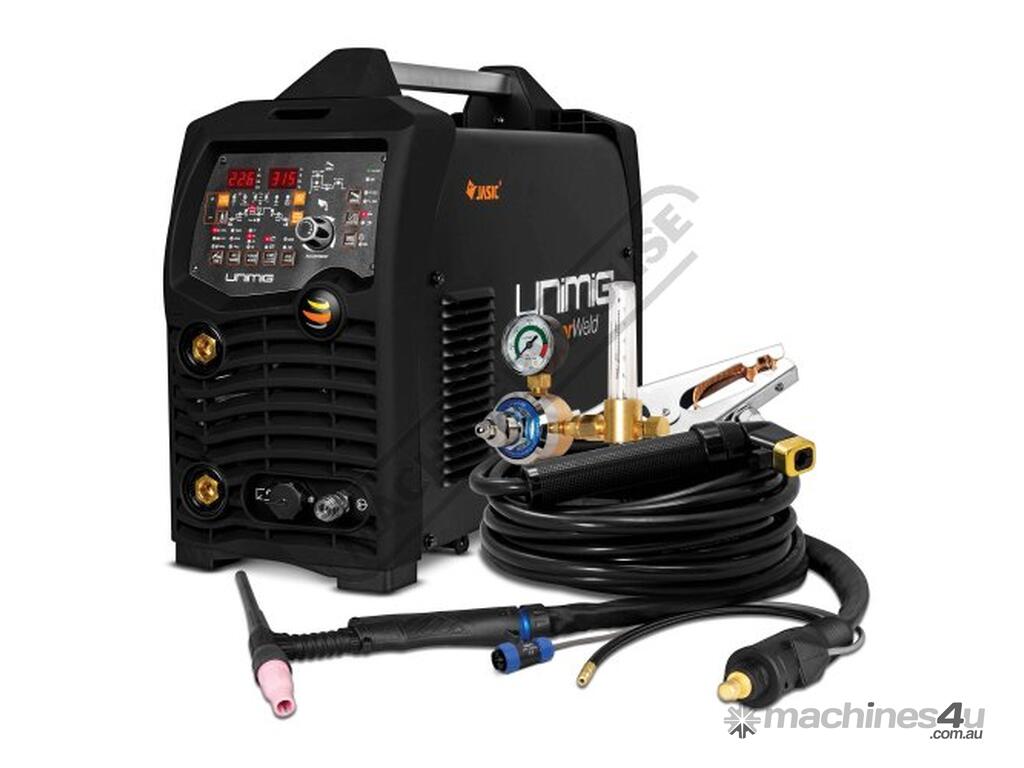

Includes:
- RAZOR TIG 320 AC/DC Power Source
- 4m High Performance T3 TIG Torch (including consumables)
- 4m Twist Lock Electrode Holder
- 500 Amp Earth Clamp & Lead
- Argon Flowmeter Regulator
- 2m Gas Hose Complete with fittings
- Operating Manual



Specifications:
ORDER CODE: W176
Type: TIG WELDER
MODEL: RAZOR™ 320 AC/DC
Part Number: #KUMJRRW320ACDC
Voltage / Amperage (V / amp): 415 / 10
Recommended Plug (amp): 10
Input Frequency (Hz) (Hz): 50-100
Input Current (amp): 19
Ieff Current (amp): 15
Power Rating (kVA): 9
Rated Output Current (amp / V): ~
Rated Output Current (amp / V): ~
Range of Output Current (amp): 10 - 320
Range of Output Current (amp): ~
Range of Output Current (amp): ~
Arc Force (amp): ~
No Load Voltage (V): 73
Pre-Flow (S) (sec): 0.5-10
Clean Width (%) (%): ~
Slope-Down Time (S) (sec): 0 - 15
Post-Flow Time (sec): 0.5-15
Base Current (%): ~
Pulse Frequency (Hz): 0.5 - 200
Pulse Duty Cycle (%): ~
Duty Cycle 40 Deg C - TIG (% amp): 30 315
Duty Cycle 40 Deg C - TIG (% amp): ~
Duty Cycle 40 Deg C - TIG (% amp): ~
Duty Cycle 40 Deg C - MMA (% amp): 30 270
Duty Cycle 40 Deg C - MMA (% amp): ~
Duty Cycle 40 Deg C - MMA (% amp): ~
Duty Cycle 40 Deg C - Plasma (% amp): ~
Plasma Severance Cut Capacity Carbon Steel (mm): ~
Plasma Production Cut Capacity Carbon Steel (mm): ~
Plasma Production Cut Capacity Aluminium (mm): ~
Protection Class: IP21S
Remote Control (Yes / ~): ~
Recommended Generator (kVA): ~
Efficency (%): ~
Power Factor: ~
Insulation Class: ~
Dimensions (mm): 566 x 223 x 405
Nett Weight (kg): 25.5
