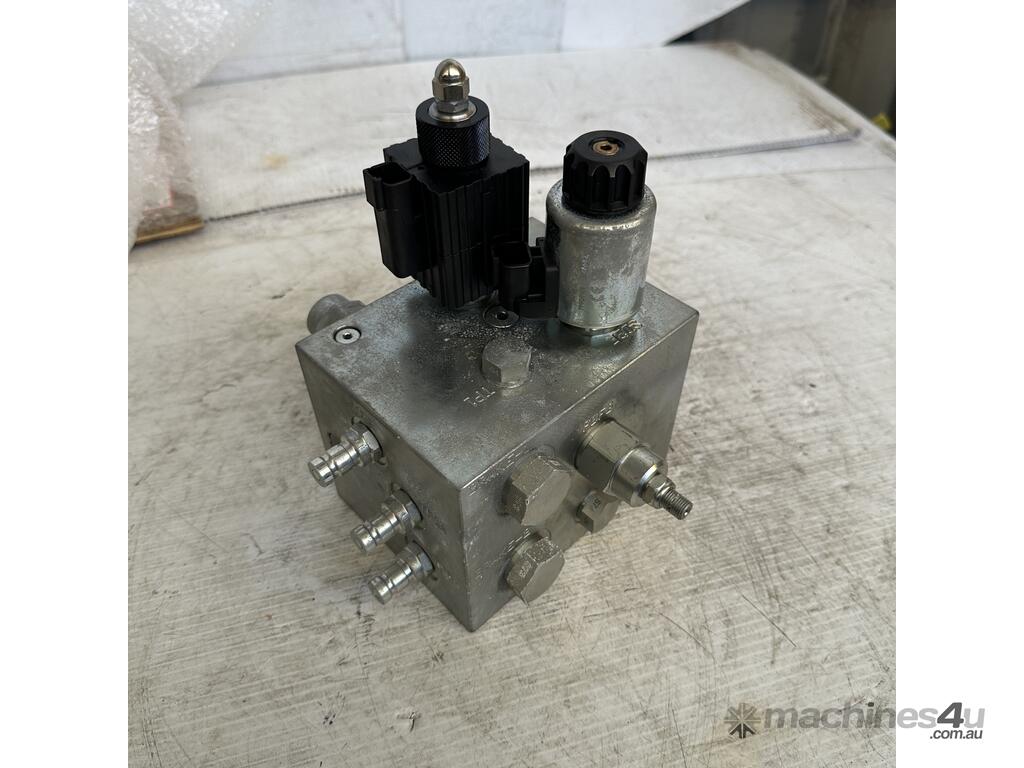

RCT P58250-635 KIT PROP BRAKE MANIFOLD 635PSI 13534 Fluid Line M28374-2

RCT Powered by Epiroc
PART#: 13534
DESC: KIT PROP BRAKE MANIFOLD 635PSI
Machine Hydraulics

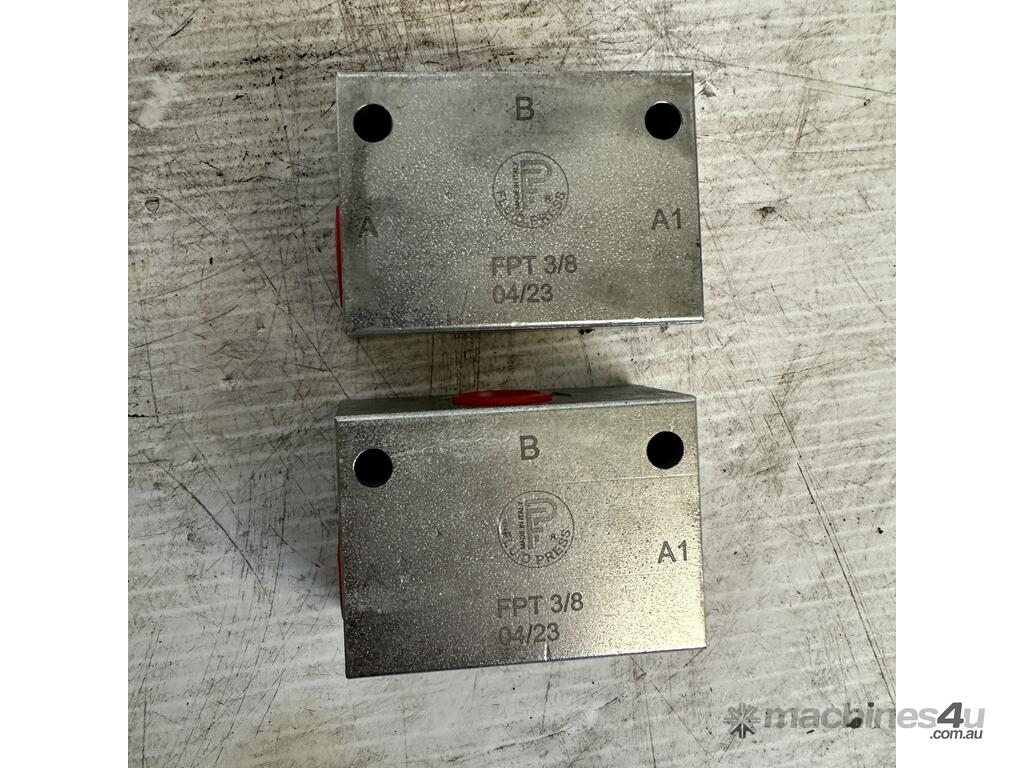

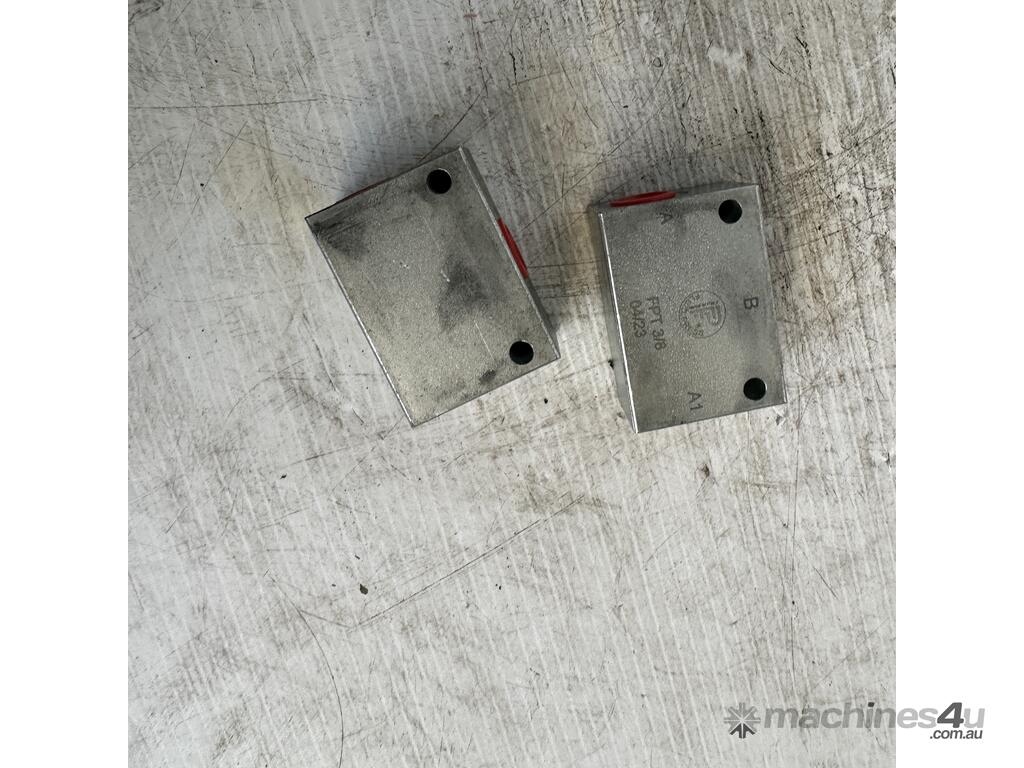

Also included is 2x Fluid Press hydraulic manifold sub-plate model FPT 3/8 (3/8" porting), manufactured April 2023.

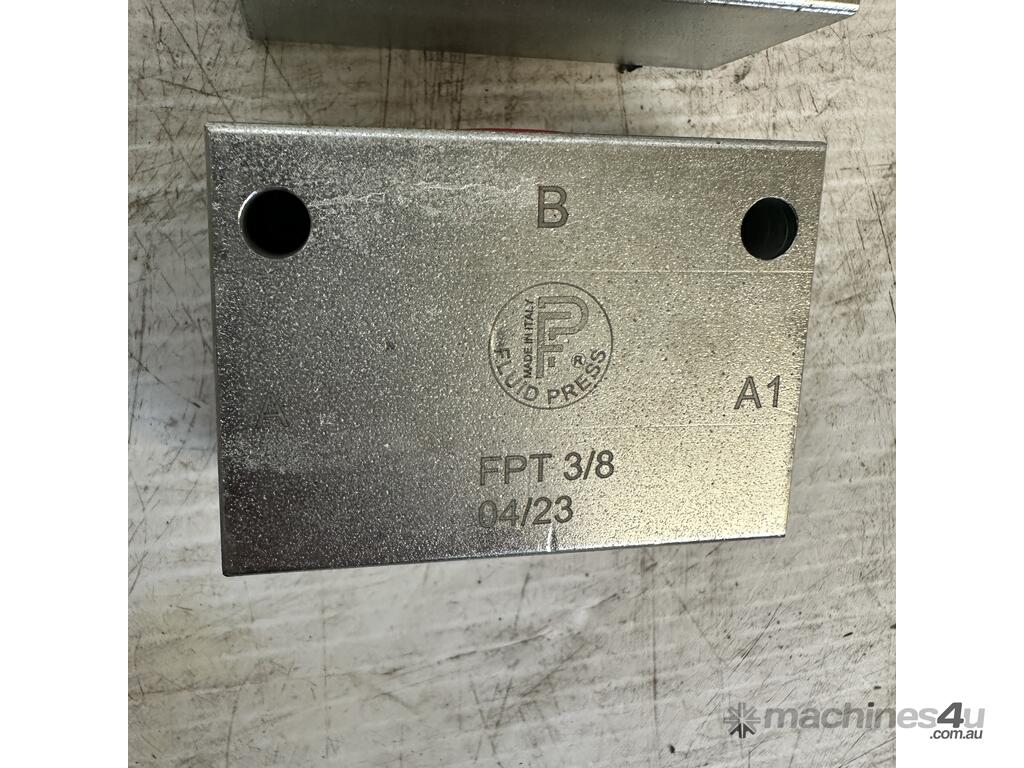

Fluid Press FPT 3/8 Hydraulic Manifold Subplate CETOP NG6 Valve Base 04/23

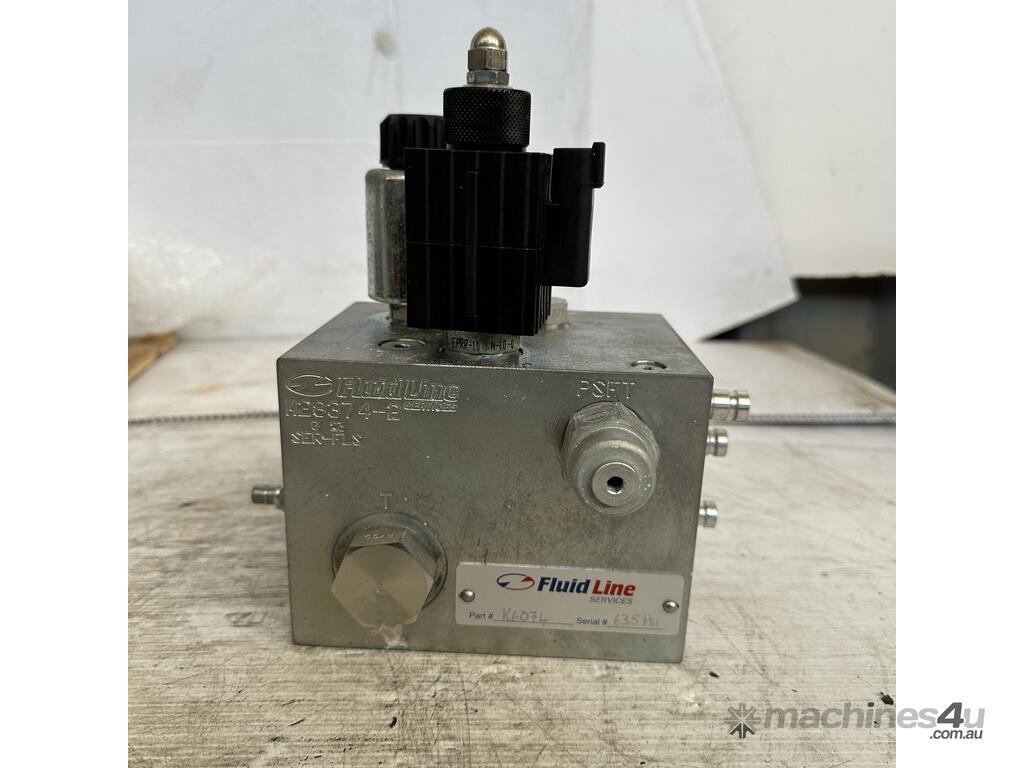

Fluid Line Services

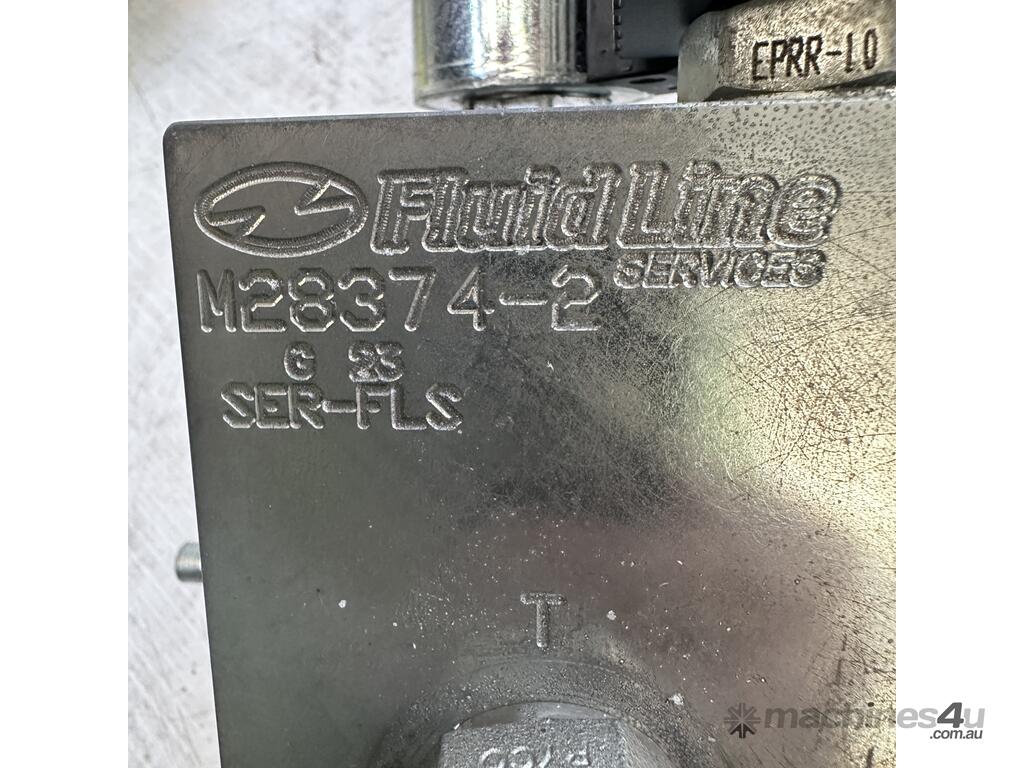

M28374-2
SER-FLS


Fluid Line Services

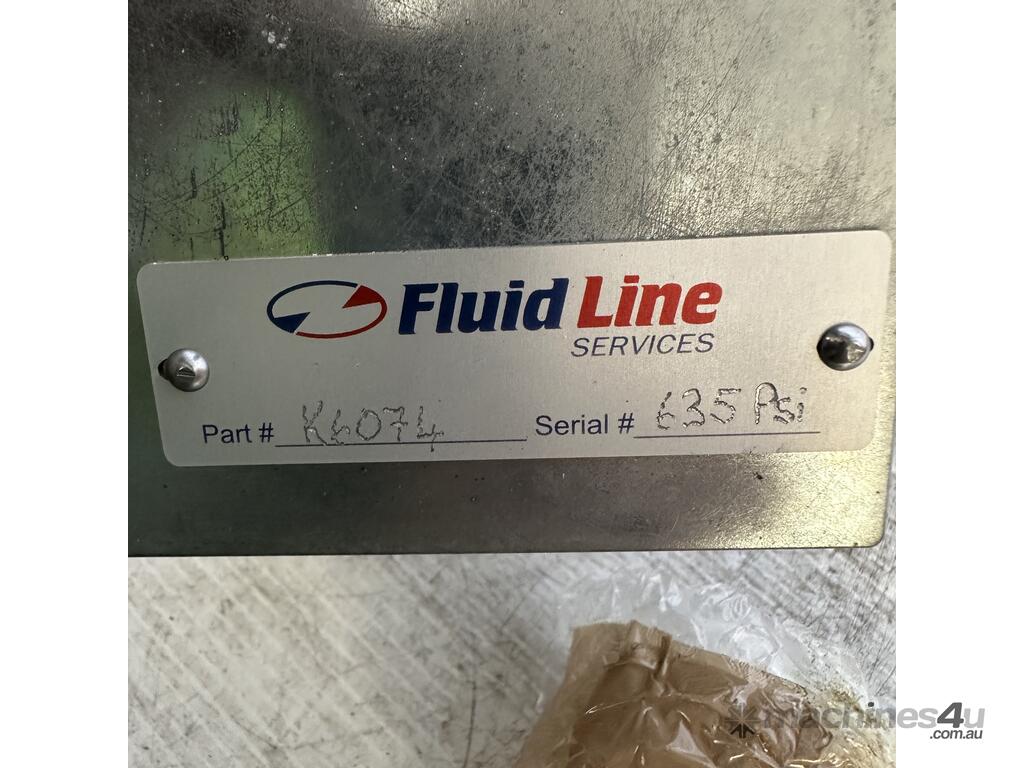

Part #: K6074
Serial #: 635 PSI



Smart Automation & Control Technology by RCT

Was being used in Tanami at Newmont Mines in the Tanami. and were instaled on CAT 2900 undergroung mining loaders

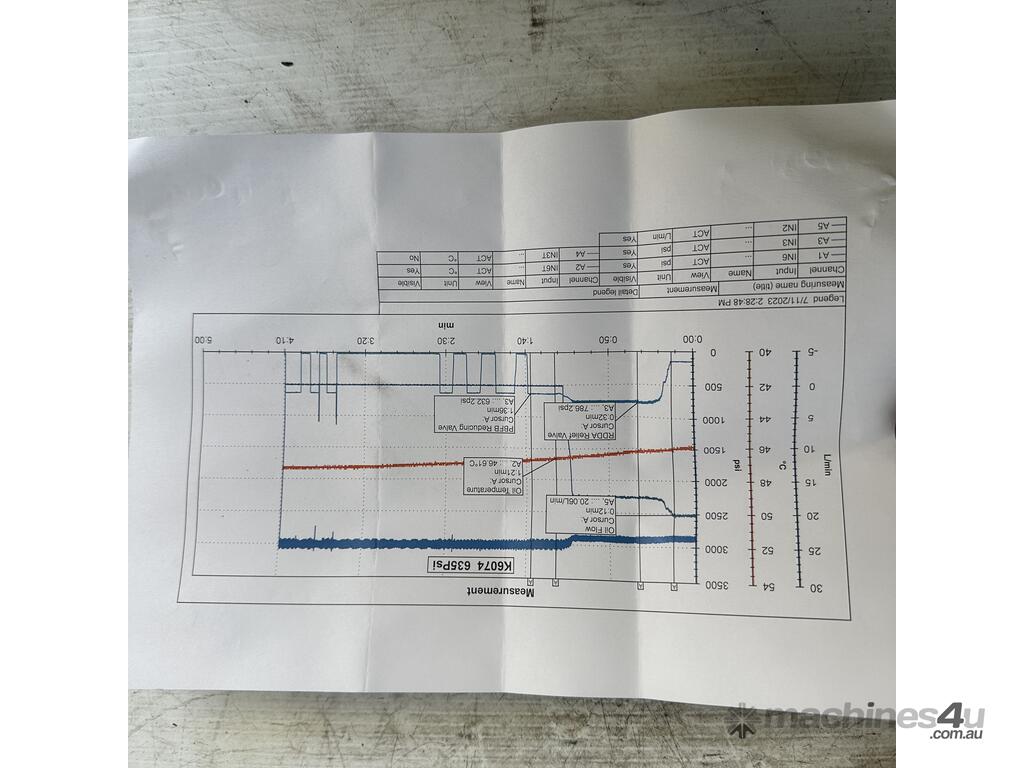

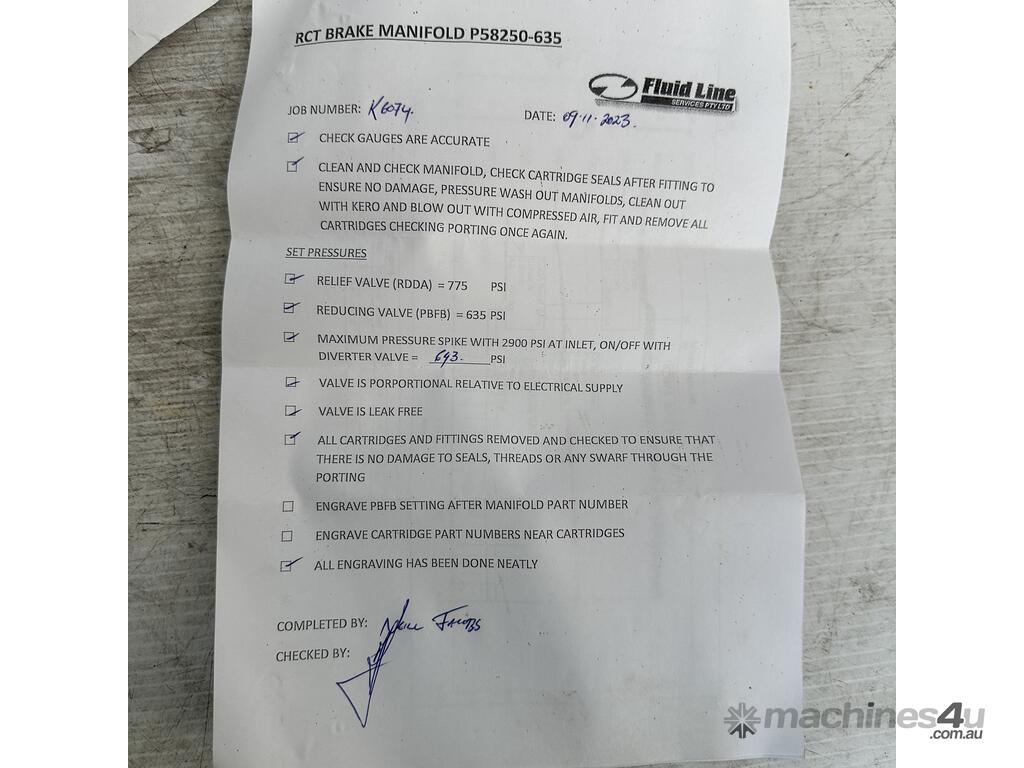

Content of Fluid Line Services Test Sheet

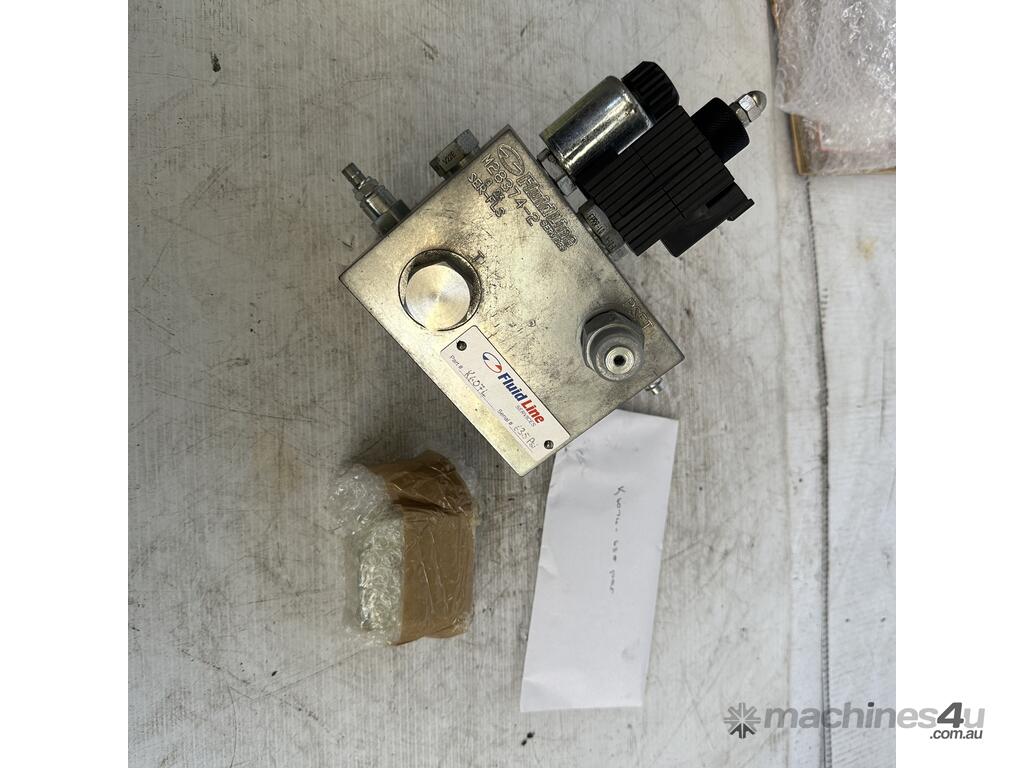

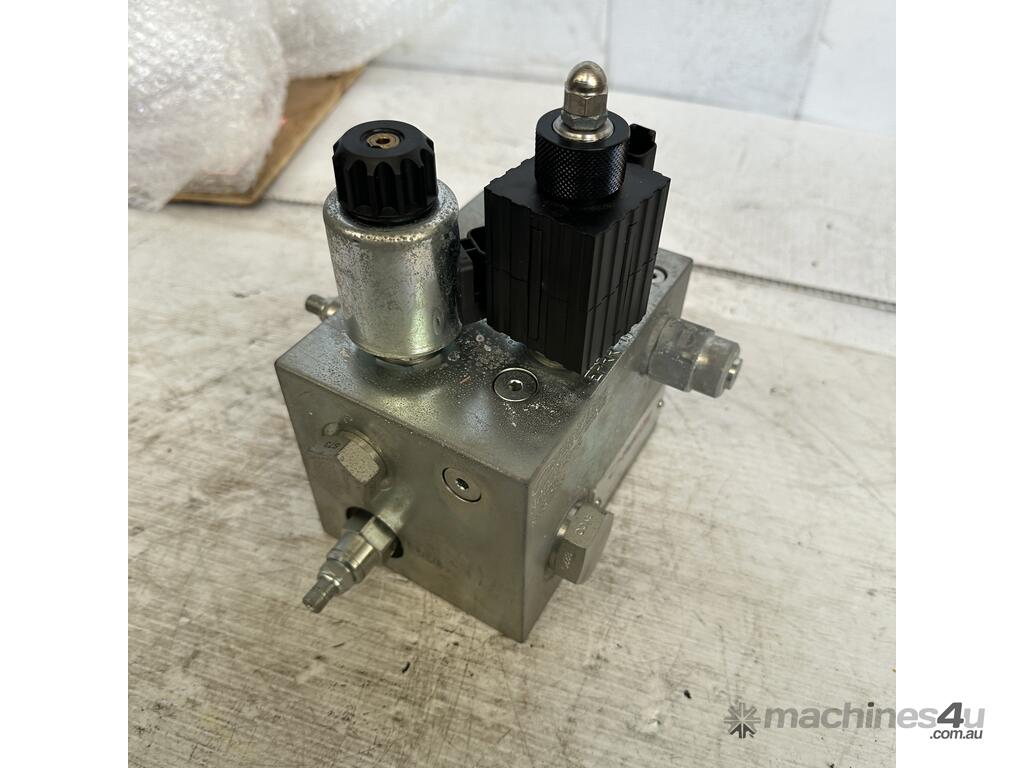

RCT BRAKE MANIFOLD P58250-635

JOB NUMBER: K6074. Date: 07/11/2023.

? CHECK GAUGES ARE ACCURATE

? CLEAN AND CHECK MANIFOLD, CHECK CARTRIDGE SEALS AFTER FITTING TO
ENSURE NO DAMAGE, PRESSURE WASH OUT MANIFOLDS, CLEAN OUT
WITH KERO AND BLOW OUT WITH COMPRESSED AIR, FIT AND REMOVE ALL
CARTRIDGES CHECKING PORTING ONCE AGAIN.

SET PRESSURES

? RELIEF VALVE (RDDA) = 775 PSI

? REDUCING VALVE (PBFB) = 635 PSI

? MAXIMUM PRESSURE SPIKE WITH 2900 PSI AT INLET, ON/OFF WITH
DIVERTER VALVE = 493 PSI

? VALVE IS PROPORTIONAL RELATIVE TO ELECTRICAL SUPPLY

? VALVE IS LEAK FREE

? ALL CARTRIDGES AND FITTINGS REMOVED AND CHECKED TO ENSURE THAT
THERE IS NO DAMAGE TO SEALS, THREADS OR ANY SWARF THROUGH THE
PORTING

? ENGRAVE PBFB SETTING AFTER MANIFOLD PART NUMBER

? ENGRAVE CARTRIDGE PART NUMBERS NEAR CARTRIDGES

? ALL ENGRAVING HAS BEEN DONE NEATLY

COMPLETED BY: (signature)
CHECKED BY: (signature)

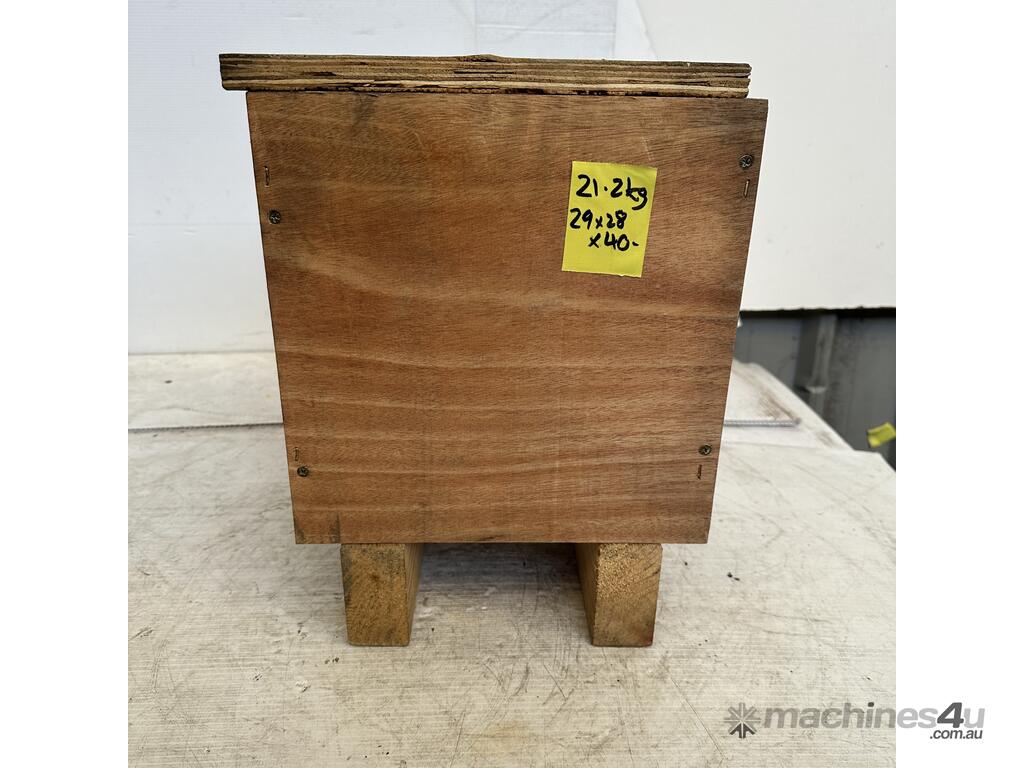

22kg
29 x 28 x 40cm

We are currently listing a huge collection of ControlMaster RCT equipment and spare parts, see: Control Master RCT

Contact and inspection of goods
Please contact Tim Marshman with any questions. This item may be inspected by appointment at 9 Vernon Smith Court, Ottoway, South Australia
