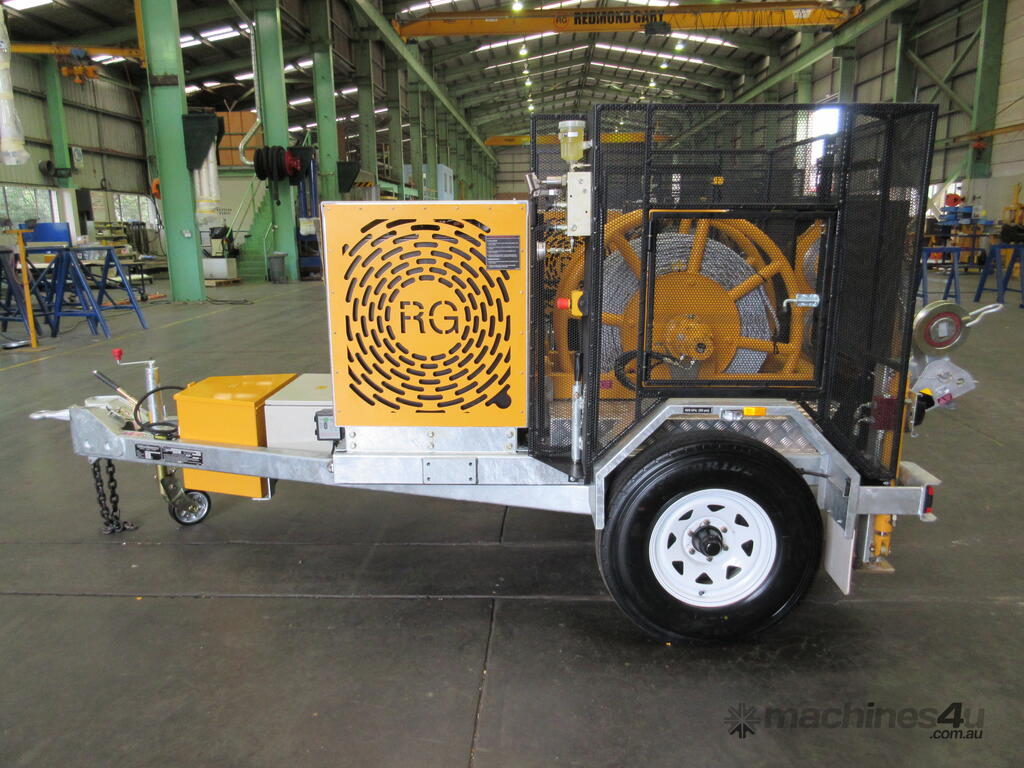

REDMOND GARY - 3.5 TONNE BULL WHEEL WINCH TRAILER

35KN BULL WHEEL WINCH TRAILER

• Designed for underground or overhead operation with pivoting rear idler pulley (sheave)
• Maximum line pull 35kN
• Maximum line speed at max pull is 14 m/min
• Remote mounted LED display indicates line pull(kN), Distance hauled (m), Hauling Speed (m/min) (Change over switch is located on the remote control.

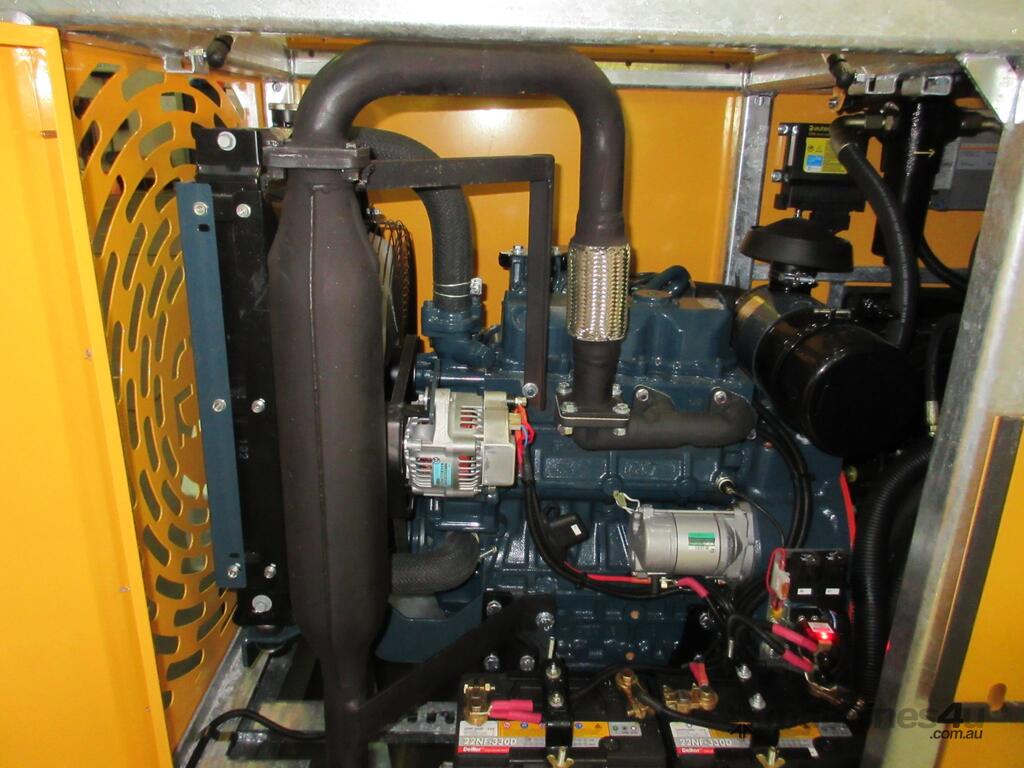

• Diesel Engine, Water Cooled, Electric Start
• Trailer frame is fully hot dip galvanised
• 12 VDC Electric brake system on trailer
• 76mm ring fixed tow eye
• Drawbar height - 625mm
• 13mm Trailer Safety Chain, suit Shackles or Bartlett attachments on tow bar # excludes vehicle attachment hardware (by customer)
• LED lights
• A Programmable Logic Controller (PLC) controlled level wind mechanism to ensure even distribution of wire rope in reel. (Housed in a protective enclosure)

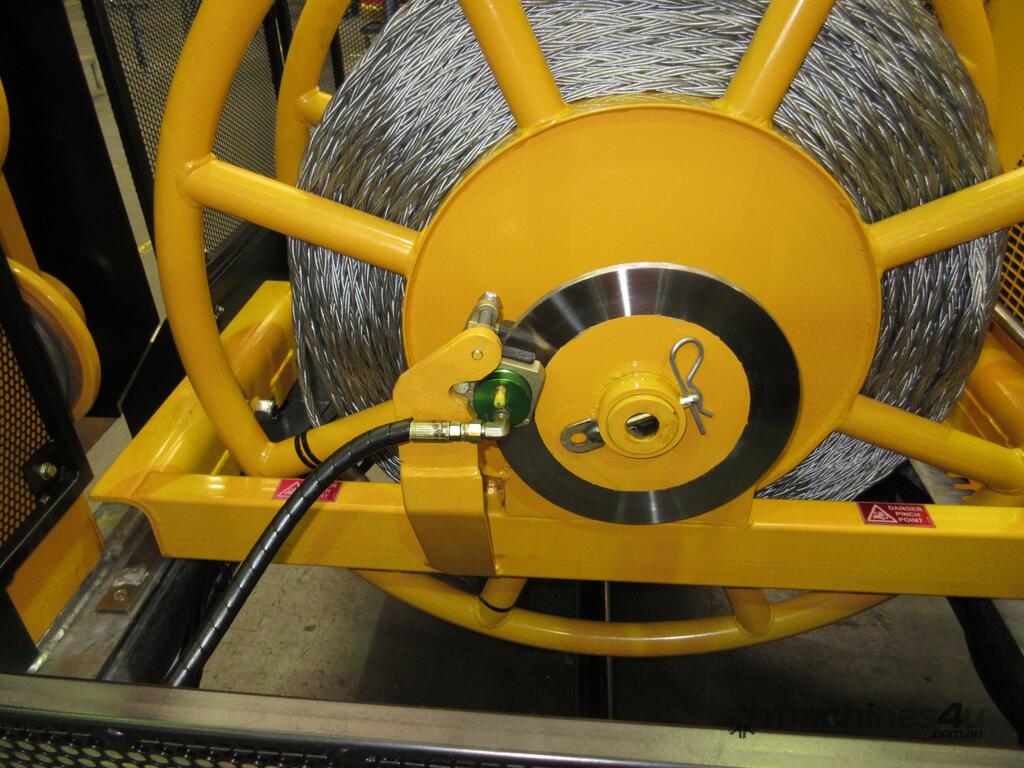

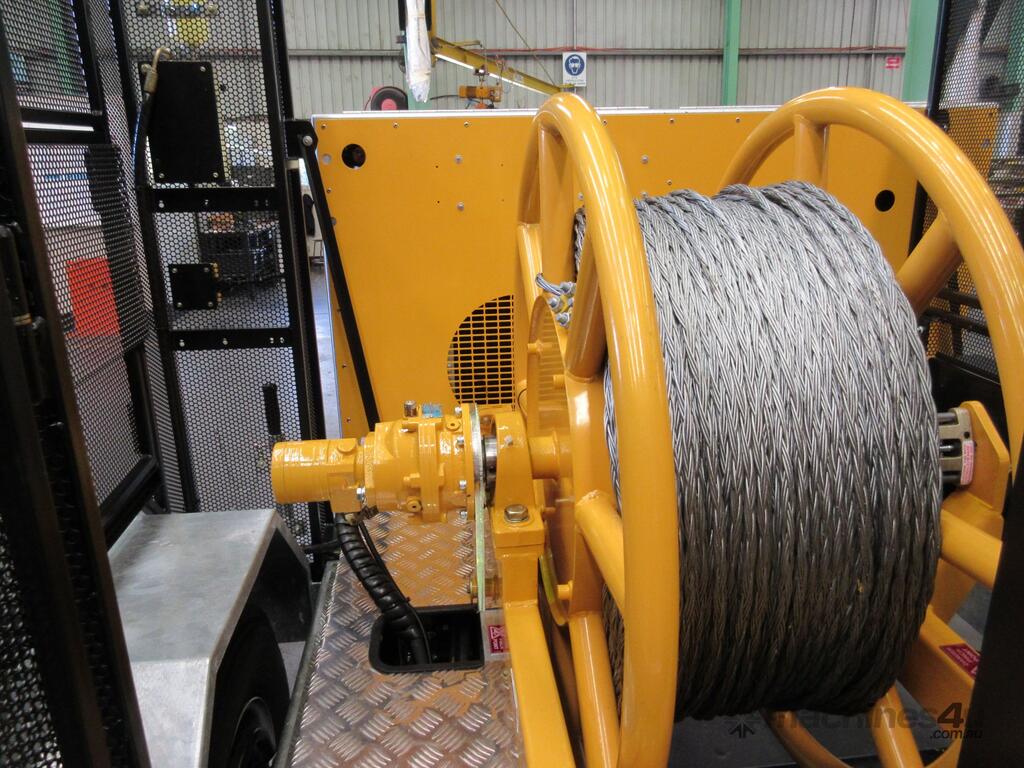

• Level winding system on storage reel suits 13mmØ wire or 14mmØ fibre ropes
• Storage reel can be used in freewheel to pay out, or high speed haul in at 34m/min (empty) to 60m/min (full)
• Fuel tank with a capacity of 38 litres minimum
• Hydraulic oil tank with a capacity of 74 litres and circuit is fitted with an oil cooler.
• Winch controls via Remote Control on 5Mtrs of umbilical cable (Radio control available as option)
• The maximum line tension is adjustable from the Remote Control
• The line speed is fully variable in each direction

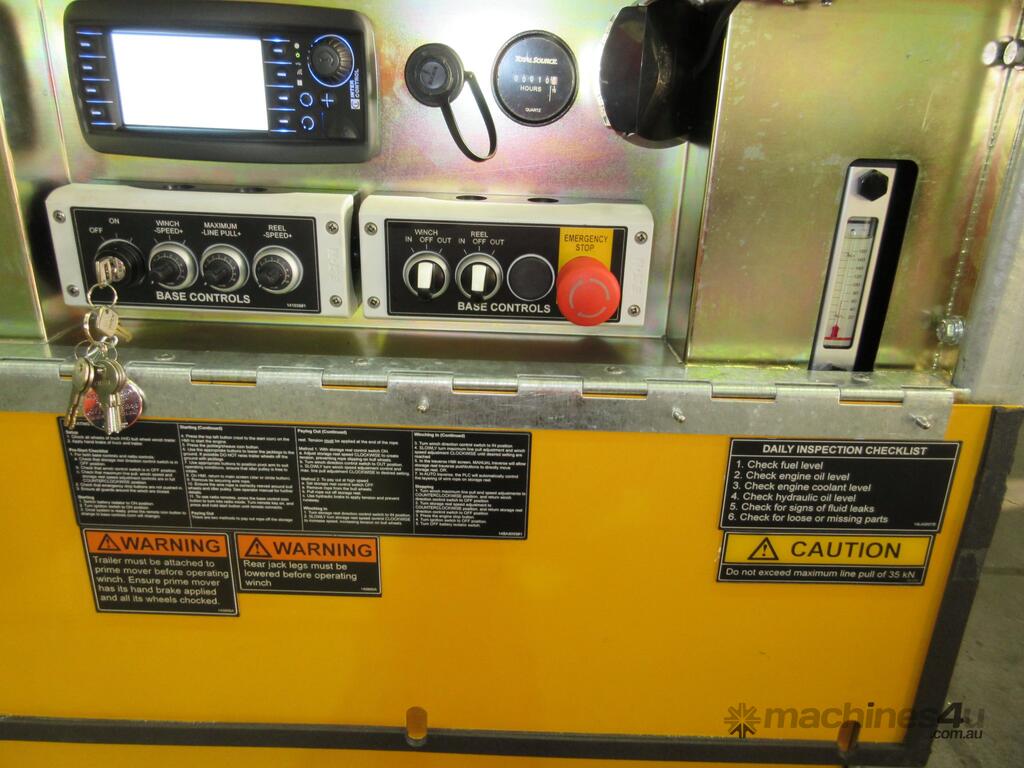

• The control panel is fitted with the following;
- Engine hour meter
- Ignition key switch
- E-Stop
- Jackleg and Sheave raise/Lower controls
