REDMOND GARY - 3 DRUM 1 TONNE OVERHEAD RECOVERY WINCH

10KN 3 DRUM OVERHEAD RECOVERY WINCH

DESIGNED TO WORK IN ELECTRICAL DISTRUBITION INDUSTRIES REQUIRING COST EFFECTIVE, COMPACT AND TRANSPORTABLE WINCHES

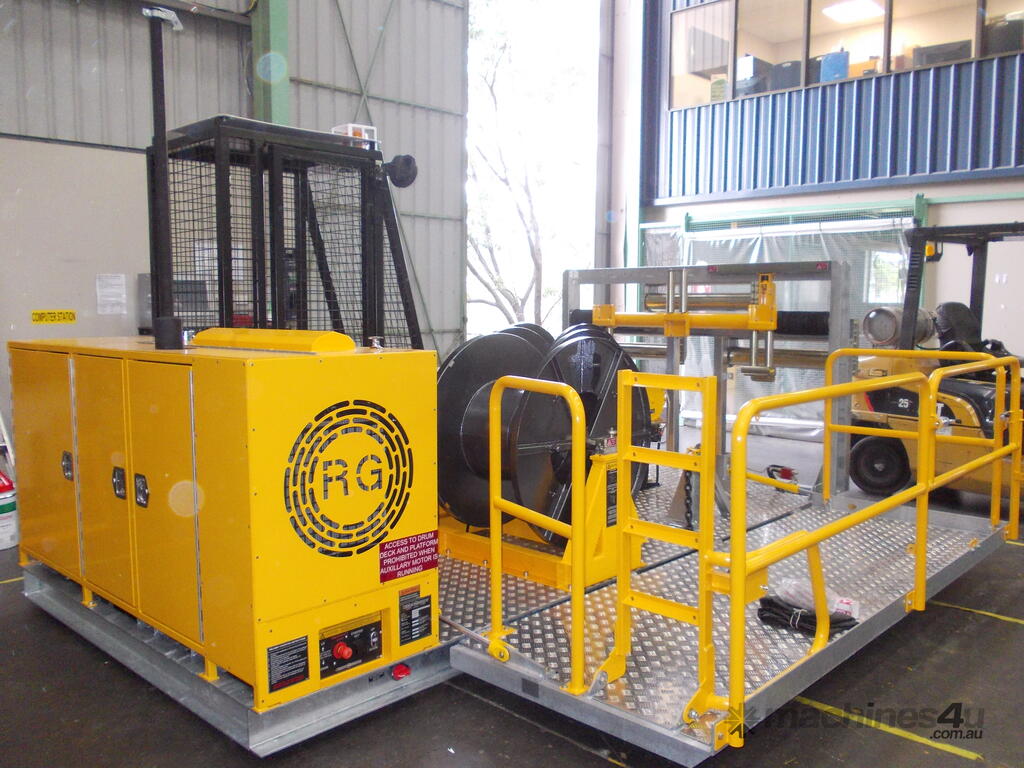

> Consists of the winch, power unit and base frame
> All winch components are manufactured from high quality materials and components
> Surfaces are grit blasted to class 2.5, primed with one coat of zinc primer and finished with powder coat
> Hydraulically driven and powered by a diesel power unit
> Practical range of drum speeds and line tensions to meet most requirements
> Three models available
> Variety of accessories available to meet all your requirements
> Base frames allow operations personnel to secure the complete unit to most surfaces
> Optional data logging and performance monitoring to the line pulling process
> Enables project management teams to perform the winching task safely and ensure that line pulls are correctly monitored and recorded
> Winch complies to Australian Standards

STANDARD INCLUSIONS:
Maximum line-pull 10kN per drum (measured mean diameter)
Capable of hauling at 10kN 40m/min (mean diameter) on all 3 drums, simultaneously
43kW 2600 rpm water cooled diesel engine in lockable cabinet
3 split drums complete with crane lifting hooks
Lifting beam to remove drums
Single axis joystick control of 1, 2 or 3 drums at a time, with rotary switch winch selection in any combination
Provision to free-wheel
A layering control device mounted on the stern of the skid
Fairlead rollers
Suitable skid frame complete with chain sling for lifting and corner castings for container locking device
Complete skid frame and the layer winder support is hot dipped galvanised
Control console powder coated

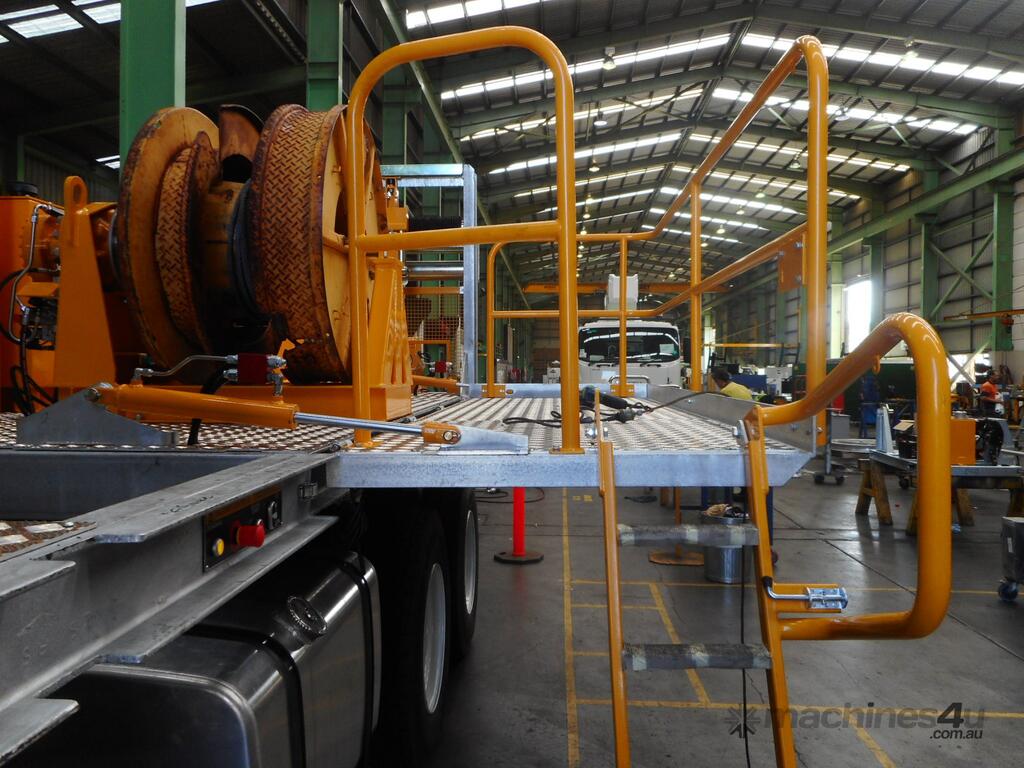

Fully protected operator's cage
Ergonomically designed control console
Safety and Operational signage - Anodised Aluminium or UV Stable Acrylic
One work (flood) light on platform
One amber rotating light on operator cage
One fluorescent light in operator cage
Lifting chain set, consisting of 3-legged chain set, for crane handling of the Recovery Winch Skid
Battery Isolator Switch
One operational manual
