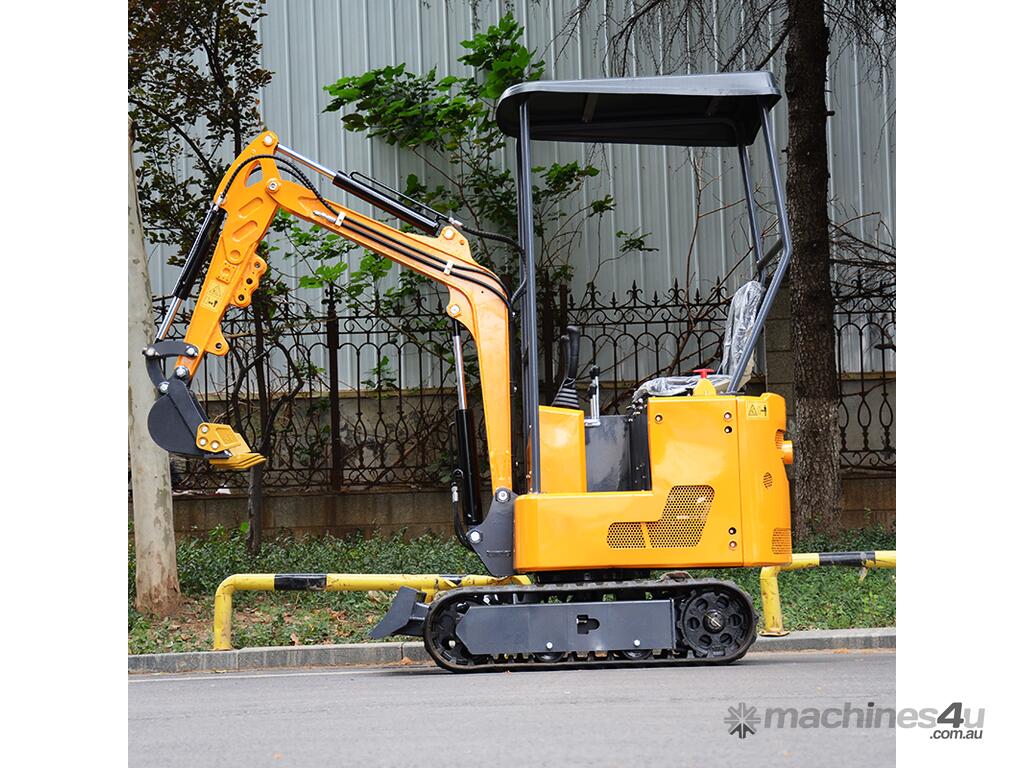

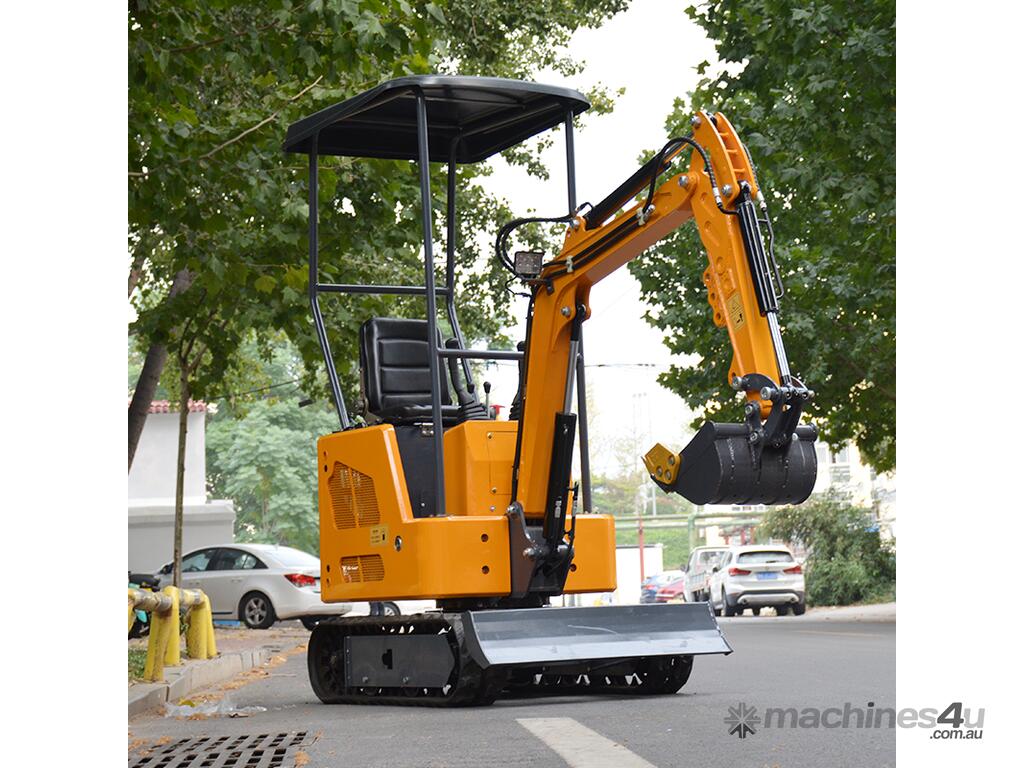

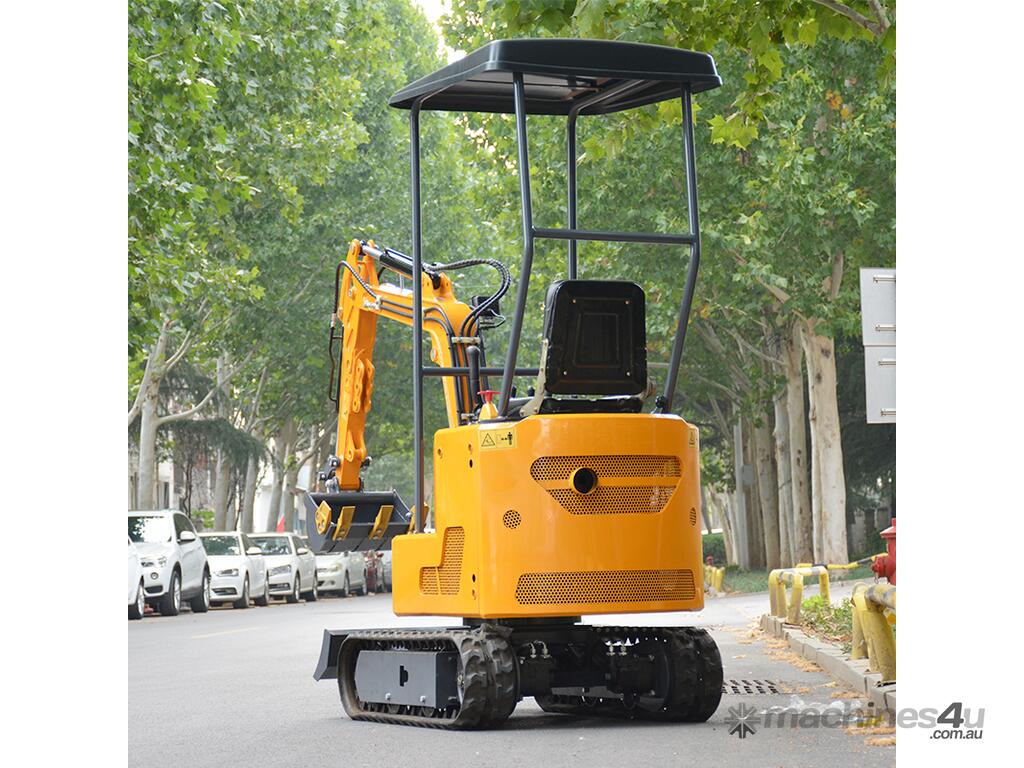

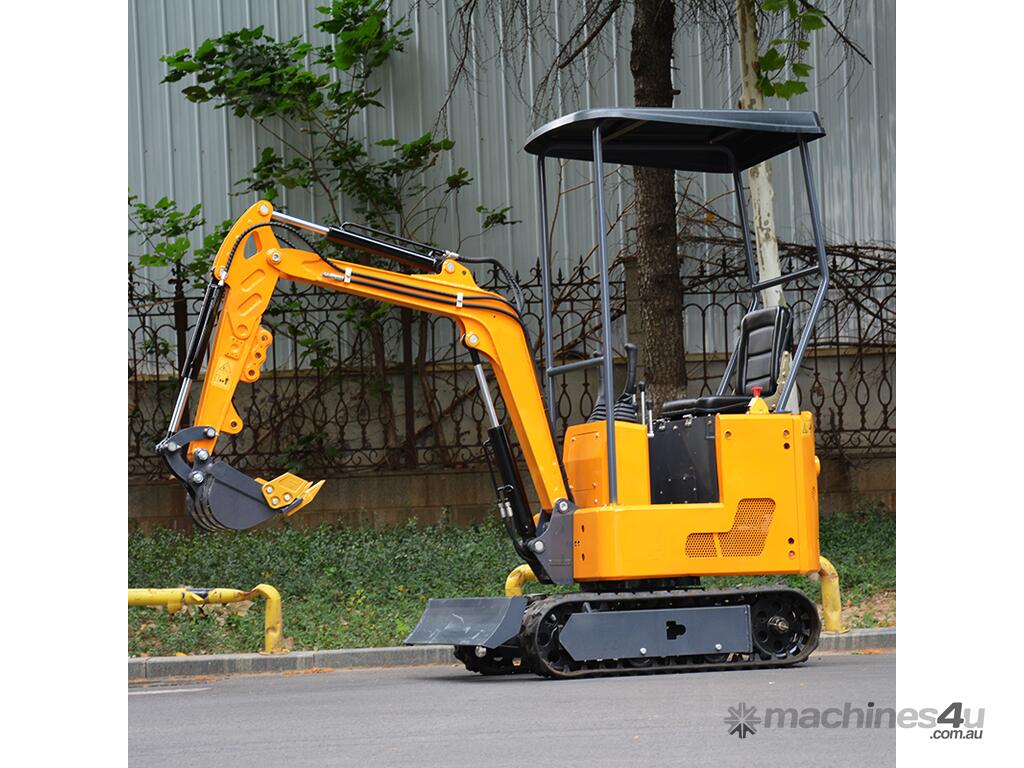

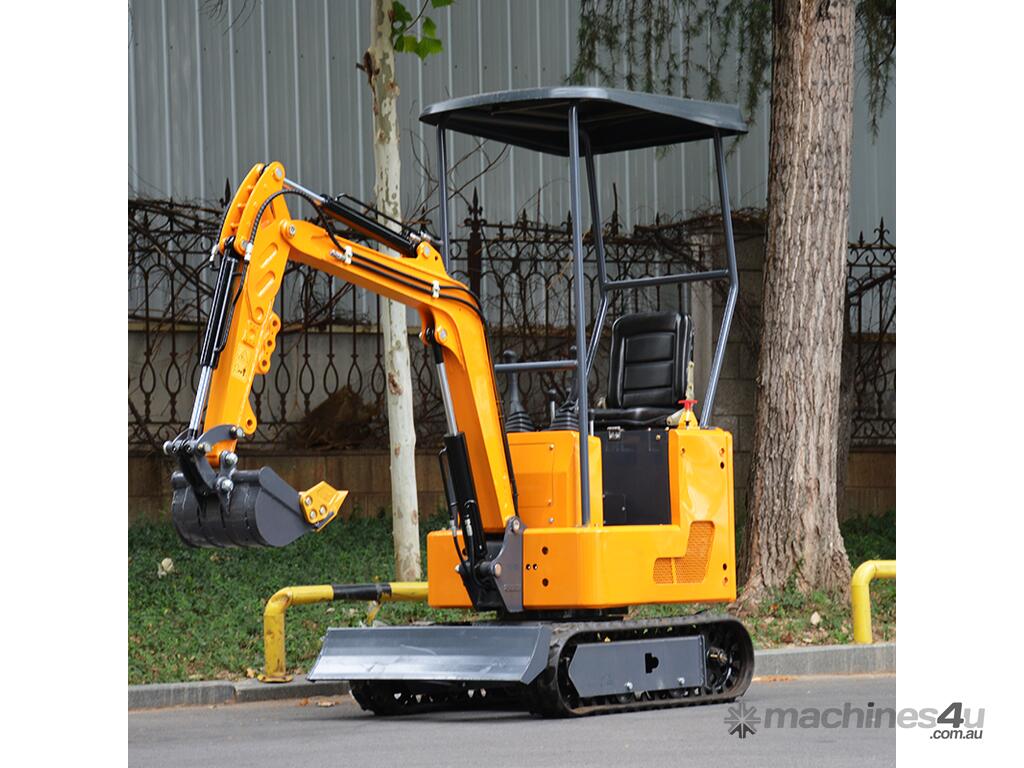

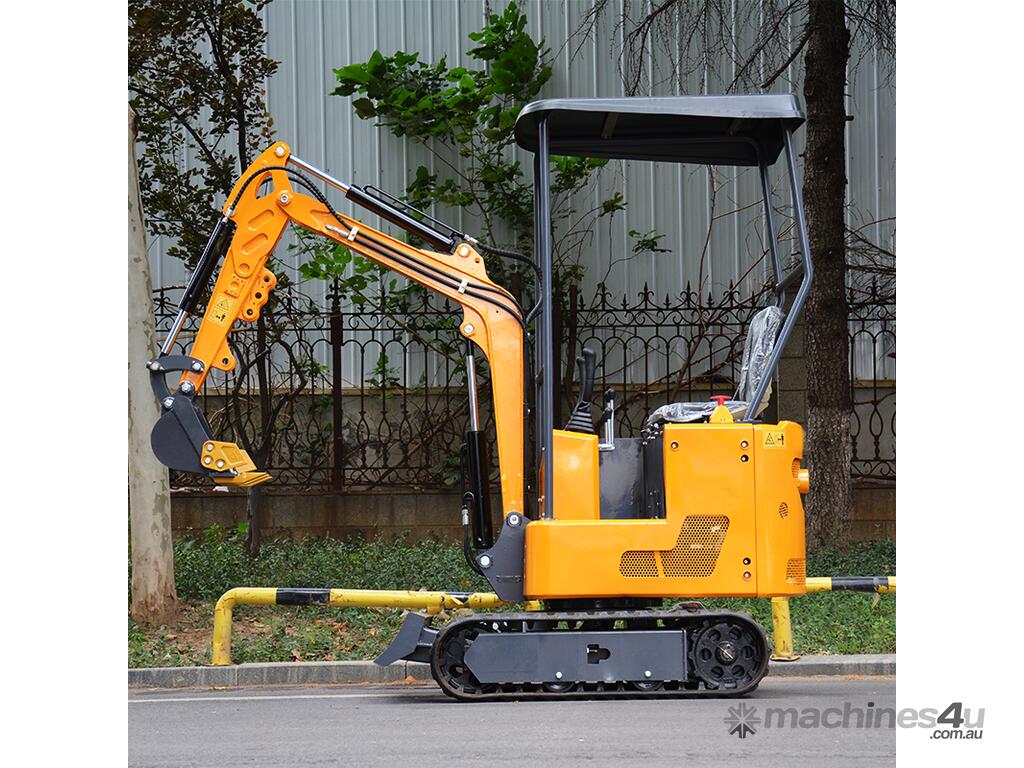

A compact 1.2-ton mini excavator with a 1.6m digging depth, efficient engine, and tight turning radius—perfect for landscaping, civil work, fencing, plumbing, and tight-access jobs.
Key Specs:
Operating weight: 1200 kg – easy to transport on plant trailers
Max digging depth: 1620 mm – ideal for trenches, landscaping & plumbing work
Engine: KOOP / Briggs & Stratton 12–13.5 HP – reliable performance with low maintenance
Additional Specs:
Basic dimensions:
Length: 2500 mm
Width: 950 mm
Height: 2200 mm
Working range:
Max digging height: 2850 mm
Max dumping height: 2050 mm
Max digging depth: 1620 mm
Max digging radius: 2900 mm
Minimum turning radius: 800 mm
Max lifting height of earth shovel: 160 mm

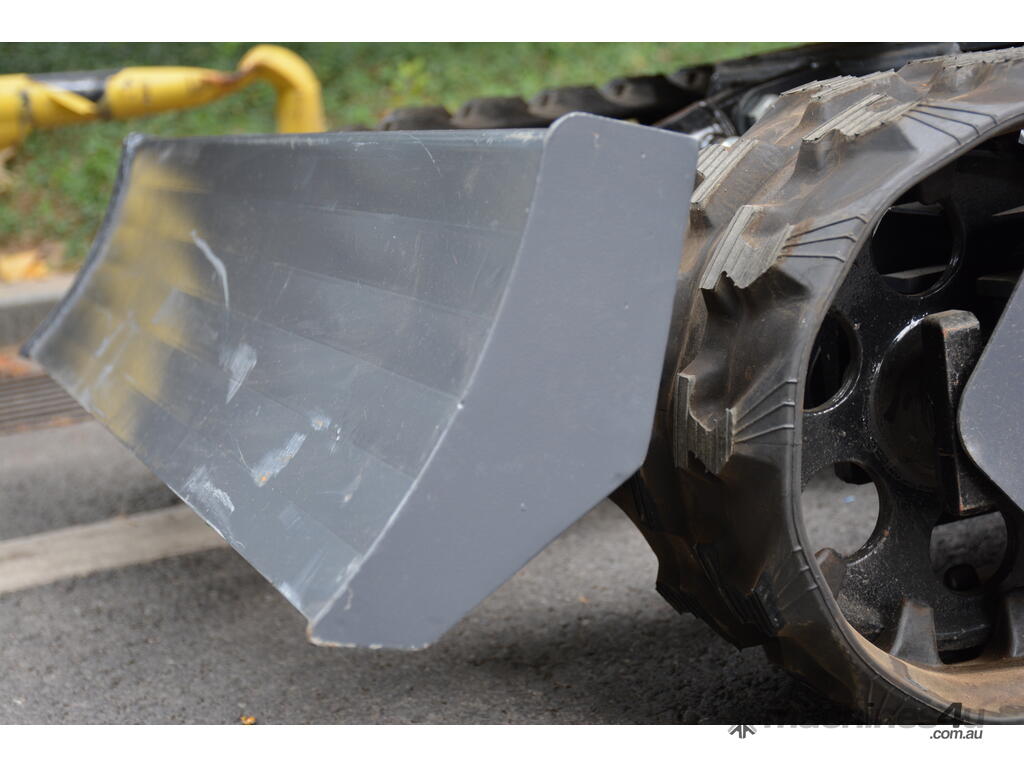

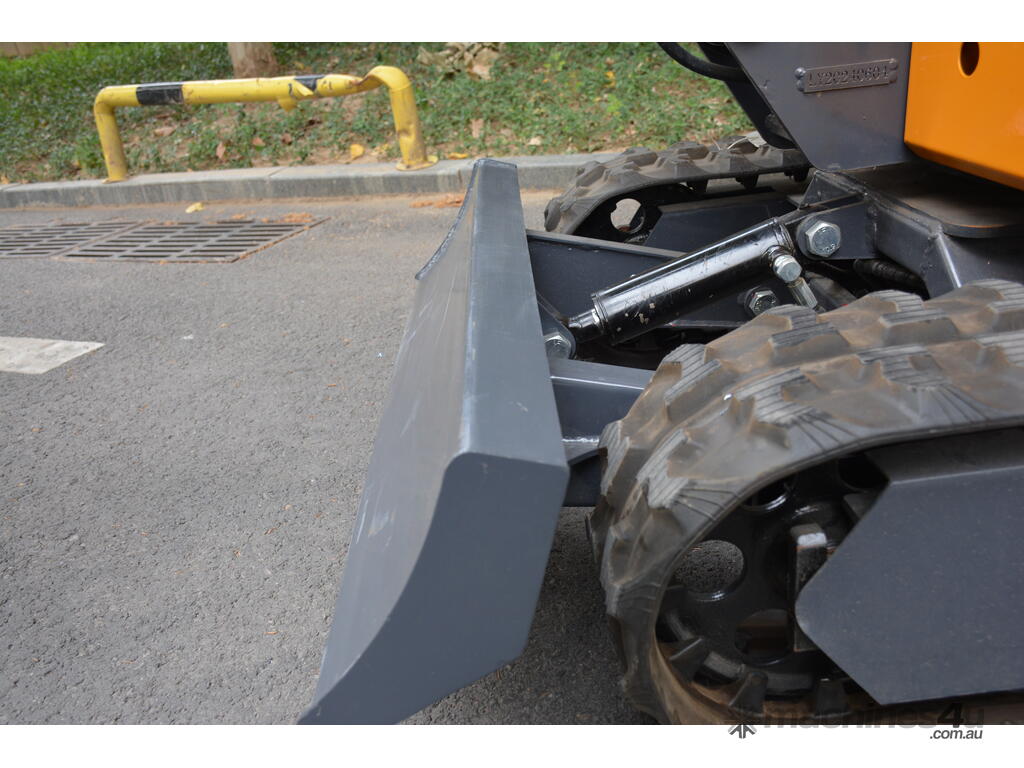

Max digging depth of dozer: 210 mm
Hydraulics:
Operating pressure: 22 MPa
Hydraulic flow: 25 L/min
Hydraulic tank capacity: 10 L
Load sensing system
Performance:

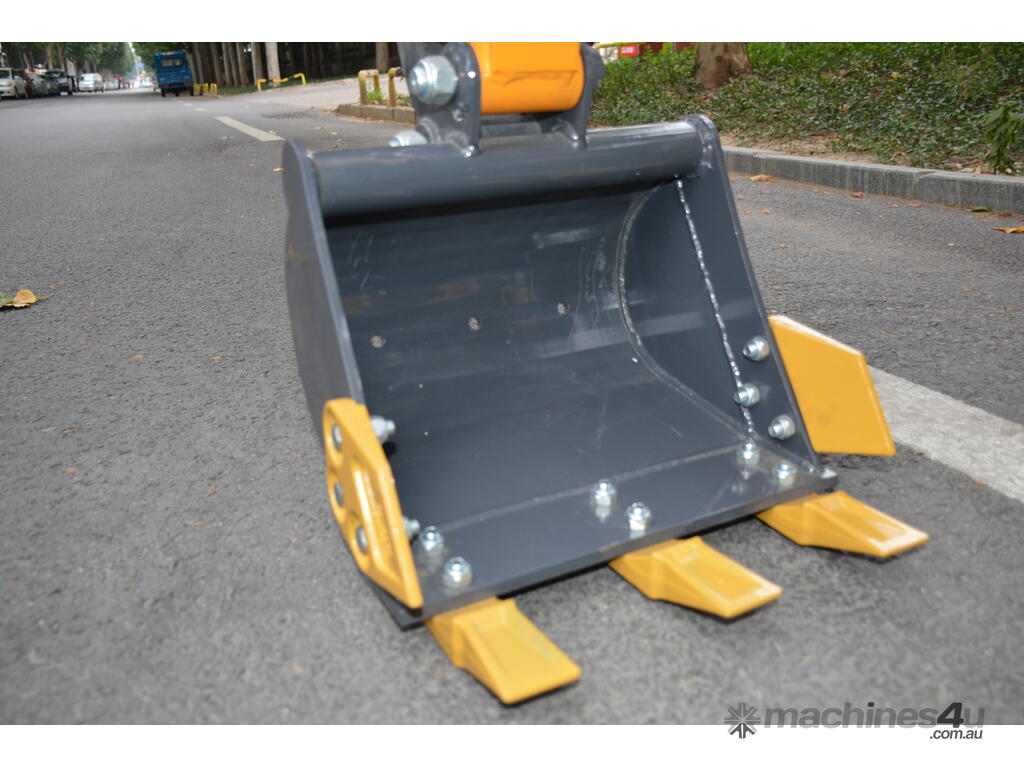

Bucket capacity (SAE): 0.024 m³
Climbing ability: 45°
Travel speed: 2.2–4.3 km/h
Unit swing speed: 8–10 rpm
