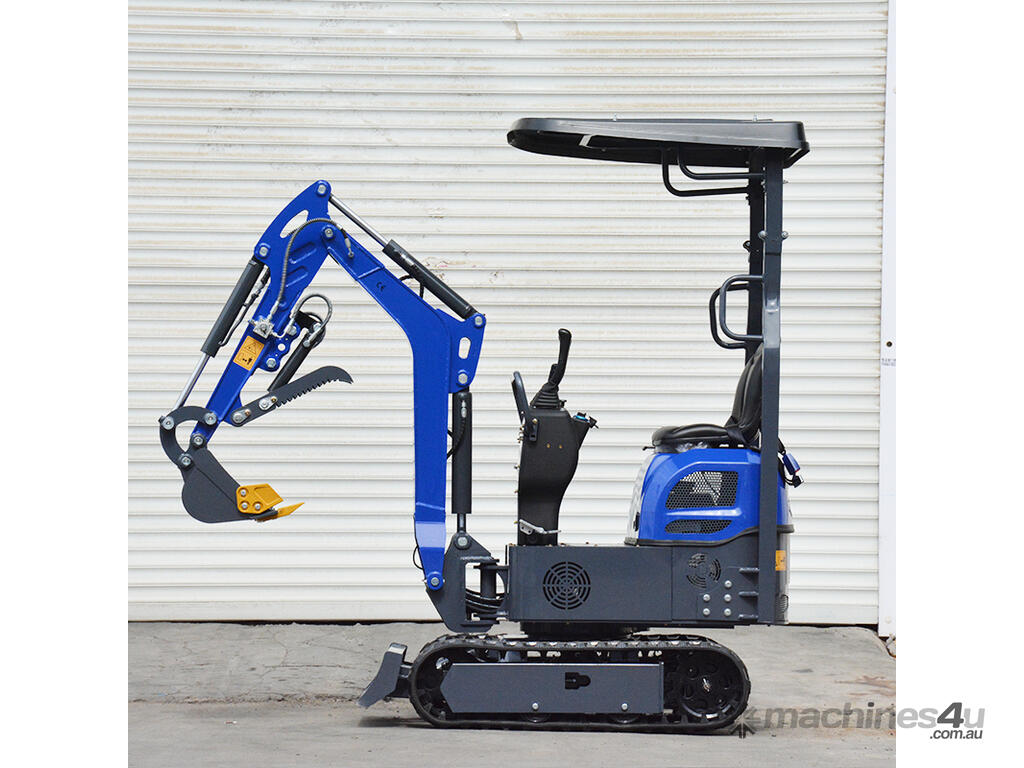

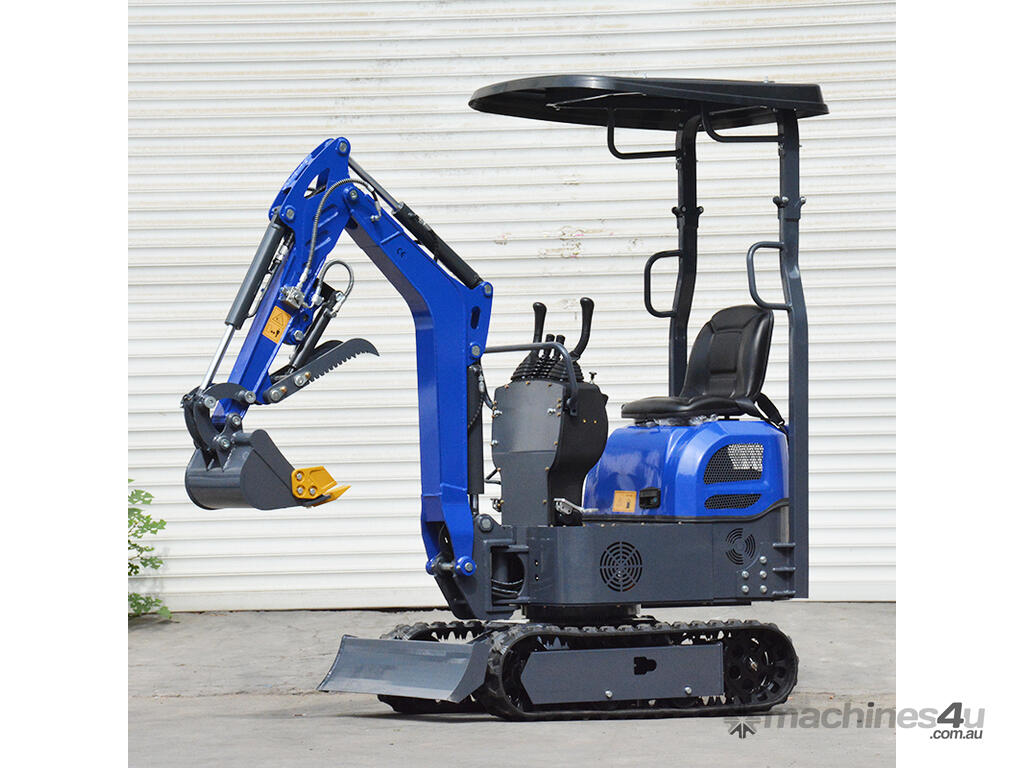

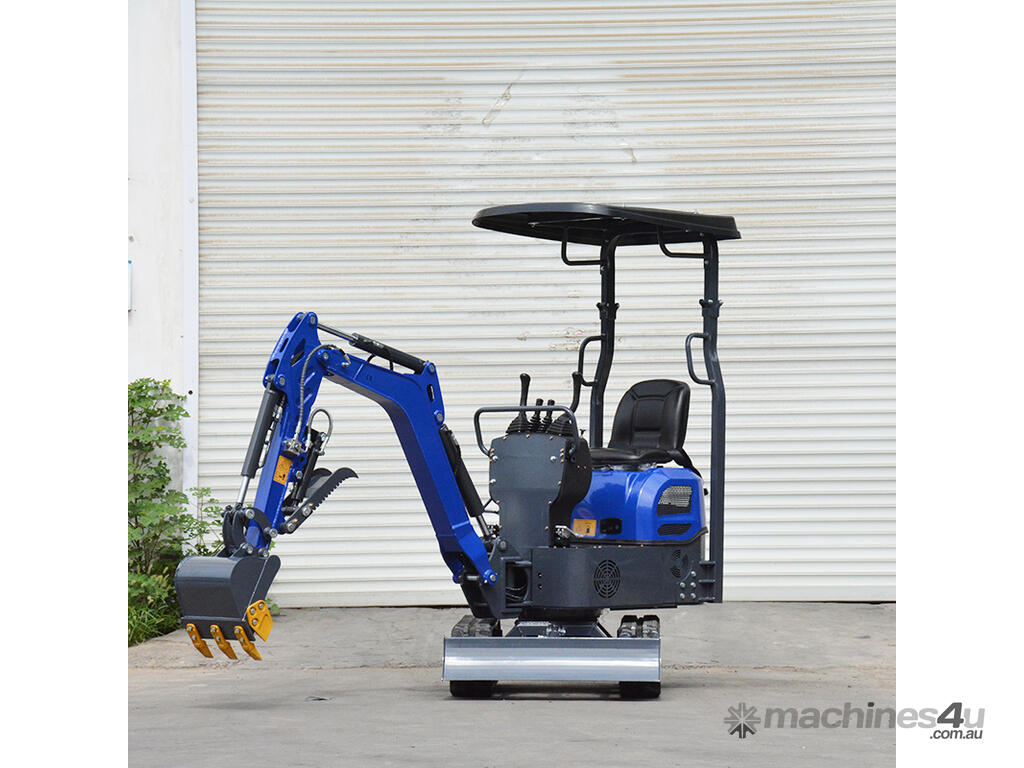

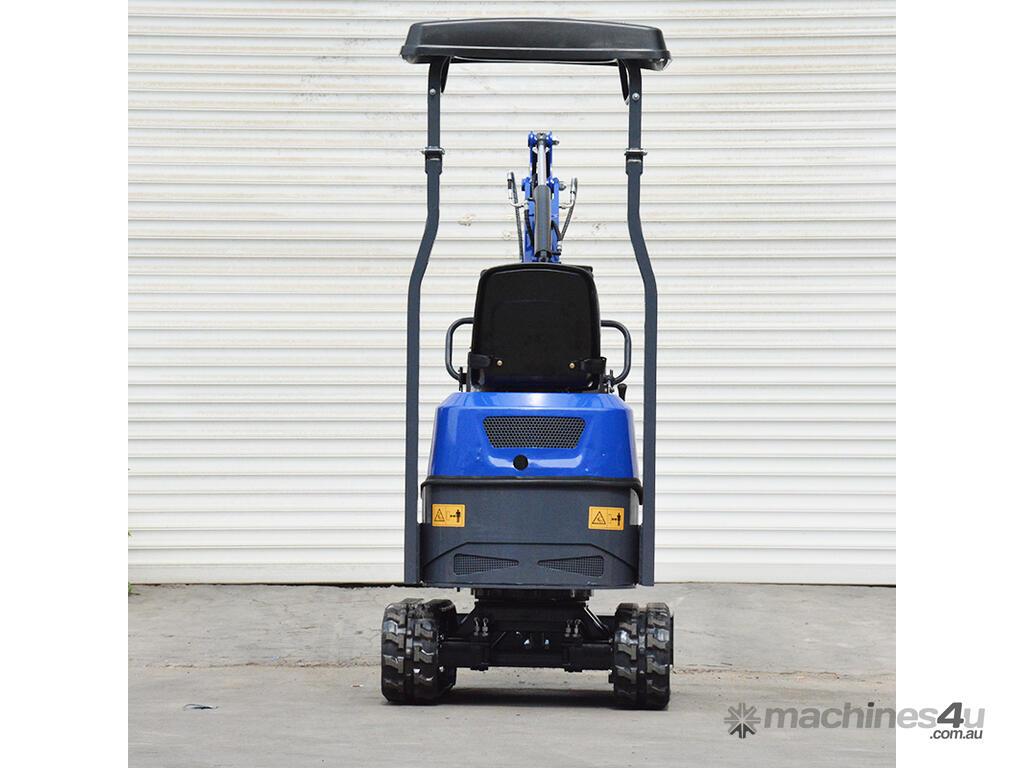

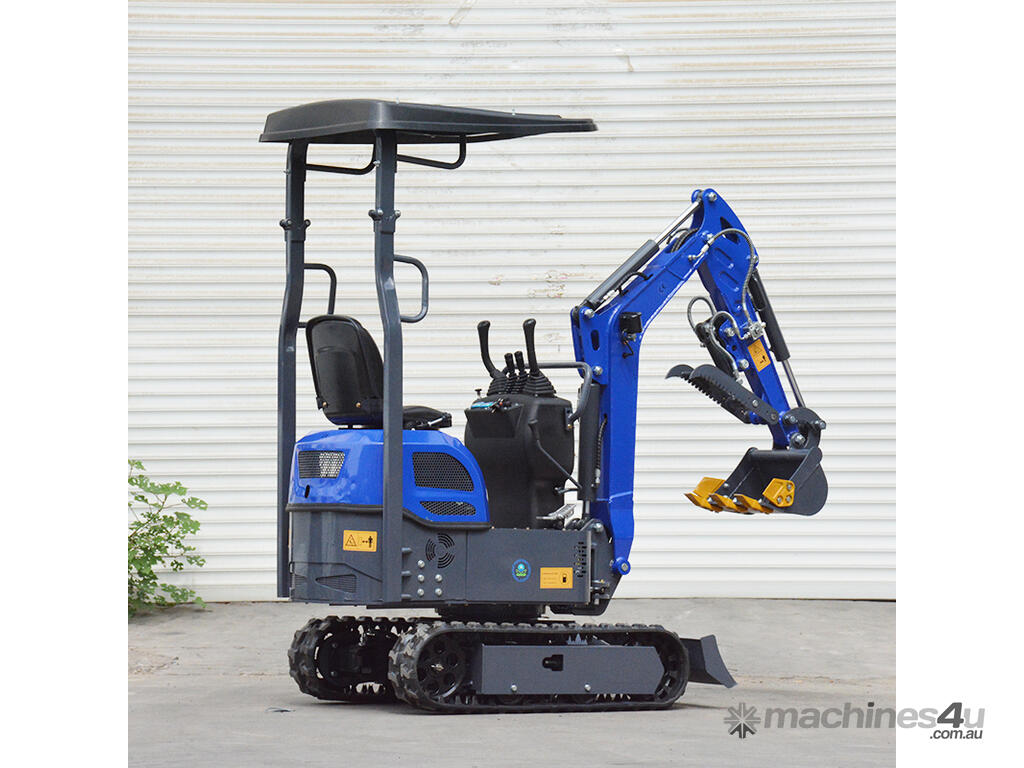

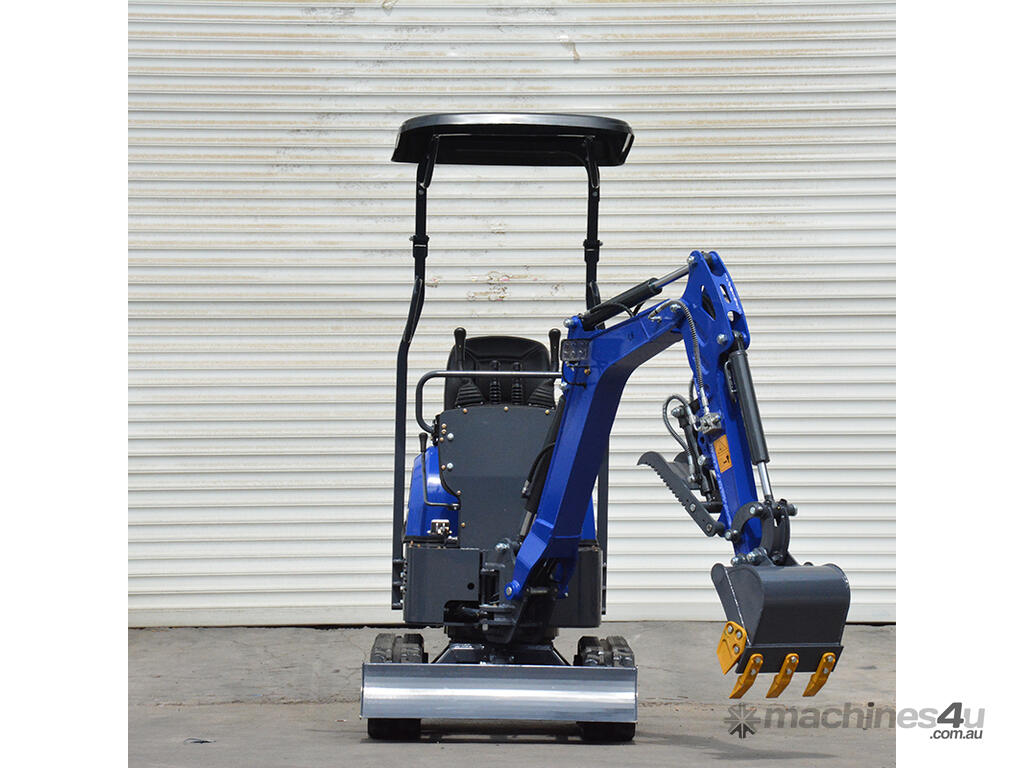

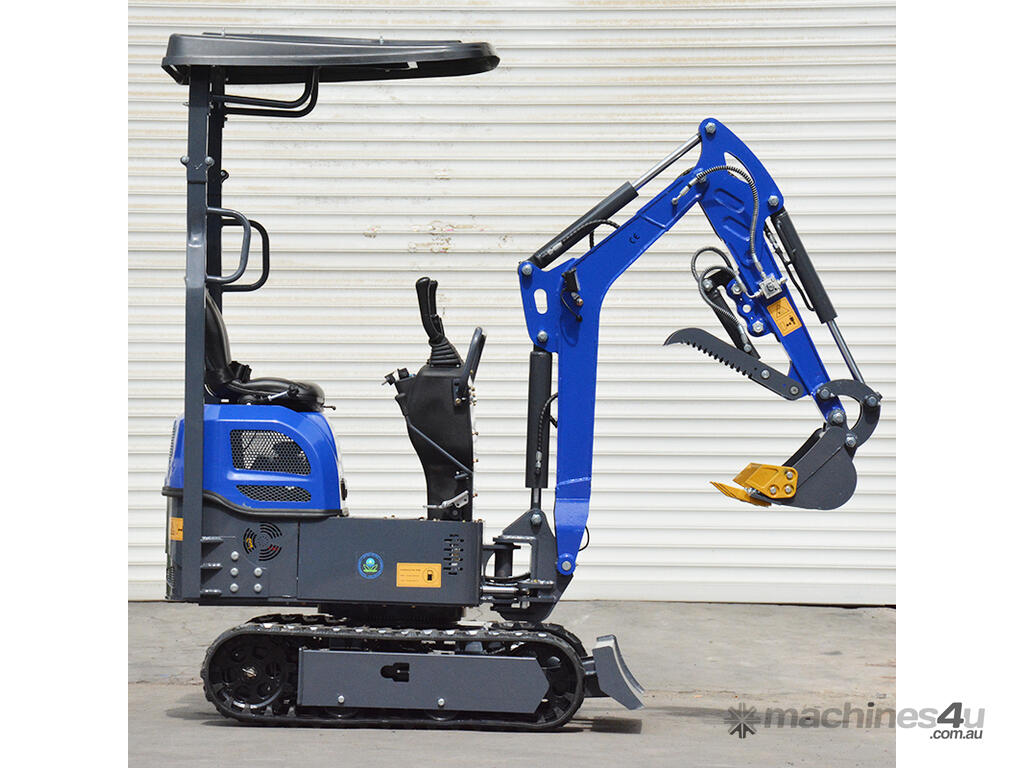

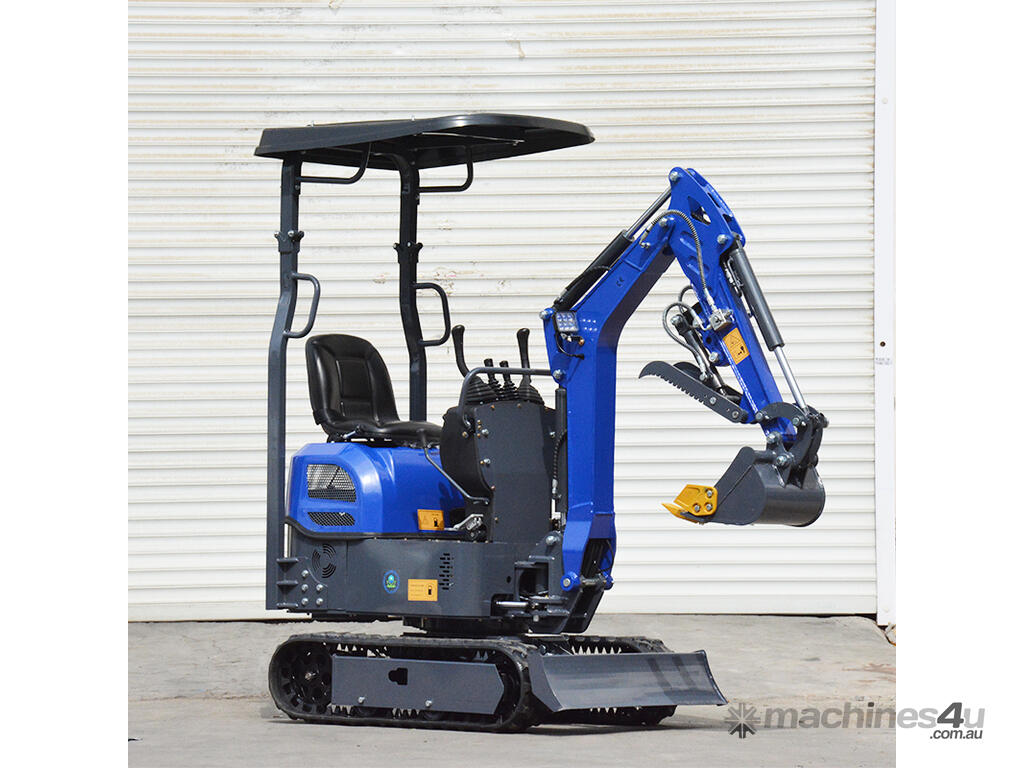

A compact 1.2-ton excavator with a reliable 12–13.5HP engine and strong digging performance. Ideal for tight access work, landscaping, trenching and light construction applications.
Key Specs:
Operating weight: 1200 kg – towable with a standard plant trailer
Max digging depth: 1620 mm – strong trenching capability for utilities, fencing & drainage
Engine: KOOP / Briggs & Stratton 12–13.5 HP – reliable and economical power unit
Additional Specifications:
Basic Machine Parameters:
Total length: 2500 mm
Total height: 2200 mm
Width: 950 mm
Working Range:
Max digging height: 2850 mm
Max dumping height: 1950 mm
Max digging depth: 1620 mm
Max digging radius: 2900 mm
Minimum turning radius: 800 mm
Max lifting height of earth shovel: 160 mm
Max digging depth of dozer blade: 210 mm
Hydraulic System:
Operating pressure: 22 MPa
Hydraulic flow: 25 L/min
Hydraulic tank capacity: 10 L
Load-sensing hydraulic system
Performance:
Bucket capacity (SAE): 0.024 m³
Climbing ability: 45°
Travel speed: 2.2–4.3 km/h
Swing speed: 8–10 rpm
