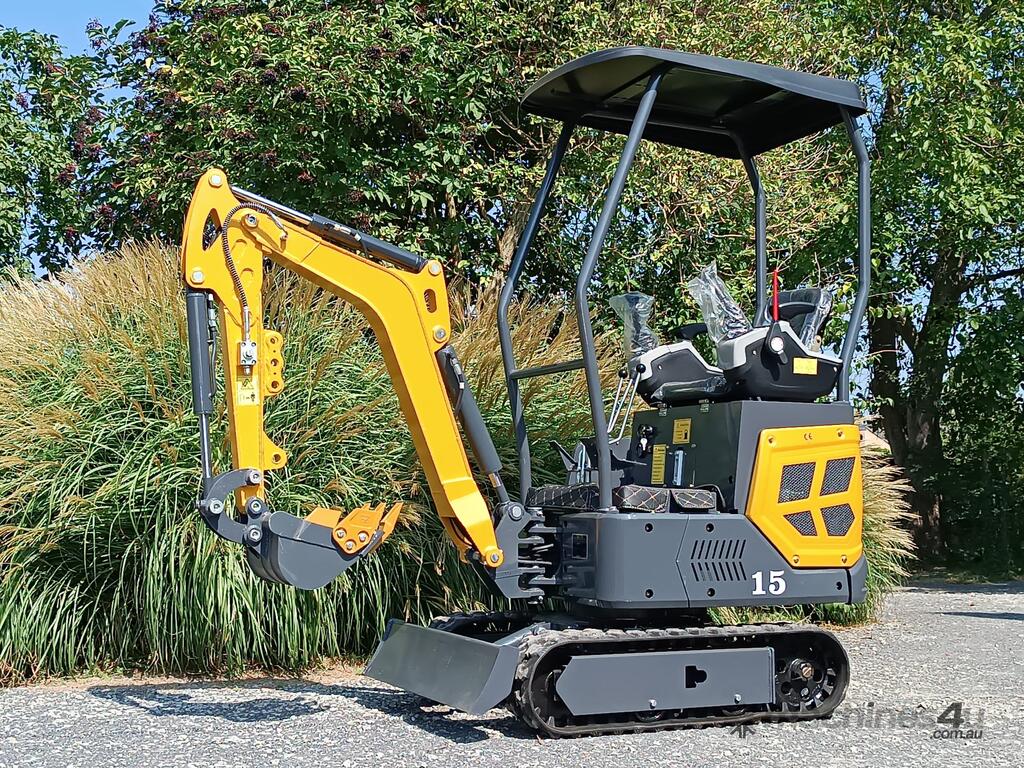

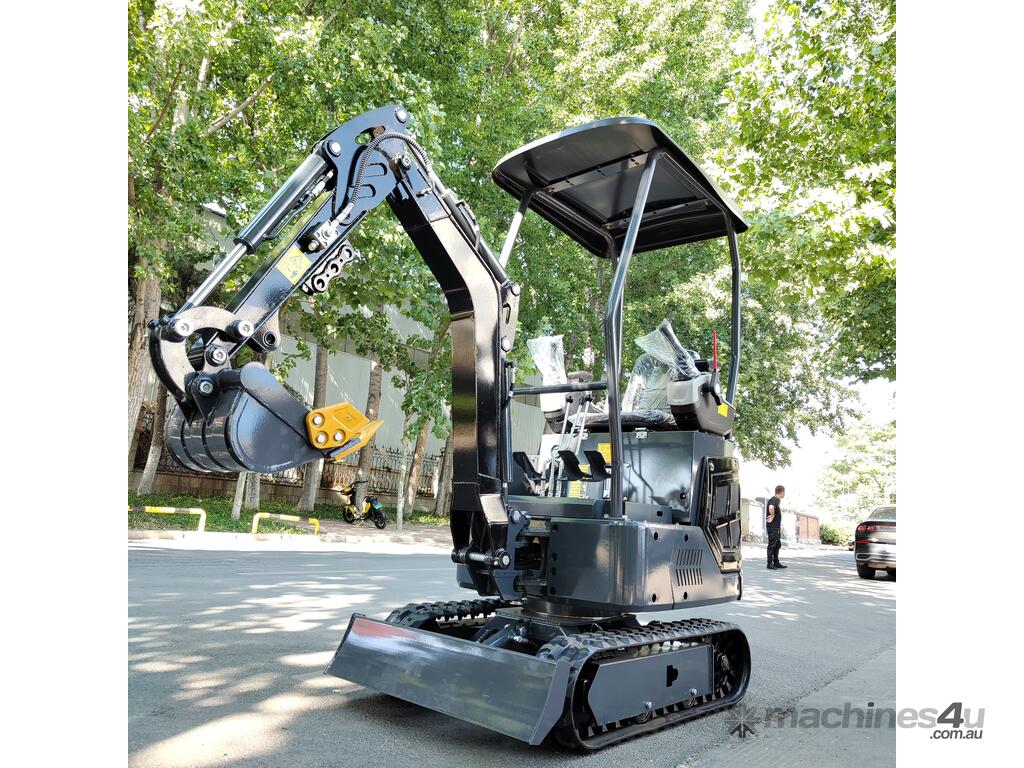

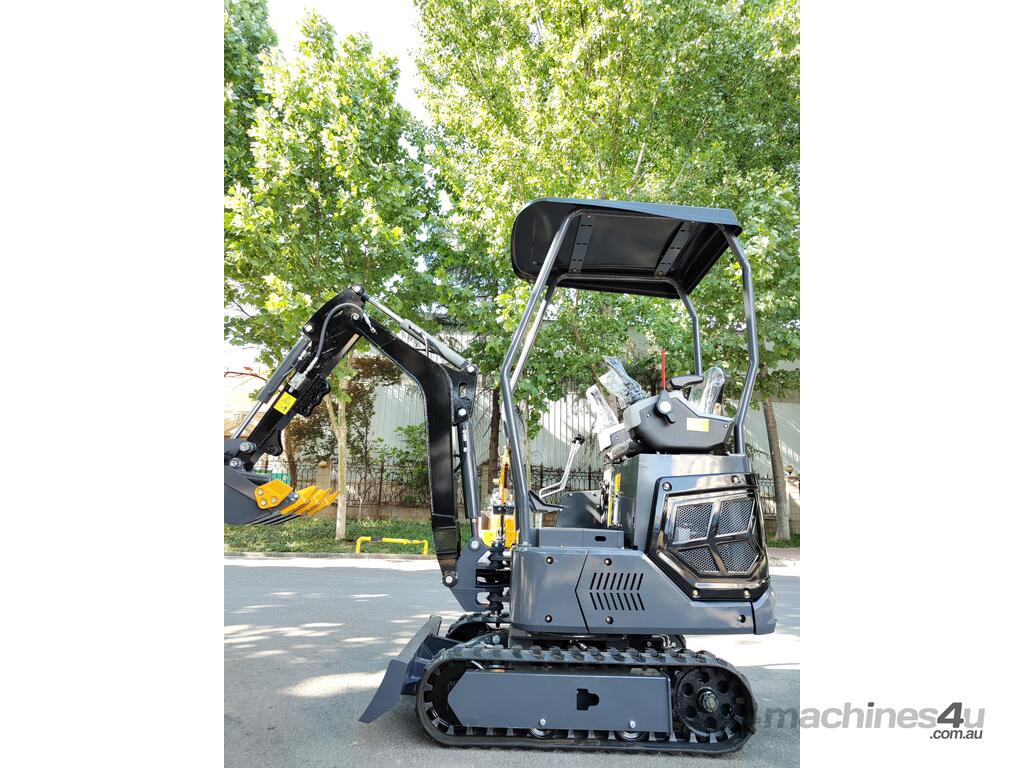

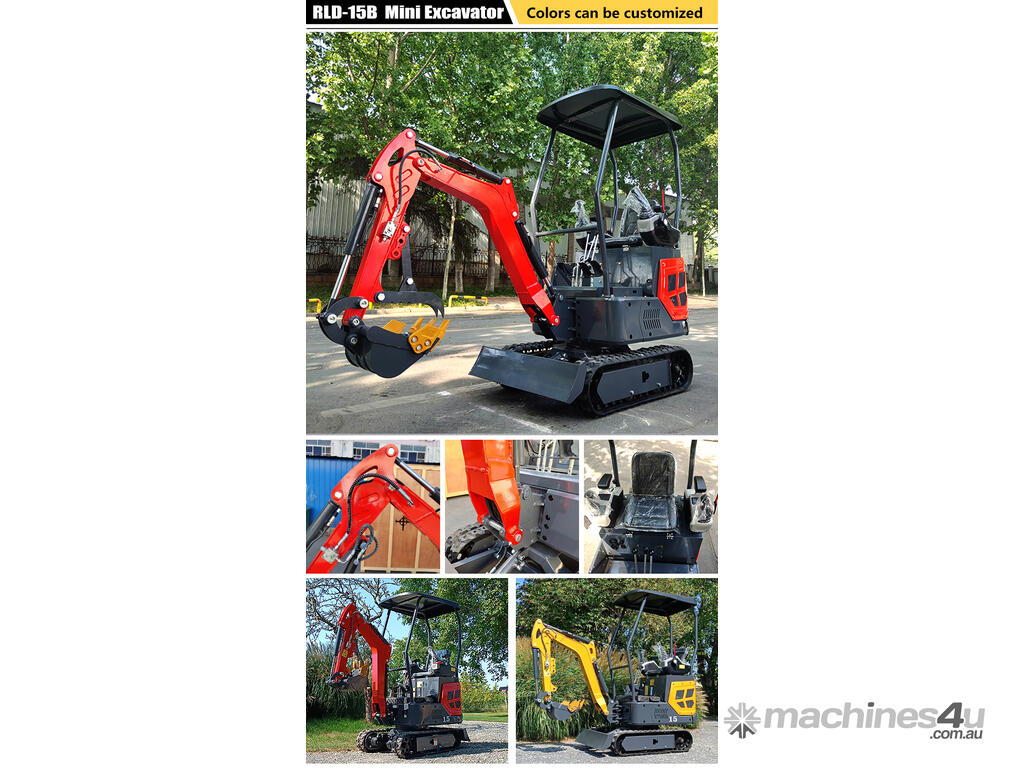

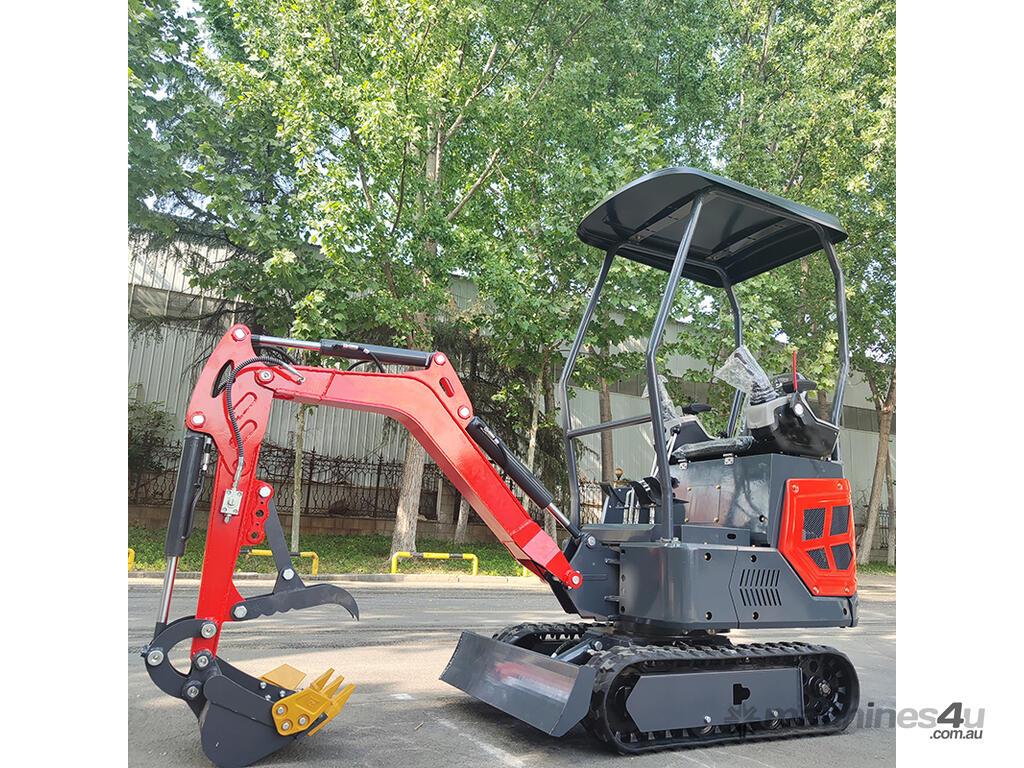

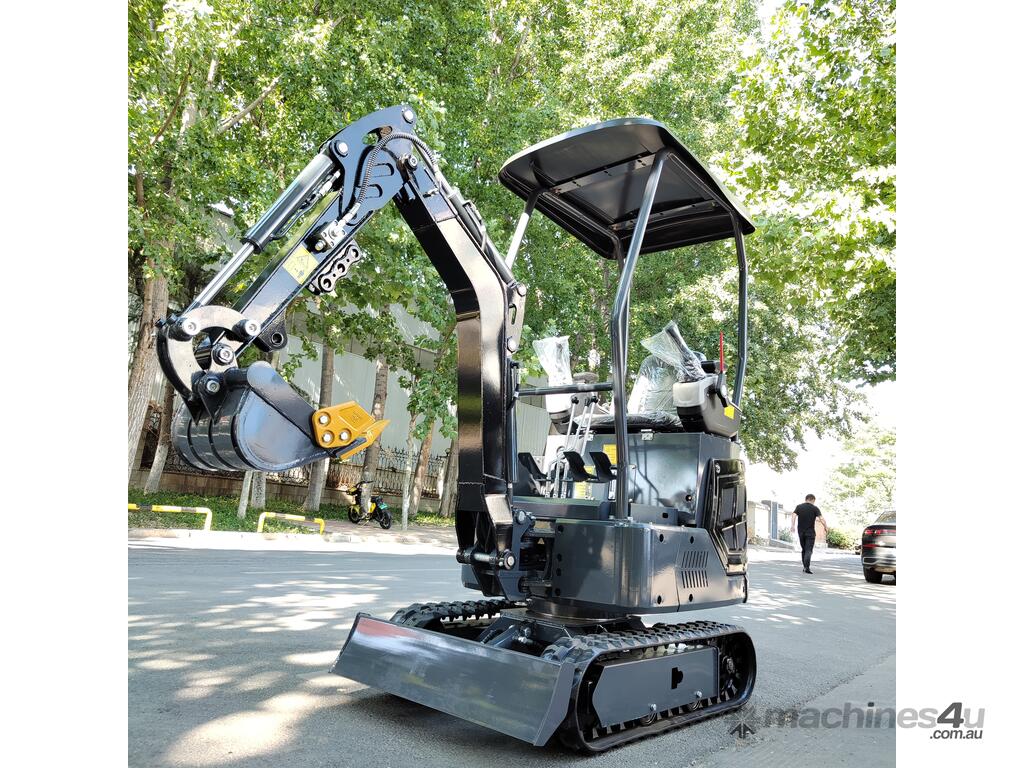

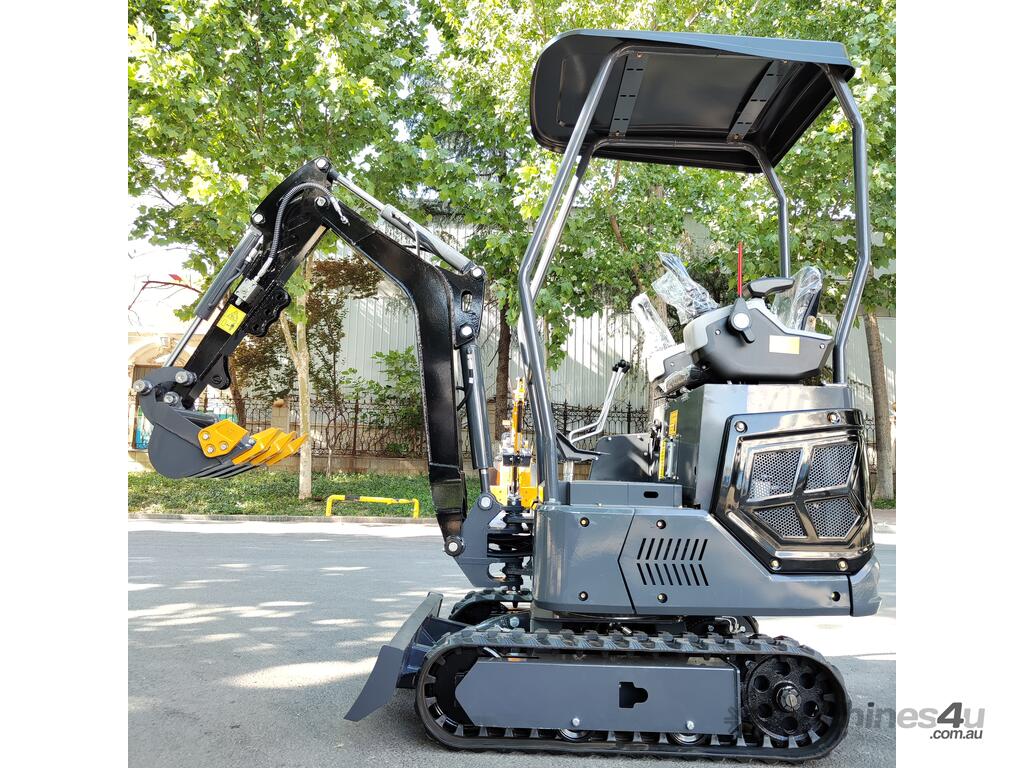

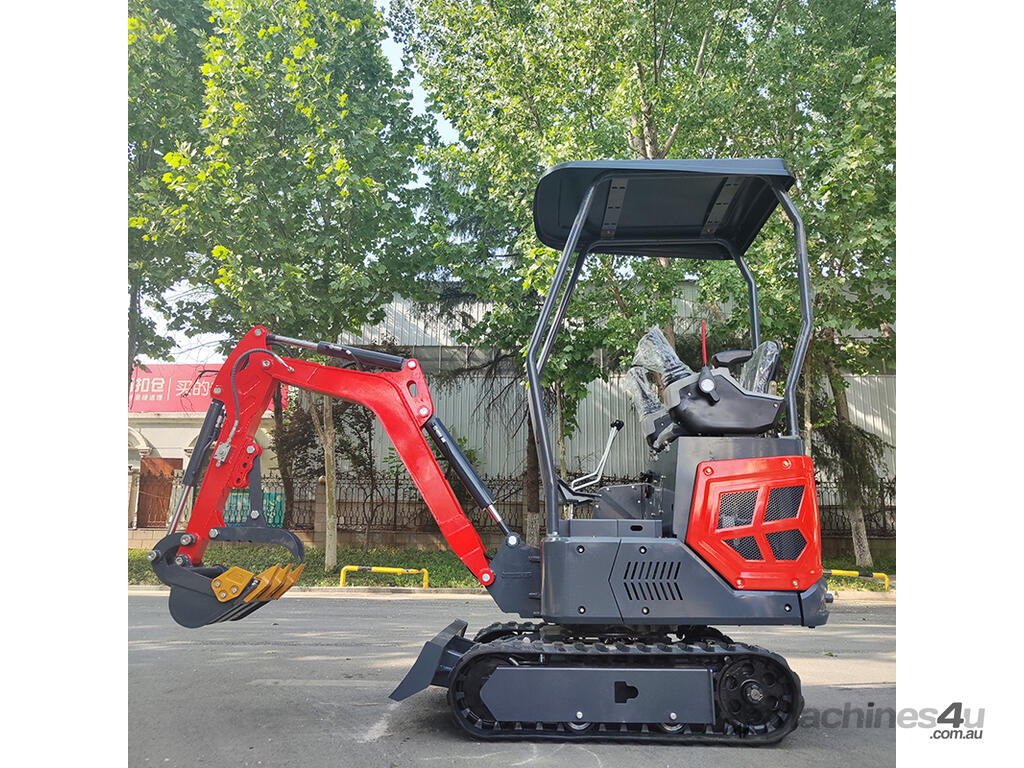

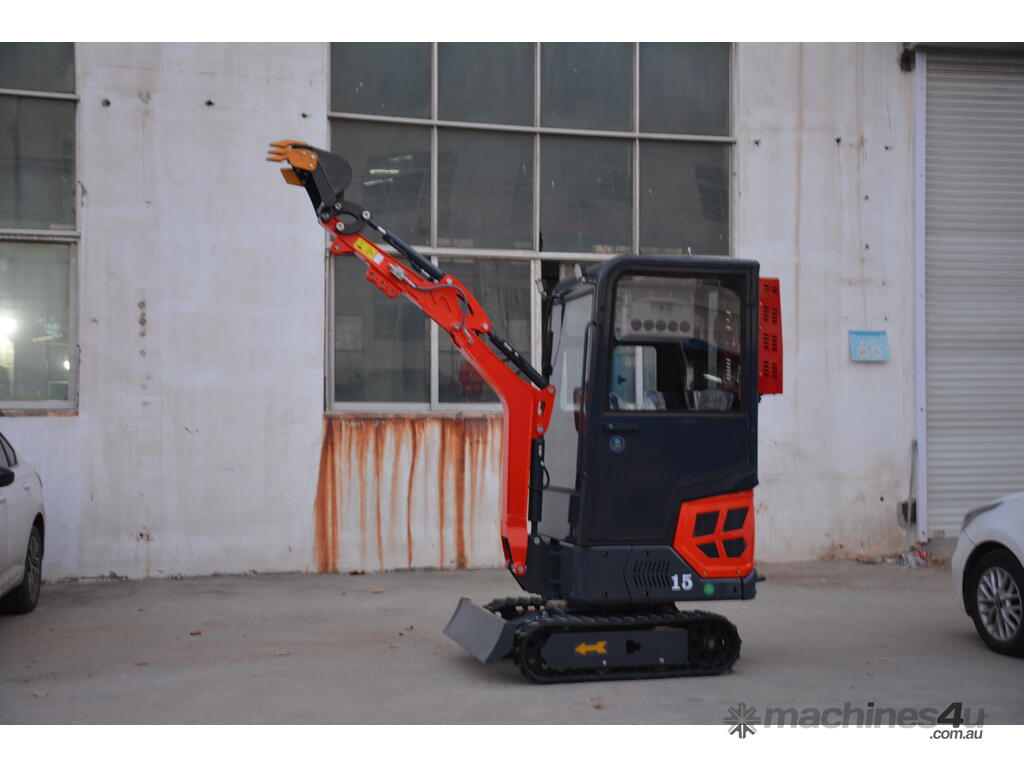

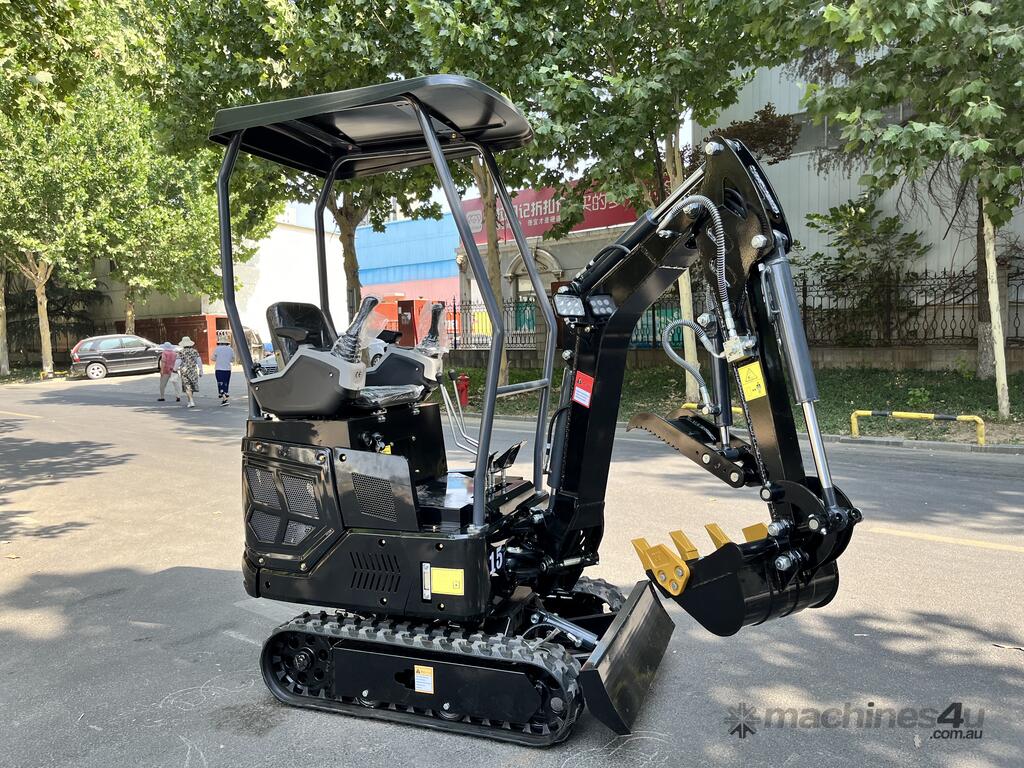

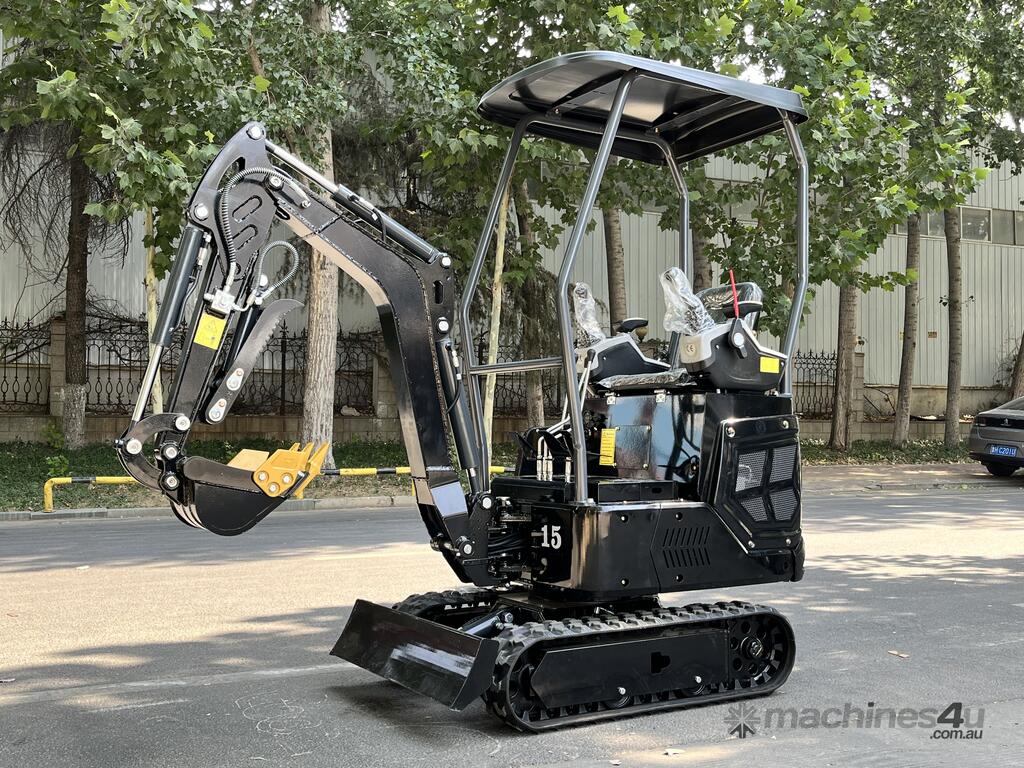

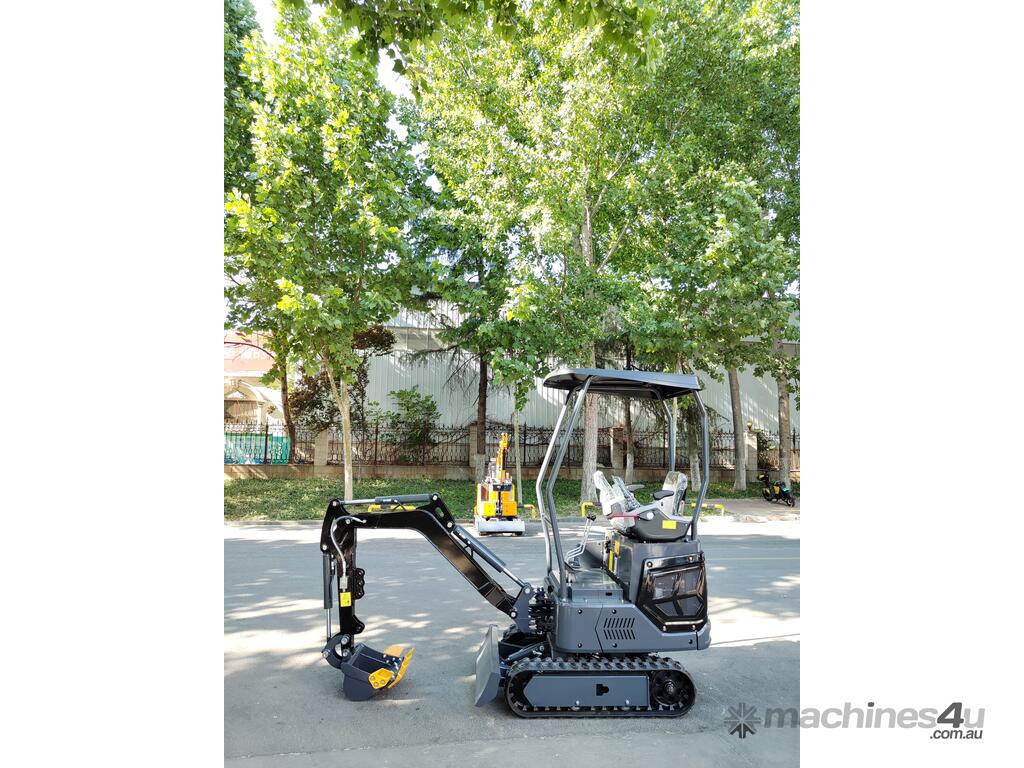

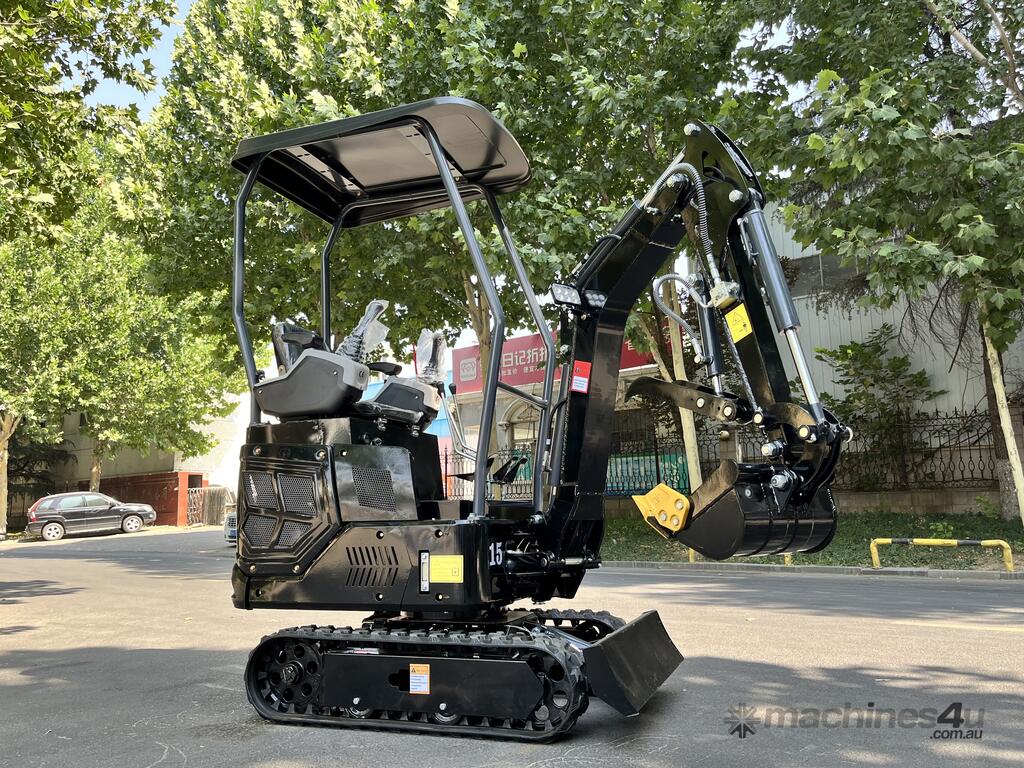

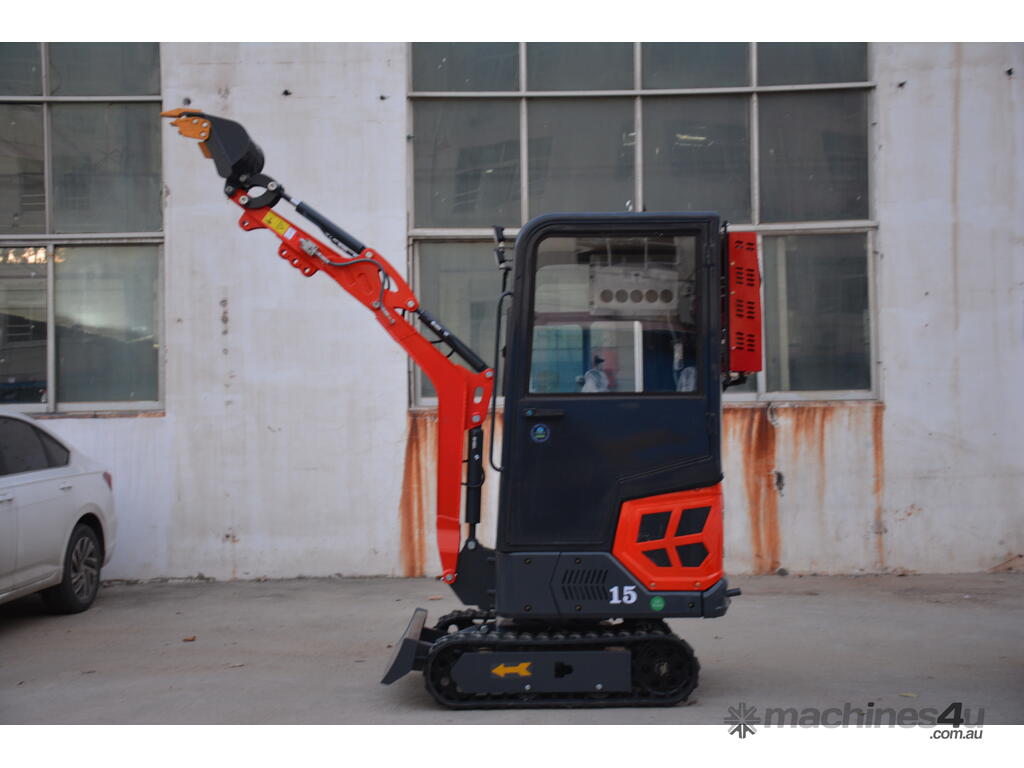

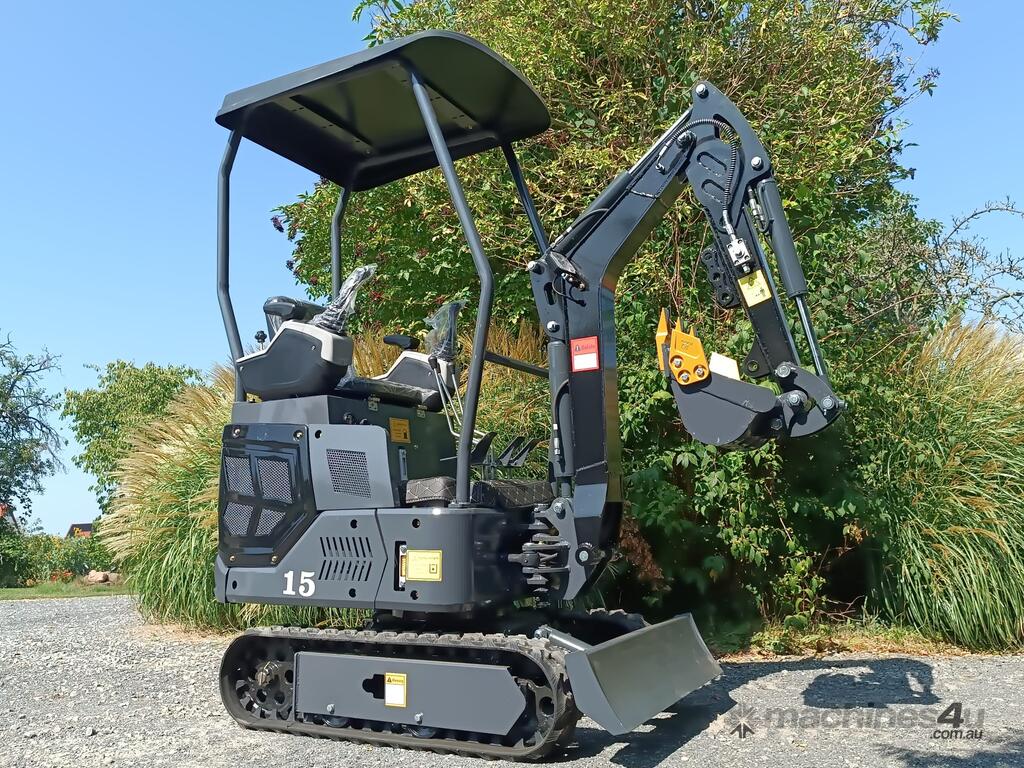

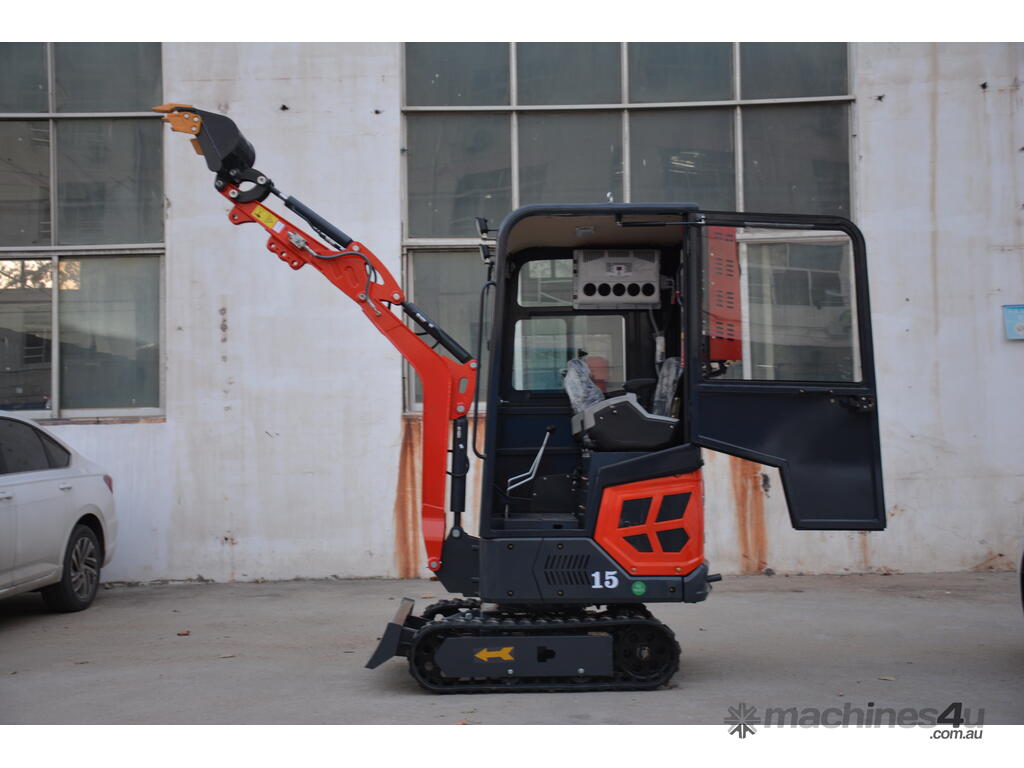

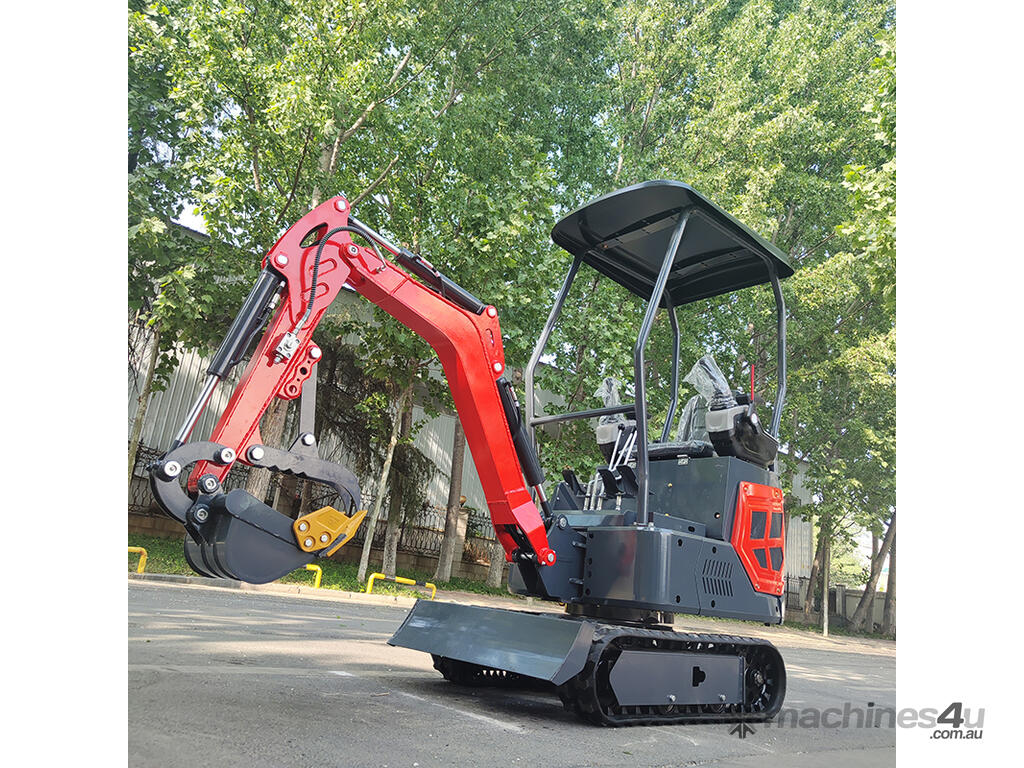

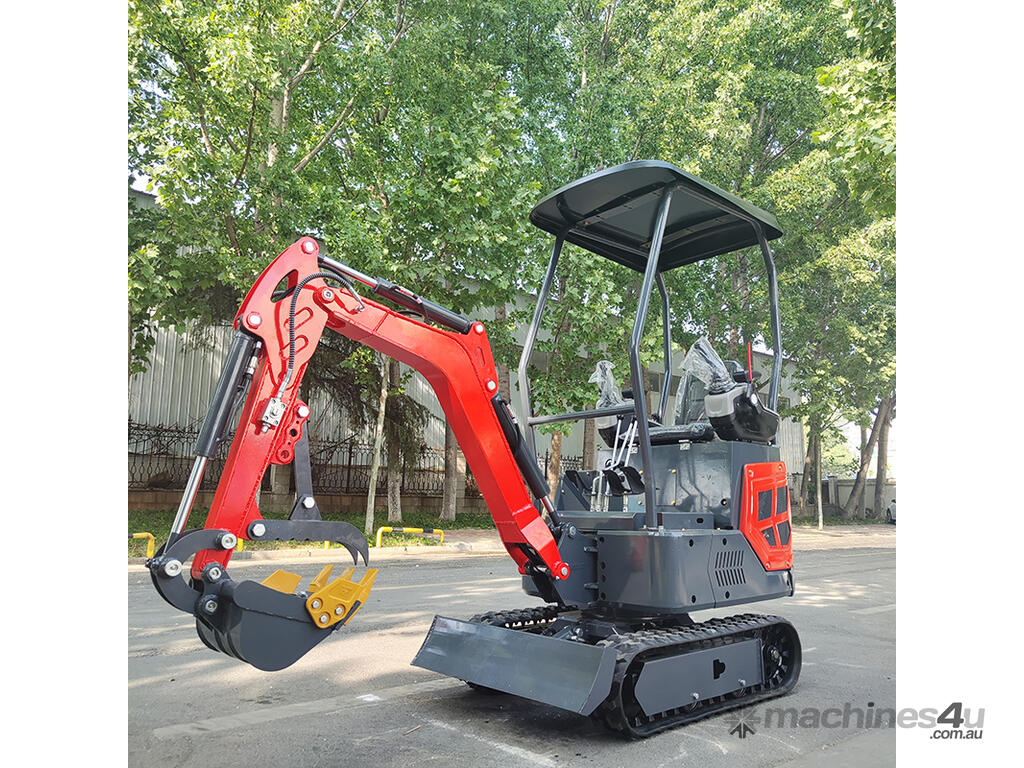

A robust 1.5-ton excavator with strong digging depth, reliable hydraulic system, and optional Kubota engine—ideal for construction, rental fleets, trenching, fencing, stump work, and landscaping operations.
Key Specs Most Buyers Want to Know
Operating weight: 1500 kg – stable digging and lifting capability
Max digging depth: 1750 mm – deeper ground penetration than 1.2-ton units
Engine options: KOOP / B&S / Kubota (12–14 HP) – flexible motor choices for budget or premium needs

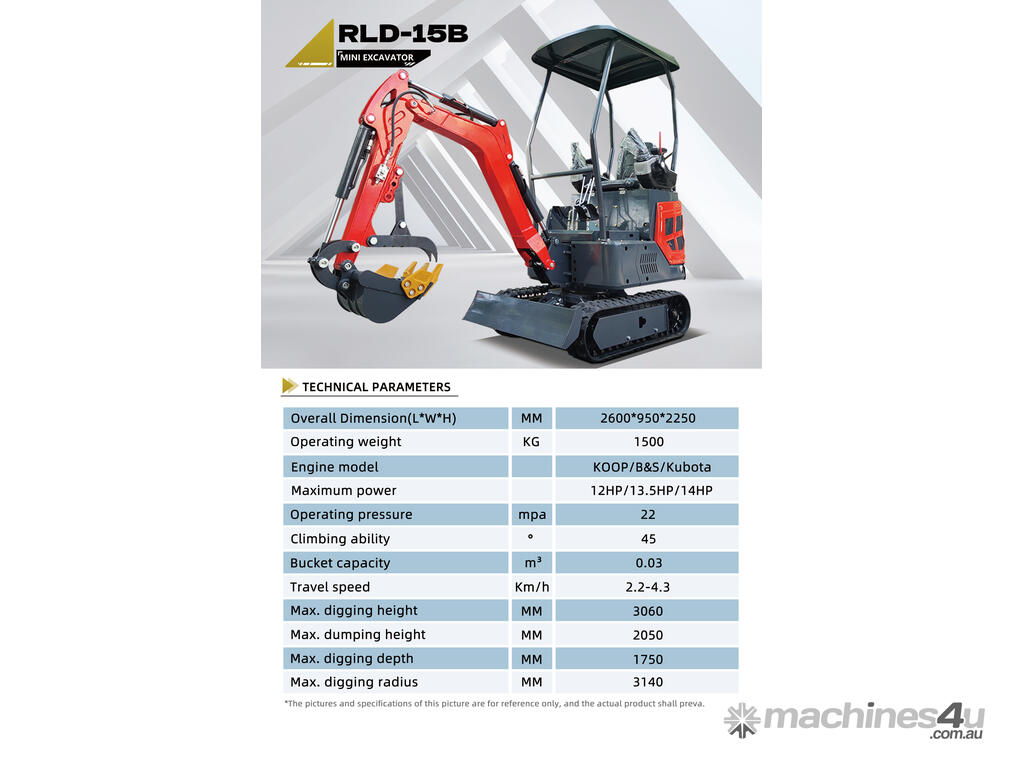

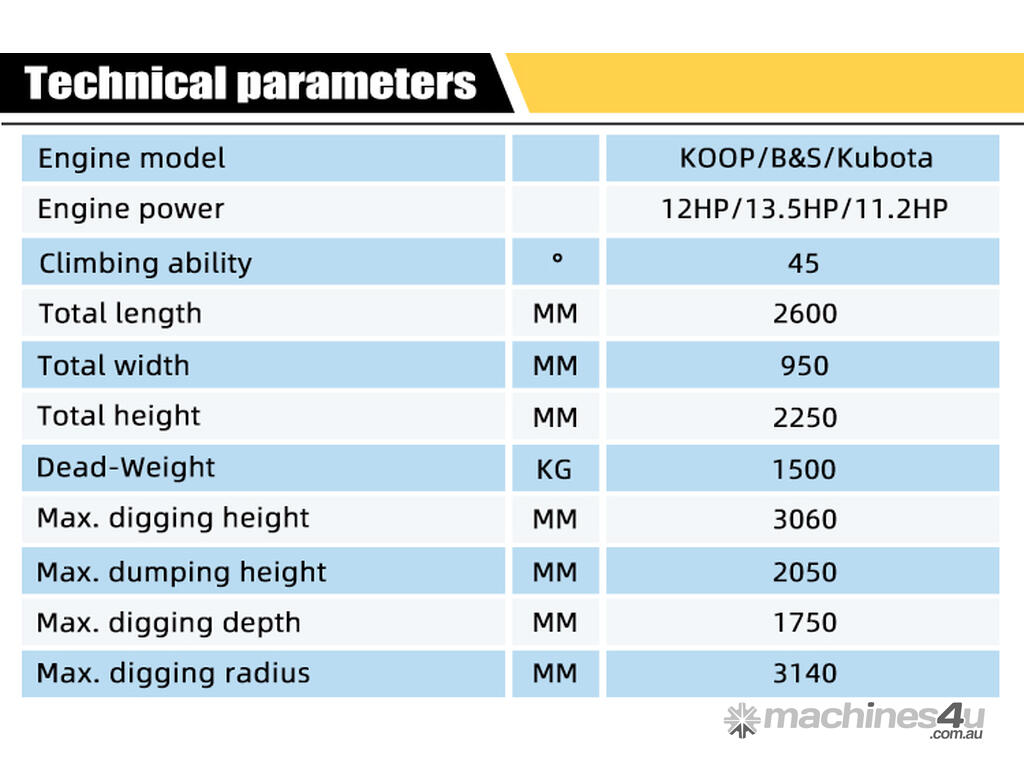

Additional Specifications:
Basic Machine Dimensions:
Length: 2600 mm
Height: 2250 mm
Width: 950 mm
Working Range:
Max digging height: 3060 mm
Max dumping height: 2050 mm
Max digging depth: 1750 mm
Max digging radius: 3140 mm
Minimum turning radius: 850 mm
Max lifting height of earth blade: 210 mm
Max digging depth of dozer blade: 250 mm
Minimum tail swing radius: 850 mm (compact tail swing)
Hydraulics:
Operating pressure: 22 MPa
Hydraulic flow: 27 L/min
Hydraulic tank capacity: 10 L
Load-sensing hydraulic system
Performance:
Bucket capacity (SAE): 0.03 m³
Climbing ability: 45°
Travel speed: 2.2–4.3 km/h
Swing speed: 8–10 rpm
