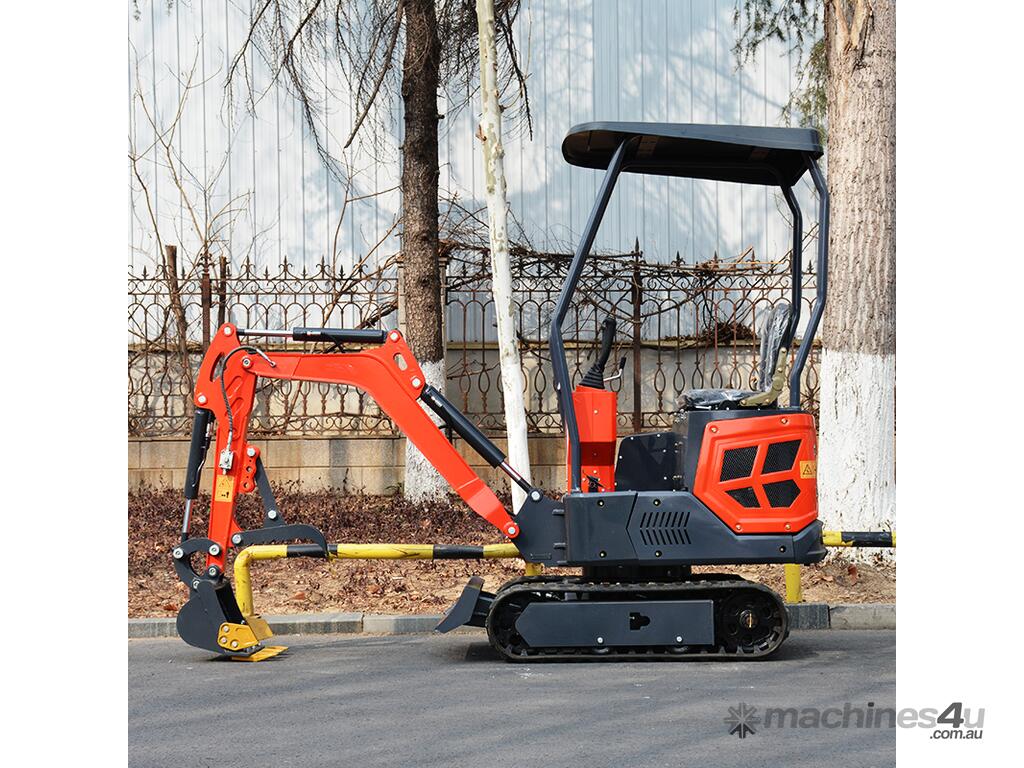

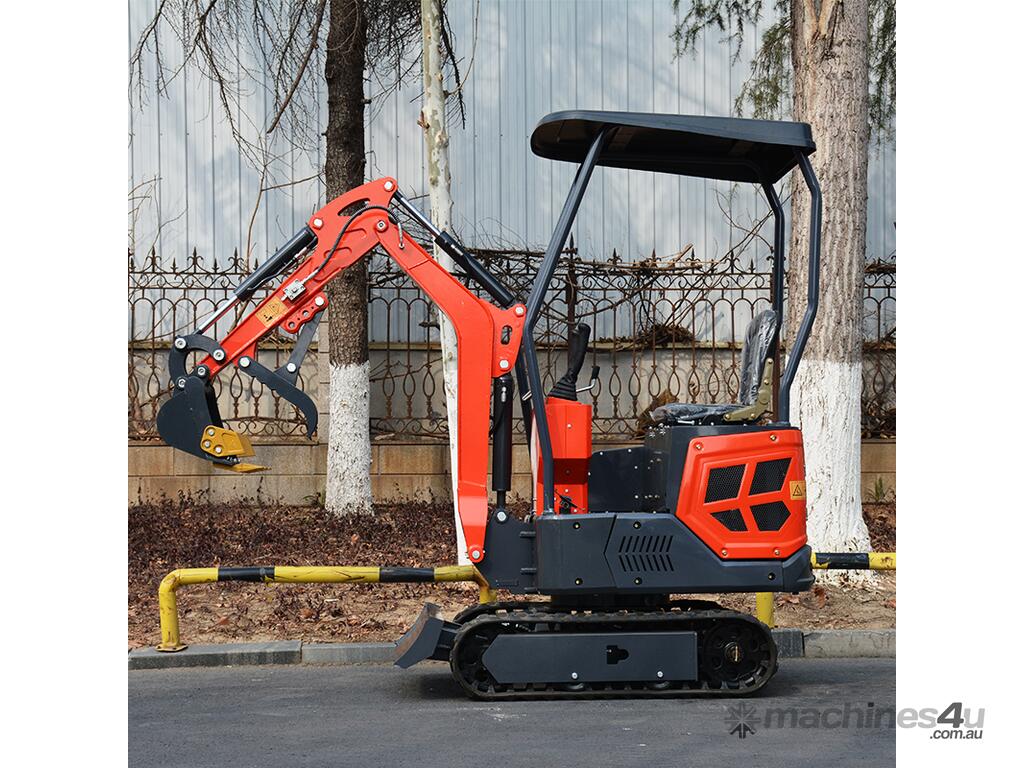

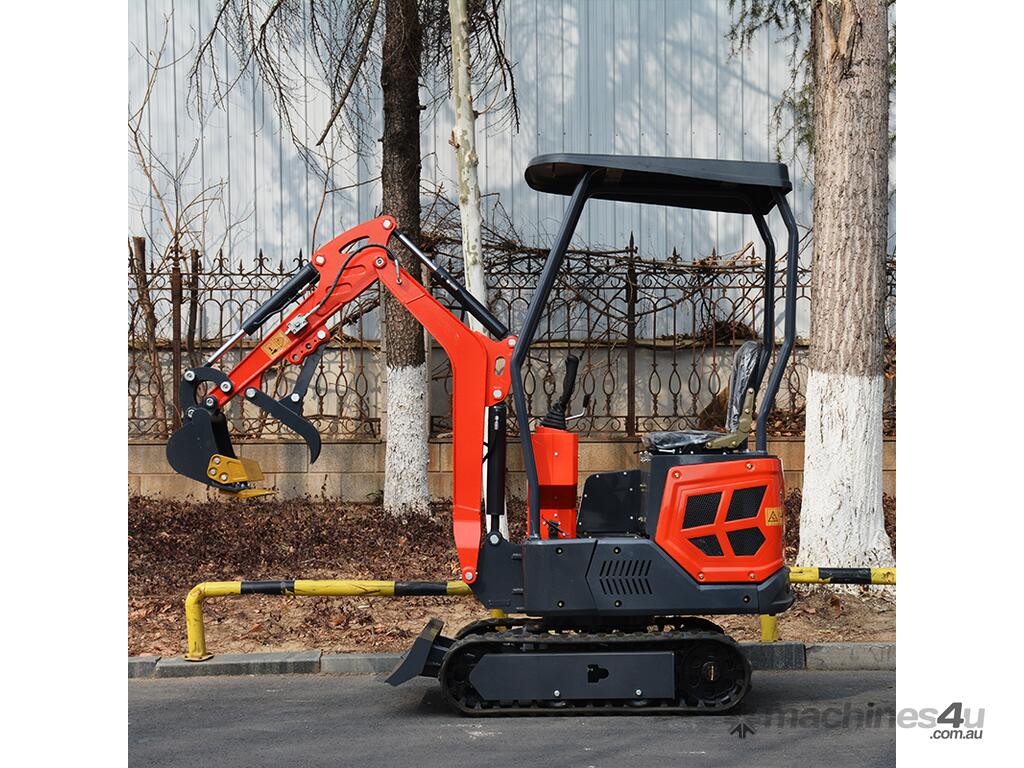

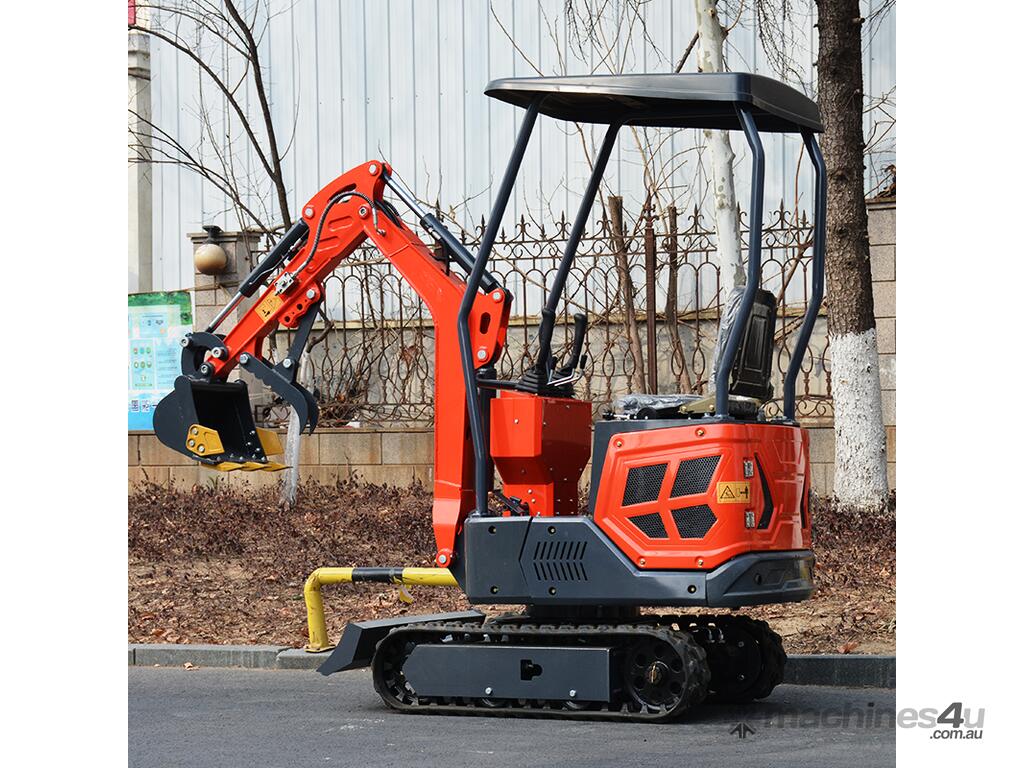

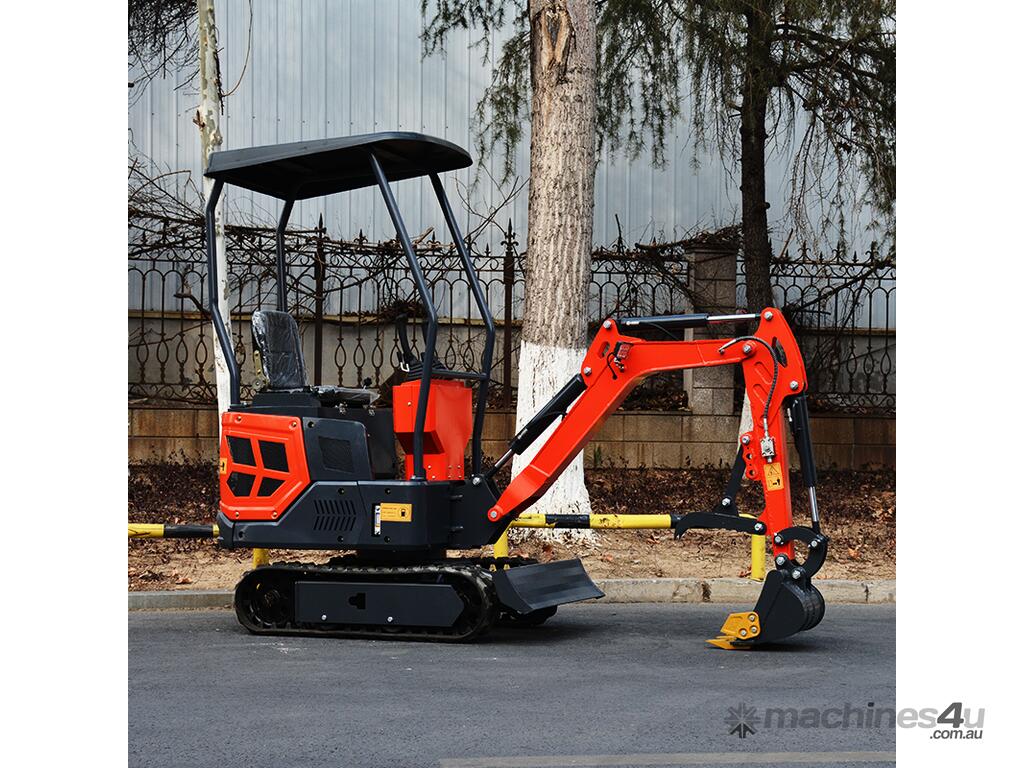

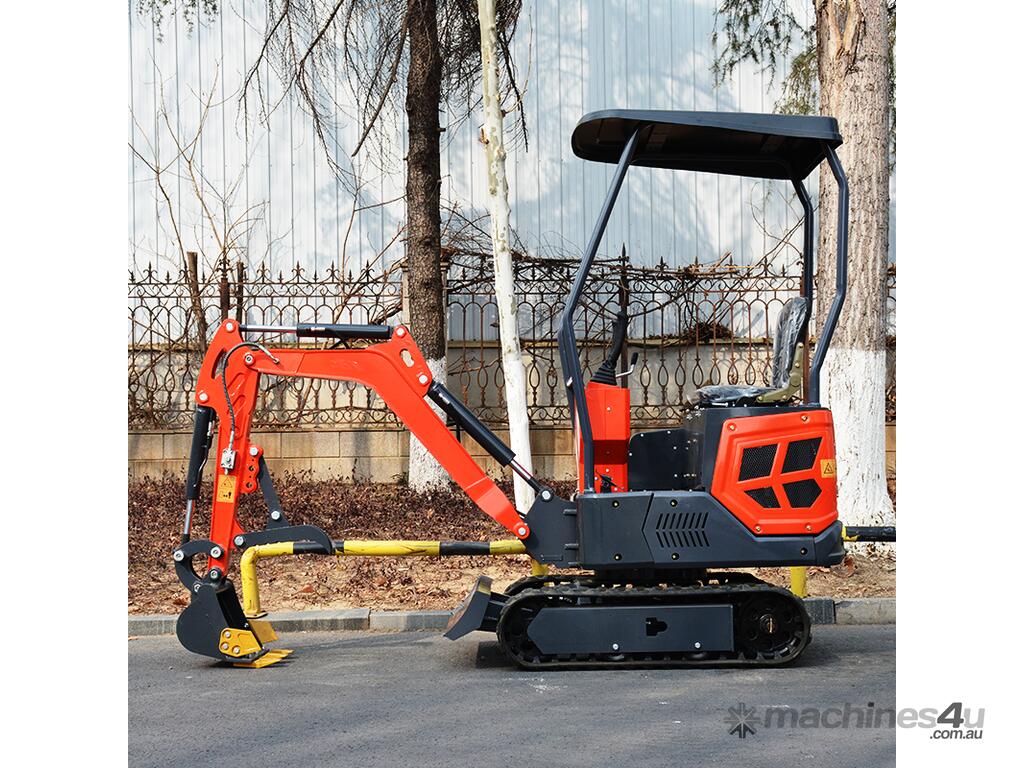

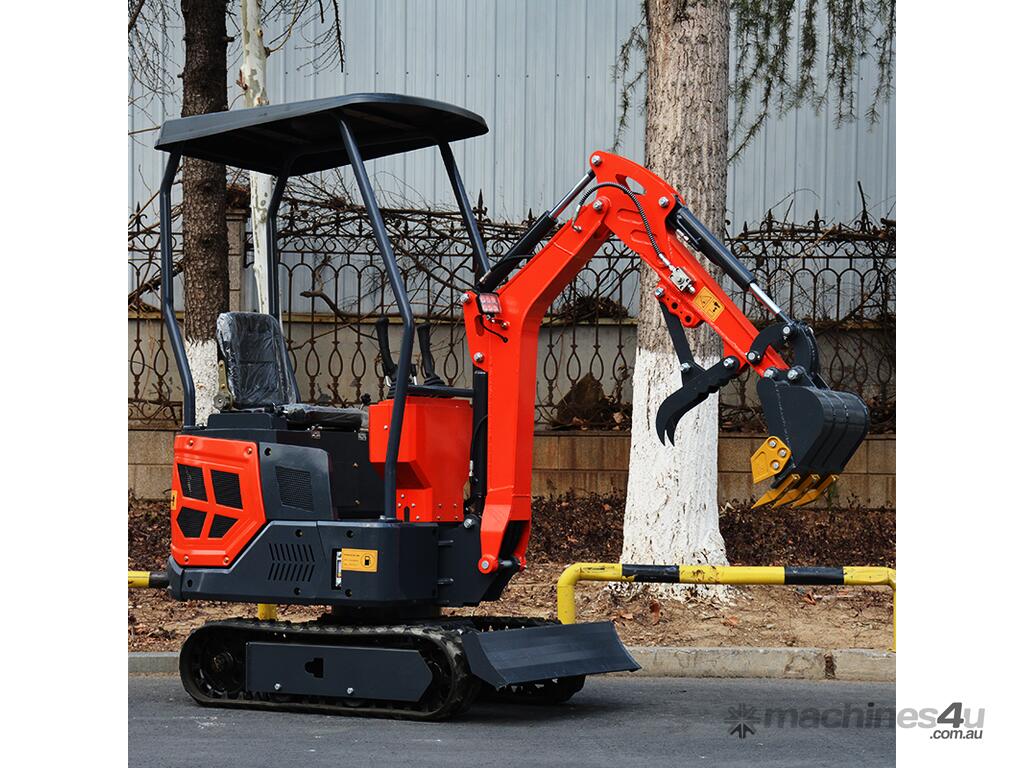

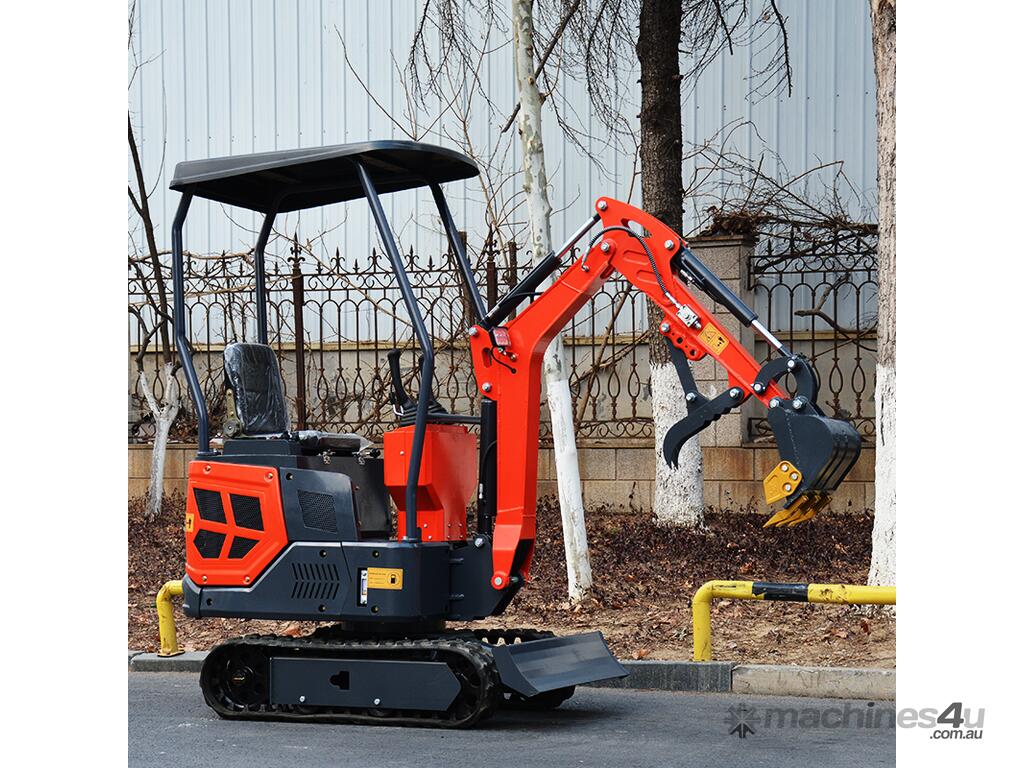

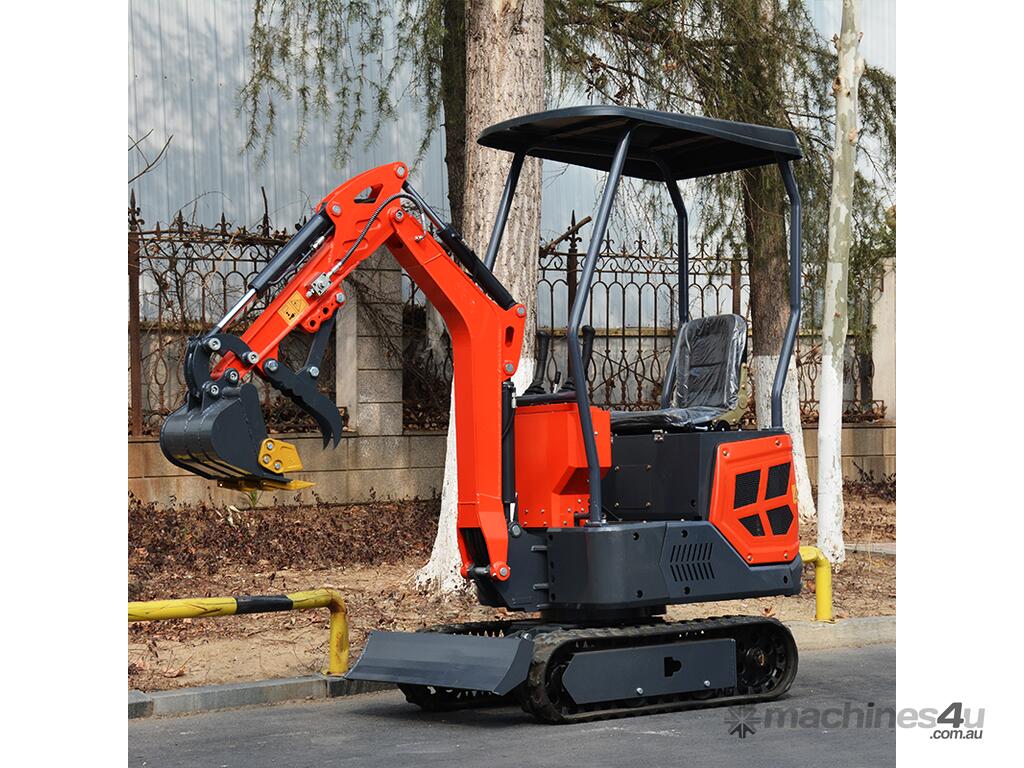

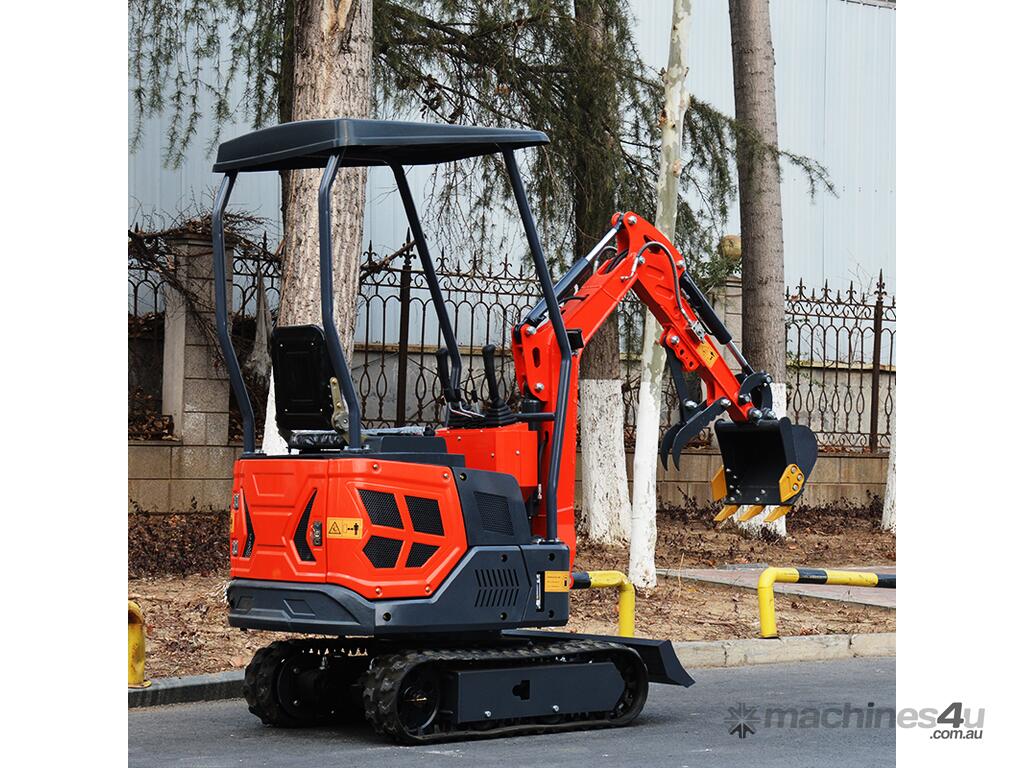

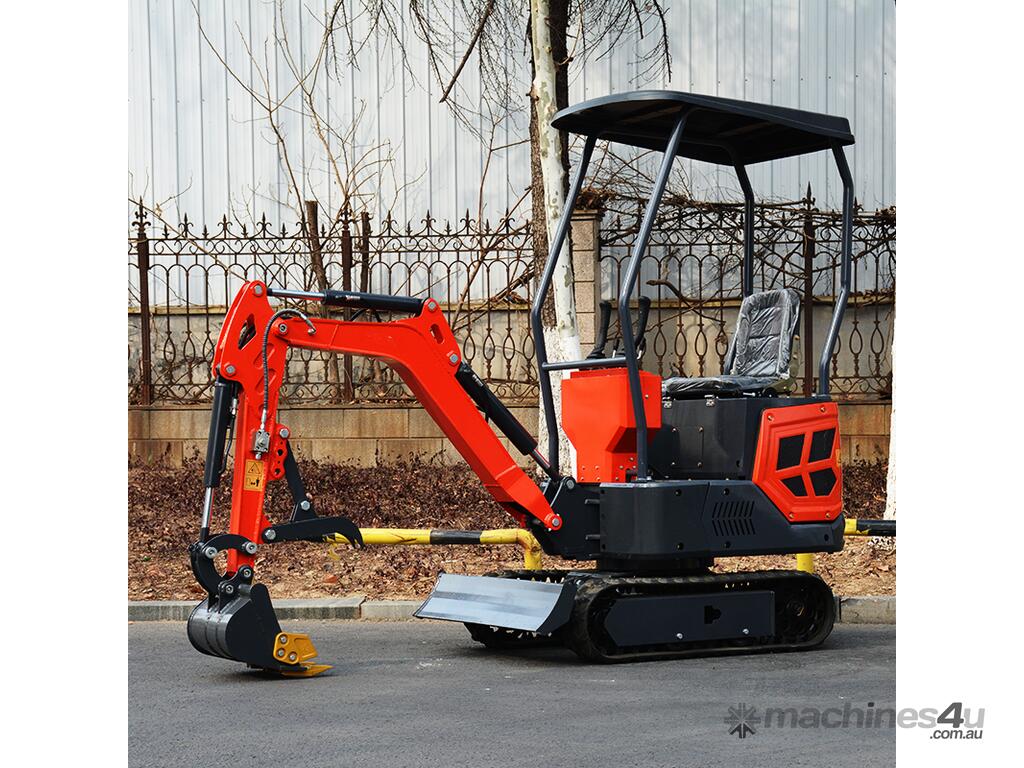

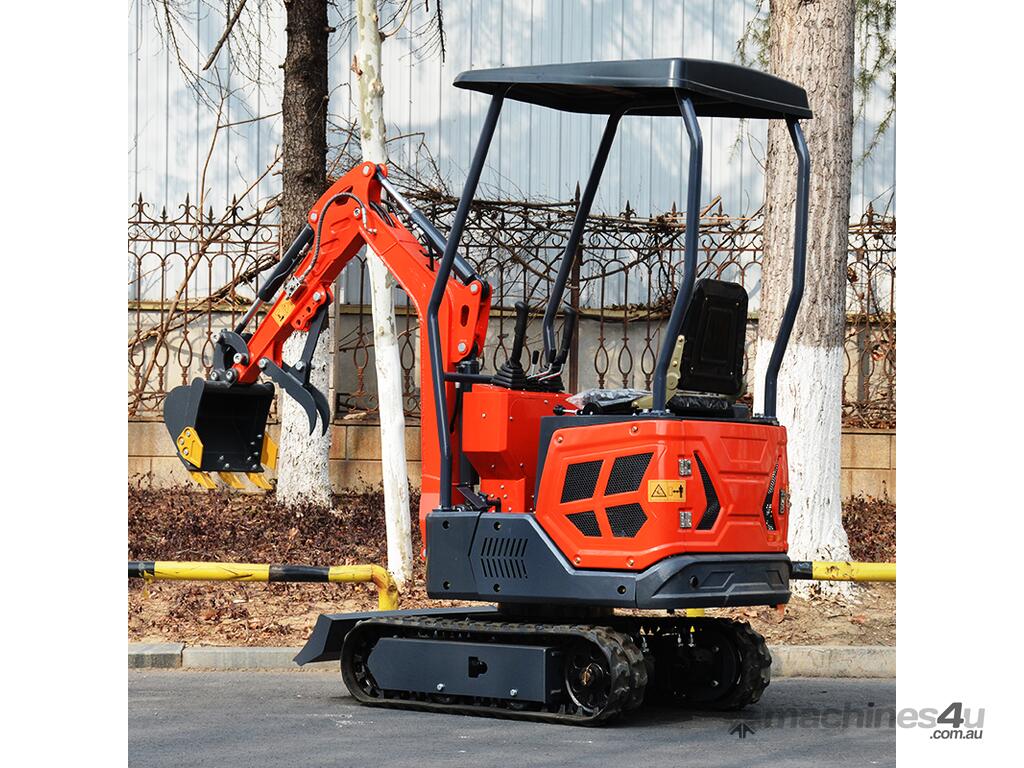

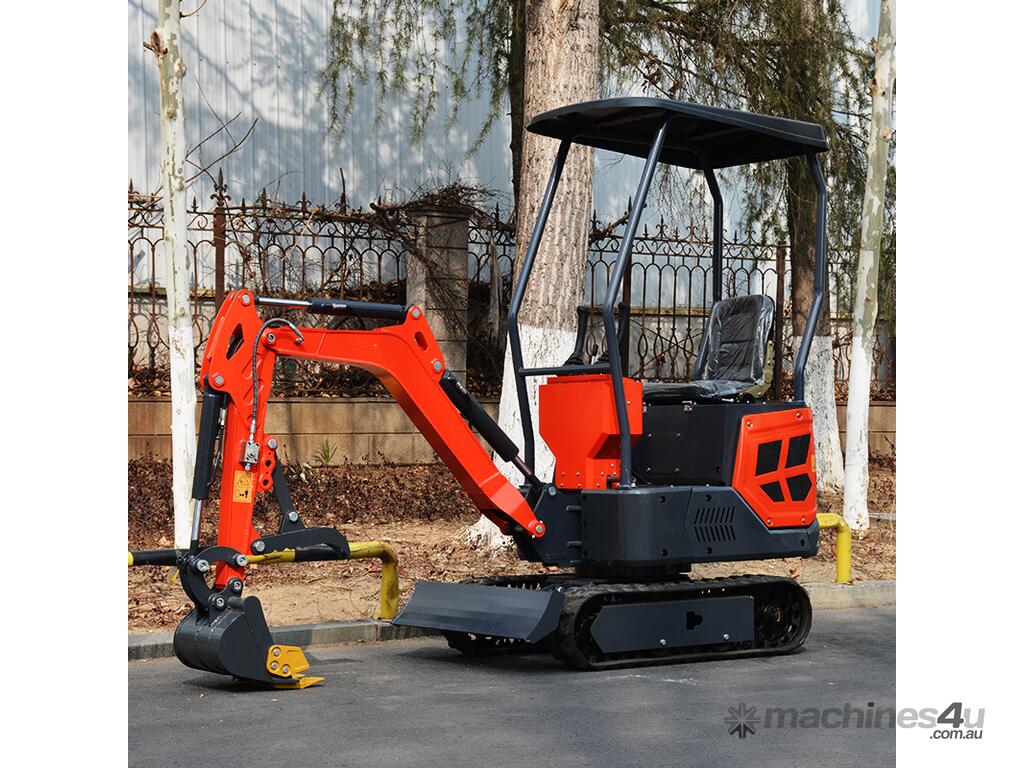

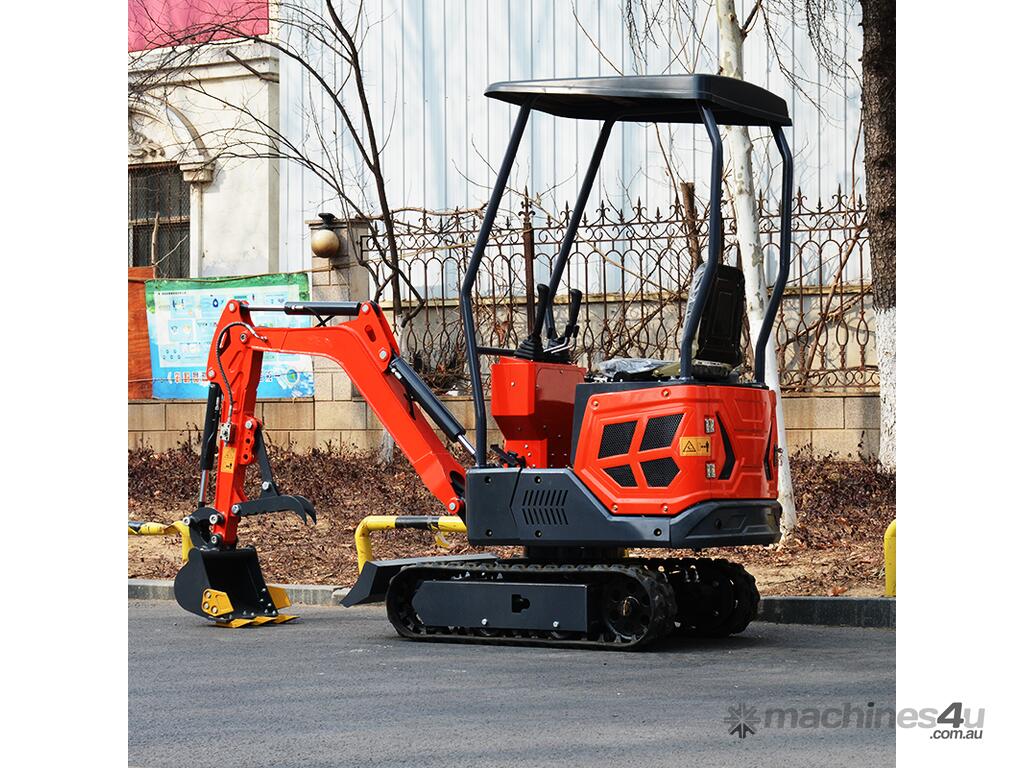

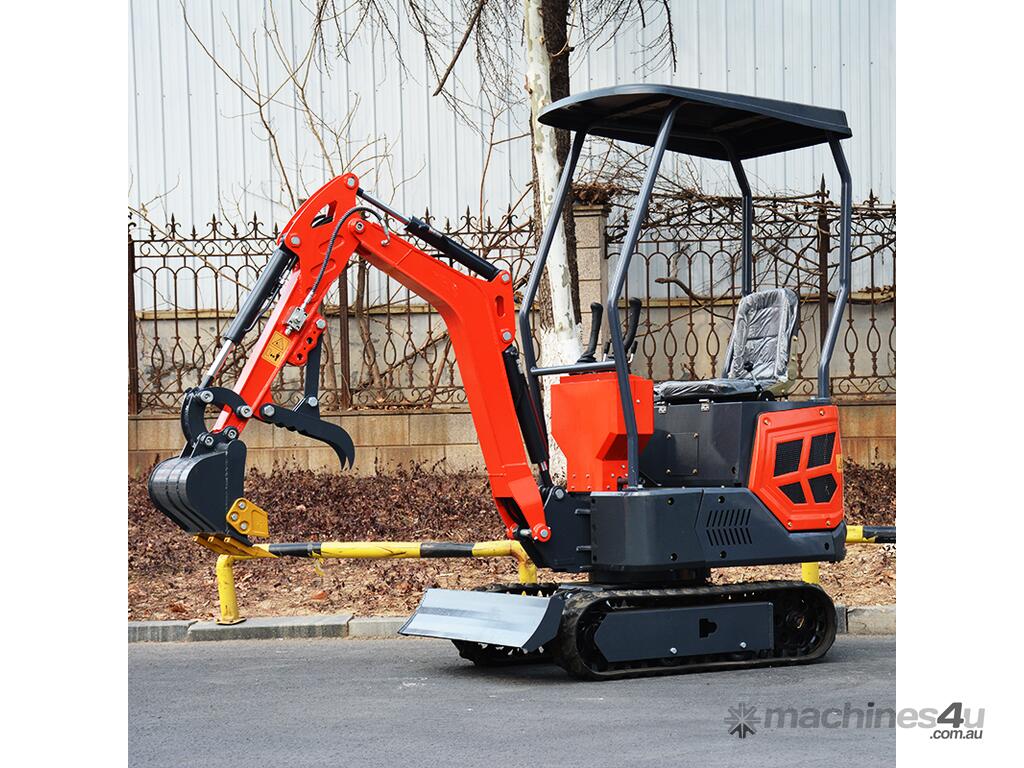

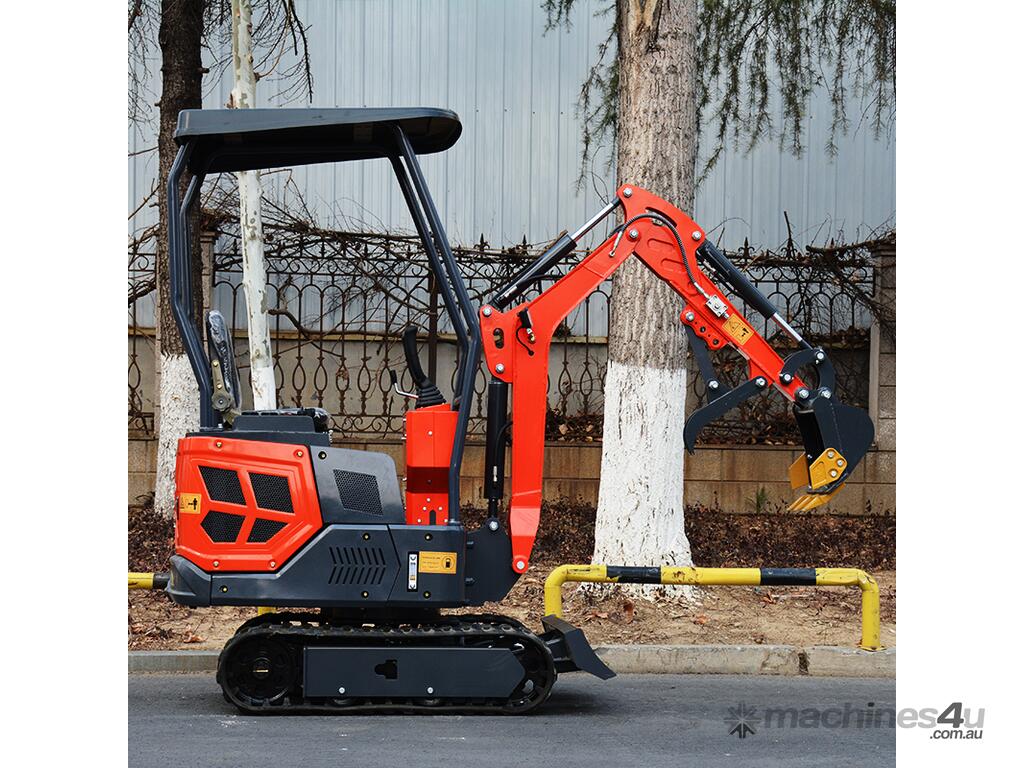

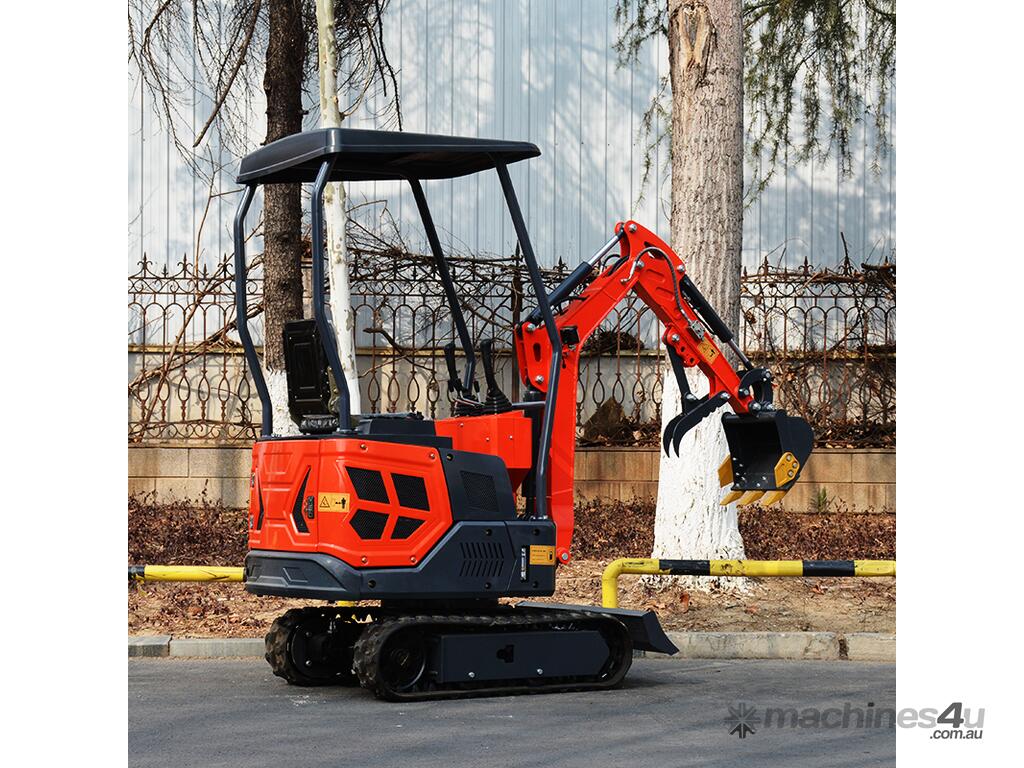

A 1.5-ton excavator with deeper digging, stronger bucket capacity, and optional Kubota power — ideal for civil works, utilities, fencing, landscaping, hire fleets, and heavier ground engagement tasks.
Key Specs:
Operating weight: 1500 kg – heavier & more stable than 1.2-ton units
Max digging depth: 1750 mm – deeper trenching capability for drainage & foundations
Engine options: KOOP / B&S / Kubota (12–14 HP) – multiple engine choices depending on budget & quality
Additional Specifications:
Basic Machine Dimensions:
Length: 2600 mm
Width: 950 mm
Total height: 2250 mm
Working Range:
Max digging height: 3060 mm
Max dumping height: 2050 mm
Max digging depth: 1750 mm
Max digging radius: 3140 mm
Minimum swing/turn radius: 850 mm
Max lifting height of earth blade: 210 mm
Max digging depth of dozer: 250 mm
Min tail swing radius: 850 mm (compact tail swing)
Hydraulic System:
Operating pressure: 22 MPa
Hydraulic flow: 27 L/min
Hydraulic tank: 10 L
Valve type: Load sensing hydraulic system
Performance:
Bucket capacity (SAE): 0.03 m³
Climbing ability: 45°
Travel speed: 2.2–4.3 km/h
Unit swing speed: 8–10 rpm
