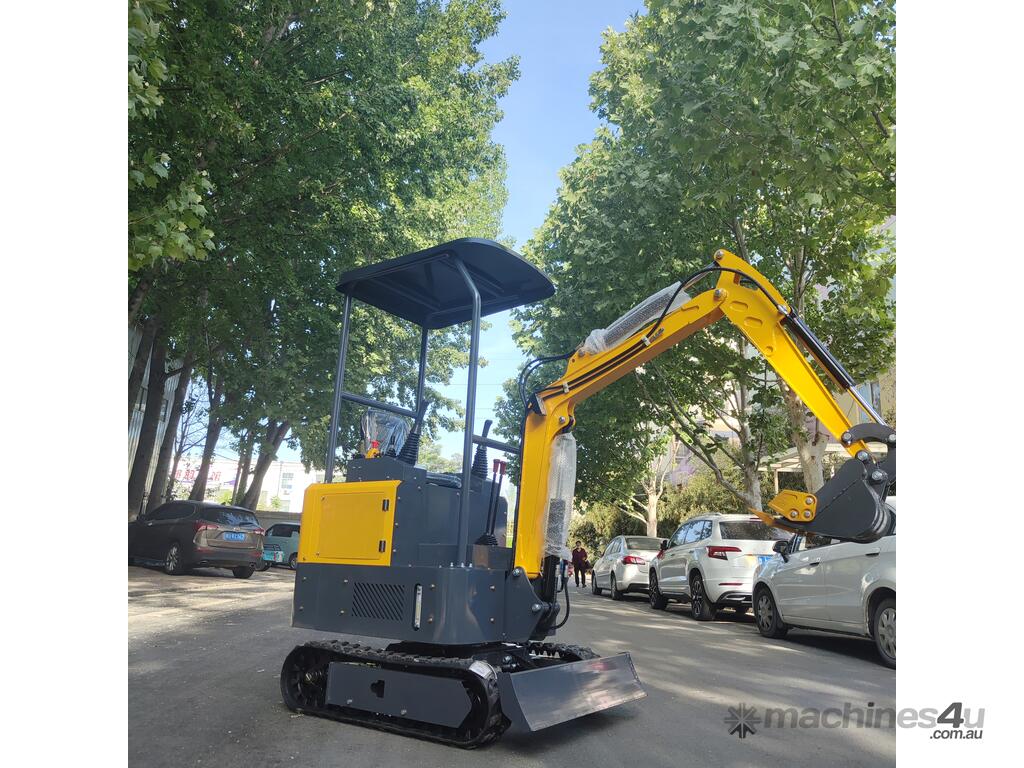

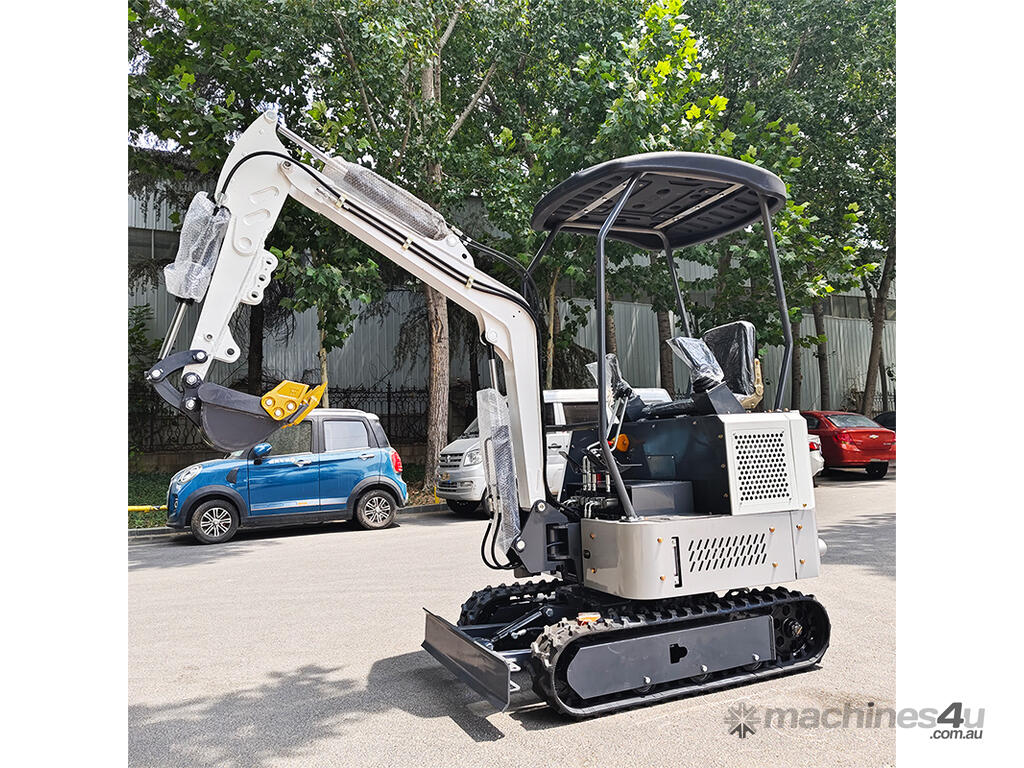

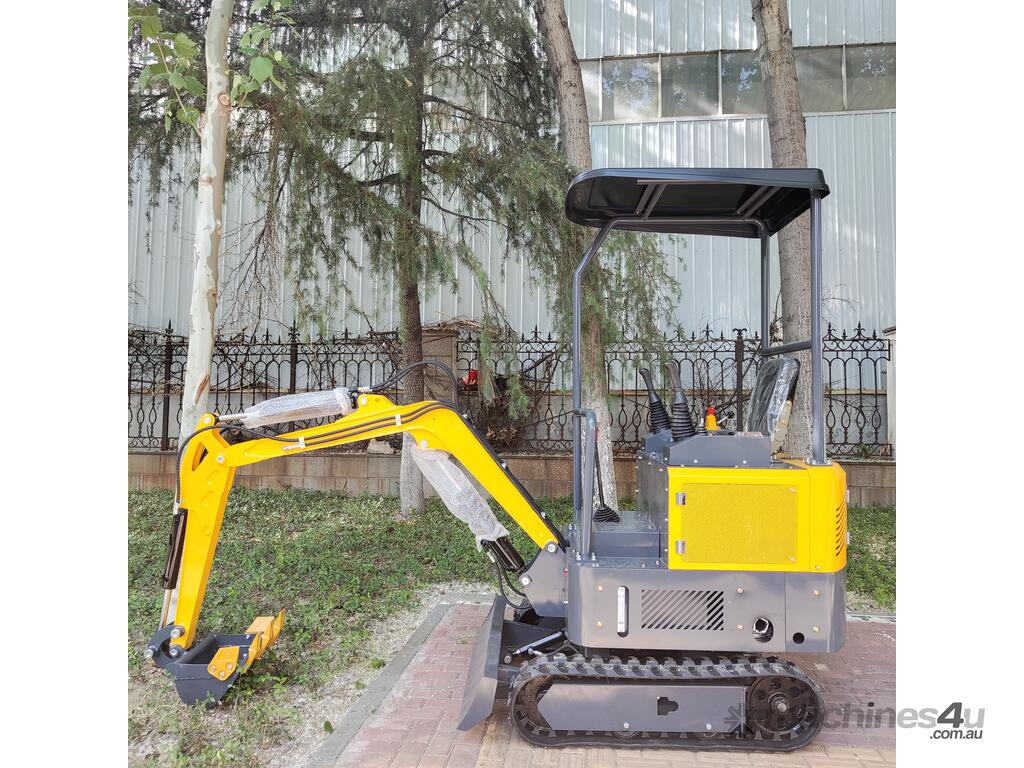

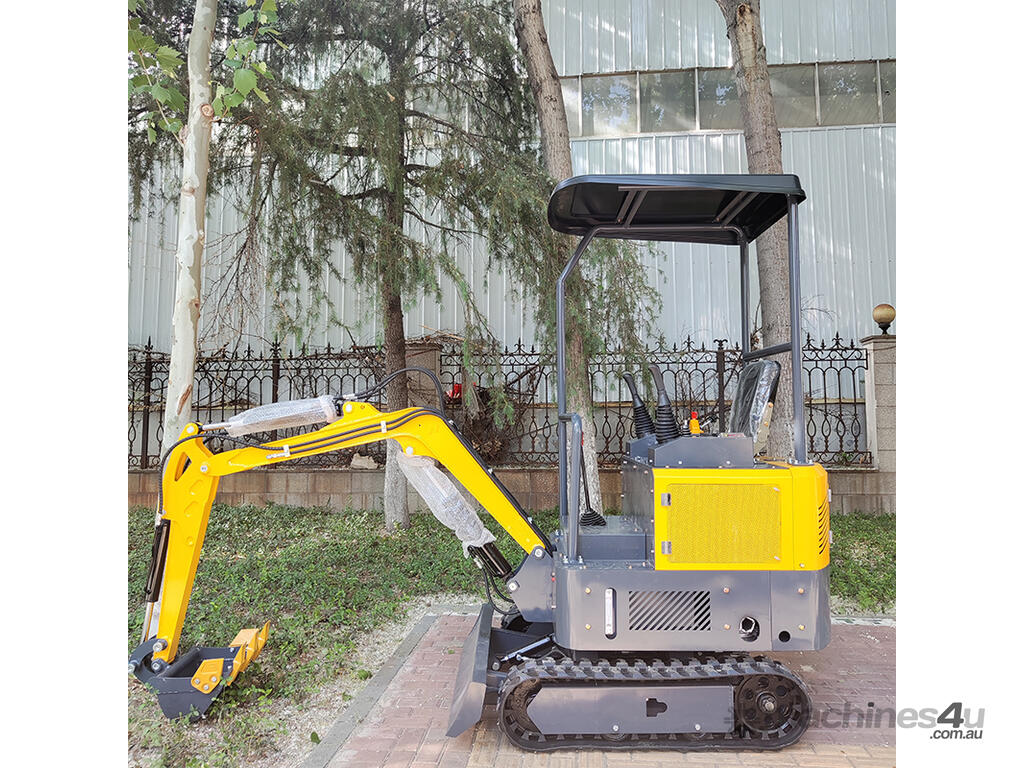

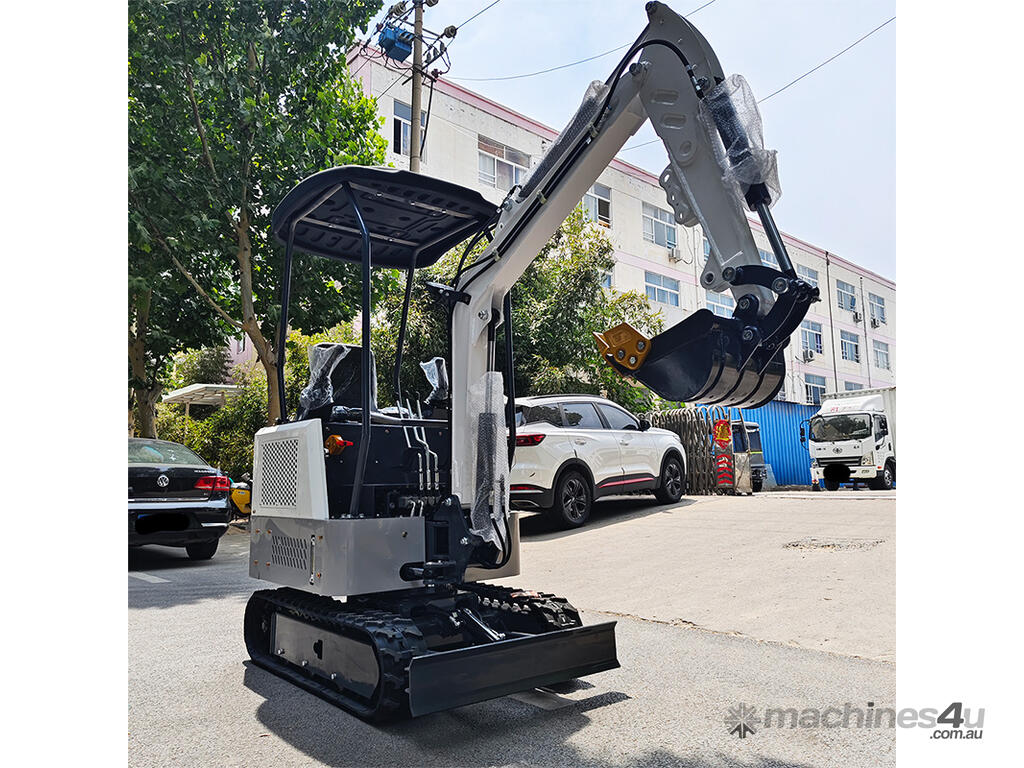

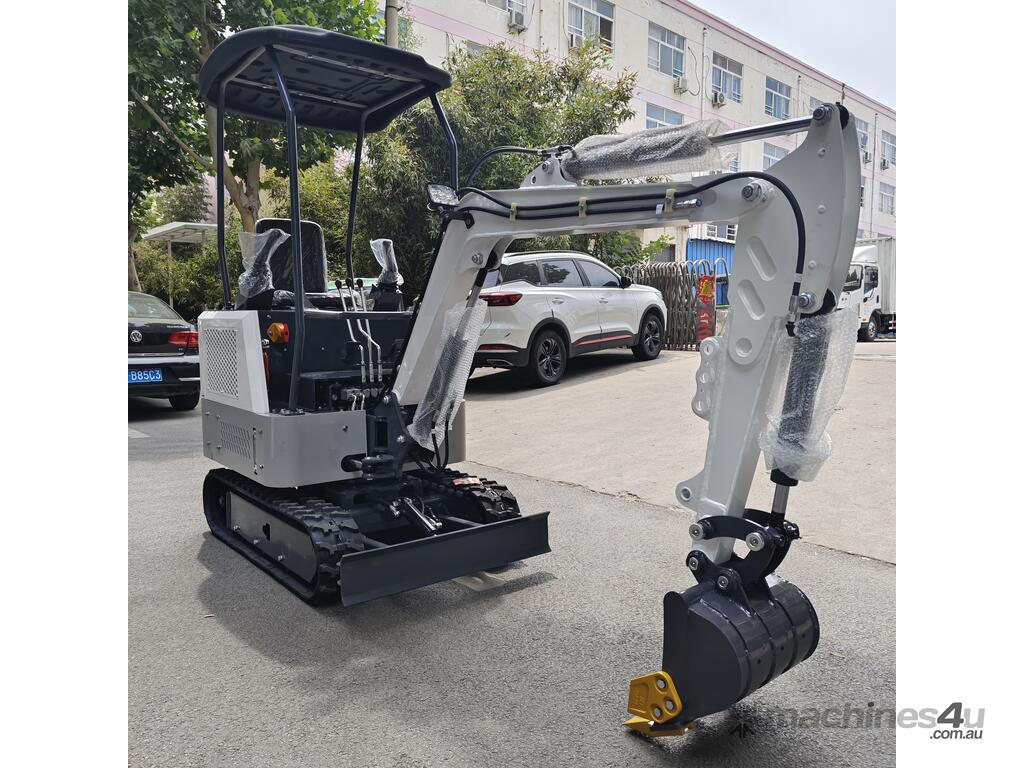

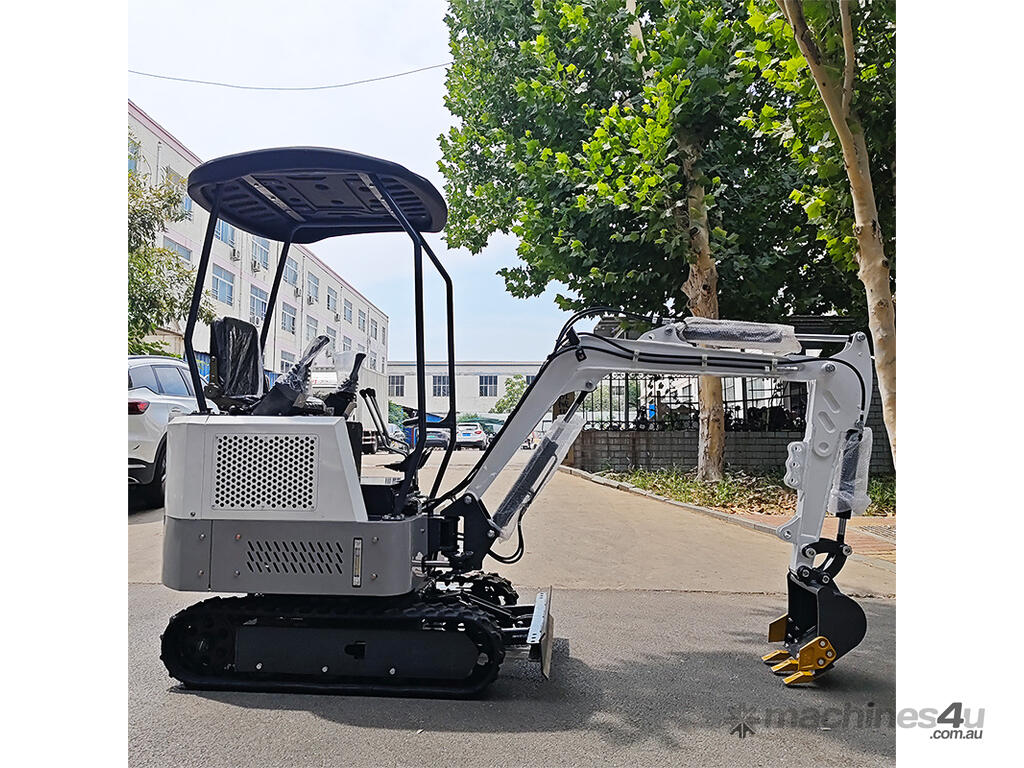

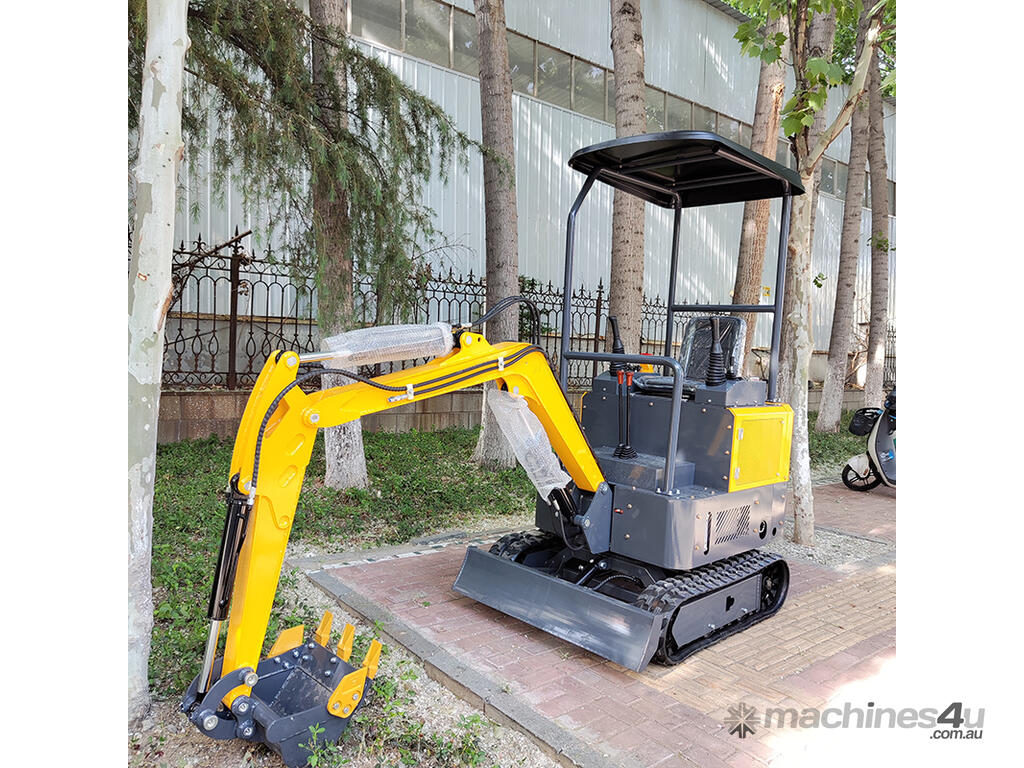

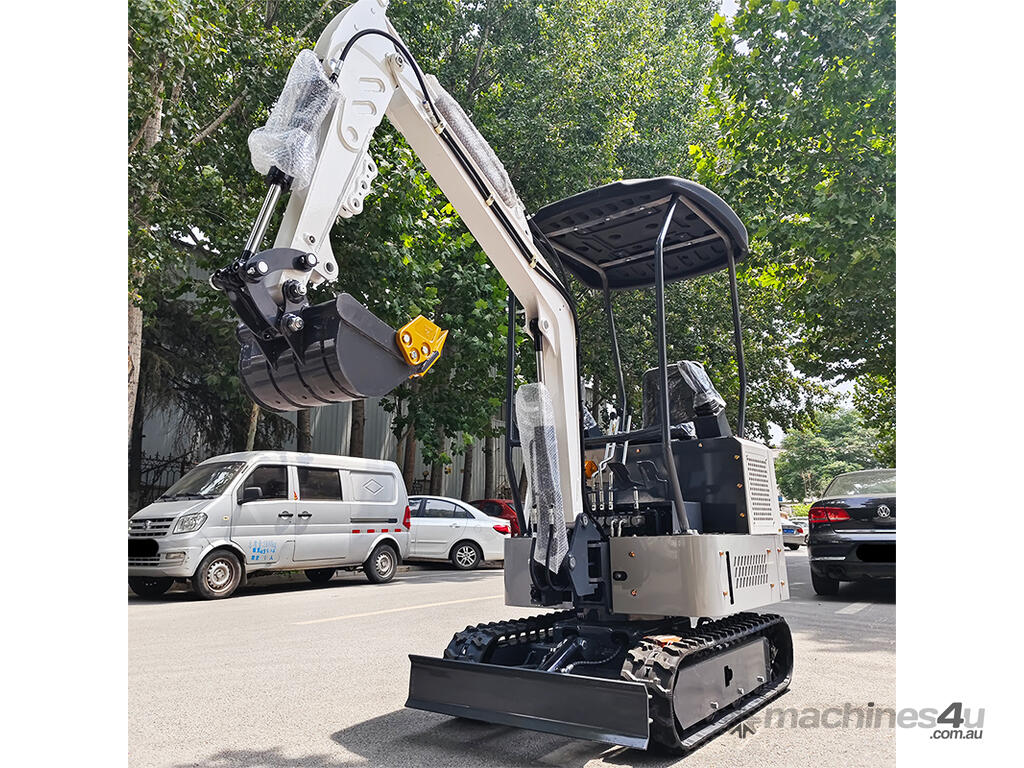

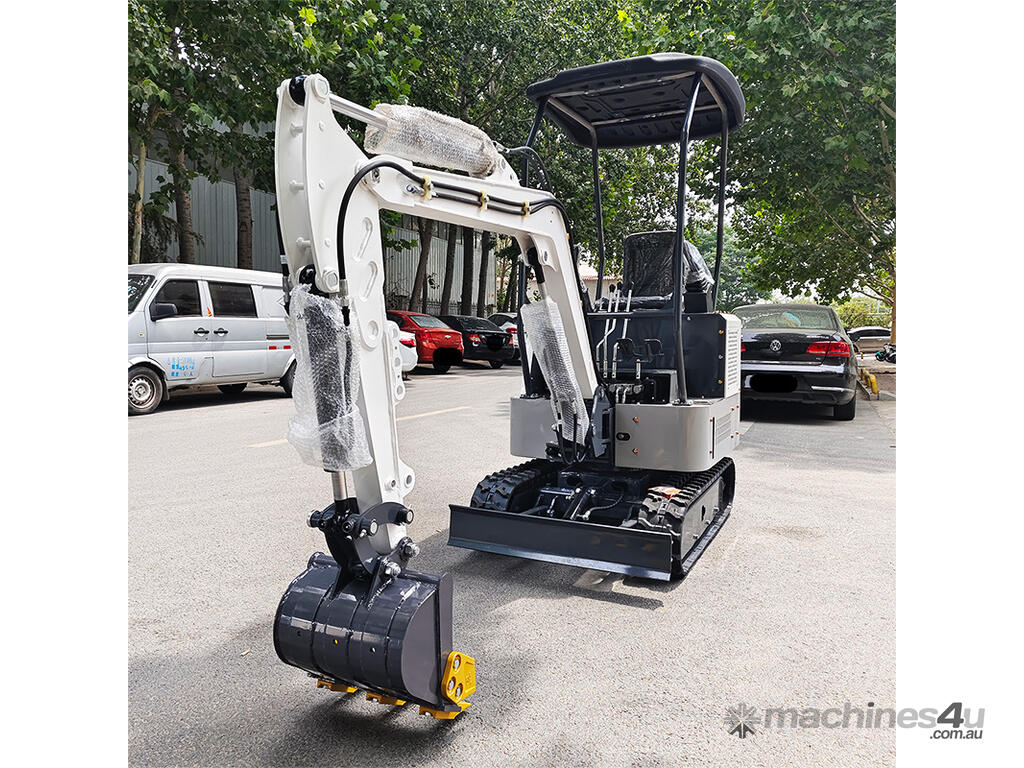

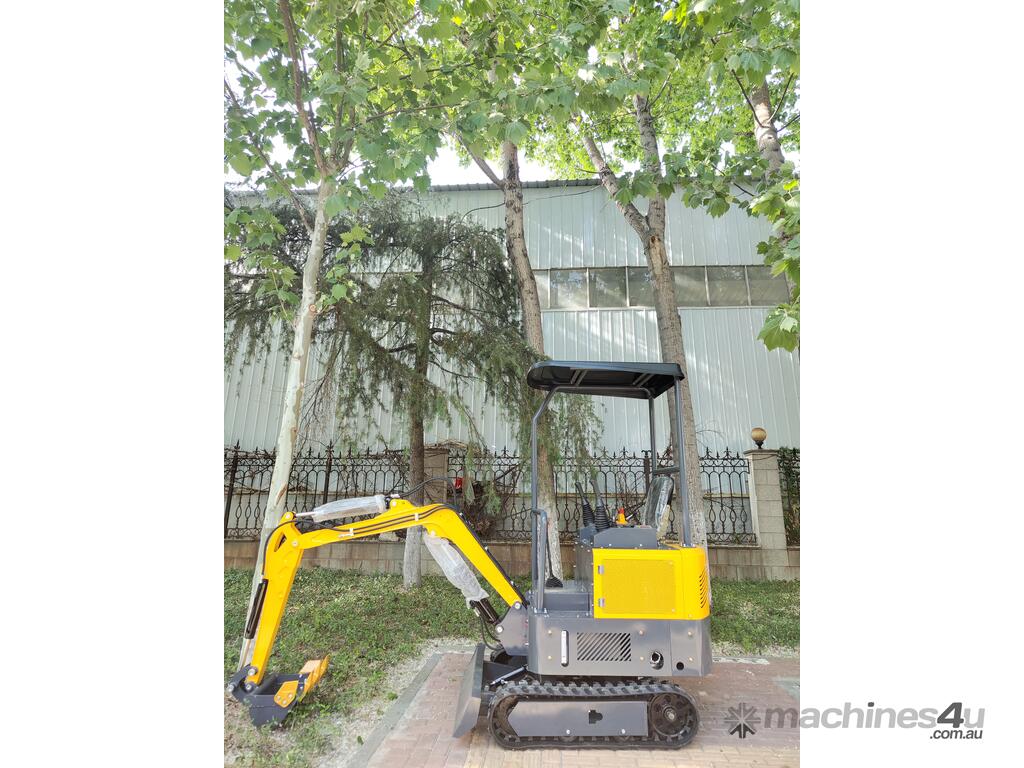

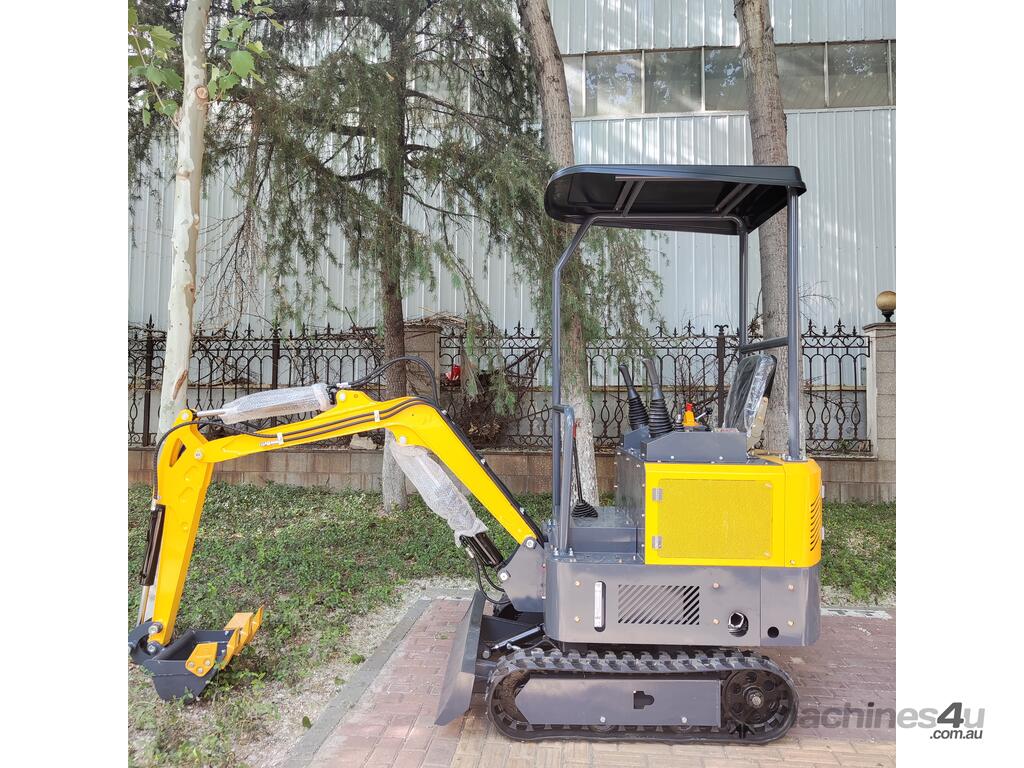

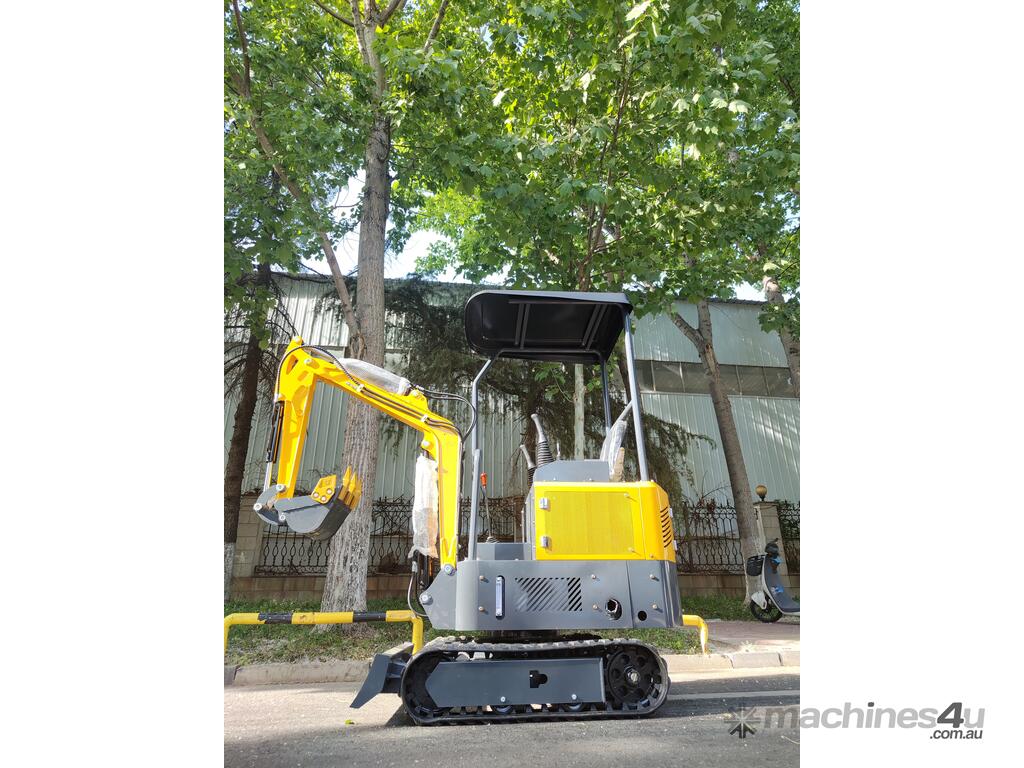

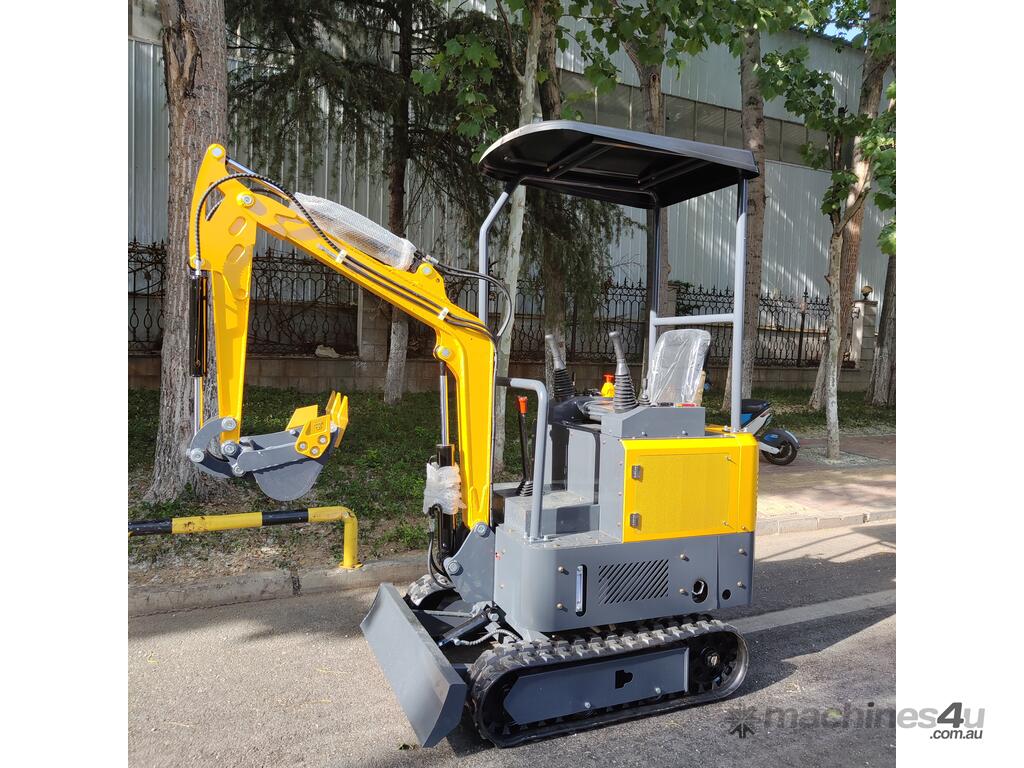

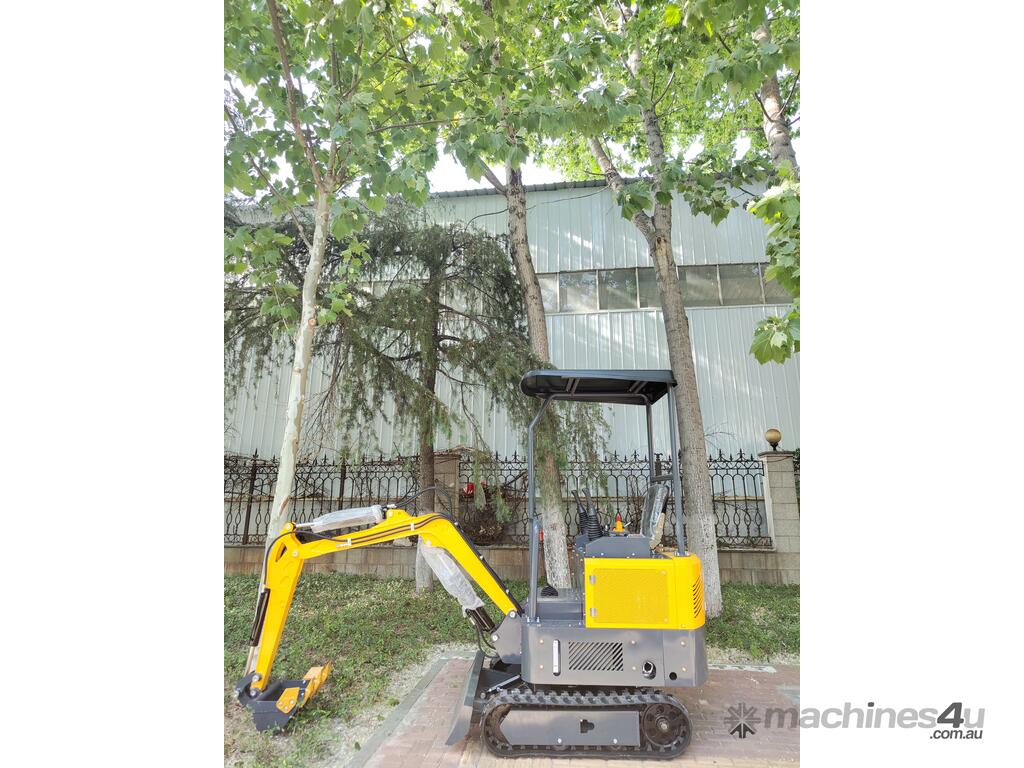

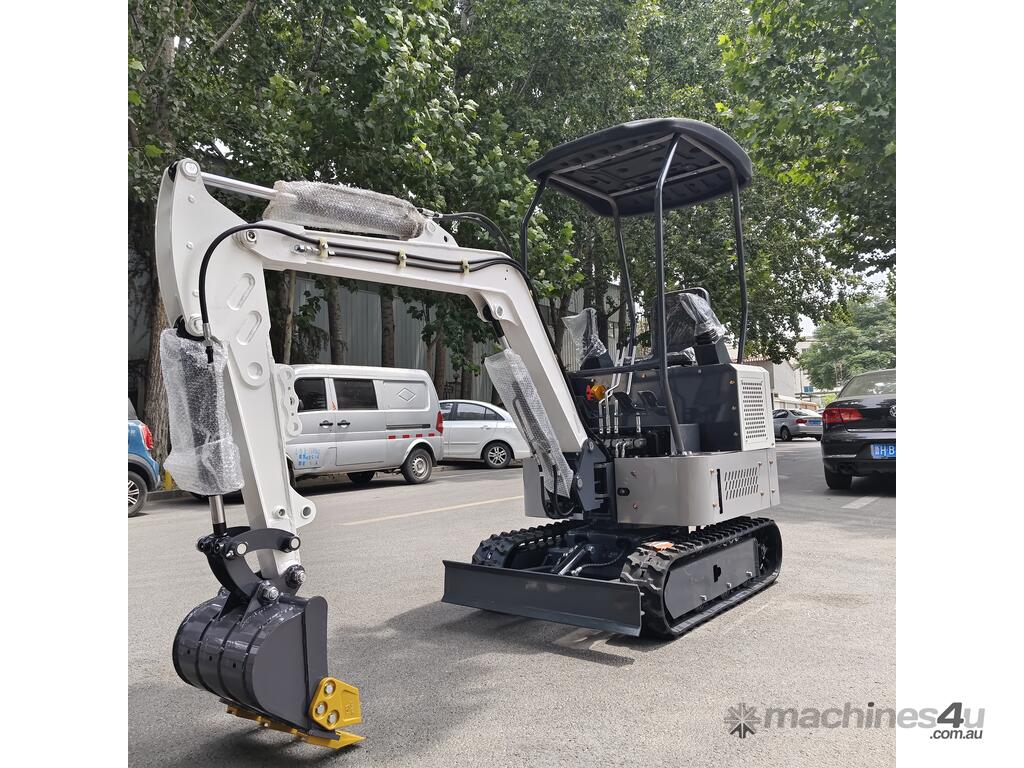

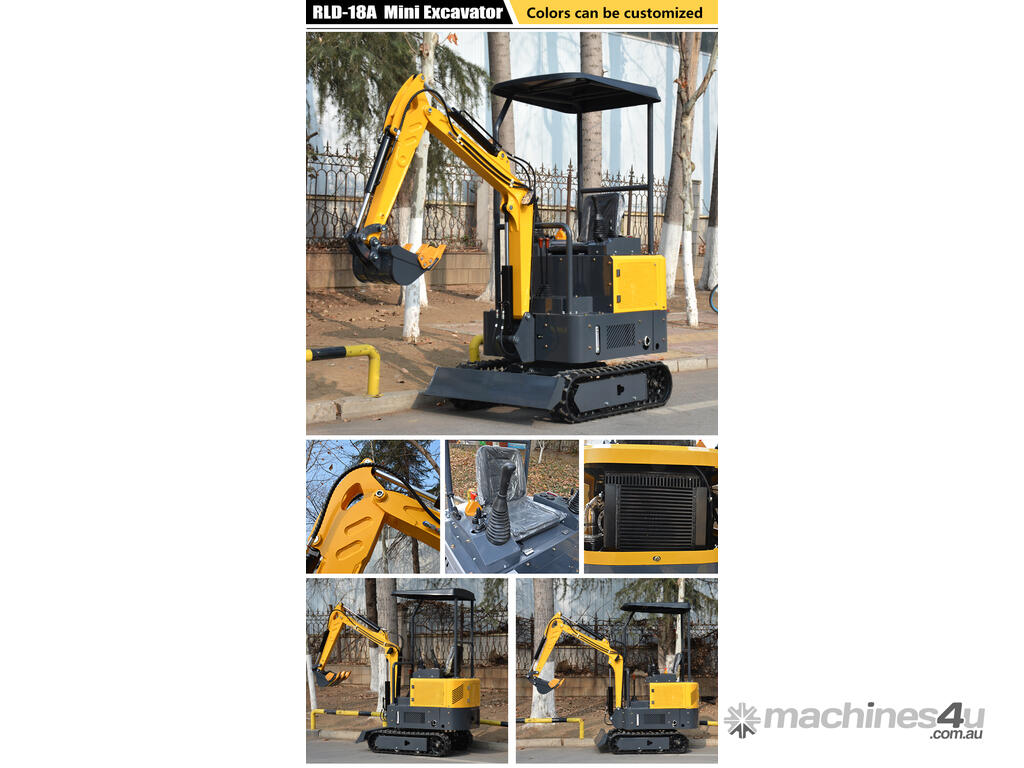

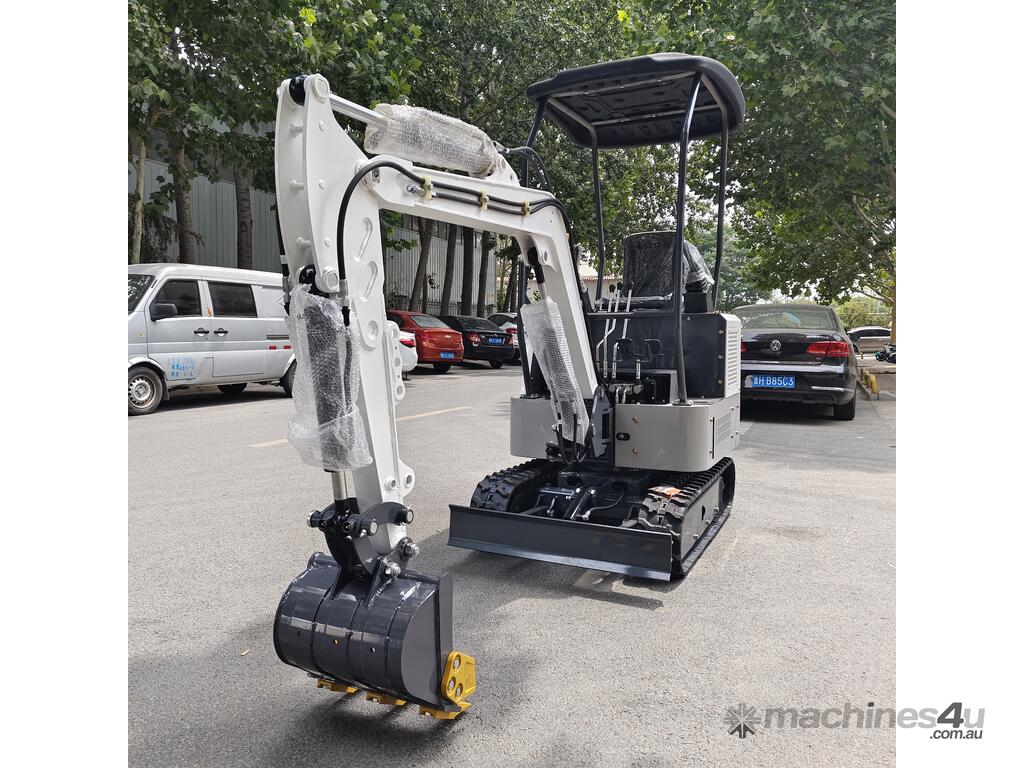

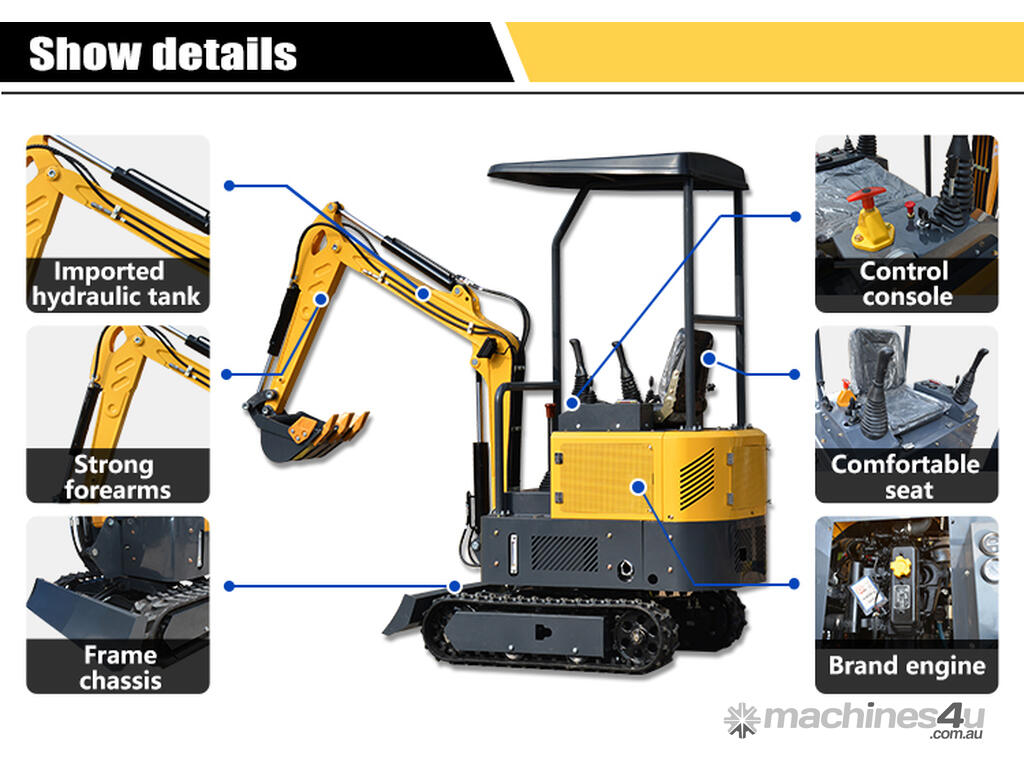

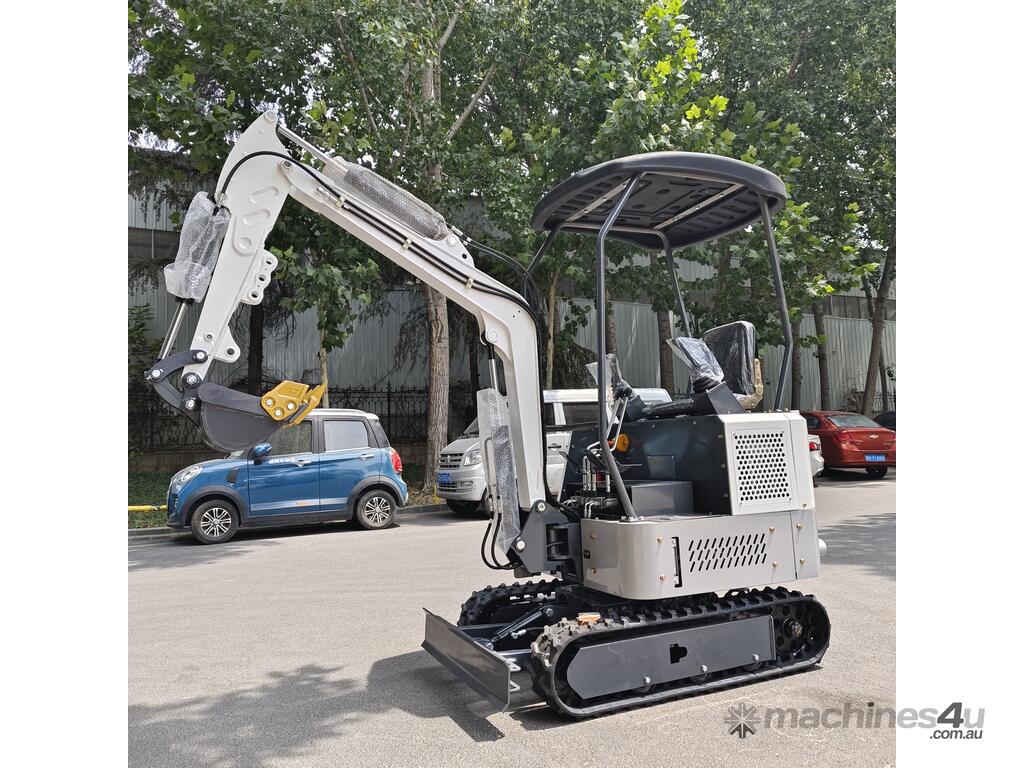

A versatile 1.75-ton excavator with up to 39 HP engine power, strong digging depth, and a commercial-grade hydraulic system—ideal for contractors, hire fleets, and serious earthmoving work.
Key Specs:
Operating weight: 1750 kg – stable and capable for commercial digging
Max digging depth: 2050 mm – ideal for trenching, stormwater, irrigation & footings
Engine options: LaiDong / B&S / Kubota — 13.5–39 HP – multiple tier options from budget to premium power

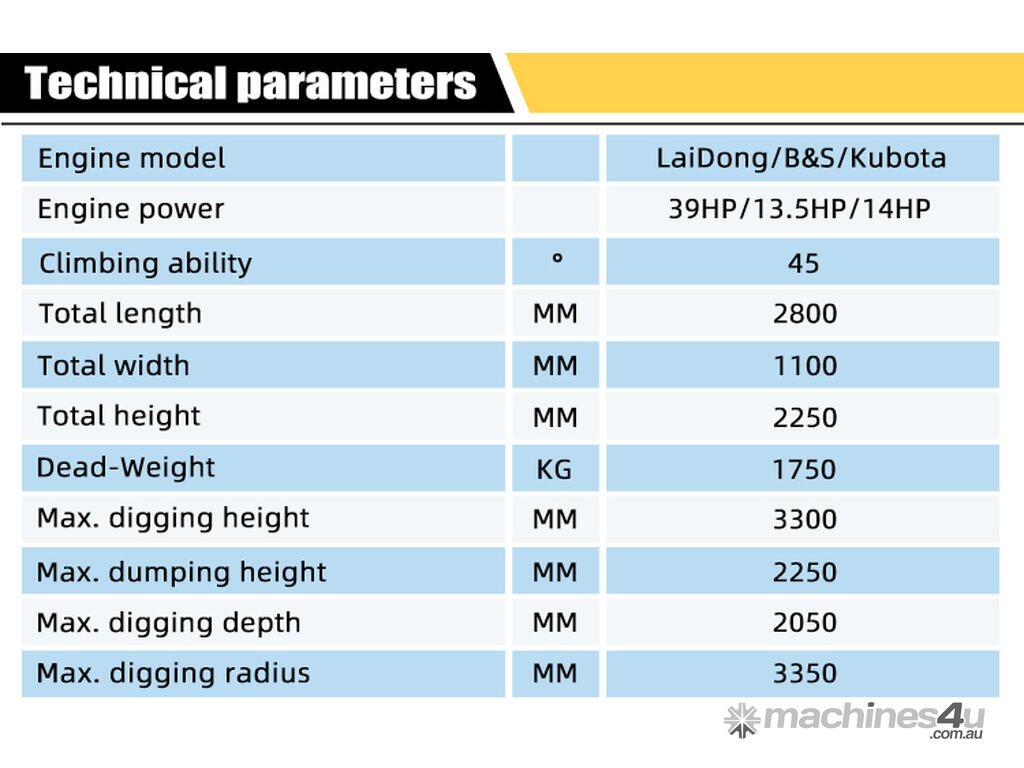

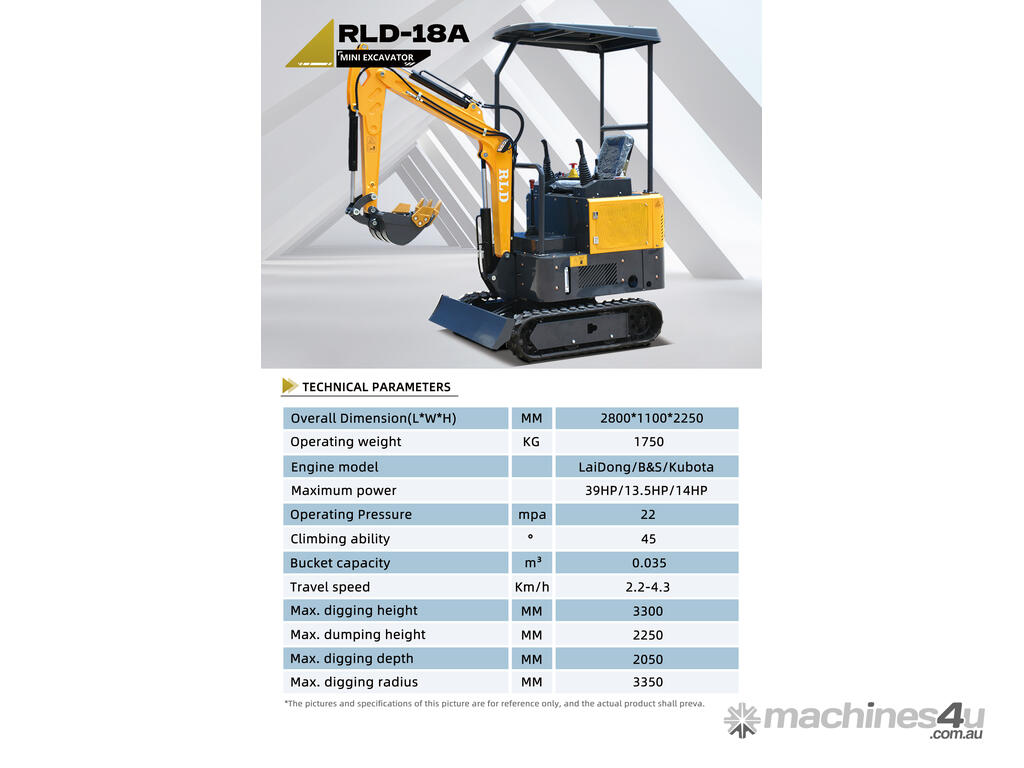

Additional Specifications:
Basic Dimensions:
Length: 2800 mm
Height: 2250 mm
Width: 1100 mm
Working Range:
Max digging height: 3300 mm
Max dumping height: 2050 mm
Max digging depth: 2050 mm
Max digging radius: 3350 mm
Minimum turning radius: 900 mm
Max lifting height of dozer/earth blade: 200 mm
Max digging depth of dozer blade: 270 mm
Min tail swing radius: 900 mm
Engine Options:
Brands: LaiDong / B&S / Kubota
Output: 13.5 HP, 14 HP, or up to 39 HP (depending on configuration)
Hydraulic System:
Operating pressure: 22 MPa
Hydraulic flow: 35 L/min
Load-sensing hydraulic system
Hydraulic tank capacity: 18 L
Performance:
Bucket capacity (SAE): 0.035 m³
Climbing ability: 45°
Travel speed: 2.2–4.3 km/h
Slew/swing speed: 8–10 rpm
