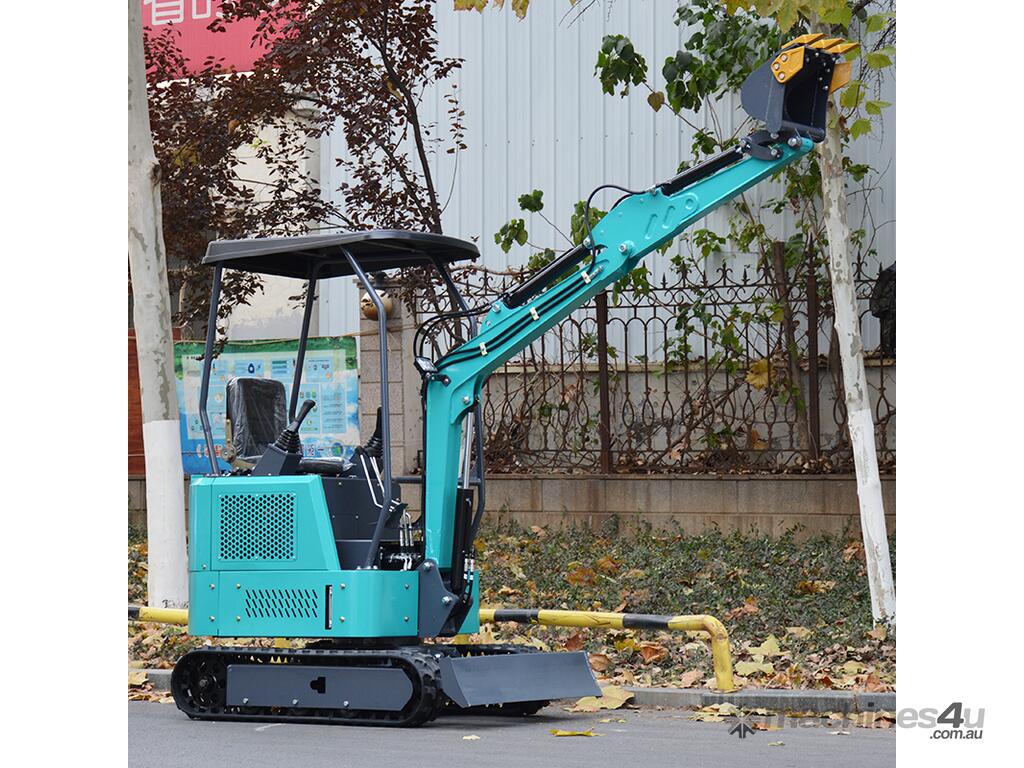

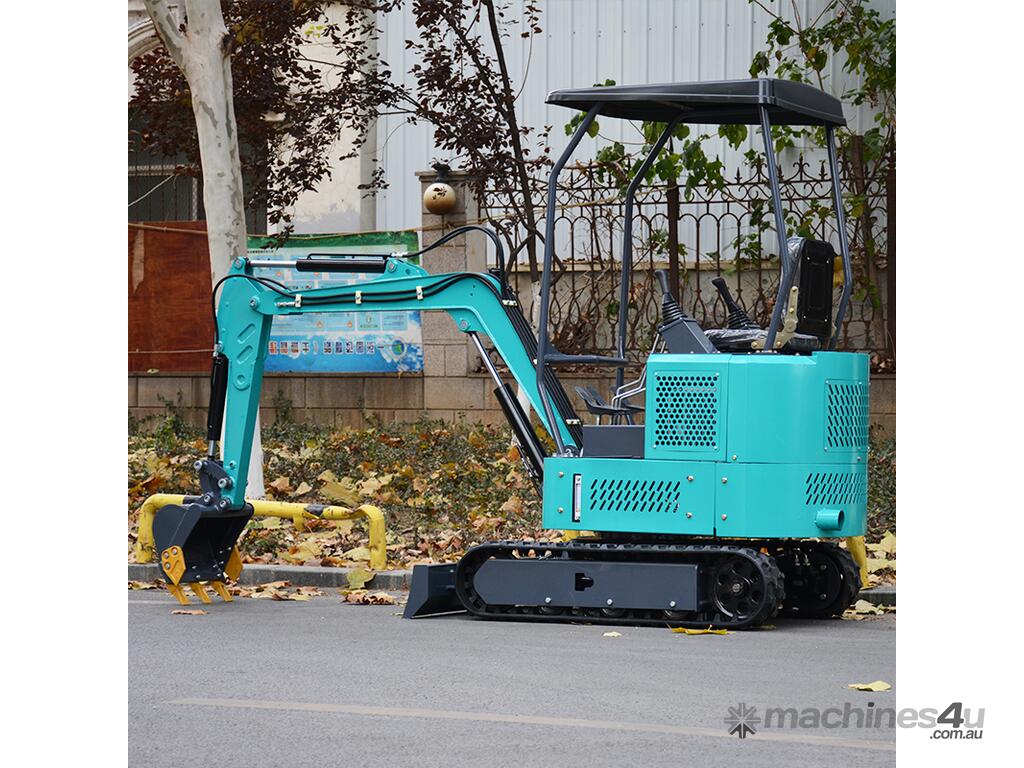

A stable 1.75-ton excavator with deep digging capability and a dependable 14HP Kubota engine. Ideal for trenching, fencing, plumbing work, civil jobs, and professional landscaping.
Key Specs:
Operating weight: 1750 kg – more stability & digging force than 1.5-ton machines
Max digging depth: 2050 mm – excellent for trenching, utilities & landscaping
Engine: 14 HP Kubota – highly trusted brand with excellent reliability
Additional Specifications (Bullet List)
Basic Dimensions:
Length: 3000 mm
Height: 2250 mm
Width: 1110 mm
Working Range:
Max digging height: 3100 mm
Max dumping height: 2000 mm
Max digging depth: 2050 mm
Max digging radius: 3380 mm
Minimum turning radius: 900 mm
Max blade lifting height: 210 mm
Max blade digging depth: 280 mm
Min tail swing radius: 900 mm
Engine & Power:
Brand: Kubota
Output: 14 HP
Fuel: diesel
Hydraulic System:
Operating pressure: 22 MPa
Hydraulic flow: 38 L/min
Load-sensing hydraulic system
Hydraulic tank capacity: 18 L
Performance:
Bucket capacity (SAE): 0.036 m³
Climbing ability: 45°
Travel speed: 2.2–4.3 km/h
Slew/swing speed: 8–10 rpm
