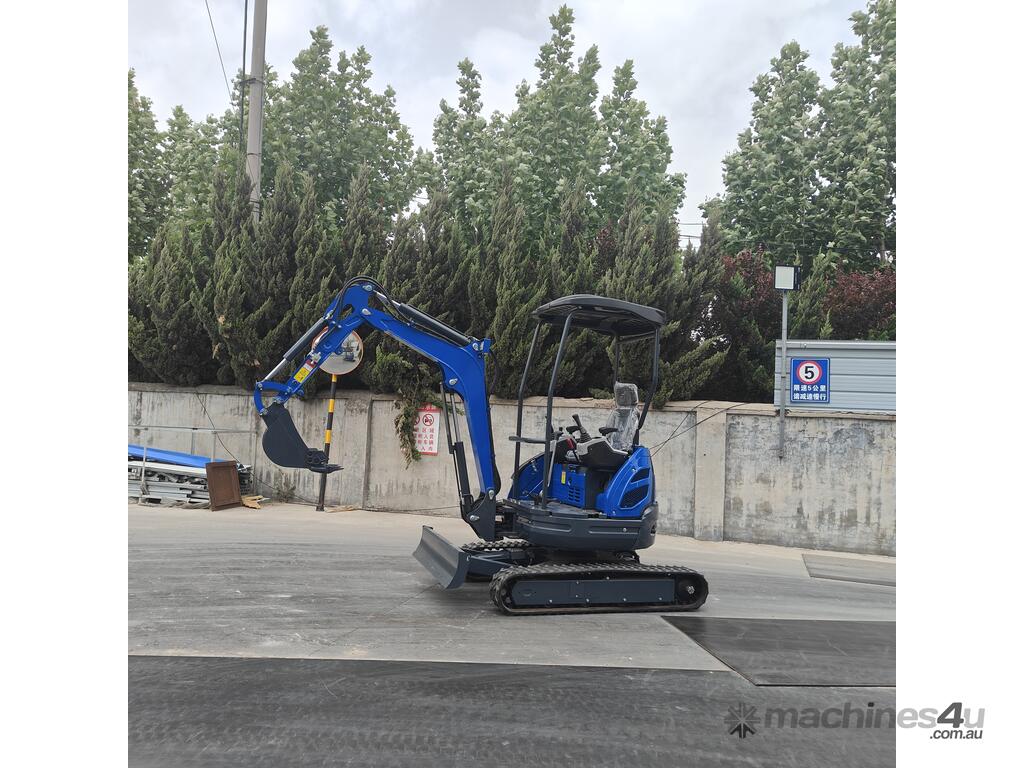

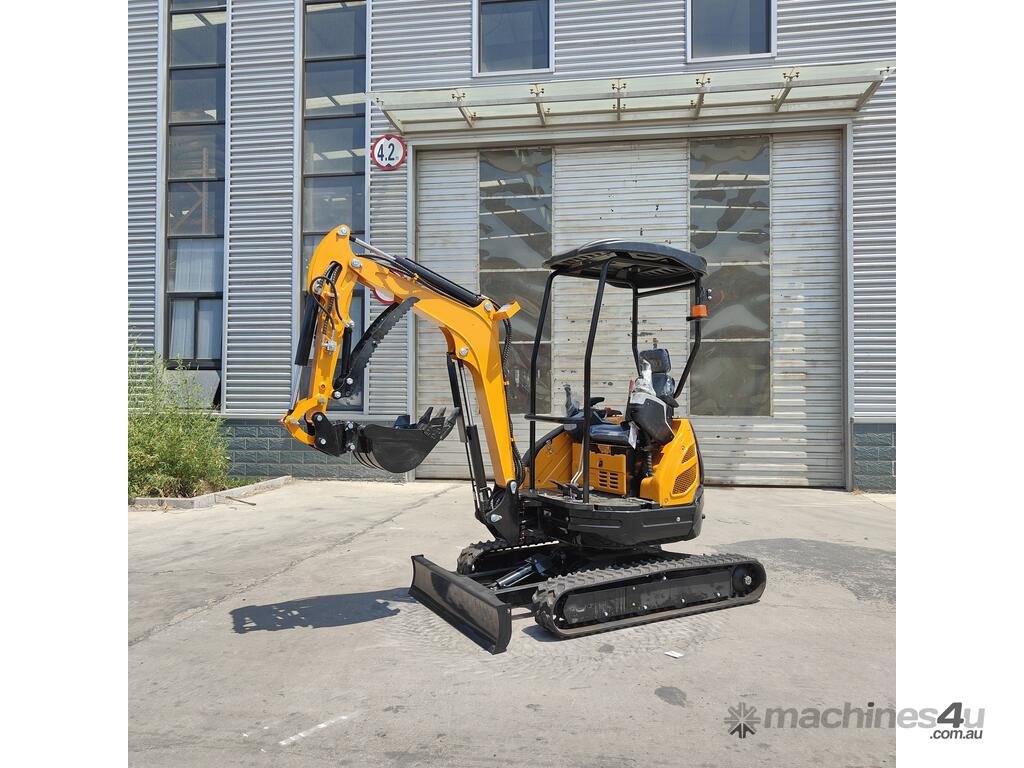

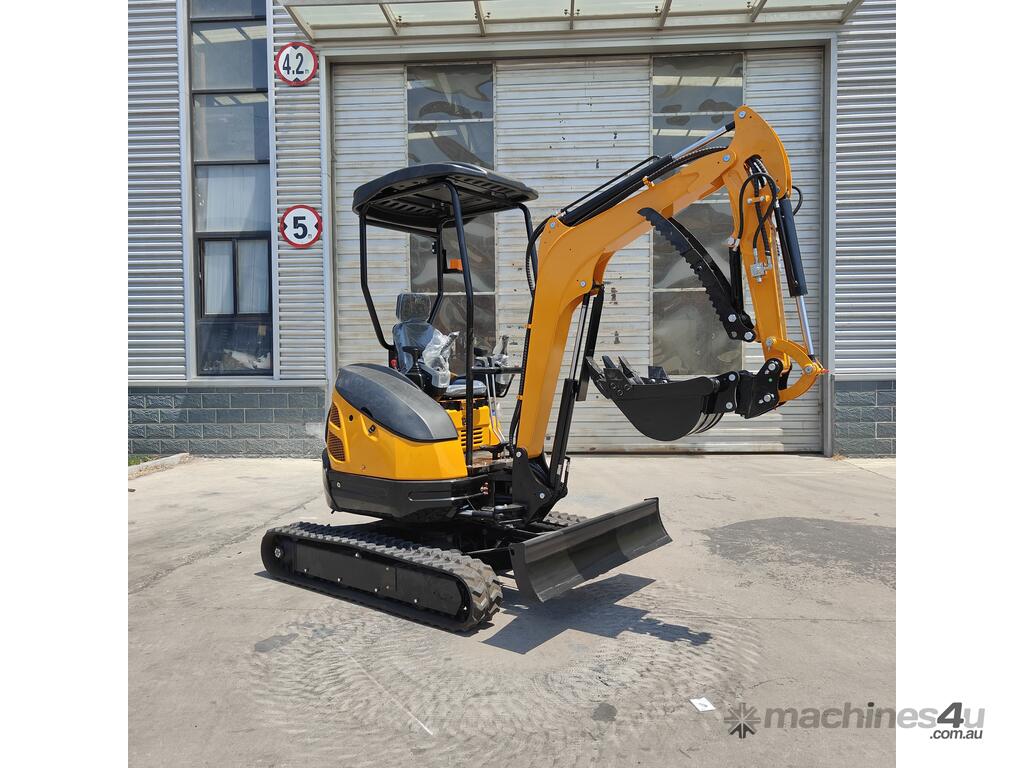

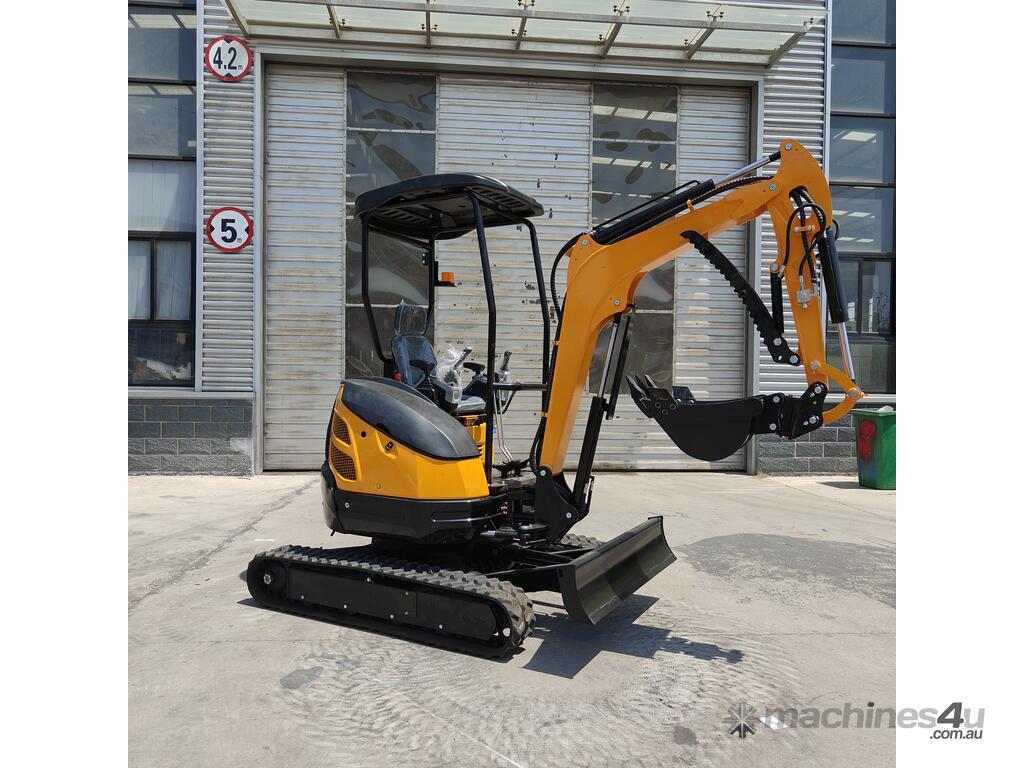

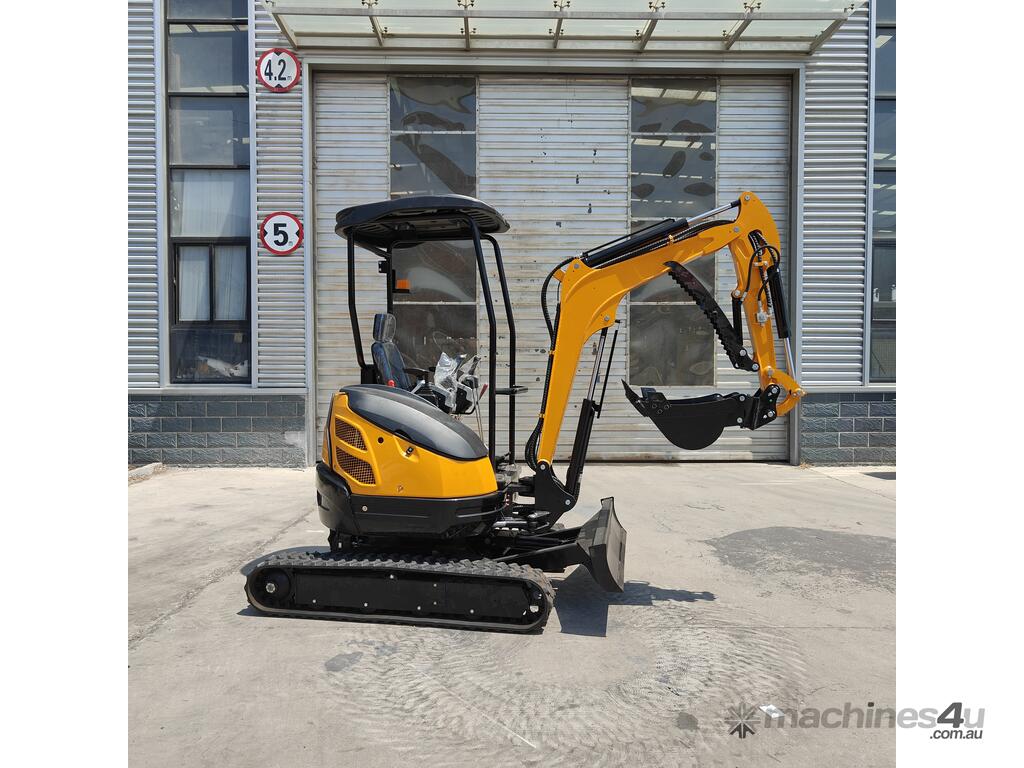

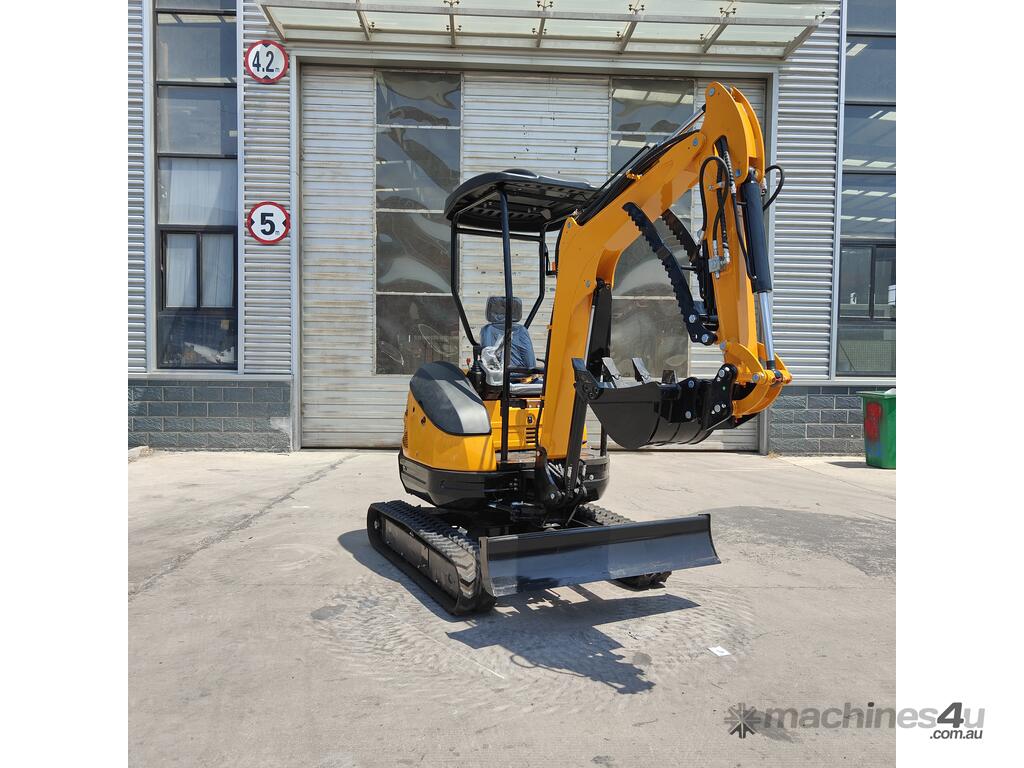

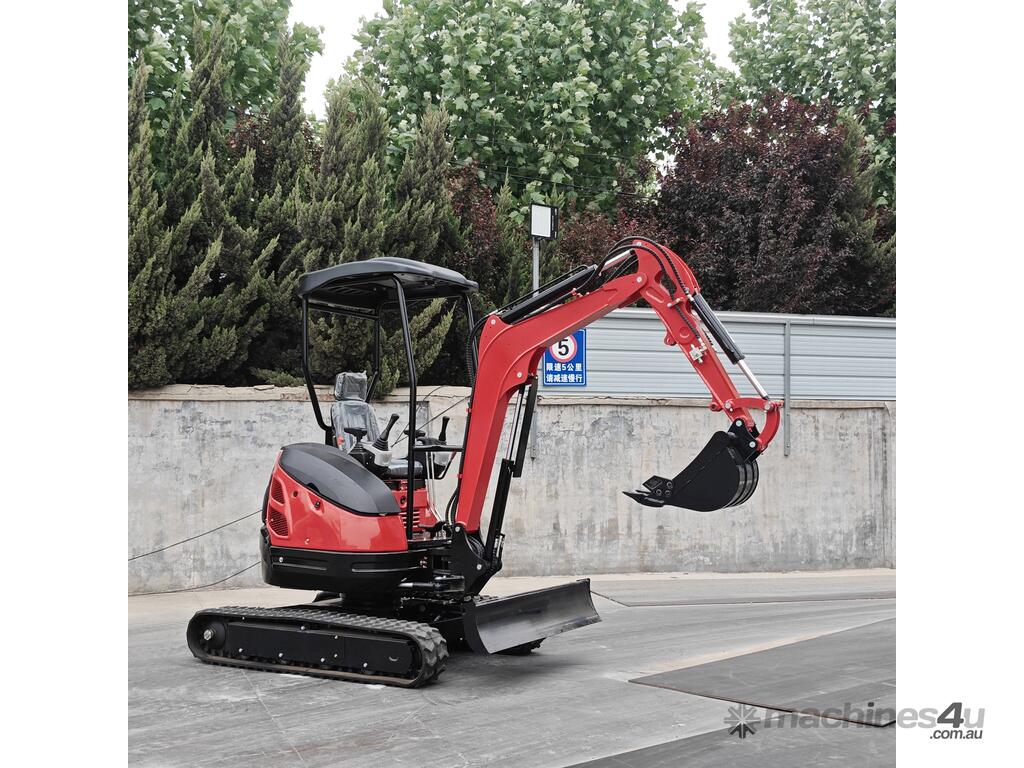

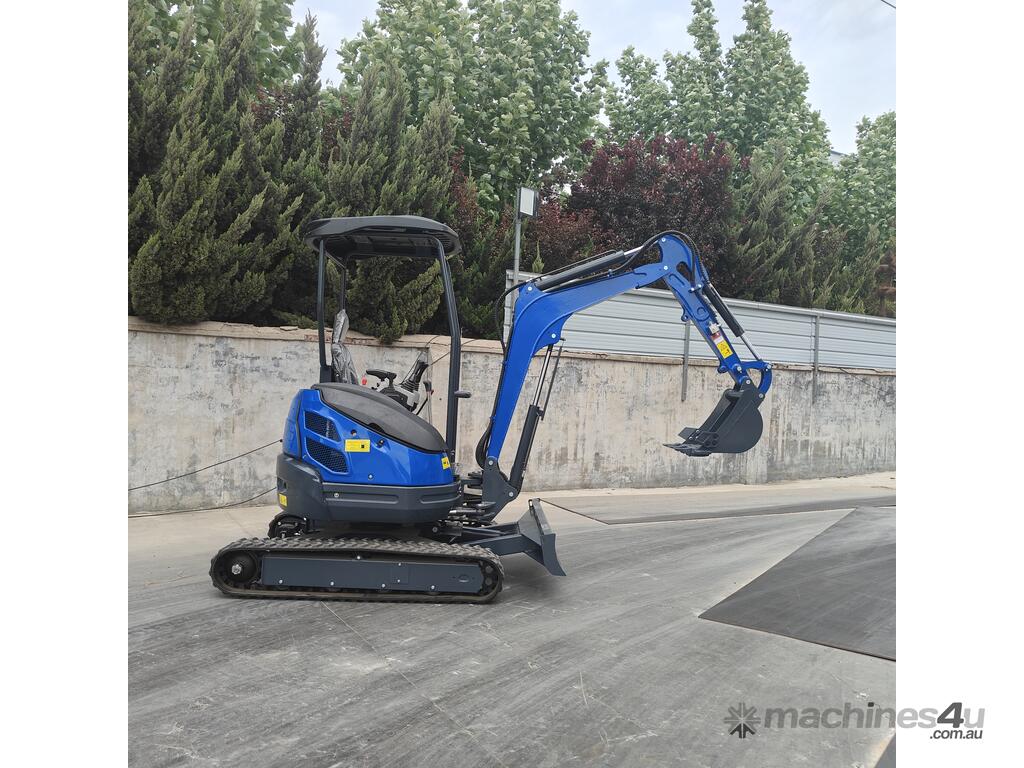

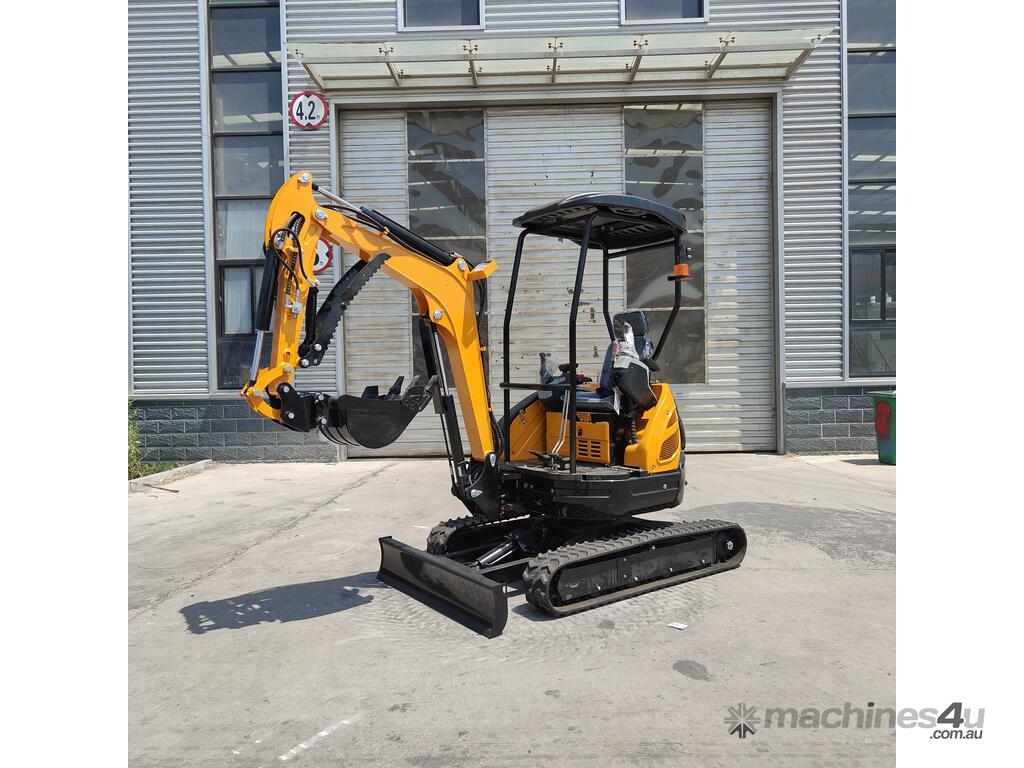

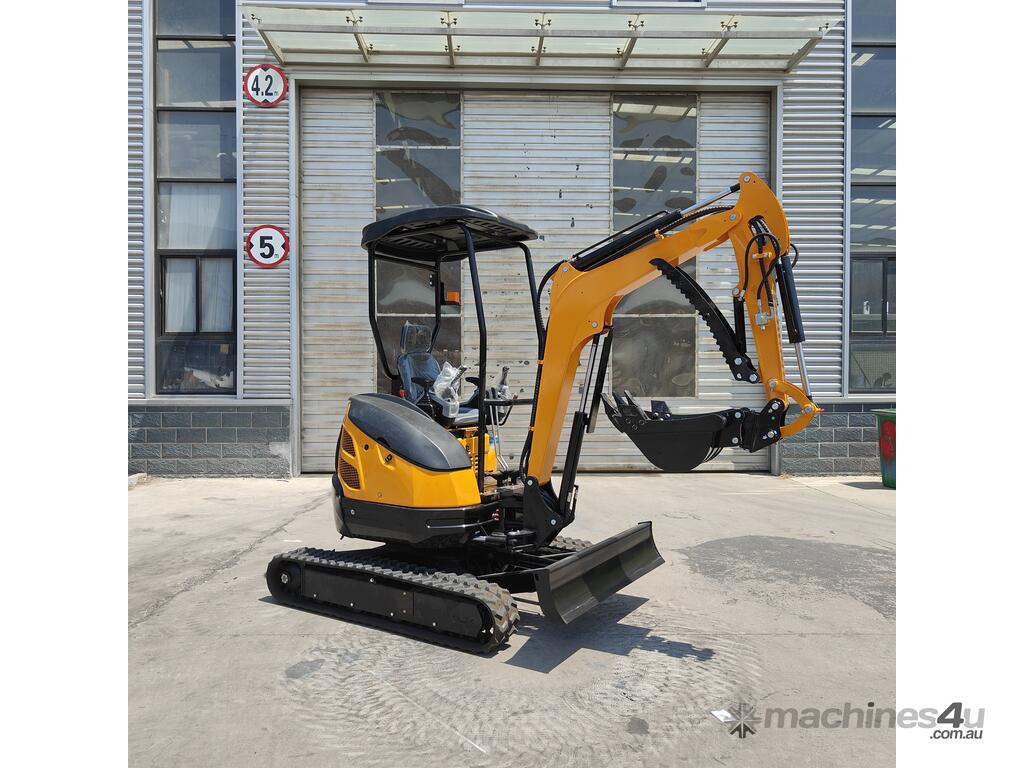

A heavy-duty 2.4-ton excavator with a deep 2.2m digging depth, powerful Kubota/Quanchai engine options, and a strong hydraulic system—built for commercial earthmoving & professional site work.
Key Specs:
Operating weight: 2410 kg – far more stable & capable than 1–1.6 ton models
Max digging depth: 2200 mm – excellent for foundations & deep trenching
Engine: Kubota / Quanchai, 19–30 HP – serious industrial-grade engine options
Additional Specifications:
Basic Dimensions:
Length: 3700 mm
Height: 2203 mm
Width: 1100–1400 mm (expandable chassis)
Working Range:
Max digging height: 3100 mm
Max dumping height: 2250 mm
Max digging depth: 2200 mm
Max digging radius: 3950 mm
Minimum turning radius: 1645 mm
Max lifting height of earth blade: 325 mm
Max digging depth of dozer blade: 350 mm
Min tail swing radius: 1000 mm
Engine & Fuel:
Engine model: Kubota / Quanchai
Power output: 19 HP / 30 HP
Fuel type: diesel
Hydraulic System:
Operating pressure: 22 MPa
Flow: 45 L/min
Load-sensing hydraulic valves
Hydraulic tank capacity: 20 L
Performance:
Bucket capacity (SAE): 0.043 m³
Climbing ability: 45°
Travel speed: 2.2–4.3 km/h
Slew/swing speed: 8–10 rpm
