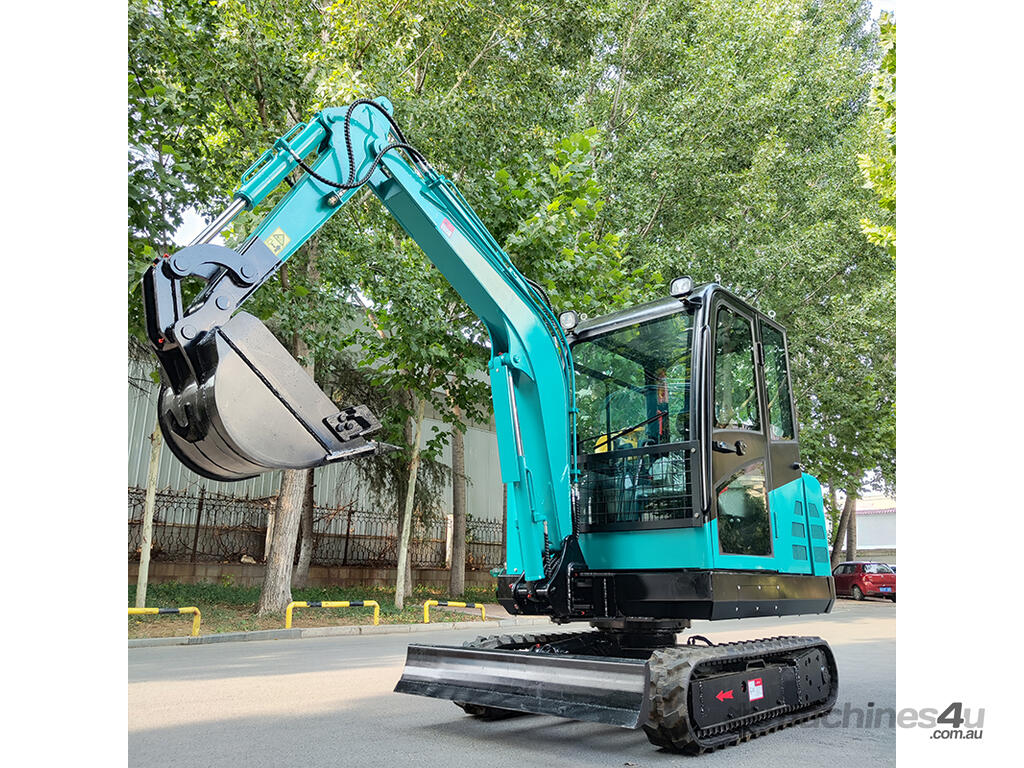

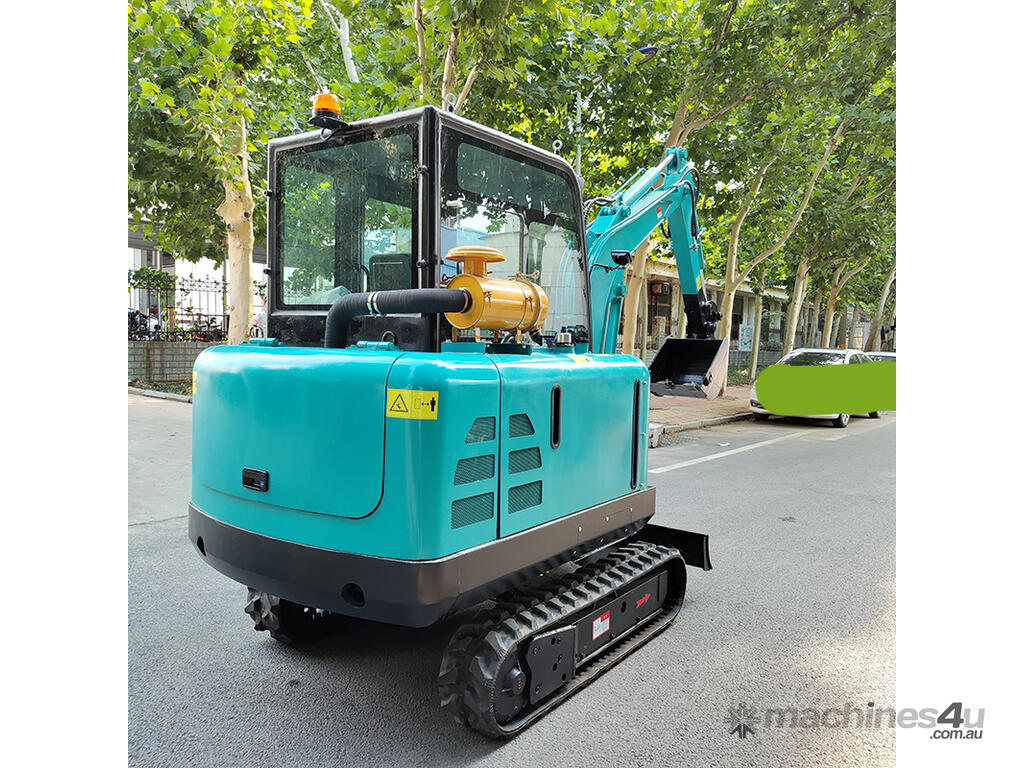

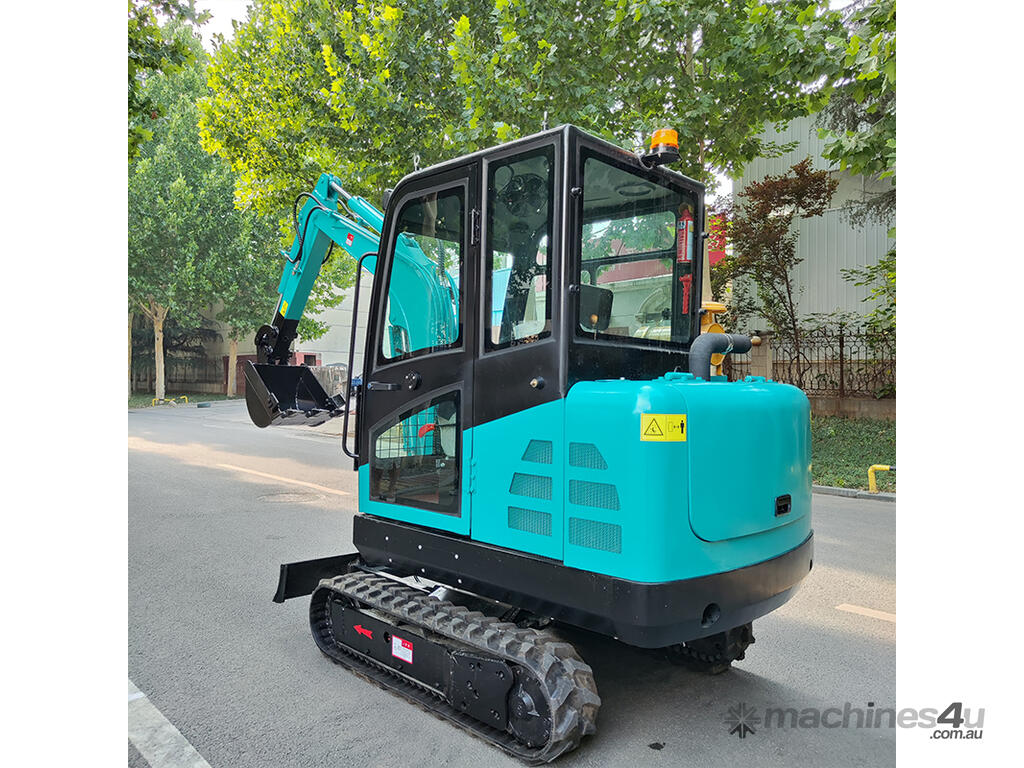

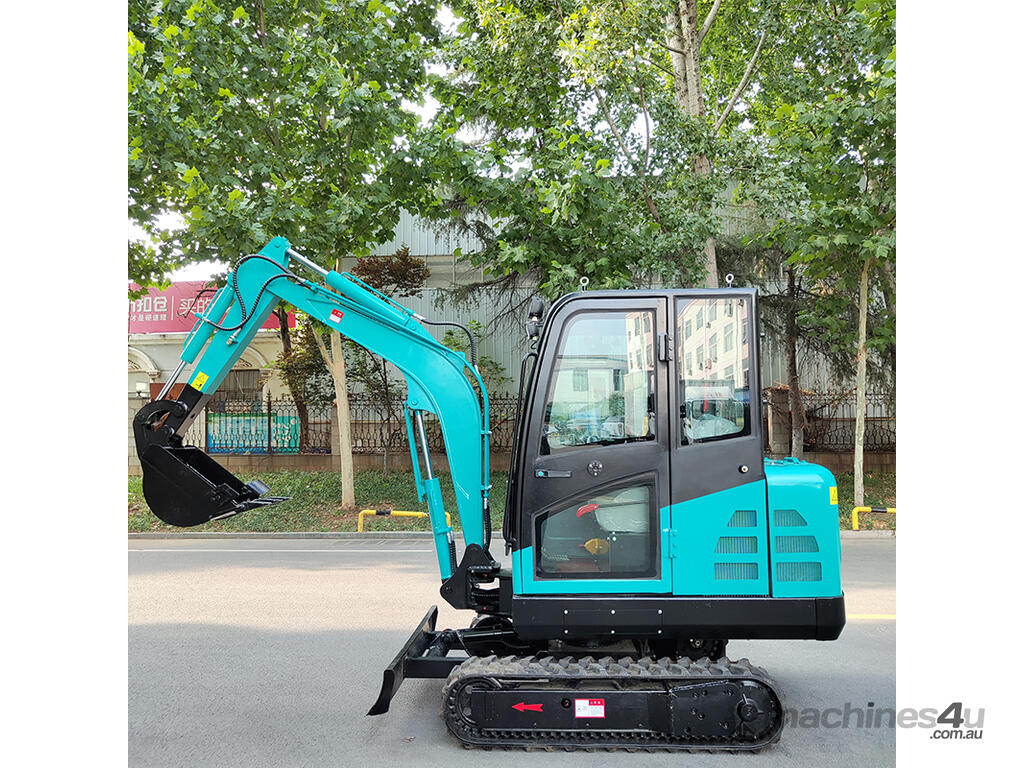

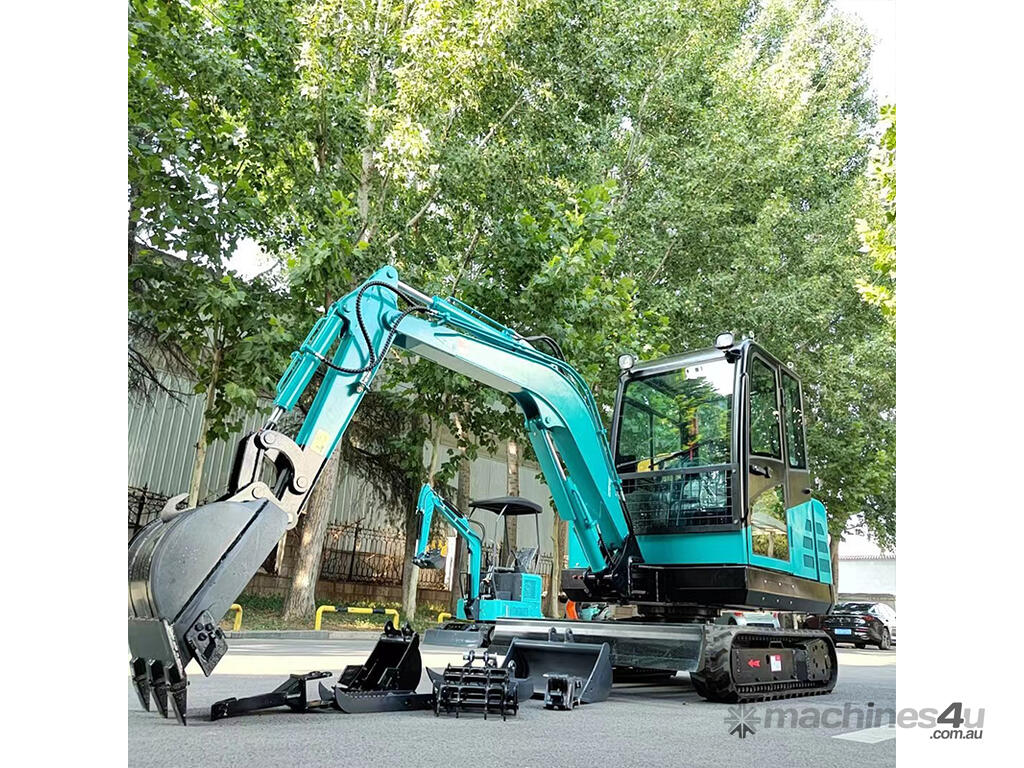

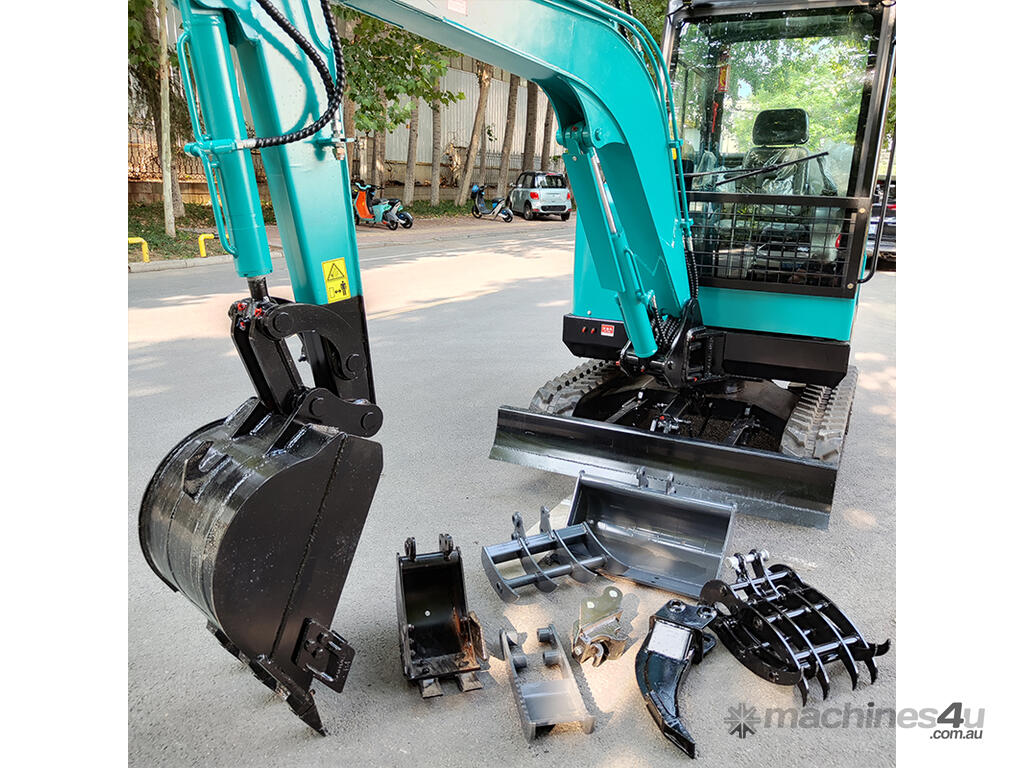

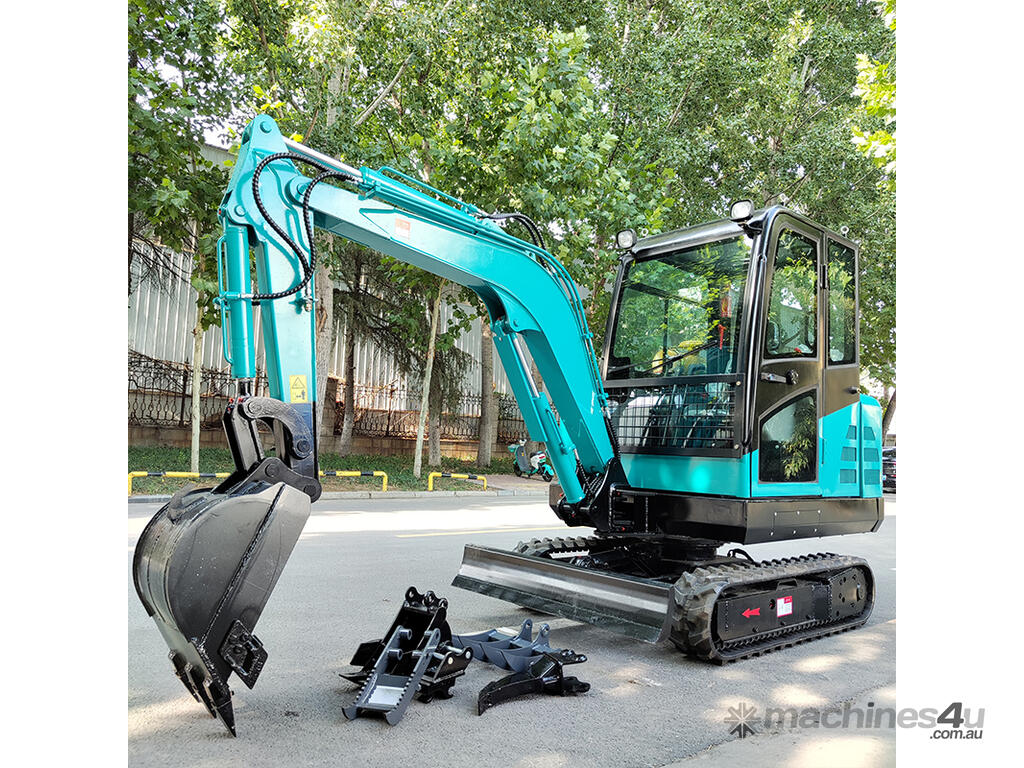

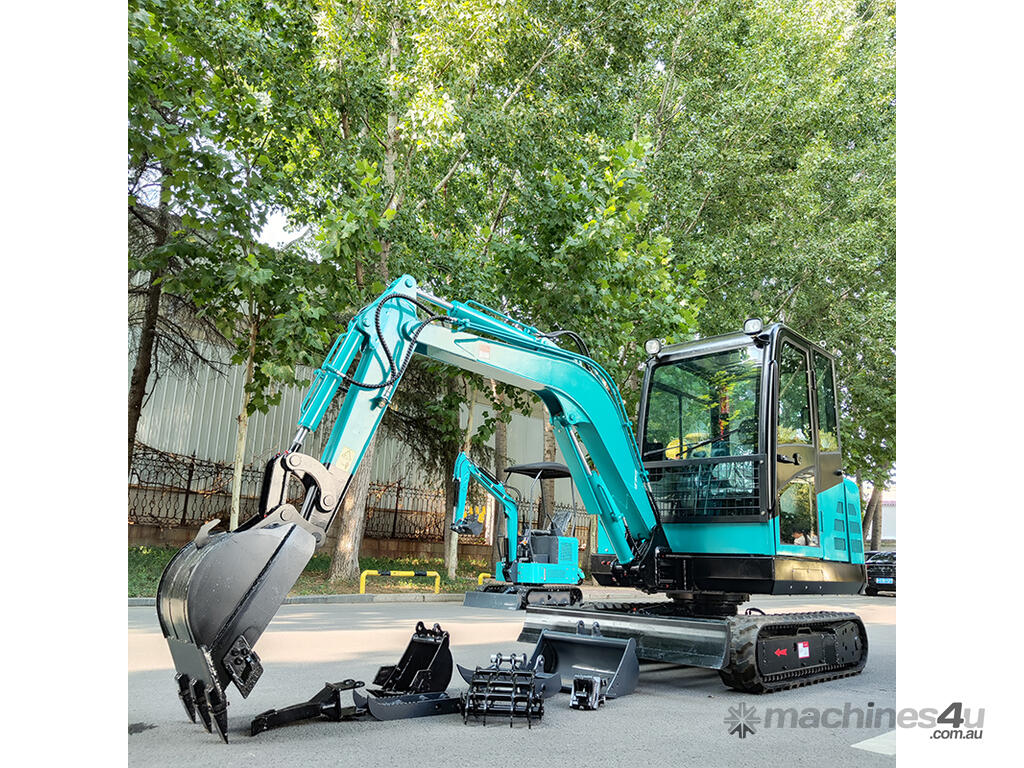

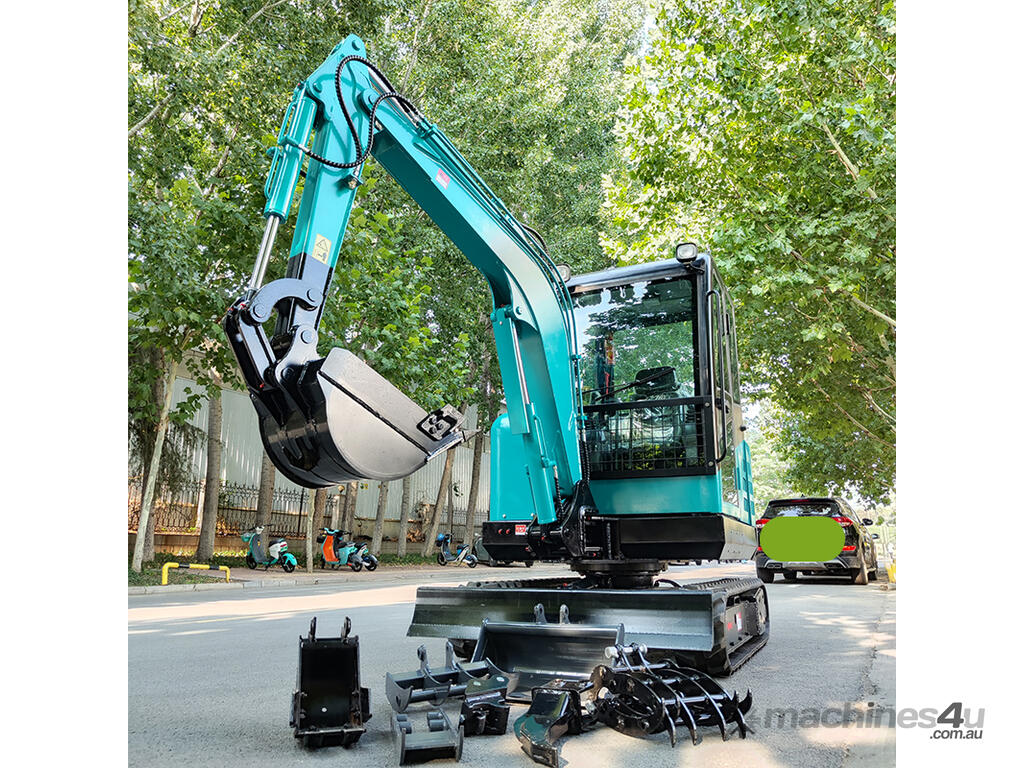

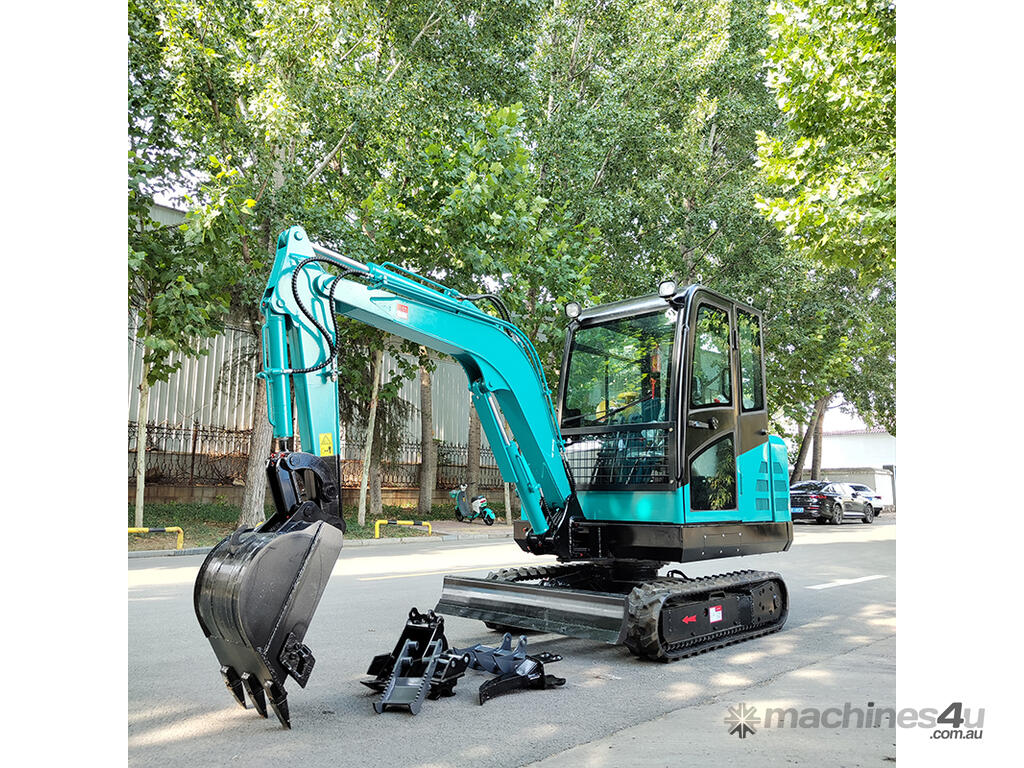

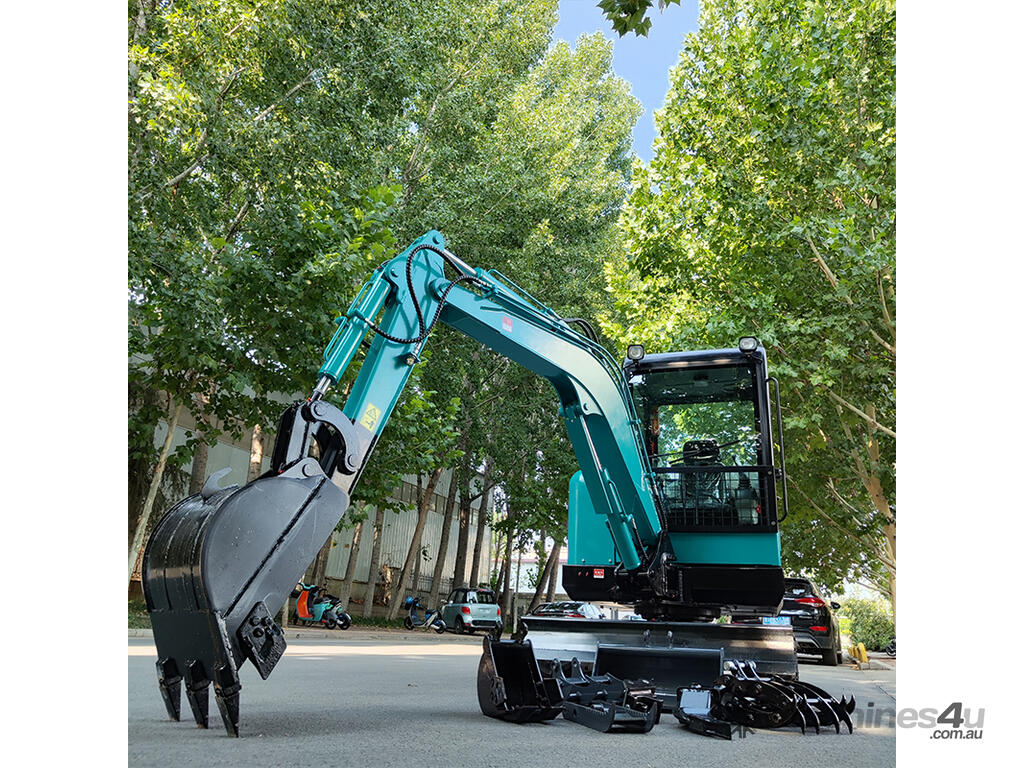

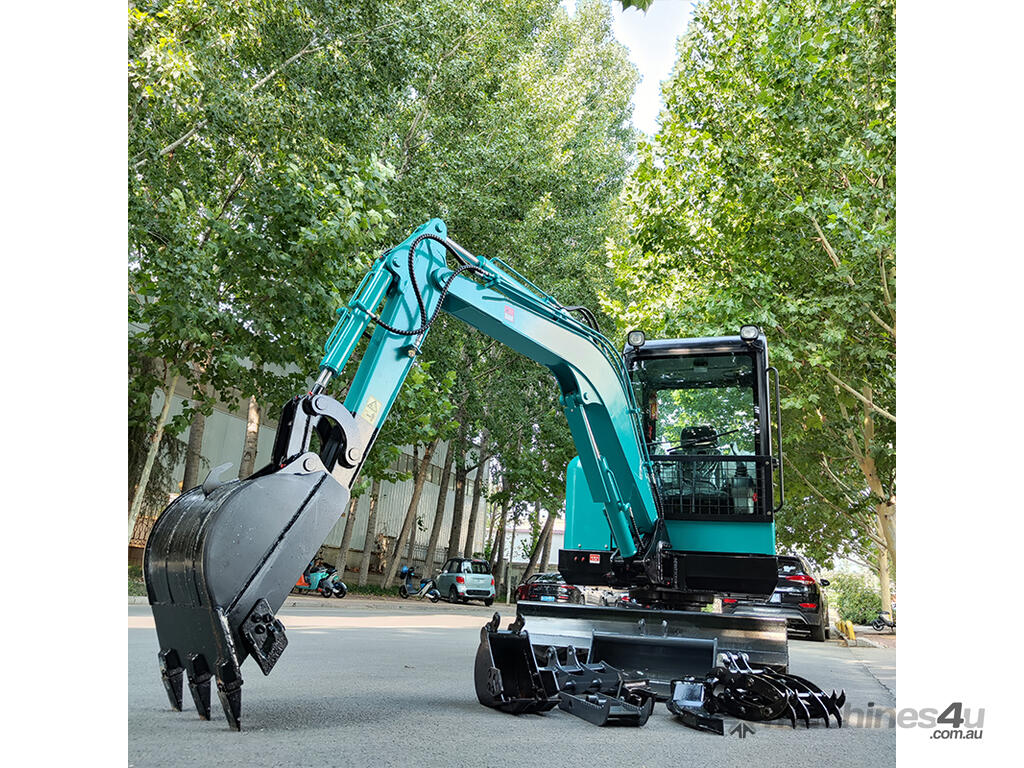

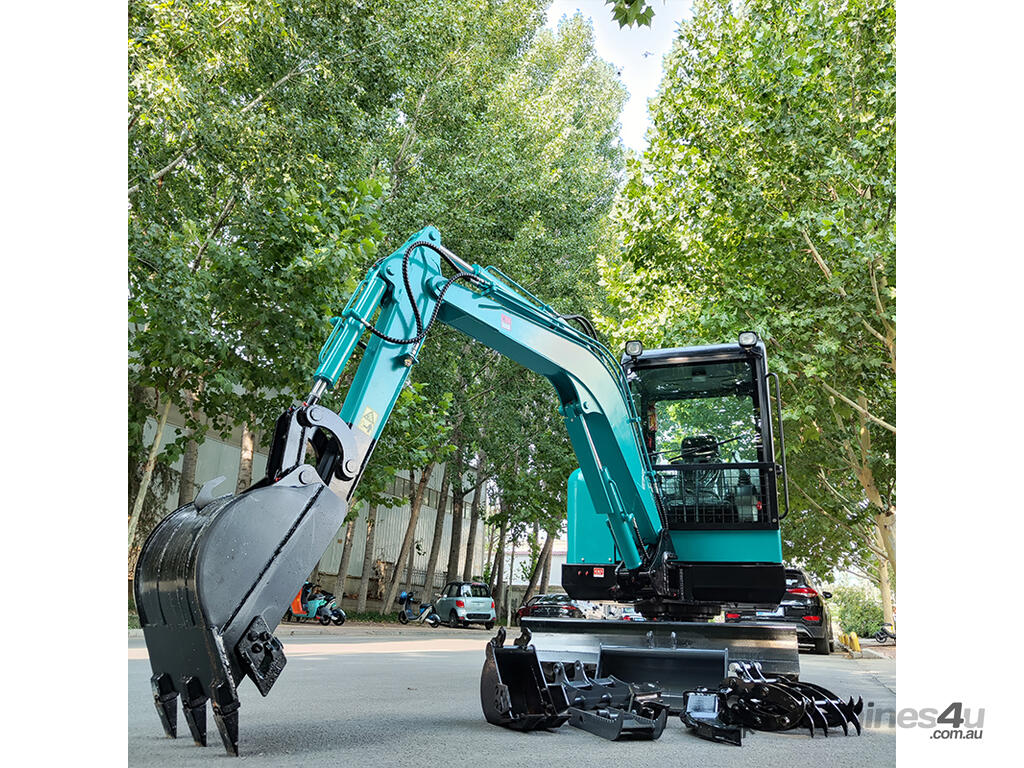

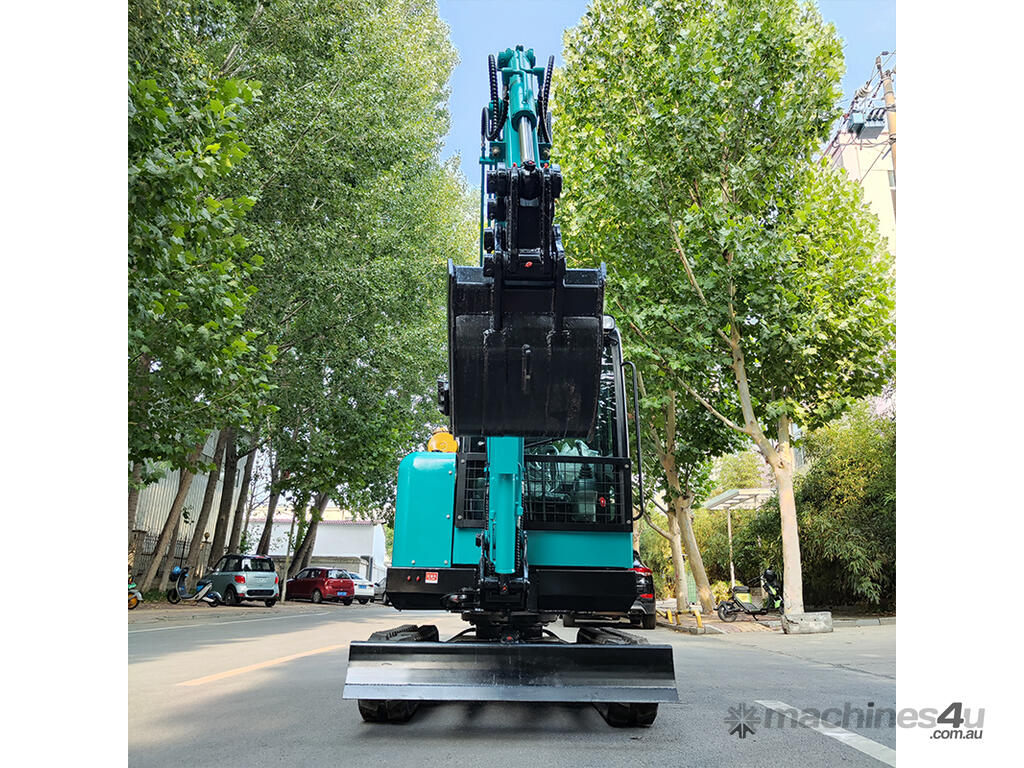

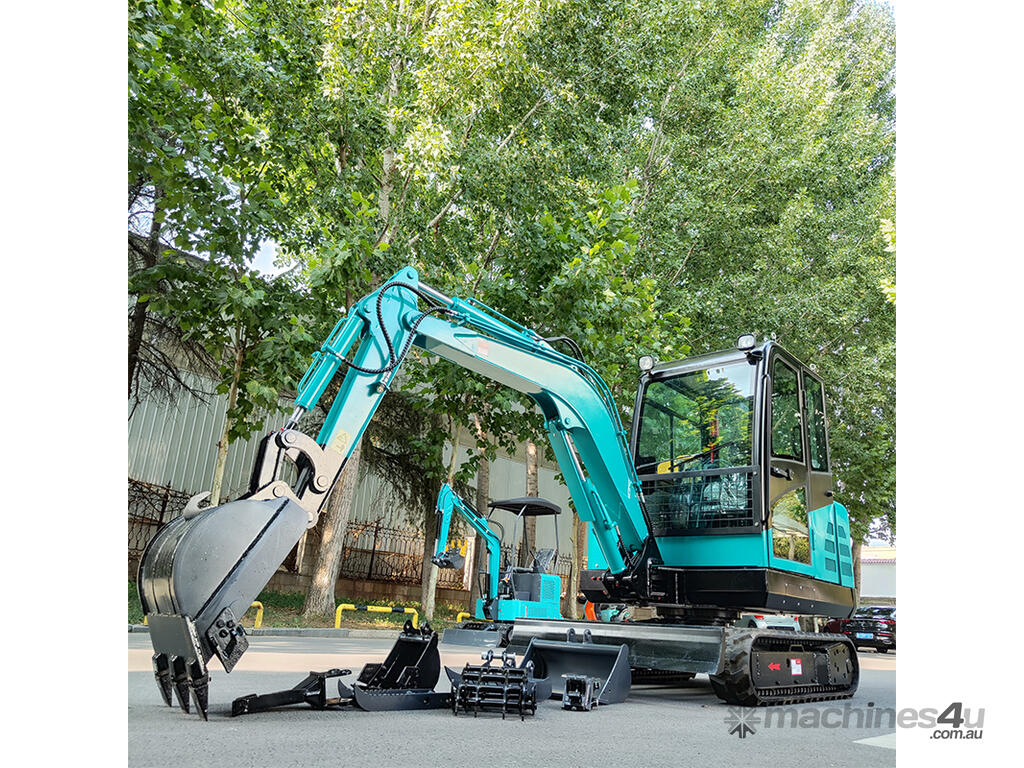

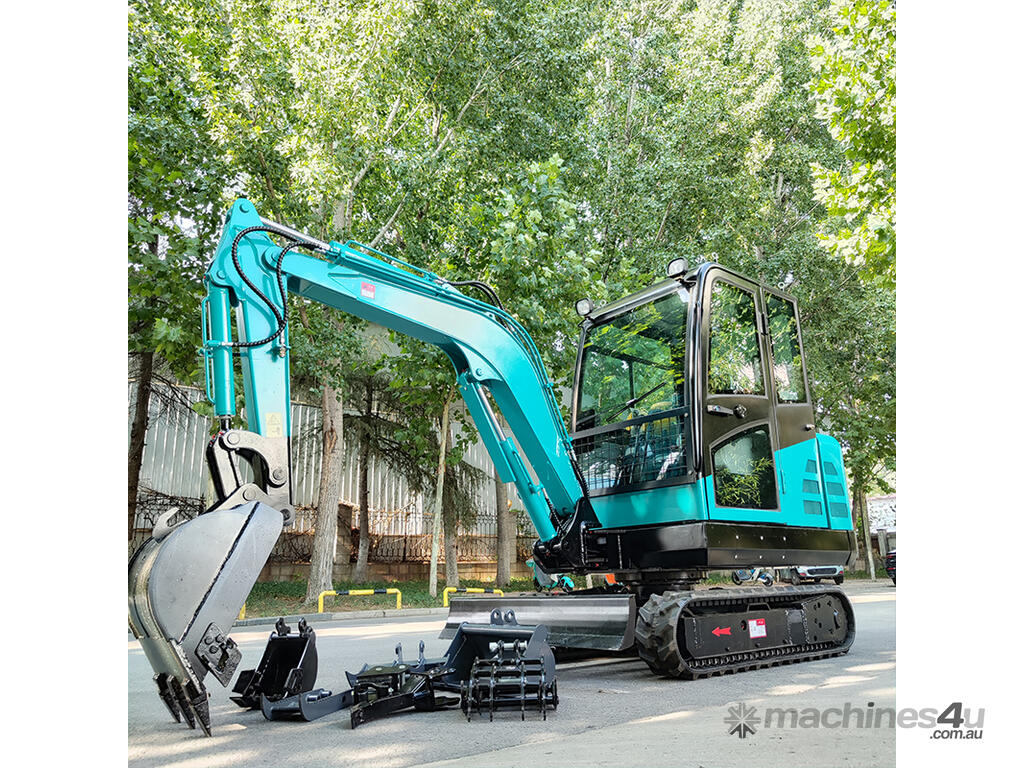

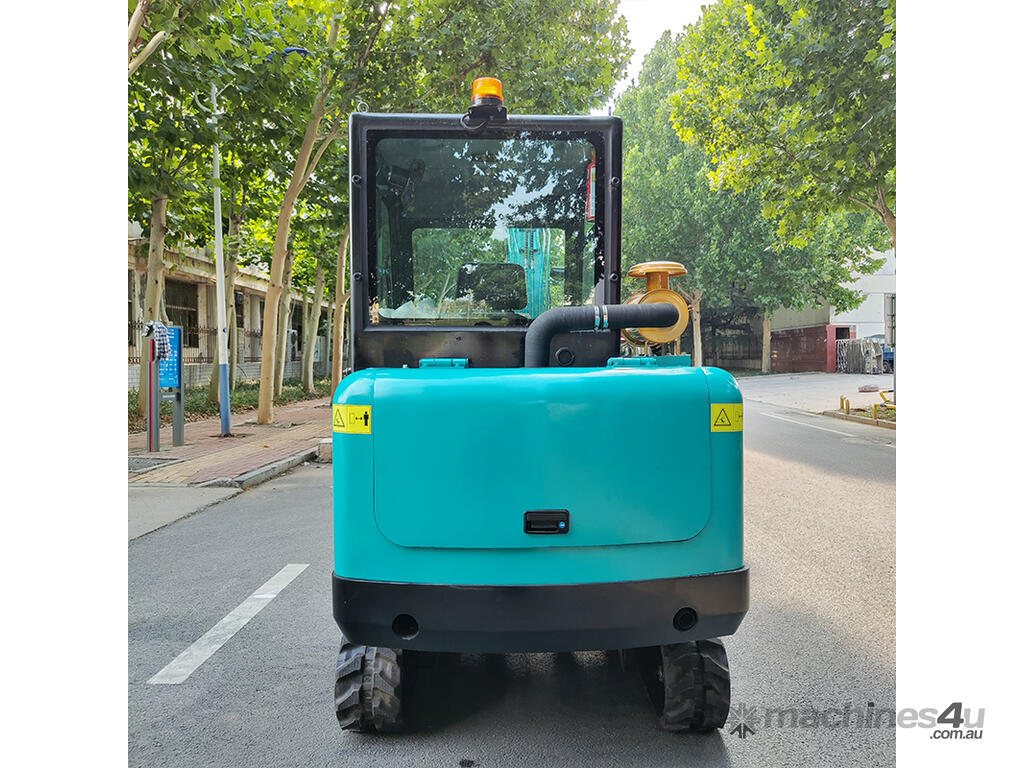

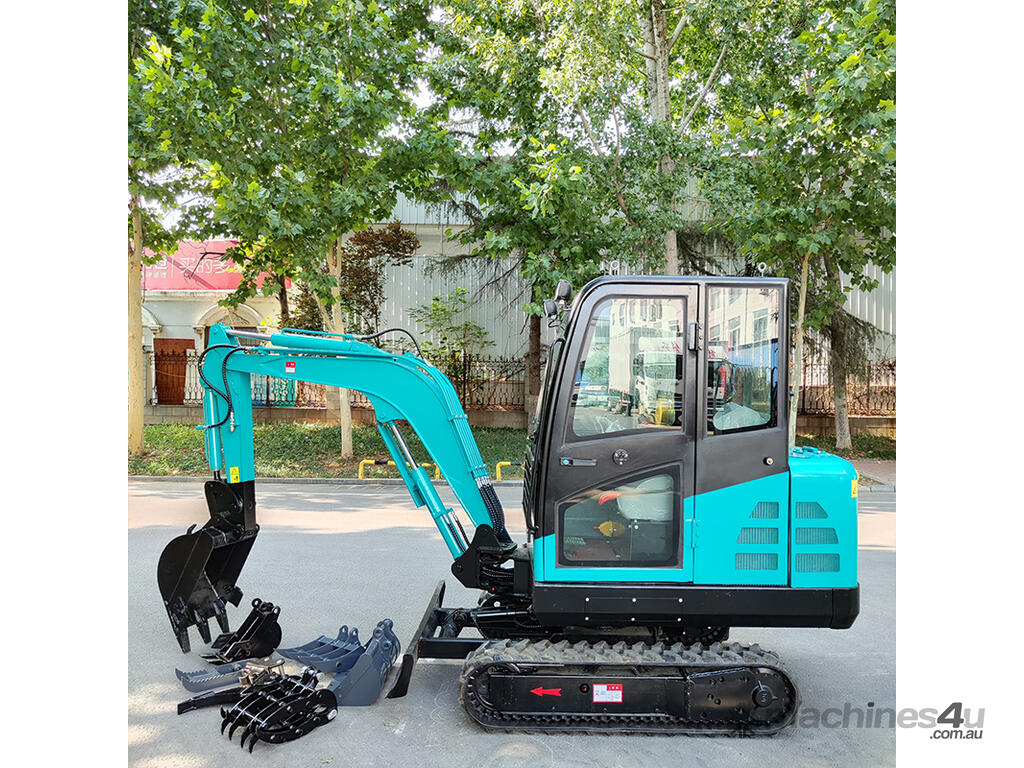

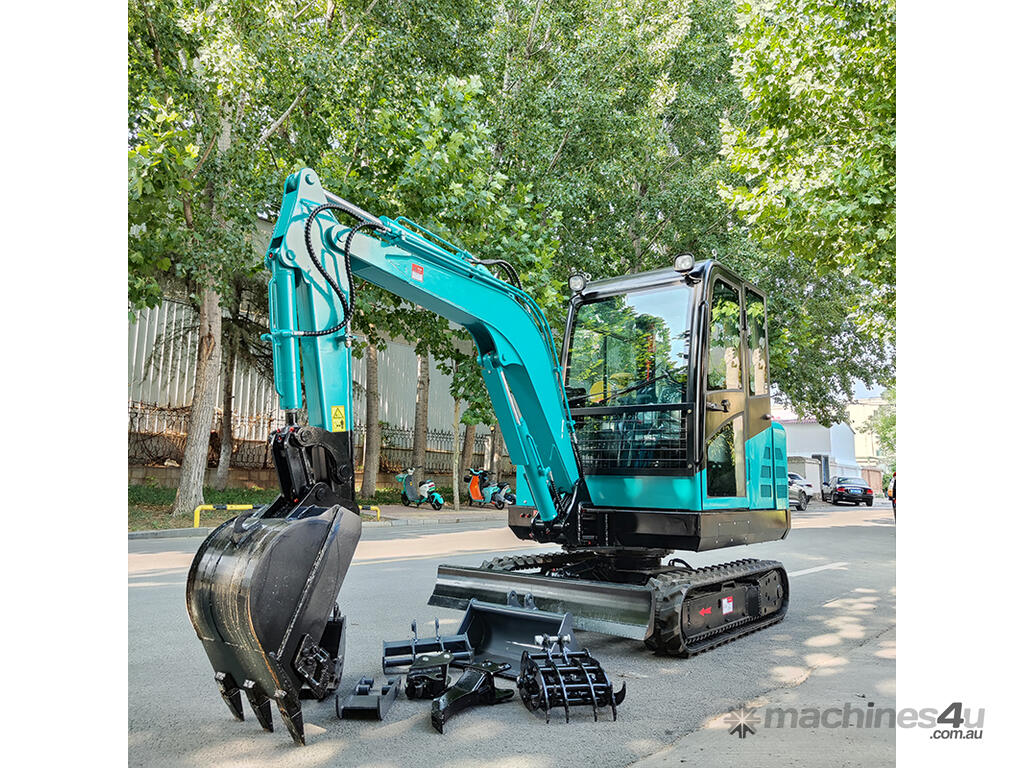

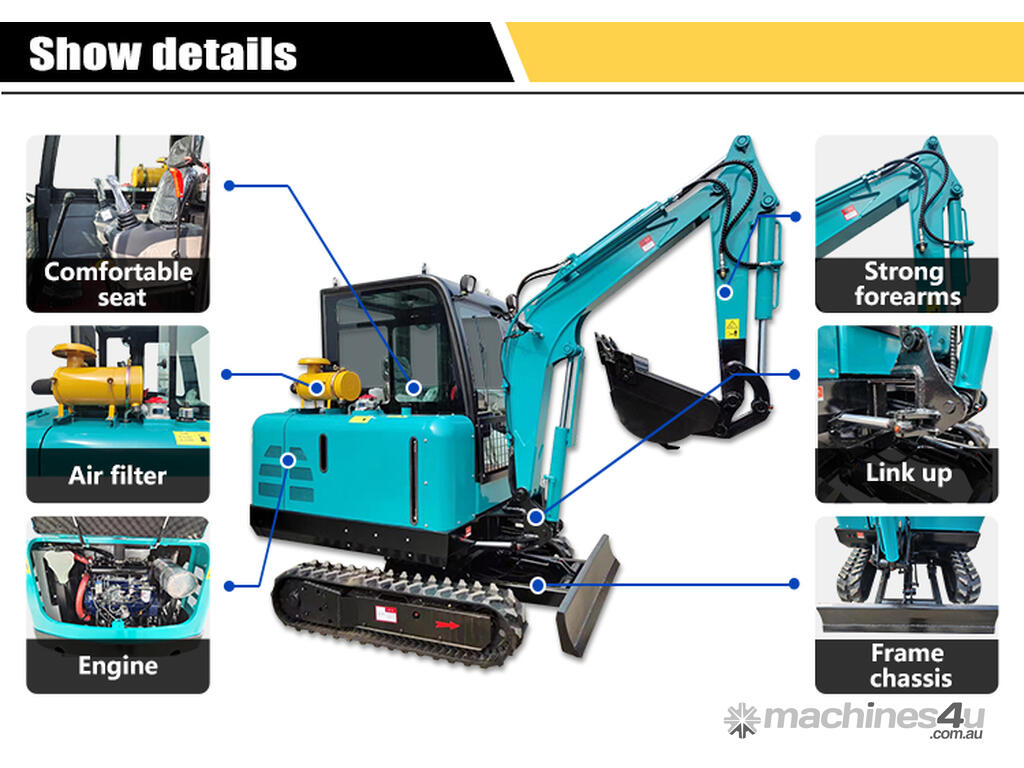

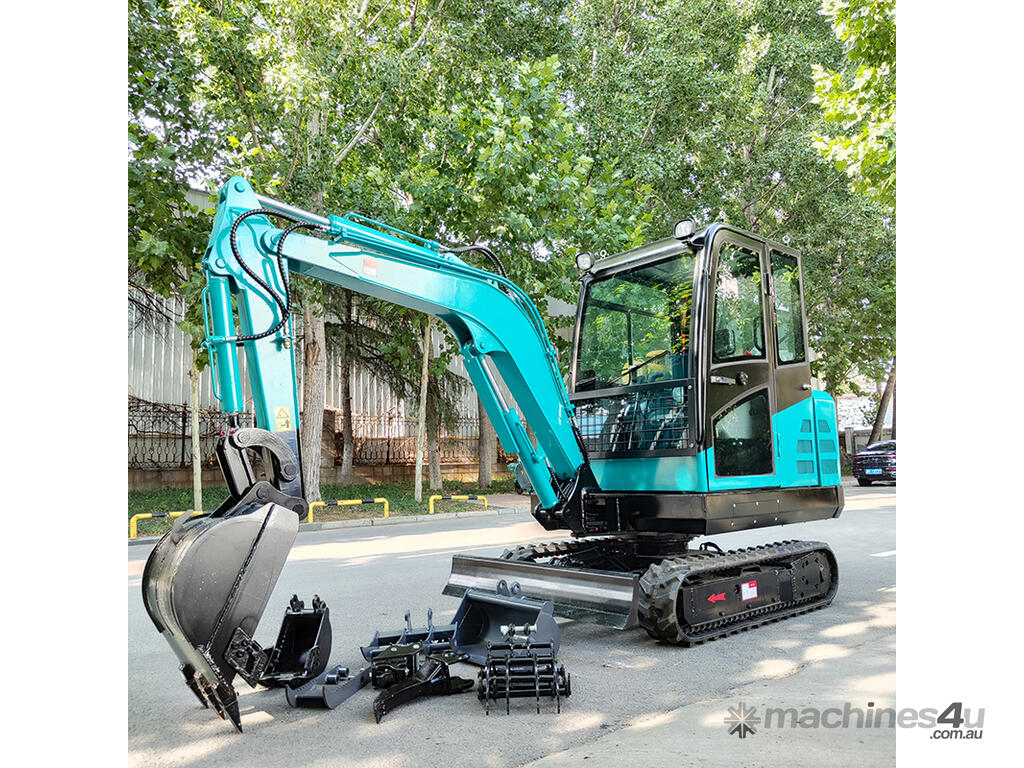

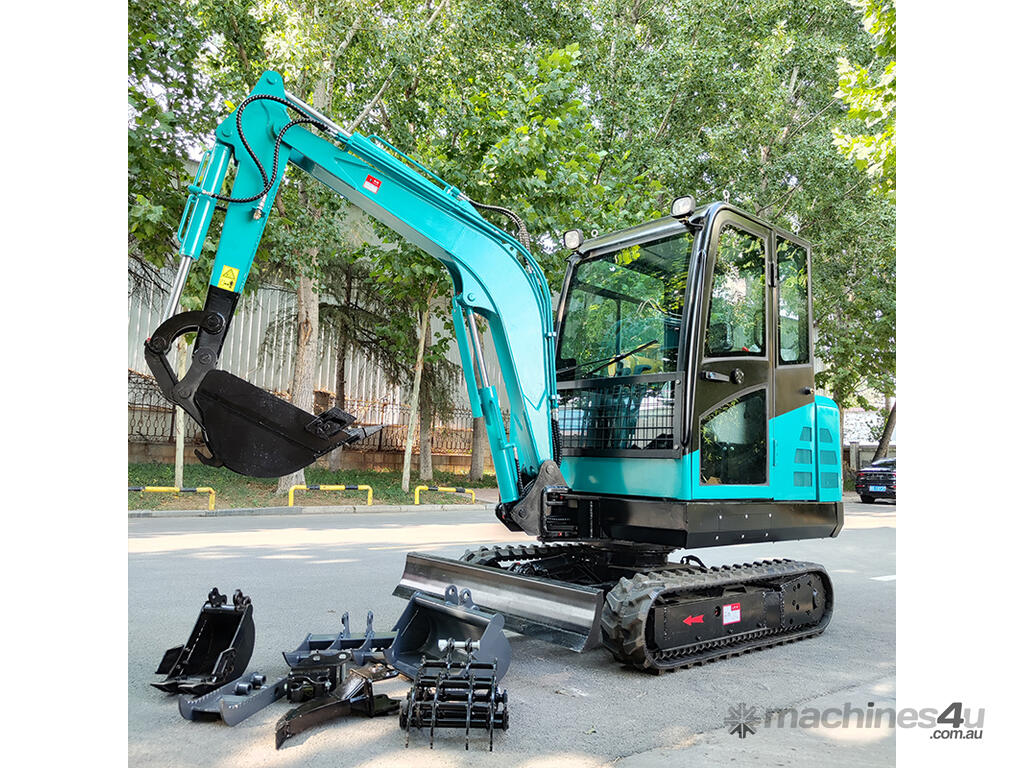

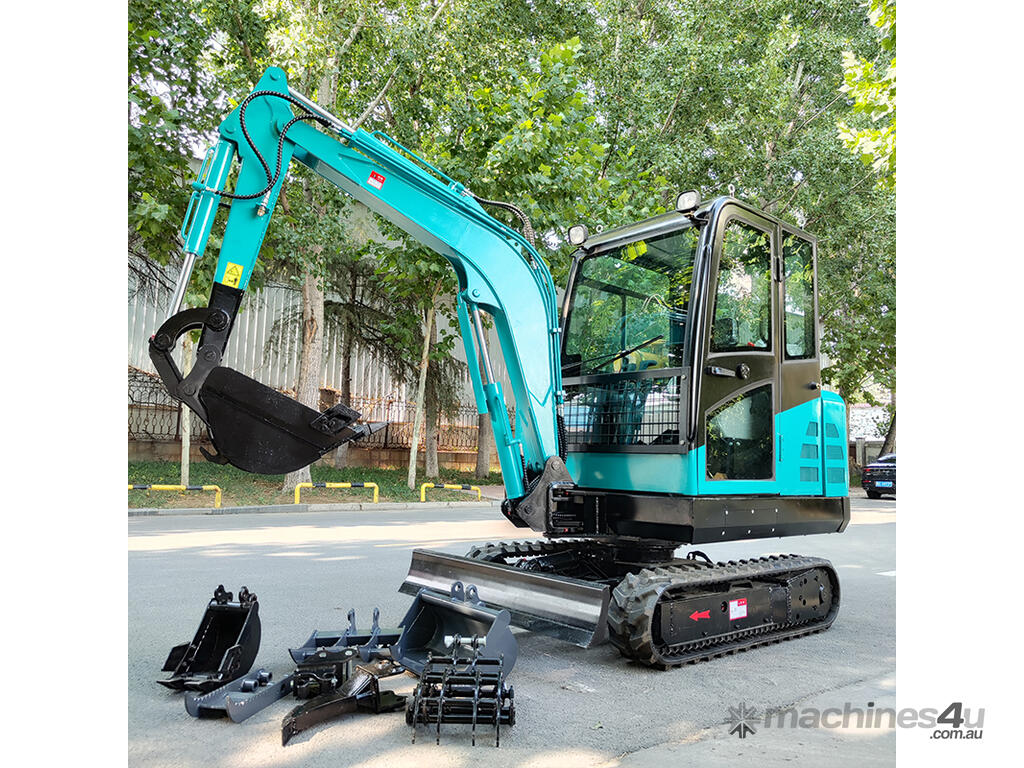

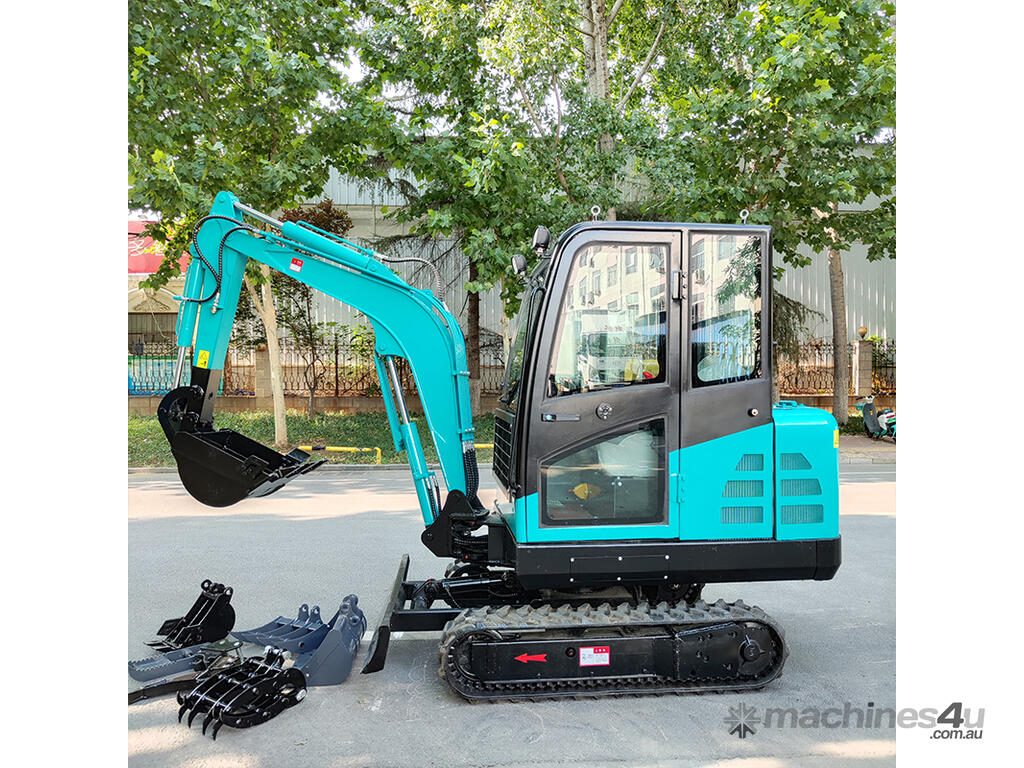

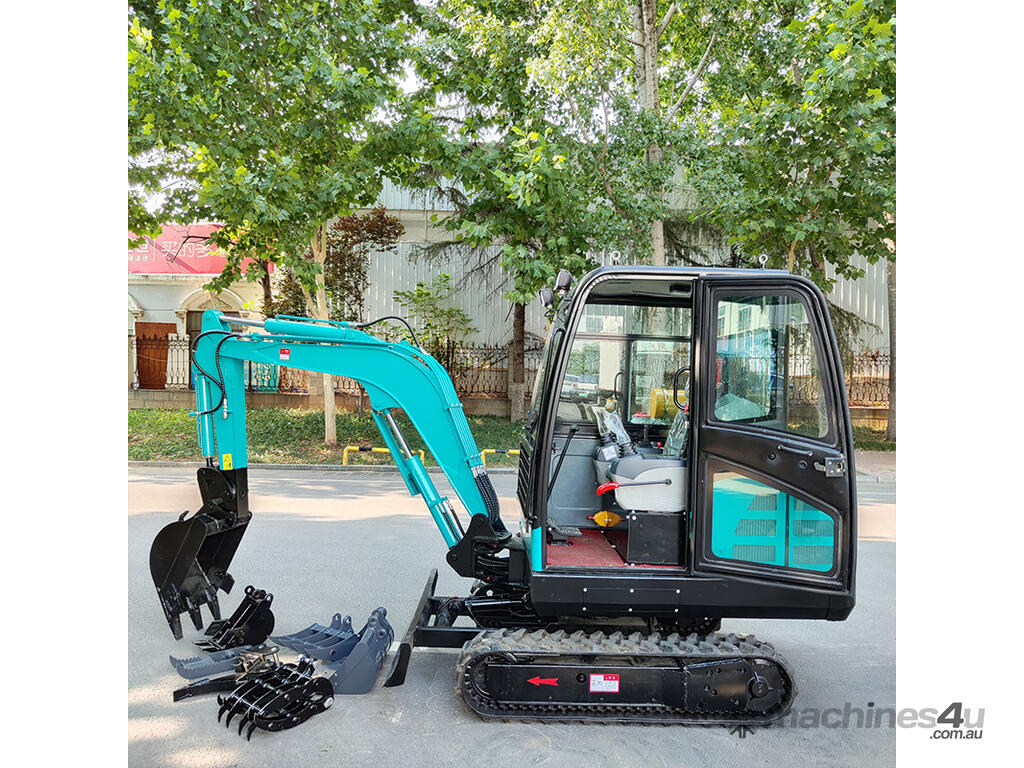

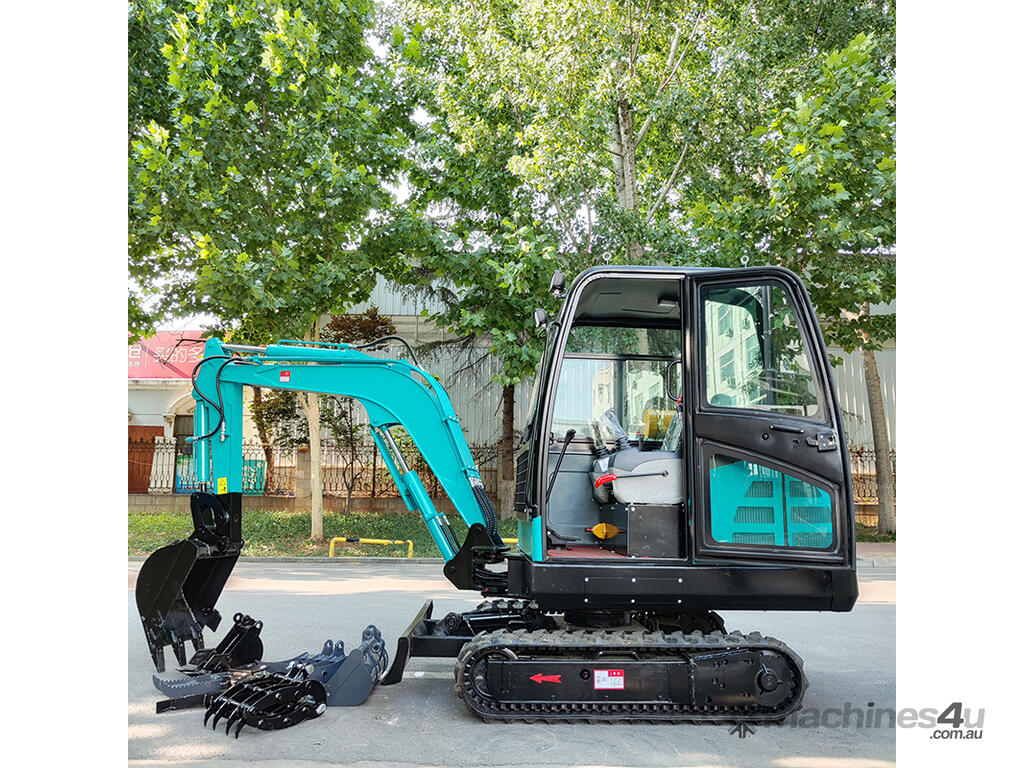

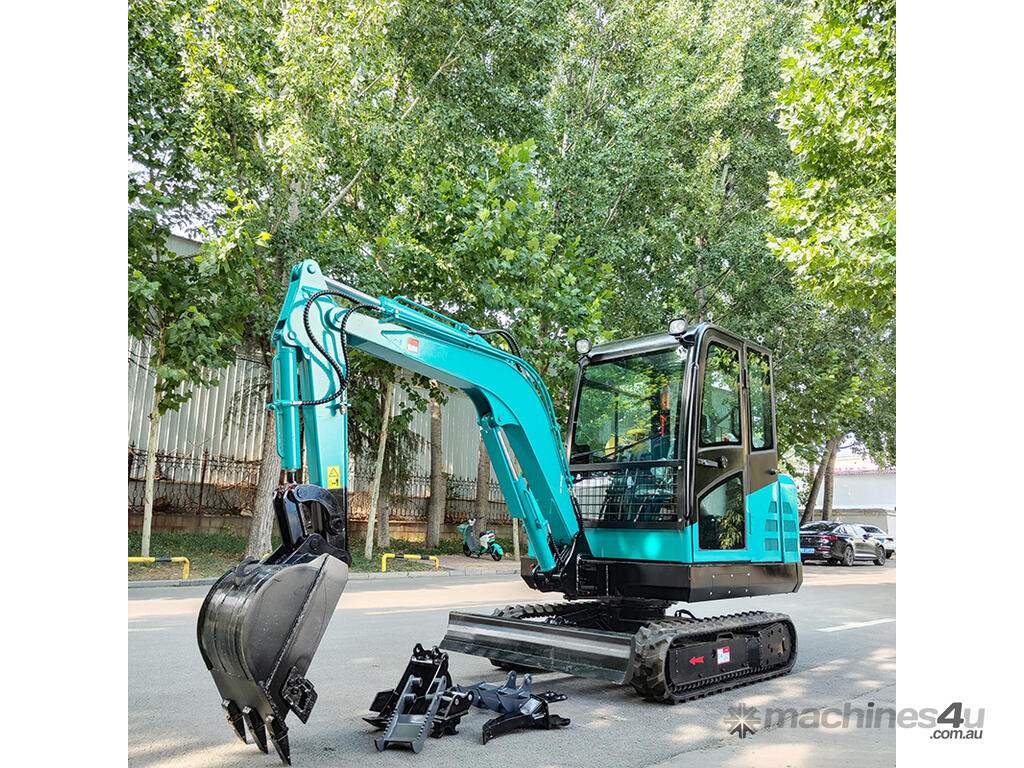

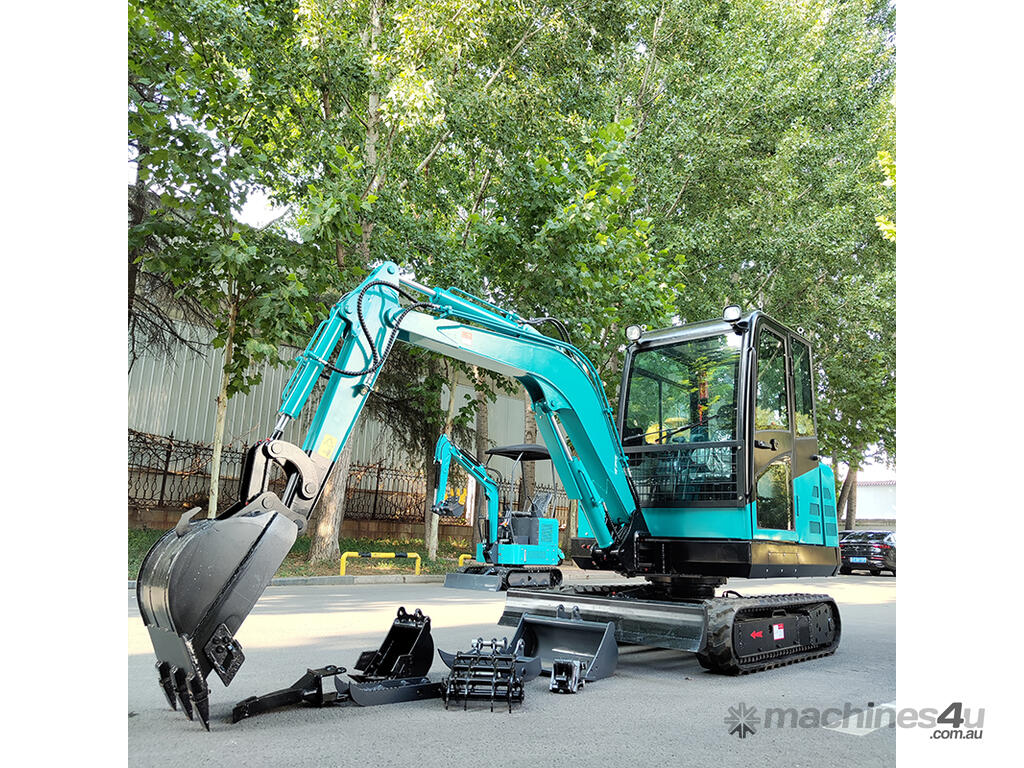

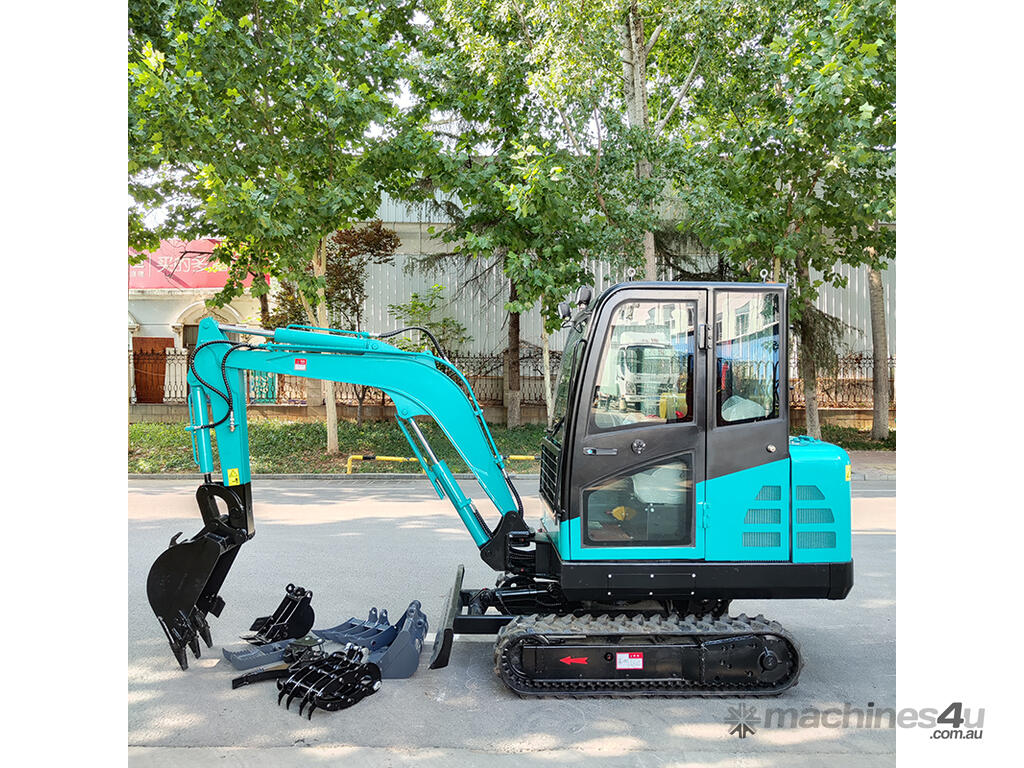

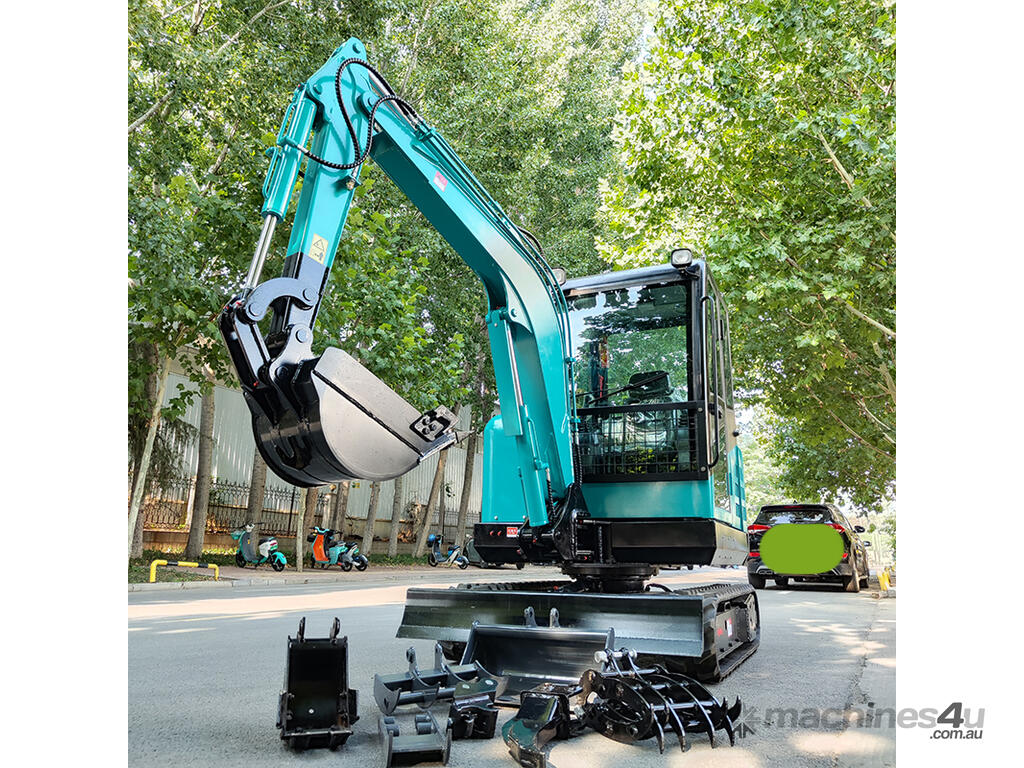

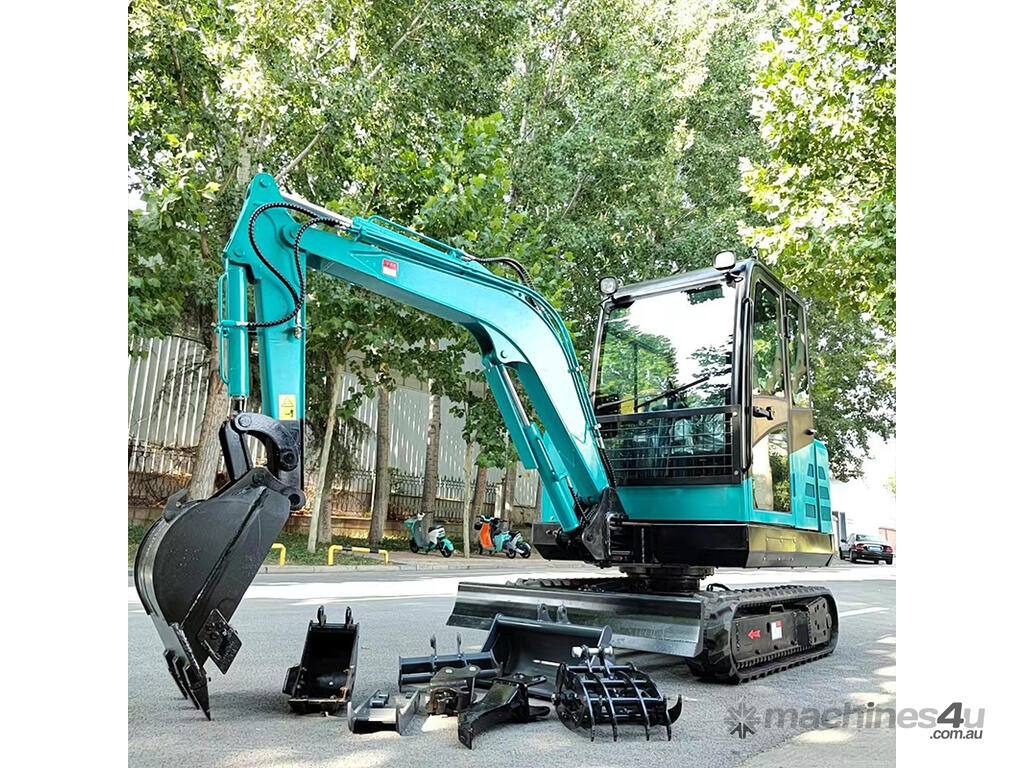

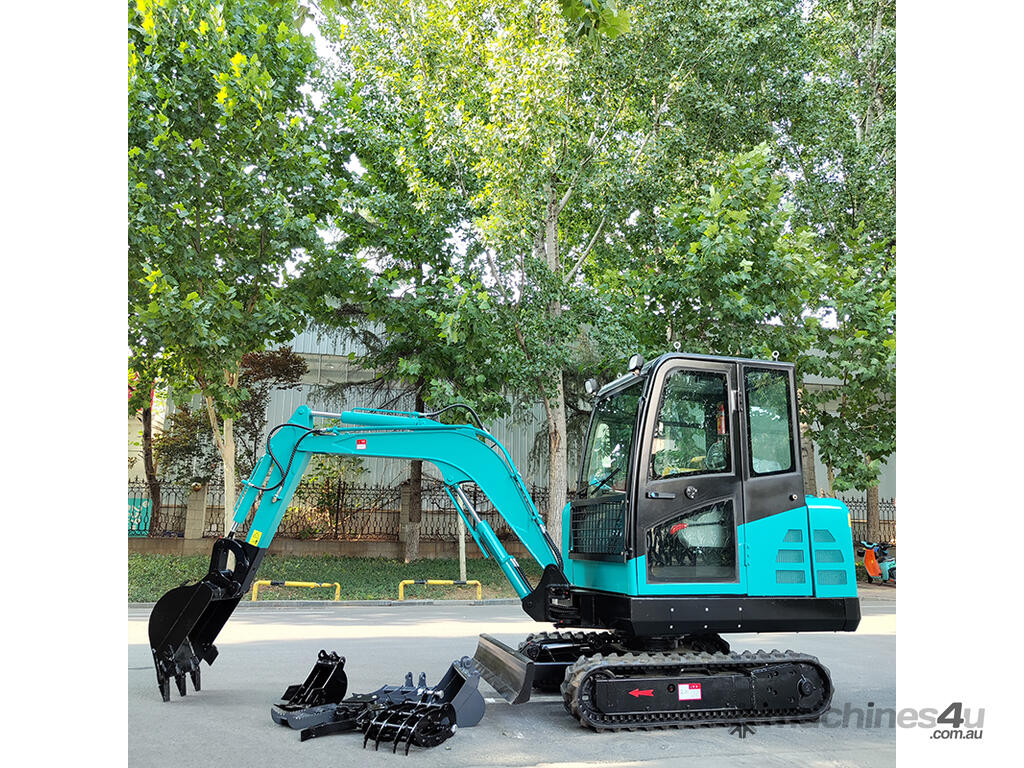

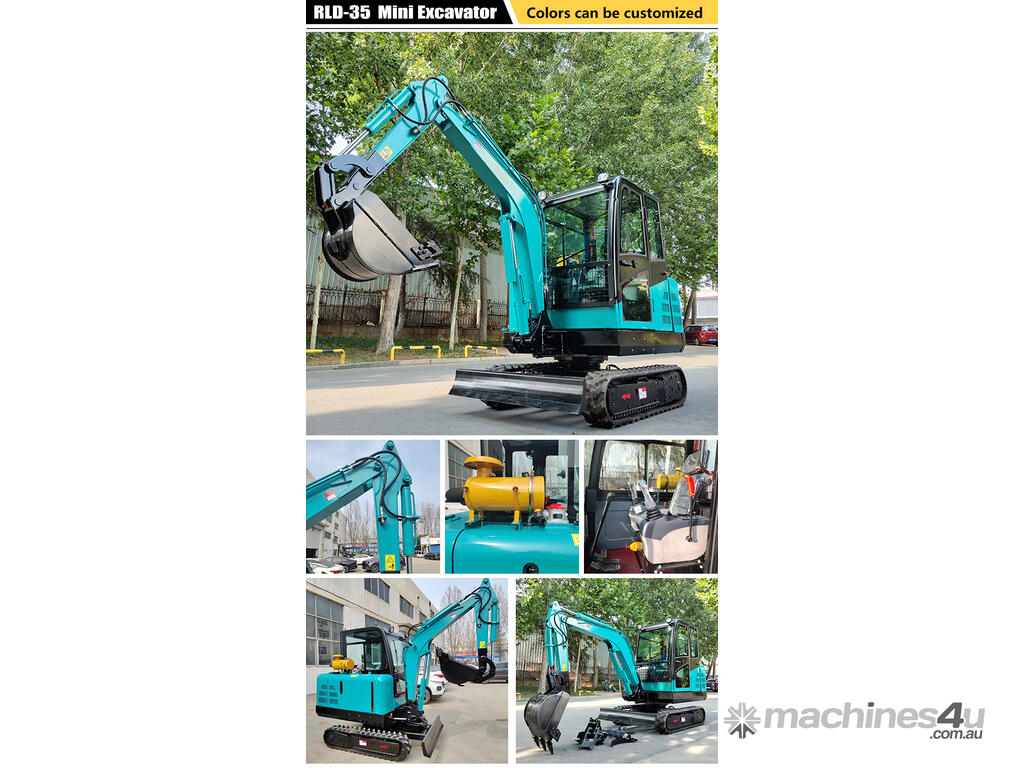

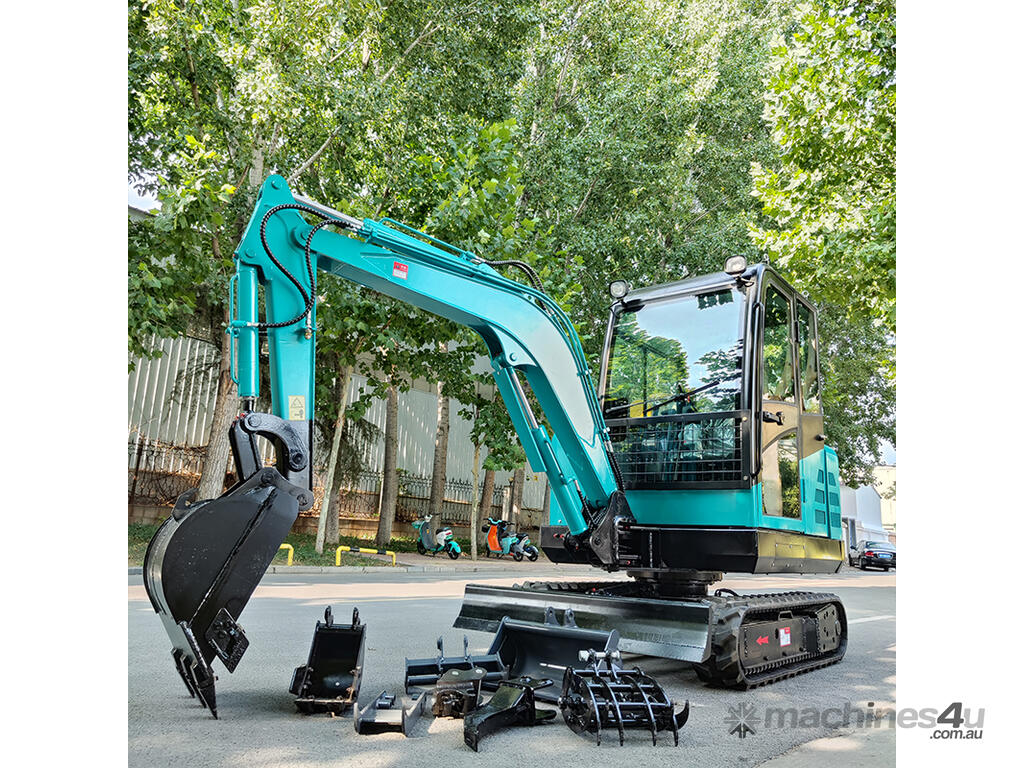

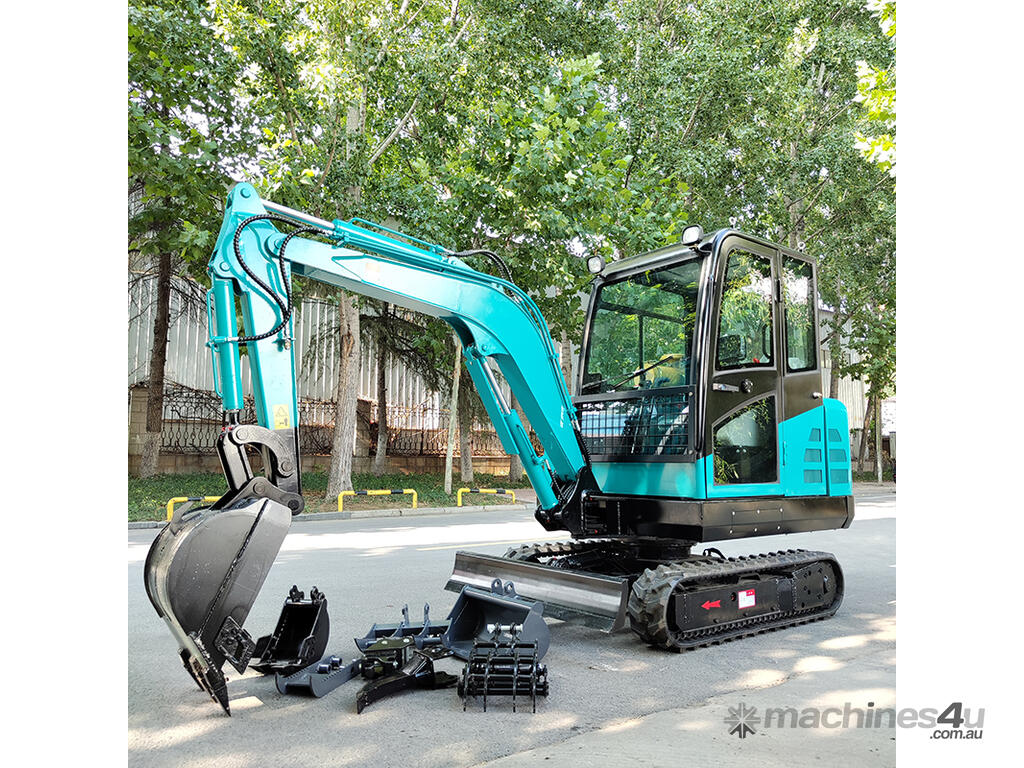

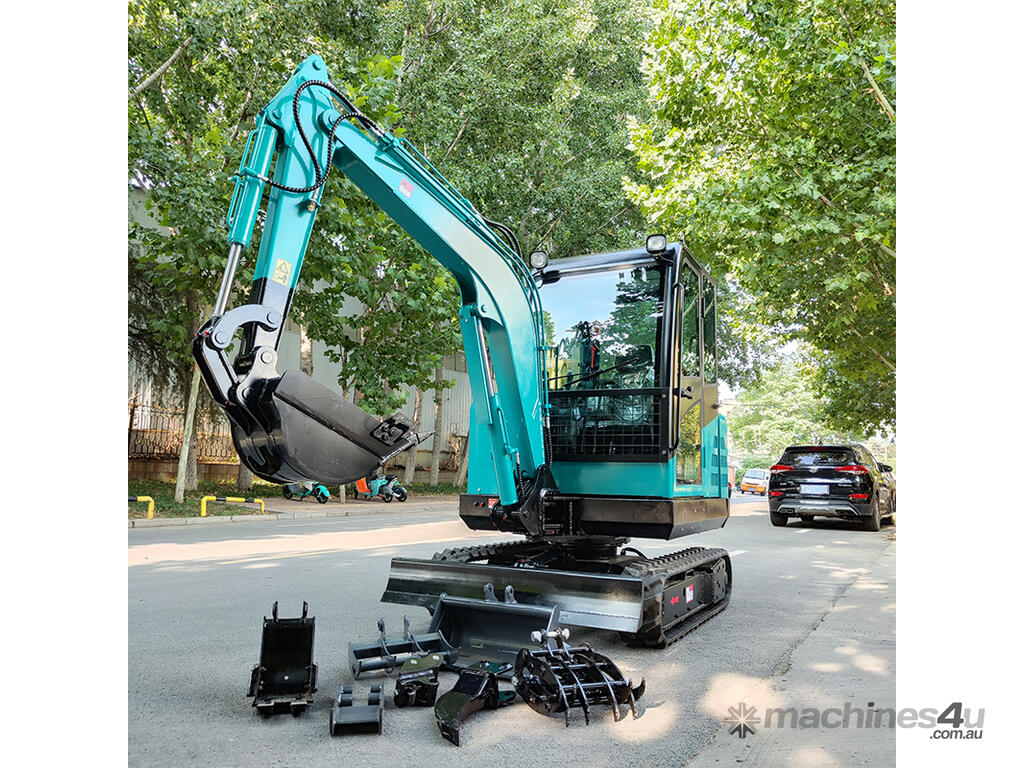

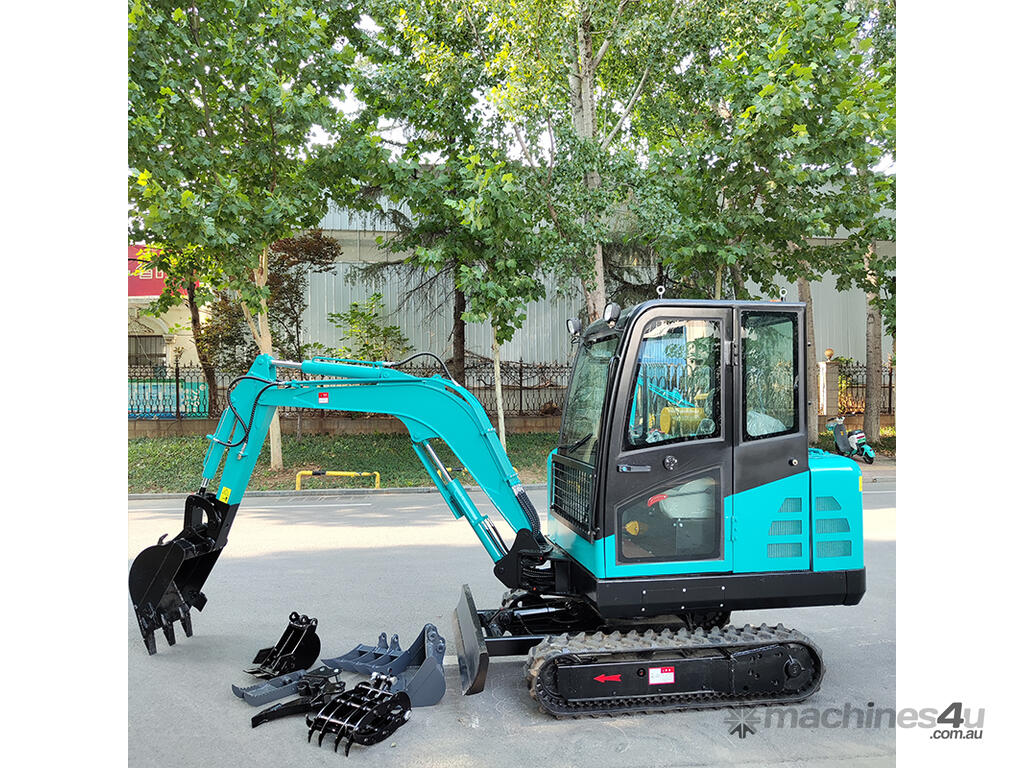

A powerful 3.3-ton excavator with a deep 2.5m digging depth and a 52HP YunNei engine, delivering commercial-grade digging force and hydraulic performance for serious construction work.
Key Specs:
Operating weight: 3300 kg – significantly more ground stability & breakout force
Max digging depth: 2500 mm – deep excavation & trenching capability

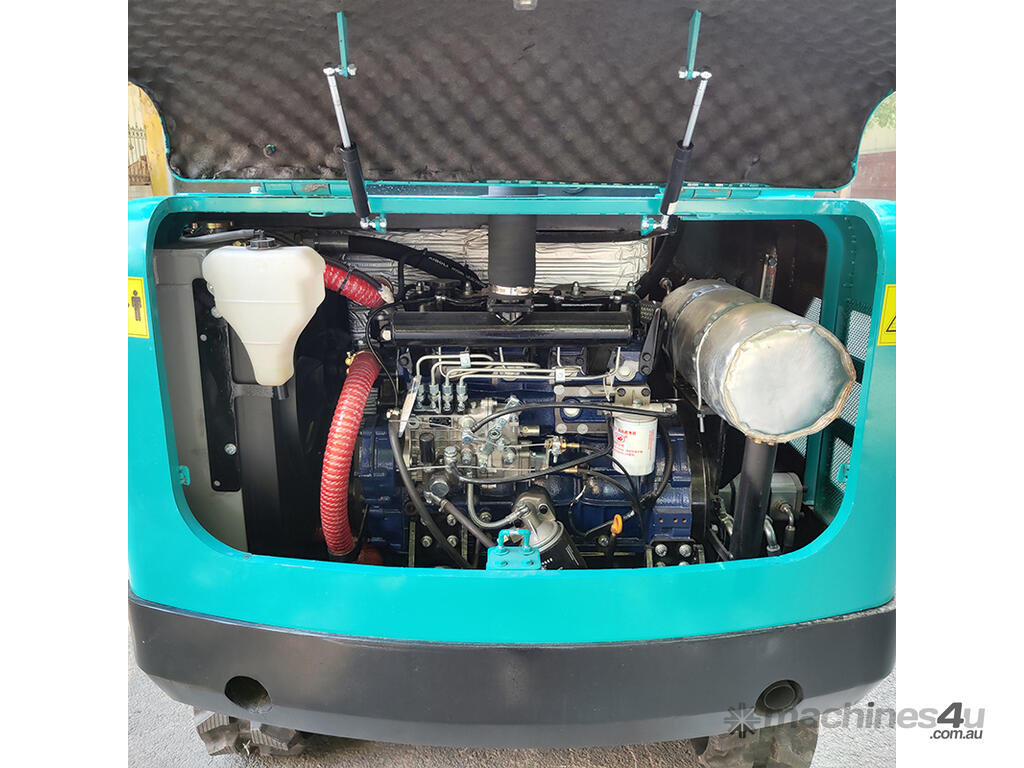

Engine: YunNei — 52 HP – very strong power output for commercial earthworks

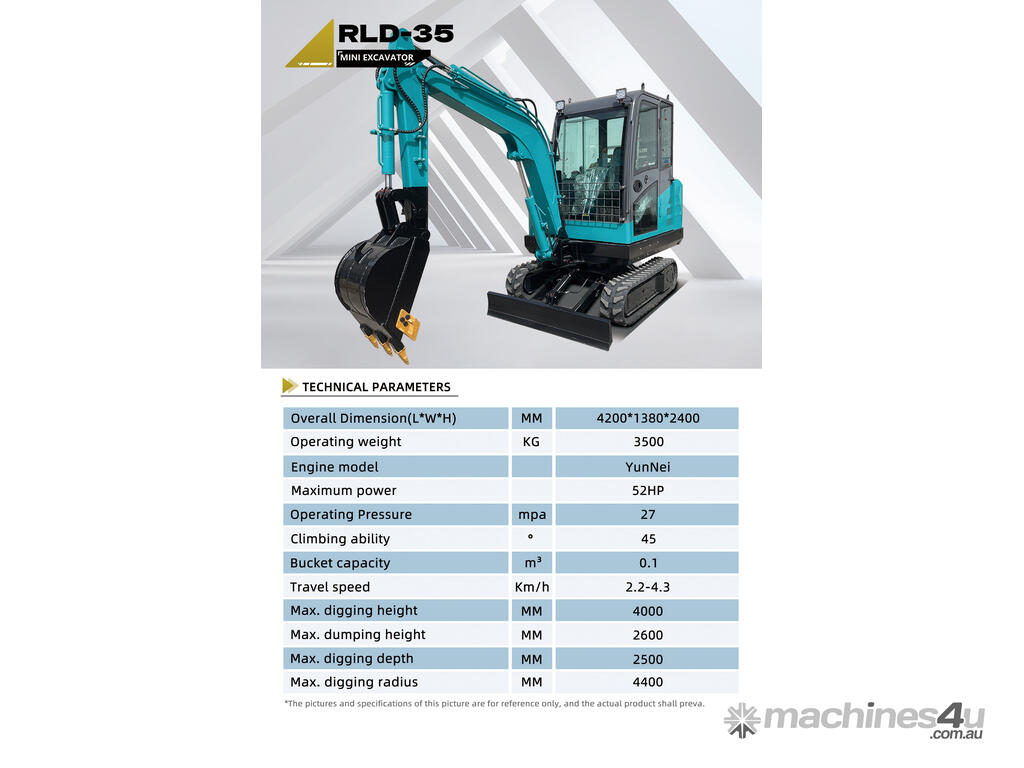

Additional Specifications (Bullet List)
Basic Machine Dimensions:
Length: 4200 mm
Height: 2400 mm
Width: 1380 mm
Working Range:
Max digging height: 4400 mm
Max dumping height: 2600 mm
Max digging depth: 2500 mm
Max digging radius: 4600 mm
Minimum turning radius: 1300 mm
Max lifting height of earth blade: 320 mm
Max digging depth of dozer: 350 mm
Minimum tail swing radius: 1300 mm

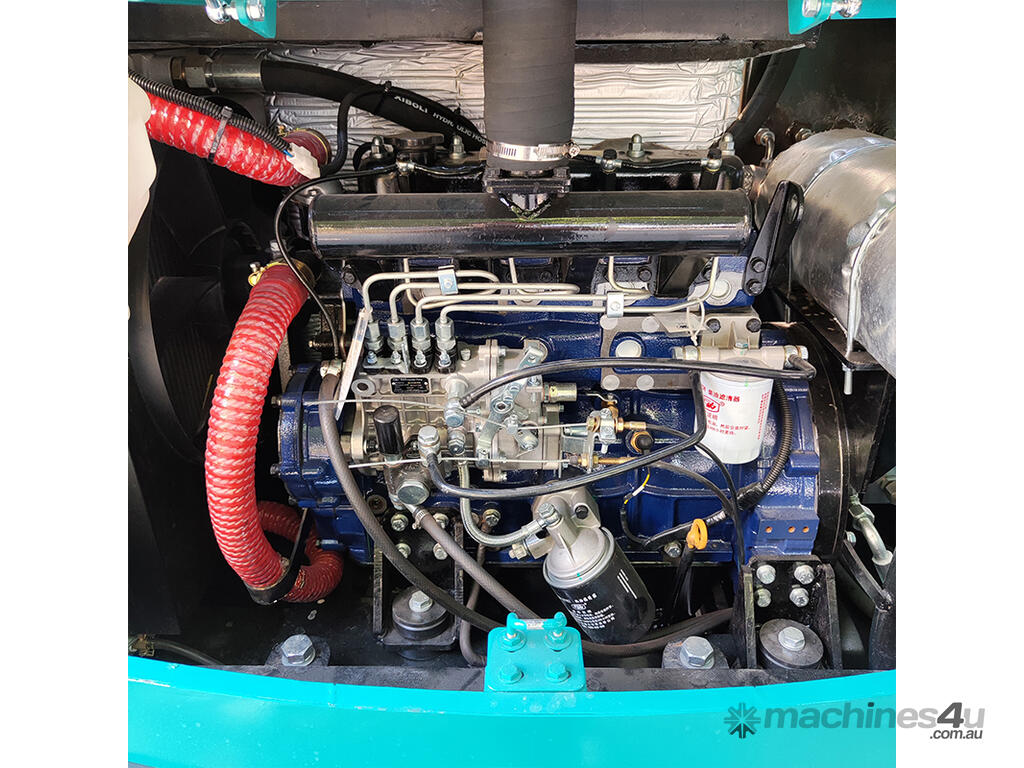

Engine & Drive:
Engine model: YunNei
Power: 52 HP
Hydraulic System:
Operating pressure: 27 MPa
Hydraulic flow: 68 L/min
Hydraulic tank capacity: 25 L
Load-sensing hydraulic system
Performance:
Bucket capacity (SAE): 0.1 m³
Climbing ability: 30°
Travel speed: 2.2–4.3 km/h
Slew/swing speed: 8–10 rpm
