RLD-L20 Light Variant Tandem Axle Trailer

The RLD-L20 Light Variant Tandem Axle Trailer offers everyday hauling capability in a compact
format. Built with galvanizing, ADR-approved lighting, and reinforced suspension, it’s ideal
for smaller machinery and hobby farm use.

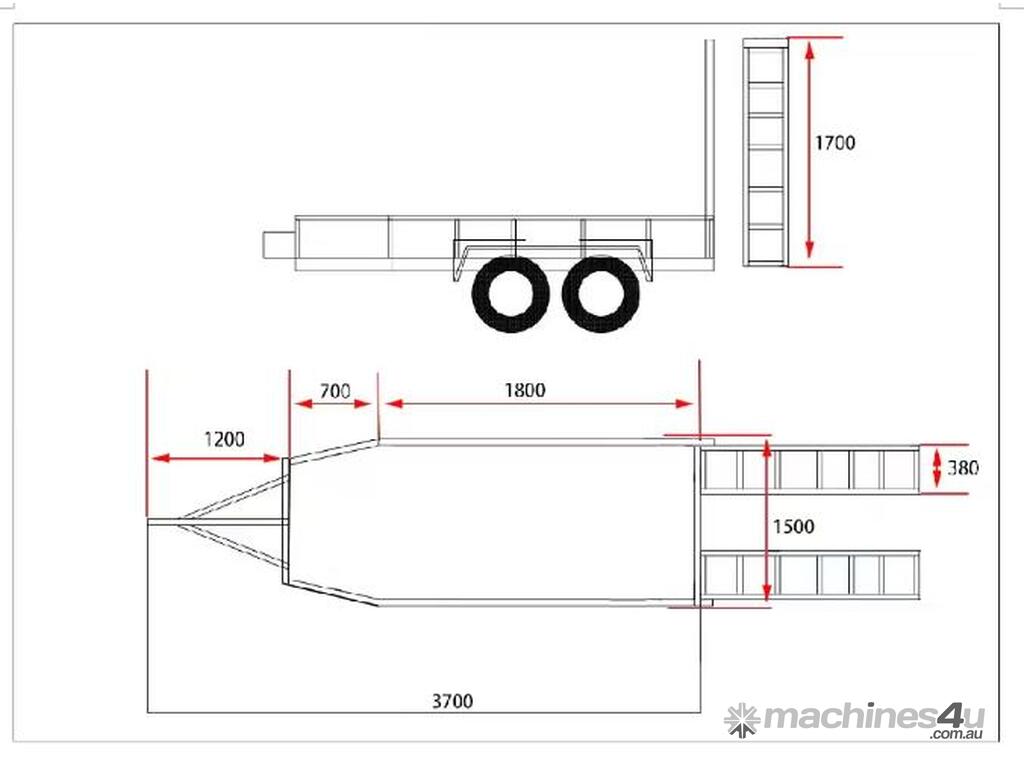

• Size: 3700mm x 1700mm
• Tow Bar: 1200mm
• Internal Dimensions: 1800mm x 1500mm
• Surface Treatment: Hot dip galvanizing
• Color: Silver
• Lamp: LED ADR Light
• Axle: 60mm seamless steel pipe
• Load Capacity: 1500KG
• Tare: 600KG
• Jack: 1000 lbs dual wheel jack
• Fully Welded: Yes
• Checkered Plate: Full 3.0mm (pattern)
• Leaf Spring: 4 thickened steel plates
• Beam: 80*40*3mm
• Wheels and Tires: 185R13
• Brake: Mechanical brake disc

• Compact 3700mm x 1700mm size for easier maneuverability
• Hot-dip galvanized finish for superior rust resistance
• ADR-approved LED lights for road compliance
• 1500KG load capacity with 600KG tare weight
• Reinforced 80*40*3mm beams with 5-plate leaf spring suspension
• 1000 lbs dual wheel jack for easy lifting
• Heavy-duty mechanical brake discs for secure stopping
• Fully welded construction with full 3.0mm checkered plate deck
