Overview:

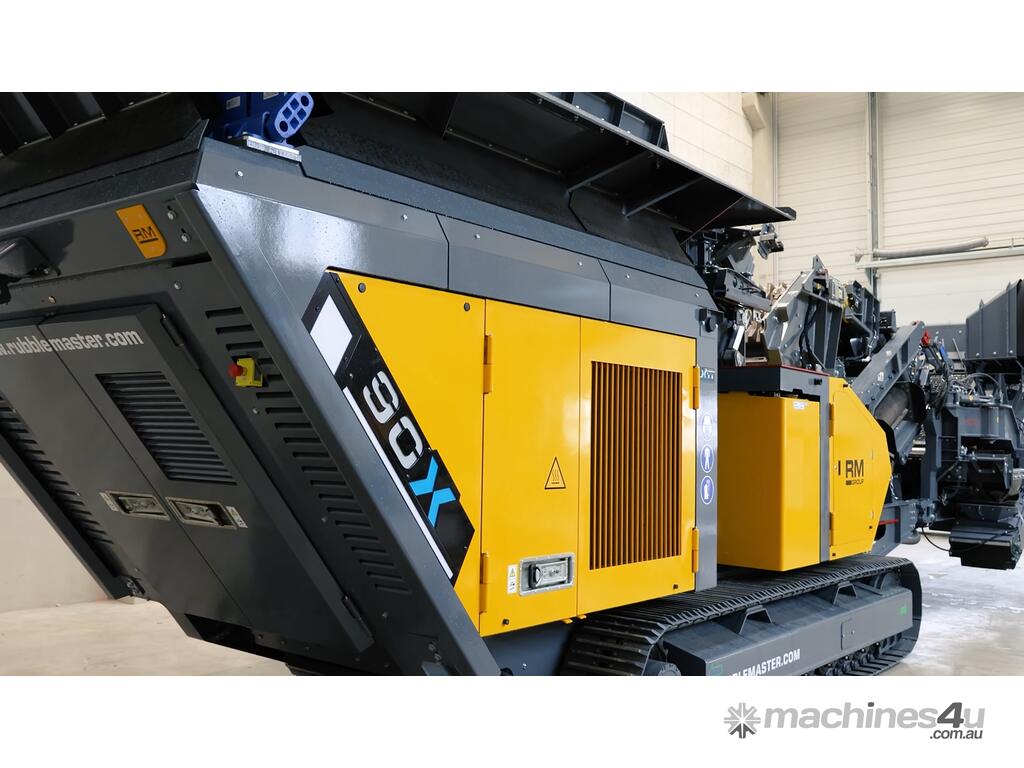

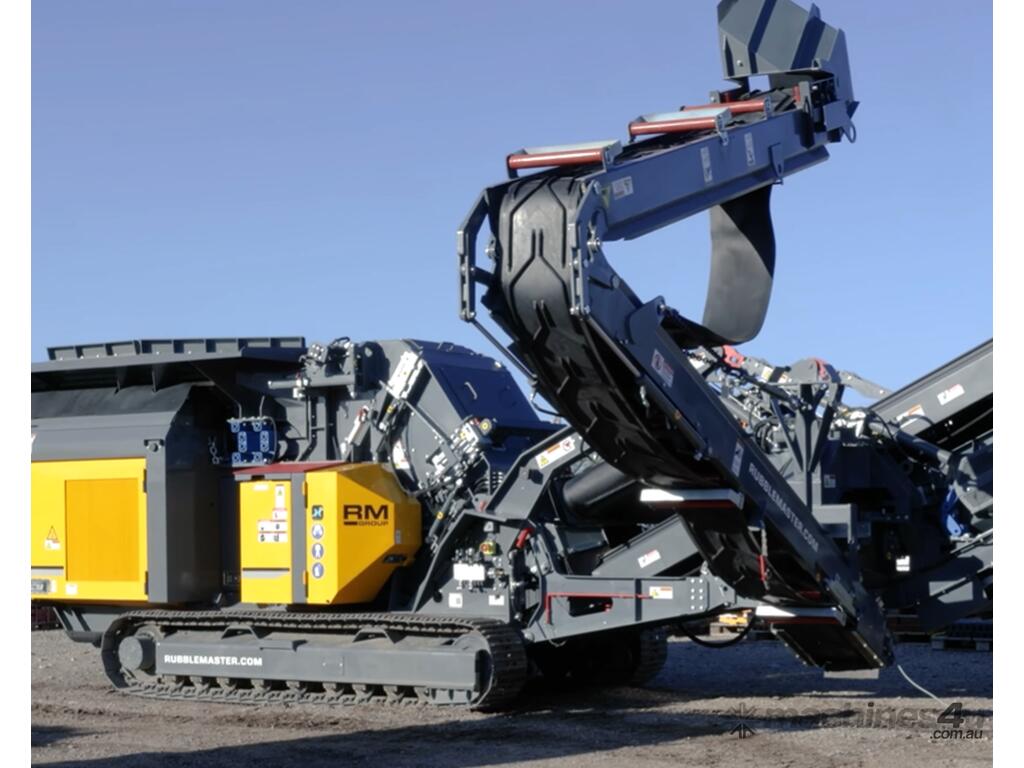

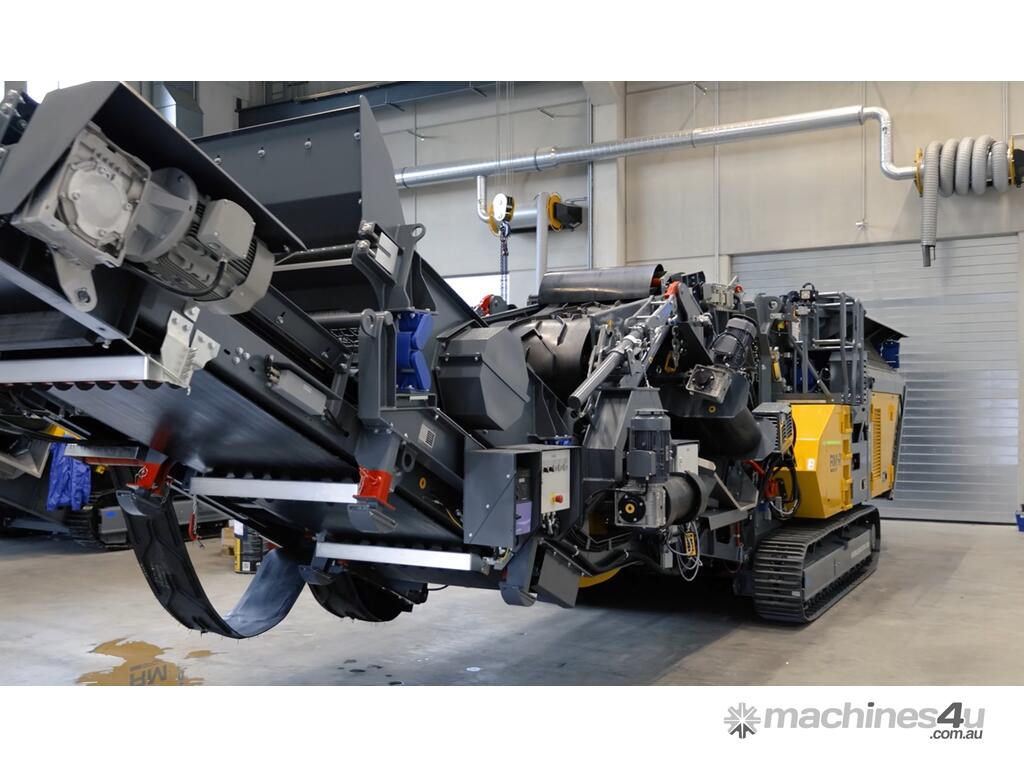

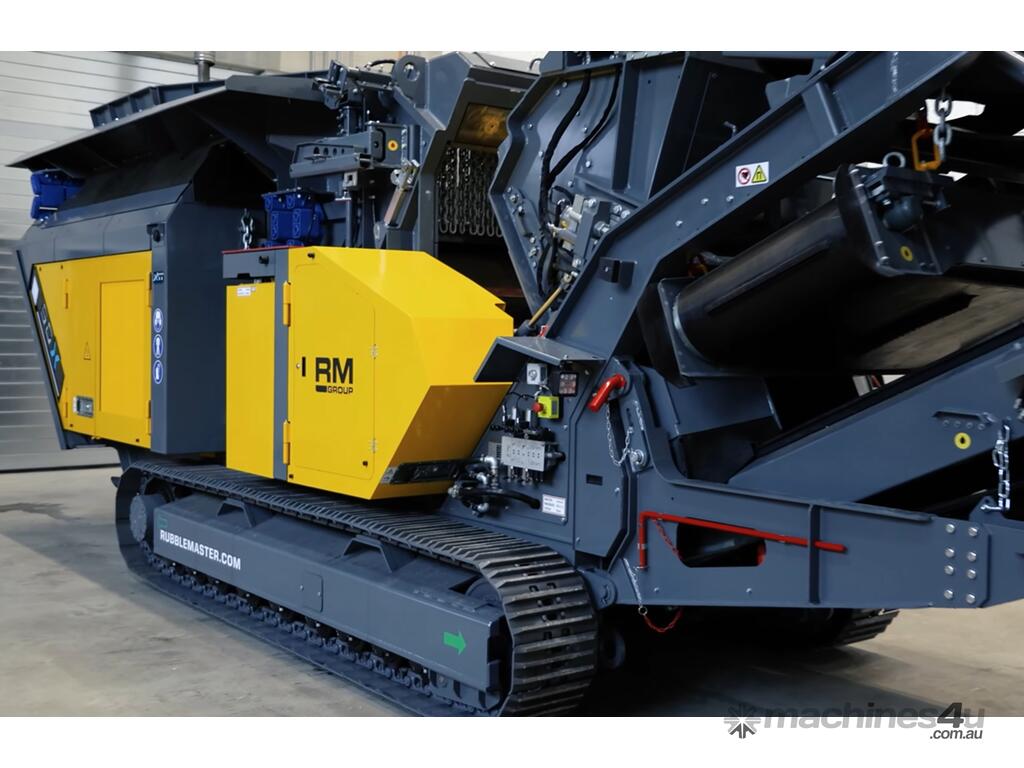

The RM 90X is a high-performance compact impact crusher designed for on-site crushing of concrete, asphalt, rock, and other aggregates with excellent mobility and productivity. It combines strong crushing capacity with advanced operator controls, digital assistance, and a robust diesel-electric drive train — ideal for contractors, recyclers, and aggregate producers seeking efficient material processing in tight jobsite conditions.
Key Features:

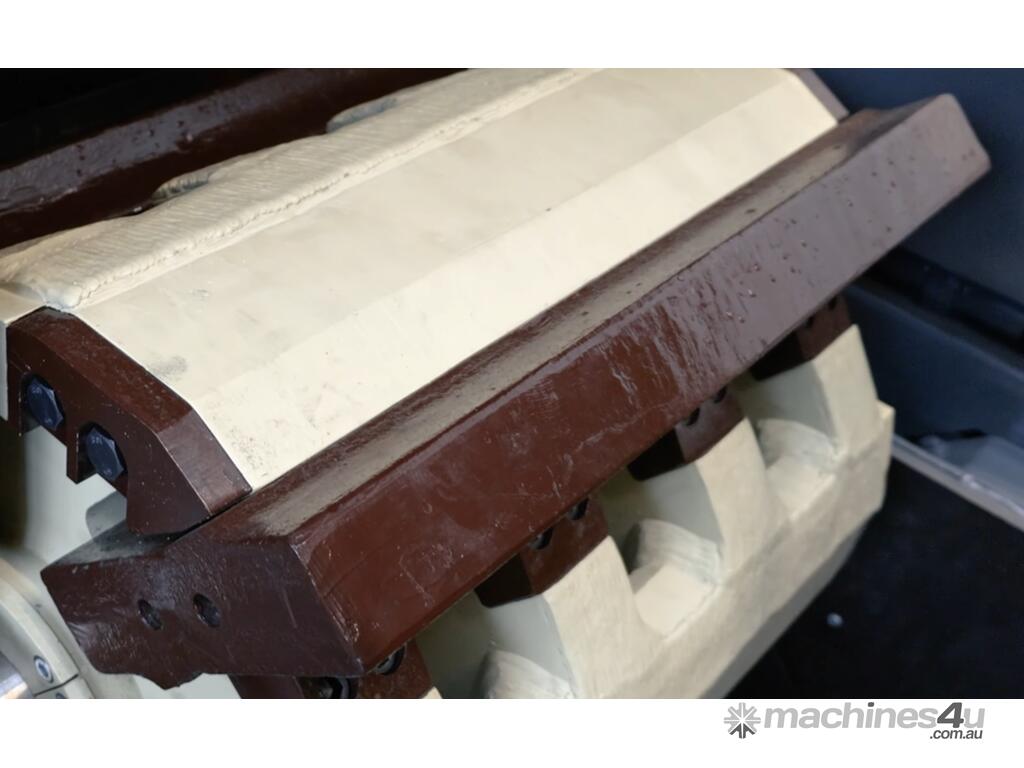

• Heavy-duty 4-bar rotor with increased inertia for consistent product quality.
• Diesel-electric direct drive for improved fuel efficiency and reduced operating costs.

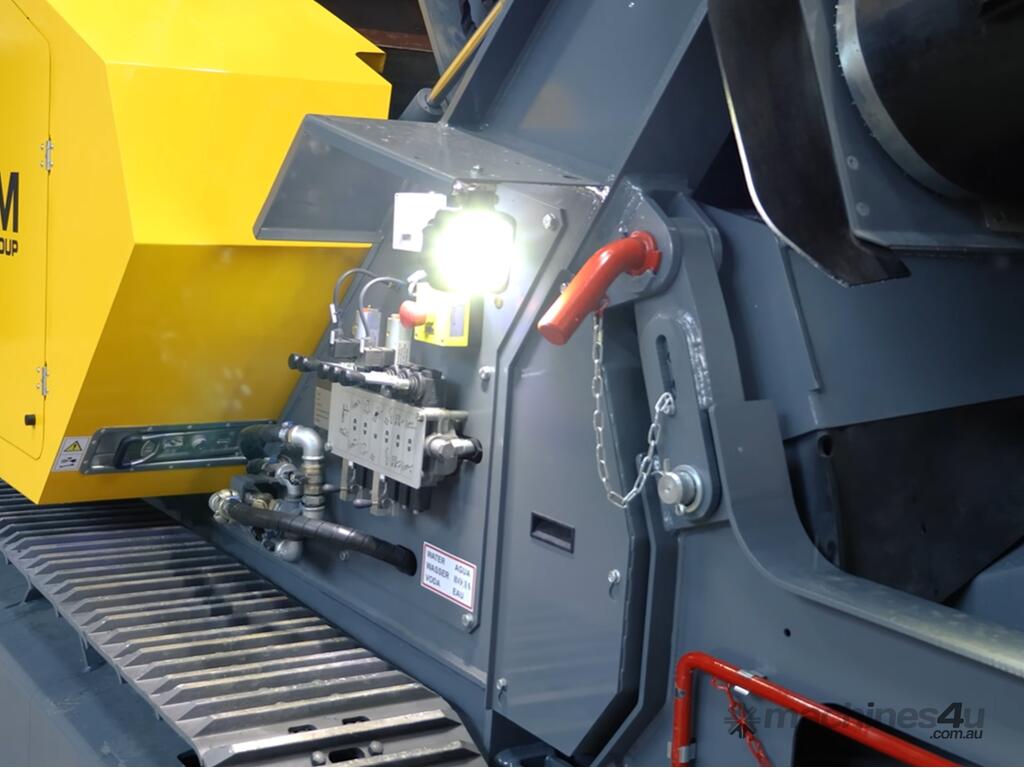

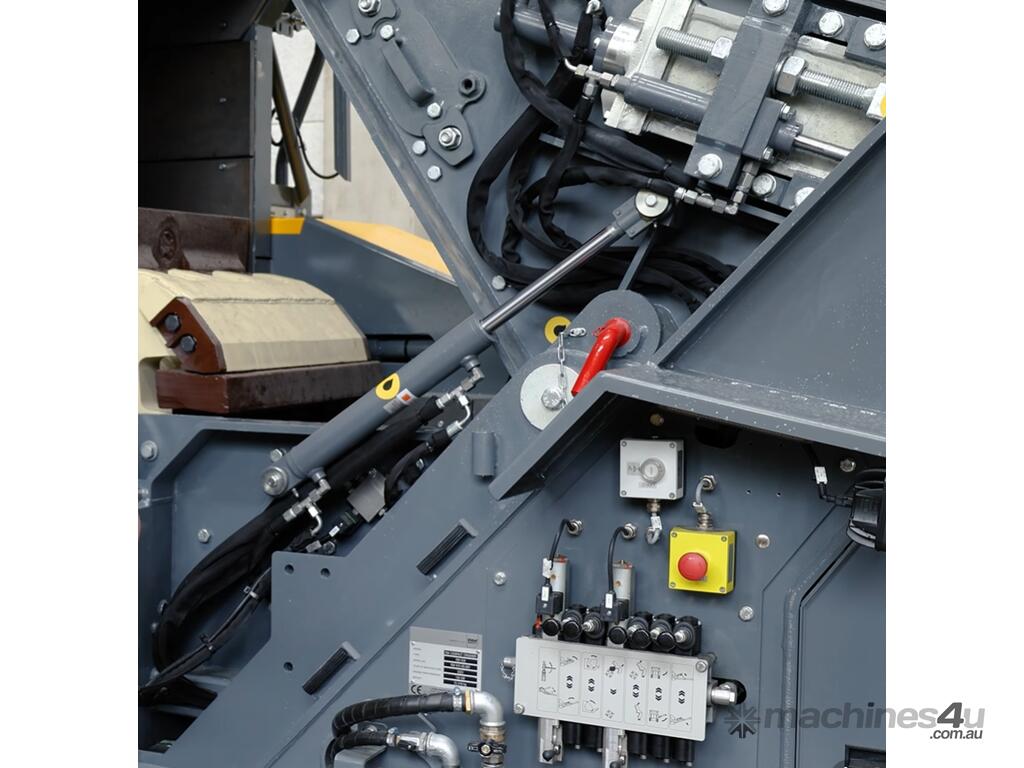

• Hydraulic adjustments for crusher settings and screen changes.

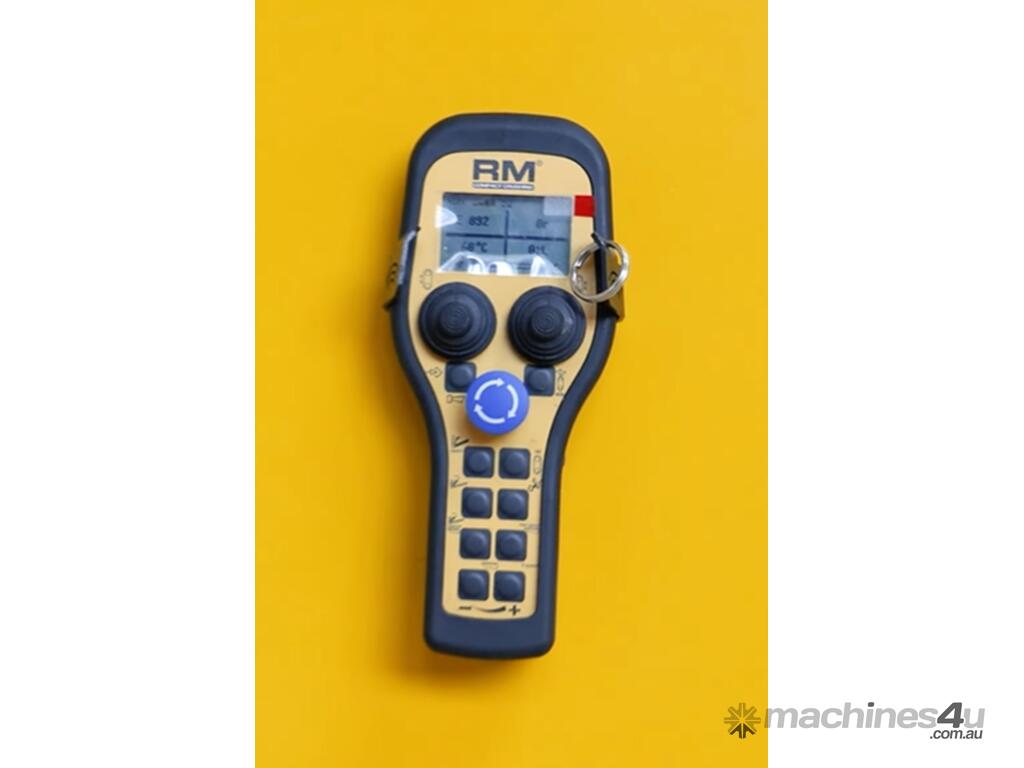

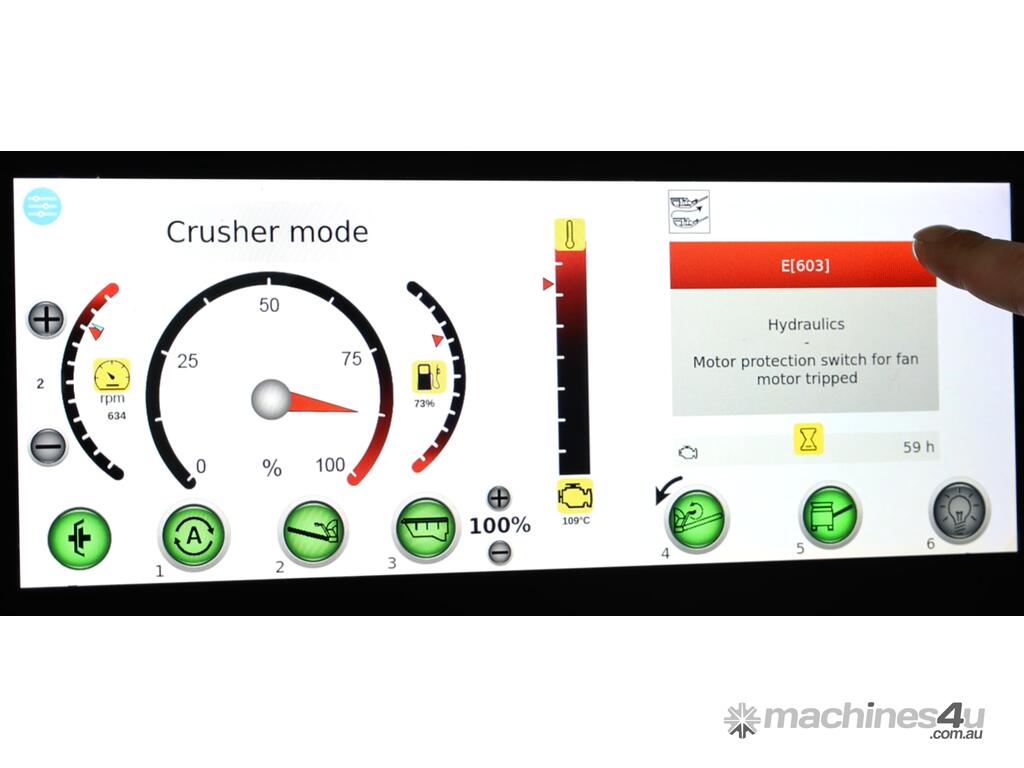

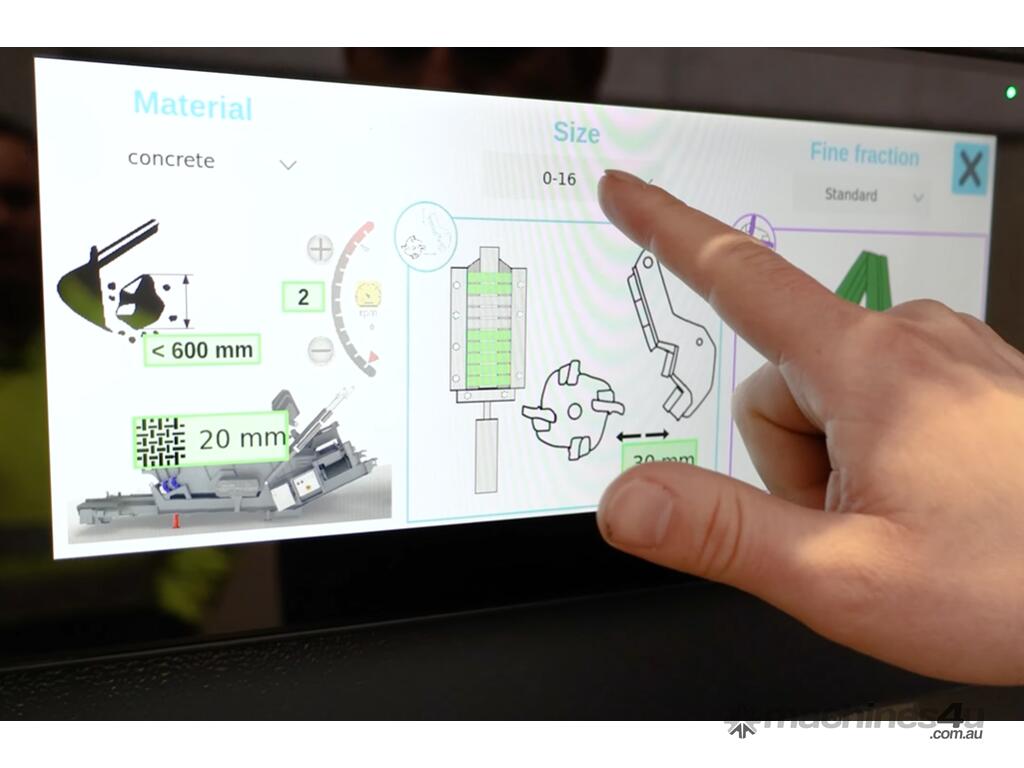

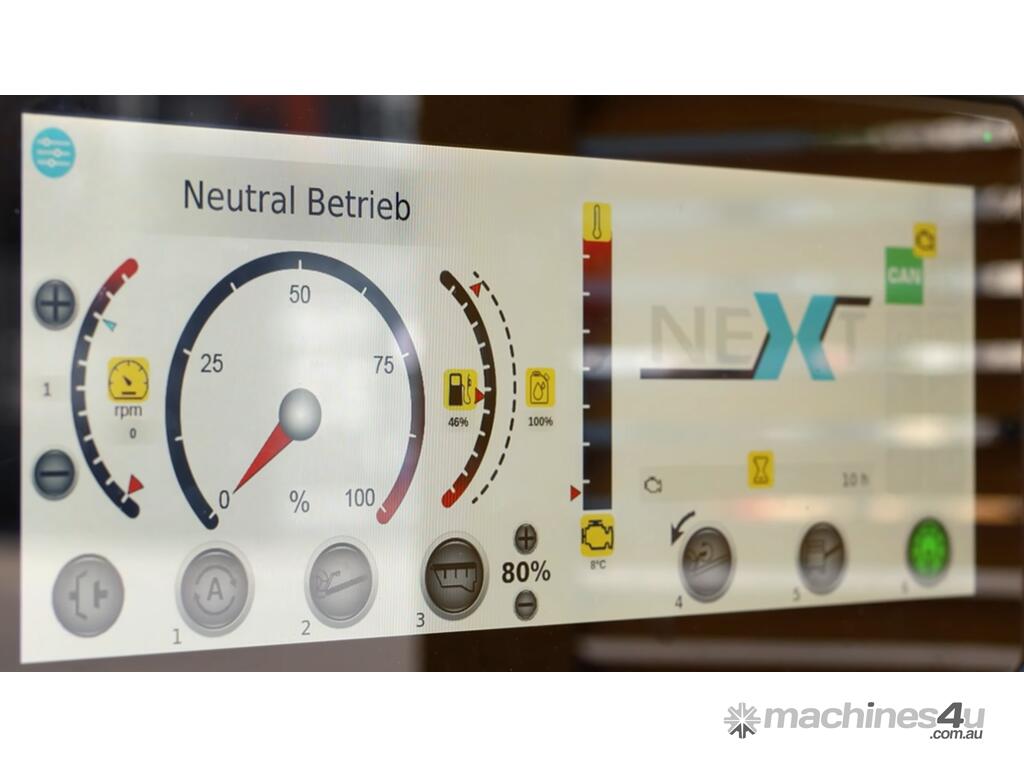

• Advanced operator interface with performance indicators and optional camera monitoring.
• Small footprint and excellent mobility for urban or confined sites.
• Suitable for primary and secondary crushing applications.
Specifications:
Capacity: Up to 200–220 tph (tons per hour)
Inlet Opening: 860 × 650 mm (34? × 25?)
Ideal Feed Size: 500 mm (20?)

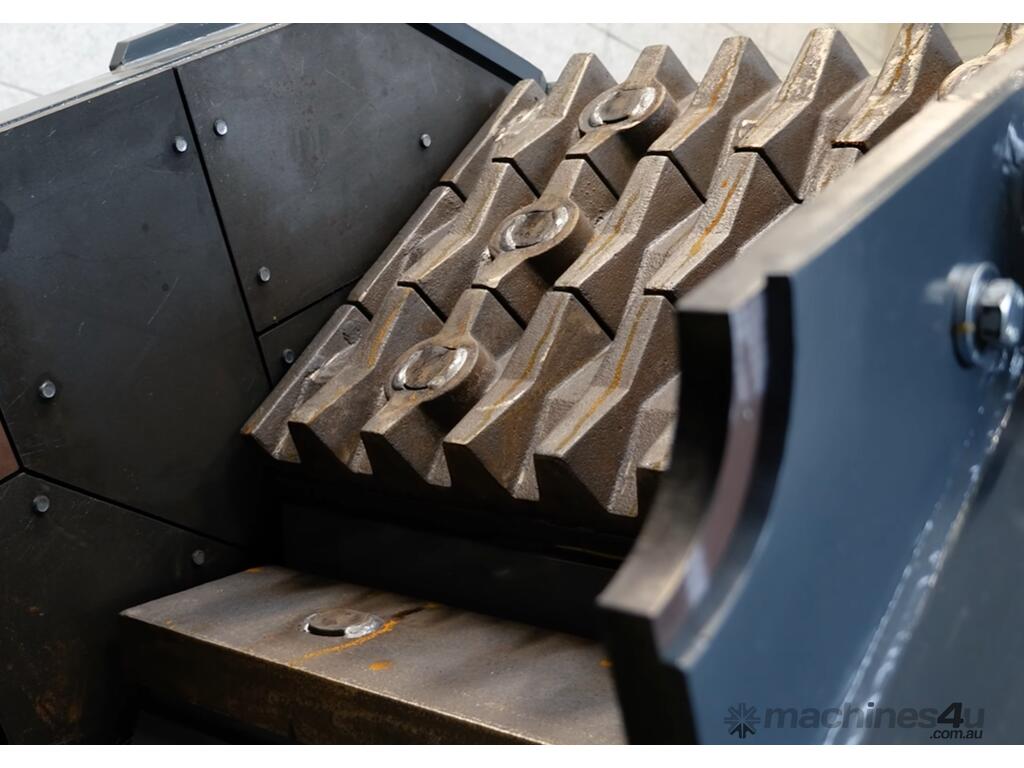

Crusher Unit: 4-bar impact rotor

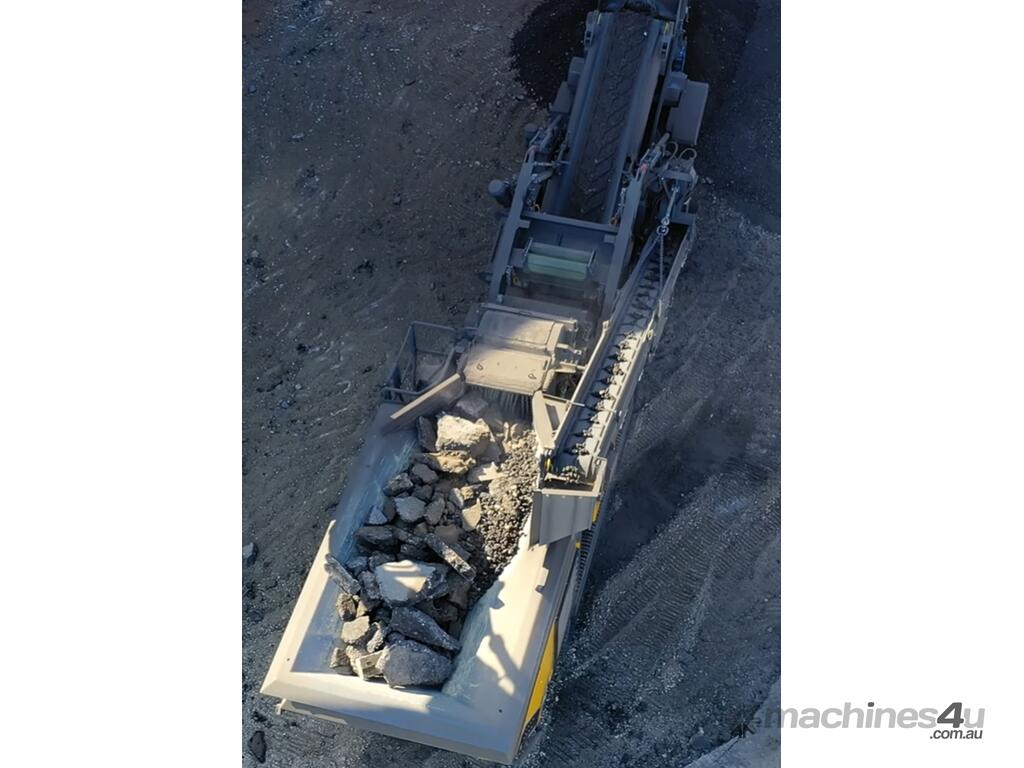

Feed Unit: 2.6 m³ asymmetric vibro feeder
Prescreen Grizzly (standard): 1,050 × 800 mm (41? × 31½?)

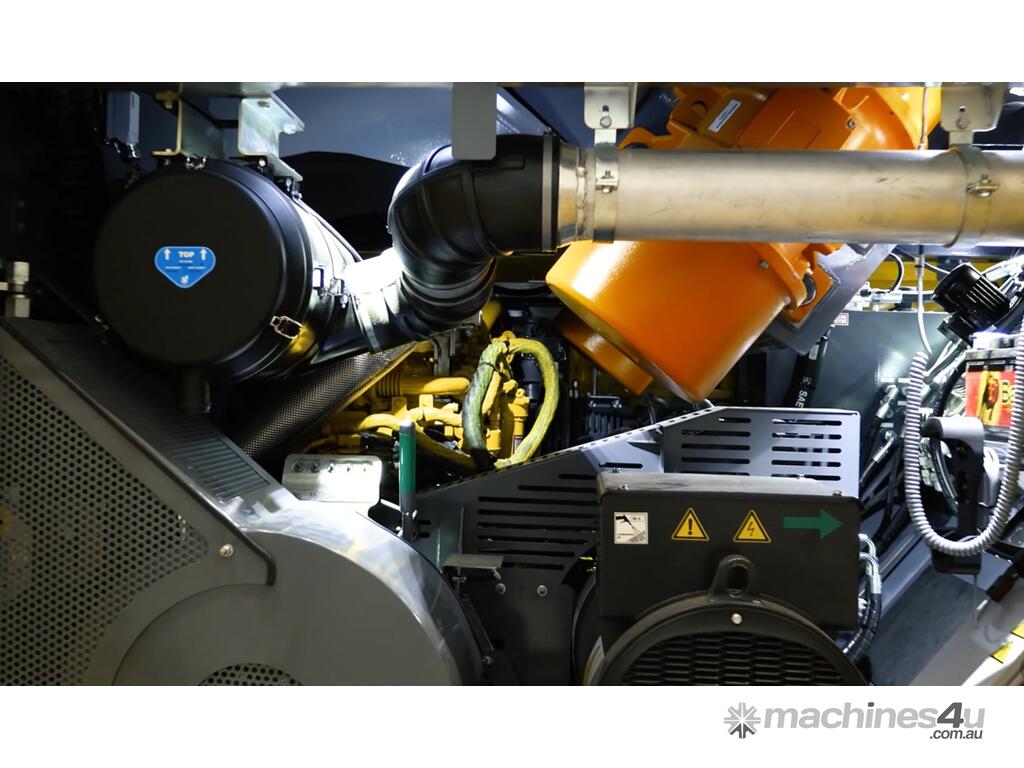

Drive: Diesel-electric
Screen Box: 1,100 × 2,300 mm (4? × 8?)
Transport Dimensions (L × W × H): 13,470 × 2,600 × 3,330 mm (44?2? × 8?6? × 10?10?)
Weight (no options): 26,500 kg (58,420 lbs)

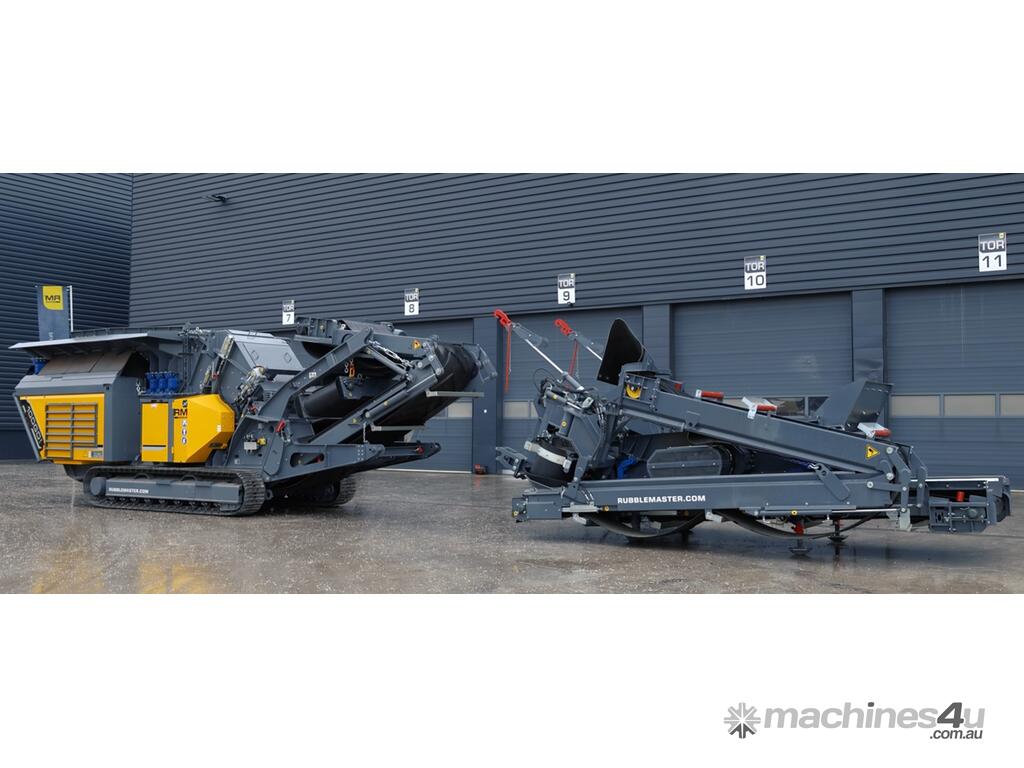

Weight incl. Screen Attachment: 30,550 kg (67,350 lbs)
Applications:

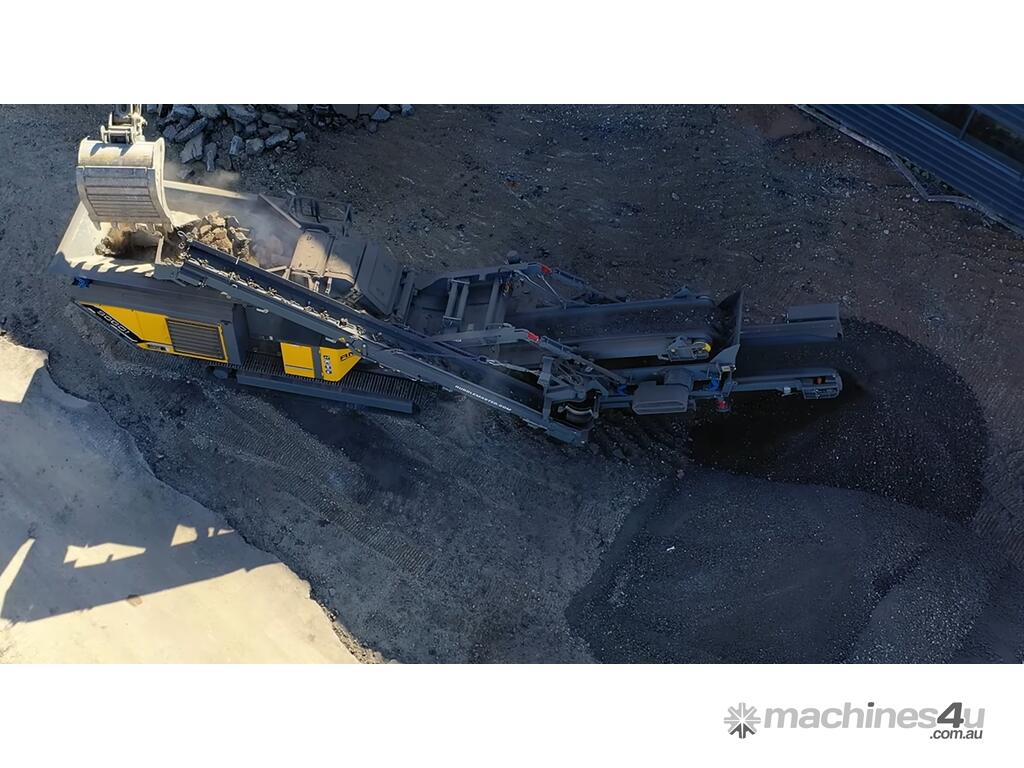

• On-site material recycling
• Concrete and asphalt crushing
• Road base production
• Aggregate processing
• Quarry and demolition jobs
