RSS-4WS Industrial Steel Shelving Plus 2 Drawer Unit Package Deal 364kg Shelf Load Capacity 1955 x 6

HAFCO RSS-4WS Industrial Steel Shelving Plus 2 Drawer Unit Package Deal 364kg Shelf Load Capacity 1955 x 610 x 1830mm
CALL NOW AND DO A DEAL! ADD THIS ASSET TO YOUR WORKSHOP
WE OFFER MACHINERY SOLUTIONS AT AFFORDABLE PRICES.
Order Code: K234

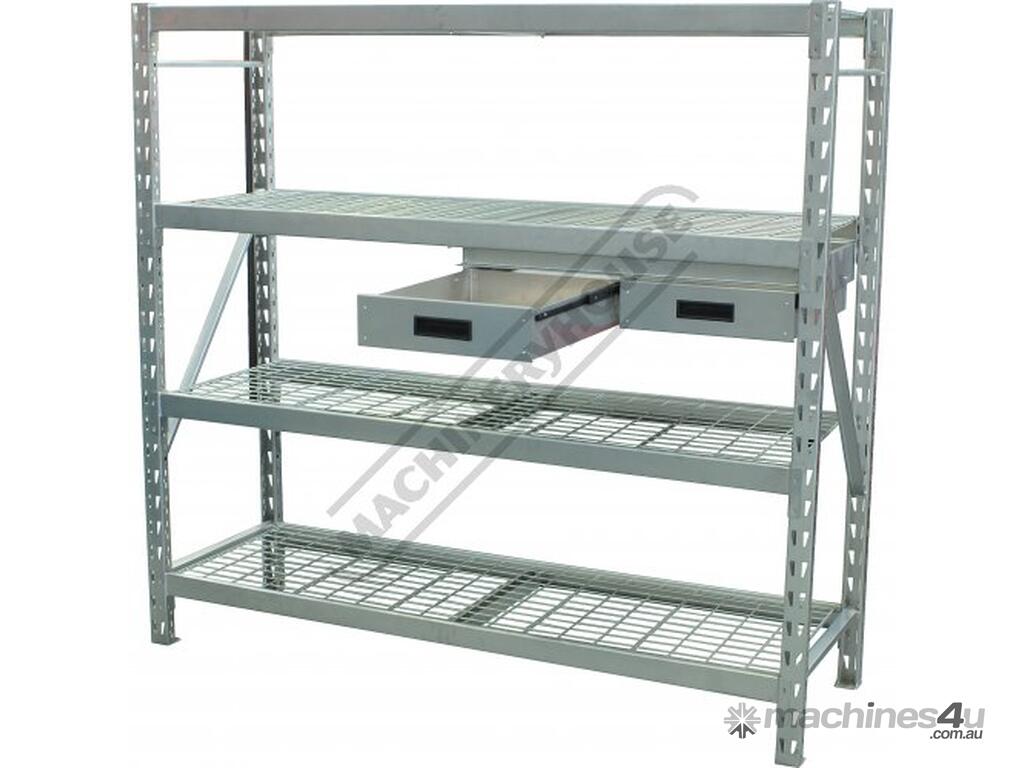

Industrial steel shelving which is supplied in bays 1955mm (L) x 610mm (W) x 1830mm (H) with a silver corrosive resistant powder coated finish.

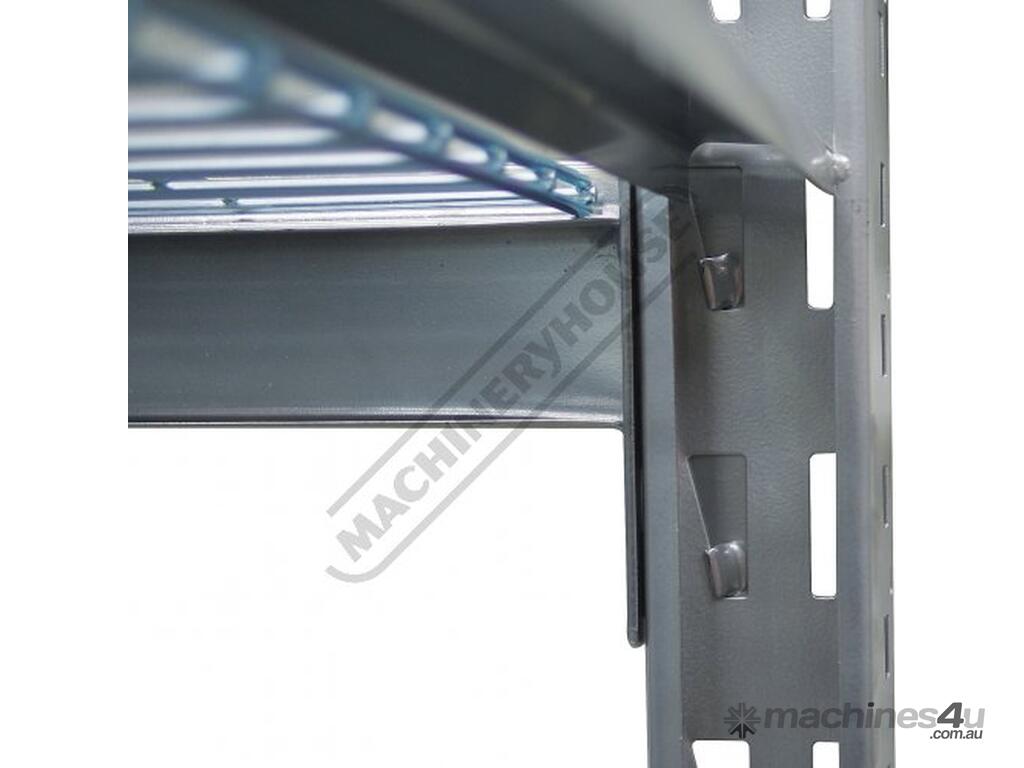

Each bay consists of four levels with wire mesh inserts, each shelf has a capacity of 364kg. The vertical posts have provision to adapt an optional racking extensions (S014A) to double the storage. The shelf rails are secured in position and locked in via a wedge system. Simply very easy to assemble without the use of any tools.

Features:
RSS-4WS - Industrial Steel Shelving - (S014)
364kg capacity per shelf

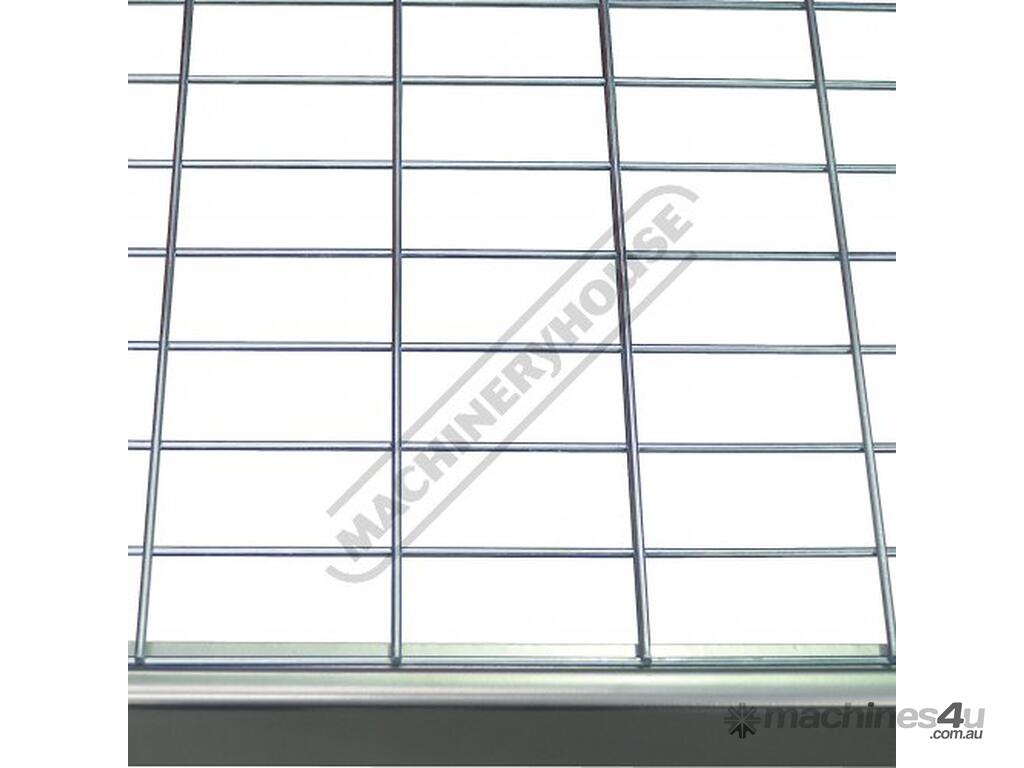

Industrial 4 shelves with reinforced steel wire grid pattern mesh

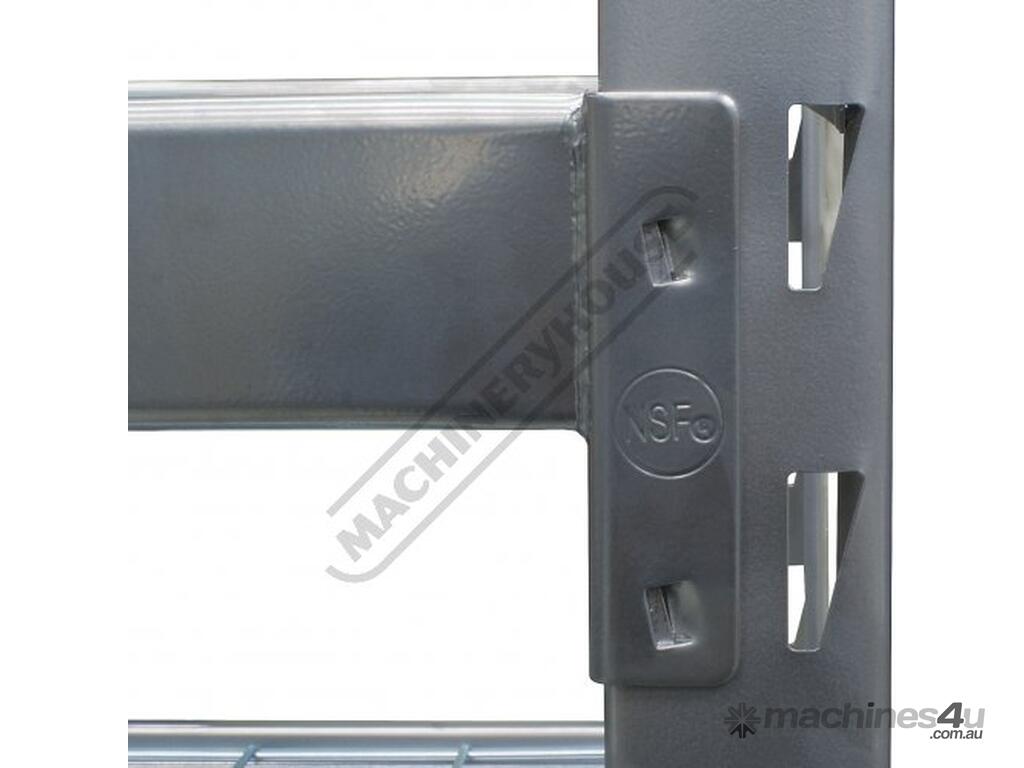

Adjustable shelf height position with interlocking tabs
Silver corrosive resistant powder coated finish
Vertical posts have double sided punched holes to connect optional extension bay

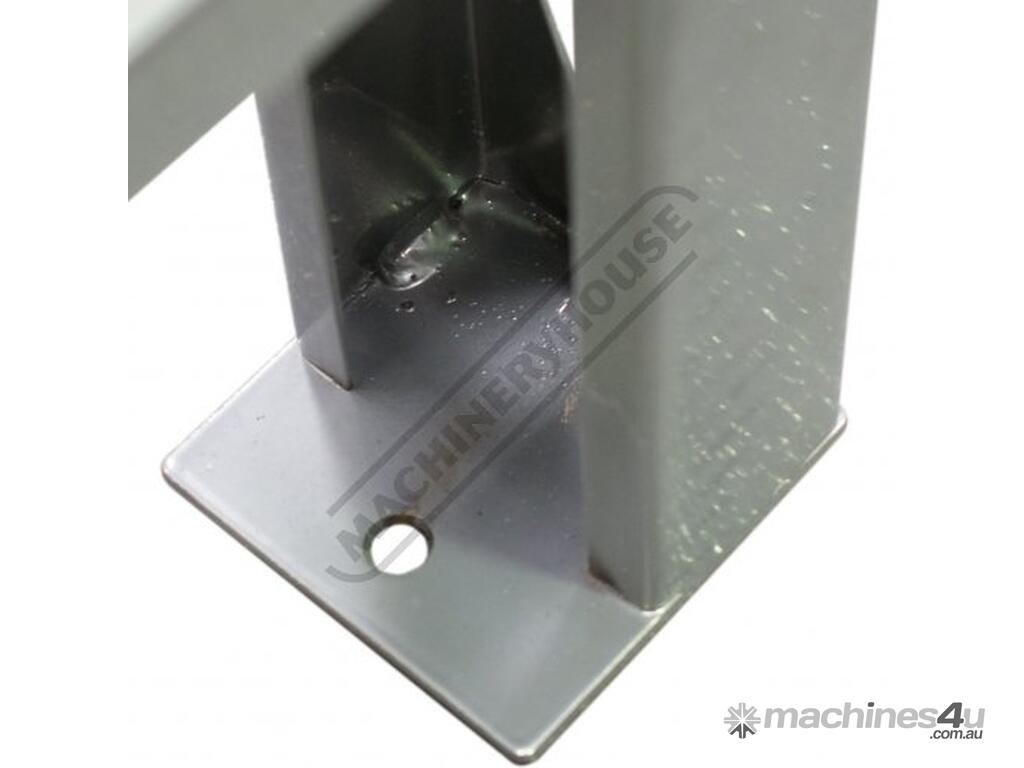

Vertical posts are 64 x 38 x 1.6mm heavy duty C-section
Cross member supports for wire mesh are 70 x 18 x 1.6mm heavy duty C-section
Strengthening side supports are 40 x 18 x 1.4mm C-section
1955 x 610 x 1830mm (LxWxH) assembled dimensions

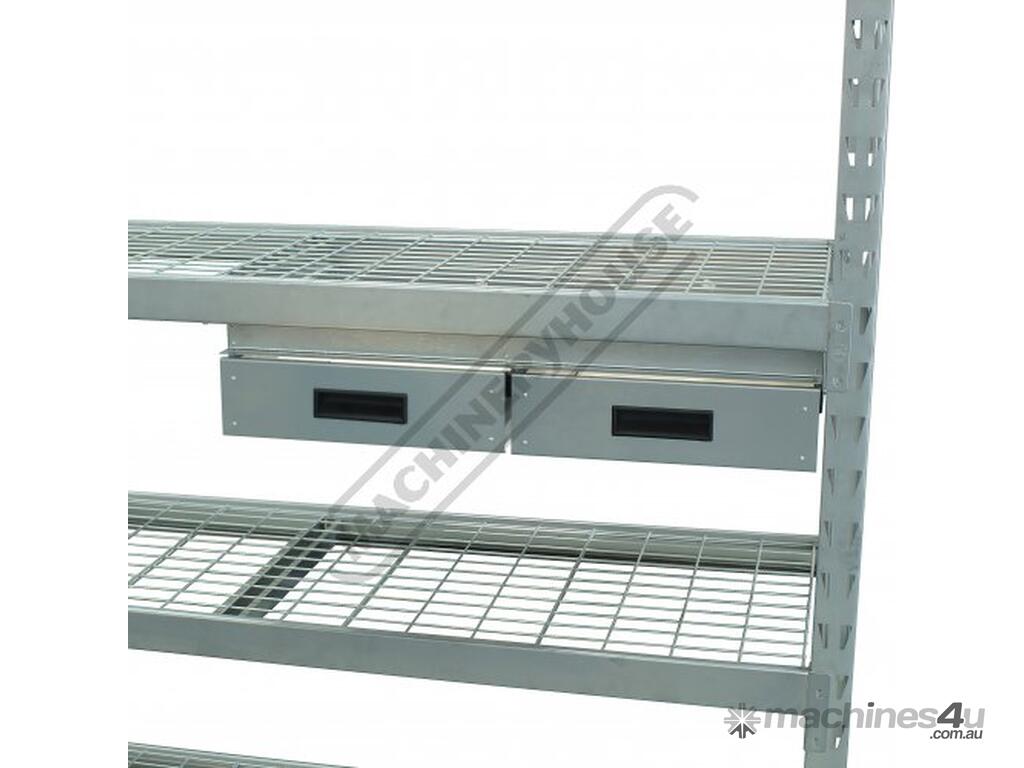

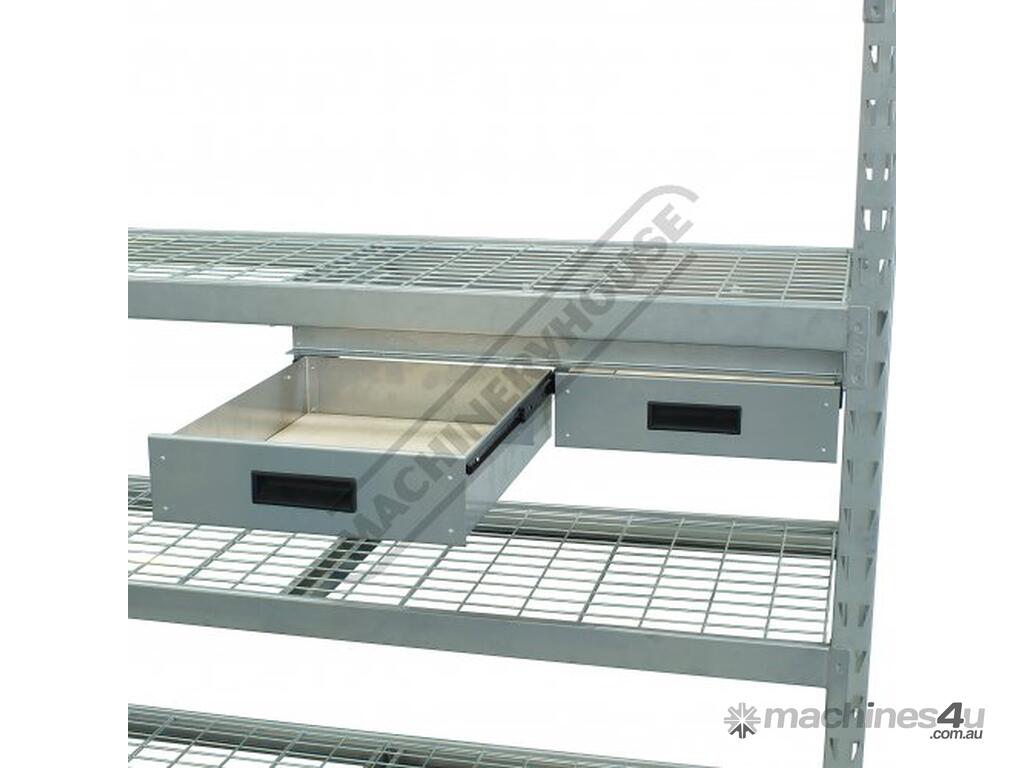

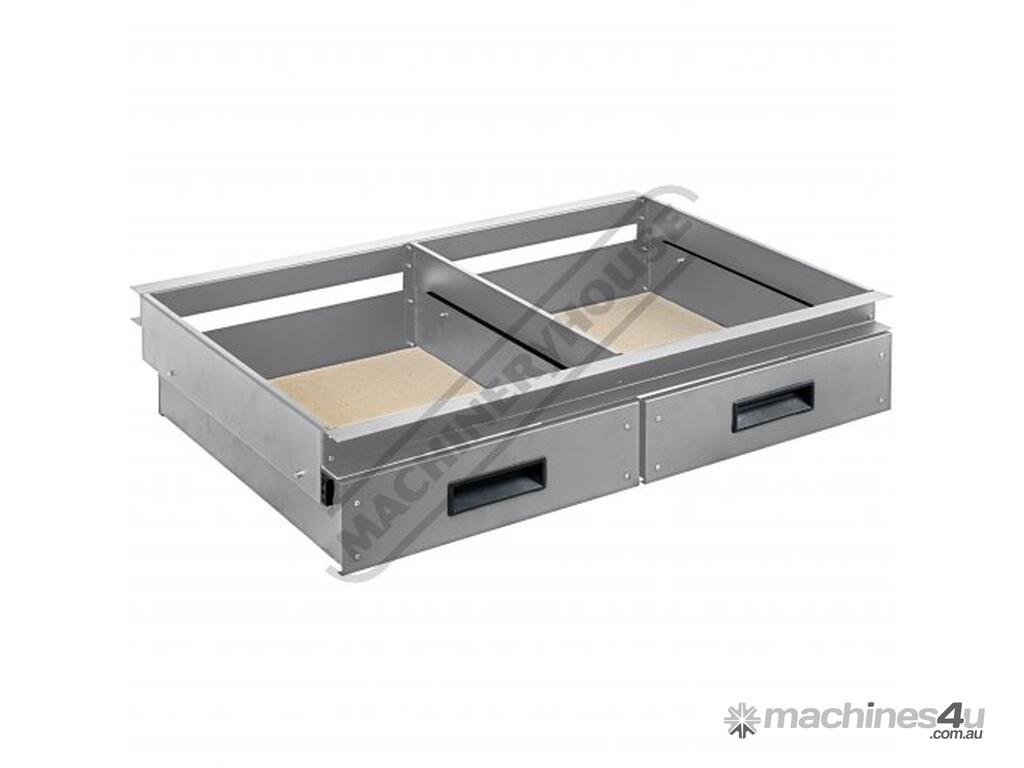

RSS-2D - 2 x Drawer System - Suits Industrial Steel Shelving - (S014D)
2 x 412 x 540 x 110mm drawers - (WxDxH)
880mm total width drawer system
30kg load capacity per drawer

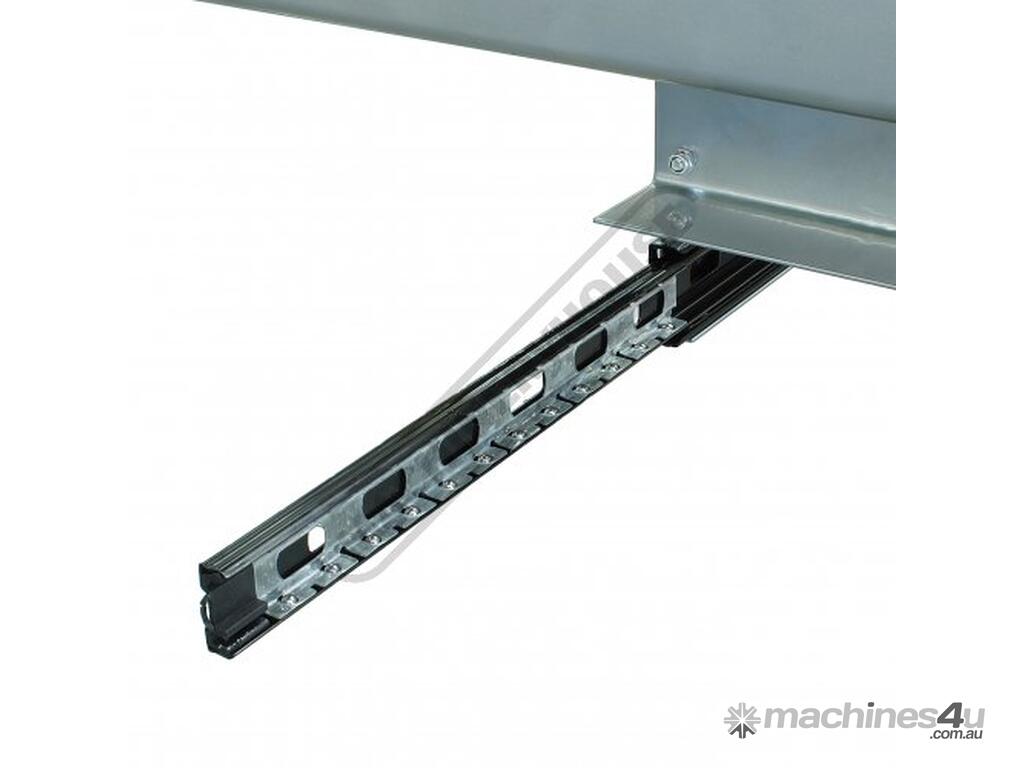

Ball bearing slides with de-tent lock

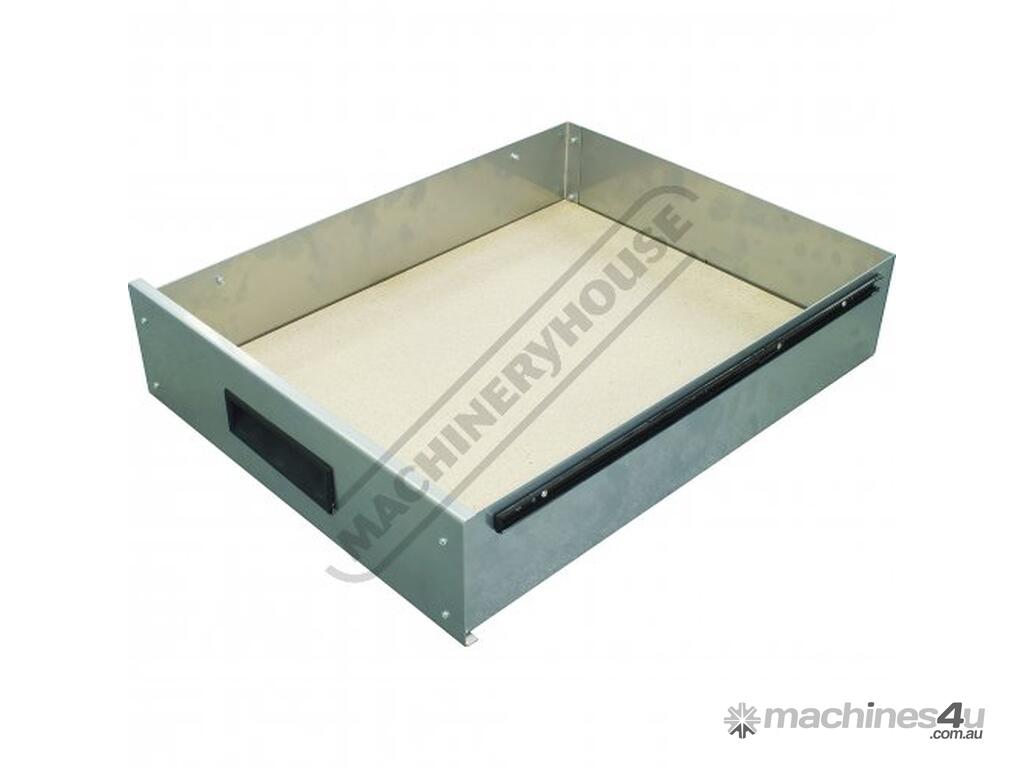

Particle board drawer base
Flush mounted drawer handles


Specifications:
ORDER CODE: K234
MODEL: RSS-4WS + RSS-2D Package
Type: Industrial Steel Shelving +
Type: 2 Drawer Unit
Drawer Load Capacity (kg): 30
Shelf Load Capacity (kg): 364
Total Combined Load Capacity (kg): ~
Parts Bin Load Capacity Each (kg): ~
Buckets / Bins Total Quantity (No.): ~
Buckets / Bins Dividers Quantity (No.): ~
Maximum Total Load Capacity (kg): ~
Buckets / Bins A: Quantity / Size (mm): ~
Buckets / Bins B: Quantity / Size (mm): ~
Buckets / Bins C: Quantity / Size (mm): ~
Buckets / Bins D: Quantity / Size (mm): ~
Dimensions (L x W x H) (mm): 1955 x 610 x 1830
Nett Weight (kg): 66.5
