RSS-4WS Industrial Steel Shelving Plus Extension Package Deal 364kg Shelf Load Capacity 3878 x 610 x

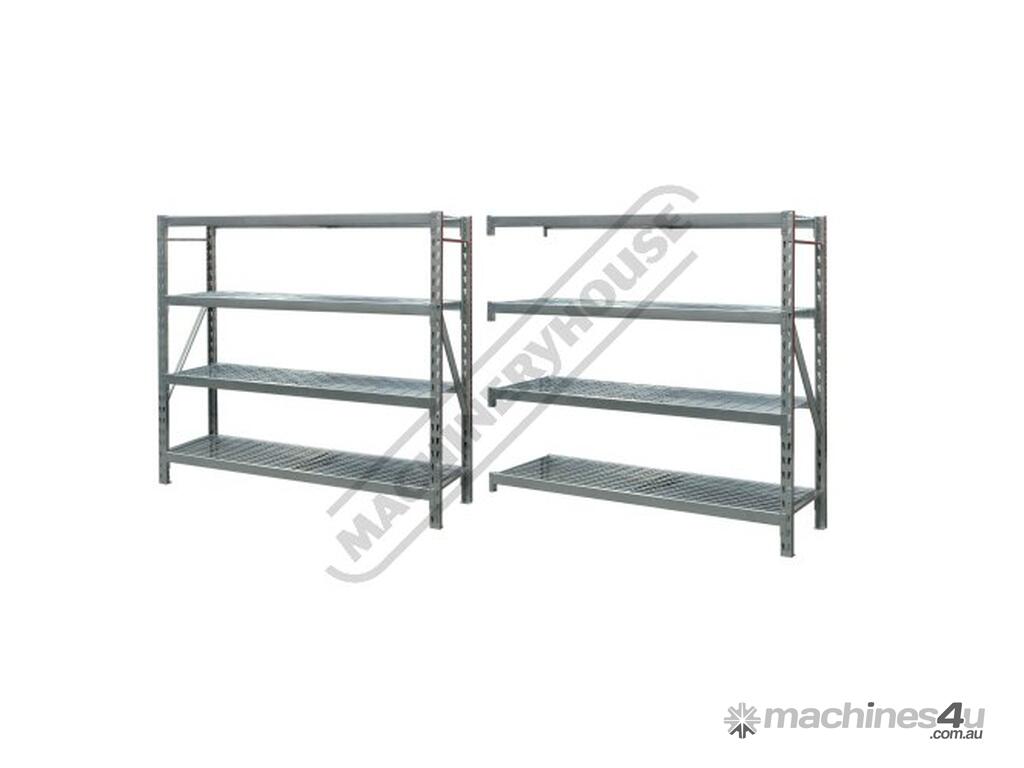

HAFCO RSS-4WS Industrial Steel Shelving Plus Extension Package Deal 364kg Shelf Load Capacity 3878 x 610 x 1830mm
CALL NOW AND DO A DEAL! ADD THIS ASSET TO YOUR WORKSHOP
WE OFFER MACHINERY SOLUTIONS AT AFFORDABLE PRICES.
Order Code: K232

Industrial steel shelving which is supplied in bays 1955mm (L) x 610mm (W) x 1830mm (H) with a silver corrosive resistant powder coated finish.

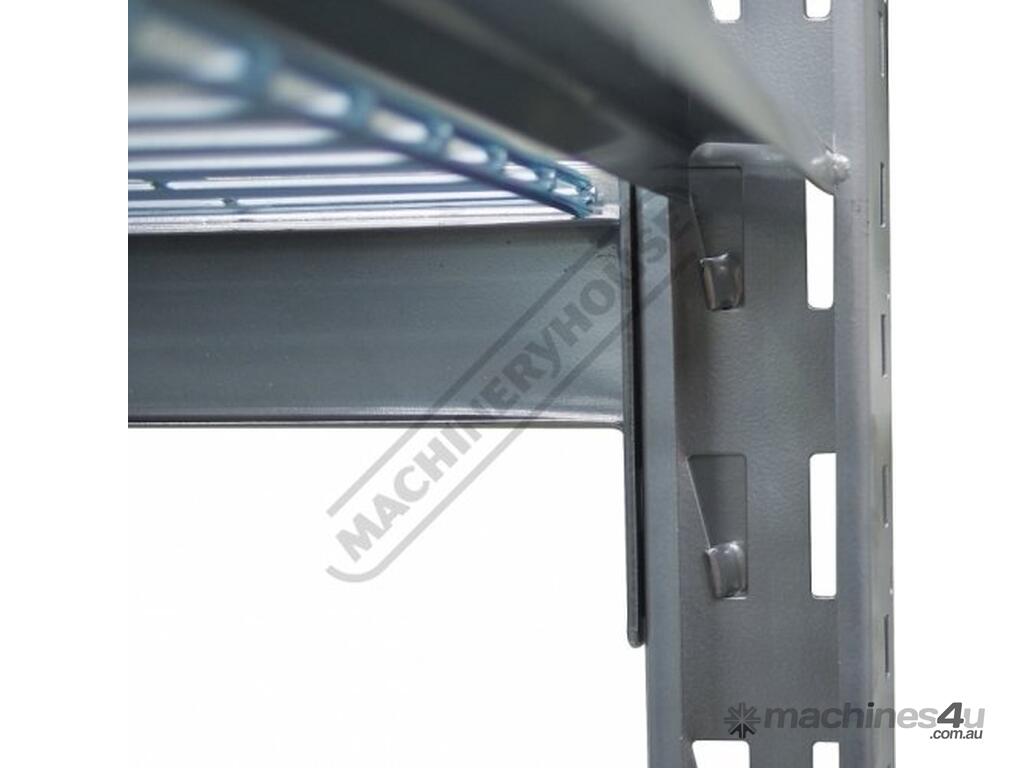

Each bay consists of four levels with wire mesh inserts, each shelf has a capacity of 364kg. The vertical posts have provision to adapt an optional racking extensions (S014A) to double the storage. The shelf rails are secured in position and locked in via a wedge system. Simply very easy to assemble without the use of any tools.

Features:

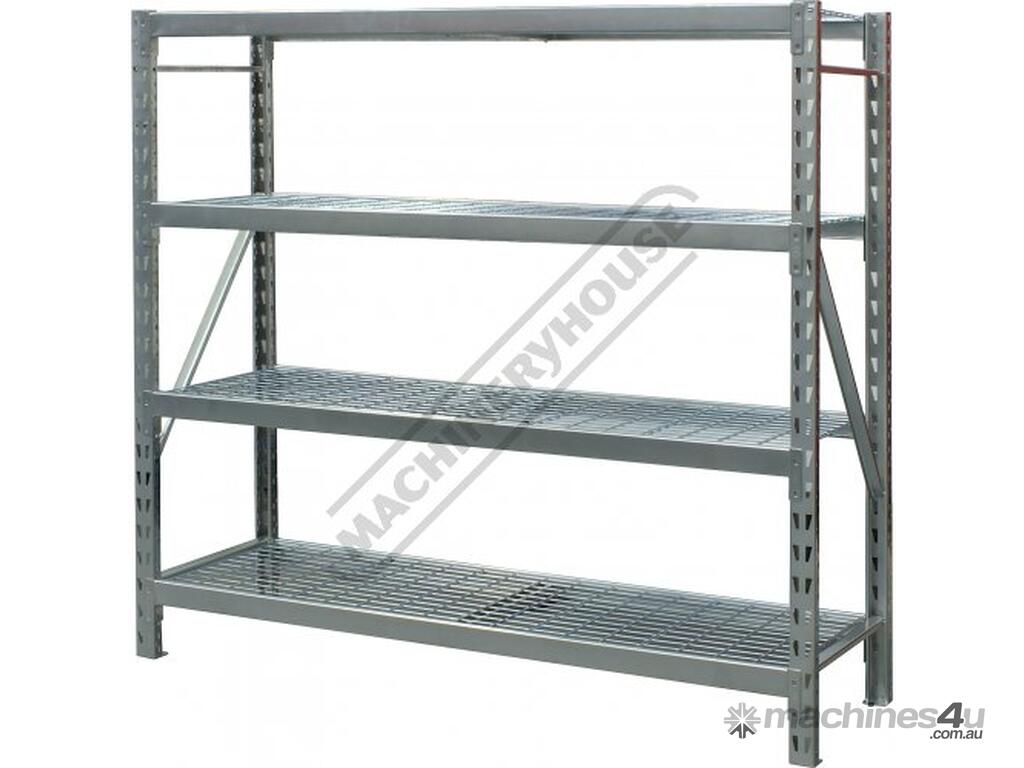

RSS-4WS - Industrial Steel Shelving - (S014)
364kg capacity per shelf

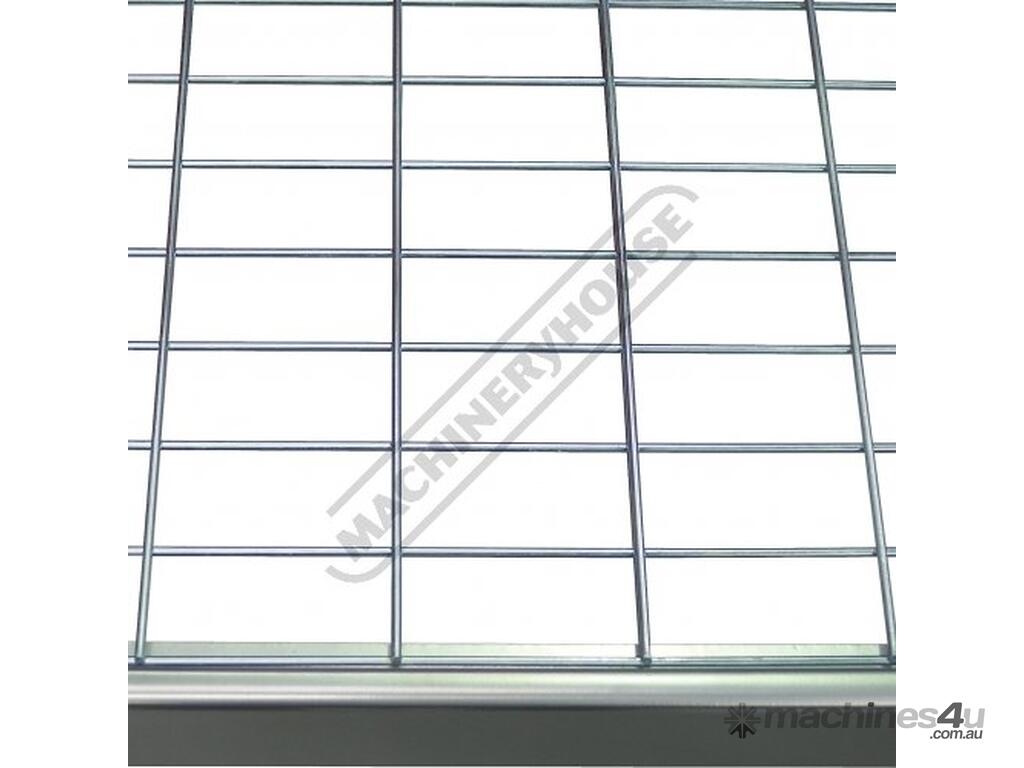

Industrial 4 shelves with reinforced steel wire grid pattern mesh

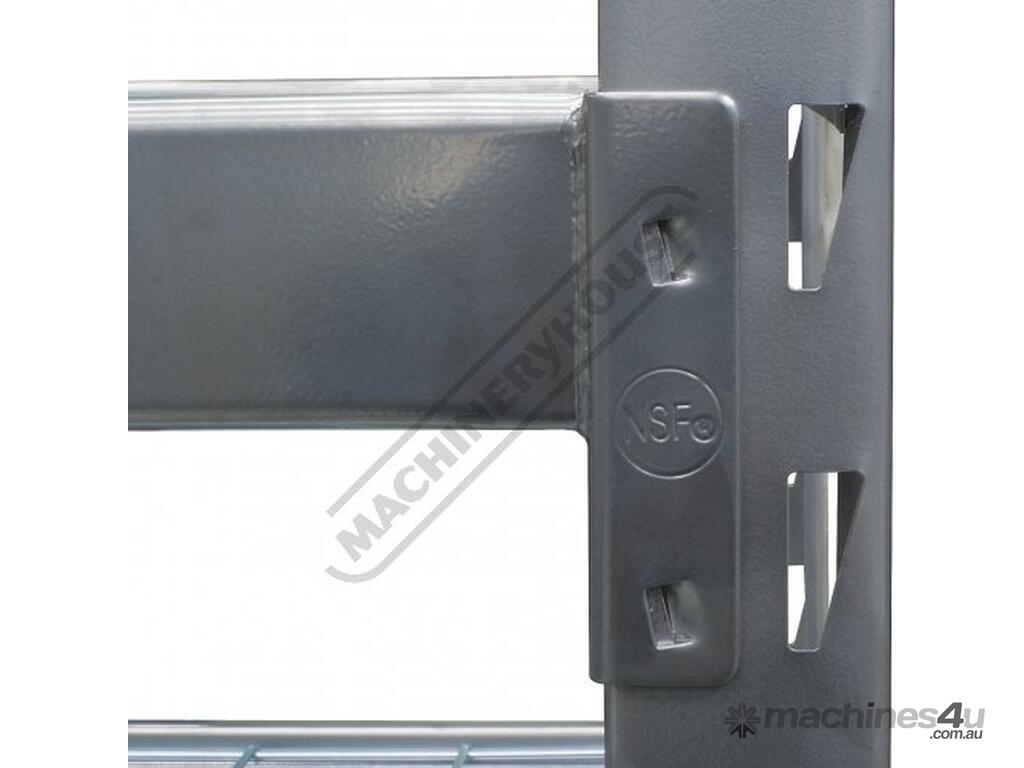

Adjustable shelf height position with interlocking tabs
Silver corrosive resistant powder coated finish
Vertical posts have double sided punched holes to connect optional extension bay
Vertical posts are 64 x 38 x 1.6mm heavy duty C-section
Cross member supports for wire mesh are 70 x 18 x 1.6mm heavy duty C-section
Strengthening side supports are 40 x 18 x 1.4mm C-section
1955 x 610 x 1830mm (LxWxH) assembled dimensions

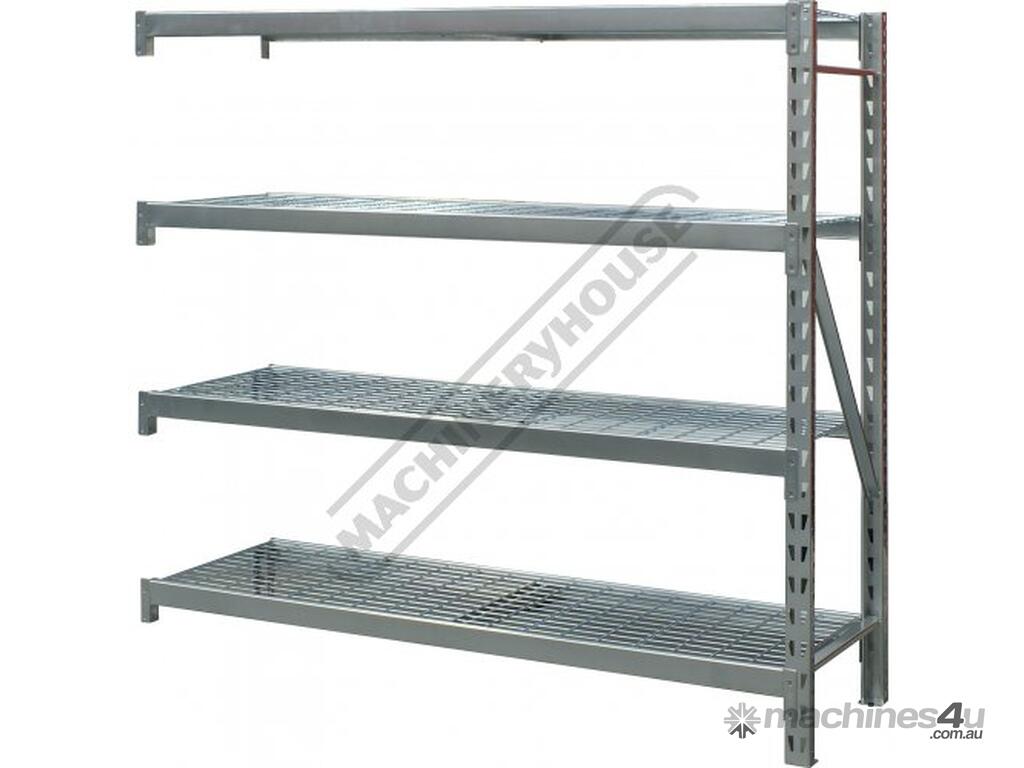

RSS-4WSA - Industrial Steel Shelving Extension - (S014A)
364kg per shelf capacity when attached to RSS-4WS shelving
Industrial 4 shelves with reinforced steel wire grid pattern mesh
Adjustable shelf height position with interlocking tabs
Silver corrosive resistant powder coated finish
Vertical post has double sided punched holes to connect optional extension bay
Vertical post is 64 x 38 x 1.6mm heavy duty C-section
Cross member supports for wire mesh are 70 x 18 x 1.6mm heavy duty C-section
Strengthening side supports are 40 x 18 x 1.4mm C-section
1923 x 610 x 1830mm (LxWxH) assembled dimensions


Specifications:
ORDER CODE: K232

MODEL: RSS-4WS + RSS-4WSA Package
Type: Industrial Steel Shelving
Type: ~
Drawer Load Capacity (kg): ~
Shelf Load Capacity (kg): 364
Total Combined Load Capacity (kg): ~
Parts Bin Load Capacity Each (kg): ~
Buckets / Bins Total Quantity (No.): ~
Buckets / Bins Dividers Quantity (No.): ~
Maximum Total Load Capacity (kg): ~
Buckets / Bins A: Quantity / Size (mm): ~
Buckets / Bins B: Quantity / Size (mm): ~
Buckets / Bins C: Quantity / Size (mm): ~
Buckets / Bins D: Quantity / Size (mm): ~
Dimensions (L x W x H) (mm): 3878 x 610 x 1830
Nett Weight (kg): 103
