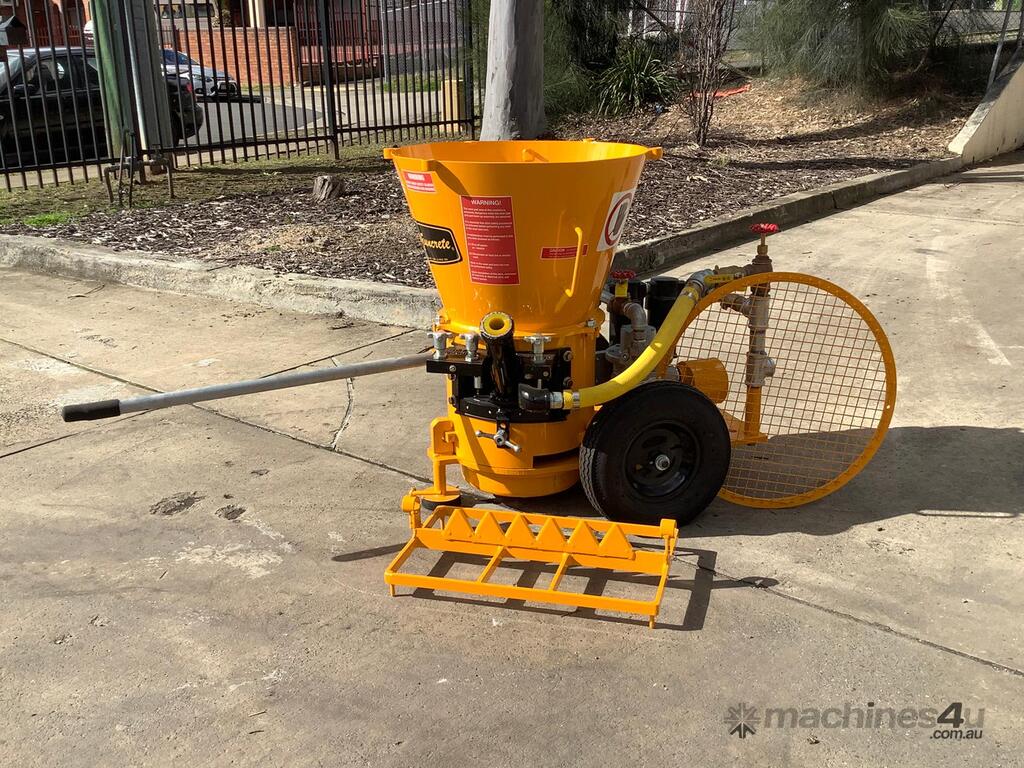

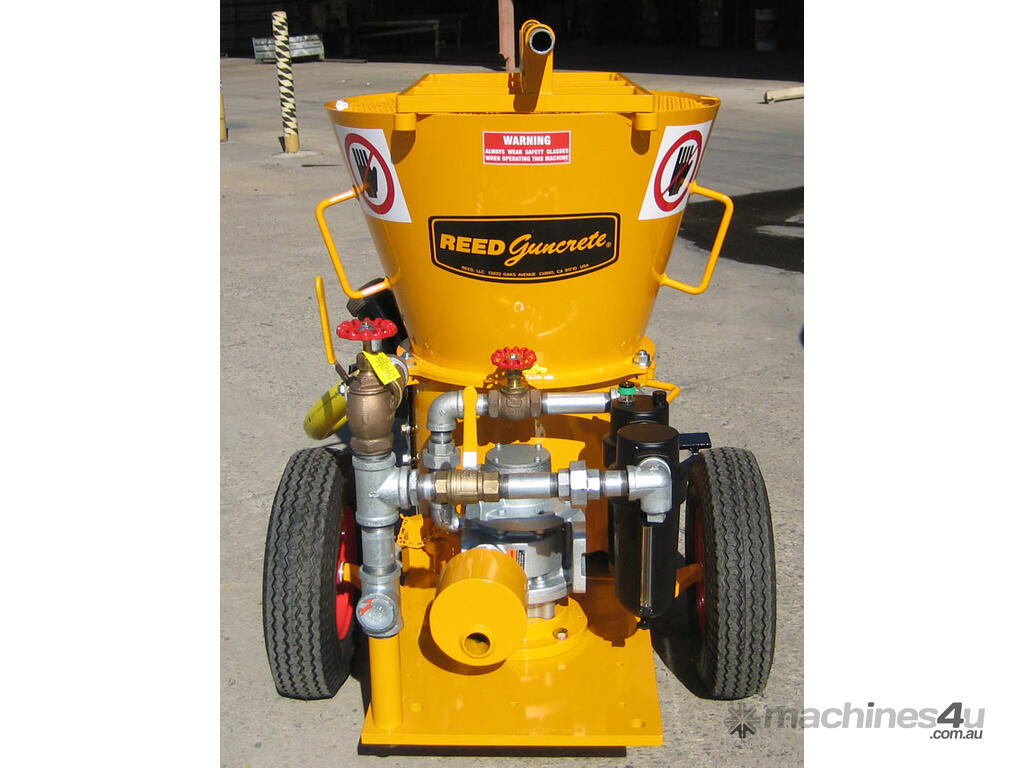

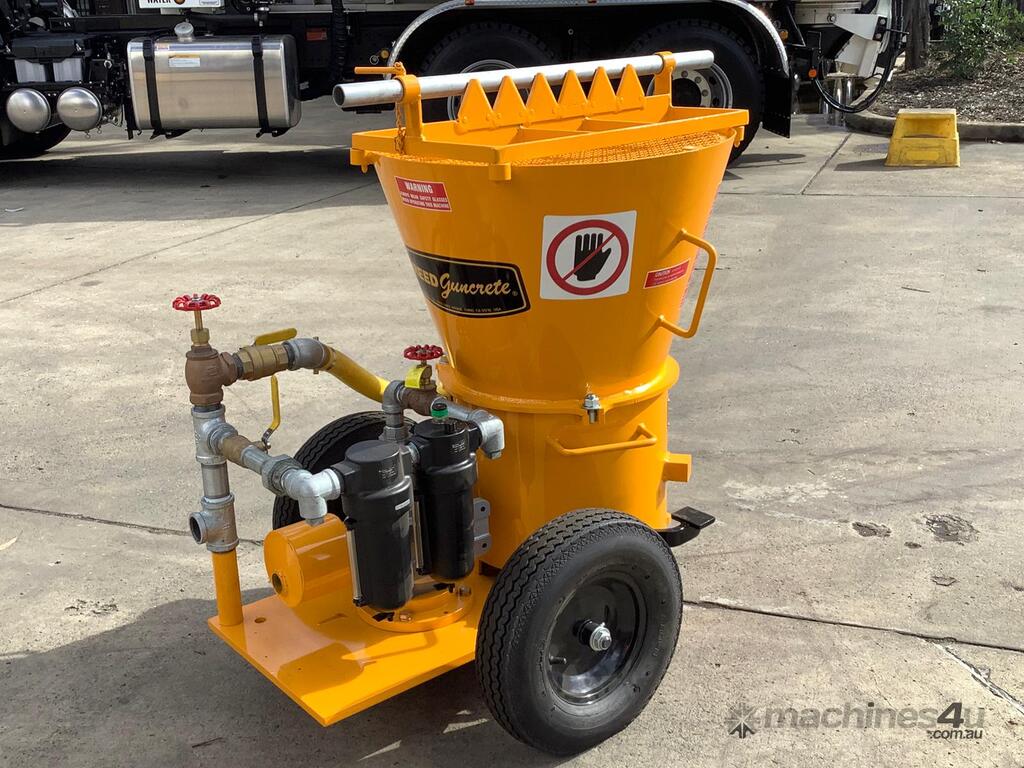

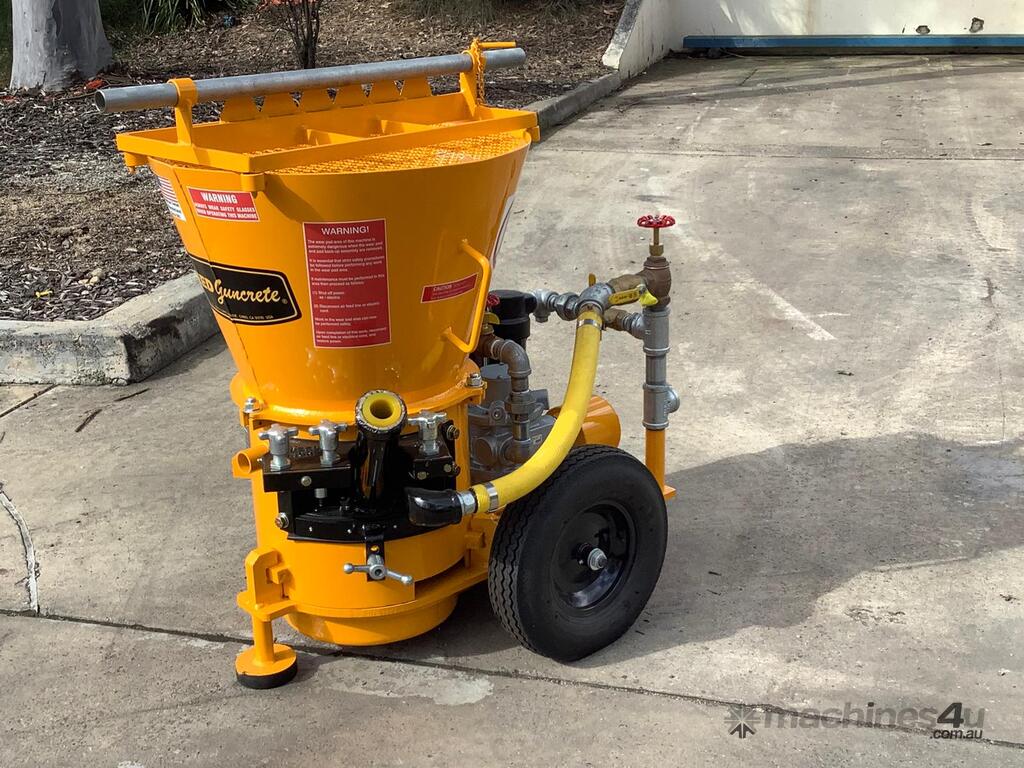

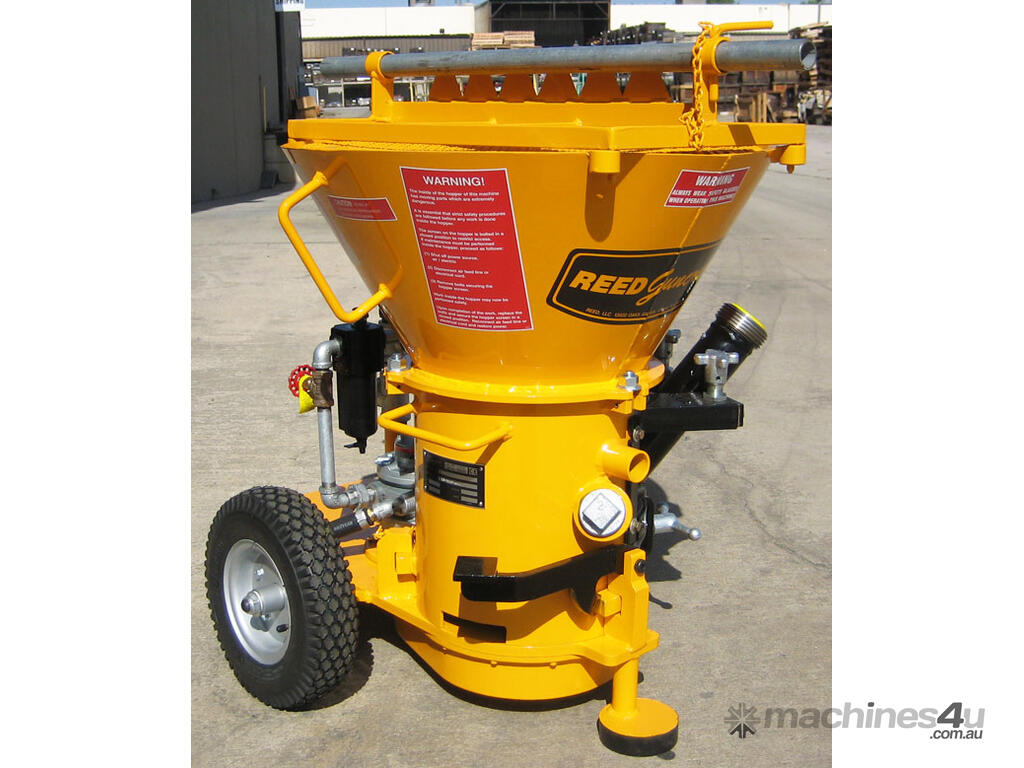

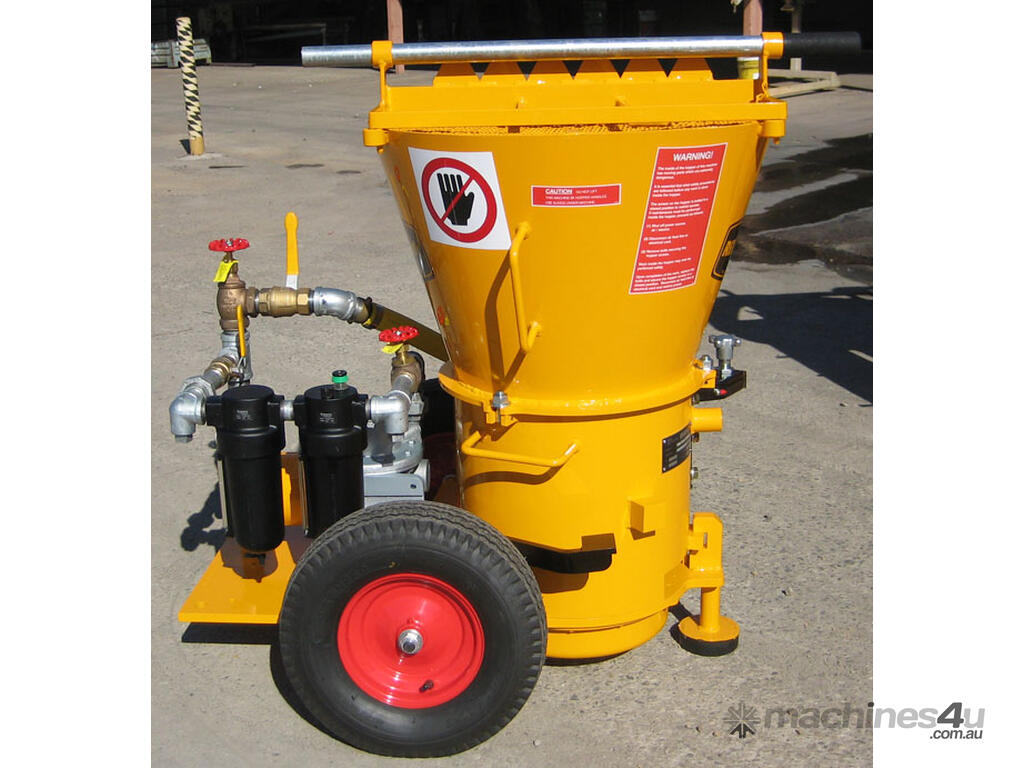

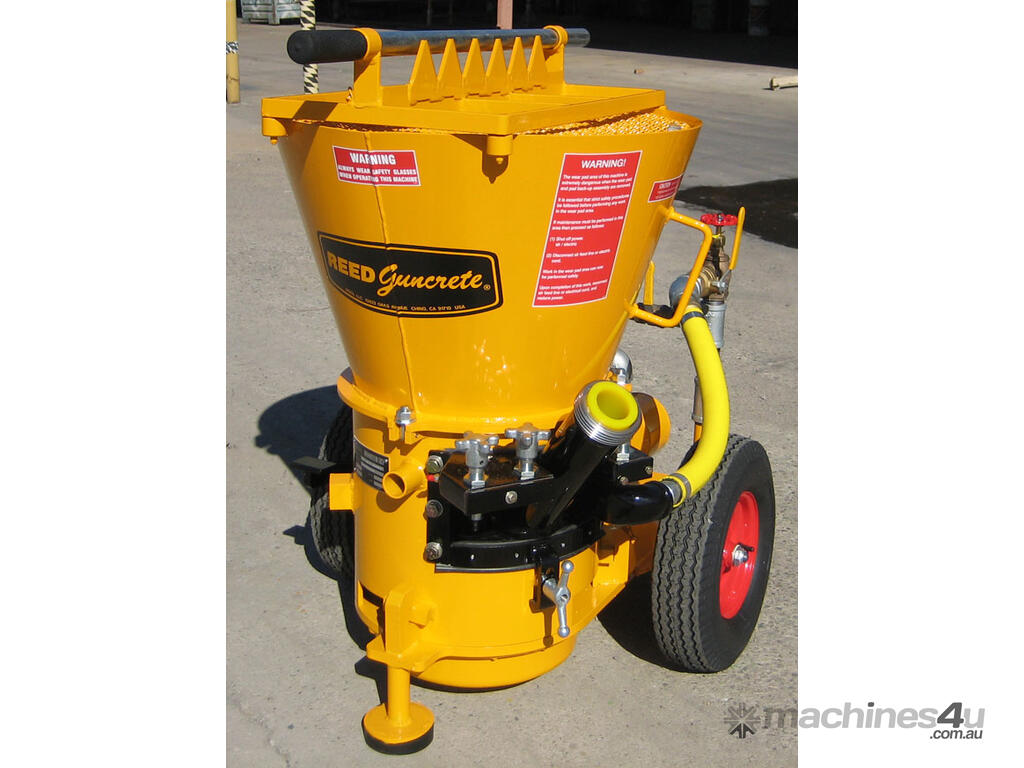

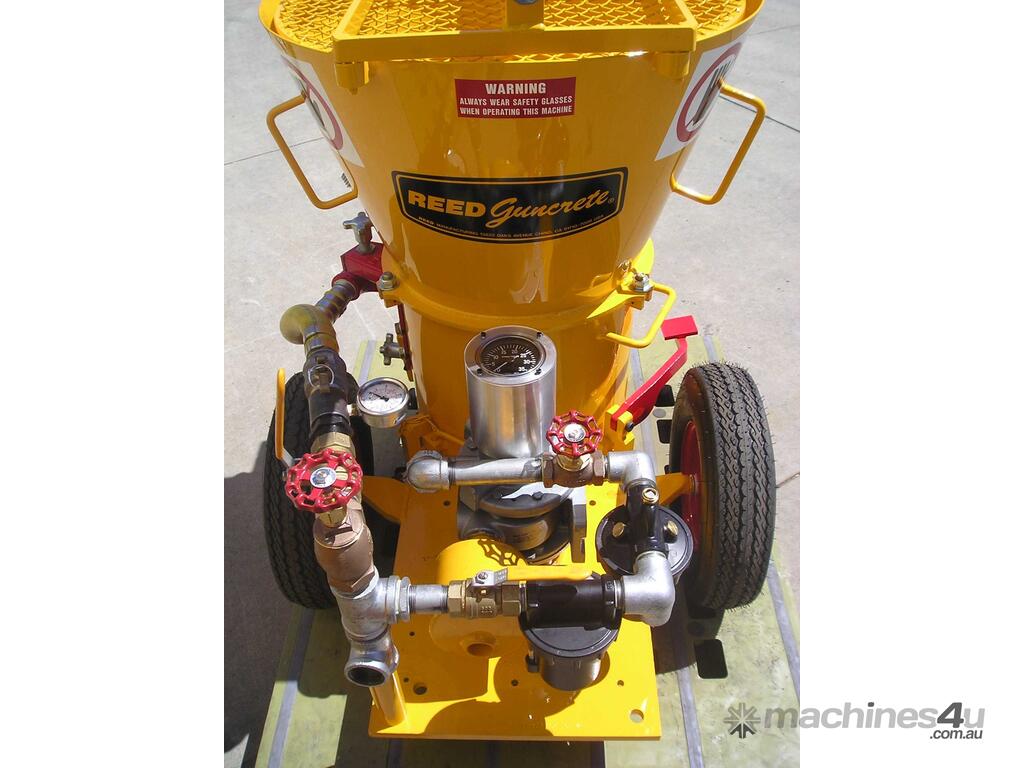

Reed Lova 16-6 Gunite Machine Air - Dry Mix Shotcrete

LOVA provides a very even flow of material which allows uniform hydration and smooth placement.

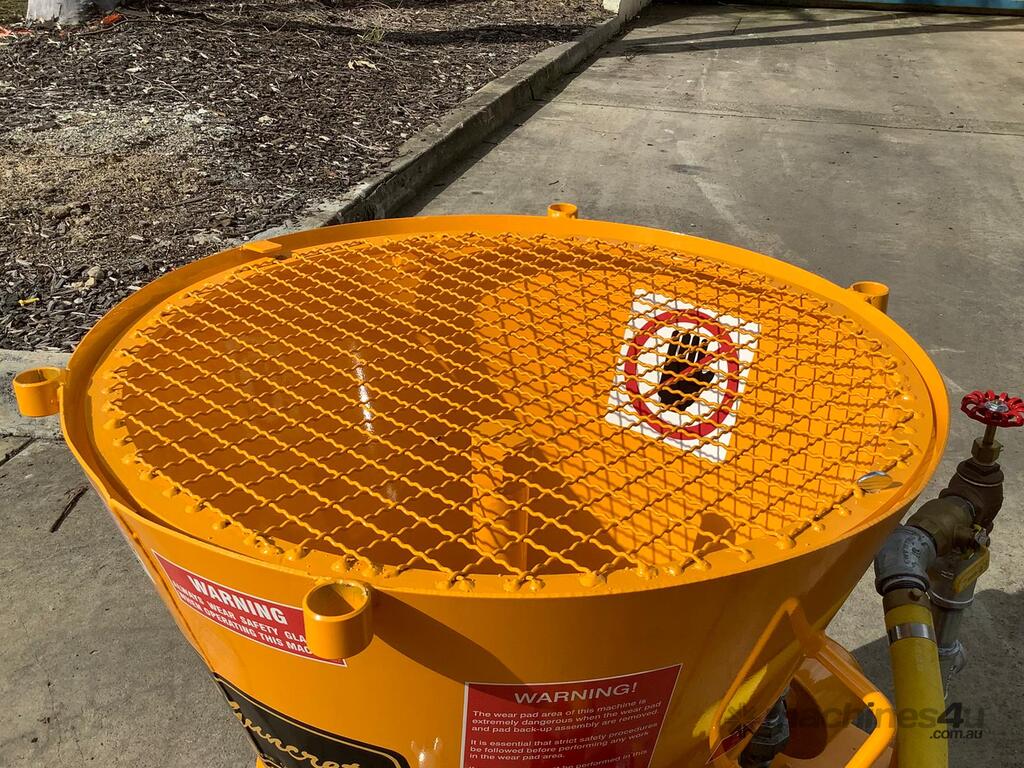

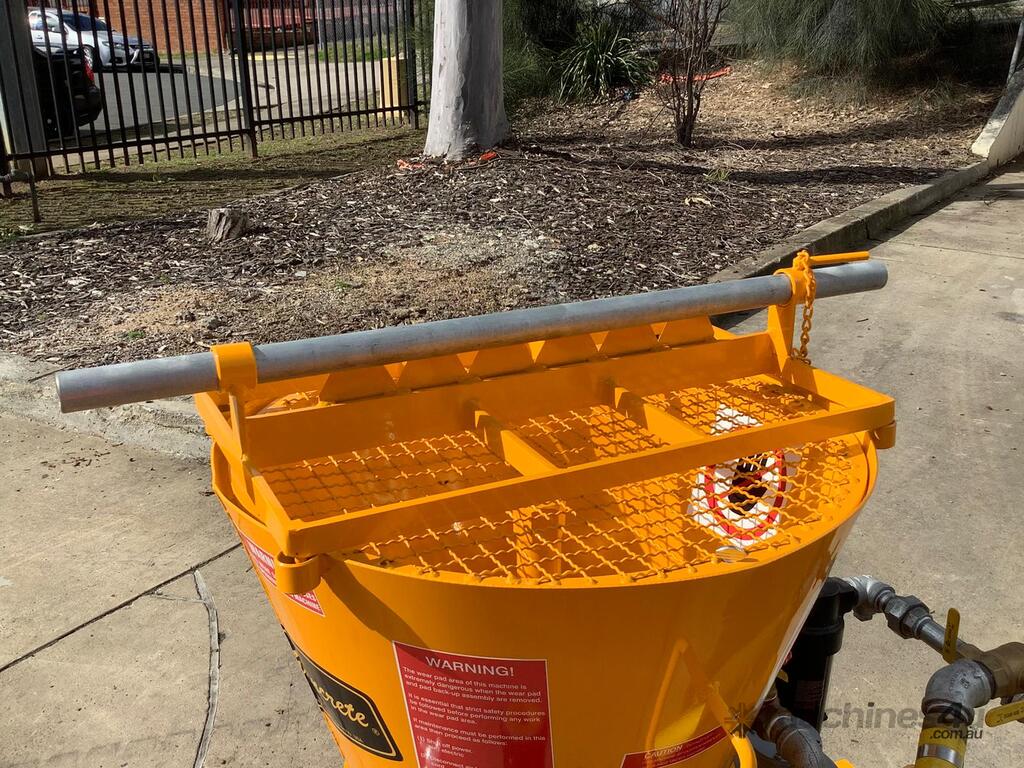

Flat refractory hopper with 2 blade agitator

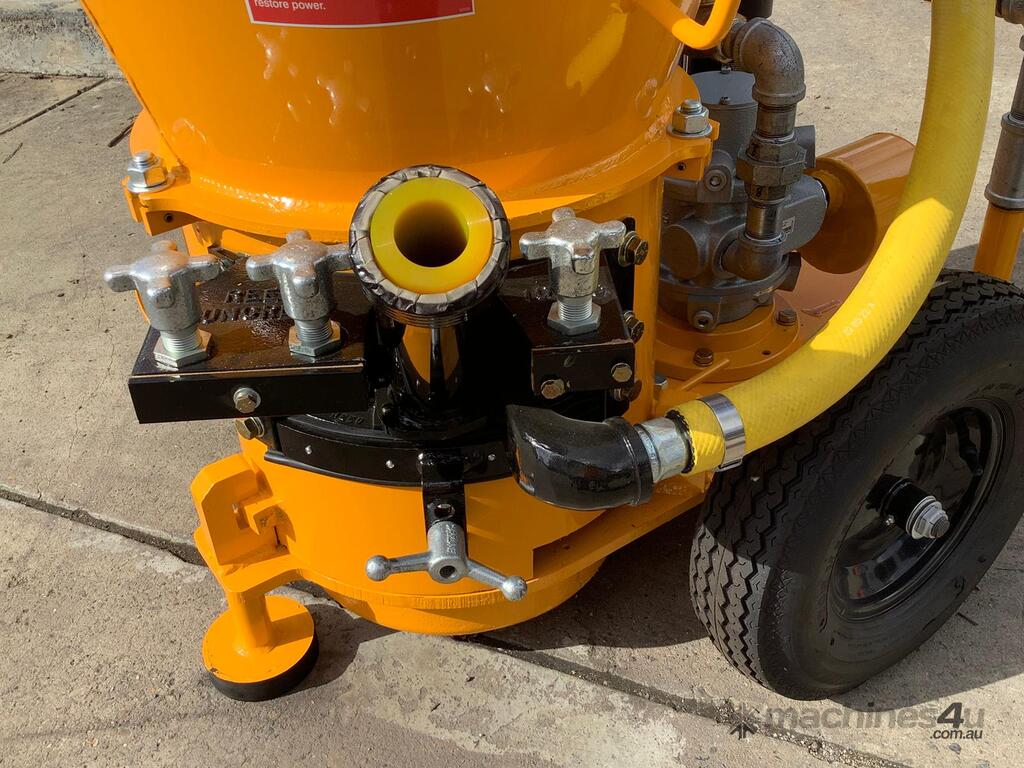

1.5" liner type
15/20/21 Pocket Feedbowl & Wearplate configurations available

* The adjustable output of material may be increased without sacrificing the quality of the application.

* Reed’s LOVA Dry Mix Gun has been using the same basic operating principle for over 40 years.

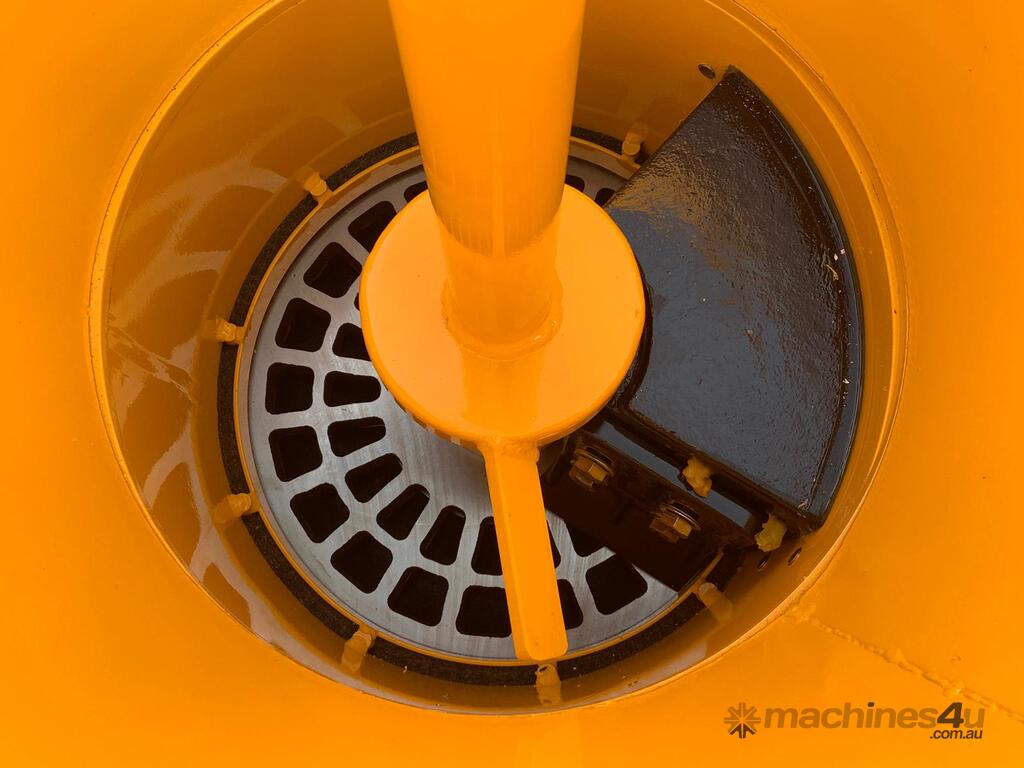

1.The dry mix is fed through a hopper into the pockets of the rotary feed wheel.

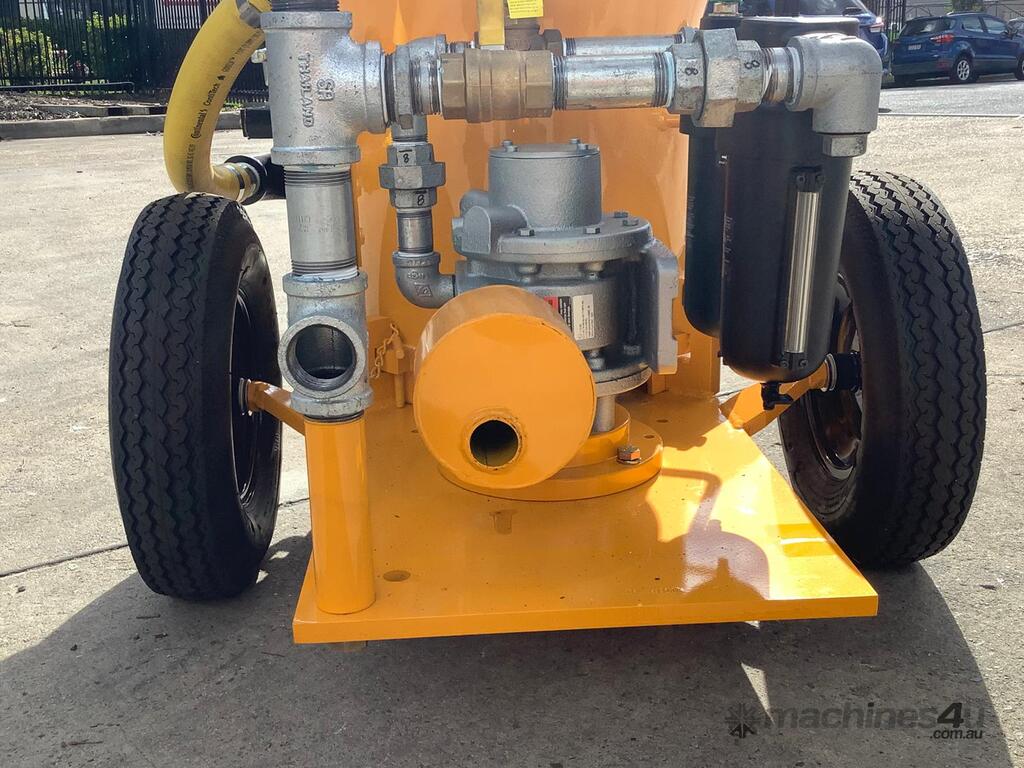

2.The rotary feed wheel, driven by a heavy duty oil bath gear drive, rotates the mix under the conveying air inlet and material outlet.

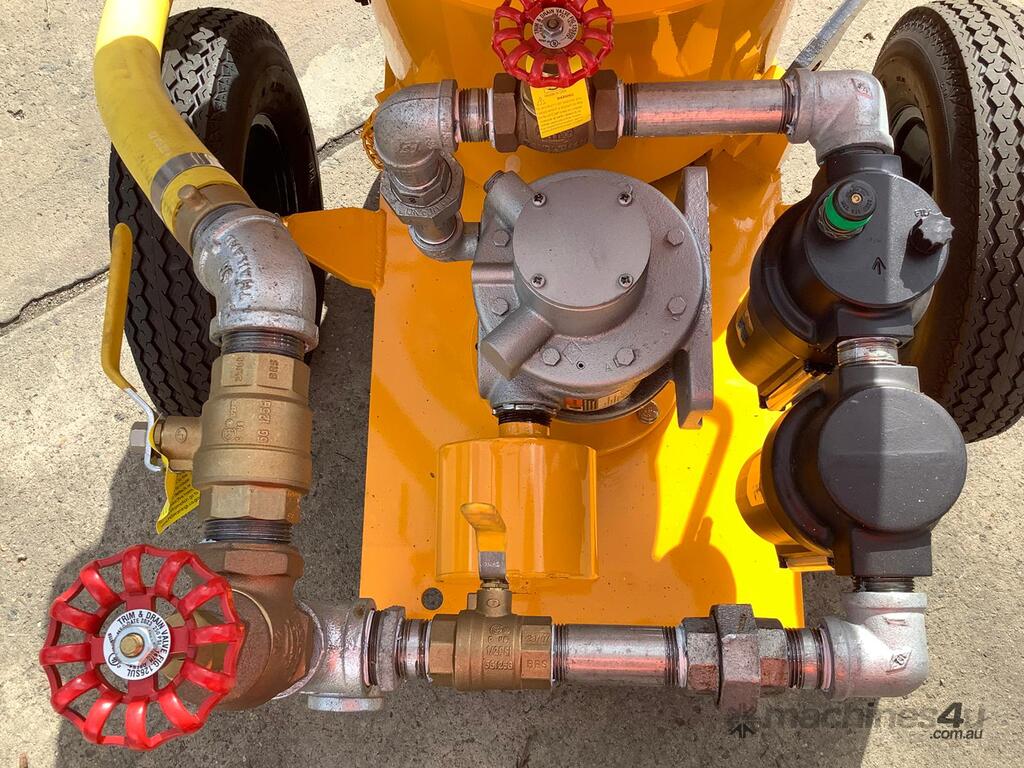

3.With the introduction of single source compressed air, the mix is evacuated from the feed wheel pockets and then travels through the outlet.

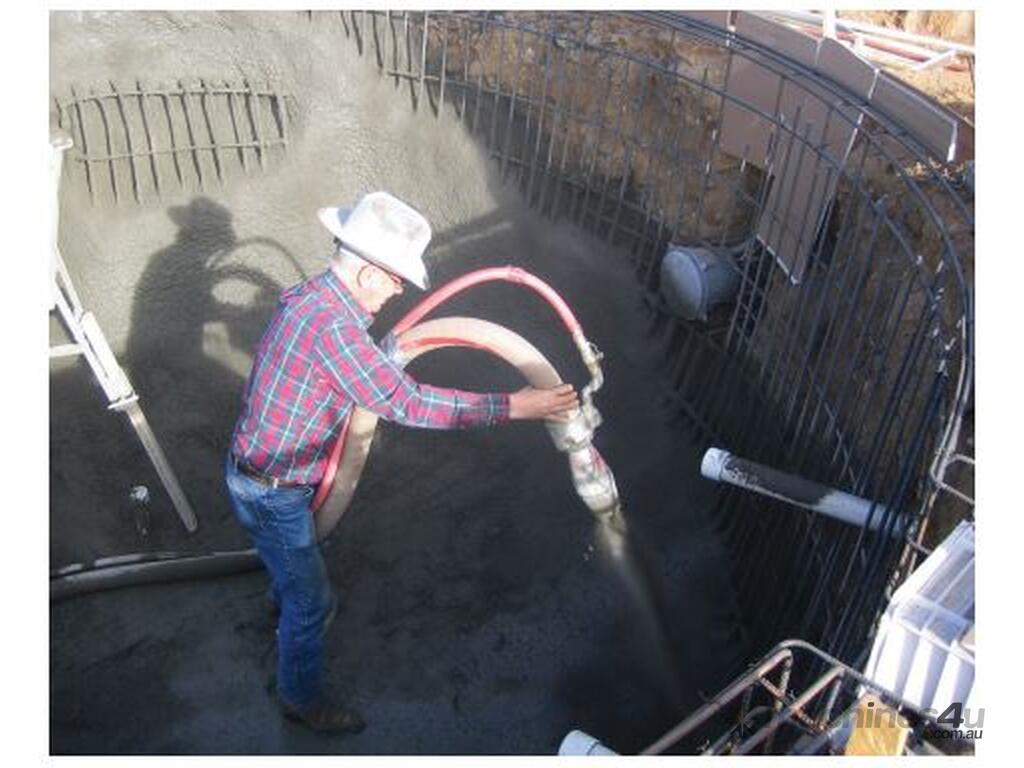

4.The dry mix is then conveyed in suspension through the dry mix hose to the shotcrete nozzle where water is introduced.
