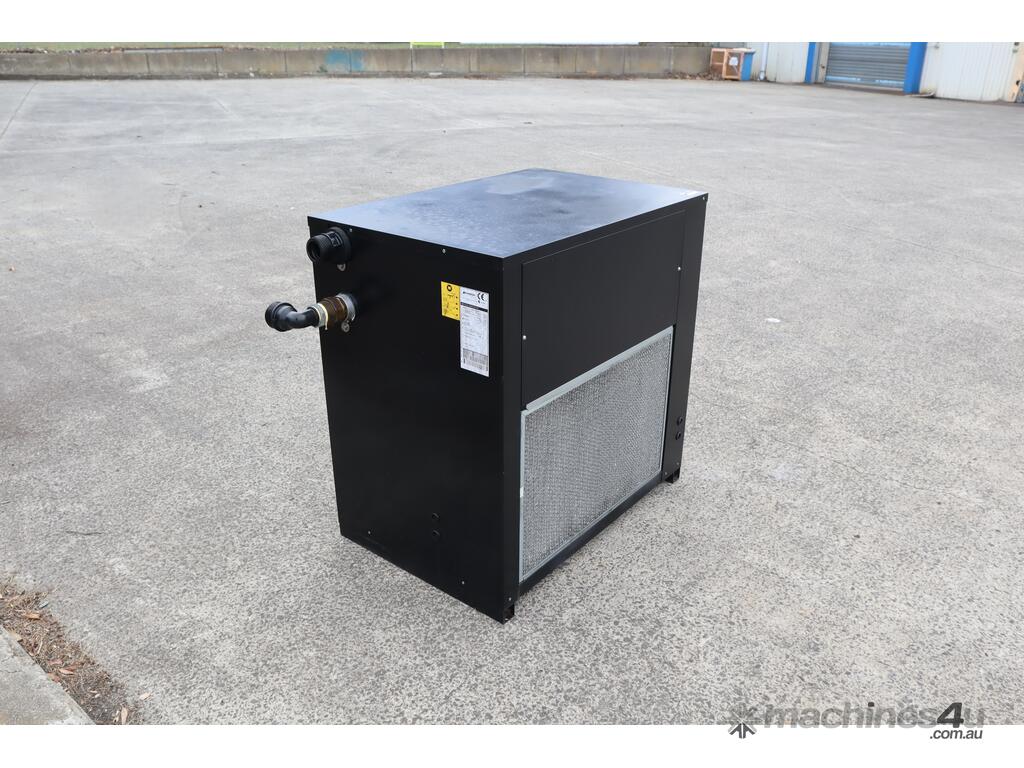

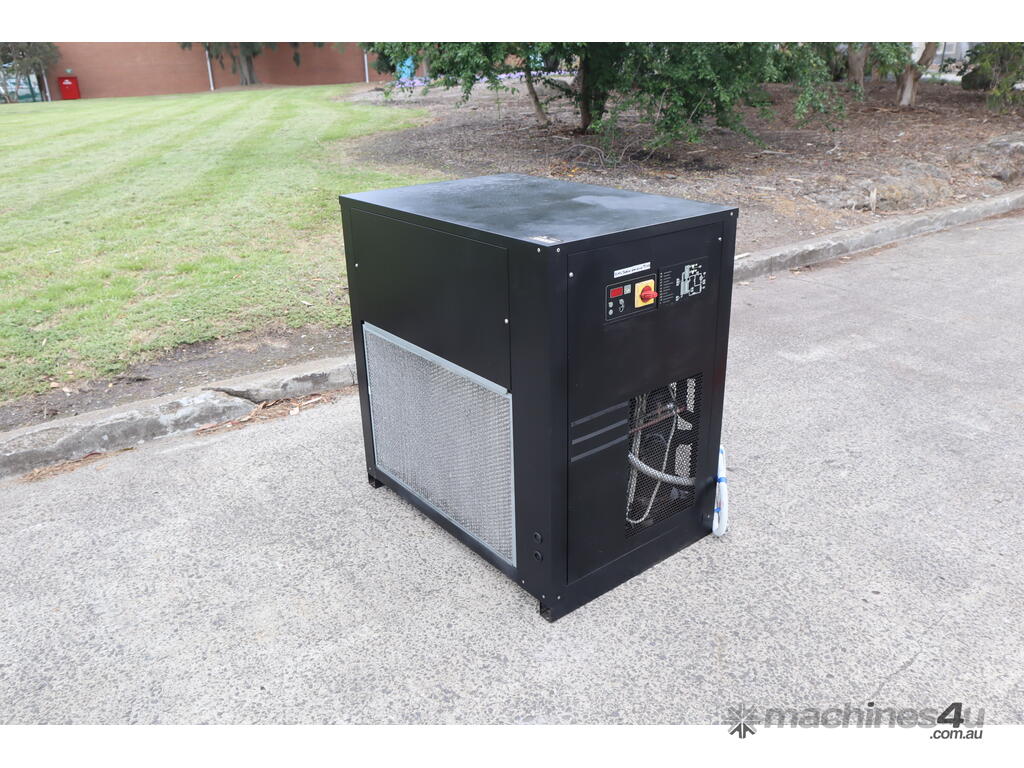

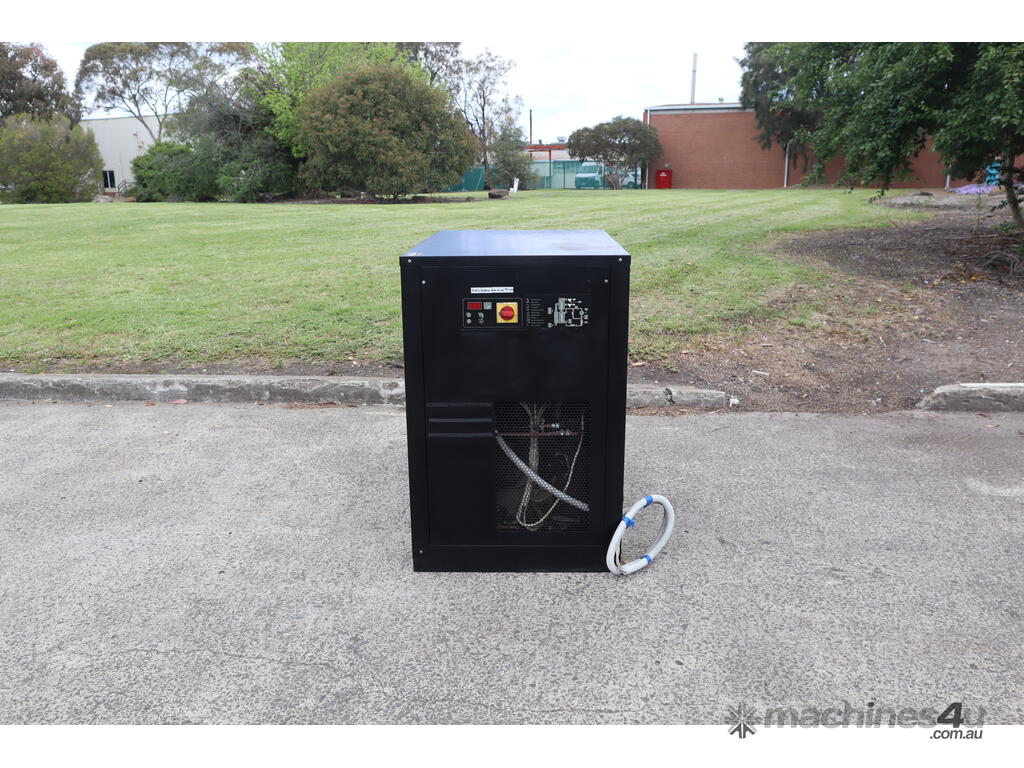

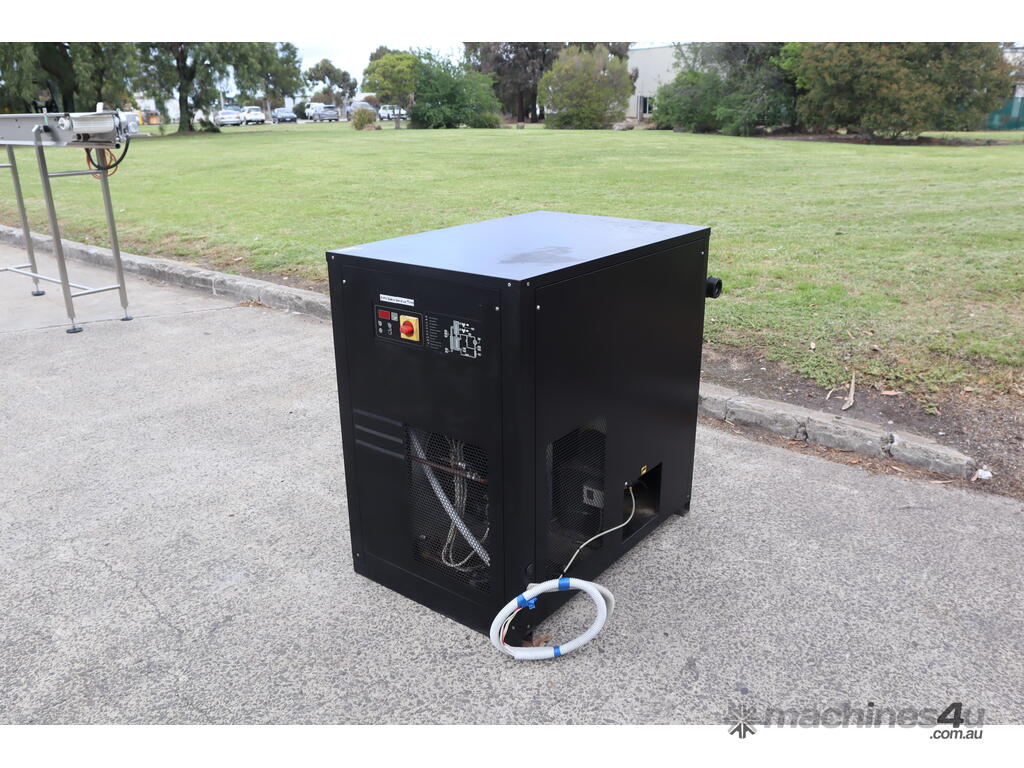

Refrigerated Air Dryer - Champion CRDii 140

This industrial refrigerated air dryer is in great condition and is a compact solution designed to deliver reliable moisture removal in compressed air systems. Built for consistent dew point performance, it provides clean, dry air to protect downstream equipment and maintain stable operation in demanding environments. Suitable for installations with higher ambient or inlet temperatures.

Typical Applications:
Manufacturing and process lines
Remote-site compressor setups
General industrial compressed-air systems requiring dry air

Features:

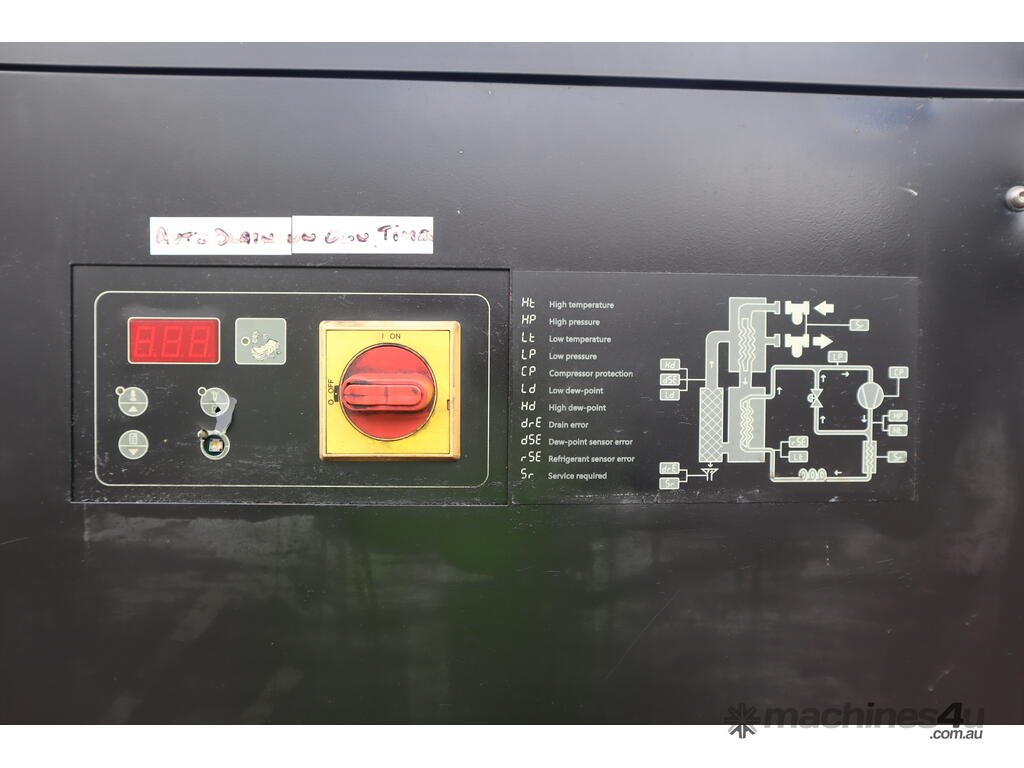

Straightforward access for servicing and routine maintenance
Durable industrial construction suitable for continuous use
Compatible with a wide range of screw or piston compressors

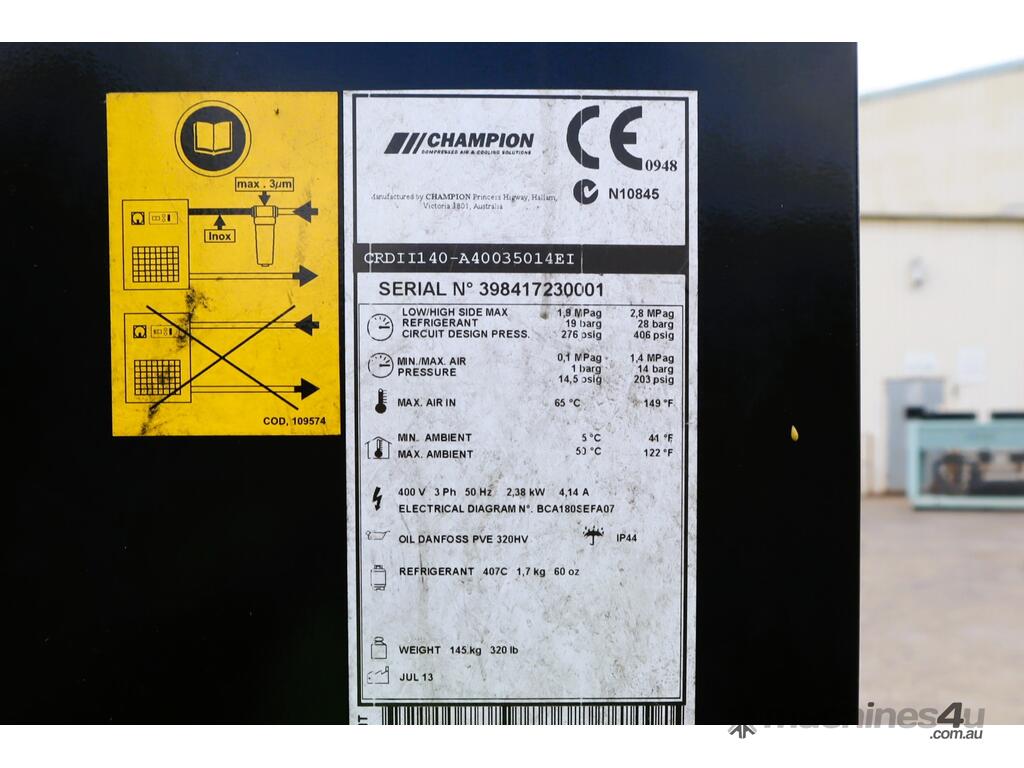

Make: Champion
Model: CRDii 140

Air Flow (with pressure dew point) 3C: 14m³ per min / 495 CFM
Air Flow (with pressure dew point) 7C: 17m³ per min / 600 CFM
Nominal Absorbed Power: 1.41 kW
Working Pressure (Min/Max): 14 bar

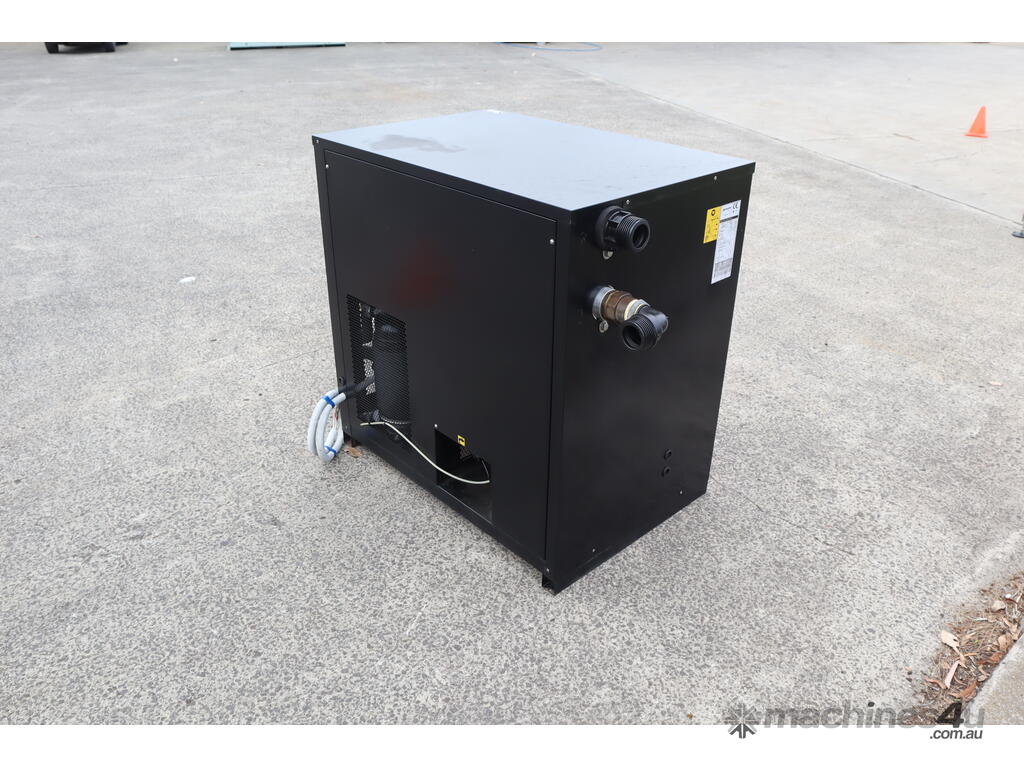

Connection Sizes: 2" BSP
Max Air In: 65 Celcius
Ambient Temperature (Min/Max): 5 / 50 Celcius

Rated Voltage: 415V 3 Phase
Power: 2.38kW

Machine Weight: 145 kg
Overall Dimensions (mm): 1250 L x 710 W x 1065 H
