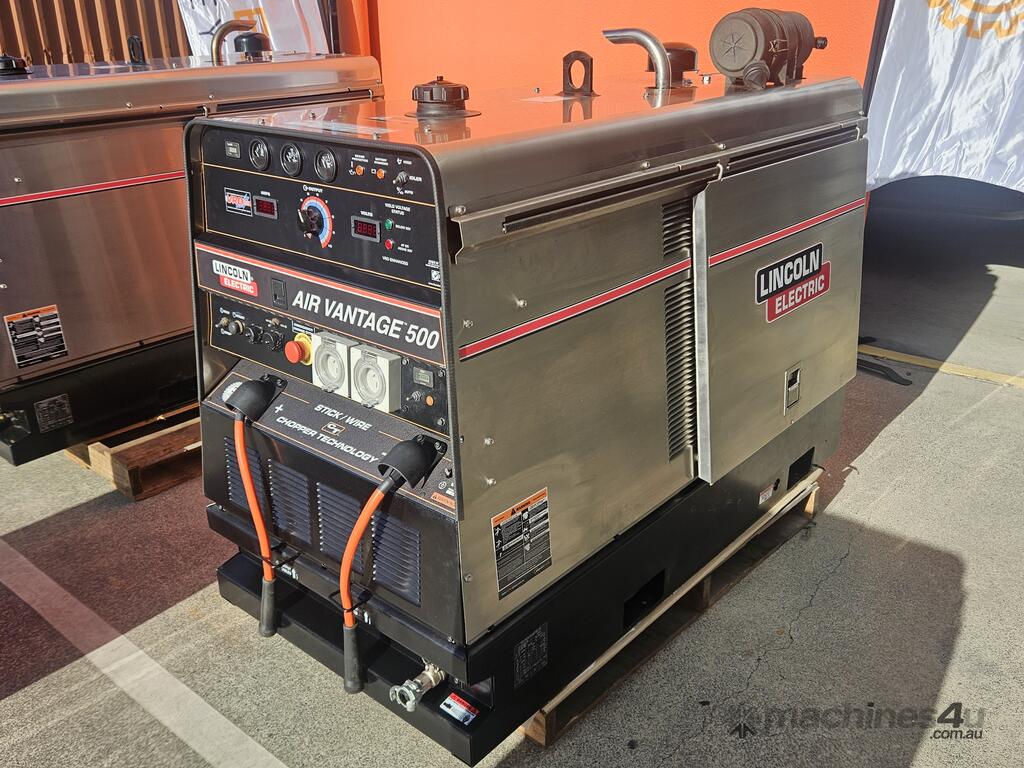

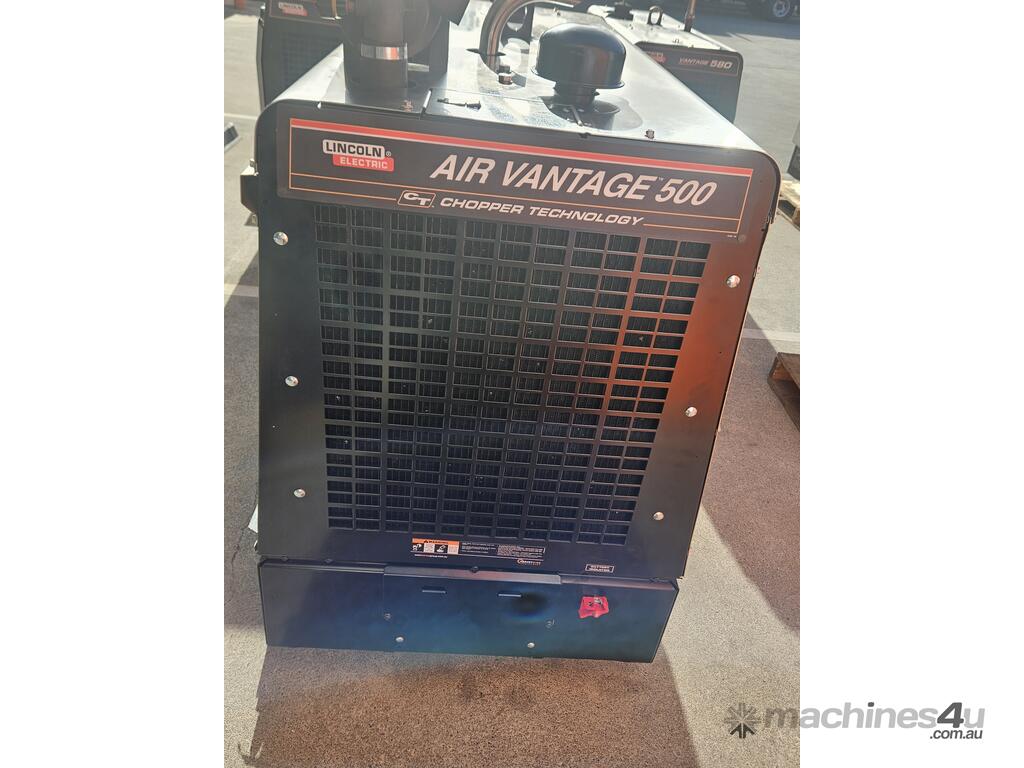

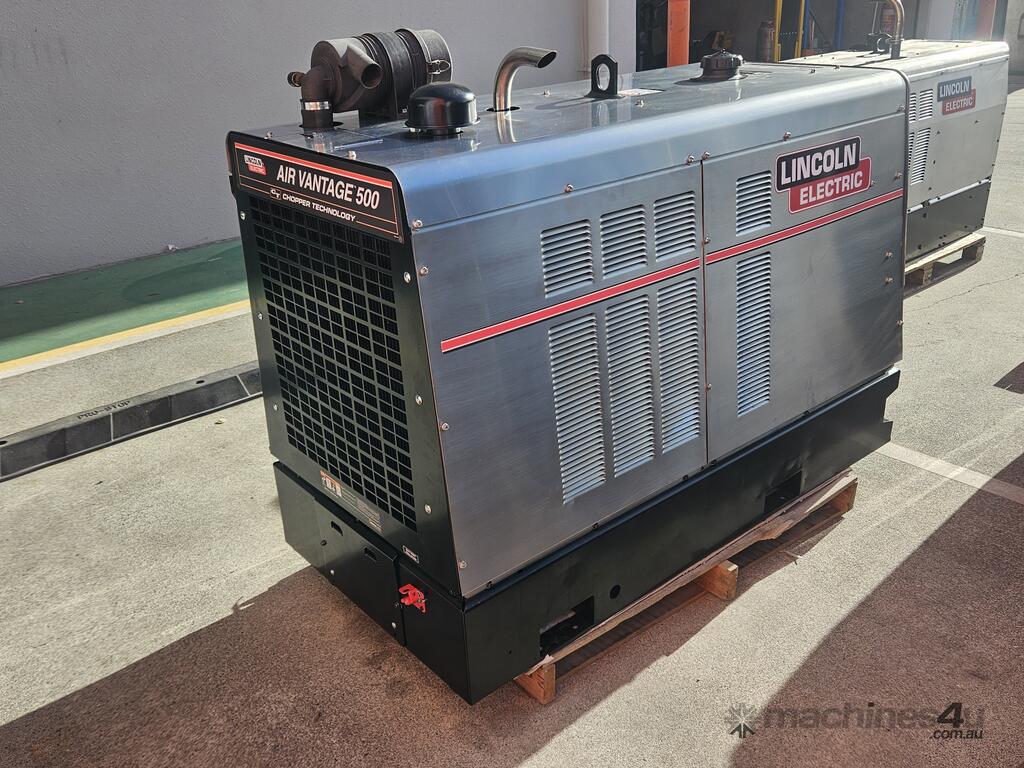

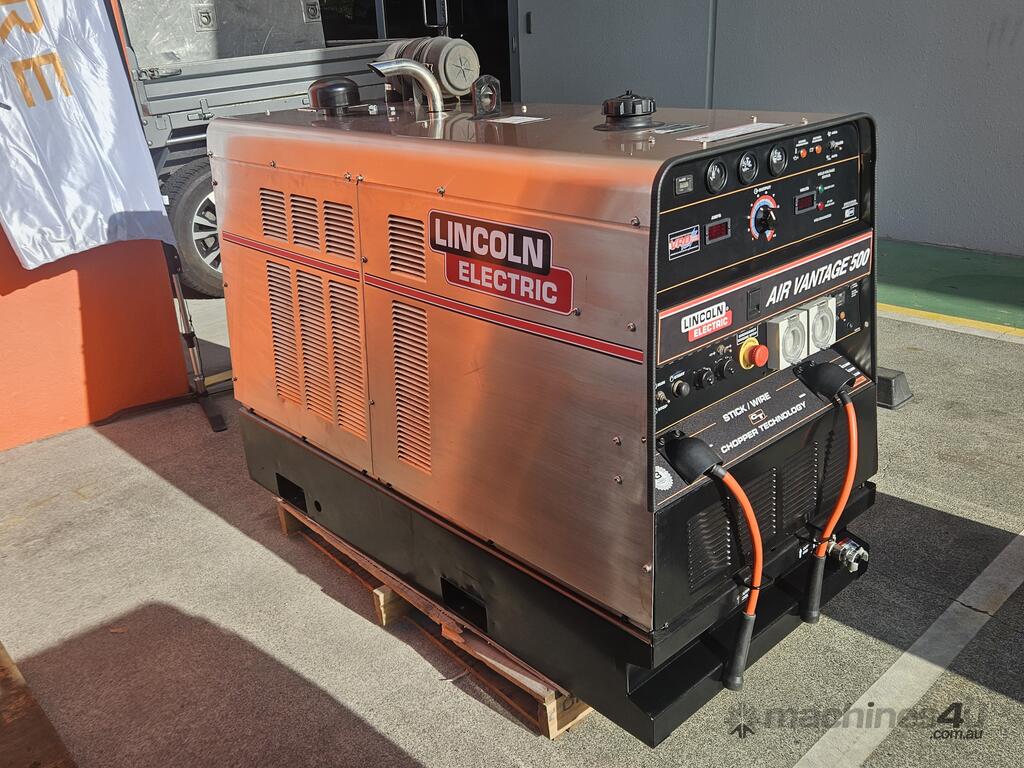

Refurbished Lincoln Electric Air Vantage 500 Belt Drive Diesel Welder

In Brisbane Stock, Made to Order.

Harvey Group is Australia's leading refurbished welding machine supplier with over 200 machines sold Australia wide.

Harvey Group build the very best quality refurbished welding machines in Australia, using only quality parts, workmanship, testing and after sales support. Harvey Group welders are as close to new as you can get.

Key advantages to our refurbished machines.
• All refurbished machines are fully dismantled, blasted, primed and powder coated.
• All rotor bearings and brushes are replaced.

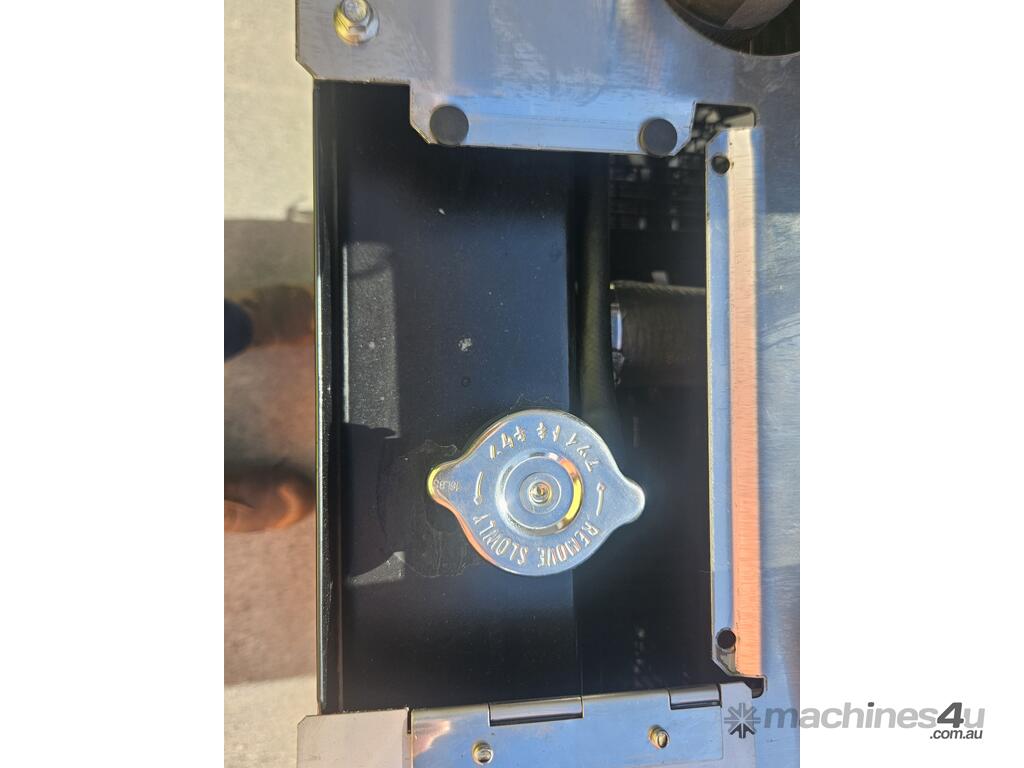

• All radiators are serviced (Pressure tested, flushed and painted)
• We check and replace all known wearing parts.
• Quality brand power outlets and circuit breakers.
• Engines are serviced with new fan belt and battery.
• Minimum 1 hour load test at 100% duty cycle to ensure the very highest reliability.

6-month return to base parts and labour warranty.

Lincoln Air Vantage 500 (60HZ)
Specifications
Welding output: 500A 100% (Maximum output 575A)
Auxiliary power: 12KW 2x Single Phase 240V 60Hz.
Dimensions: (MM)1260H x 831W x 1603L 785KGS


Australia Wide Shipping.
Sydney: $250 + GST
Melbourne: $400 + GST.
Adelaide: $400 + GST
Perth: $600 + GST
Darwin: $500 + GST

It’s three in one - Welder Generator and Air Compressor

When you need it all, consider the rugged Air Vantage® 500 for railroad, mining,
general maintenance & repair, and heavy duty construction.
The belt driven VMAC® rotary screw compressor pumps out plenty of air for arc
gouging with up to 9.5 mm carbons, plasma cutting or almost any air tool. A powerful
500 amps at 100% duty cycle is enough for most stick, TIG, MIG or flux-cored
welding project. The precision arc starting provided by Lincoln Electric Chopper
Technology® and will make any operator a better welder.
Simple controls and Chopper Technology® deliver the low maintenance, long
servicelife, easy operation and the great arc performance every owner demands in
these environments.
Plenty of AC generator power - up to12,000 watts of 1-phase is standard. Stainless
steel roof and side panels provide added durability and corrosion-resistance.
The Cummins® B3.3 liquid cooled diesel engines will keep you running and working
for a long time

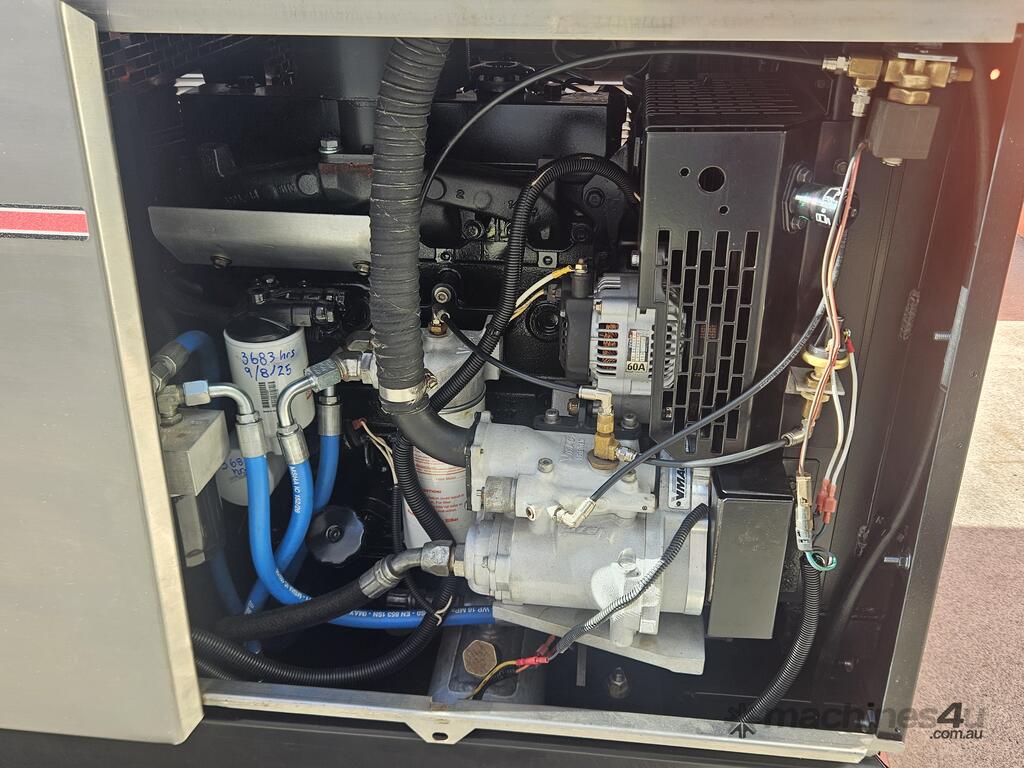

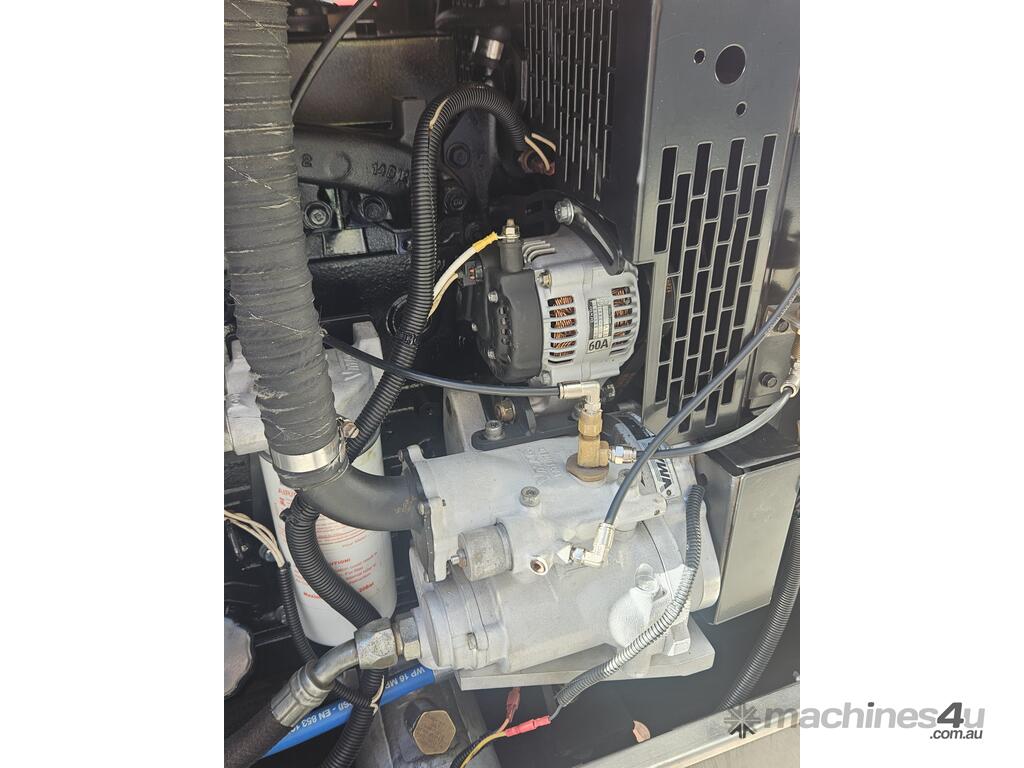

• Rotary Screw Compressor
- belt driven VMAC® rotary screw compressor rated at 60 CFM, 100PSI,
100% duty cycle. Delivers abundant air for arc gouging with up to 9.5mm
carbons, plasma cutting (plasma cutter sold seperately) and air tools such as
an impact wrench or needle gun.
• Simple to operate
– Select one of five Process Modes, including CC-Stick, CC-Pipe, CC-Gouging,
Touch-Start™ TIG or CV Wire, and then dial in the desired output.
• Optimised CC-Stick mode
- CC-Stick mode is optimised for general purpose and E7018 low hydrogen
electrodes.
• Arc control adjustment
- Produces a soft, buttery arc or a more forceful, digging arc to suit your
requirements.
• 12kVA of auxiliary power
- 2 x 240V, 15A IP66 rated outlets for powering tools, grinders and lighting.

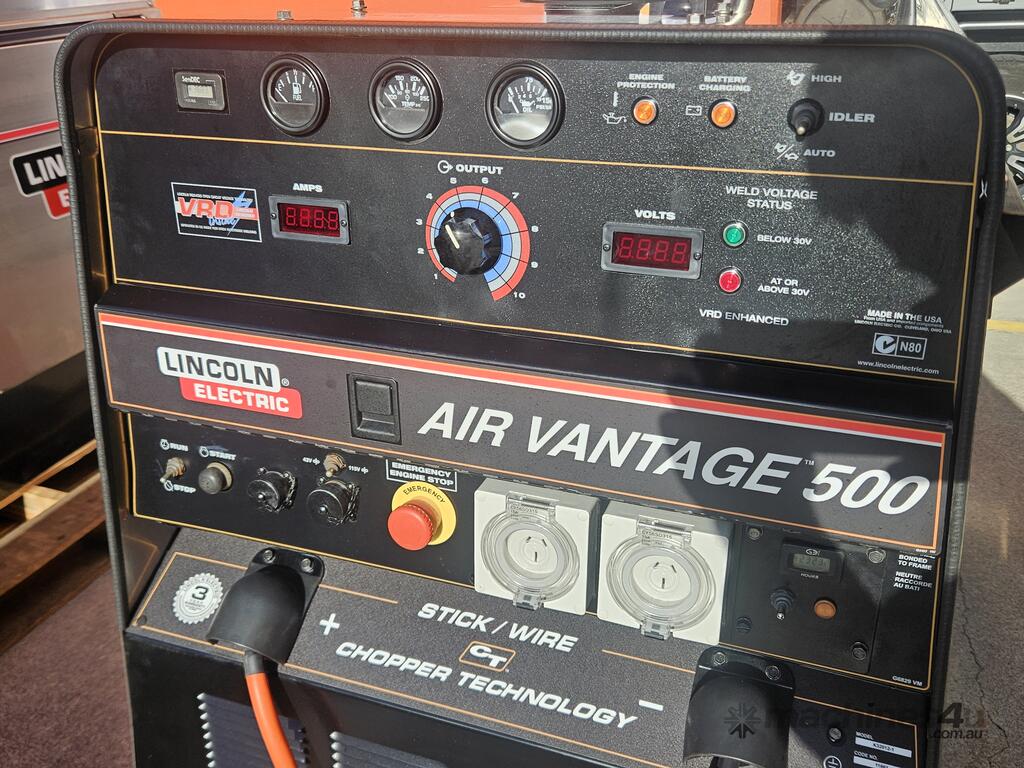

• Digital Volt/Amp meters
- Built-in preset function makes it easy to precisely set your procedures.
• Arc gouging
- Arc gouging with up to 9.5mm carbons.
• Full instrumentation
- Fuel, oil pressure, engine temperature gauges and hour meter keep
you on top of monitoring engine performance.
• Cummins® B3.3 disel engine
- 56 horsepower, liquid-cooled, 4 cylinder Cummins® B3.3 engine,
includes automatic engine idler for greater fuel economy and reduced
noise.
• VRD Device
- Factory-fitted, built-in voltage reduction device (VRD) offers additional
protection for the operator. The VRD operates in the CC mode reducing
the OCV to a safer
