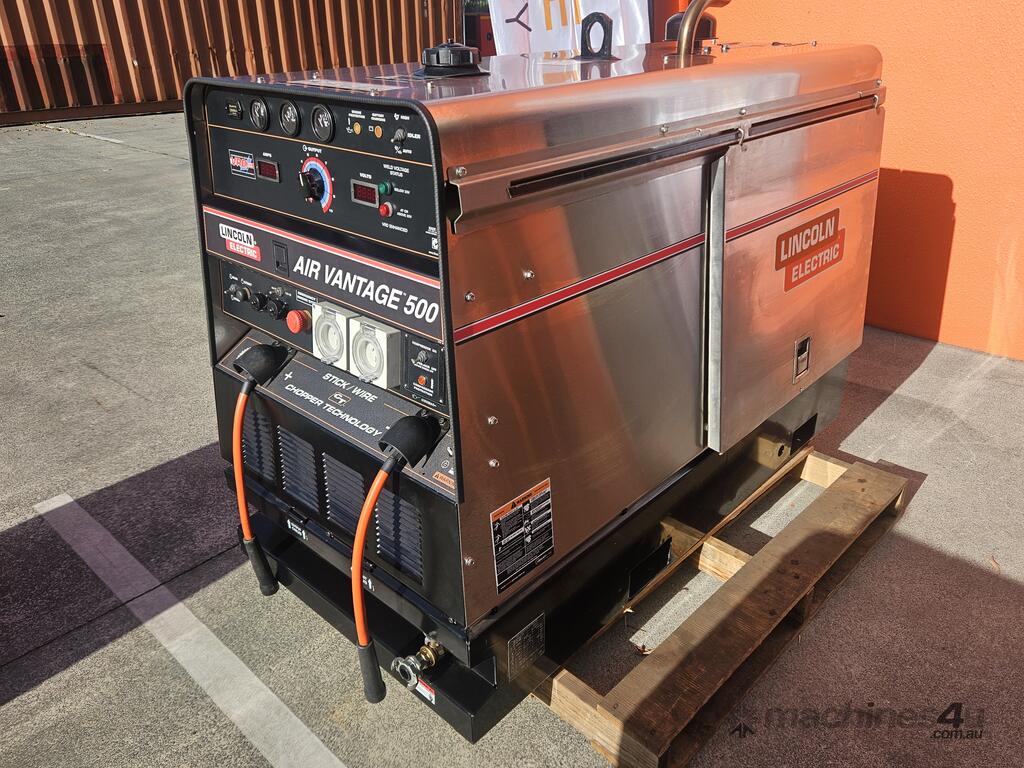

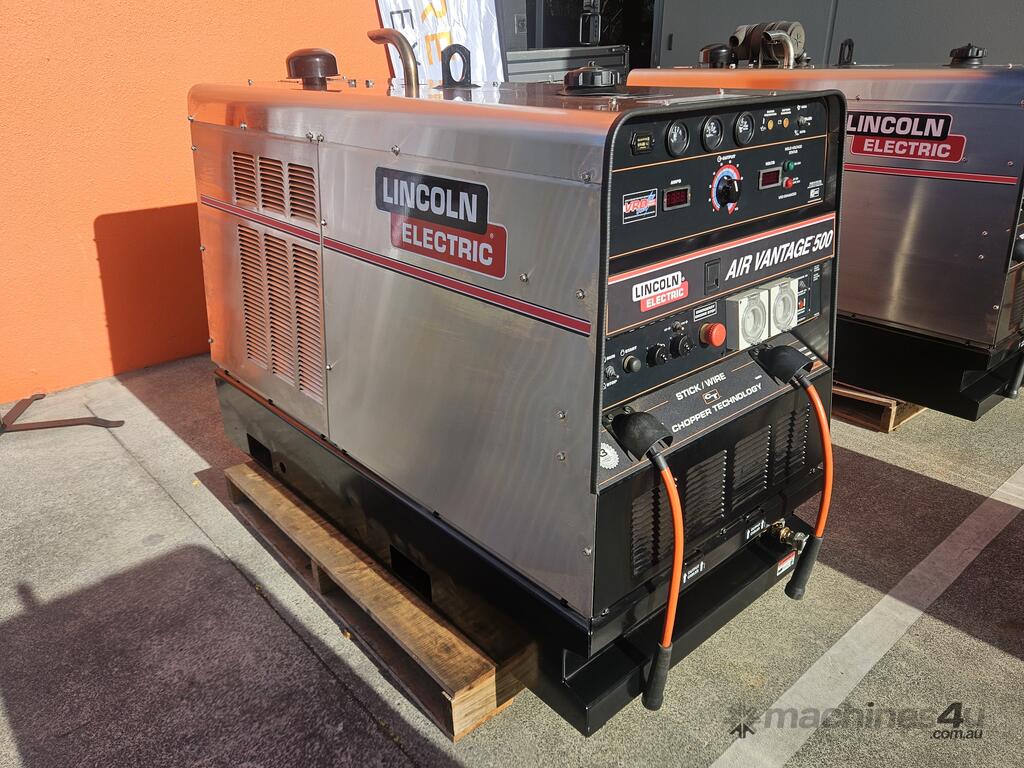

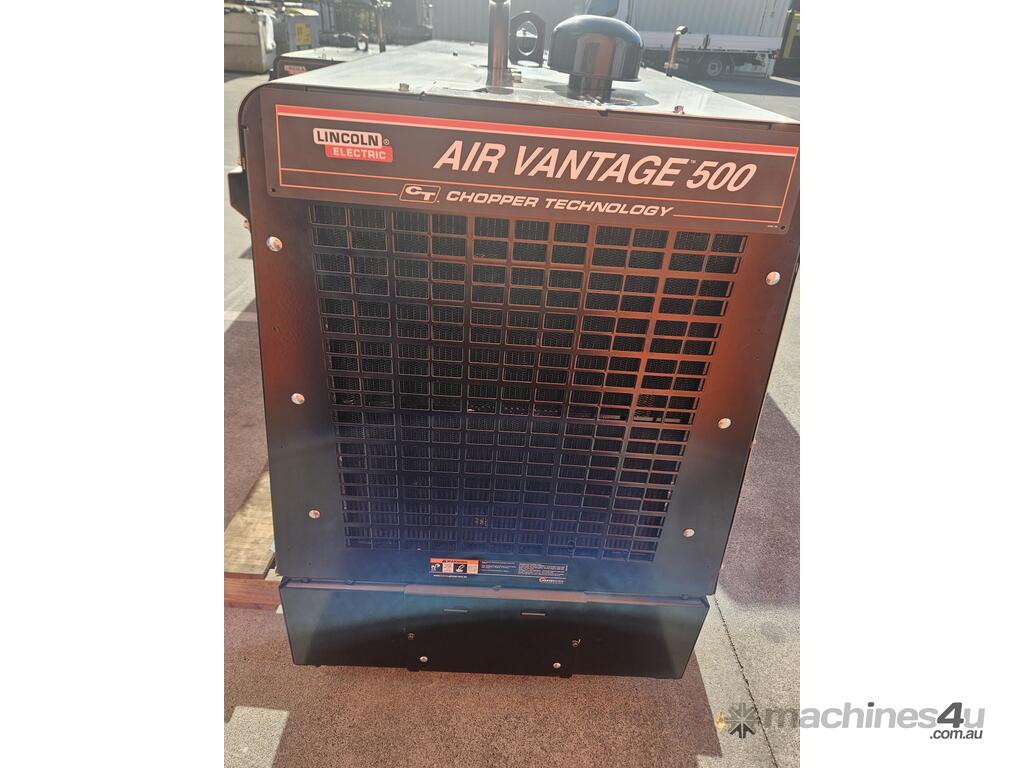

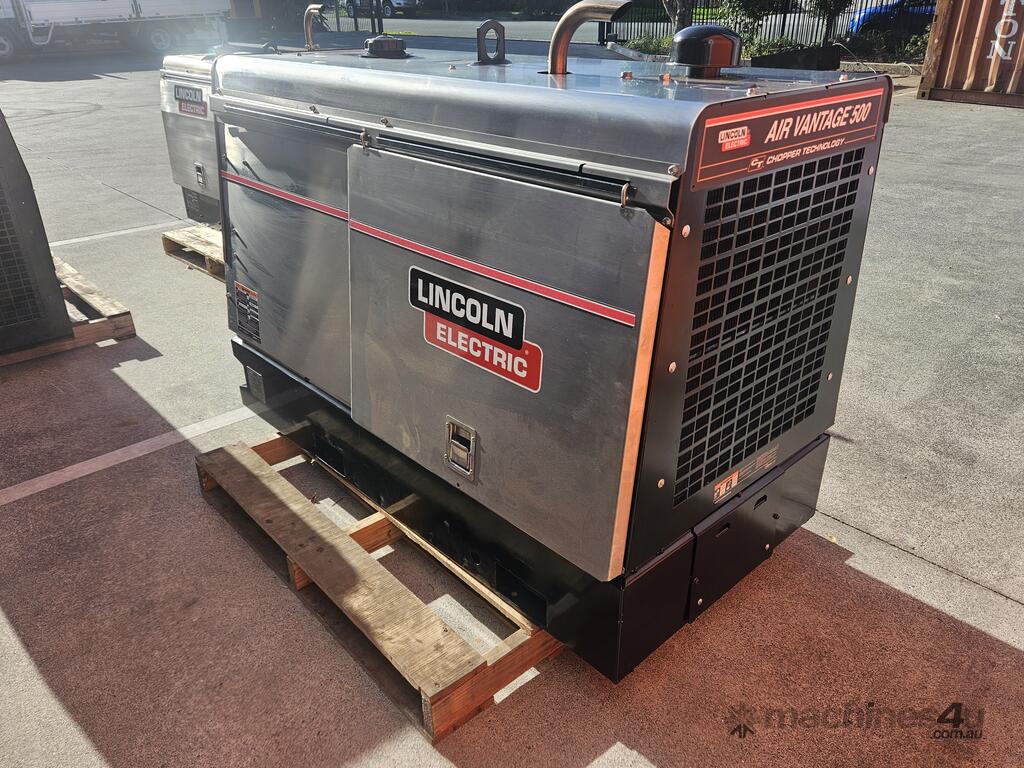

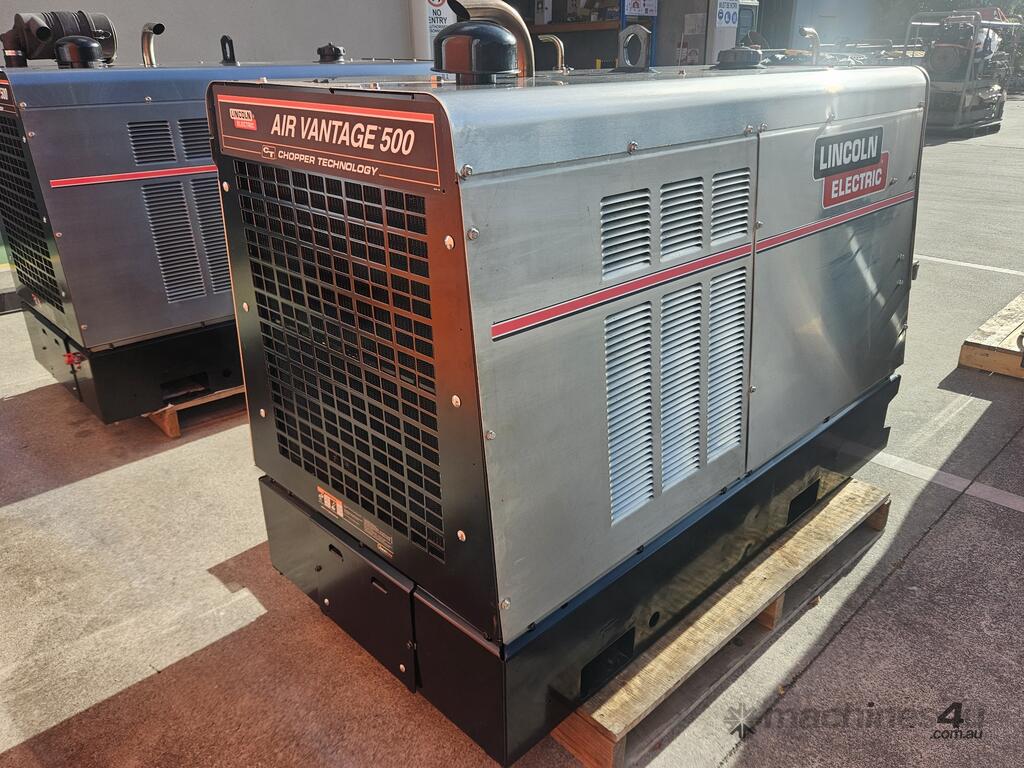

Refurbished Lincoln Electric Air Vantage 500 Direct Drive Diesel Welder

In Brisbane Stock, Ready to Ship

Harvey Group is Australia's leading refurbished welding machine supplier with over 200 machines sold Australia wide.

Harvey Group build the very best quality refurbished welding machines in Australia, using only quality parts, workmanship, testing and after sales support. Harvey Group welders are as close to new as you can get.

Key advantages to our refurbished machines.
• All refurbished machines are fully dismantled, blasted, primed and powder coated.
• All rotor bearings and brushes are replaced.

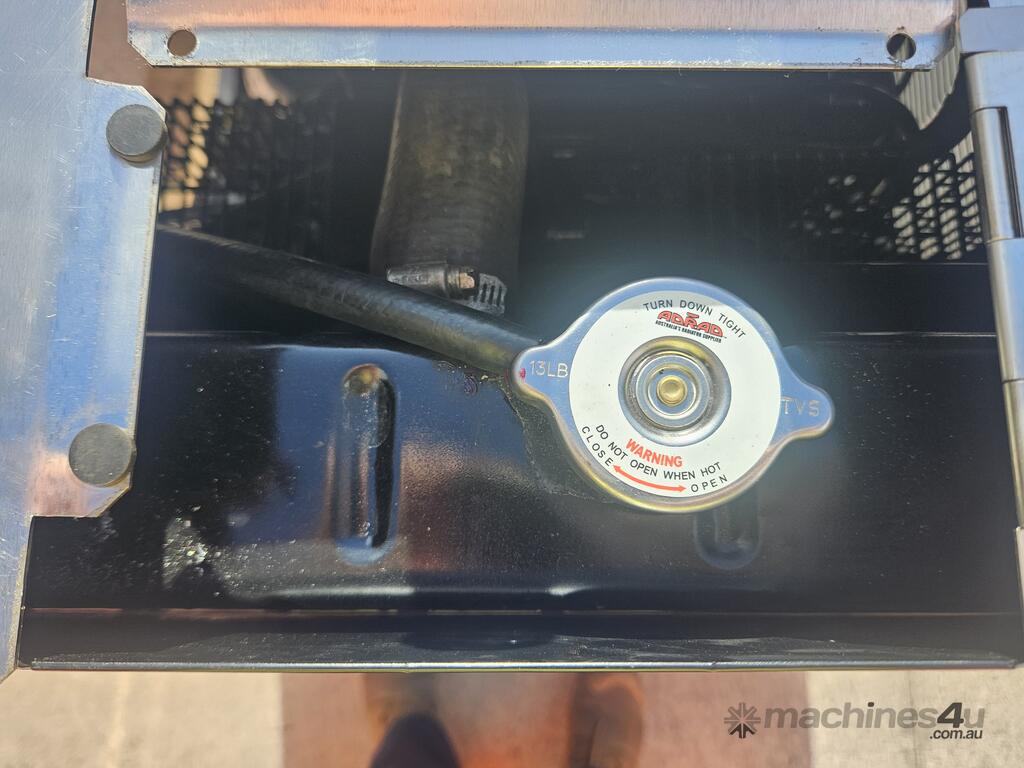

• All radiators are serviced (Pressure tested, flushed and painted)
• We check and replace all known wearing parts.
• Quality brand power outlets and circuit breakers.
• Engines are serviced with new fan belt and battery.
• Minimum 1 hour load test at 100% duty cycle to ensure the very highest reliability.

6-month return to base parts and labour warranty.

Lincoln Air Vantage 500 (60HZ)
Specifications
Welding output: 500A 100% (Maximum output 575A)
Auxiliary power: 12KW 2x Single Phase 240V 60Hz.
Dimensions: (MM)1260H x 831W x 1603L 766KGS


Australia Wide Shipping.
Sydney: $250 + GST
Melbourne: $400 + GST.
Adelaide: $400 + GST
Perth: $600 + GST
Darwin: $500 + GST

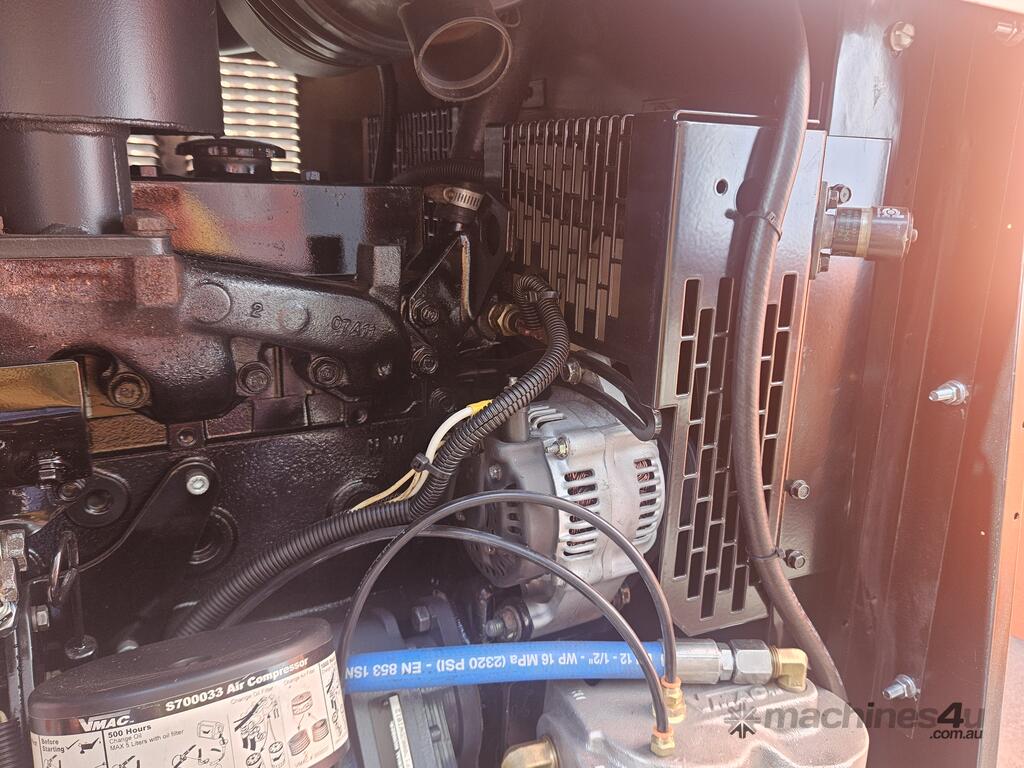

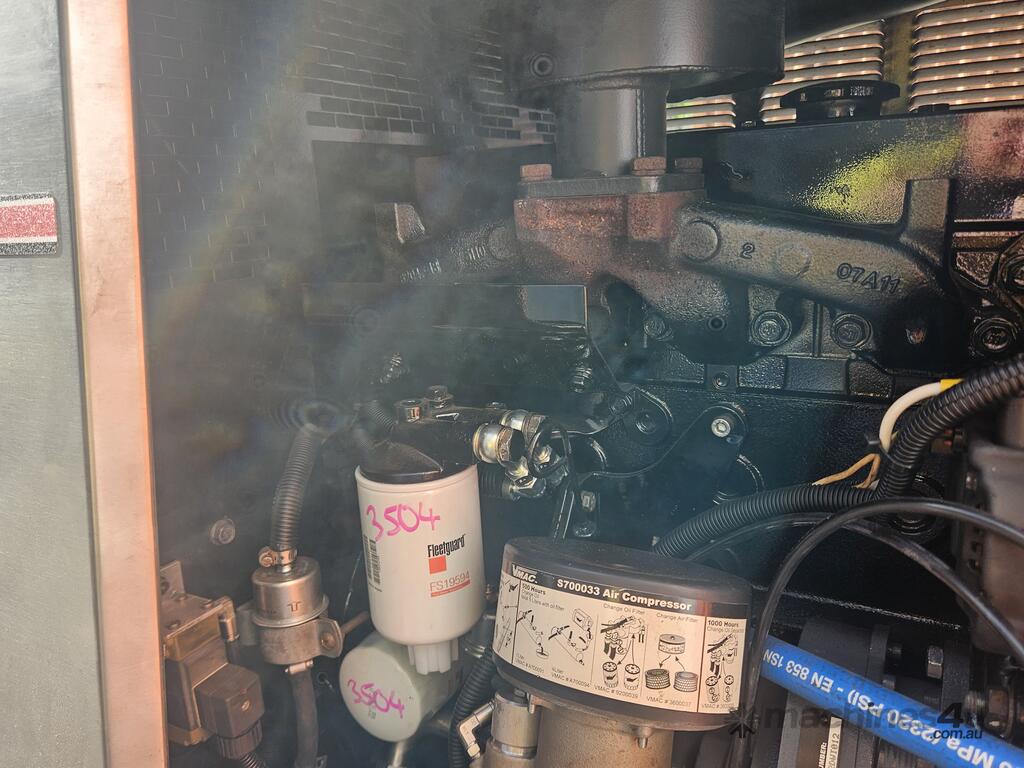

• Field-proven four cylinder Cummins B3.3
industrial diesel engine.
• Standard stainless steel roof and side
panels deliver added protection, durability
and corrosion resistance.
• Indicator lights for low oil pressure, high
engine temperature or broken cooling fan
belt/low engine alternator voltage
• Engine protection system: automatic
shutdown for broken fan belt/low engine
alternator voltage, low oil pressure, high
engine temperature.

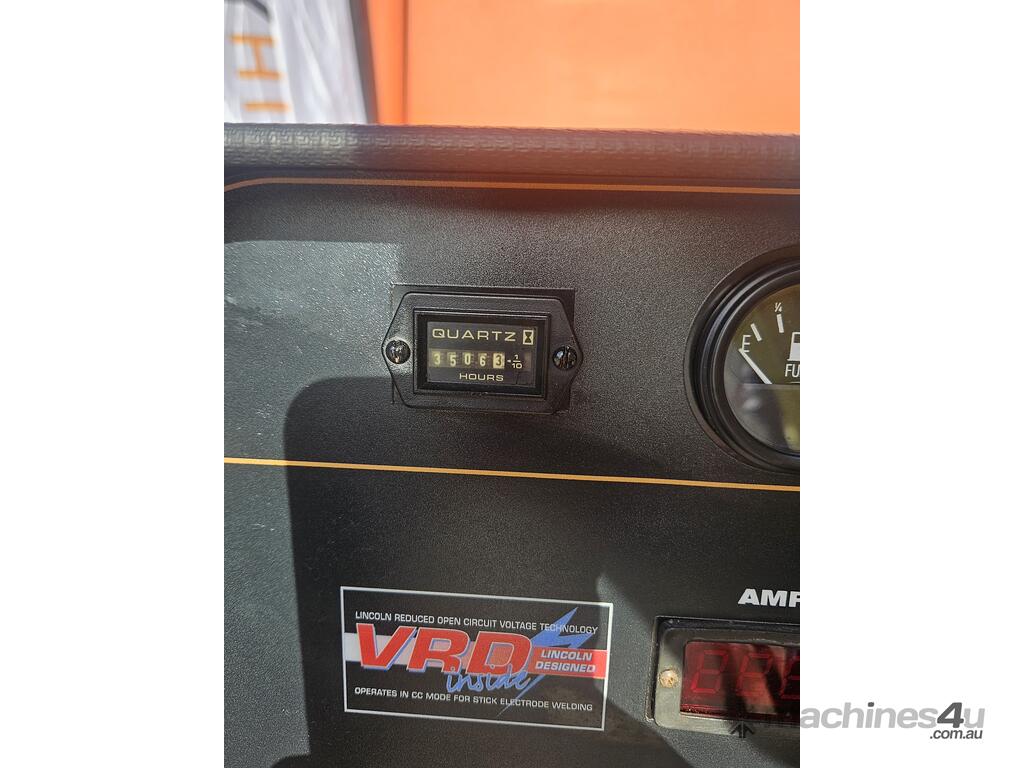

• Gauges include fuel, oil pressure, water
temperature, and hour meter.
• Automatic engine idler for greater fuel
economy, longer engine life and reduced
noise.

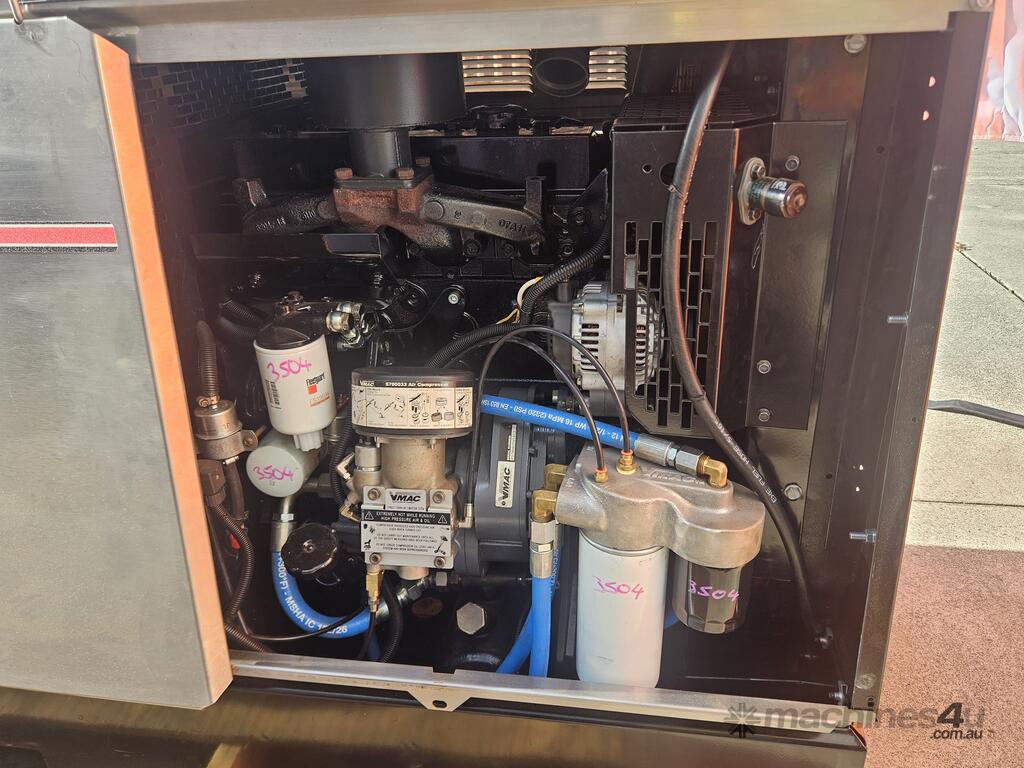

• Single-side engine access for routine
maintenance. Siding stainless steel door
located on the right side. Opens easily,
even in tight surrounds.
• Compressor on/off switch, turns
compressor off when not required. The
compressor will deliver 60 CFM, 100PSI
while engine is idlering for greater fuel
economy.
• Battery lock out/tag out switch
• External battery charging/jump start
terminals

• 500 amps DC 100% duty cycle
575 amps DC 50% duty cycle
• Excellent DC arc characteristics welding
with Chopper Technology for stick, TIG,
MIG, cored wire and arc gouging with
carbons up to 8mm (9.5mm max).

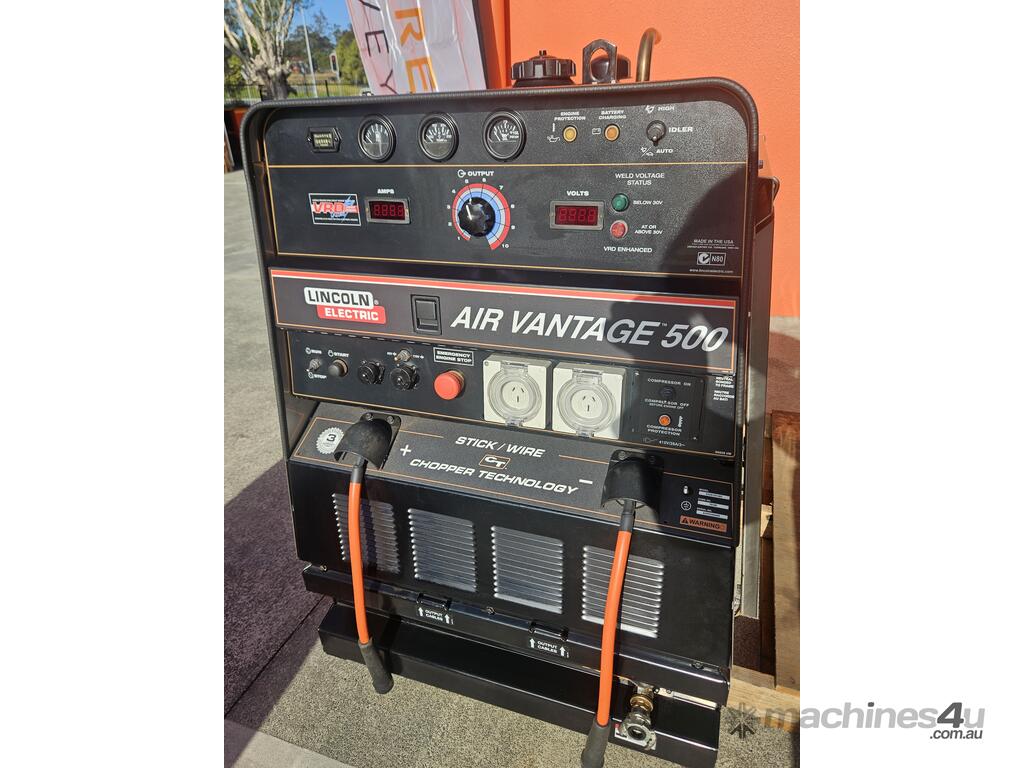

• Simplified control panel featuring
continuous full-range output control dial.
• Arc control in CC and CV modes for crisp
and soft arc.
• "Touch Start" DC TIG welding for smooth
arc starts without contamination or the
need for a high-frequency generator.
• VRD device (for additional operator
safety) Factory fitted, built-in voltage
reduction device (VRD) offers additional
safety for the operator. The VRD operates
in the CC mode reducing the OCV to a
safer
