In Brisbane Stock, Made to Order.

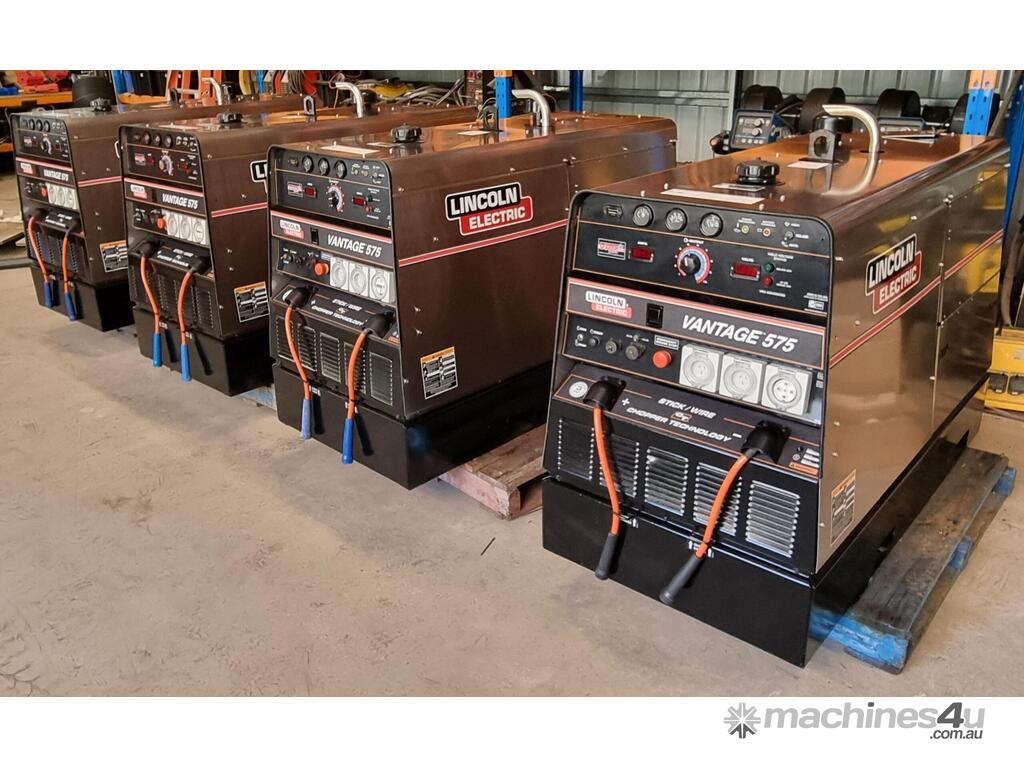

Harvey Group is Australia's leading refurbished welding machine supplier with over 200 machines sold Australia wide.
Harvey Group build the very best quality refurbished welding machines in Australia, using only quality parts, workmanship, testing and after sales support. Harvey Group welders are as close to new as you can get.
Key advantages to our refurbished machines.
• All refurbished machines are fully dismantled, blasted, primed and powder coated.
• All rotor bearings and brushes are replaced.
• All radiators are serviced (Pressure tested, flushed and painted)
• We check and replace all known wearing parts.
• Quality brand power outlets and circuit breakers.
• Engines are serviced with new fan belt and battery.
• Minimum 1 hour load test at 100% duty cycle to ensure the very highest reliability.
6-month return to base parts and labour warranty.

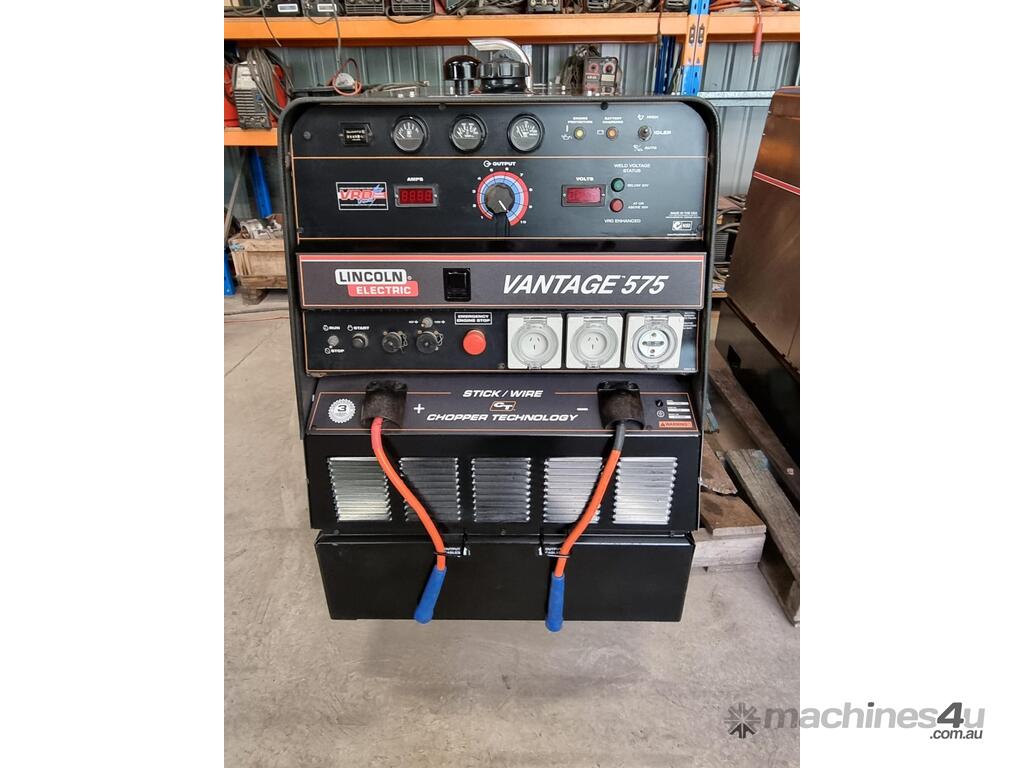

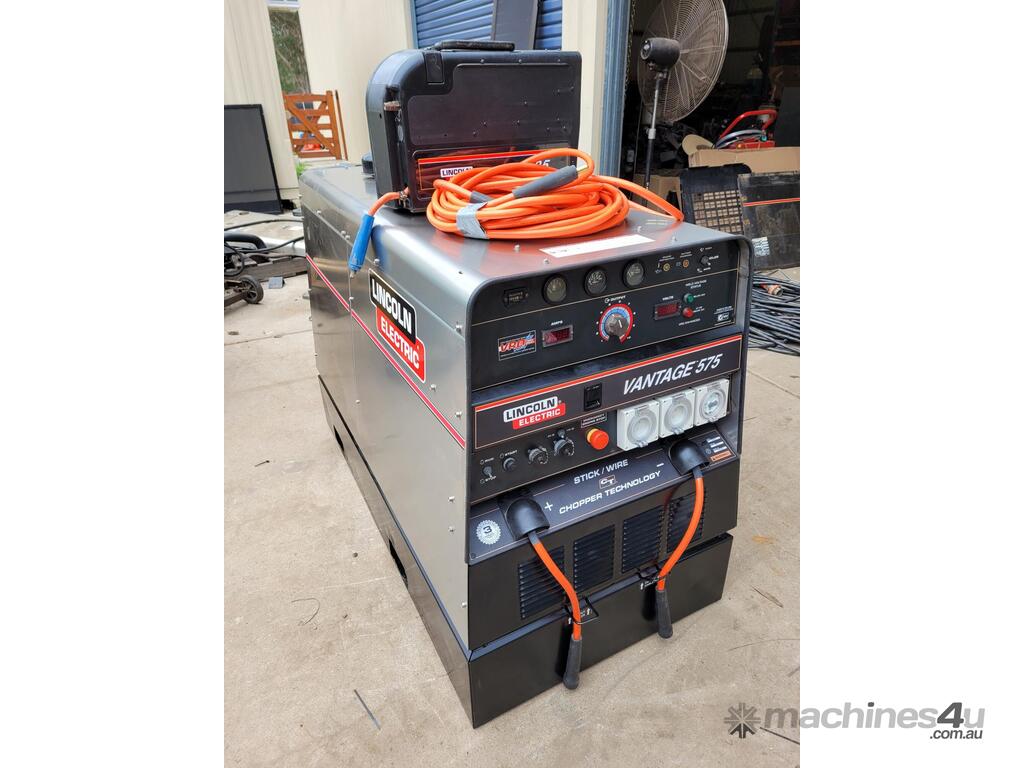

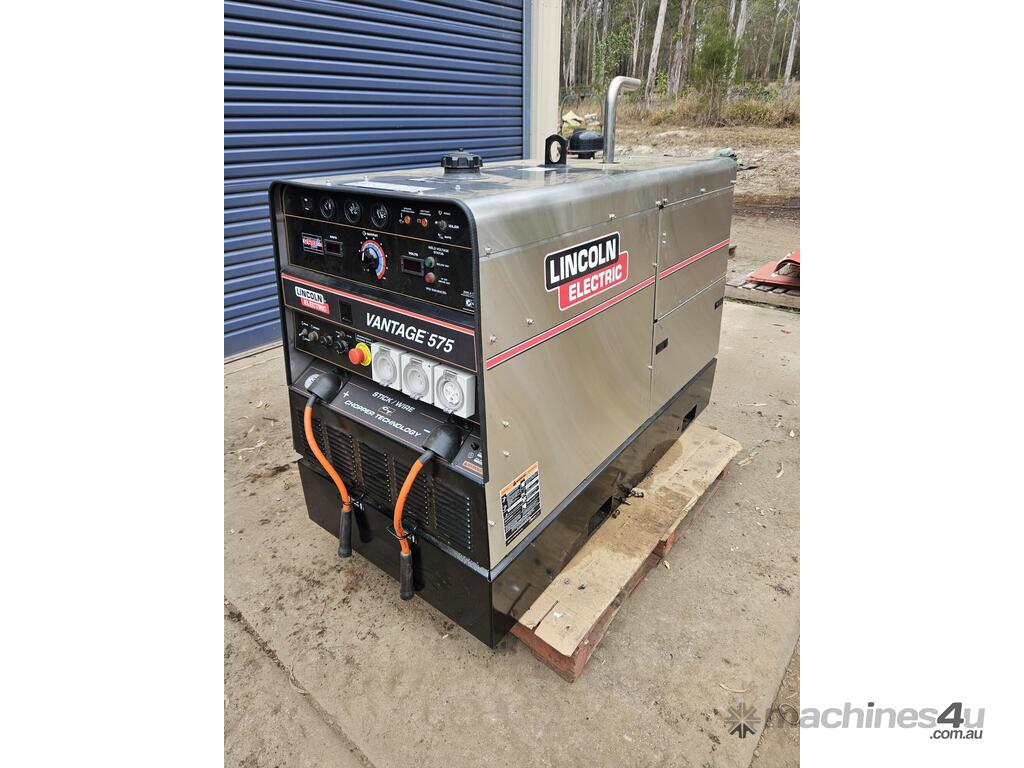

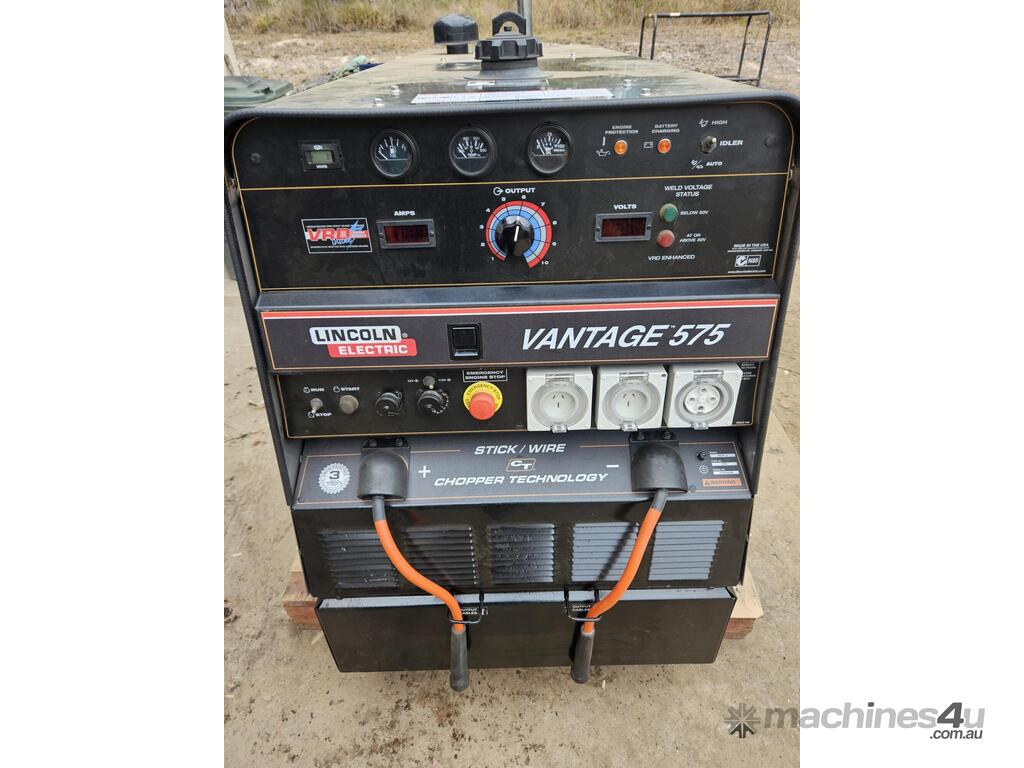

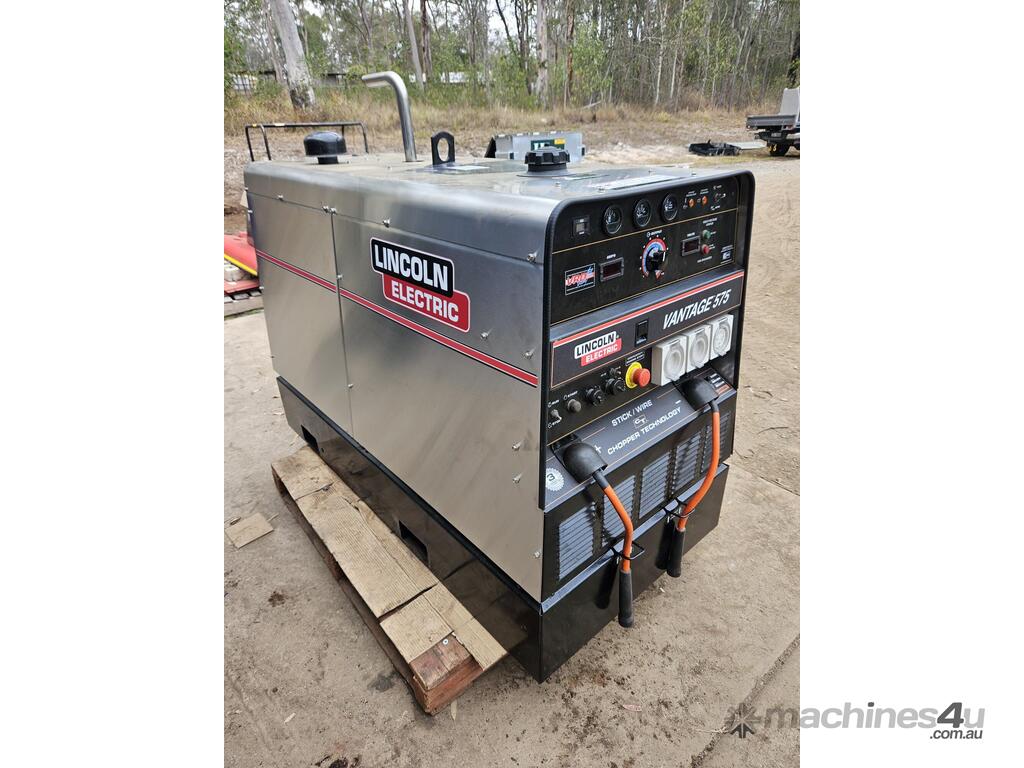

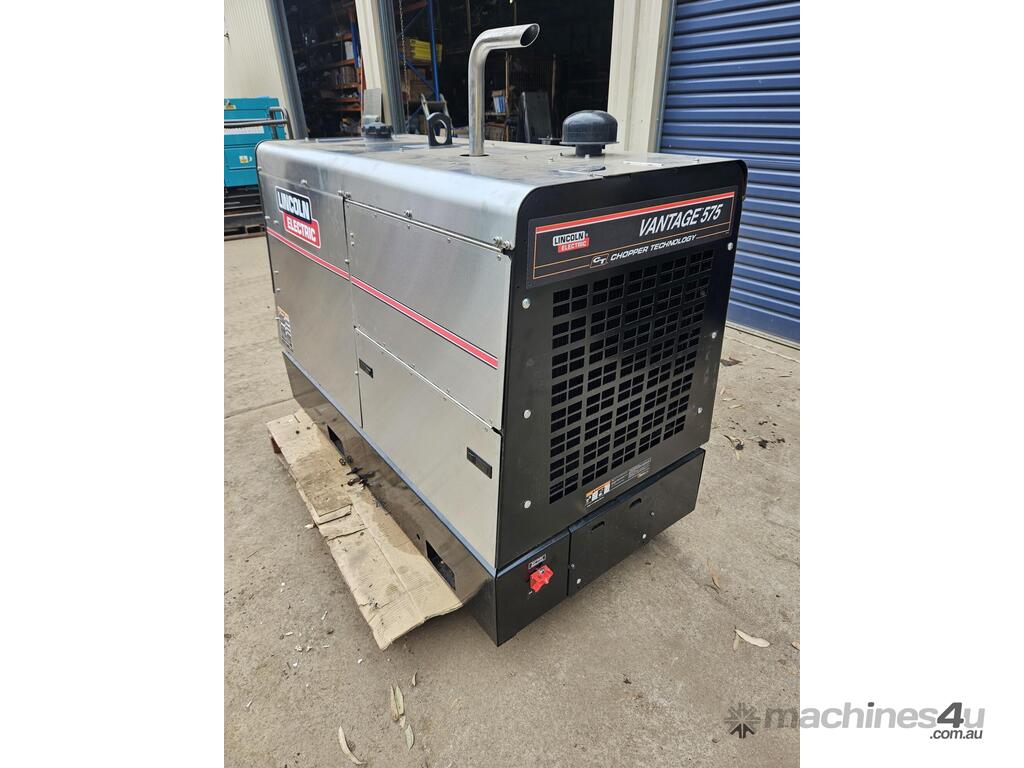

Lincoln Vantage 575
Specifications
Welding output: 450A 100% (Maximum output 575A)
Auxiliary power: 20KW Three Phase 415 50Hz, 6.9KW Single Phase 240V 50Hz.
Dimensions: 1295H x 800W x 1600L(MM) 741KGS
Australia Wide Shipping.
Sydney: $250 + GST
Melbourne: $400 + GST.
Adelaide: $400 + GST
Perth: $600 + GST
Darwin: $500 + GST
If you are looking for a rugged, reliable and capable welder for a demanding mining
or construction site, a dependable hire fleet or for a quick turnaround repair job, the
Vantage® 575 has all the power you need and the safety feature modern standards
demand. New standard features include a battery isolator switch for safer
maintenance procedures and a engine stop button to quickly shut the Vantage® 575
down in the event of an emergency.
Simple controls and Chopper Technology® deliver the low maintenance, long service
life, easy operation and great arc performance every owner
demands in these environments.
This multi-process powerhouse features 450 amps at 100%, or 500 amps at 60%
duty cycle, tested at temperatures up to 40°C. Don’t pay extra for plenty of AC 240V
& 415V auxiliary power – this unit delivers 20,000 watts.
You can depend on legendary engine reliability from Cummins® and superior Lincoln
arc performance.
• Simple to operate
– Select one of three Process Modes, including CC-Stick, Touch-Start™ TIG
or CV Wire, and then dial in the desired output.
• Optimised CC-Stick mode
- CC-Stick mode is optimised for general purpose and E7018 low hydrogen
electrodes.
• Arc control adjustment
- Produces a soft, buttery arc or a more forceful, digging arc to suit your
requirements.
• Touch-Start™ DC TIG welding
- Provides easy arc starting that avoids tungsten contamination and the use
of high frequency.
• 20kVA of auxiliary power
- Able to power up to three inverter power sources to give you up to four
stick electrode welding arcs for higher productivity. 240V and 415V IP66
rated outlets

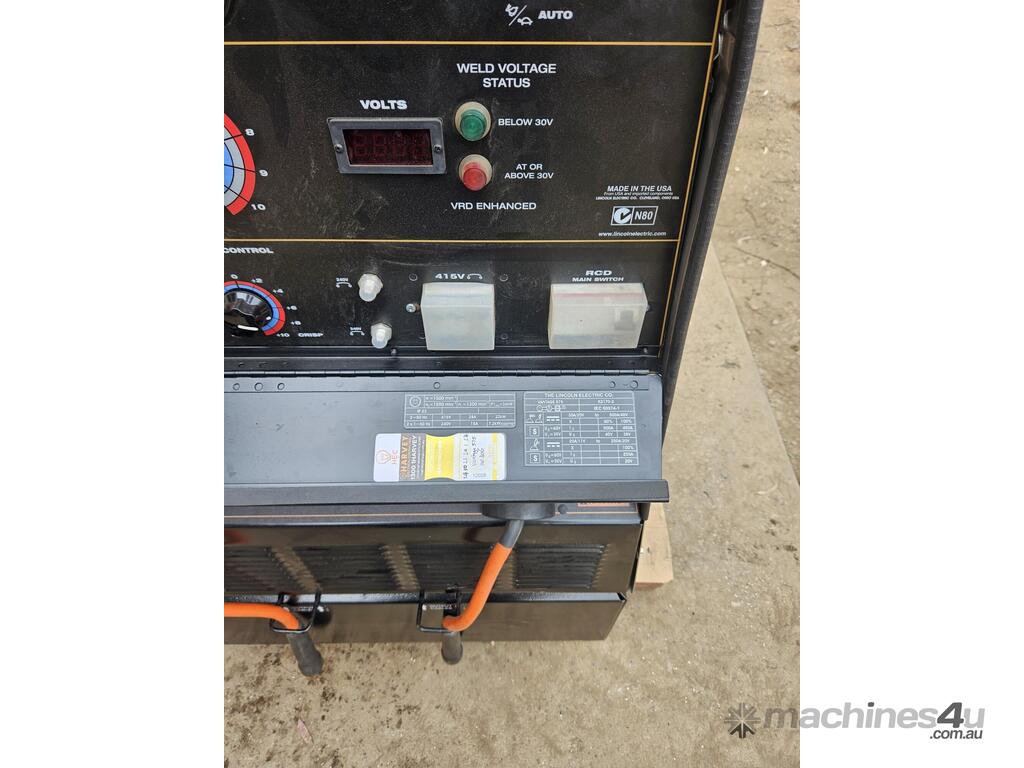

• Digital Volt/Amp meters
- Built-in preset function makes it easy to precisely set your procedures.
• Arc gouging
- Arc gouging with up to 9.5mm carbons.
• Full instrumentation
- Fuel, oil pressure, engine temperature gauges and hour meter keep
you on top of monitoring engine performance.

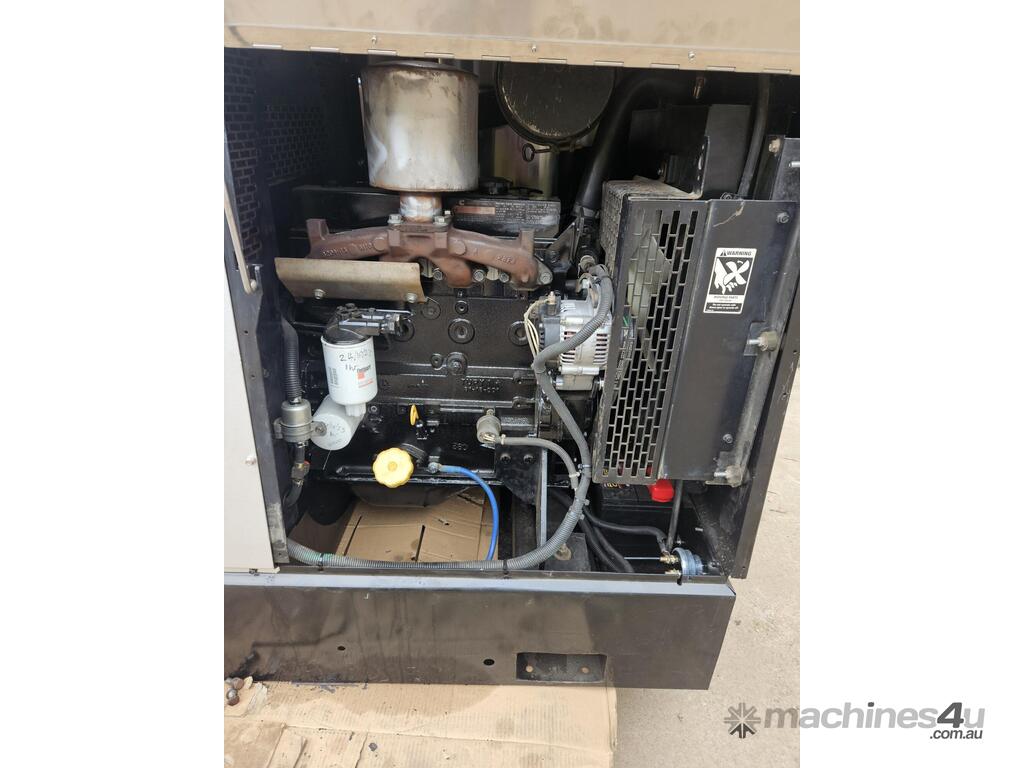

• Cummins® B3.3 diesel engine
- 46 horsepower, liquid-cooled, 4 cylinder Cummins® B3.3 engine,
includes automatic engine idler for greater fuel economy and
reduced noise.
• VRD Device
- Factory-fitted, built-in voltage reduction device (VRD) offers additional
protection for the operator. The VRD operates in the CC mode reducing
the OCV to a safer
