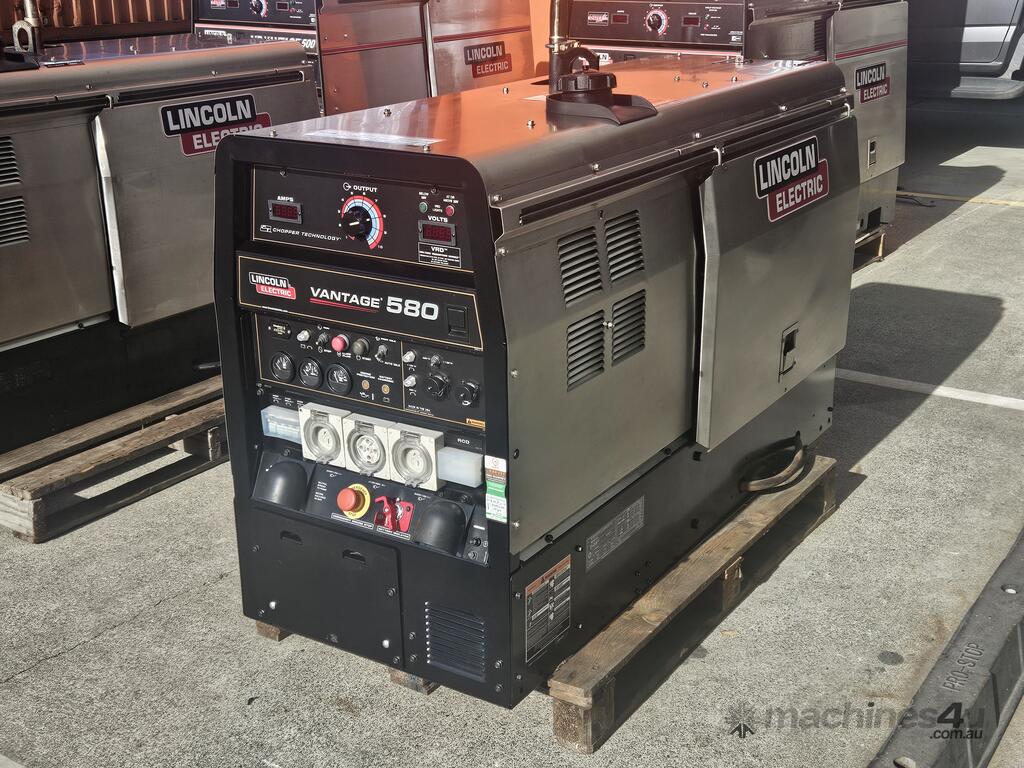

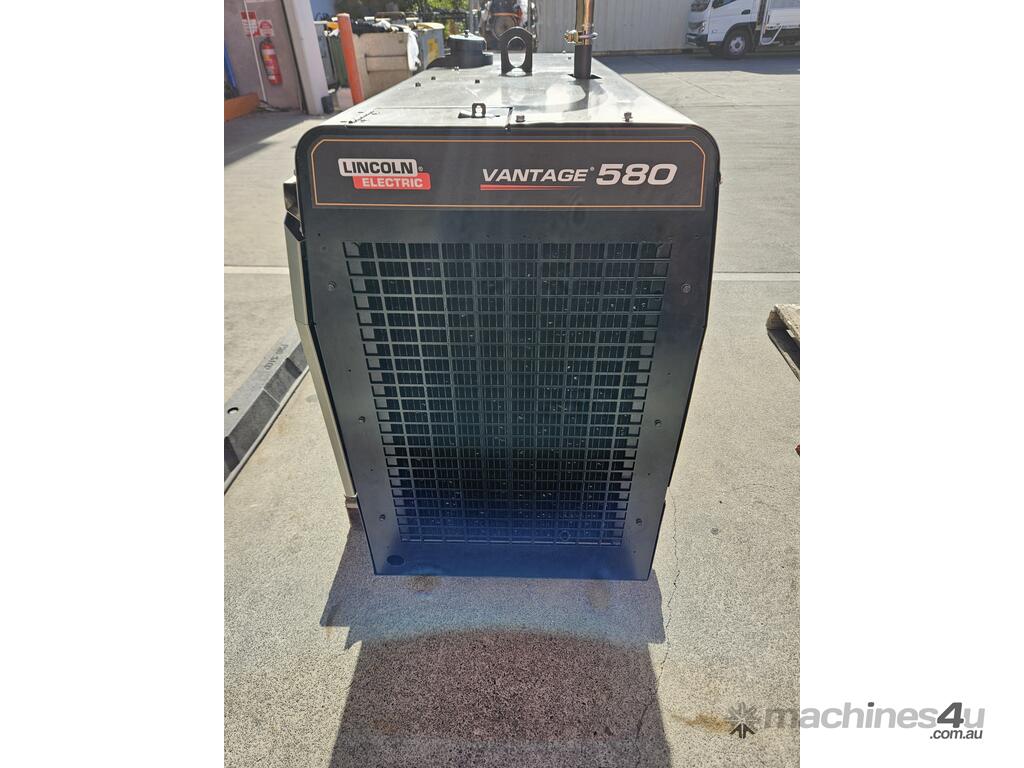

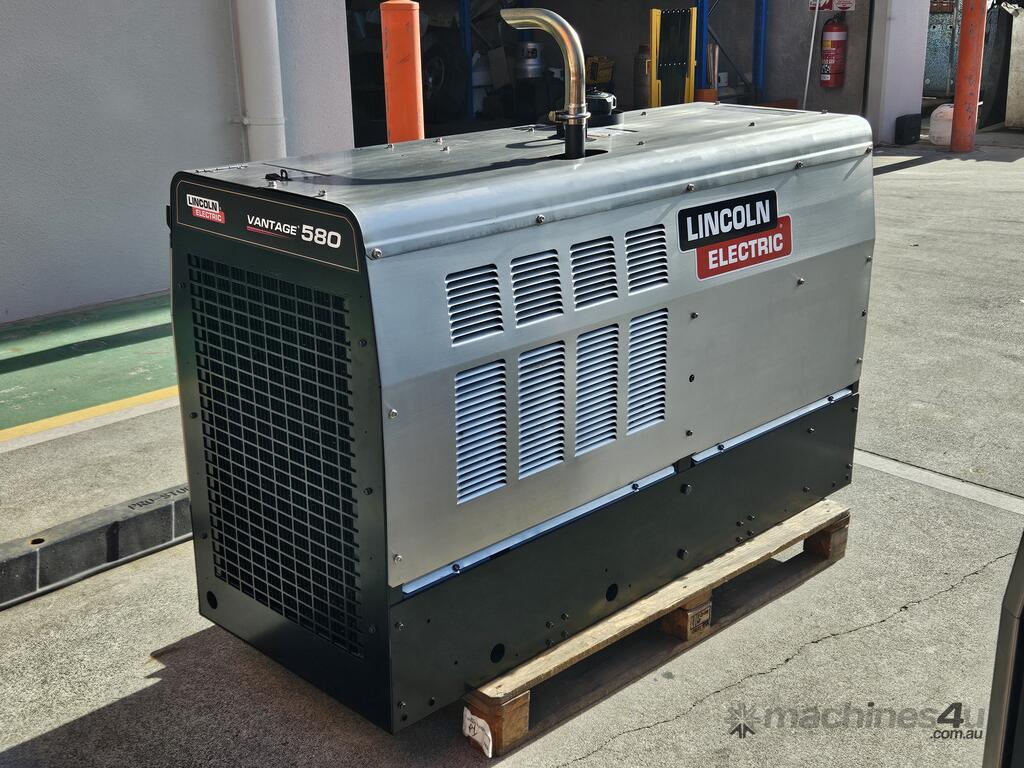

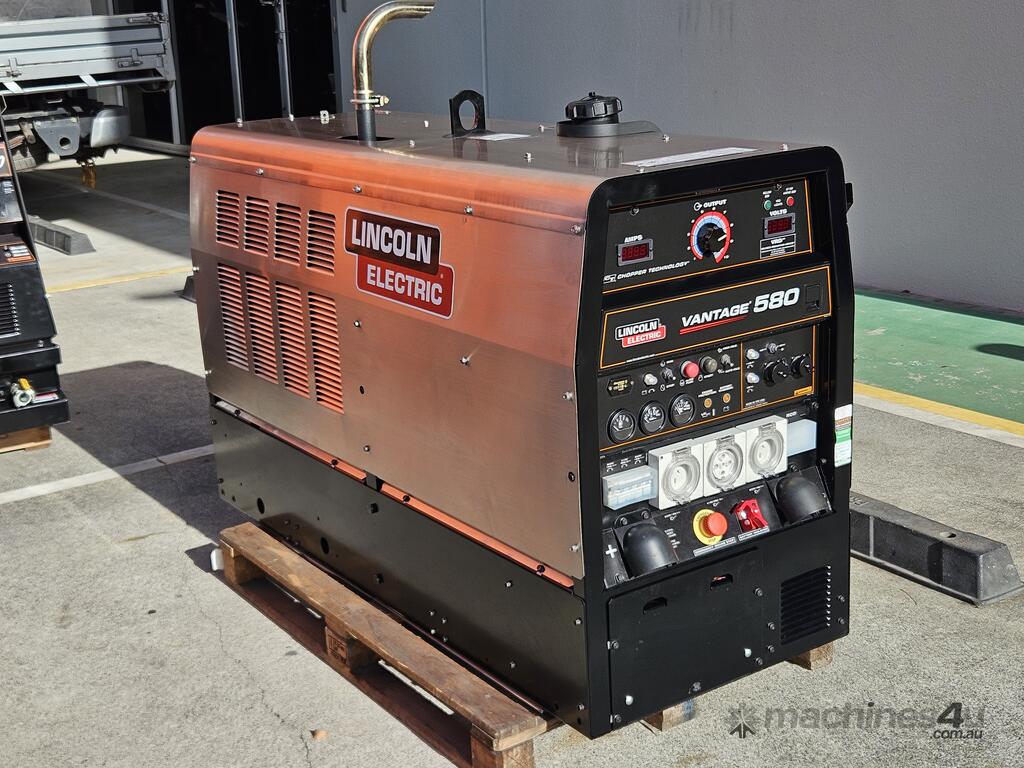

Refurbished Lincoln Electric Vantage 580 Diesel Welder

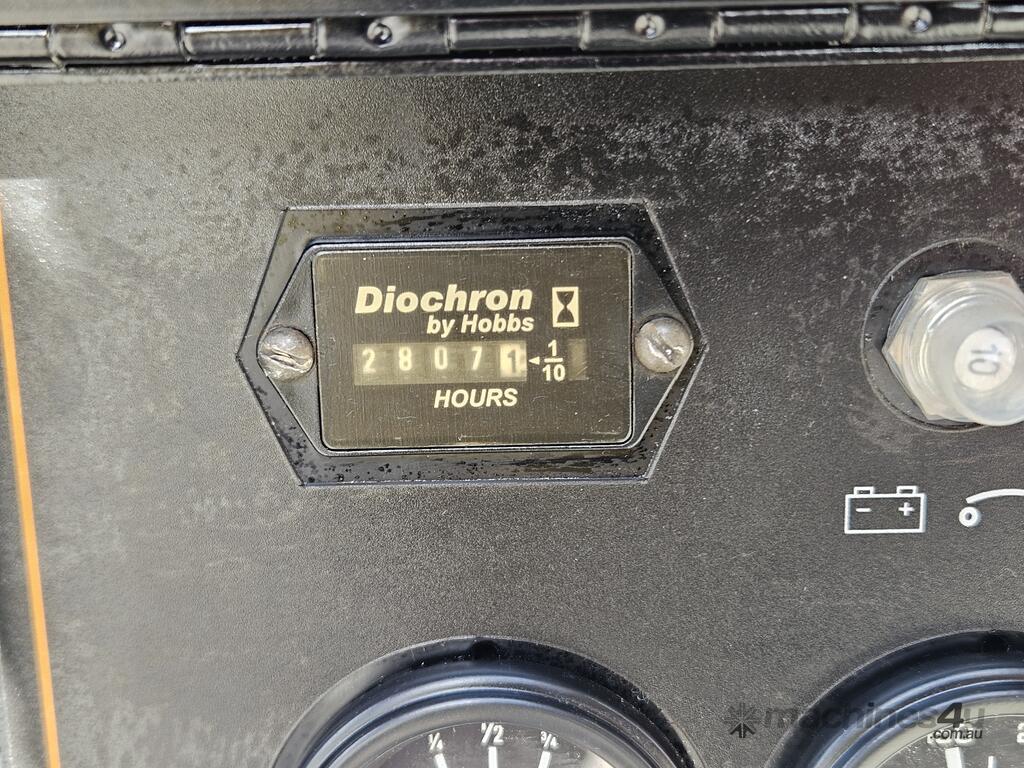

In Stock, Ready to Ship. - 2807 Hrs

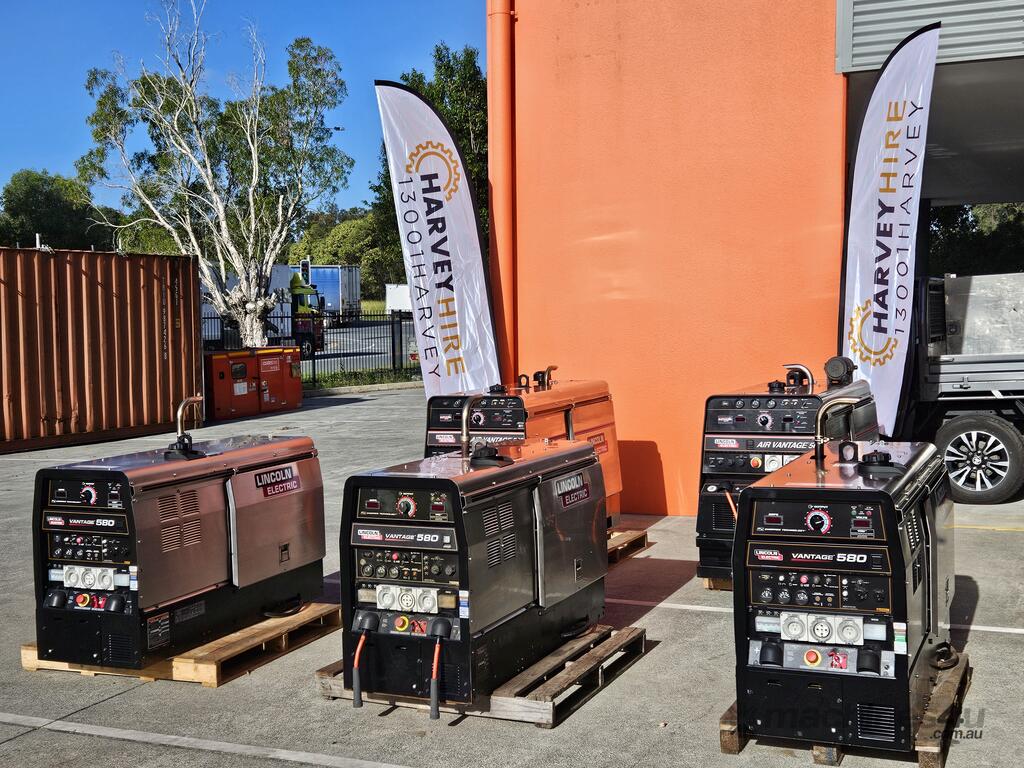

Harvey Group is Australia's leading refurbished welding machine supplier with over 200 machines sold Australia wide.

Harvey Group build the very best quality refurbished welding machines in Australia, using only quality parts, workmanship, testing and after sales support. Harvey Group welders are as close to new as you can get.

Key advantages to our refurbished machines.
• All refurbished machines are fully dismantled, blasted, primed and powder coated.
• All rotor bearings and brushes are replaced.

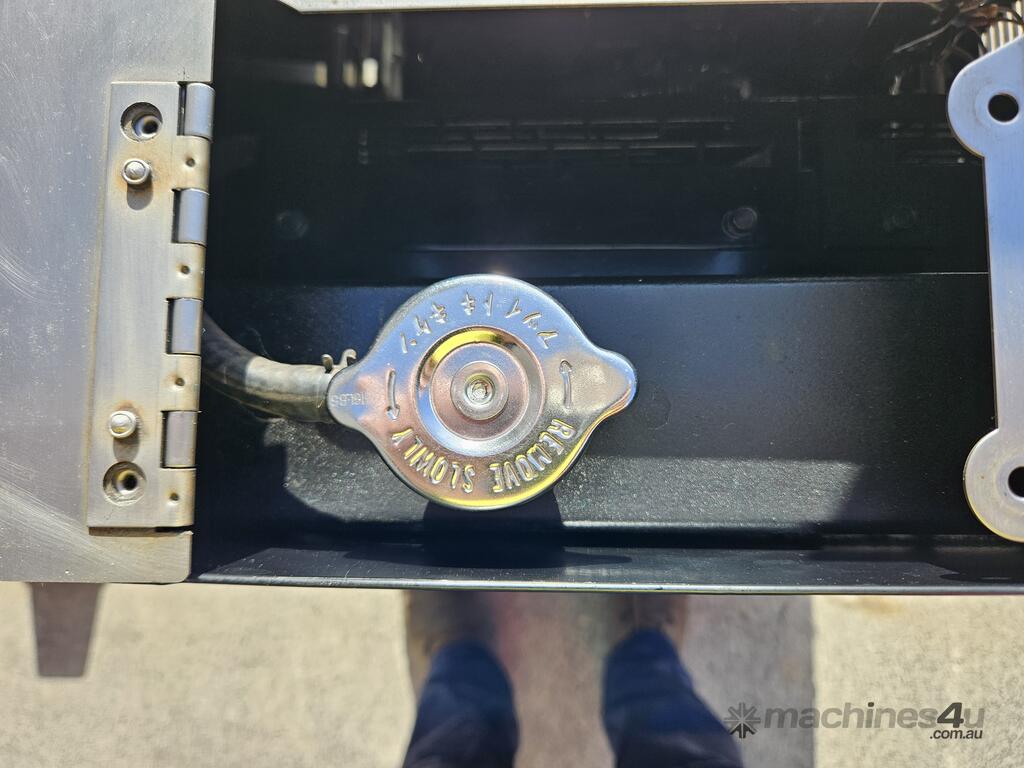

• All radiators are serviced (Pressure tested, flushed and painted)
• We check and replace all known wearing parts.
• Quality brand power outlets and circuit breakers.
• Engines are serviced with new fan belt and battery.
• Minimum 1 hour load test at 100% duty cycle to ensure the very highest reliability.

6-month return to base parts and labour warranty.

Lincoln Vantage 580 (60HZ)
Specifications
Welding output: 500A 100% (Maximum output 580A)
Auxiliary power: 20KW Three Phase 415 50Hz, 6.9KW Single Phase 240V 50Hz.
Dimensions: 913H x 642W x 1524L 586KGS


Australia Wide Shipping.
Sydney: $250 + GST
Melbourne: $400 + GST.
Adelaide: $400 + GST
Perth: $600 + GST
Darwin: $500 + GST



Powerful. Dependable. Safer.

If you are looking for a rugged, reliable and capable welder for a demanding mining
or construction site, a dependable hire fleet or for a quick turnaround repair job, the
Vantage® 580 has all the power you need and the safety features modern standards

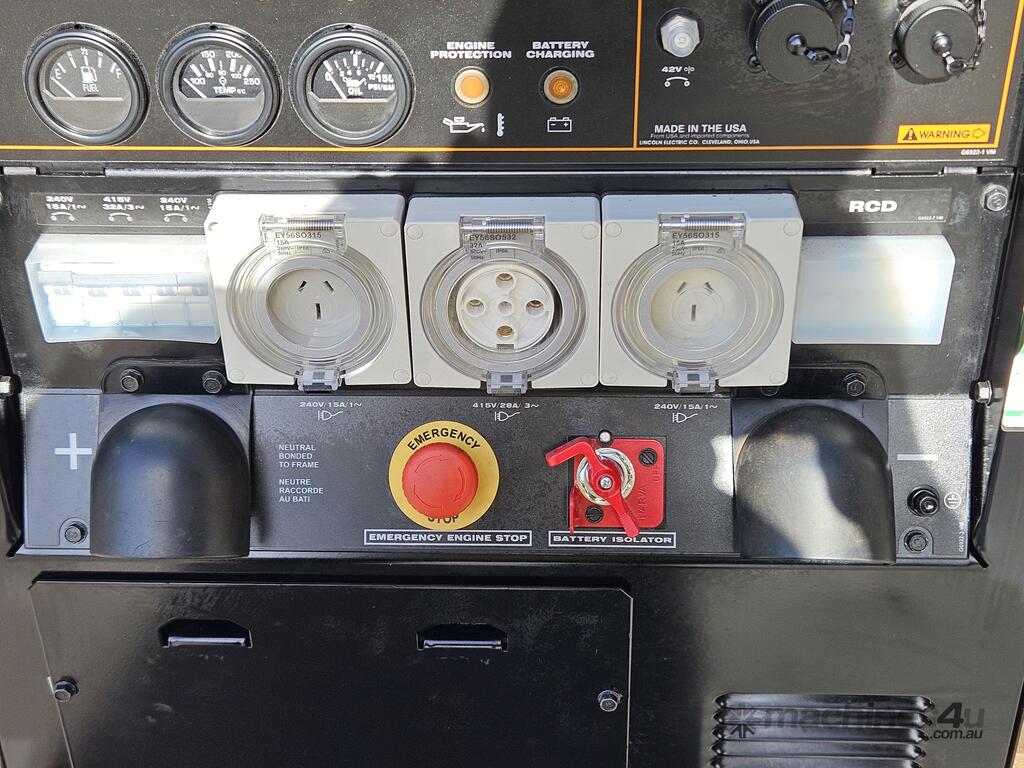

demand. New standard features include a battery isolator switch for safer
maintenance procedures and a engine stop button to quickly shut the Vantage® 580
down in the event of an emergency.
Simple controls and Chopper Technology® deliver the low maintenance, long service
life, easy operation and great arc performance every owner demands in these
environments.
This multi-process powerhouse features 500 amps at 100%, or 525 amps at 60%
duty cycle, tested at temperatures up to 40°C. Plenty of AC 240V & 415V auxiliary
power – this unit delivers 20,000 watts.
You can depend on legendary engine reliability from Perkins® and superior Lincoln
arc performance.

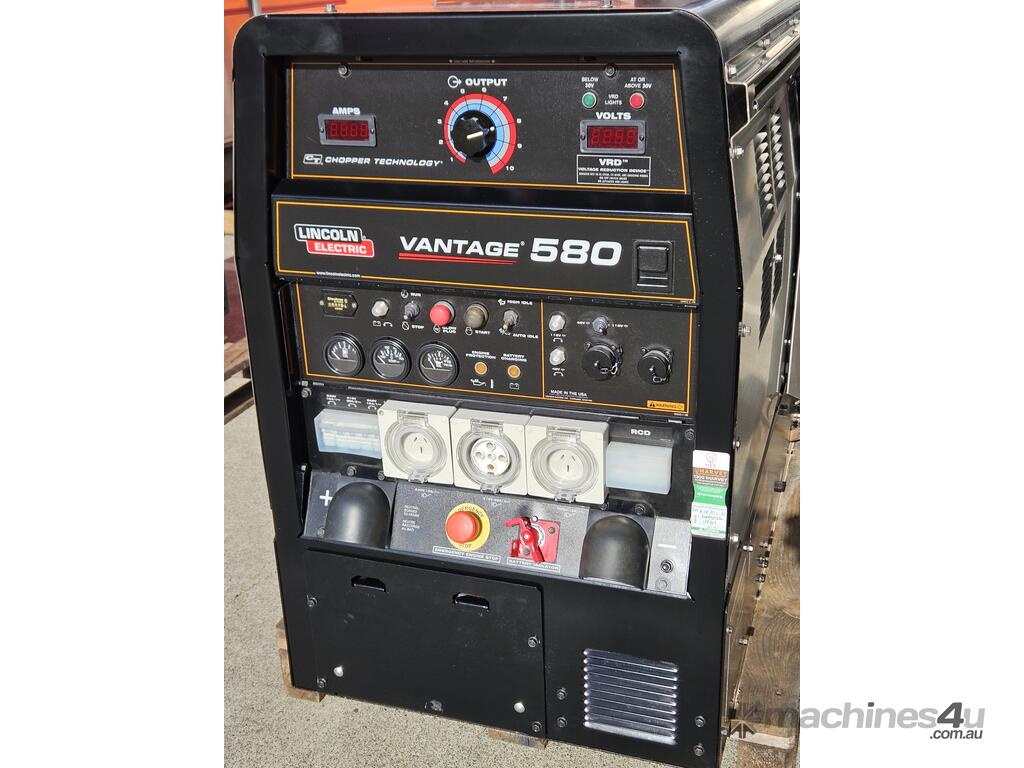

• Simple to operate
– Select one of five Process Modes, including CC-Stick, CC-Pipe, CC-Gouging,
Touch-Start™ TIG or CV Wire, and then dial in the desired output.
• Optimised CC-Stick mode
- CC-Stick mode is optimised for general purpose and E7018 low hydrogen
electrodes.
• Arc control adjustment
- Produces a soft, buttery arc or a more forceful, digging arc to suit your
requirements.
• Touch-Start™ DC TIG welding
- Provides easy arc starting that avoids tungsten contamination and the use of
high frequency.
• 20kVA of auxiliary power
- Able to power up to three inverter power sources to give you up to four
stick electrode welding arcs for higher productivity. 240V and 415V IP66
rated outlets.
• Digital Volt/Amp meters
- Built-in preset function makes it easy to precisely set your procedures.
• Arc gouging
- Arc gouging with up to 13mm carbons.
- New carbon arc gouging waveform delivers improved gouging
performance including VRD

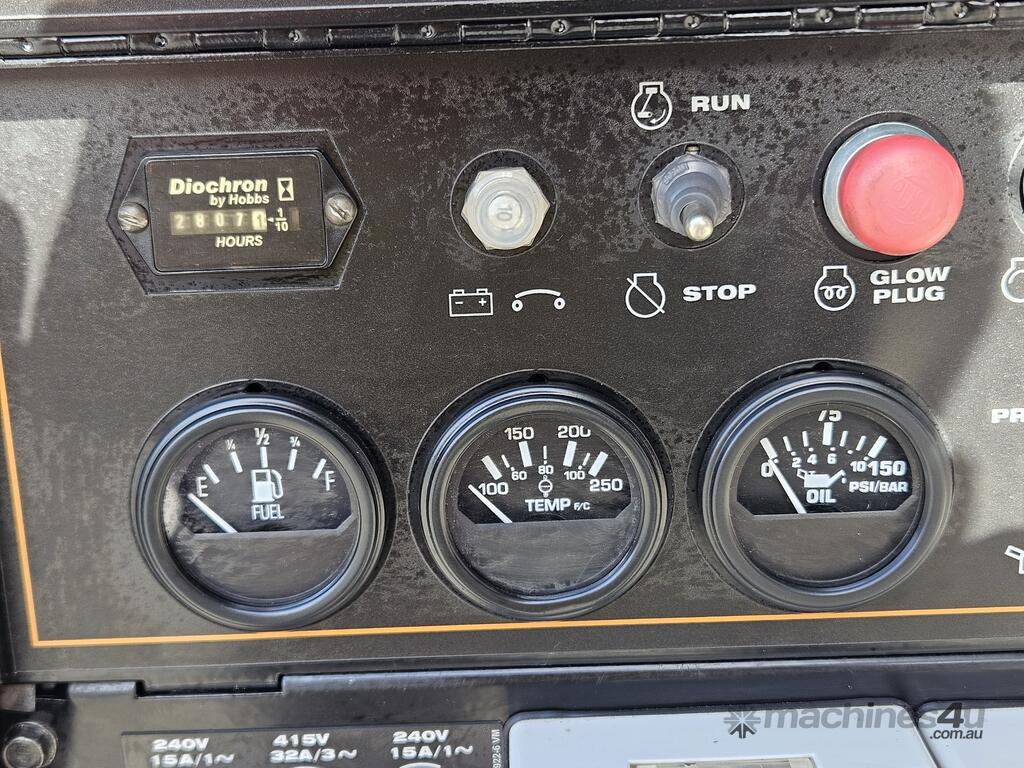

• Full instrumentation
- Fuel, oil pressure, engine temperature gauges and hour meter keep
you on top of monitoring engine performance.

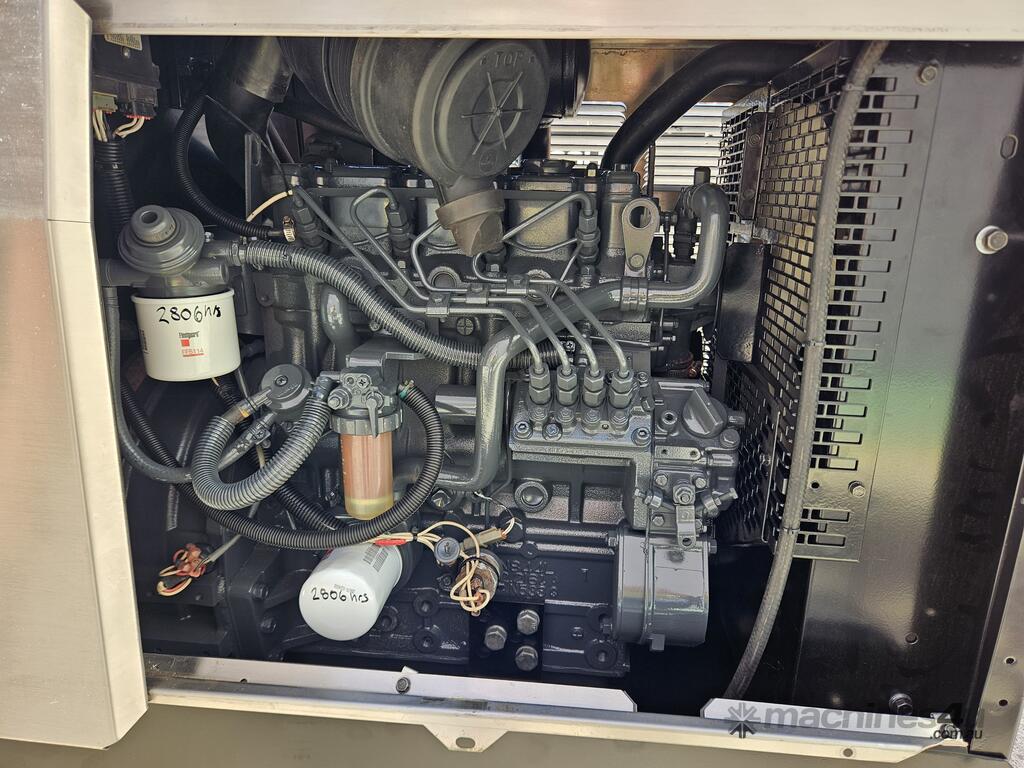

• Perkins® 404D-22T Turbo diesel engine
- 43 horsepower, liquid-cooled, 4 cylinder Perkins® engine, includes
automatic engine idler for greater fuel economy and reduced noise.
• VRD Device
- Factory-fitted, built-in voltage reduction device (VRD) offers additional
protection for the operator. The VRD operates in the CC mode reducing
the OCV to a safer
