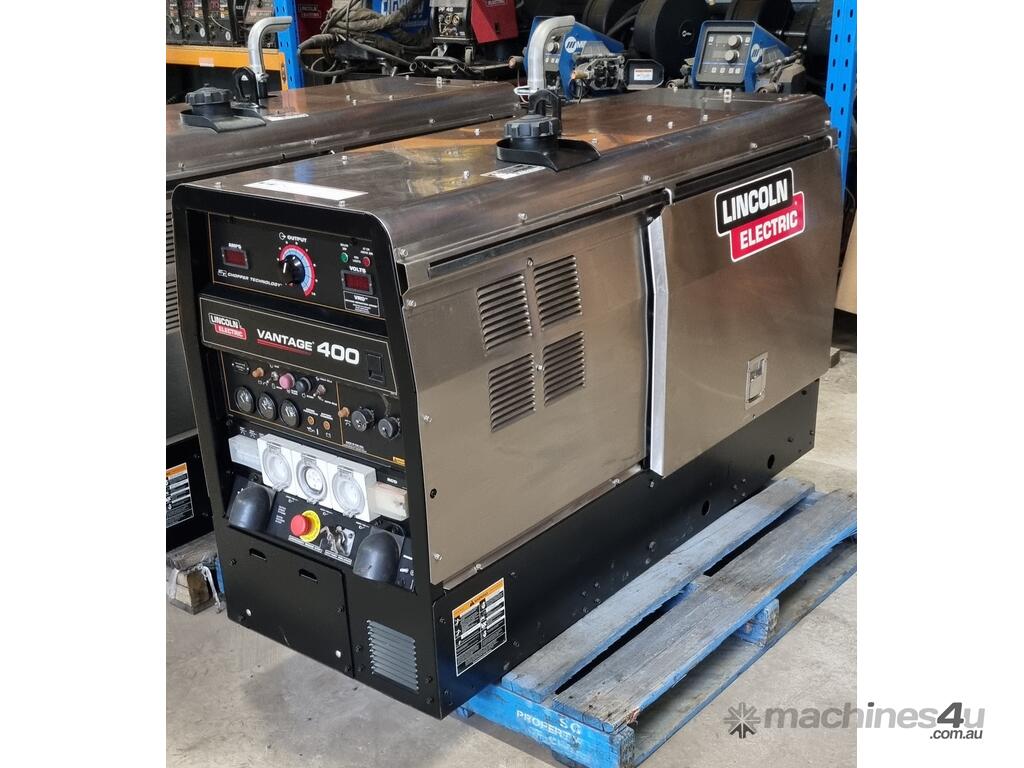

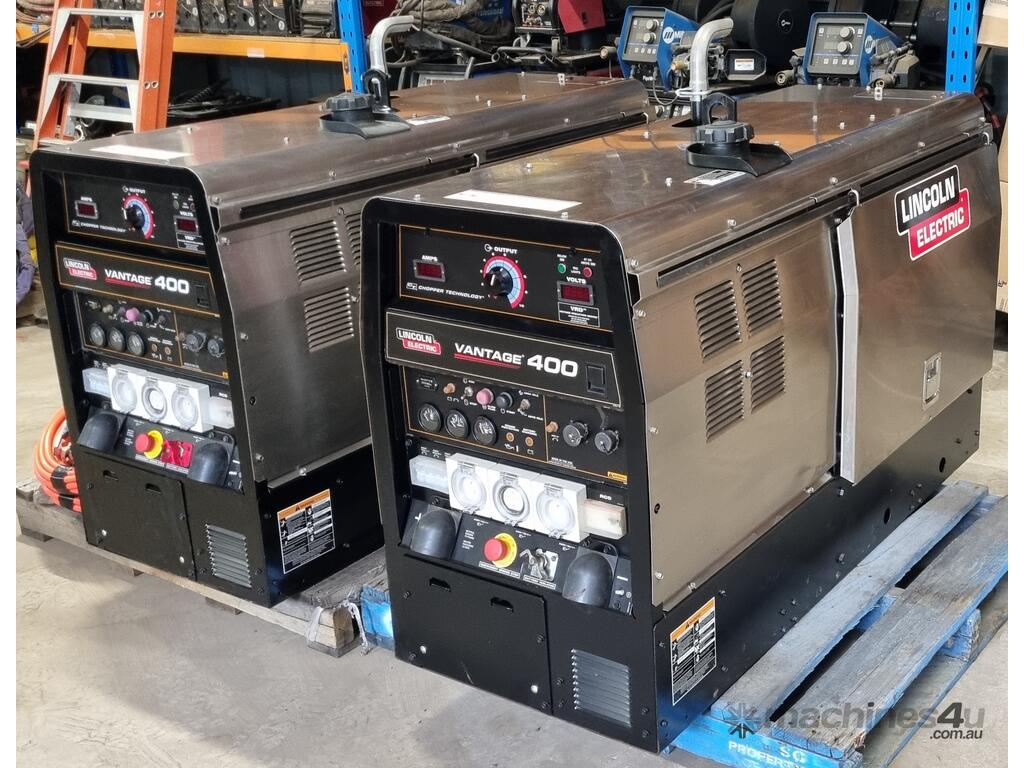

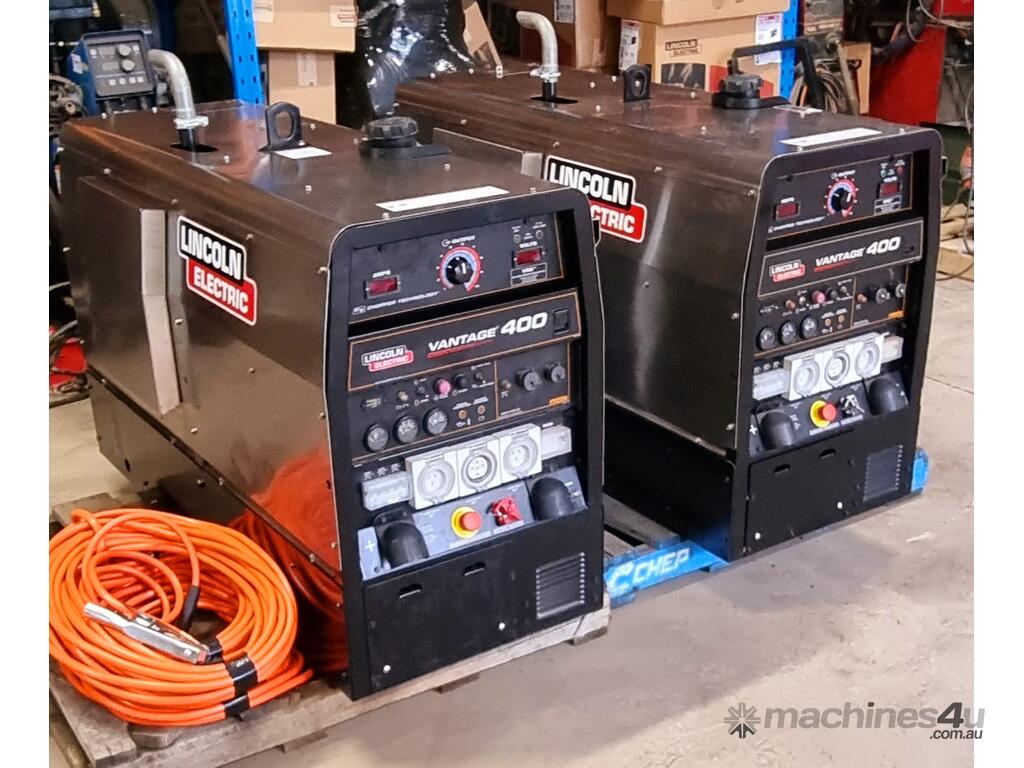

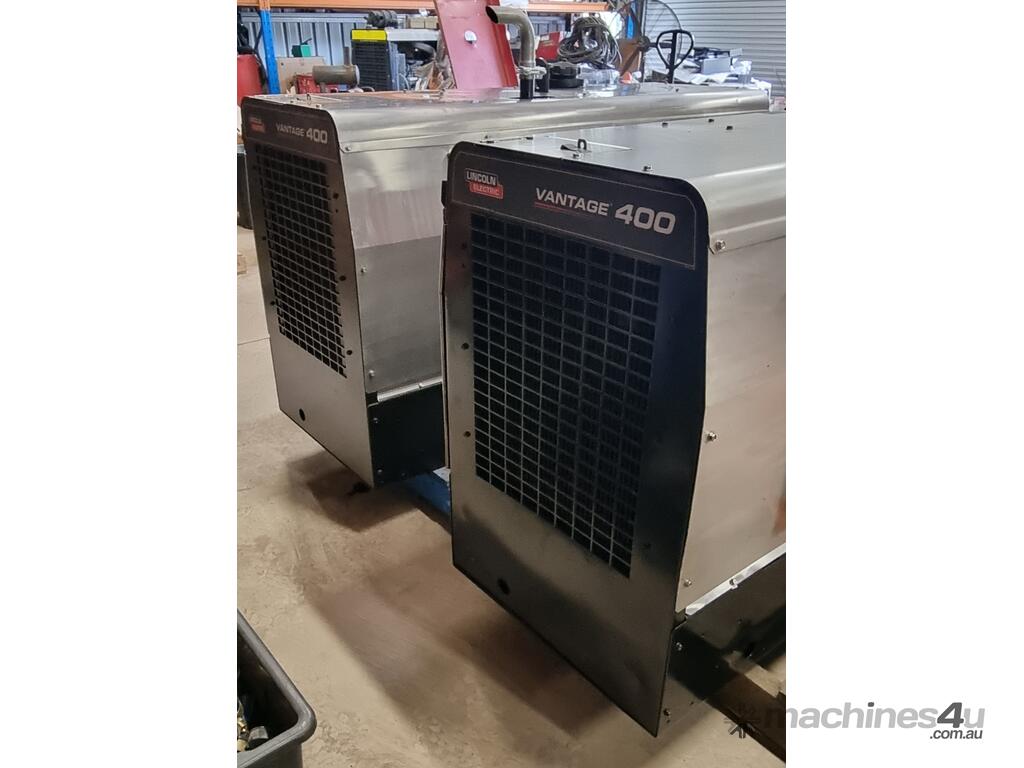

Refurbished Lincoln Vantage 400 Diesel Welder

Available in stock now ready to ship.
4050Hrs

Harvey Group is Australia's leading refurbished welding machine supplier with over 200 machines sold Australia wide.
Harvey Group build the very best quality refurbished welding machines in Australia, using only quality parts, workmanship, testing and after sales support. Harvey Group welders are as close to new as you can get.

Key advantages to our refurbished machines.
• All refurbished machines are fully dismantled, blasted, primed and powder coated.
• All rotor bearings and brushes are replaced.
• All radiators are serviced (Pressure tested, flushed and painted)
• We check and replace all known wearing parts.
• Quality brand power outlets and circuit breakers.
• Engines are serviced with new fan belt and battery.
• Minimum 1 hour load test at 100% duty cycle to ensure the very highest reliability.

6-month return to base parts and labour warranty.

Lincoln Vantage 400 (50HZ)
Specifications
Welding output: 350A 100% (Maximum output 400A)
Auxiliary power: 13.2KW Three Phase 415 50Hz, Single Phase 240V 50Hz.
Dimensions: 913H x 642W x 1524L 560KGS

Australia Wide Shipping.
Sydney: $250 + GST
Melbourne: $400 + GST.
Adelaide: $400 + GST
Perth: $600 + GST
Darwin: $500 + GST



The Vantage® 400 is one of the most compact 400 amp engine-driven welder/generators available to the construction, pipe and rental fleet markets today. It’s also one of the
quietest, with a smooth-running, 4-cylinder Perkins® diesel engine. Use this multi-process
welder for arc gouging with up to 8mm carbons, stick weld with up to 6mm electrodes and
CV wire weld with up to 2.4mm wire. Superior arc performance delivered by Lincoln
Chopper Technology® ensures optimum productivity. You’ll also appreciate the VRD (Voltage Reduction Device), which reduces OCV (open circuit voltage) in the CC-Stick weld
mode for added safety.
This model efficiently generates 13,200 watts of AC generator power for your lights, grinders and power tools. Housed in a rugged, low-maintenance stainless steel enclosure, it’s
loaded with many innovative service features. It’s a power package that’s excellent value!

Arc Performance
350 amps 100% duty cycle with an output range of up to 400
amps using Chopper Technology®. All ratings are at temperatures of
40°C.
Arc Gouging Mode is optimised for superior carbon arc gouging
performance with up to 8mm carbons.
VRD (Voltage Reduction Device) reduces OCV (open circuit
voltage) in CC-stick welding mode for added safety.
CC-Stick mode is optimised for general purpose stick using E7018
low hydrogen electrode.
Built-in “hot” start for easier starts and restrikes which minimises
the electrode “sticking” to the work.
Downhill pipe mode with active arc force control. Excellent for
cellulosic electrodes, it provides fast travel speeds, especially on
fill passes. Arc control adjustment for a soft, buttery arc or a more
forceful digging arc.
Excellent CV wire welding with cored-wire and MIG (CO2 and
blended gas). Up to 2.4mm E70T-6 up to 260 IPM, 27V.
Standard Touch-Start™ DC TIG welding - not scratch start - for
easy arc starting that avoids tungsten contamination and the use of
high-frequency equipment.
