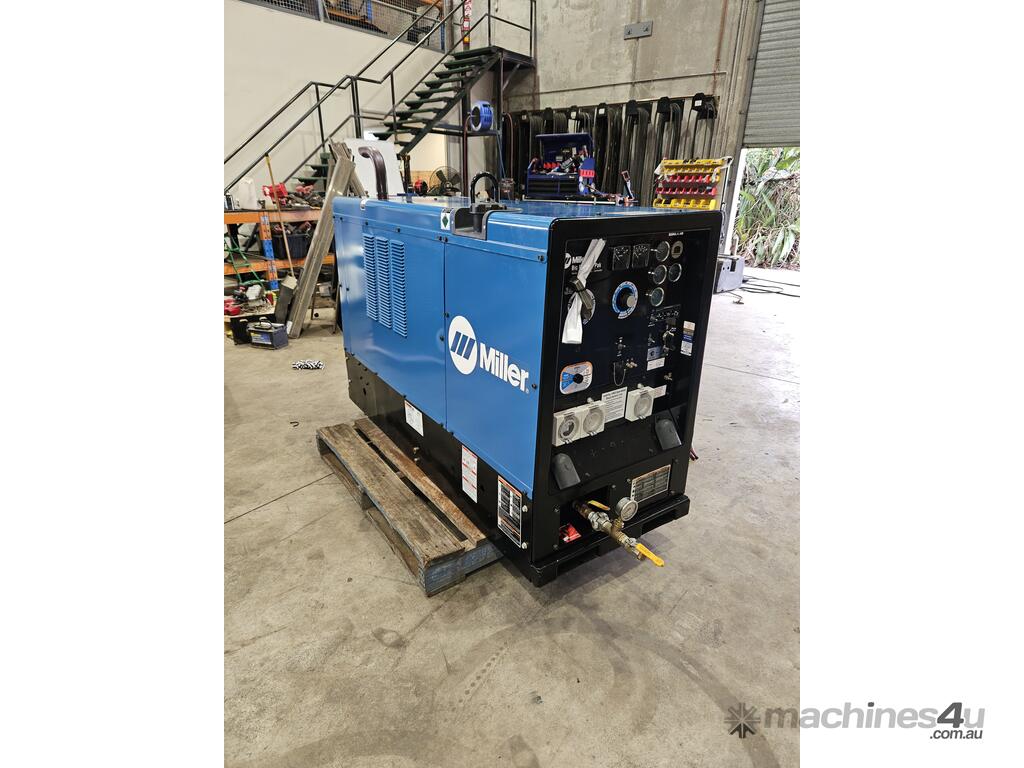

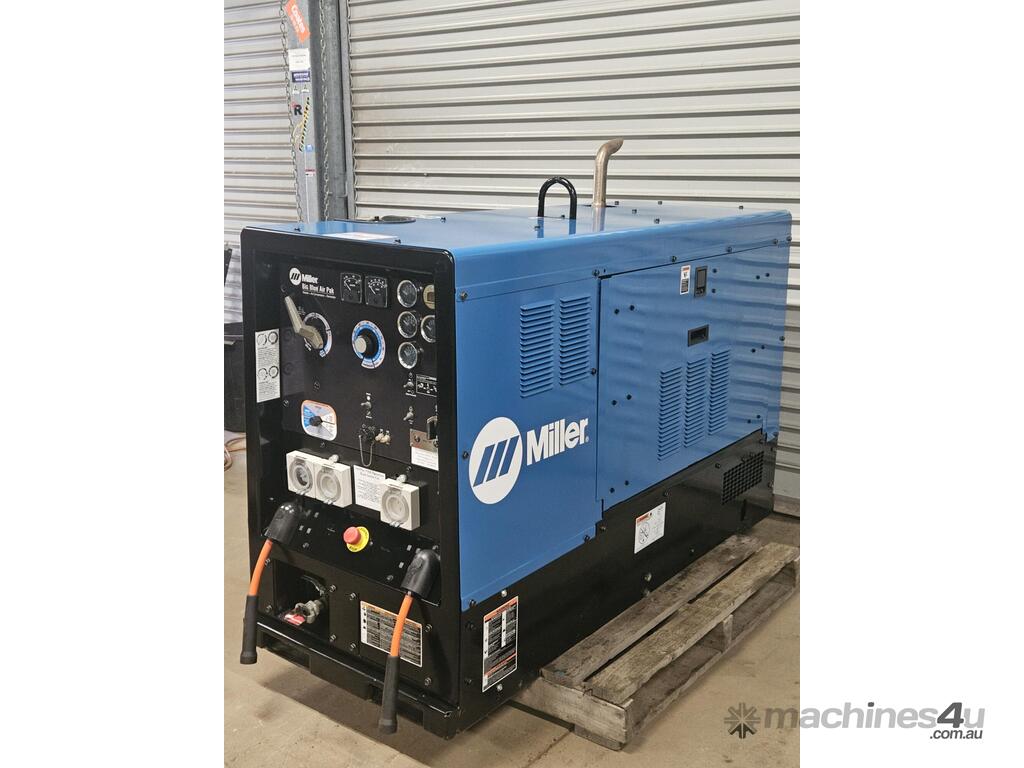

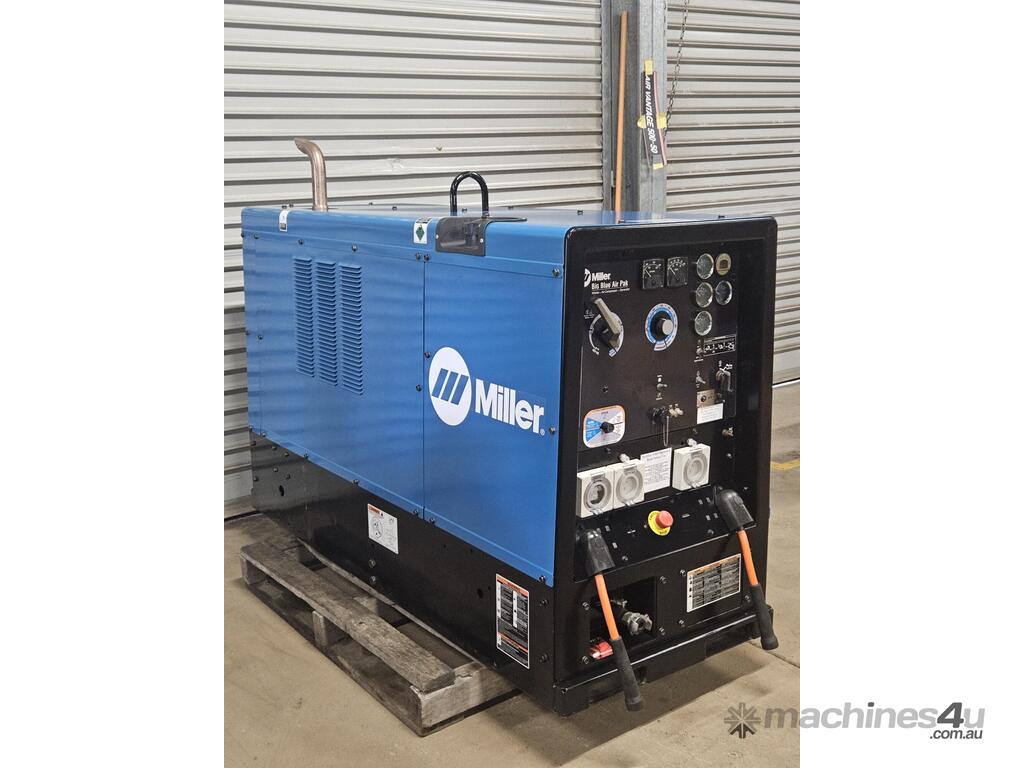

Refurbished Miller Air Pak 600

IN MACKAY STOCK TO ORDER.

Current Stock holding.
Machine1: SN: MB440211E 2199 hours
Machine2: SN: LJ350351E 4346 hours
Machine3: SN: MB250006E 5380 hours


Specifications
Welding output: 500A 100% and 600A
Compressor: 60cfm at 100psi
Auxiliary power: 4KVA Single Phase 240V 60Hz

Features
VRD Complying with AS1674.2 (BB0B1 Safetac type).

Scope of refurbishment includes:

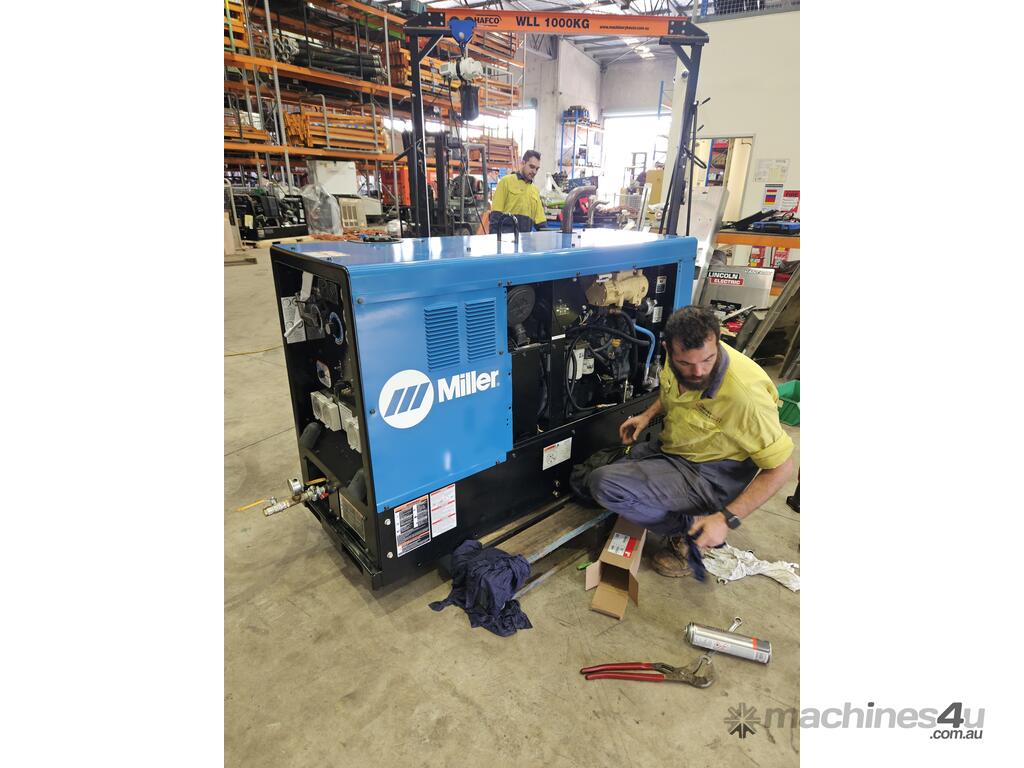

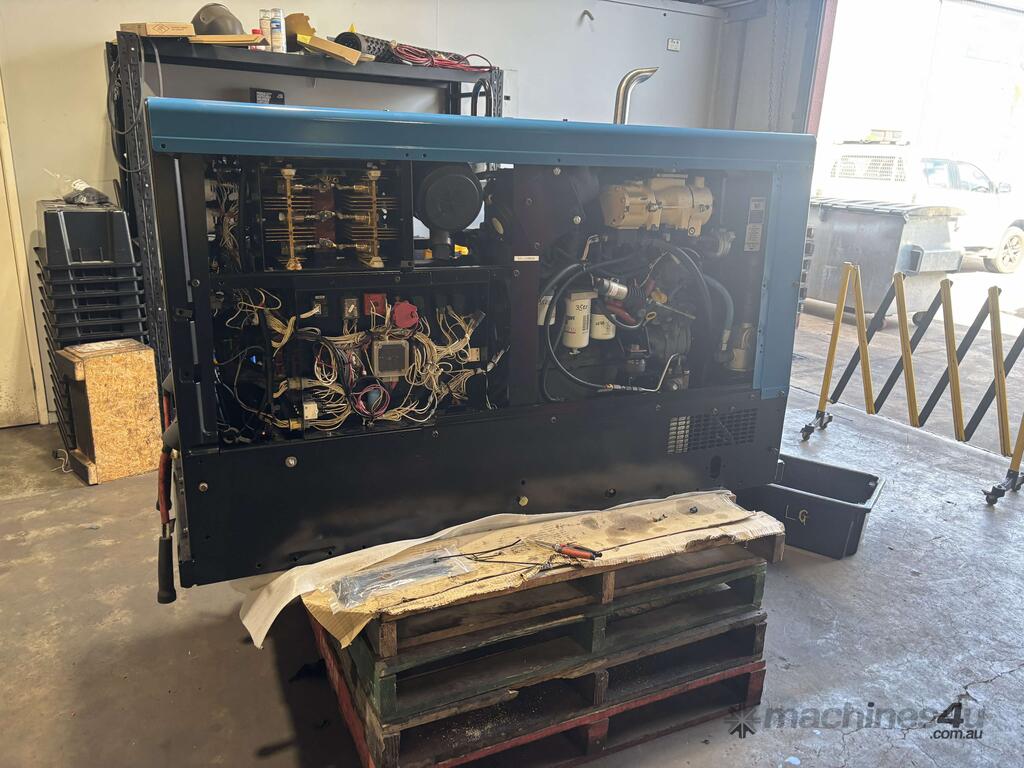

Complete strip down of machine.
Remove engine and generator assembly from base.
Send base away for burning, blasting and powder coating (Internal/External)
Pressure wash fuel tank and replace grommets.
Assemble machine into refurbished base with new rotor bearing and brushes.
MEG check Stator, rotor, reactor and all auxiliary power circuits.
Replacement of 6x rectifier diodes with new.
New compressor pressure switch, and all 3/8 fittings for compressor tube lines.

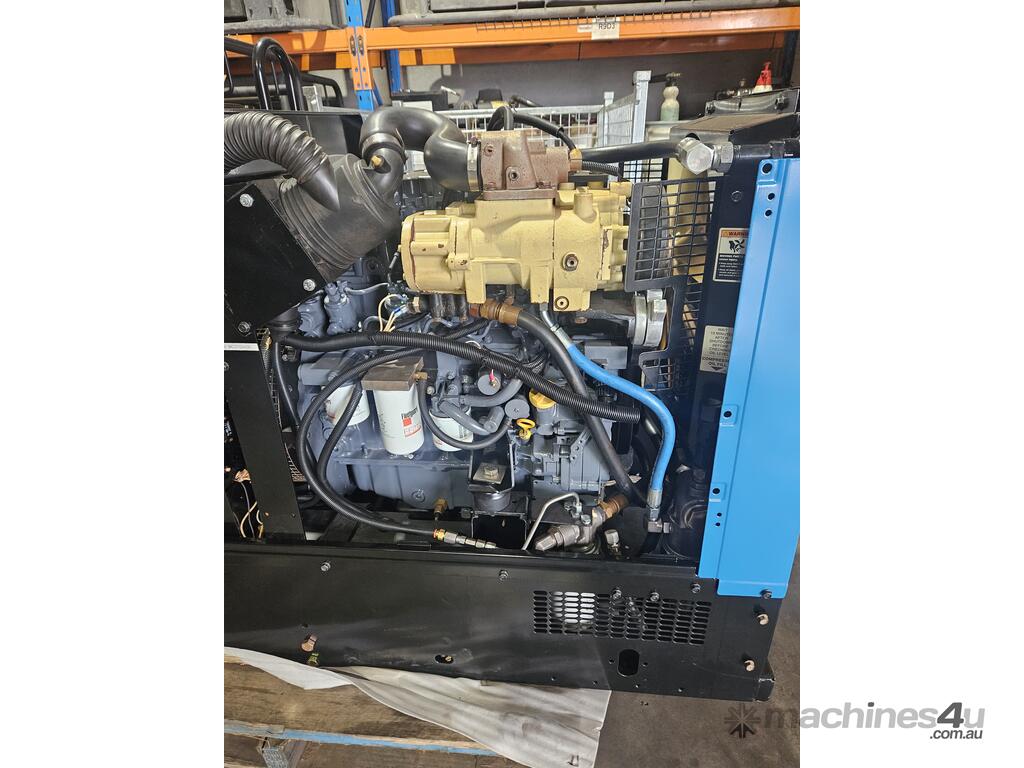

Fully service engine and compressor with new filters and oils.
Confirmation of Updated 300mS Safetac VRD and replace if required.
New 10A Field fuses.

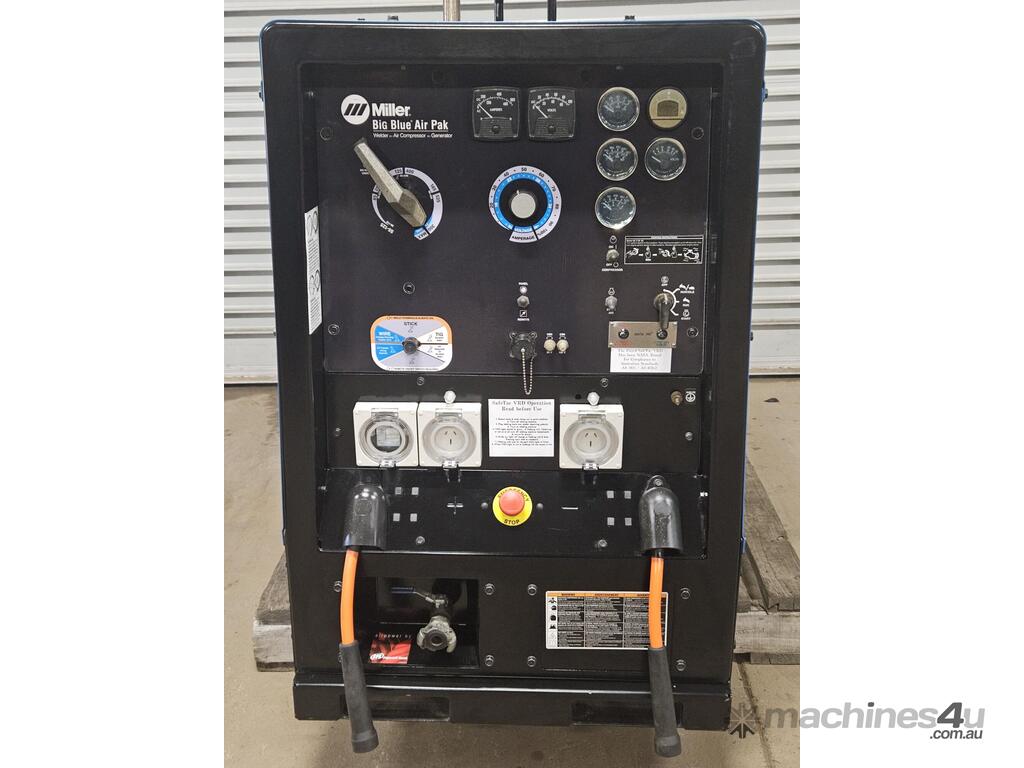

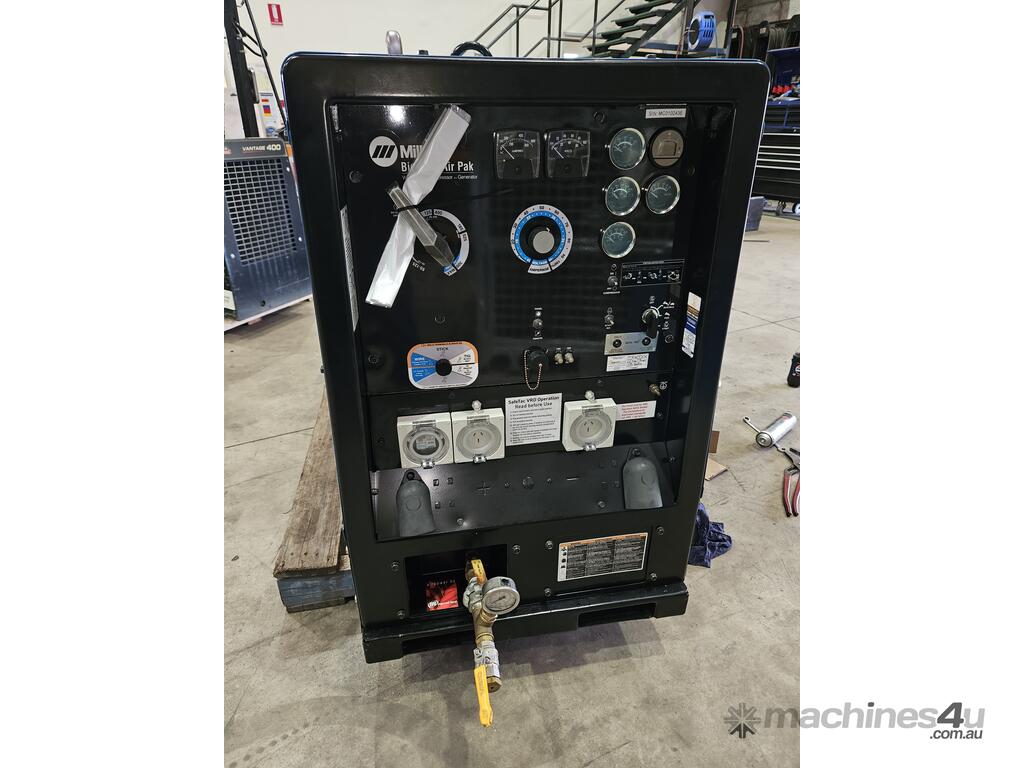

All new gauges and front facia decal.
All new Schneider sockets and RCBO.
Fitment of brand-new genuine Miller blue panels and decals.

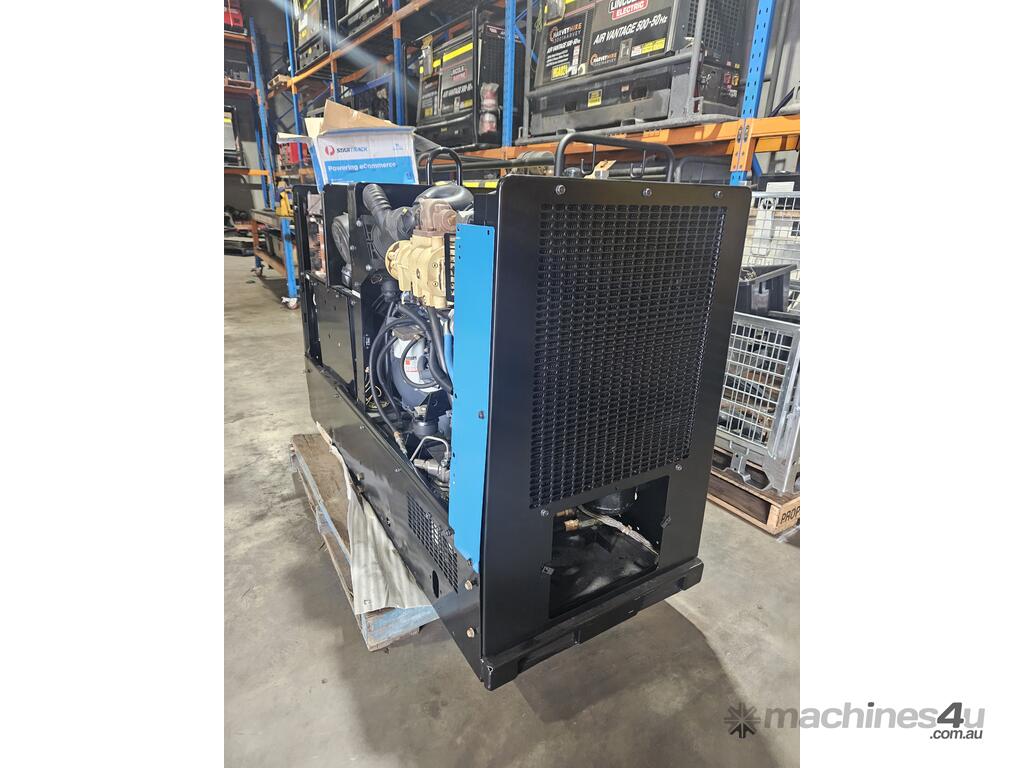

Fitment of new or as-new radiator/front satin black panels.
All final electrical and load testing results supplied with test report.

Load testing of machine at 100% duty cycle for 1 hour with compressor flowing air.
6 Month RTB Parts and labour warranty on all electrics, compressor and engine.

Big Blue® Air Pak ™ Engine-Driven Welder/ AC Generator/Air Compressor

• Quiet at only 70 dB (95 Lwa) when idle, 79 dB (104 Lwa) at maximum output. Improves work site communications.
• Low maintenance with easy single-side access to engine and 500 hour oil changes for both engine and compressor.
• Arc-Drive makes welding easy. Automatically enhances Stick welding, especially on pipe, by focusing the arc and preventing the electrode from going out.
• Optional AC/DC/battery charge/ jump-start for AC TIG welding and 12 or 24 volt batteries. Simply select the battery voltage and connect cables to the separate battery output studs. (High-frequency unit required for AC TIG.)
• Hot Start™ provides positive stick electrode starts to make it easy to start all types of electrodes.
• Enclosed robust case design protects internal components from impact and allows air flow to cool and prolong the life of the engine. Also reduces sound levels.
• Welder/generator/air compressor. One machine that will do it all. Designed and built to be the most reliable high output system in the world.
• Weatherproof Lexan® nameplate resists cracking and fading, and is color-coded for ease of operation.
• GFCI receptacle as required on most job sites to protect operators from electrical hazards. turbocharged four-cylinder diesel engine provides ample power at high altitudes. Independent compressor controls.
• On/off switch for applications not requiring compressed air. At idle speed will produce 100 PSI at 40 CFM. ultra-reliable industrial rotary screw air compressor. Belt-driven with automatic belt tensioner with a life expectancy of 30,000 hrs.
