Renold P6-8004 HC Gearbox with Bondioli & Pavesi M4MF46-46 Hydraulic Motor

UPC: 738009
Brand: Renold
Condition: Like New

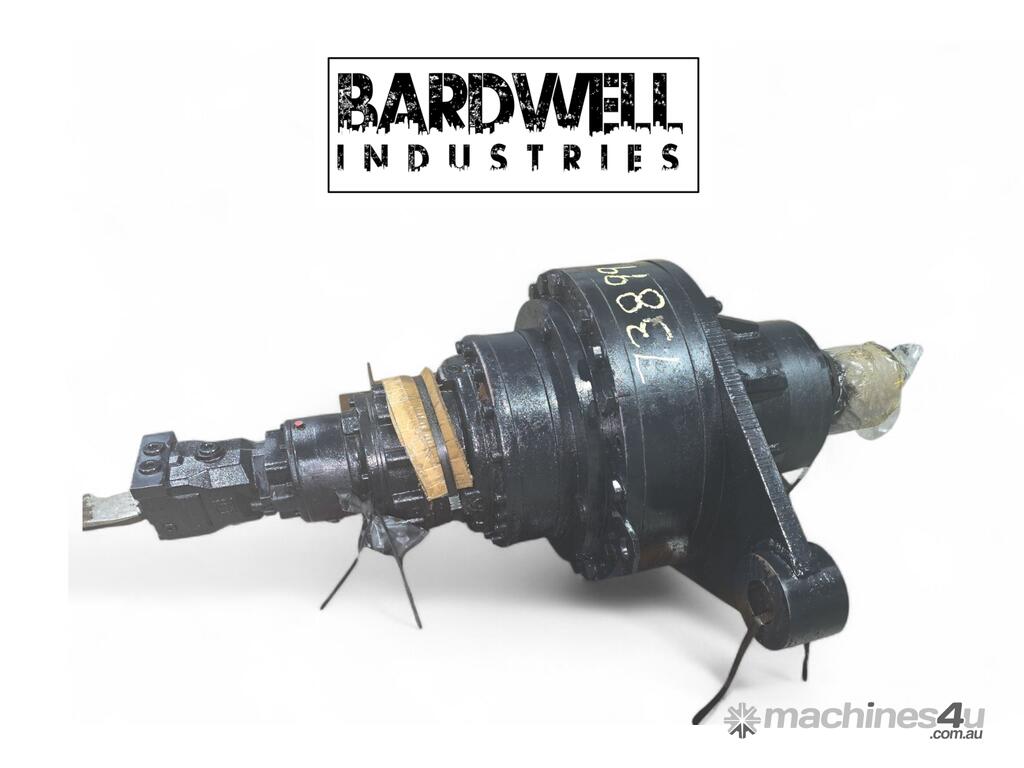

Heavy-Duty Industrial Drive System - Gearbox & Hydraulic Motor Package

This unit combines a robust Renold P6-8004 HC helical reduction gearbox with a high-performance Bondioli & Pavesi M4MF46-46 axial piston hydraulic motor. Designed for demanding industrial applications requiring high torque and reliable operation.

Specifications
Gearbox: Renold P6-8004 HC

Type: Helical / bevel-helical reduction gearbox
Series: HC Series - heavy-duty industrial range
Torque Output: High-capacity (detailed torque specs available on request)
Mounting: Horizontal foot mount
Construction: Cast iron or steel case (depending on size), vibration-dampening design
Output Shaft: Solid shaft
Condition: Good used condition
Hydraulic Motor: Bondioli & Pavesi M4MF46-46

Type: Fixed-displacement axial piston motor
Displacement: 46 cm³/rev
Pressure Rating:
Continuous: 250 bar
Intermittent: 330 bar
Peak: 400 bar
Speed Range: 500 - 3600 rpm
Shaft: SAE 15T 16/32 DP spline
Ports: Side or rear configurations
Suitable for: Open or closed hydraulic circuits
Applications
Ideal for use in:

Conveyors
Crushers
Mixers
Heavy mobile machinery
Industrial drive systems requiring high torque and low speed
Location: Victoria, Australia
Shipping: Australia-wide freight available
