Reverse Pulse Dust Colle

High quality dust collector suitable for outside, has had little use and is installed inside factory so in near new condition.
HEPA class filtration system suit any type of dry dust extraction application.
Easy bulk bag dust removal.

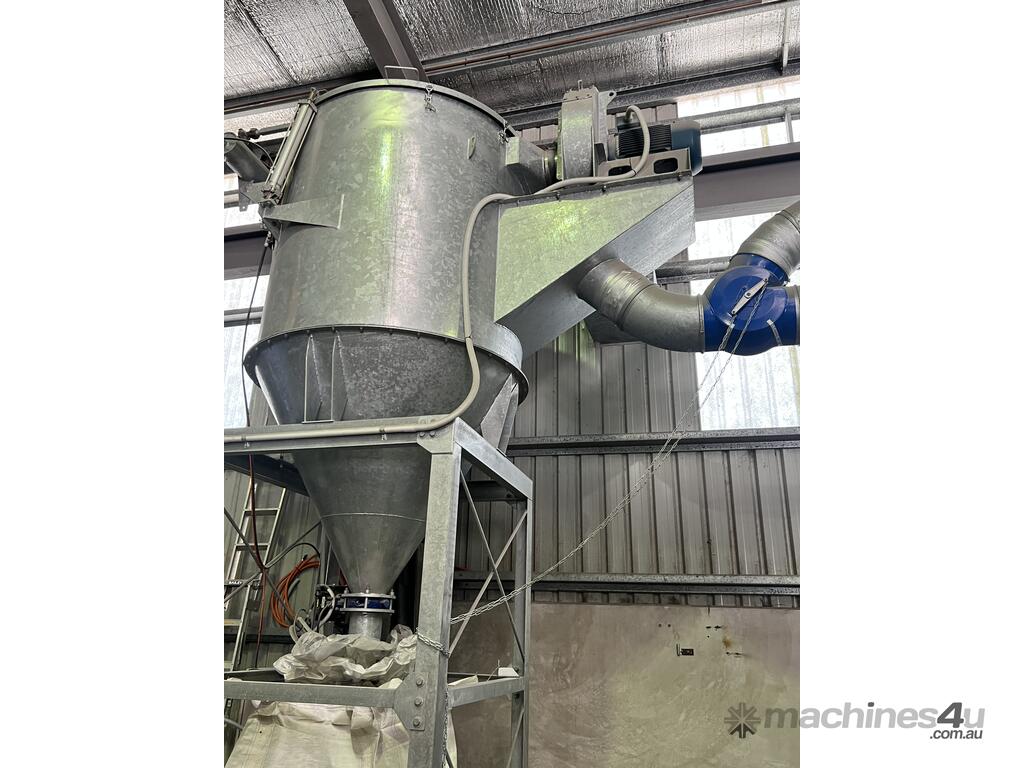

Reverse Pulsejet Dust Collector complete with fan, support stand , hopper and automated butterfly valve discharge system and duct system.
Dust Collector Model: DCT91EXGM complete with support frame and automated butterfly valve discharge arrangement Type: ICS Reverse Pulsejet Capacity: up to 1450 cfm (0.684m³/sec)
Dimensions: 1540mm diameter x 5649 mm high
Construction: 3mm mild steel shell with 5mm laser cut cell plate.
Finish – Hot dip galvanised
Filter Area: 91m² (979ft²) Filter type: DCTES1500 filters – tool free changing Filter servicing via hinged lid assembly Filter media: G2260 Polyester with PTFE impregnation Cleaning system: Controlled with MPS electronic controller, Differential pressure controlled cleaning with shut down cleaning facility. Digital DP readout.
All diaphragm control valves and solenoid enclosures anodised aluminium with stainless fasteners for resistance against corrosion.
Fan: HPE 560/103 Backward Inclined centrifugal 2 pole 18.5kW 415v 3 phase Direct drive Arrangement.
Duty: 1.57m³/sec -5.2 kPa Louvered discharge damper for fan flow control. Noise: less than 75dBa 1m Fan fitted with silencer Finish : hot dip galvanised
Hopper discharge Valves: 150 NB Pneumatiy actuated Tyco Butterfly valves
Power requirement: Dust Collector Pulse cleaning controller 240vAC and butterfly valve controller
Fan: 415vAC 3 phase – 18.5 kW
Compressed air requirement: up to 8 cfm 90 psi clean dry compressed air. This is for the Dust Collector cleaning system and butterfly valve operation.
Additional 50 + meters of 350mm spiral duct included. Diverter valve included.
