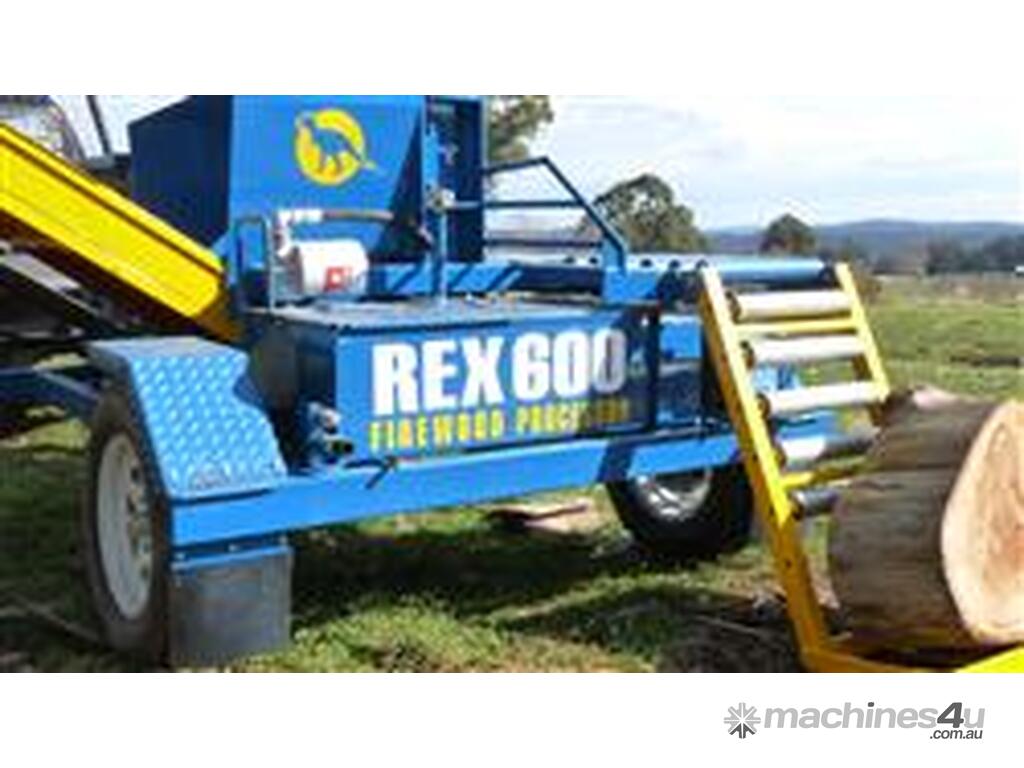

Rex 600 Firewood Processor

Rex 600 FIREWOOD PROCESSOR - WITH LOG LIFTER

Designed and built by Whitlands Engineering - Australia's leading specialist manufacturer of Firewood Processors and Log splitters for all applications. Whitlands Engineering is Australian owned, and all machines are built to specification at our workshop in North East Victoria. We use Australian made components where ever possible, building machinery that is productive, ergonomic and built to last. Support Australian Made - We Do!

Give us a call of for further info or check out the

Designed for commercial operations, this machine features the efficient multi blade splitting system seen on the Rex 600X and the bigger Rex 900, built into a compact, towable firewood processor. It’s the ultimate combination of efficiency & mobility. This processor can be operated by one or two people; the output estimates shown are based on two. The Rex 600 will dramatically increase profit margin by increasing production efficiency and reducing labour input.

The Rex 600 model is the ideal solution for those entering the bulk firewood processing market, or upgrading from the Superaxe machines. The multi head blade system can produce up to four pieces at a time resulting in high output with minimal labour. This machine is powered by a renowned 37hp Yanmar engine and features a 6 second cycle time and 5 meter fold out elevator with rough top belt fitted as standard. The Rex 600 utilises a powerful hydraulic block lifter with rollers for easy wood handling. It is fitted with an innovative and safe double handed control system with auto return and easily accessed elevator controls. The Rex 600 can also be fitted with a registration kit for safe and legal road towing.

Since 2010 Whitlands Engineering has built over 110 600 & 600X machines, earning a reputation for being the most reliable, cost effective & productive firewood splitters on the market.

1 Person with an Infeed hopper (as pictured below) or 2 People with the standard block lifter can produce 80m3 per (8 hour) day! Which equates to 400m2 a week or up to 2000m3 per month!

CAPACITY & OUTPUT >>
PRODUCTION POSSIBILITY: In excess of 10 cubic meters per hour with two operators
SPLITTING FORCE: 26 tons
CYCLE TIME: 6 seconds, approximately 10 cuts per minute

ENGINE & HYDRAULICS >>
ENGINE: 37hp Yanmar. 3 cylinder liquid cooled diesel.
FUEL: 60 litre tank. Economical consumption estimated at three litres per hour ~
ENGINE WARRANTY: All engines backed by comprehensive manufacturers warranty
PUMPS: Galtech hydraulic pumps
RAM: High quality Australian made 4 ½ inch ram with 3 inch rod
HYDRAULIC HOSES: All double wire rated ¾ and ½ inch hydraulic hoses
OIL RESEVOIR: 140 litre oil reservoir

CONSTRUCTION >>
BUILT TO LAST: Proven heavy duty construction with minimal maintenance required.
BENCH: Roller bench for easy wood handling
WARRANTY: Six month commercial warranty on the frame
COUPLING: Approved 50mm, 3500kg rated cast iron coupling. Safety chains fitted.
WHEELS AND HUBS: 15 inch Landcruiser with 1400kg hub/stub axles.
LEGS: Adjustable leg jacks for leveling & stability.
DIMENSIONS: Weight 1.8 T / Height 3.1m / Width 2.2m / Length 3.6m

BLOCK LIFTER & ELEVATOR >>
BLOCK LIFTER: Powerful hydraulic block lifter with multiple rollers, will lift blocks weighing up to 200kg up to bench height
ELEVATOR: 5 meter fold out elevator with rough top belt & electric winch fitted standard. Optional griddle and griddle tray
TOWING: Block lifter, elevator & roof are easily folded and secured for traveling.

BLADE >>
BLADE: Proven guillotine/multi blade splitting system can split up to four pieces at a time resulting in unmatched efficiency & extremely high output with minimal labour. Produces an excellent sample of split wood with little wastage.

DESIGN, SAFETY & CONTROLS >>
ERGONOMIC DESIGN: Ideal bench height & block lifter ensures the operator can work with a straight back with no bending or straining.
CONTROLS: The innovative double handed control system (with auto return) ensures ease of use, quick cycle times & unmatched safety. This machine is WorkCover compliant
EASE OF USE: Easy splitting with in-table rollers & ample room to move blocks.
SAFETY COMMUNICATION: Weatherproof canister on every machine contains an operator instruction & safety training sheet for quick reference. All machines also come with a detailed operator manual which includes operator training, maintenance recommendations & risk assessment.
