Rite-Weigh Loader with Pressure Transducer - Front End Loader, Skid Steer & Telescopic Forklift

The 'Rite-Weigh Loader' is our new premium onboard weighing system. It has all the advanced options of our ‘Weight Master Totaliser’ plus ‘weighing in motion’ which allows weighing of loads as they are lifted. A trigger system featuring automatic speed compensation and angular sensors captures an accurate weight reading on the go. This system will vastly improve productivity and efficiency as the operator will no longer need to pause mid-lift to capture a weight reading.

You can rely on this system to perform accurately and reliably on most skid steers, telescopic forklifts and wheel loaders. Our automatic weight trigger has no moving parts, making it virtually maintenance free and suitable for the most hostile environments.

AWE offers a printer option for the Rite-Weigh Loader system allowing you to print hard copies of your weight readings if required.
Enjoy the benefits of the Rite-Weigh Loader including:

• Increased efficiency and increased productivity resulting in increased profits for your business
• Improved safety
• Eliminate fines for overloading trucks/vehicles
• No more trips to the weighbridge
• Check incoming/outgoing goods
• Prevent damage due to machinery overload
• Avoid under/over-loading trucks

FEATURES & BENEFITS:

• Trigger weighing – weigh in motion and speed compensation

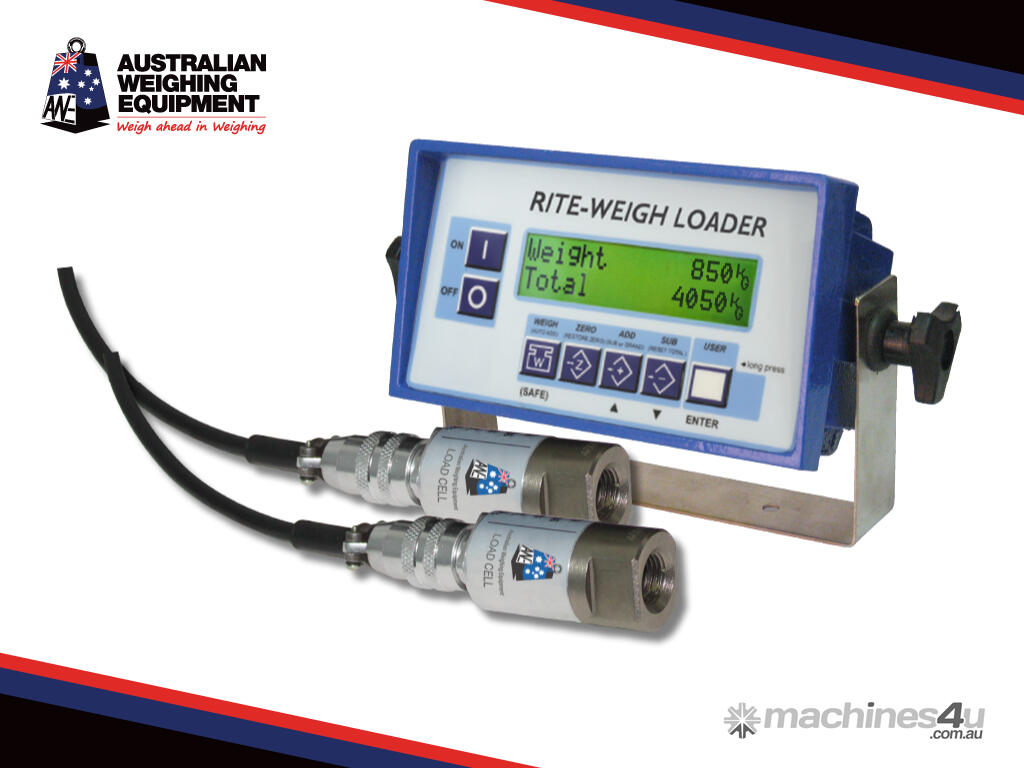

• Two pressure transducers
• Angular body sensor
• Angular arm sensor
• Full function totaliser module with add-in, subtract-out, total and auto-add
• Accuracy ± 1% of machine capacity
• 9VDC to 70VDC
• Simple one-touch weighing button
• Autocal facility with percentage (%) adjustment
• Rugged electronic design
• Rubber-mounted bracket
• No loss of lifting capacity
• Overload alarm
• Backlit display
• Heavy-duty construction
• Printer option with date and time, totals, product description, company name, etc.


SPECIFICATIONS

• Type: Digital with microprocessor control
• Applications: Suitable for most skid steers, wheel loaders, and telescopic forks
• Accuracy: - Skid Steer and Wheel Loader: ±1% of capacity (e.g., If lift capacity is 1000kg, then accuracy is ±10kg)
- Telescopic Fork: ±1-2% of capacity (e.g., If lift capacity is 1000kg, then accuracy is ±10kg to 20kg)
• Resolution: 1, 2, 5, 10, 20, 50, 100, 200 (selectable to suit installation)
• Temperature: 0°C to 40°C operating range
• Supply voltage: 9v to 70v standard
• Supply current: Less than 200mA
• Housing Rating: Weatherproof (IP65)
• Housing Size: W:250mm, H:150mm, D:125mm
• Housing Material: Powder-coated aluminum case with a stainless-steel bracket
• Display: 10mm (H) x 32 digits supertwist alphanumeric LCD with an extended temperature range
• Backlight: LED fiber-optic (where fitted)
• Warranty: 12 months on instrument and sensors
• Fitting time: Typically eight hours
• Recalibration: Six-monthly (recommended), 12-monthly (standard)
• Manufacture: 100% Australian made
• Speed Compensation: Speed compensation trigger switch to enable variance between high-speed and low-speed (when fitted)


OPTIONAL ADD-ON:

Printer (optional)

Characters: 60mm plain paper
Supply: 20 per line, 16 to 60v with optional adapter
Current: 200mA standby, 1A peak printing
Fields - Date, time, gross weight, net weight, tare, number of loads, total, grand total and customised header



HOW THE RITE-WEIGH LOADER WORKS

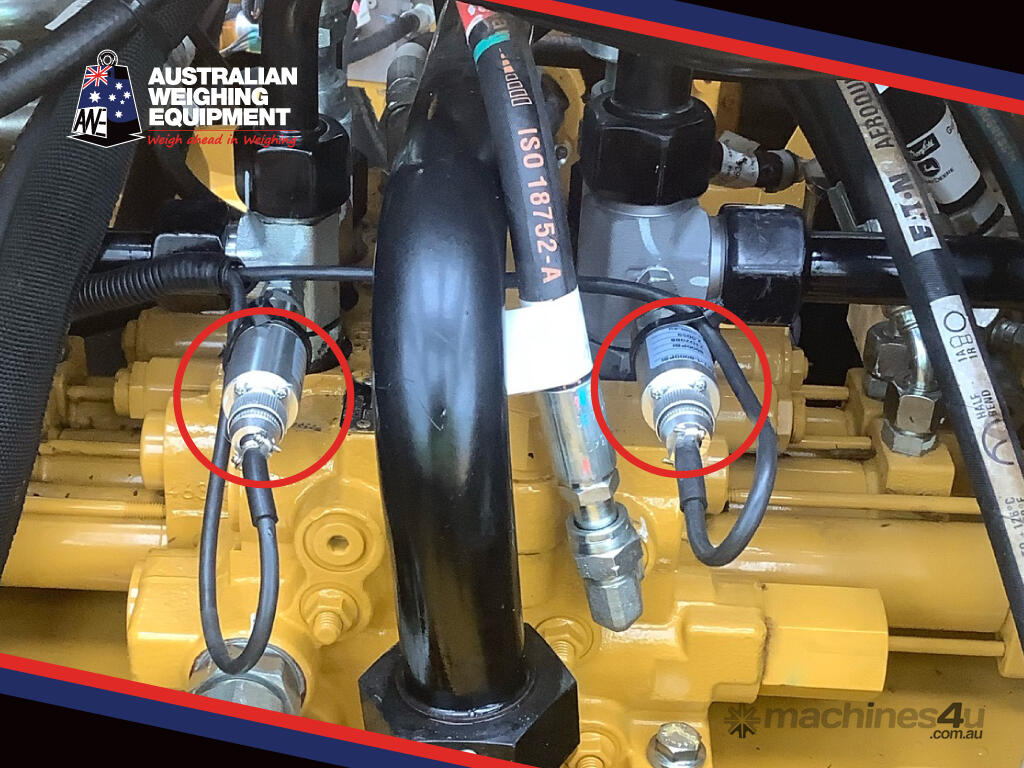

1. Pressure Transducer: measures pressure in the hydraulic system as a load is lifted.

2. Trigger sensor: continuously monitors the boom position throughout the lift at numerous measurement locations, allowing
calculated weights to be averaged out or rejected if outside tolerance levels.

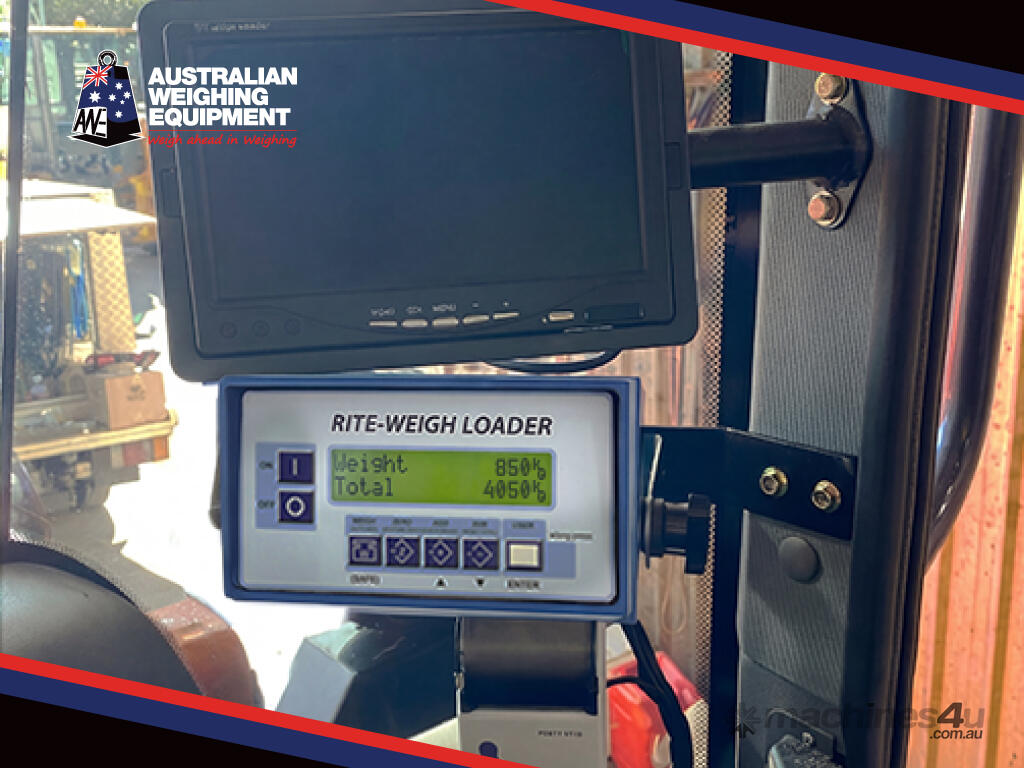

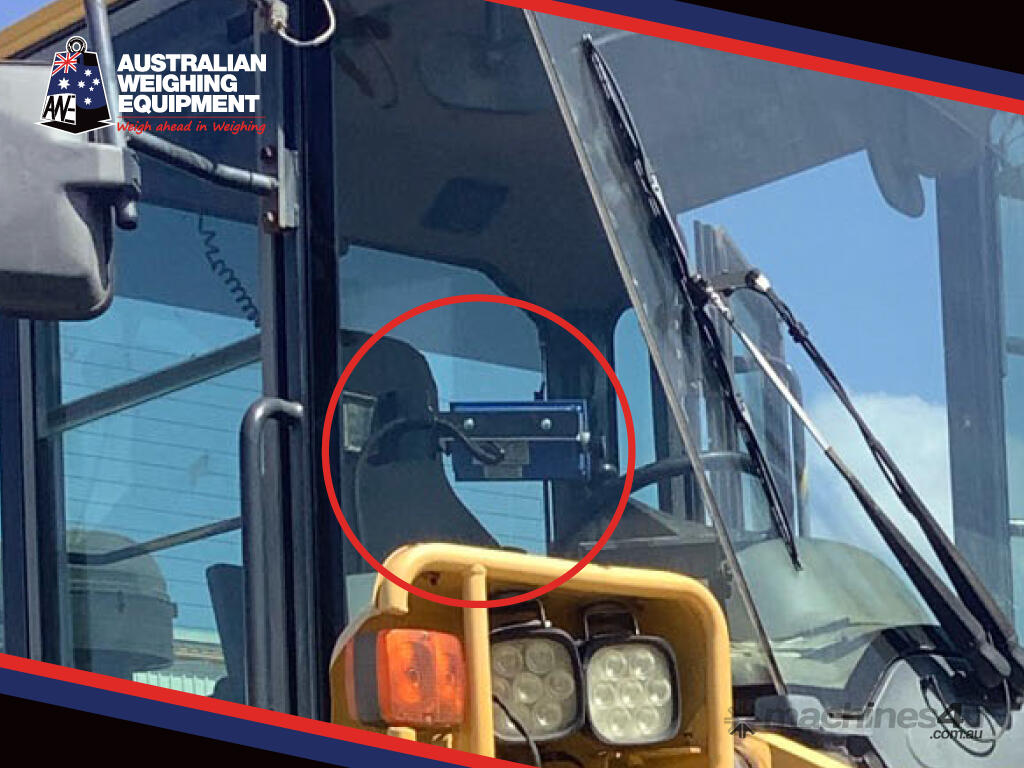

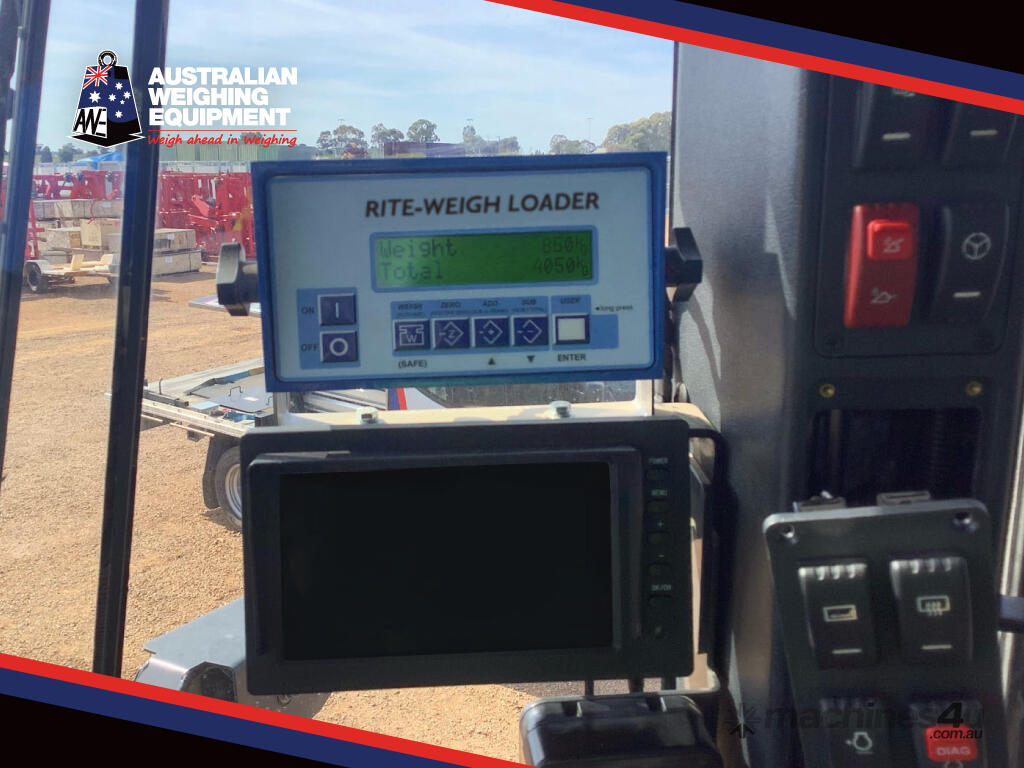

3. Indicator: Rite-Weigh Loader instrument mounted inside cabin within reach and sight of operator.

4. Slope compensation kit: enables superior accuracy of weighing system when in use on sloping or

uneven ground.

5. Printer (optional): produce hard copies of data gathered by the Rite-Weigh Loader.

6. Data communications: can be set to relay data to the administration for accounting purposes or for performance, productivity or stockpiling management
