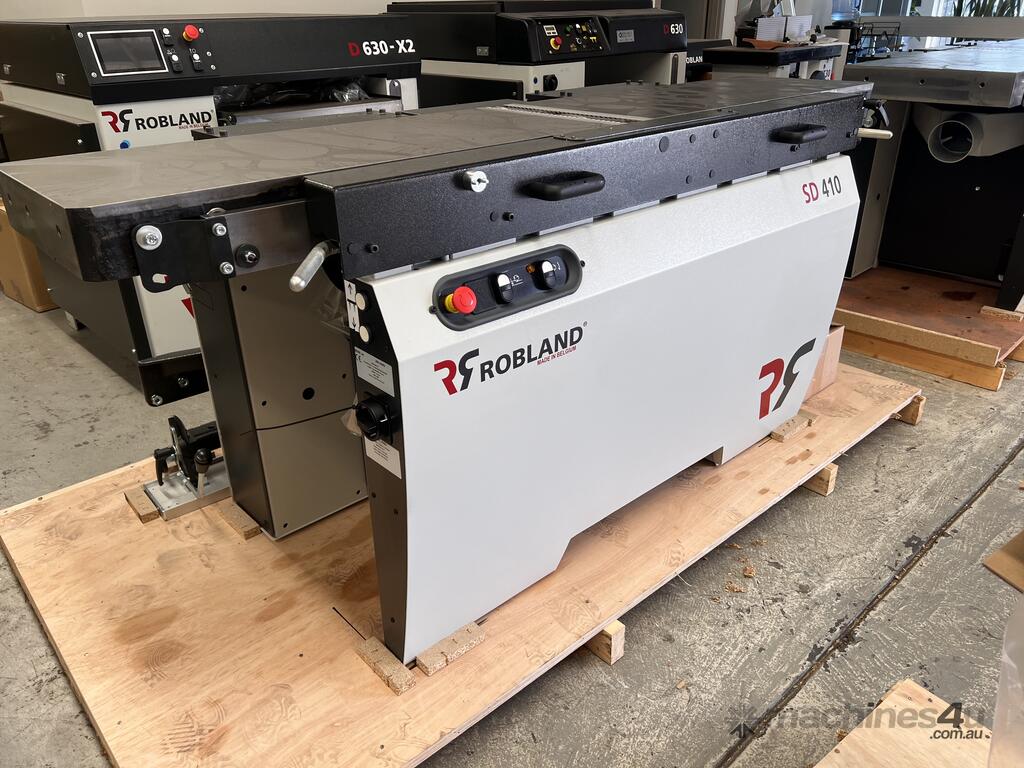

SD410 Technical data
Weight 615 kg
Voltage 3 x 400 V
Motor power (S6) 4,4 kW / 6,6 hp
Dust extraction diameter 120 mm

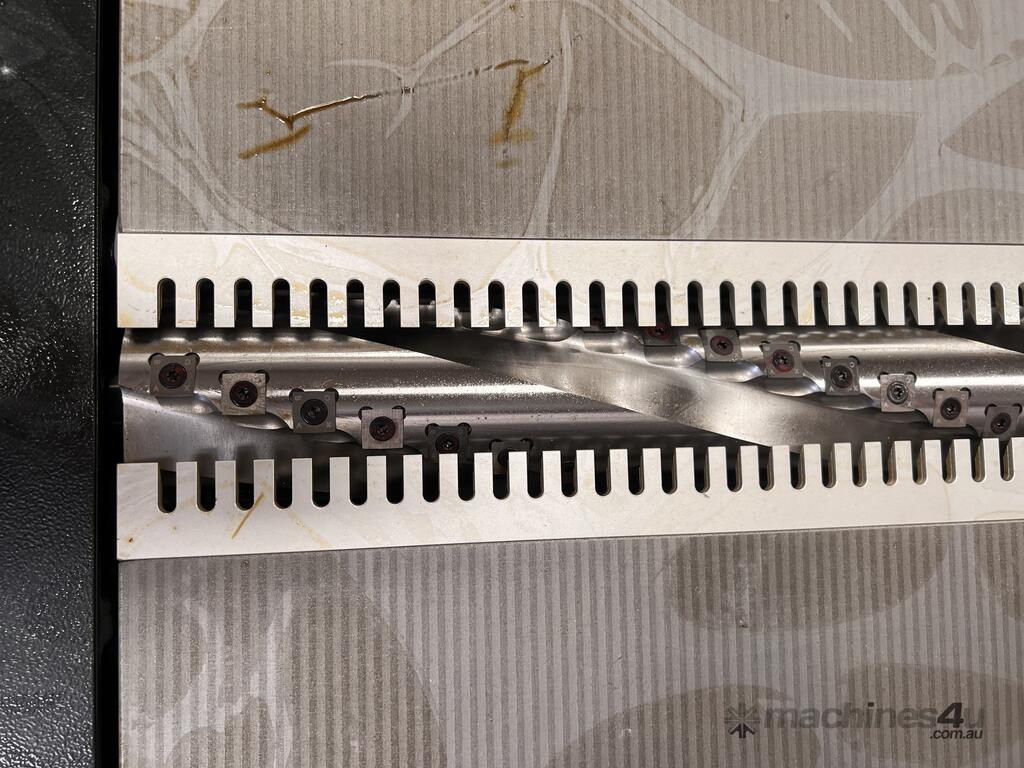

Diameter cutter block 90 mm
Knives 4
Dimensions knives 410 x 30 x 3 mm
Cutter block rotation speed 5500 RPM
Max. depth of cut 4 mm
Planer
Planer width 410 mm
Total length planer tables 2000 mm
Dimensions planer fence 1350 x 200 mm
Inclination planer fence 90° - 45°
Thicknesser
Thicknesser width 410 mm
Height capacity thicknesser 3 - 250 mm
Dimensions thicknesser table 870 x 410 mm
Feeding speed 6 m/min.
Diameter feed rollers 40 mm
