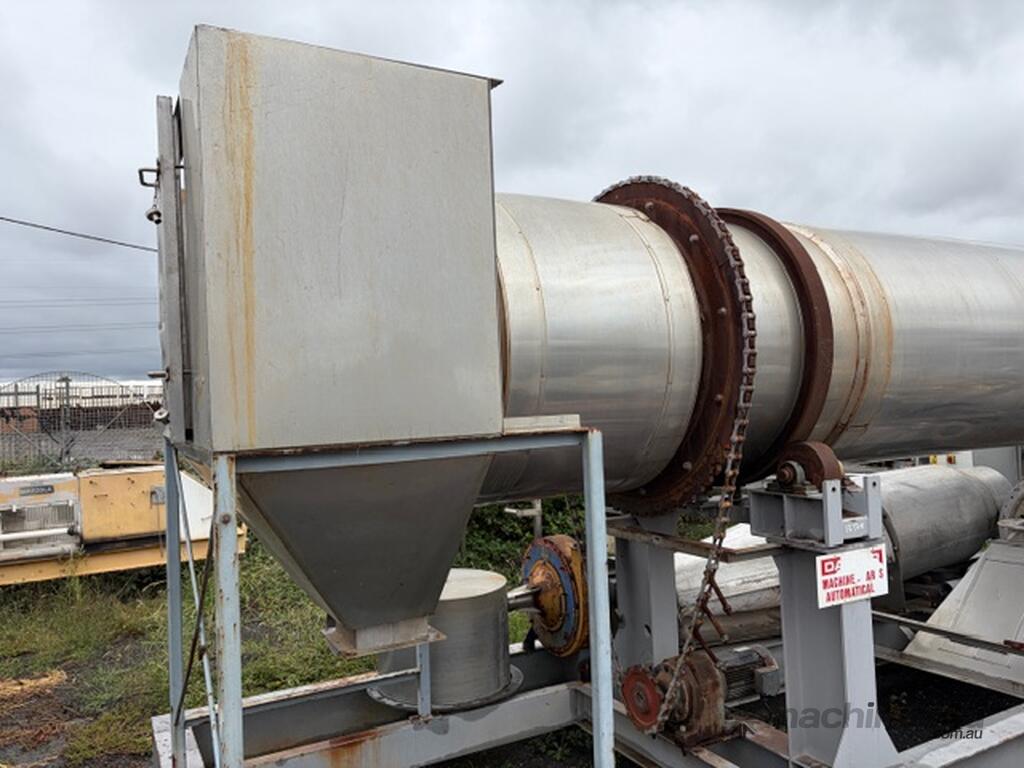

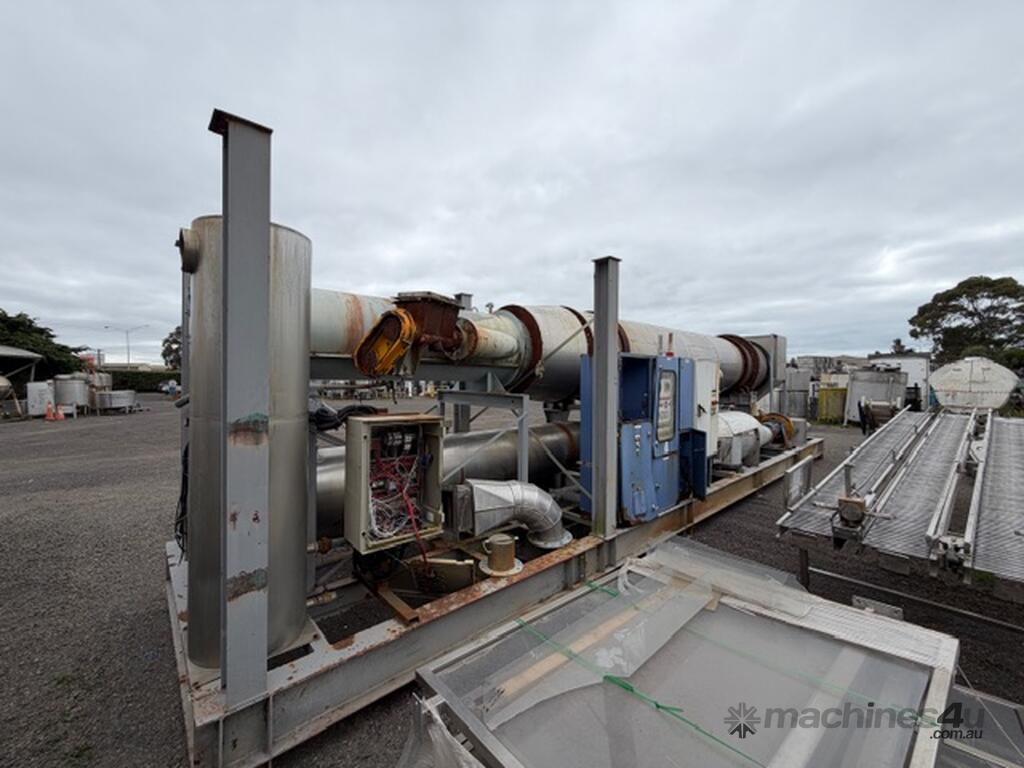

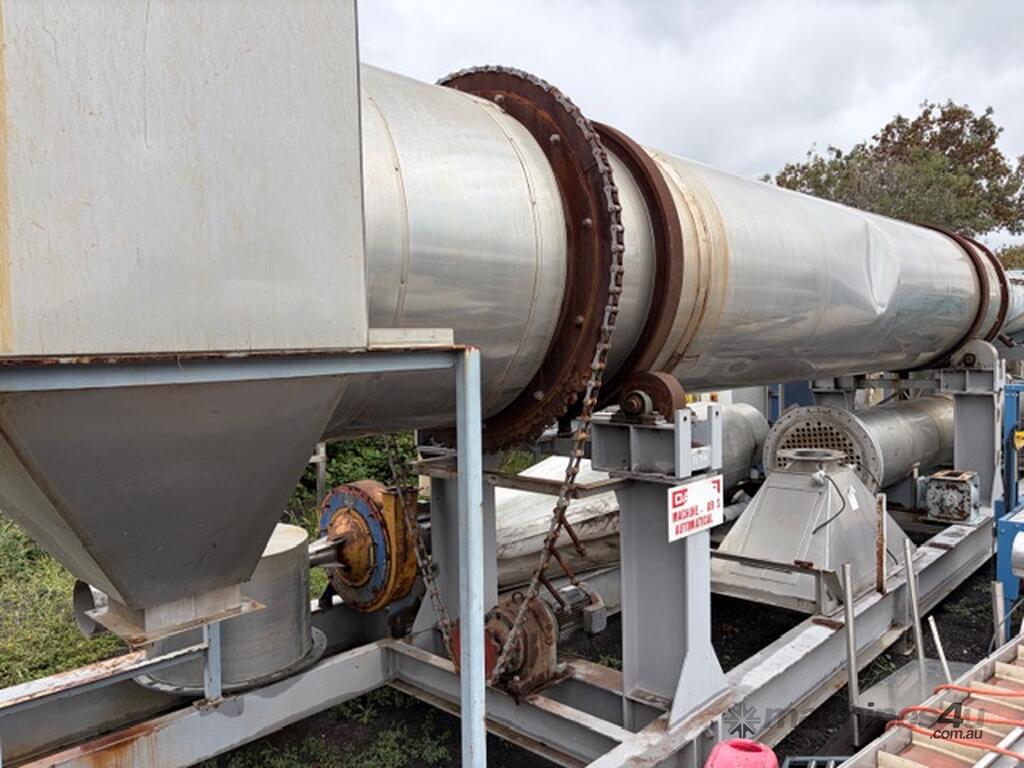

Heavy Duty Rotary Dryer – Flo-Dry (Made in New Zealand)
Robust, skid-mounted rotary dryer system designed for efficient drying and high throughput applications. Good condition internally, with insulated barrel for improved thermal efficiency.
Specifications:
Barrel Size: 8.0 m long x 1.1 m diameter

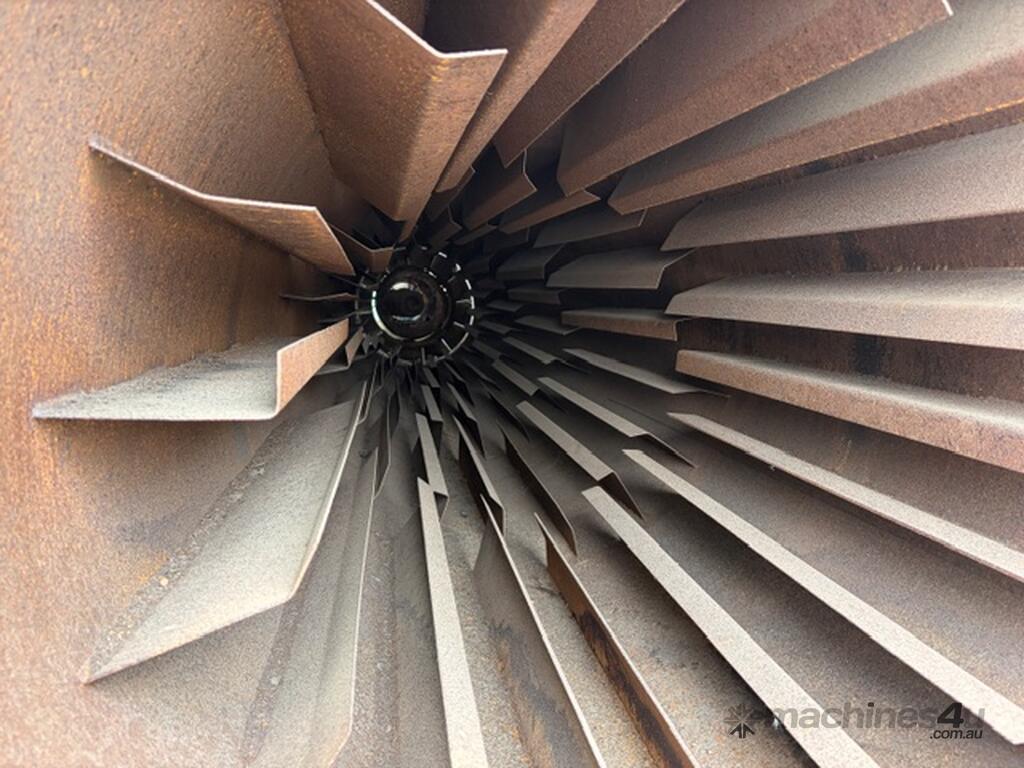

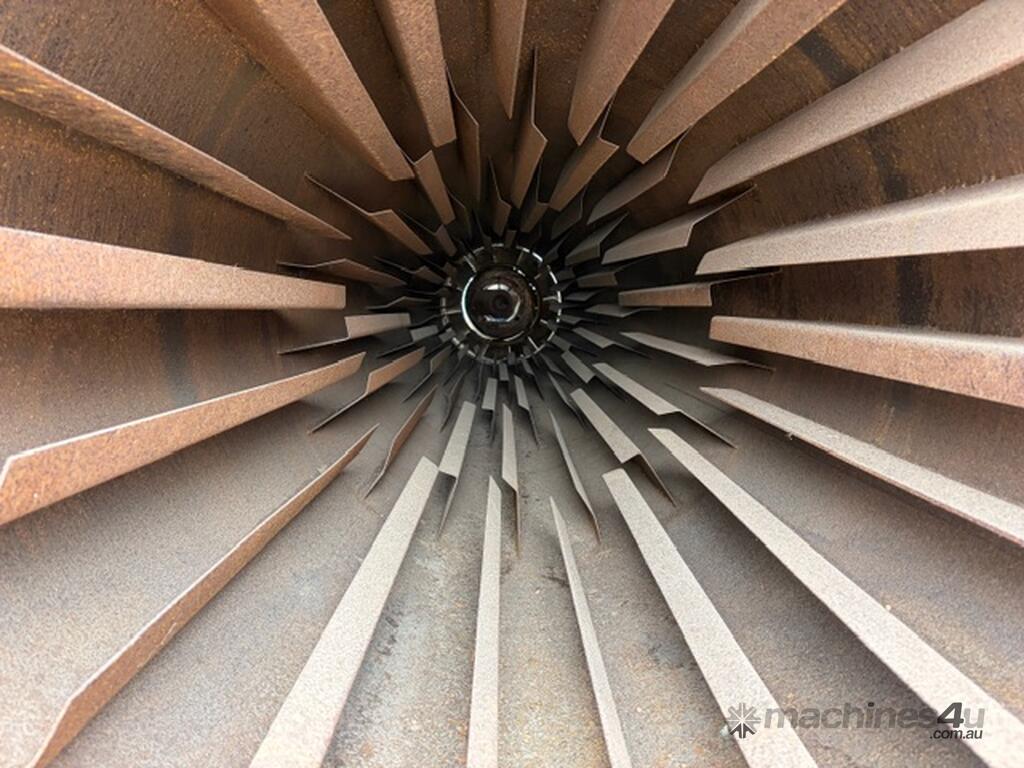

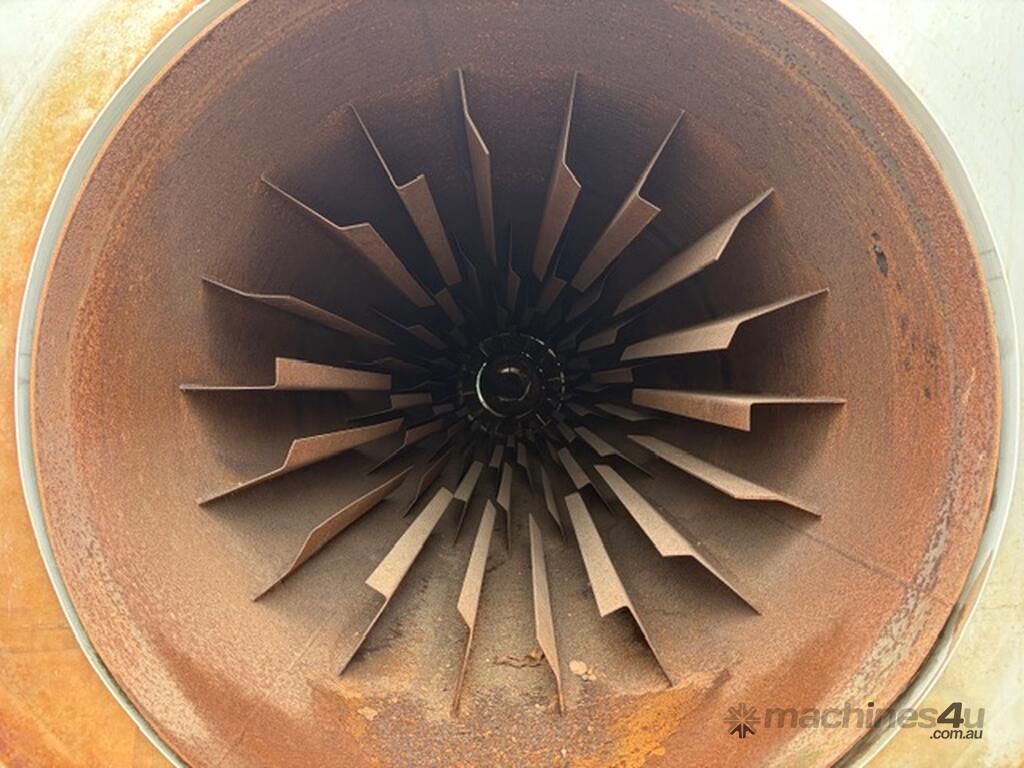

Condition: Internally in good condition, fully insulated

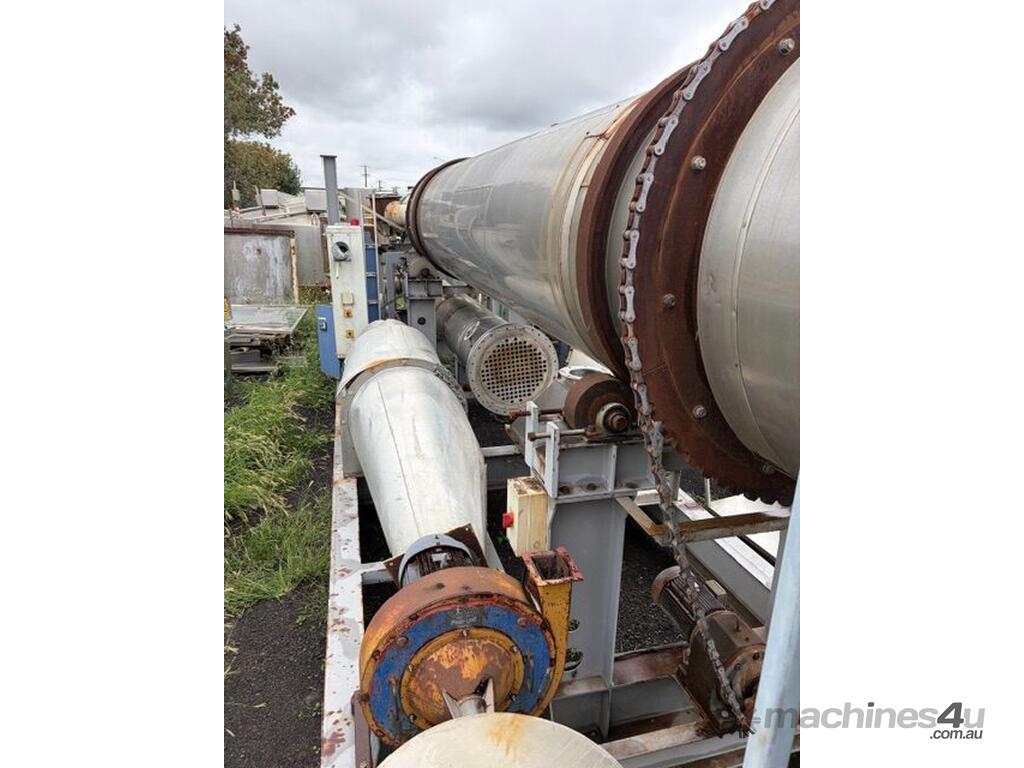

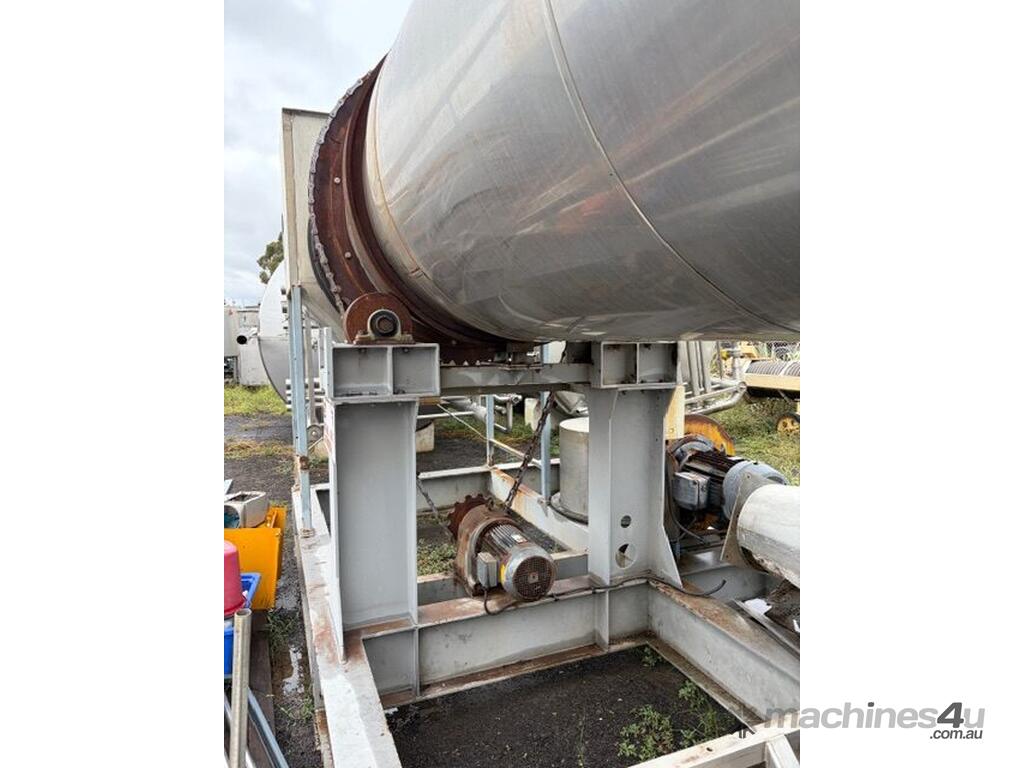

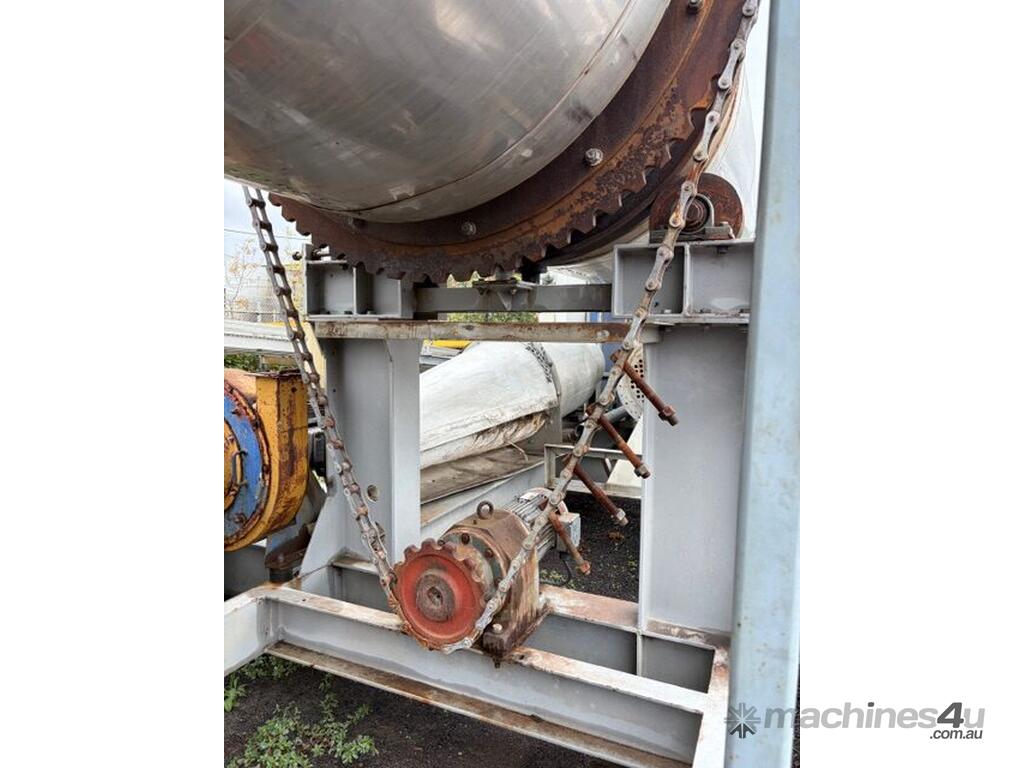

Drive: 5.5 kW geared motor 41 RPM
Evaporation Capacity: Approx. 300 kg/hr
Heating & Air System:

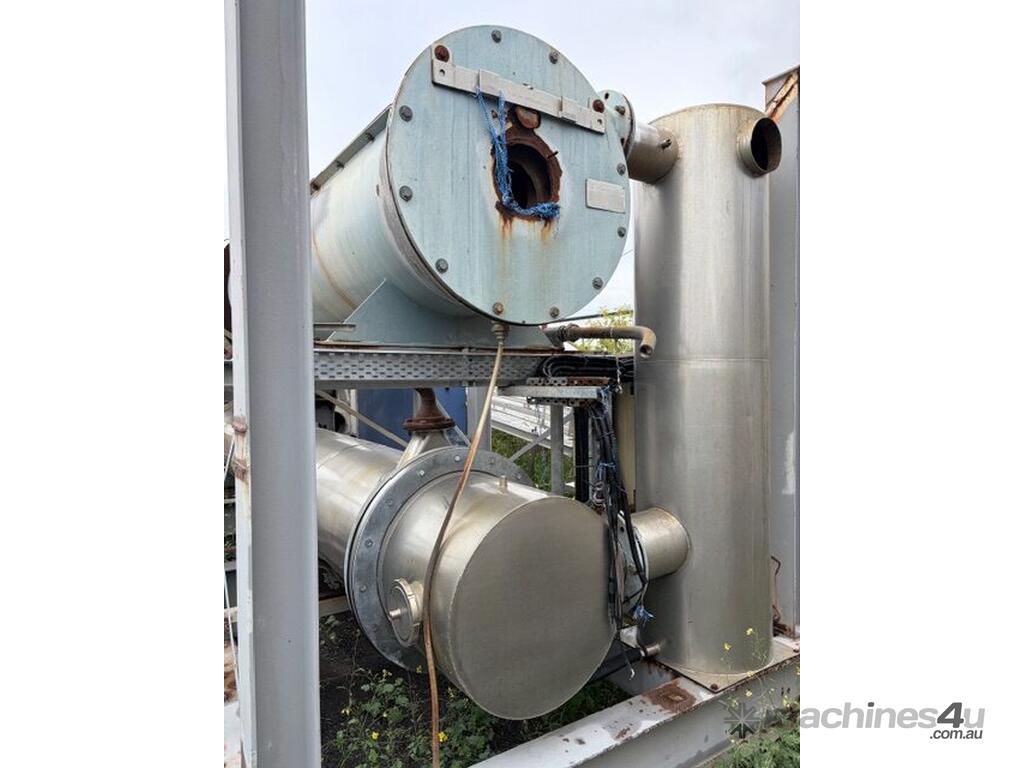

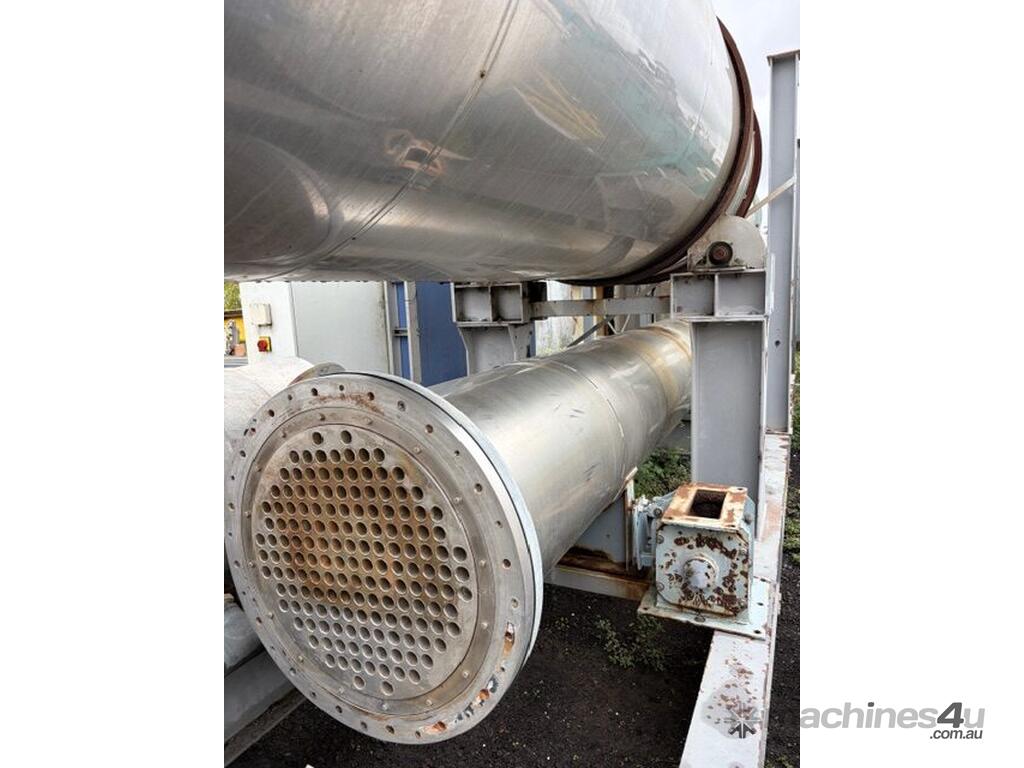

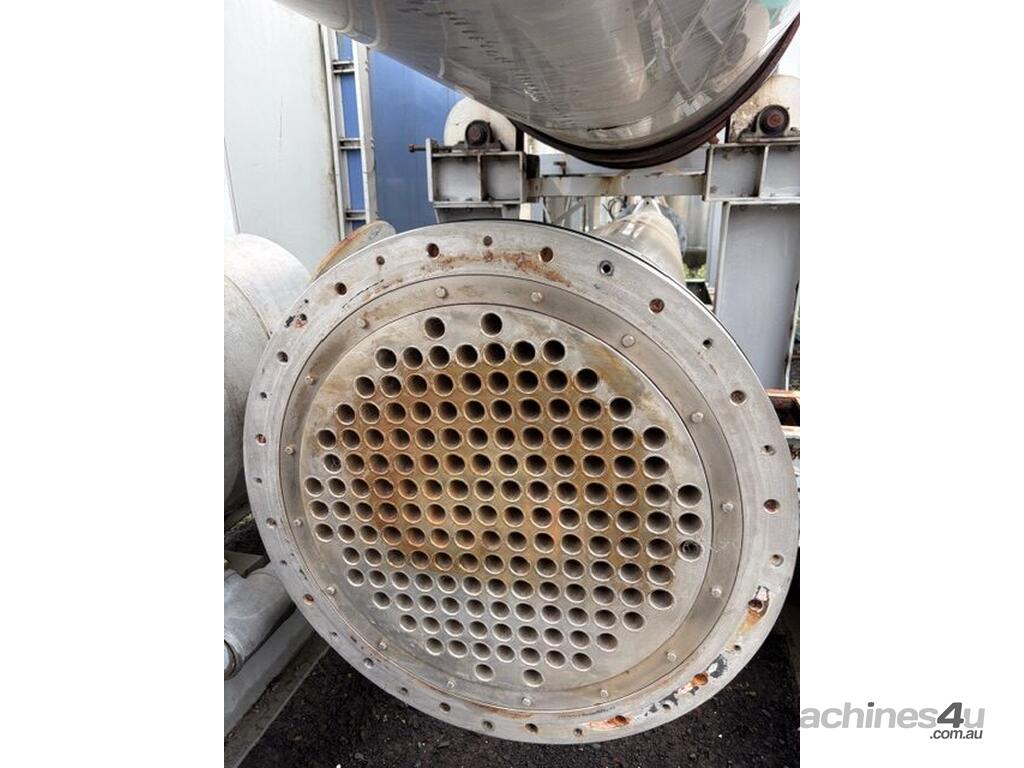

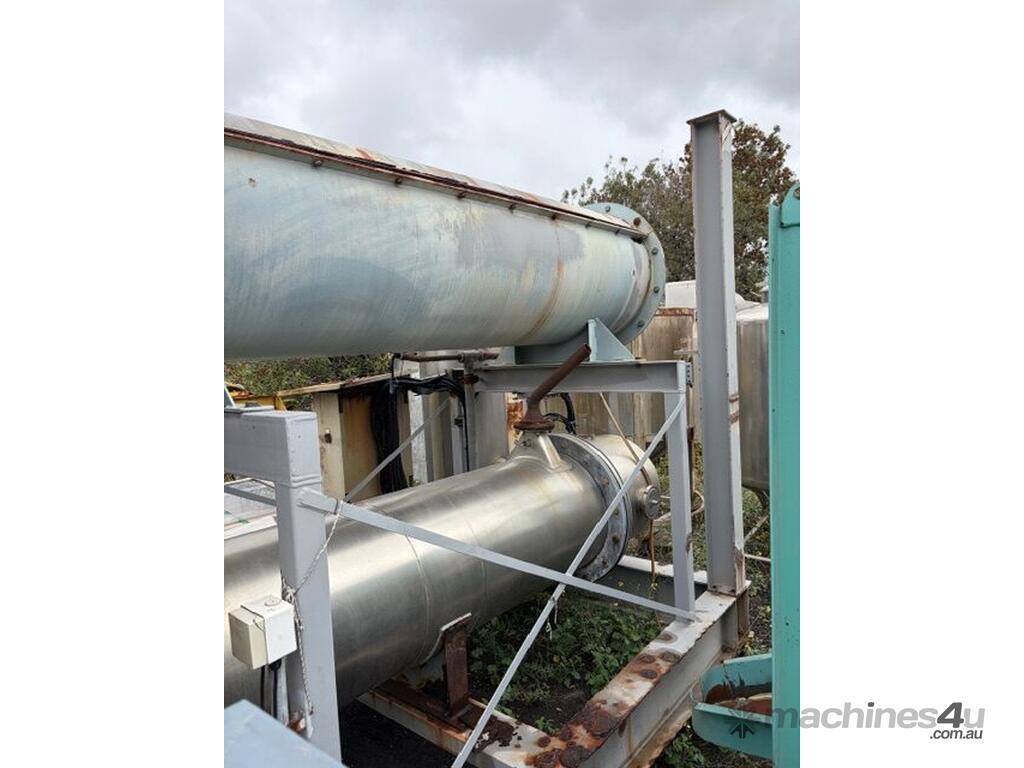

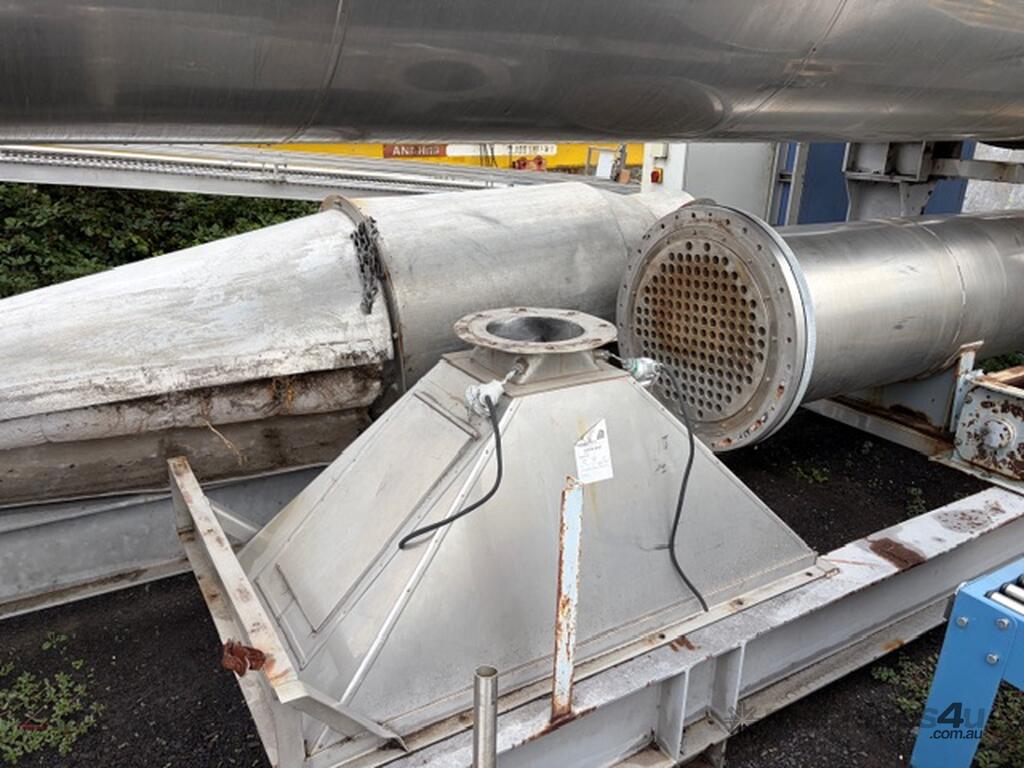

Stainless steel heat exchanger for inlet air pre-heating
Size: 6.5 m long x 650 mm diameter
Supplied with 630 kW Weishaupt modulating burner
Suitable for LPG or Natural Gas
Dust & Product Handling:

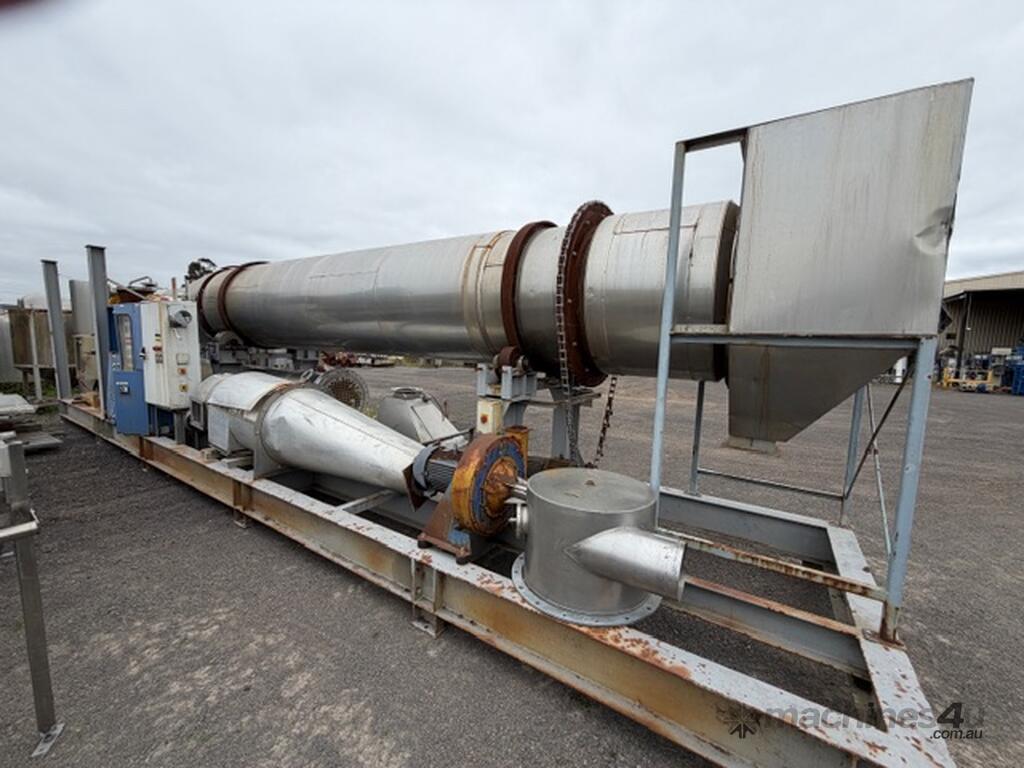

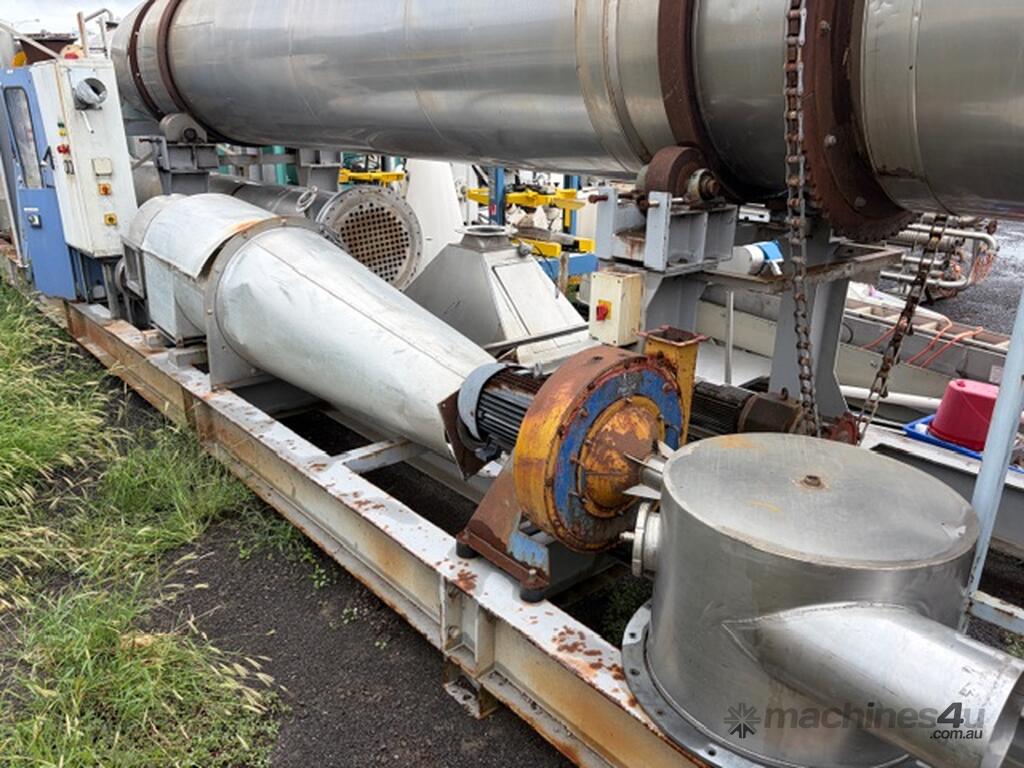

Cyclone separator complete with fan and rotary valve for efficient material discharge and air handling
Construction & Layout:

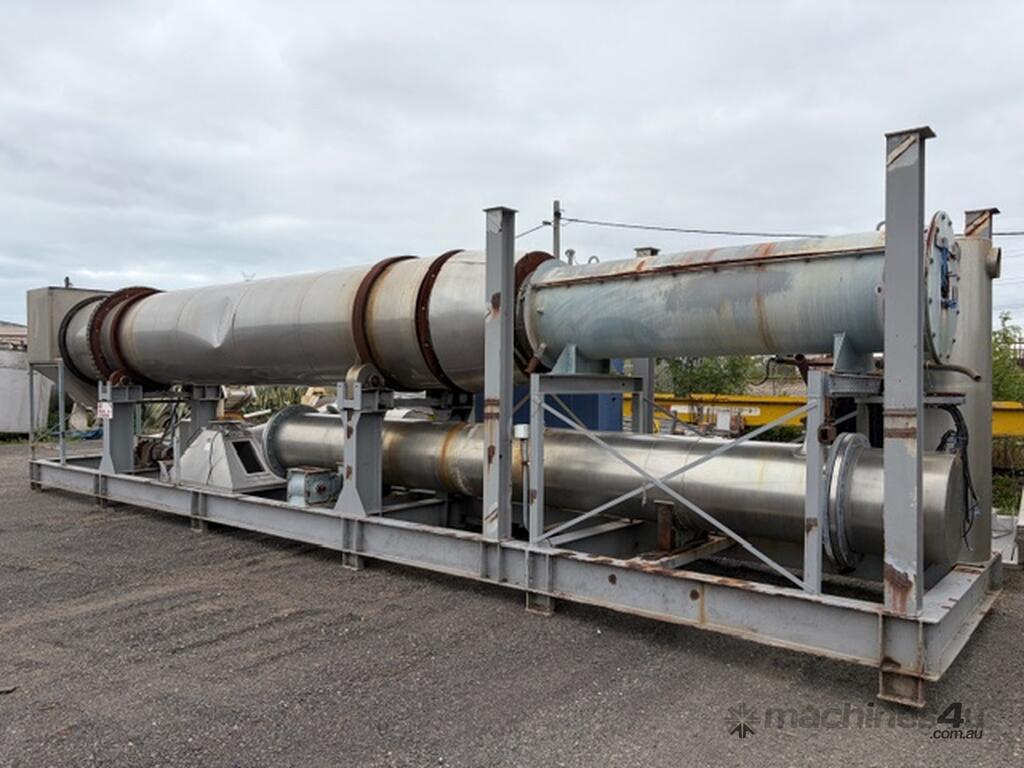

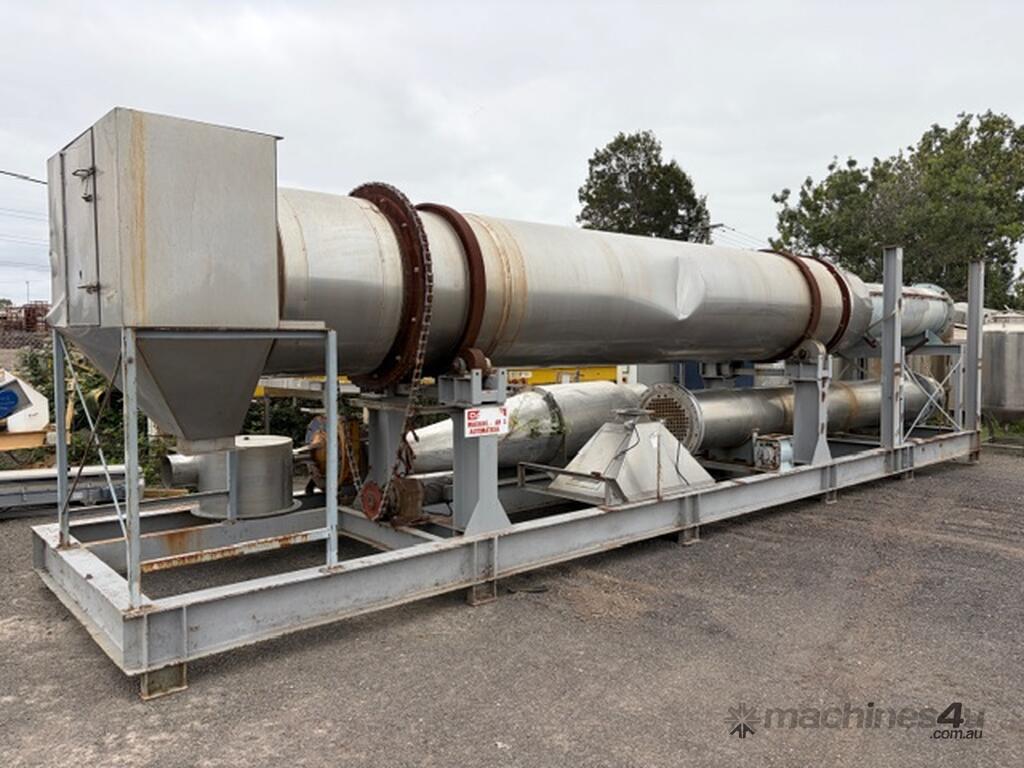

Fully skid-mounted for ease of transport and installation
Overall Dimensions: 12 m (L) x 2.4 m (W) x 2.9 m (H)
Weight: Approx. 13 tonnes
Note:
Unit requires new electrical controls
A solid, high-capacity drying package with quality components, ideal for refurbishment or integration into an existing process line.
