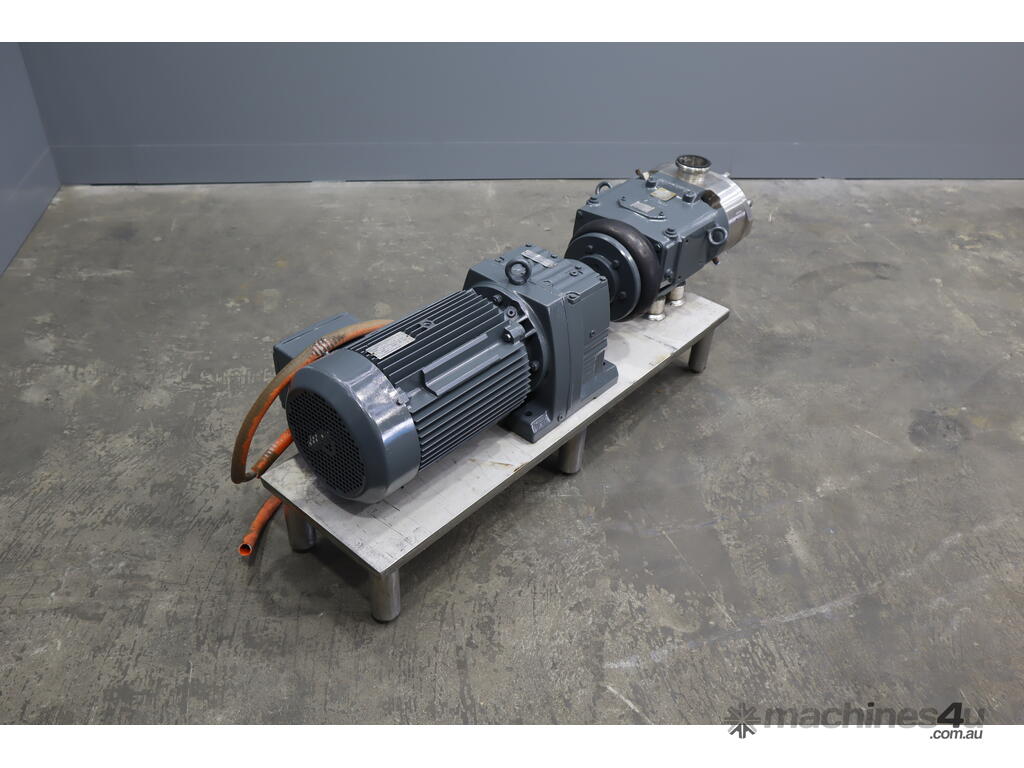

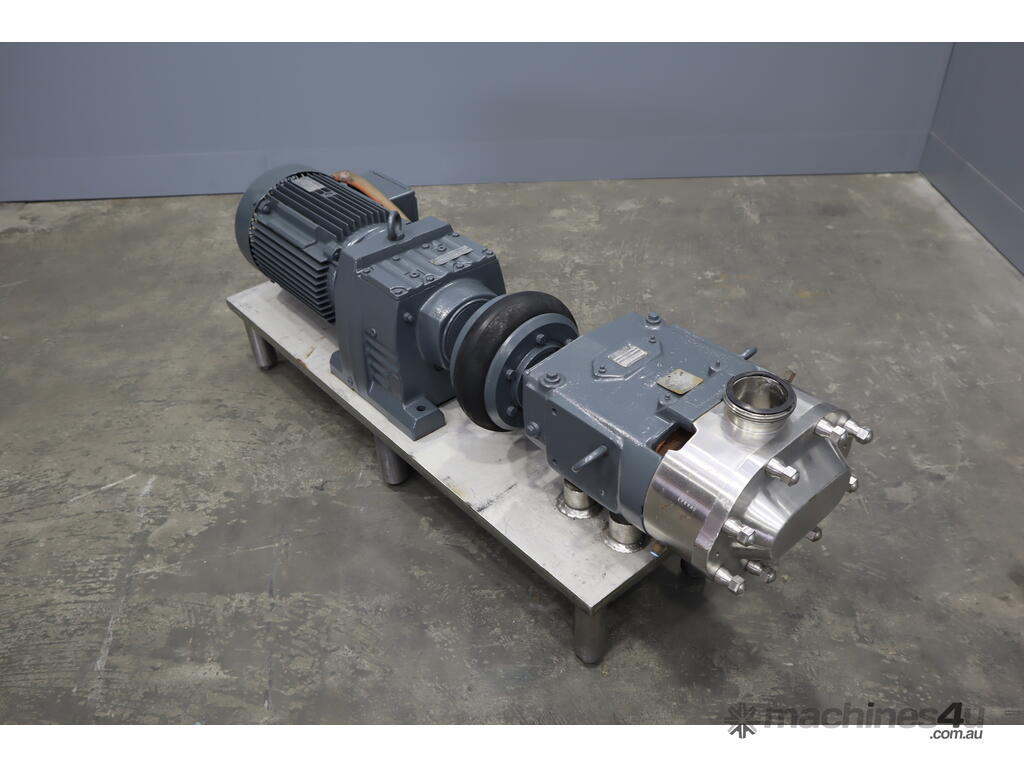

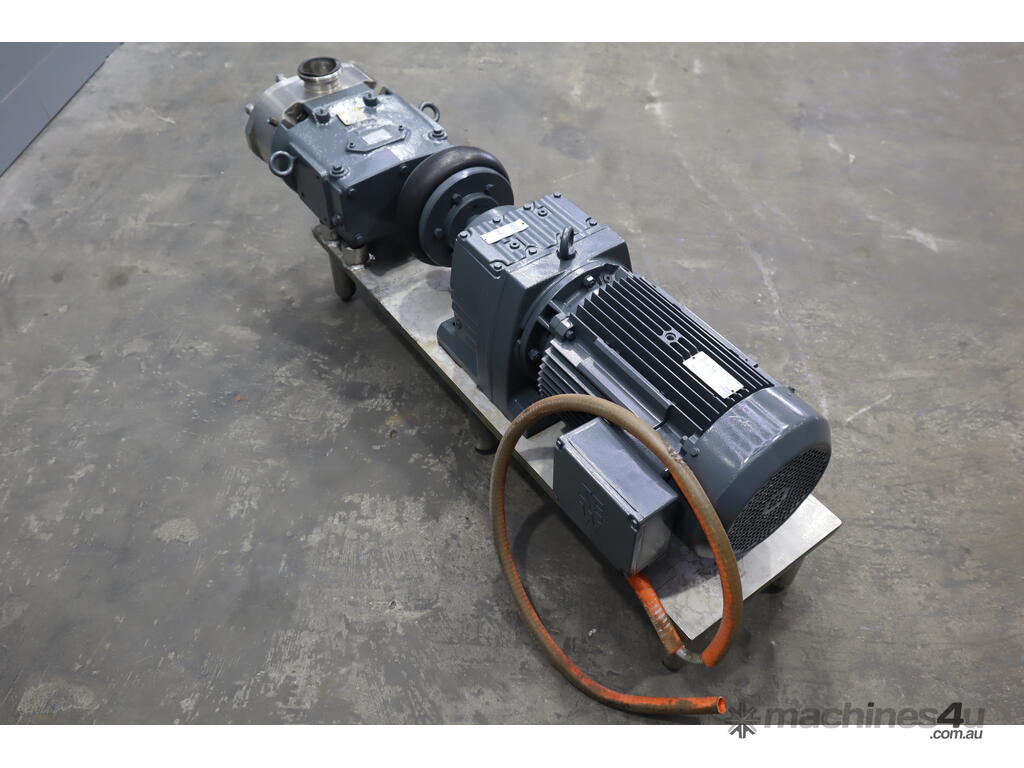

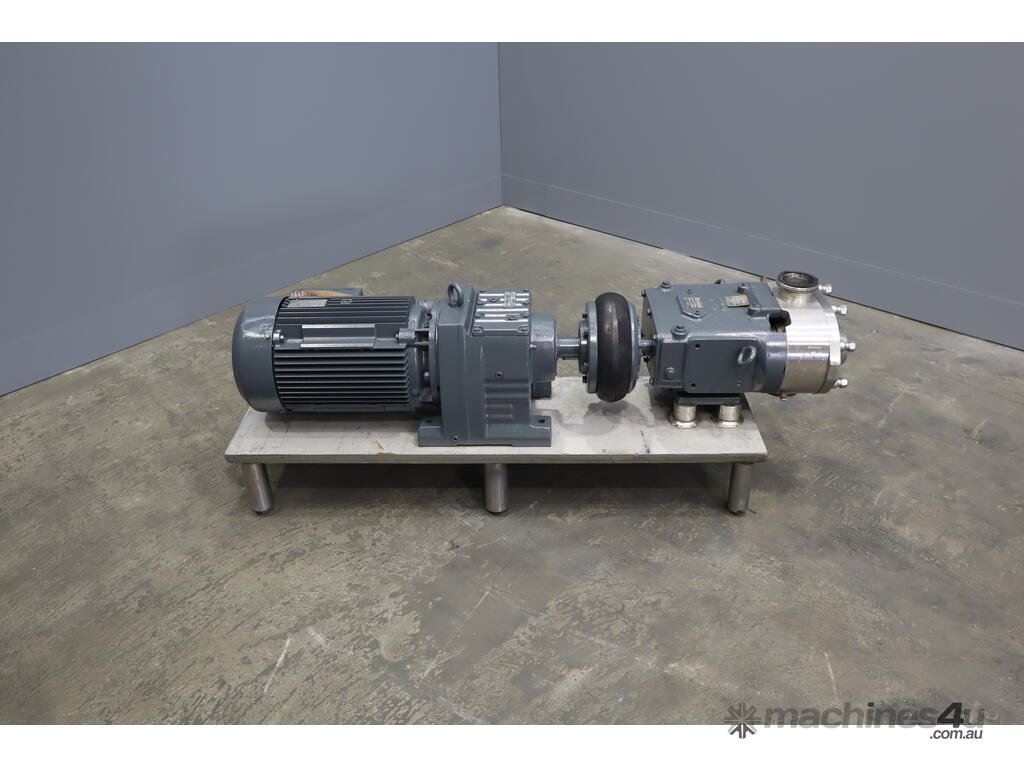

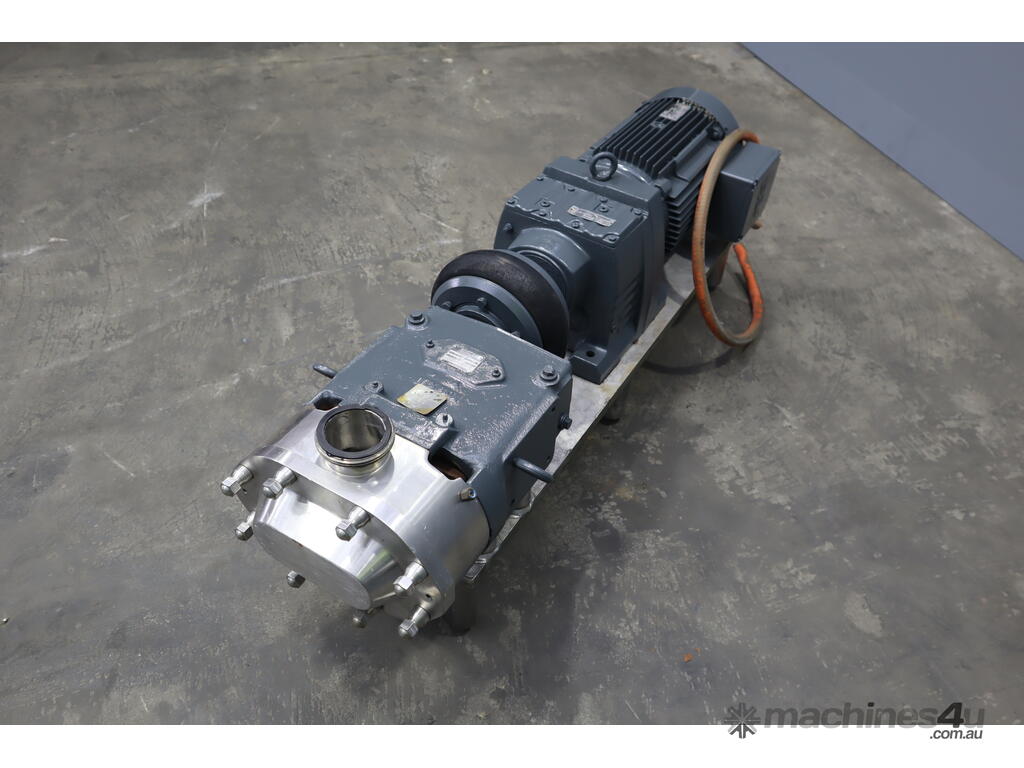

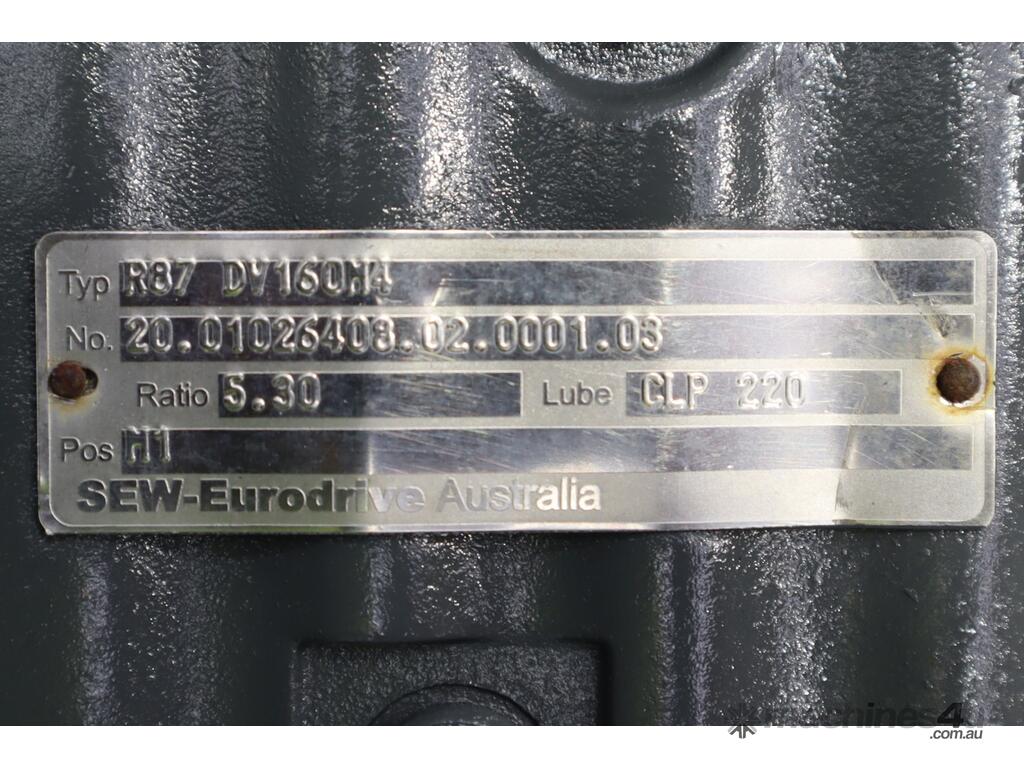

Waukesha Cherry Burrell positive displacement lobe pump, complete with electric motor, gearbox, flexible coupling, and stainless steel pump head, mounted on a compact base frame. In excellent condition, this unit is designed for hygienic fluid transfer applications where gentle handling and consistent flow are required. Commonly used in food, dairy, beverage processing etc.
Supplied as is, ready for integration into an existing process line.

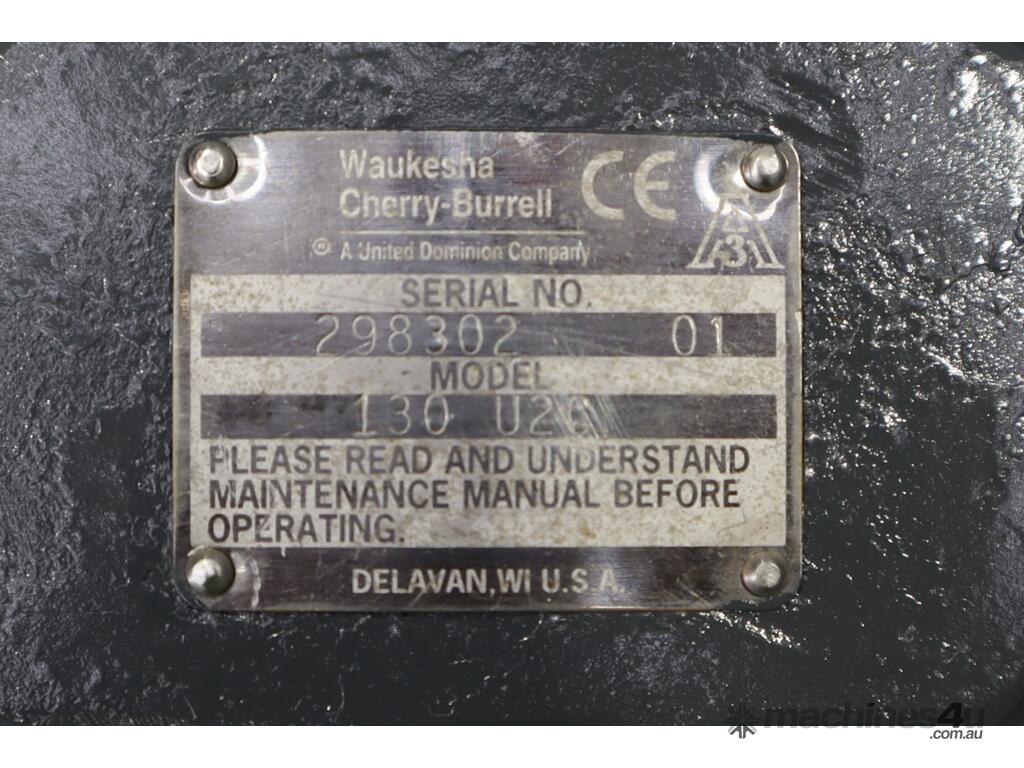

Make: Waukesha Cherry Burrell (WCB)
Type: 130 U2C
Nominal Displacement (per revolution): 0.253 gal / 0.958 L
Max Nominal Capacity: 150 gpm (34.1 m³/hr)
Max Product Pressure: 200 psi (13.8 bar)
Max RPM: 600

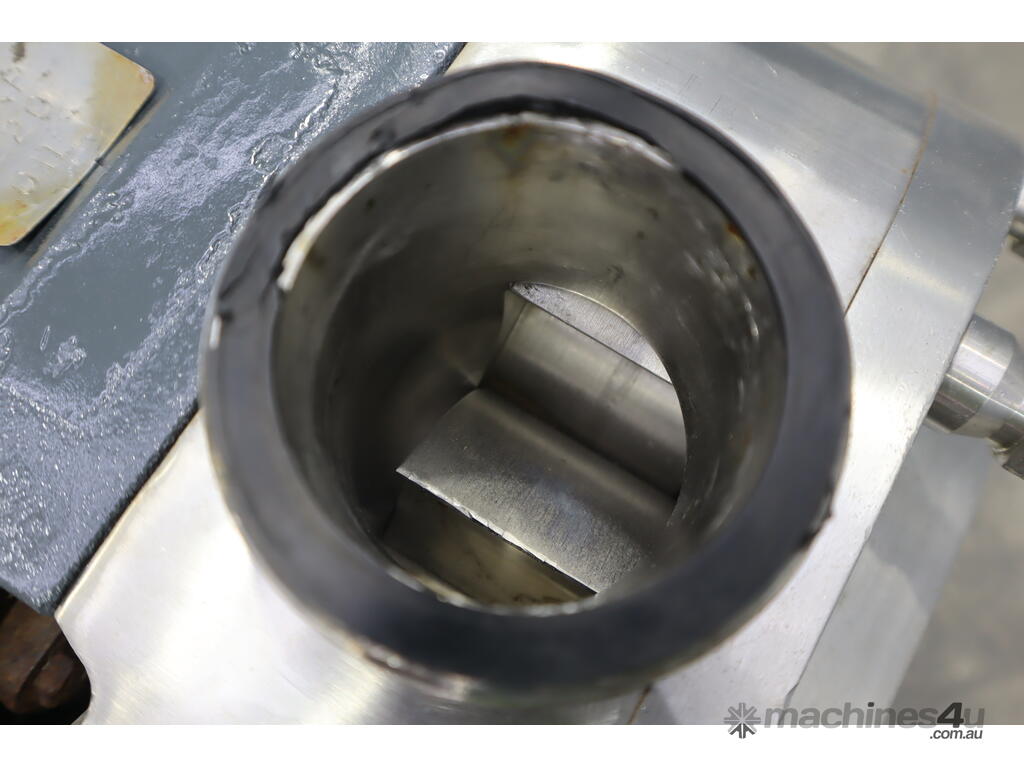

Inlet/Outlet (mm): 3" / 76.2mm

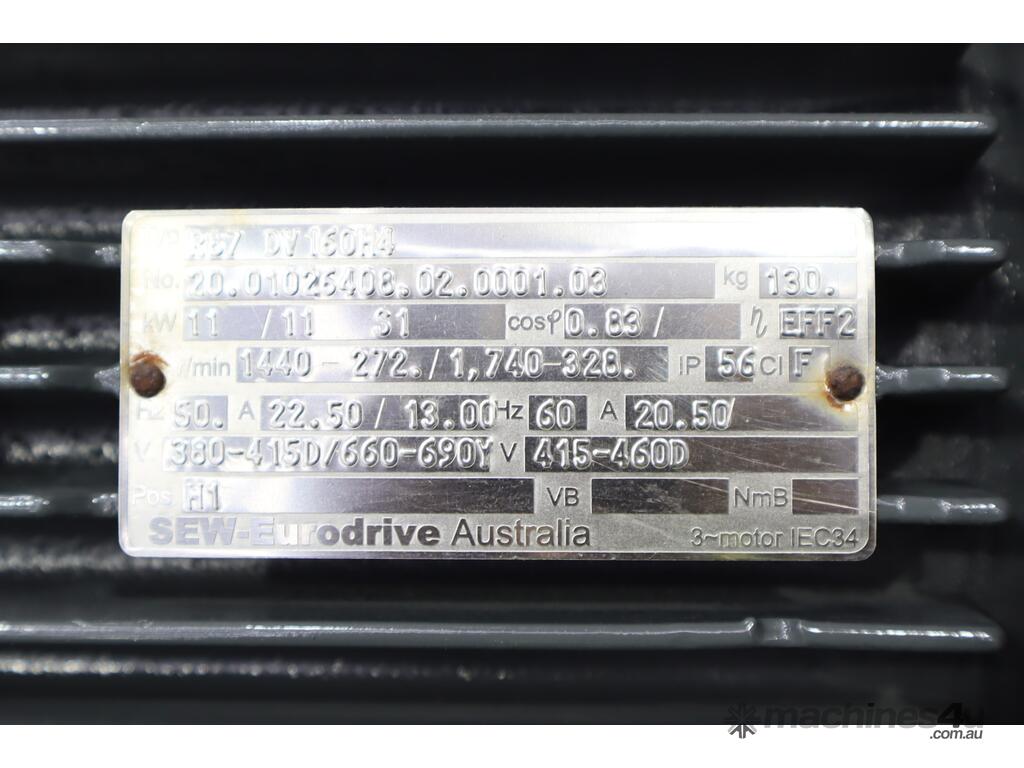

Voltage: 415V 3 Phase
Motor Power: 11 kW
Motor Speed: 1440
Overall Dimensions (mm): 1450 L x 440 W x 575 H
