Rotary Positive Displacement Lobe Pump - 11kW - Waukesha 130

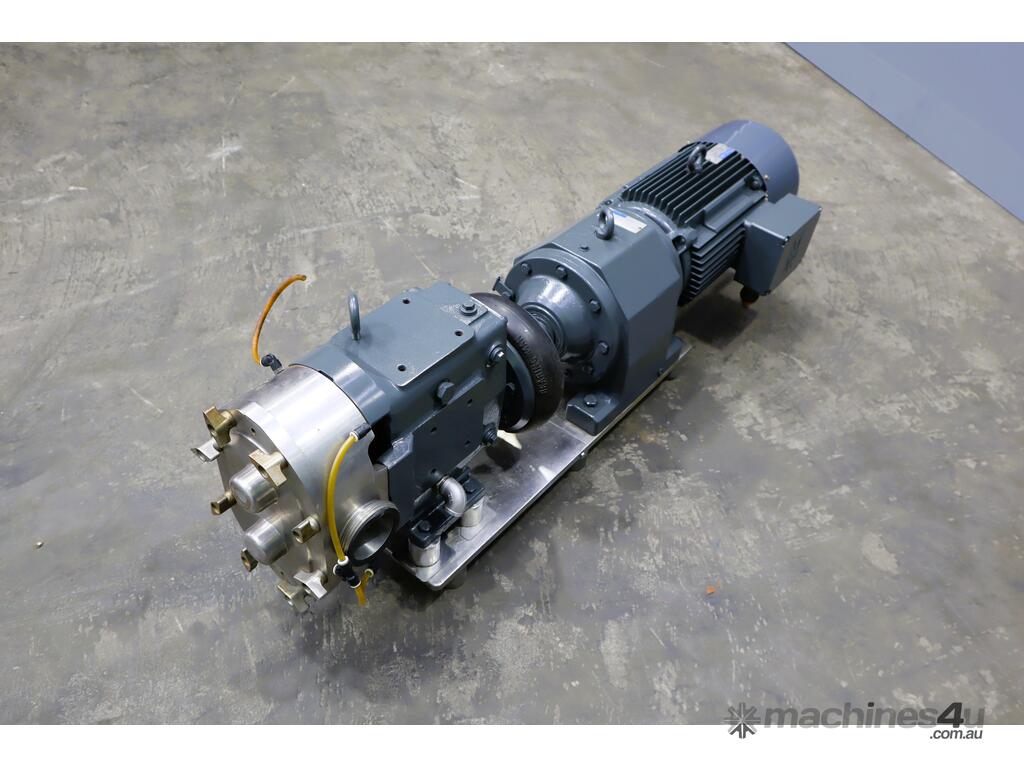

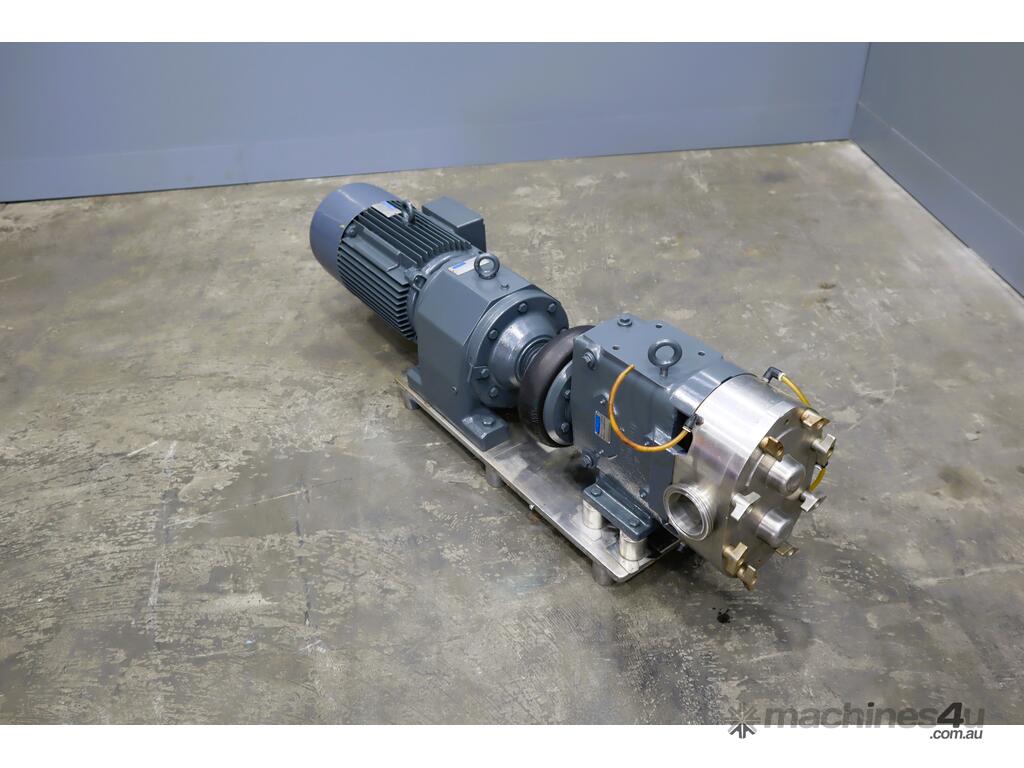

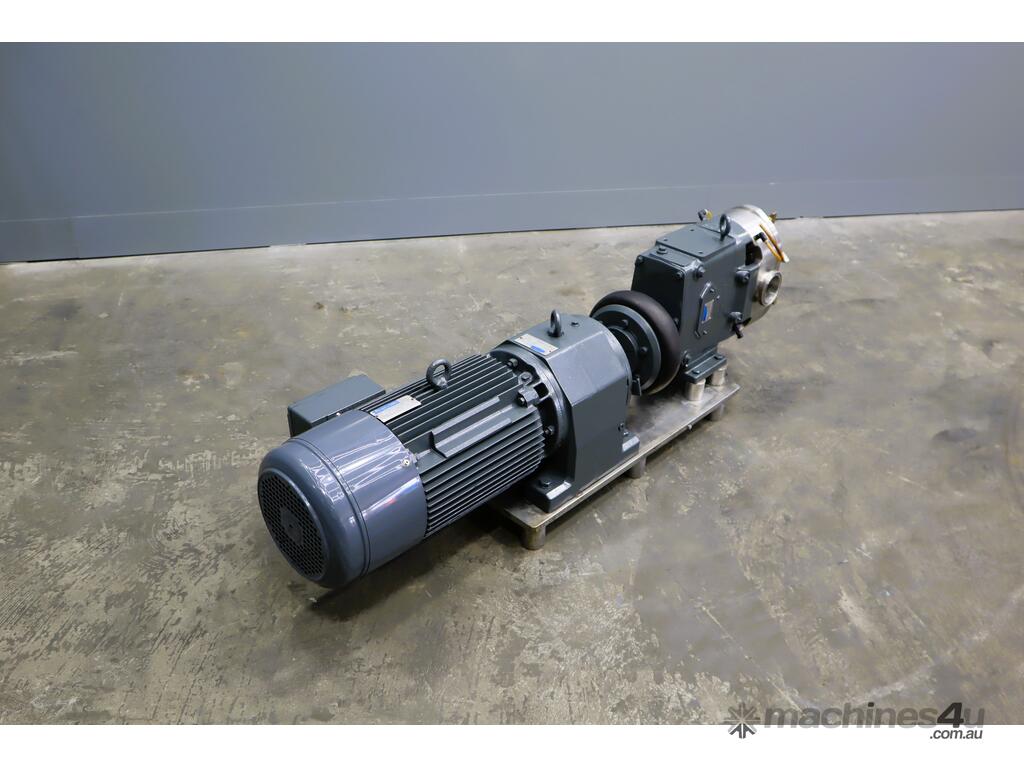

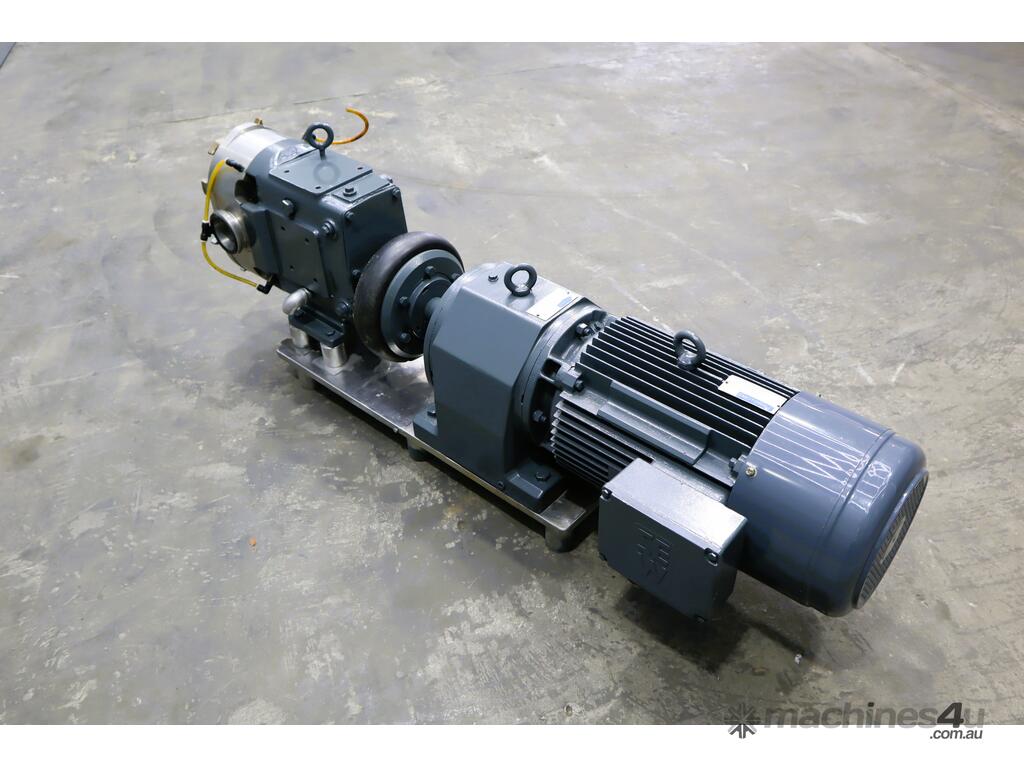

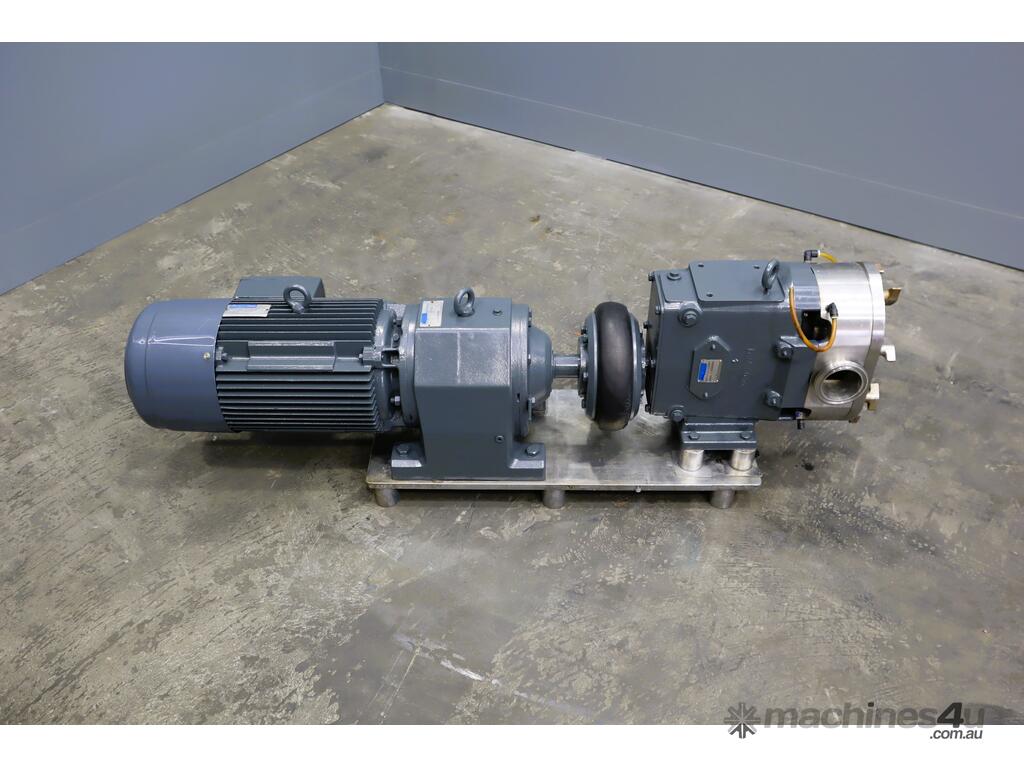

Waukesha Cherry Burrell positive displacement lobe pump, complete with electric motor, gearbox, flexible coupling, and stainless steel pump head, mounted on a compact base frame. In excellent condition, this unit is designed for hygienic fluid transfer applications where gentle handling and consistent flow are required. Commonly used in food, dairy, beverage processing etc.
Supplied as is, ready for integration into an existing process line.

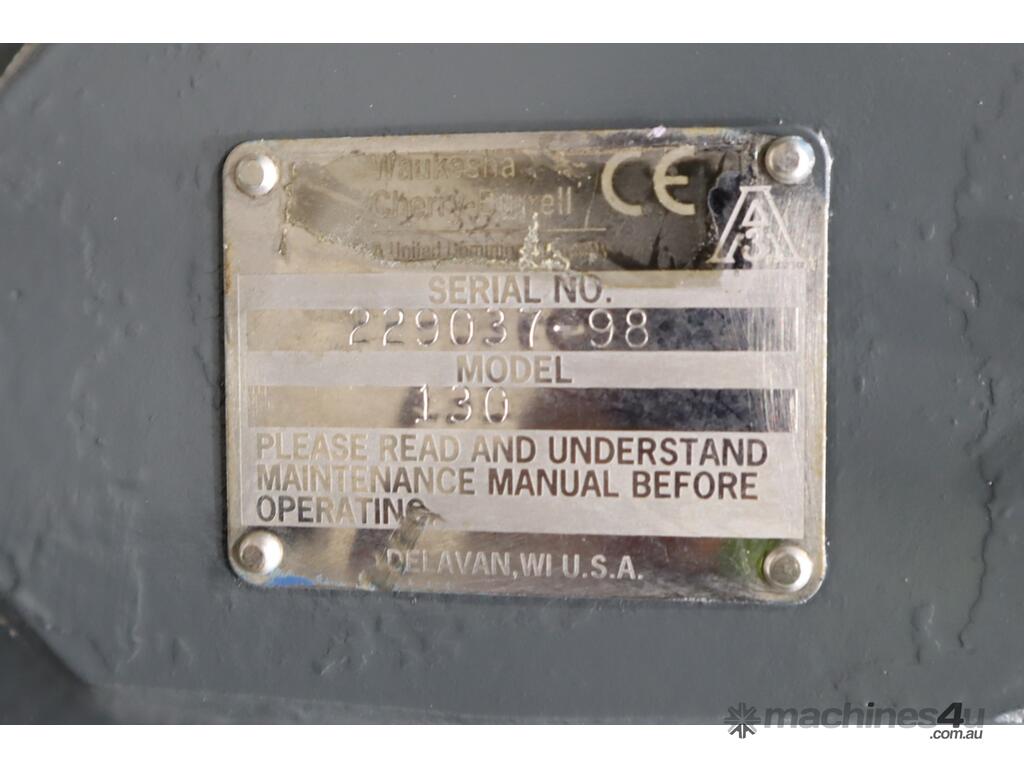

Make: Waukesha Cherry Burrell (WCB)
Type: 130

Nominal Displacement (per revolution): 0.253 gal / 0.958 L
Max Nominal Capacity: 175 gpm (39.7 m³/hr)
Max Product Pressure: 200 psi (13.8 bar)
Max RPM: 700

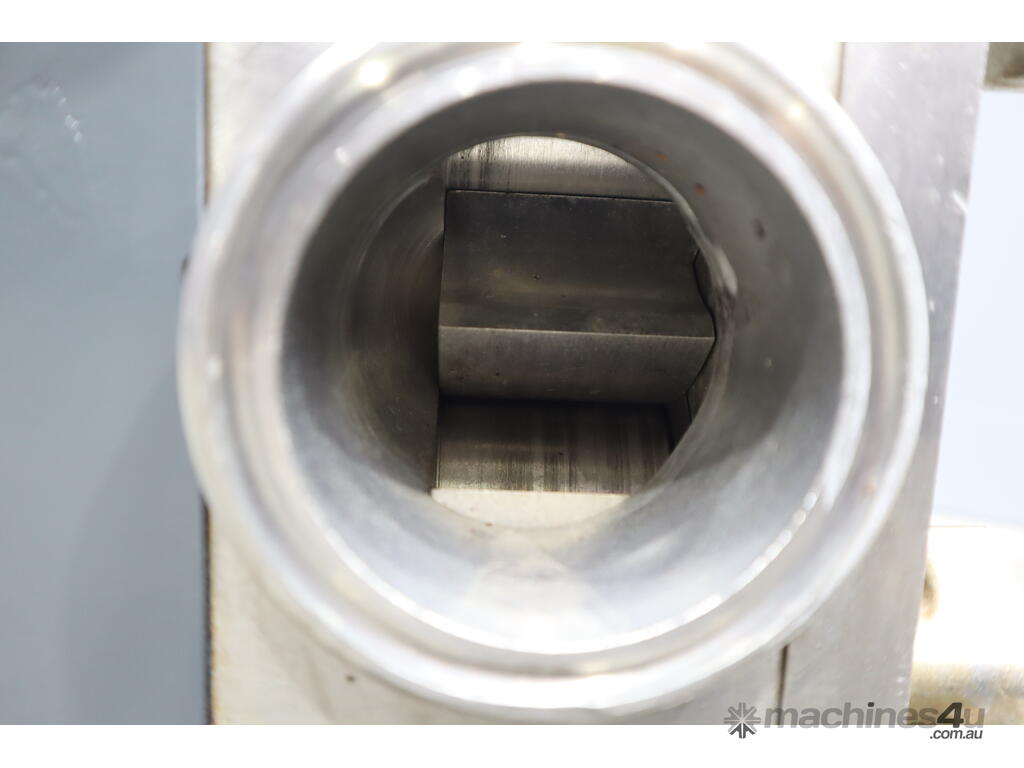

Inlet/Outlet (mm): 3" / 76mm

Voltage: 415V 3 Phase
Motor Power: 11 kW
Motor Speed: 1440

Overall Dimensions (mm): 1450 L x 375 W x 540 H
