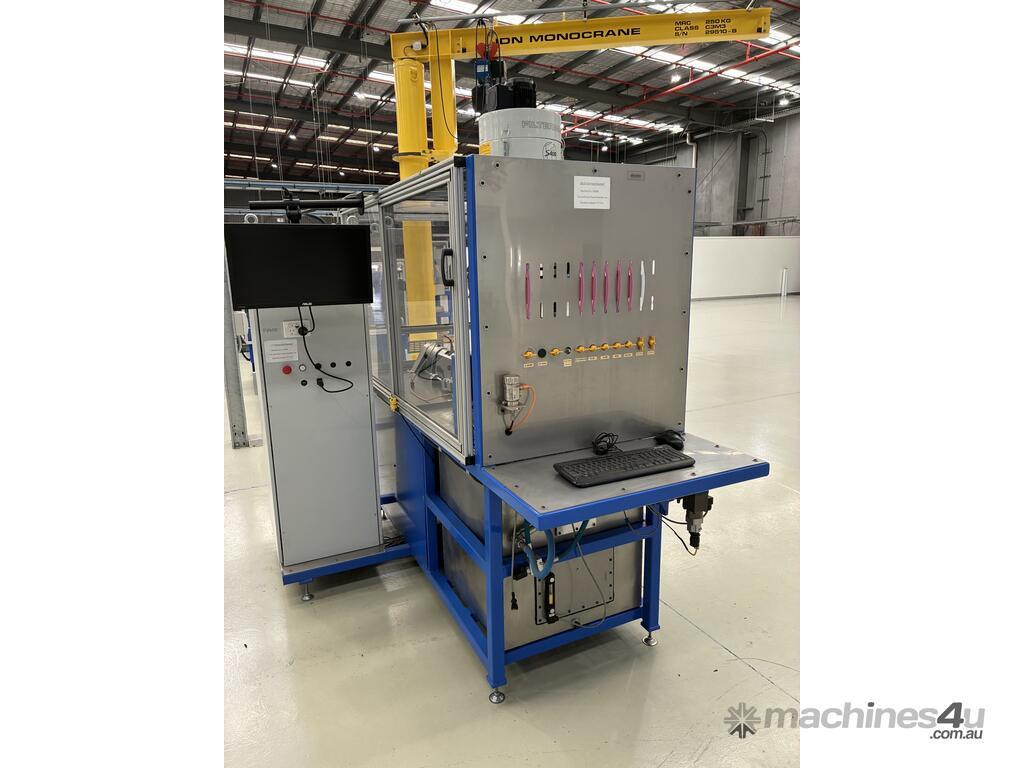

This fully integrated rotational hydraulic test rig combines precision control and robust industrial hardware, ideal for component validation, R&D, and endurance testing. Featuring a National Instruments PXIe-1071 chassis, Intel i3-4110E-based controller, and a Rexroth hydraulic power unit, the system provides exceptional measurement and actuation performance for dynamic and steady-state testing applications.
Designed originally for advanced automotive driveline and hydraulic component analysis, it supports custom LabVIEW-based automation, data acquisition, and closed-loop control. This makes it suitable for testing pumps, motors, valves, or rotating assemblies under variable pressure and torque conditions.
Technical Description:
- Test Rig Type: Rotational Hydraulic Test System
- Control & Data Platform: National Instruments PXIe-1071 chassis
- Embedded Controller: Intel i3-4110E processor with Windows and LabVIEW environment
- Measurement & Control: NI PXI DAQ and signal conditioning modules (multiple analog/digital I/O channels)
- Software: LabVIEW system integration, programmable test sequences
- Hydraulic Power Unit: Rexroth-built HPU with integrated reservoir, pump, filtration, and pressure control
- Drive System: Variable-speed rotational actuation (capable of bidirectional torque application)
- Cooling & Safety: Hydraulic cooling circuit, relief valves, and emergency stop integration
- Electrical Supply: Standard 3-phase power (industrial connection)
- Configuration: Bench-mounted or frame-mounted setup with interconnect cabling included
Typical Use Cases: R&D validation, endurance and durability testing, hydraulic component calibration, rotational performance testing
This system provides a solid foundation for laboratory or production testing environments where flexibility, control precision, and data integrity are critical.
Item is in used condition and untested, sold on an as is, where is basis. Photos form part of the description.
Pickup only, we can assist with loading and have a forklift onsite. In special circumstances, freight may be organised at the buyer’s cost.
Inspection available upon request prior to purchase.
