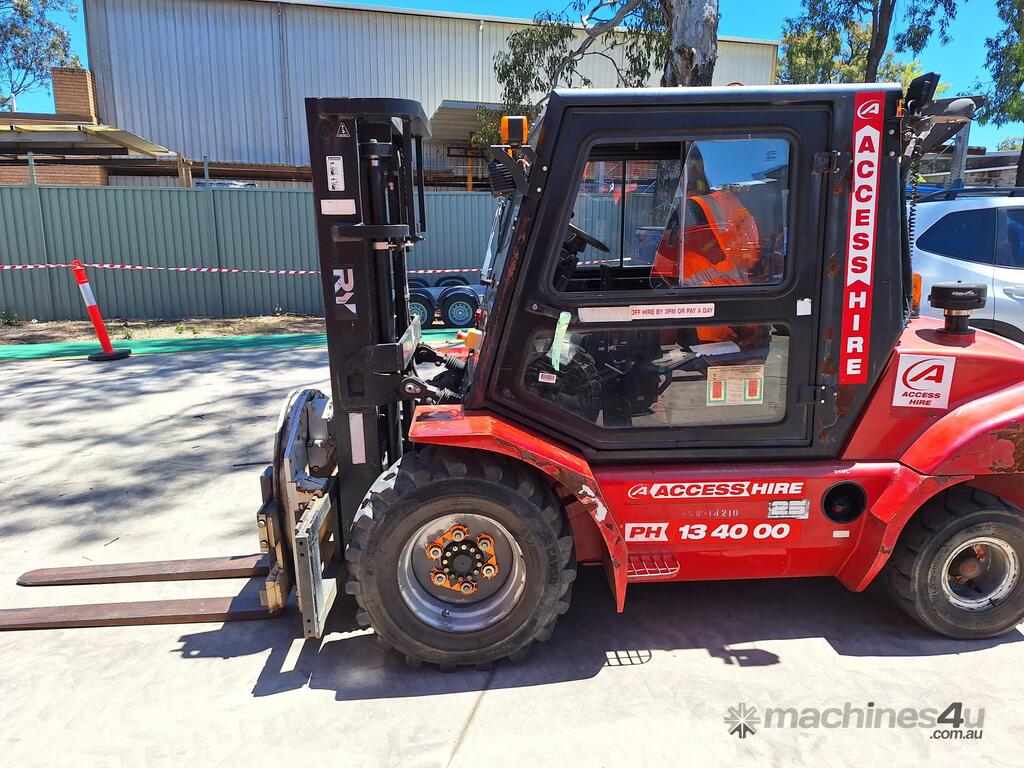

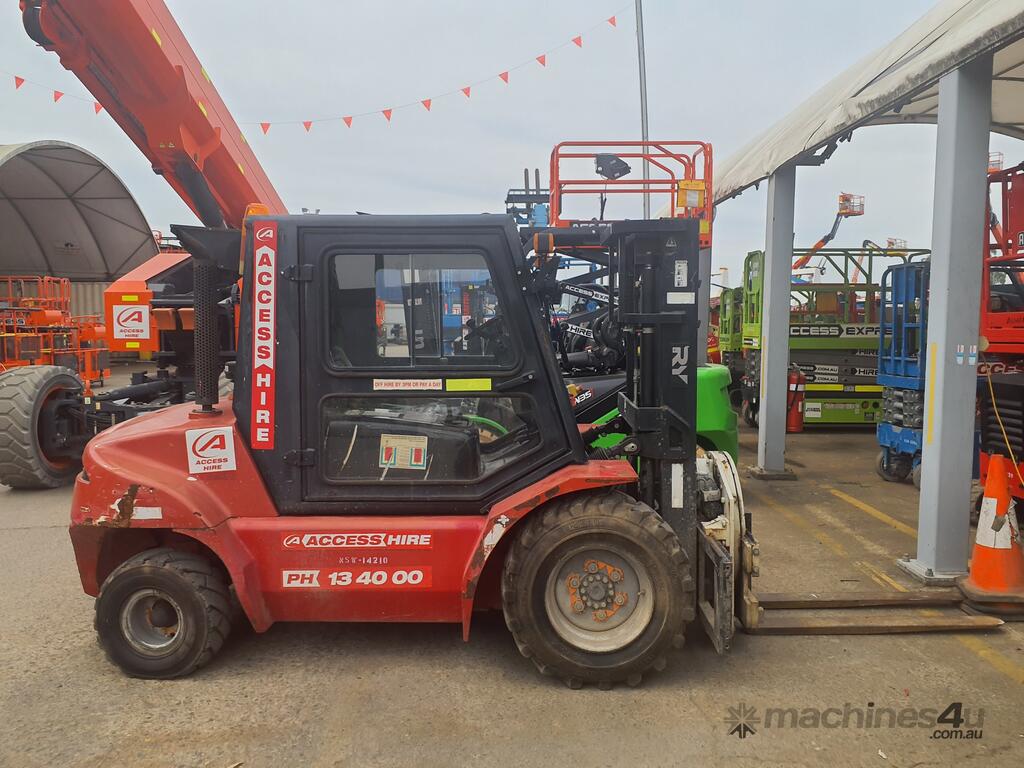

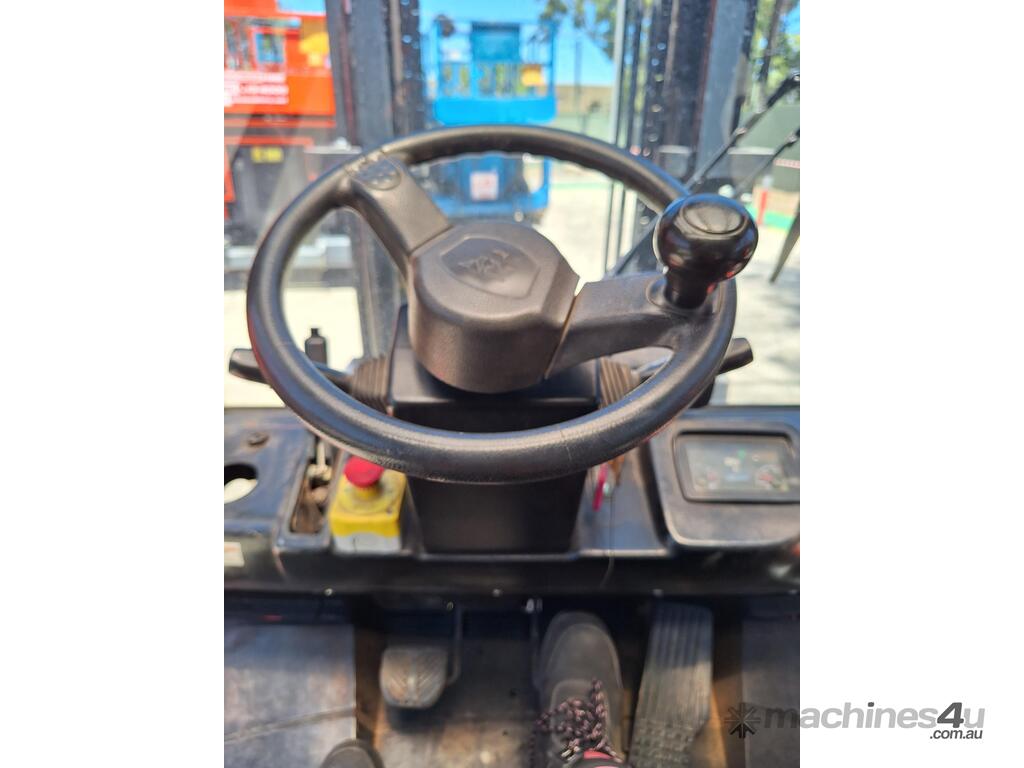

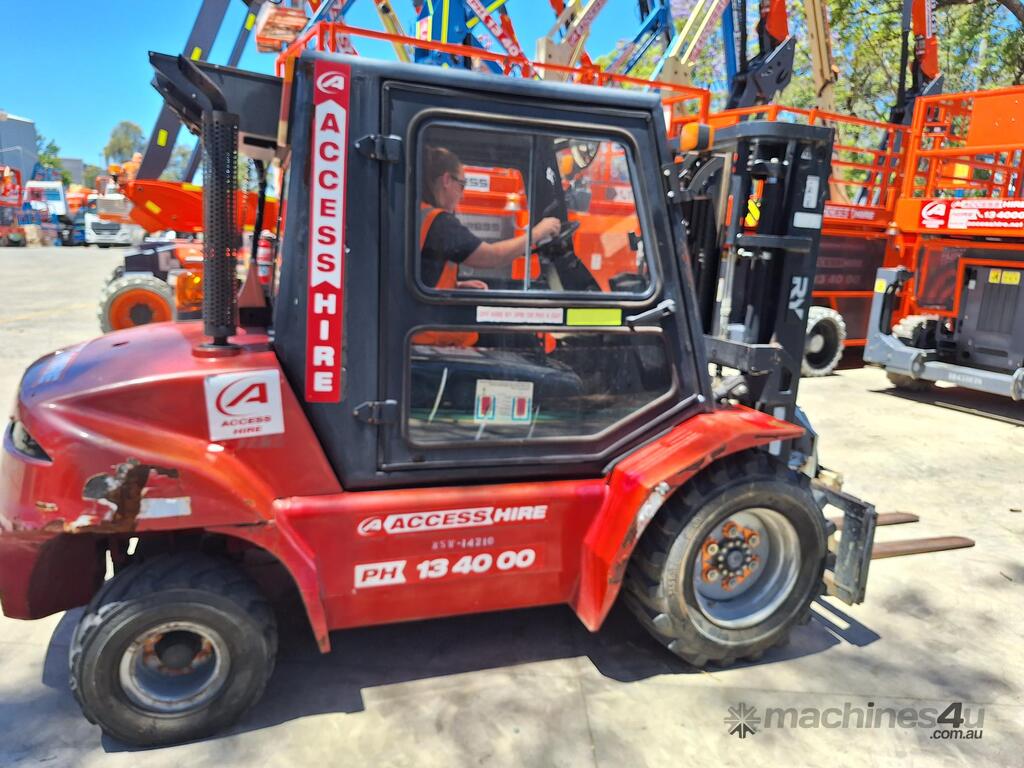

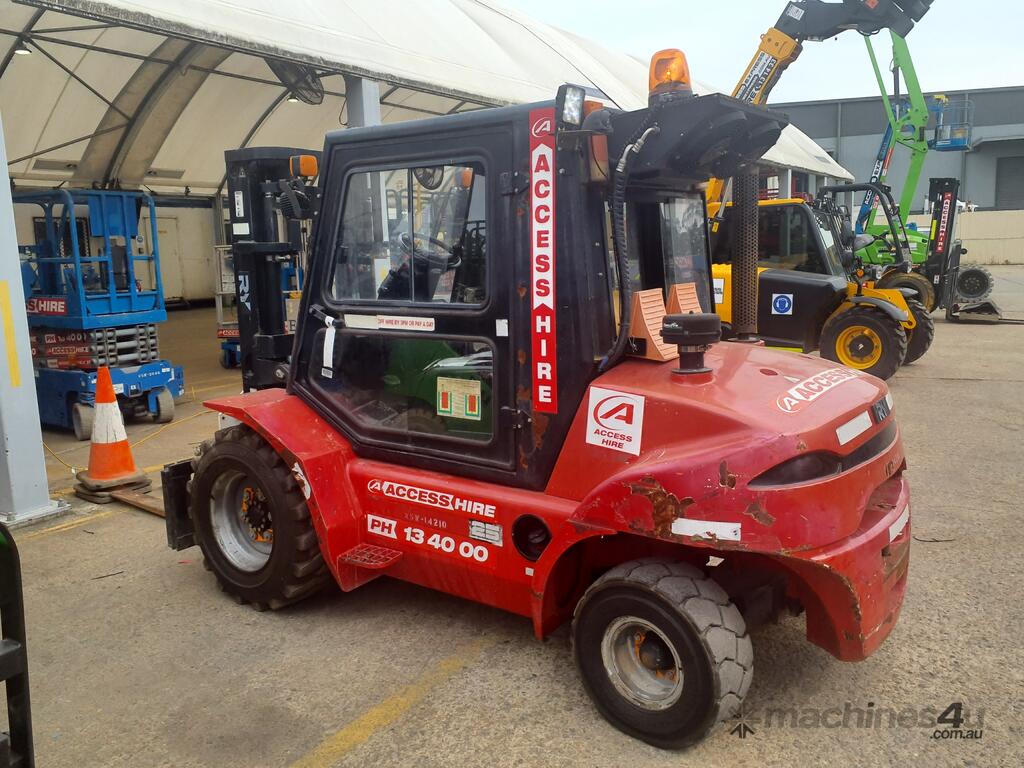

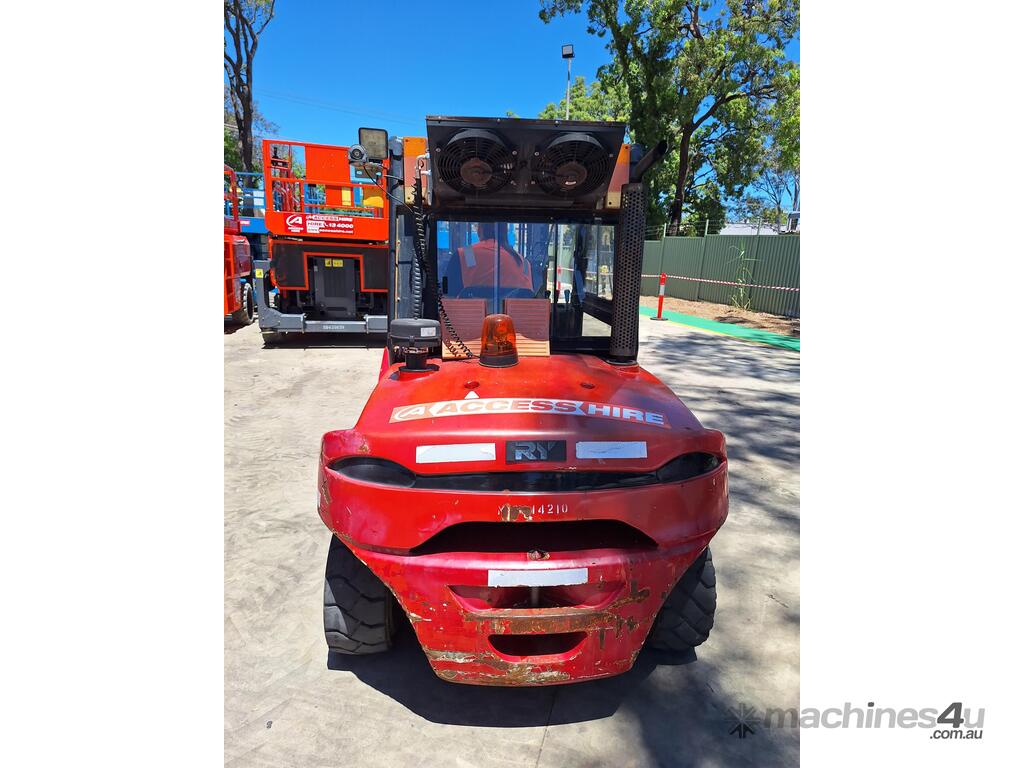

Our 2.5T Rough Terrain Diesel Forklift (model FDT25T-CW3) is a compact yard and site machine built to work on uneven ground where a standard warehouse forklift struggles. It offers a 2,500kg lift capacity at 500mm load centre with a 3.0m lift height and a wide-view mast that keeps the operator’s view clear when handling loads. A Yanmar 4TNE98 diesel engine and two-wheel drive rough terrain axle give strong traction and steady travel on gravel or hardstand while the floating operator station and suspension seat help reduce vibration for the driver.
Features
- Rated capacity: 2,500kg at 500mm load centre

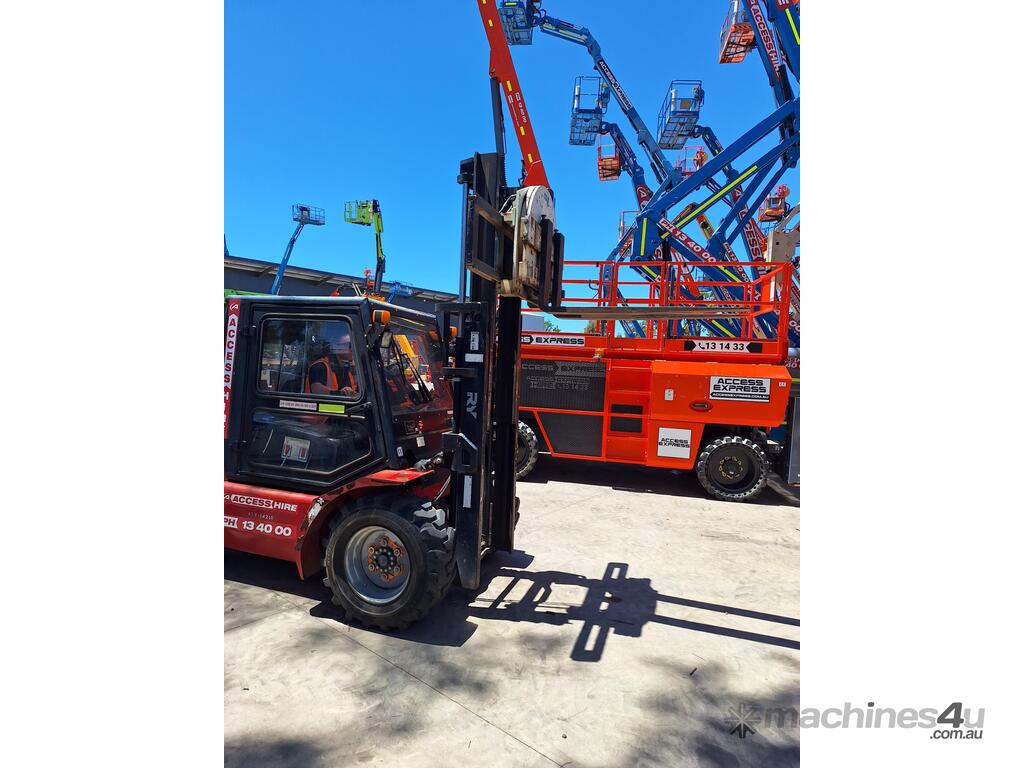

- Lift height: 3,000mm with wide-view duplex mast
- Free lift: 160mm for work inside containers or under low beams
- Mast tilt: 10° forward / 12° back for safe loading and stacking

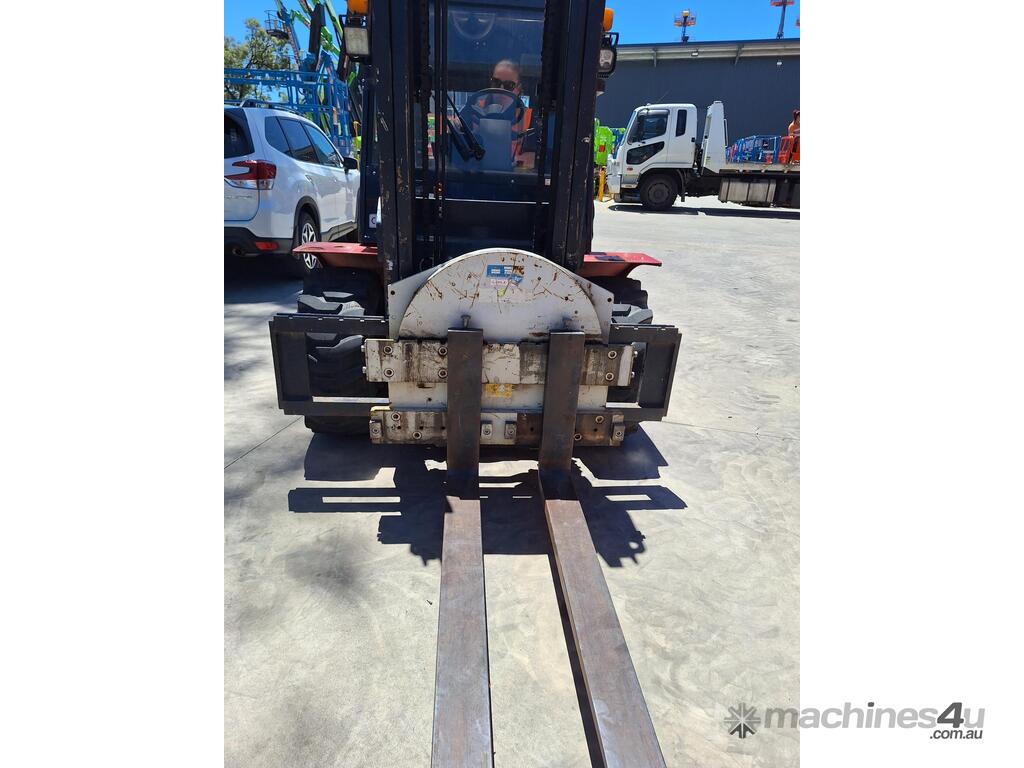

- Forks: 1,100 × 122 × 40mm with 250–1,160mm fork spread
- Ground clearance: 270mm for rough or uneven surfaces
- Travel speed: 20km/h unladen and 18km/h laden for quick site movements
- Yanmar 4TNE98 diesel engine 42.1kW at 2,300rpm with 186–206Nm torque
- Two-wheel drive with oscillating steer axle for stability over ruts and potholes
- Power-shift transmission with differential lock to maintain traction on slippery ground
- Robust pneumatic rough terrain tyres: 12-16.5-14PR front and 27×PR rear
- Operating weight: 4,465kg for solid planted feel when carrying heavy pallets
Applications
- Construction and civil sites with uneven or unsealed yards
- Timber yards and building supply depots
- Farm work including pallets of seed fertiliser or fencing
- Transport yards where loads must be handled on gravel or compacted soil
