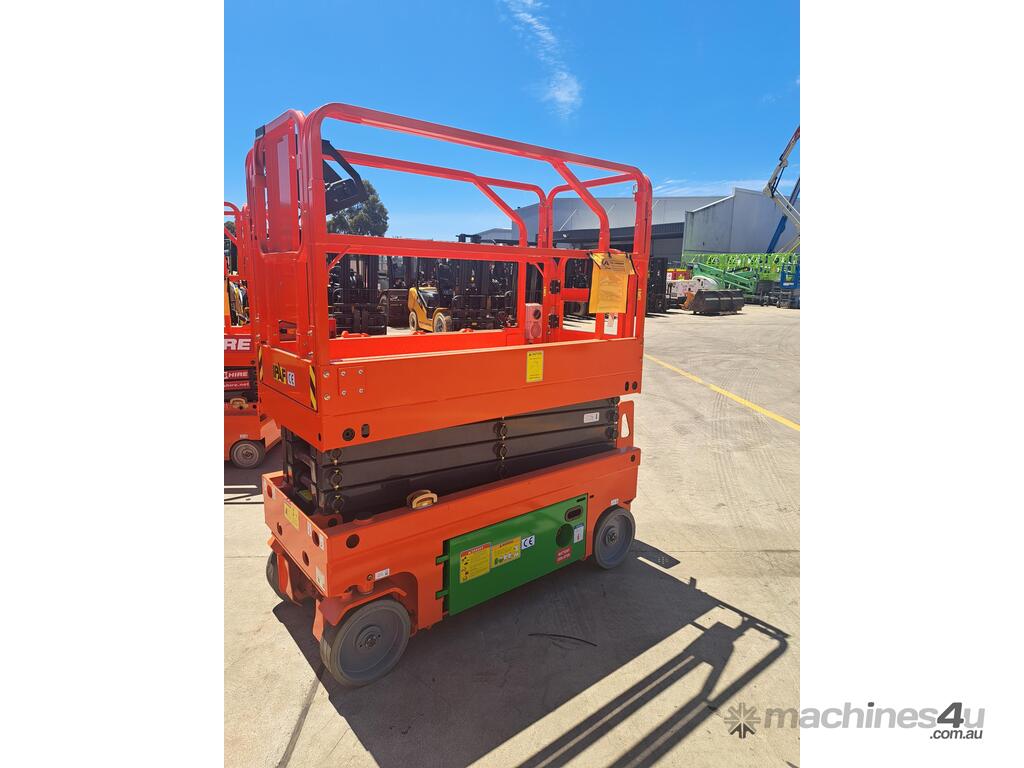

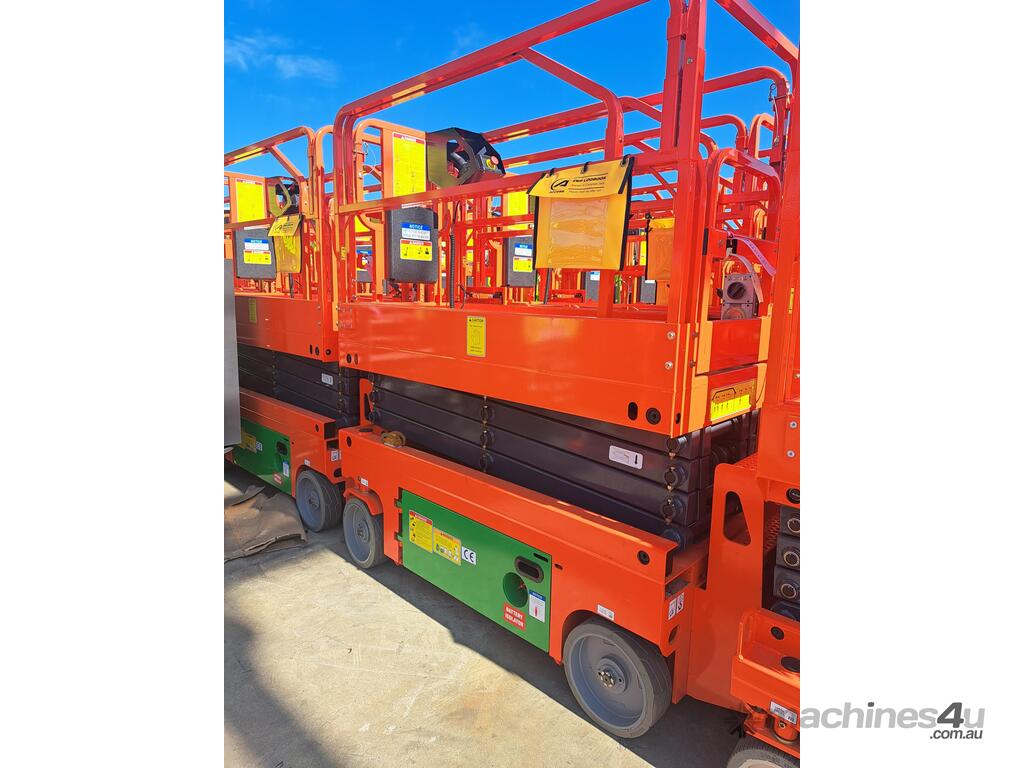

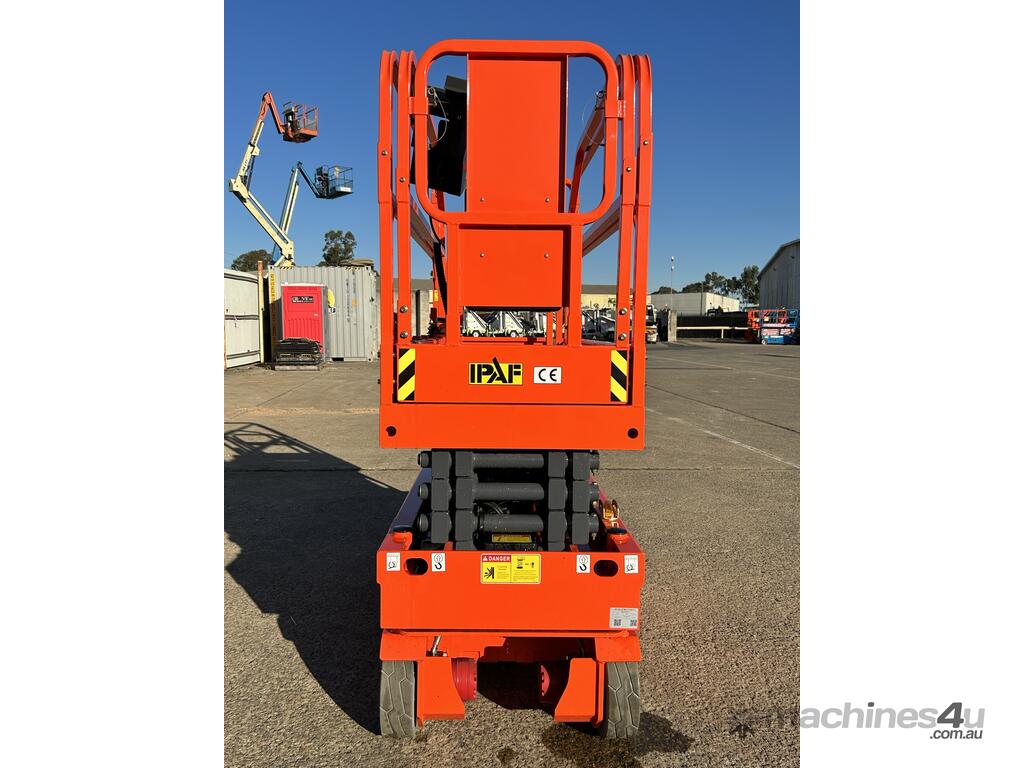

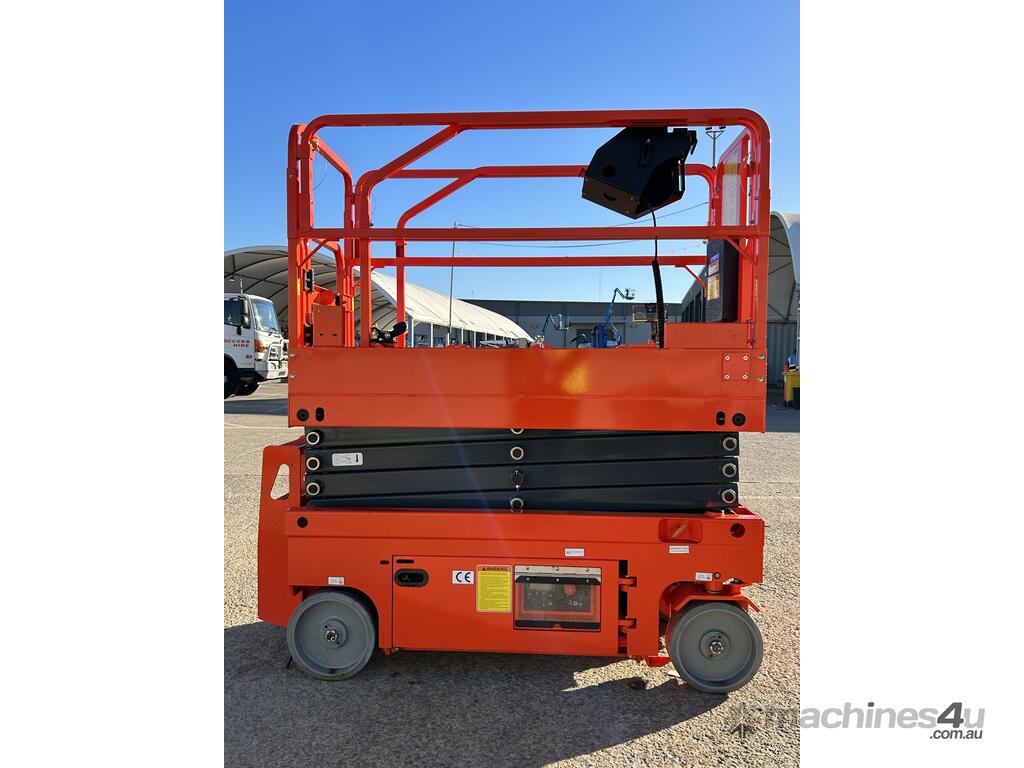

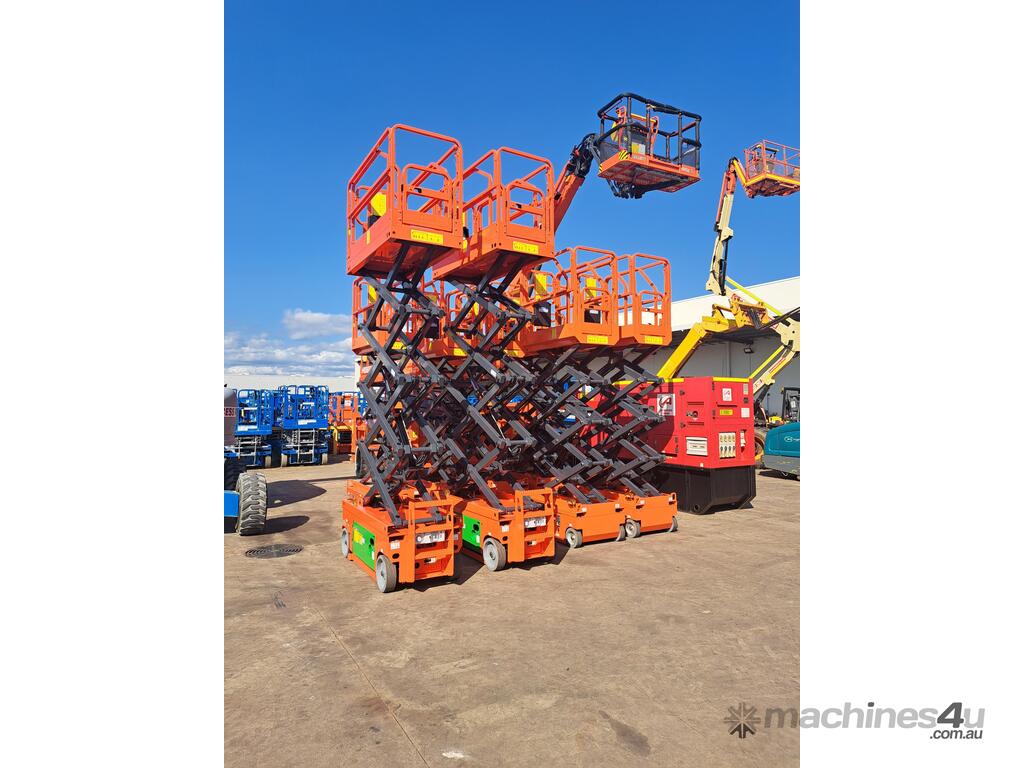

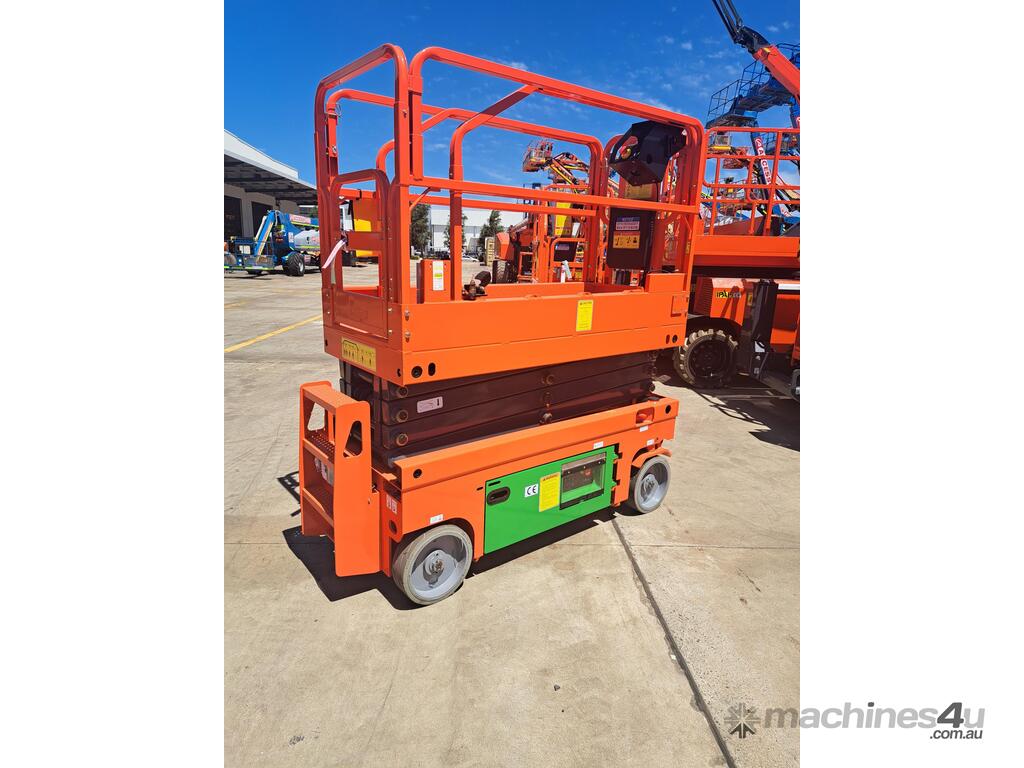

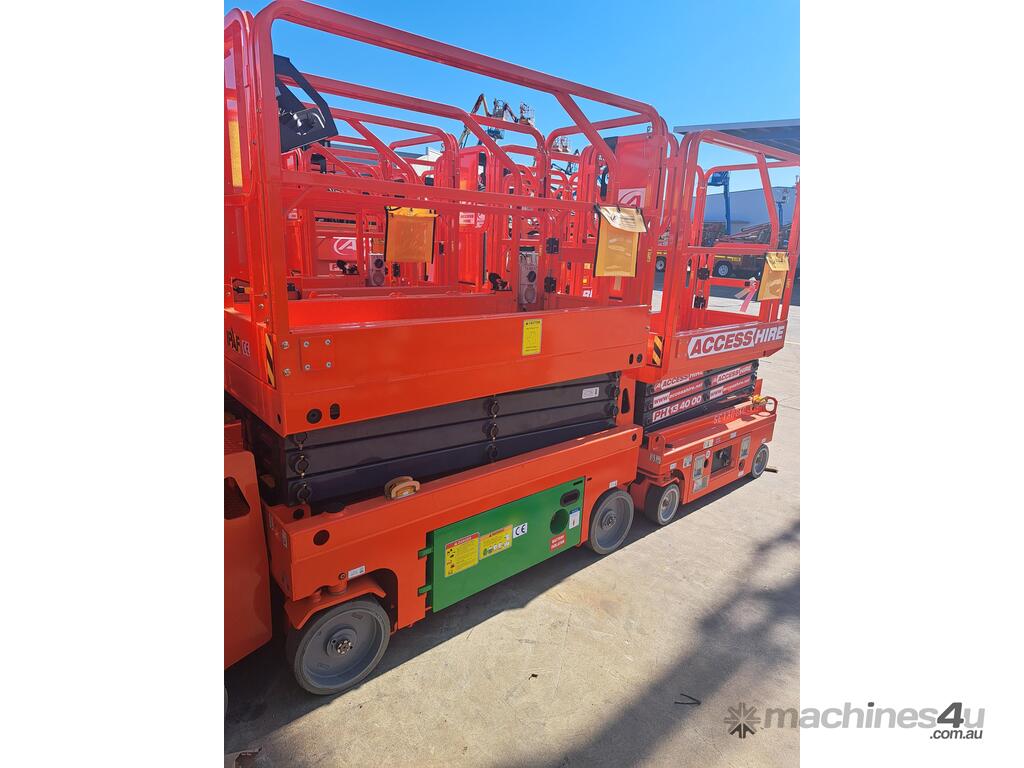

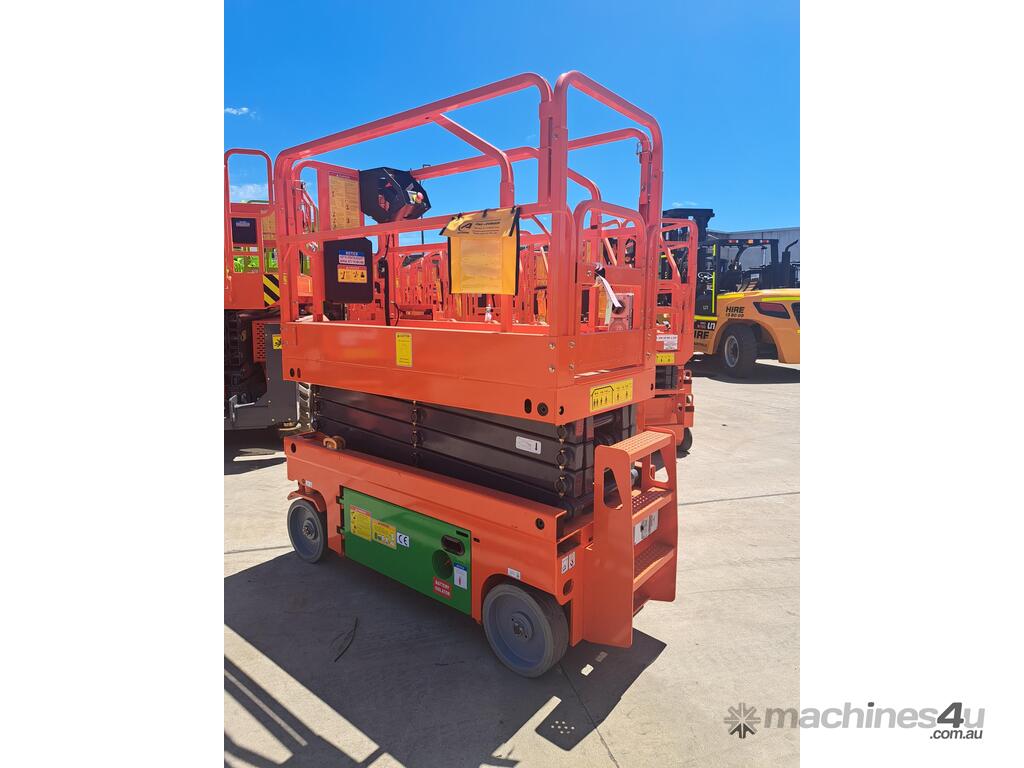

The S0608-HAE is a compact electric scissor lift designed for reliable performance and operator safety in indoor and smooth-surface environments. With a maximum platform height of 6.0m and a working height of 8.0m, it supports up to 380kg, allowing two occupants plus tools. Powered by a 24V battery system (185Ah) and featuring non-marking tyres, it provides quiet, zero-emission operation ideal for warehouses, maintenance, and fit-out projects.
The lift is drivable at full height and fitted with essential safety systems including automatic braking, pothole protection, tilt and motion alarms, and an emergency descent function. With proportional joystick controls, a one-way extension deck, and foldable guard rails, it offers smooth, precise operation and easy transport.
Features:
- Working Height: 8.0m (26ft 3in)
- Platform Height: 6.0m (19ft 8in)
- S.W.L: 380kg (837lb)
- Platform Extension: 0.90m
- Power Source: 24V/185Ah battery, 24V/30A charger
- Drive System: Two-wheel drive, two-wheel steering
- Gradeability: 25%
- Travel Speed: 3.5km/h (stowed), 0.8km/h (raised)
- Tyres: Non-marking, ?381×127mm
- Weight: 2120kg (lead-acid) / 2060kg (lithium)
- Lift/Lower Speed: 30/40 sec
Standard Equipment:
Proportional joystick control, emergency stop, automatic braking, motion and tilt alarms, emergency descent, onboard diagnostics, foldable guard rails, pothole protection, hour meter, LED beacon, lanyard attachment, transport forklift points, and charging protection system.
Applications:
- Indoor maintenance and installation
- Electrical and HVAC work
- Warehouse and factory access
- Construction fit-outs
