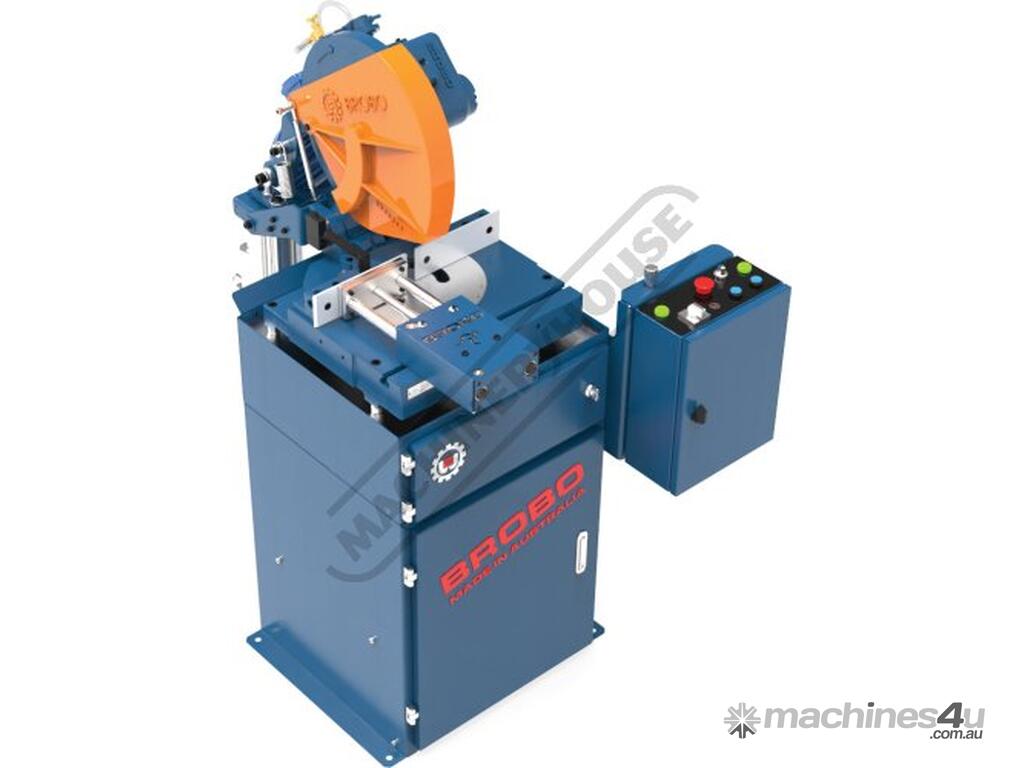

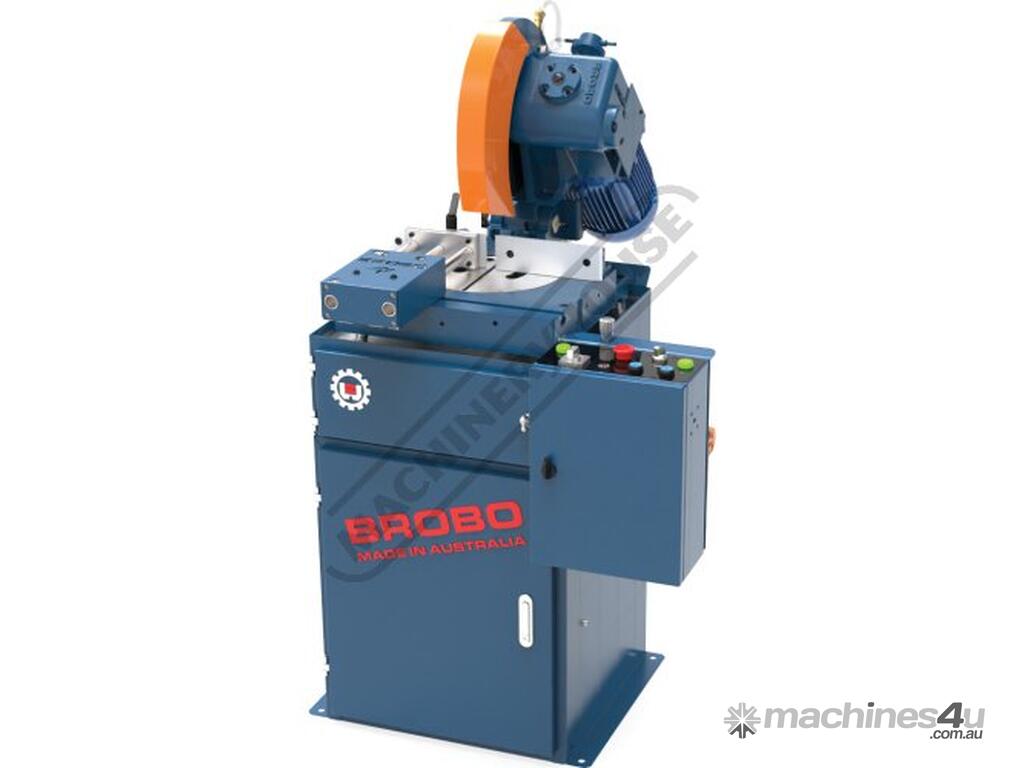

SA350 Semi-Automatic Ferrous Cutting Cold Saw 135 x 85mm Rectangle Capacity Ø350mm Blade, Pneumatic

BROBO SA350 Semi-Automatic Ferrous Cutting Cold Saw 135 x 85mm Rectangle Capacity Ø350mm Blade, Pneumatic Vice Clamp, Variable Blade Speed 20~100rpm
CALL NOW AND DO A DEAL! ADD THIS ASSET TO YOUR WORKSHOP
WE OFFER MACHINERY SOLUTIONS AT AFFORDABLE PRICES.
Order Code: S120

Features a smart, computerised actuation motor that alleviates the repetitious cutting process without compromising cutting capabilities and features of the ferrous saw range. With the ability to adjust the speed of the saw blade, this machine is ideal for working with a variety of materials at varying levels of thickness. This allows for clean, precise cuts without the risk of burning or overheating the material, variable speed reduces blade wear, extending the life of the saw blade.

Features:
20 – 100 RPM Variable Speed
Mitering locking device stops at 45° left straight 90° and 45° right
Fully integrated coolant system provided on all machines
Spindle and drive unit immersed in oil solution and enclosed within gearbox housing for smooth performance and reduced machine wear
Every unit is provided with a high speed steel blade for general purpose cutting of ferrous solid and tube profiles
Industrial lead-screw unit incorporated with a smart actuation motor which automates the cutting cycle for the operator
Smart auto-detect of the cut piece size resulting in shortest stroke possible & fast cut times
Auto feed speed adjustment through sections of varying thicknesses resulting in minimum blade wear
Saw overload detection with feed modulation and reverse for safer operation
Air-pneumatic vice clamp accommodates for a range of metal profiles ferrous solids and tube sections
Brobolube standard lubricator


Specifications:
ORDER CODE: S120
MODEL: SA350
Cutting Head Action: Semi-Automatic
Operation Type: Swivel - Dual Mitre
Round Capacity 90º / 45º (mm): 115 / 110
Square Capacity 90º / 45º (mm): 110 / 85
Rectangle Capacity 90º / 45º (WxH) (mm): 135 x 85 / 95 x 75
Blade Size - Diametre. x Bore (Ø) (mm): 350 x 40
Vice Clamping Fixture: Pneumatic Vice
Coolant System: Yes
Table Working Height (with Stand) (mm): 968
Blade Speed (rpm): Variable 20~100
Motor Power (kW / hp): 2.2 / 3
Voltage / Amperage (V / amp): 415
Nett Weight (kg): 280
