SANY 35T Electric Crawler Material Handler for Heavy-Duty Lifting!

SMHC35 Electric Crawler Material Handler. Wheeled Model (SMW30) also available.

Material handlers in ports, freight, and other heavy-lifting sectors require special machinery. Vertu Equipment offers a range of efficient and powerful material-handling machines for purchase or hire that can tackle the toughest of heavy-lifting jobs. Our partnership with SANY means we can deliver the Australasian market a fleet of material handlers unlike any other.

› Comfort seat with high seat backrest
› Ergonomic handling

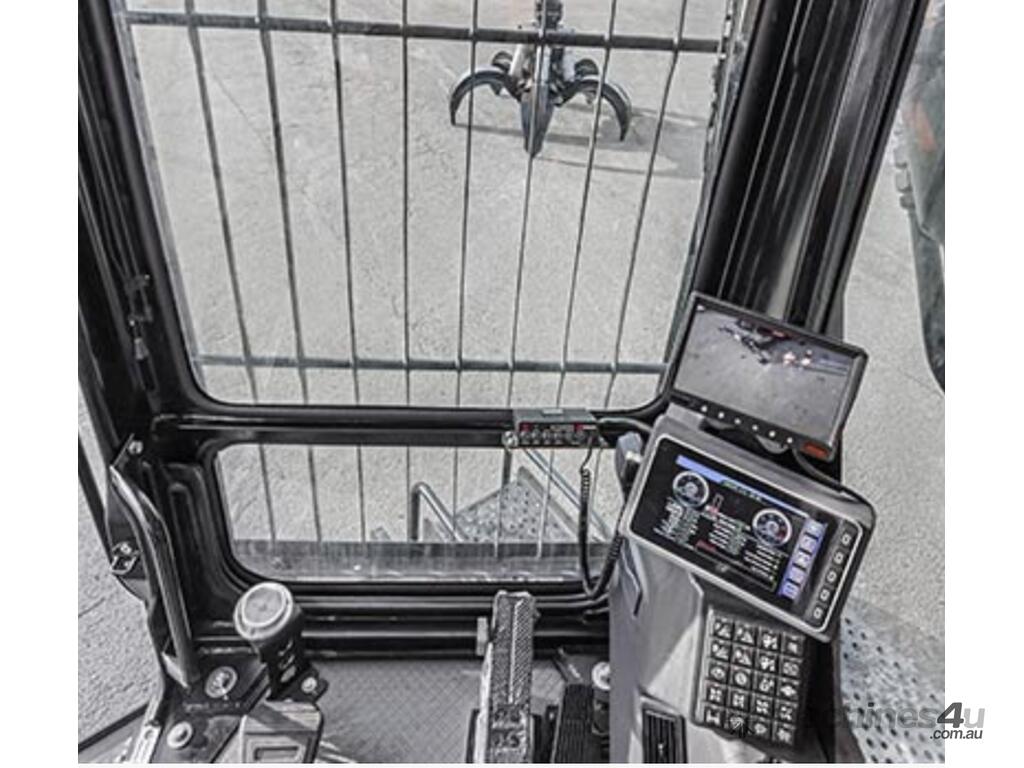

› Seven-inch colour display with on-board diagnostics

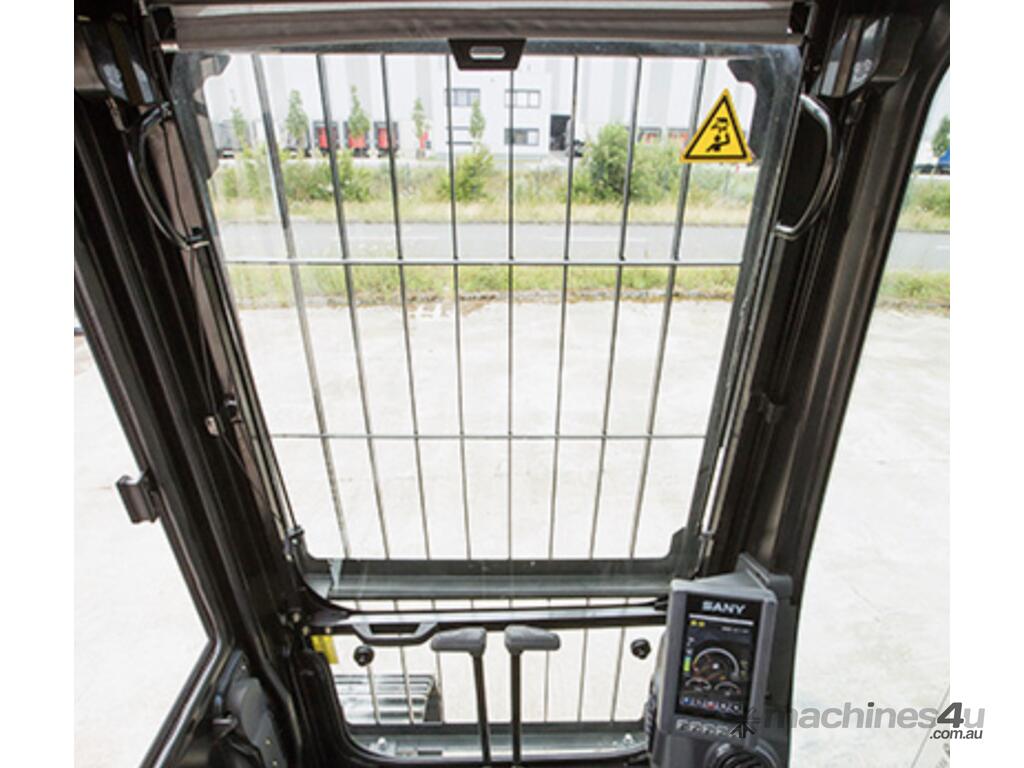

› High-vision protective grille over the windscreen and roof panel with narrow bars for the best possible visibility

Displacement 8.9L
Engine model Mitsubishi D06FRC-TAA
Rated power 147kW/2100rpm

DIMENSIONS
Tail Swing Radius 3507mm
Effective crawler length 3830mm
Track width 2590mm
Undercarriage width 3190mm
Superstructure width 3277mm
Chain width 600mm
With cab height lowered 3140mm
Ground clearance in machine centre 534mm
Max. cabin height 5790mm
Cab lifting range 2650mm

WORKING RANGE
Max operating radius 11m
Working height 10.5m
Working depth -6m
Max travelling speed 5km/h
Rotating speed 8R/Min
Gradability 40%
Max Cabin view height 5.15m
Stick 5.6m
Moveable boom 6.8m

Vertu Equipment is a 100% locally owned dealer for SANY Excavators and construction equipment across Victoria, Australia, NZ, and the Pacific. We offer industry-leading value, superior support, and a commitment to quality and service. Contact us today.
