SANY 48.4T Electric Material Handler for Heavy Lifting & Unmatched Efficiency!

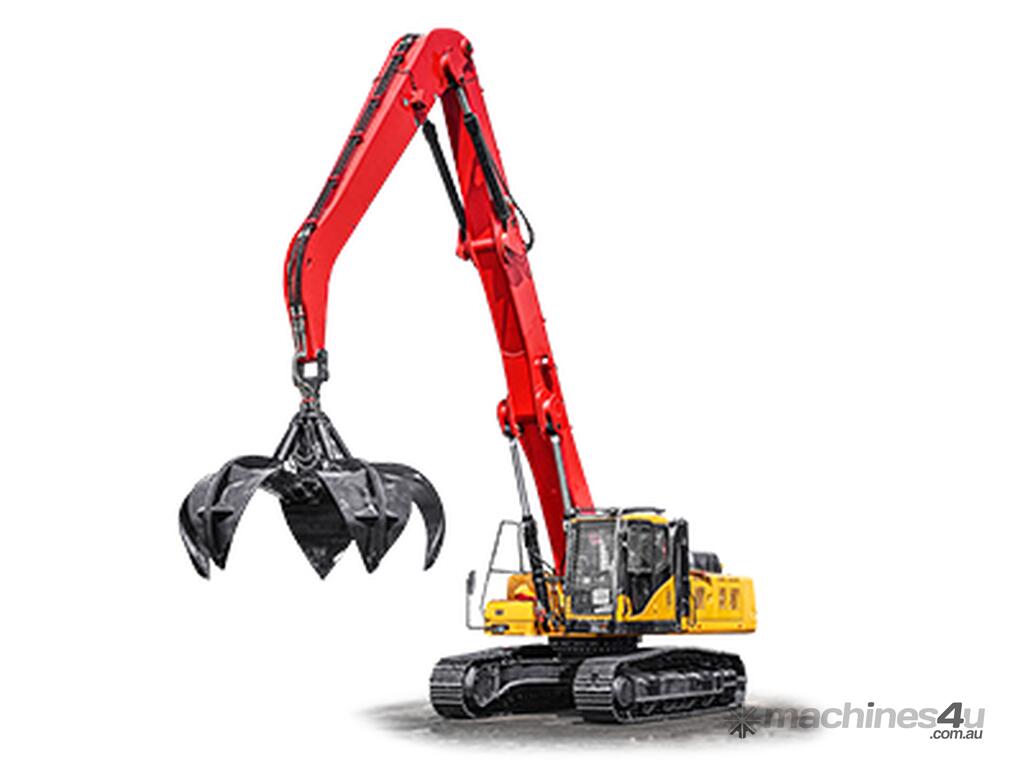

SMHC45 Electric Crawler Material Handler. Wheeled Model (SMW48) also available.

Material handlers in ports, freight, and other heavy-lifting sectors require special machinery. Vertu Equipment offers a range of efficient and powerful material-handling machines for purchase or hire that can tackle the toughest of heavy-lifting jobs. Our partnership with SANY means we can deliver the Australasian market a fleet of material handlers unlike any other.

› Comfort seat with high seat backrest
› Ergonomic handling

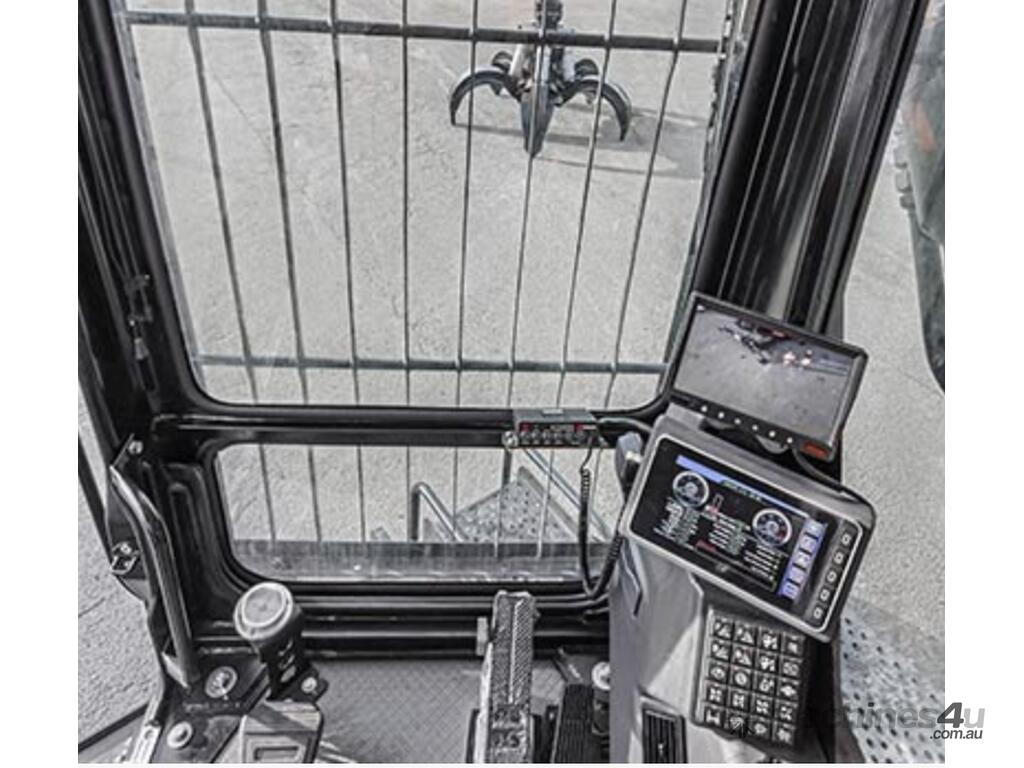

› Seven-inch colour display with on-board diagnostics

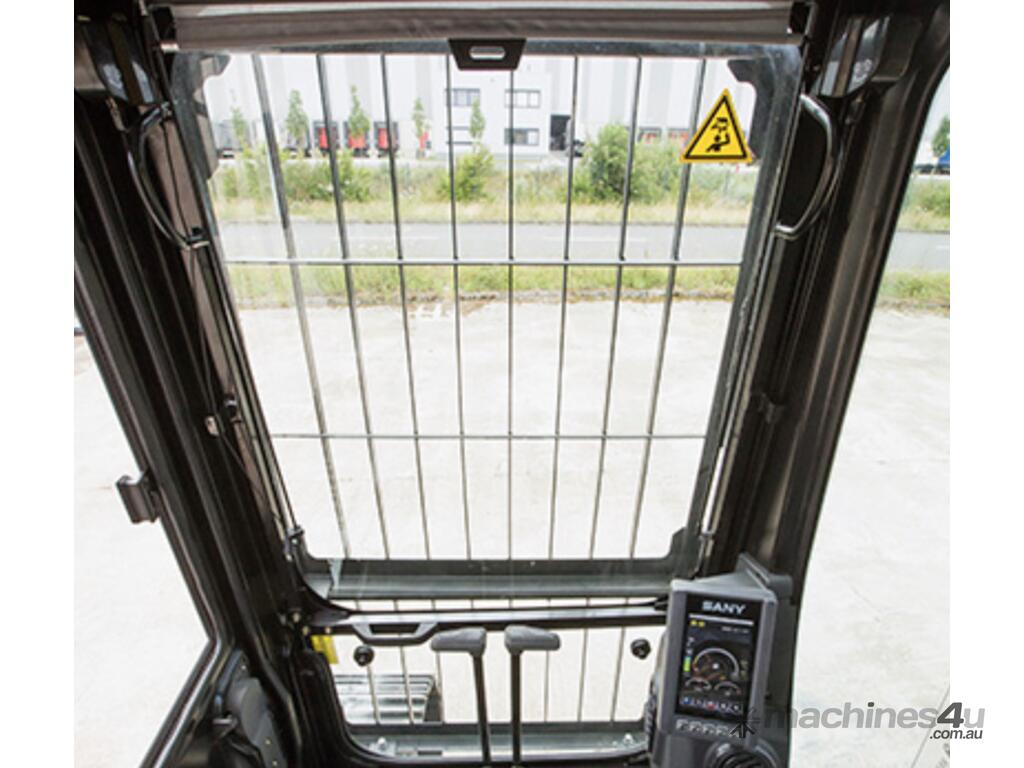

› High-vision protective grille over the windscreen and roof panel with narrow bars for the best possible visibility

Displacement 8.9L
Engine model ISUZU GH-6HK1XKSC-01
Rated power 212kW/2000rpm

DIMENSIONS
Tail Swing Radius 3514mm
Effective crawler length 4140mm
Track width 2590mm
Undercarriage width 3190mm
Superstructure width 3156mm
Chain width 600mm
With cab height lowered 3390mm
Ground clearance in machine centre 360mm
Max. cabin height 6040mm
Cab lifting range 2650mm

WORKING RANGE
Max operating radius 13.5m
Working height 15m
Working depth -6m
Max travelling speed 5km/h
Rotating speed 8R/Min
Gradability 50%
Max Cabin view height 5.47m
Stick 6m
Moveable boom 8.6m

Vertu Equipment is a 100% locally owned dealer for SANY Excavators and construction equipment across Victoria, Australia, NZ, and the Pacific. We offer industry-leading value, superior support, and a commitment to quality and service. Contact us today.
