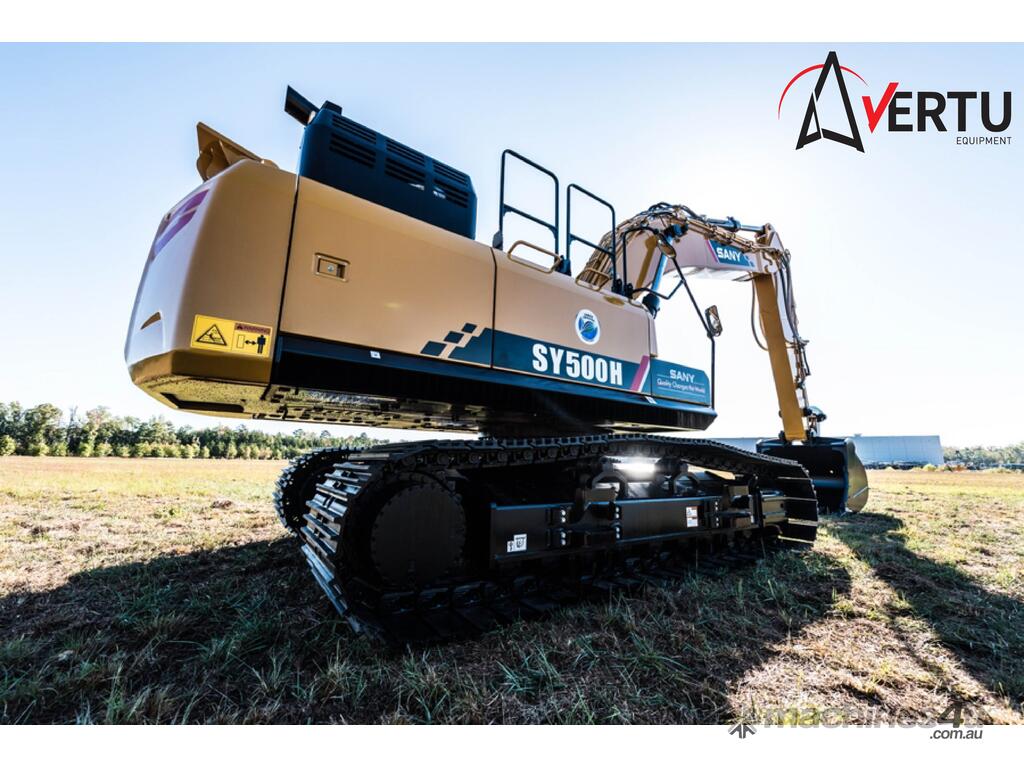

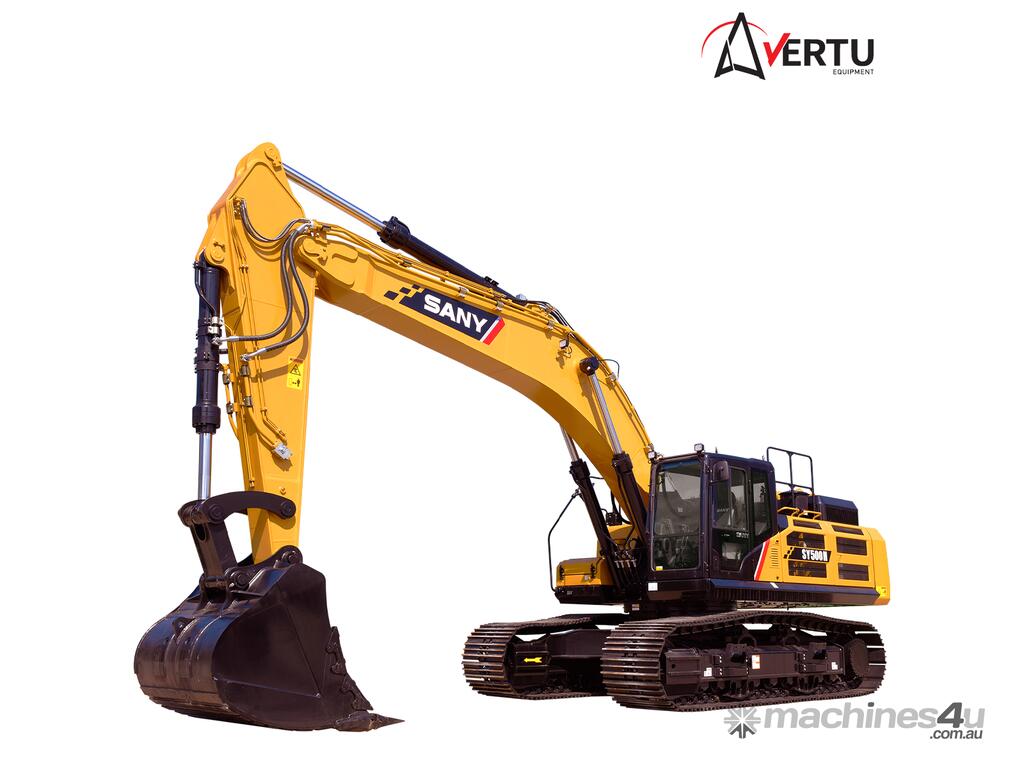

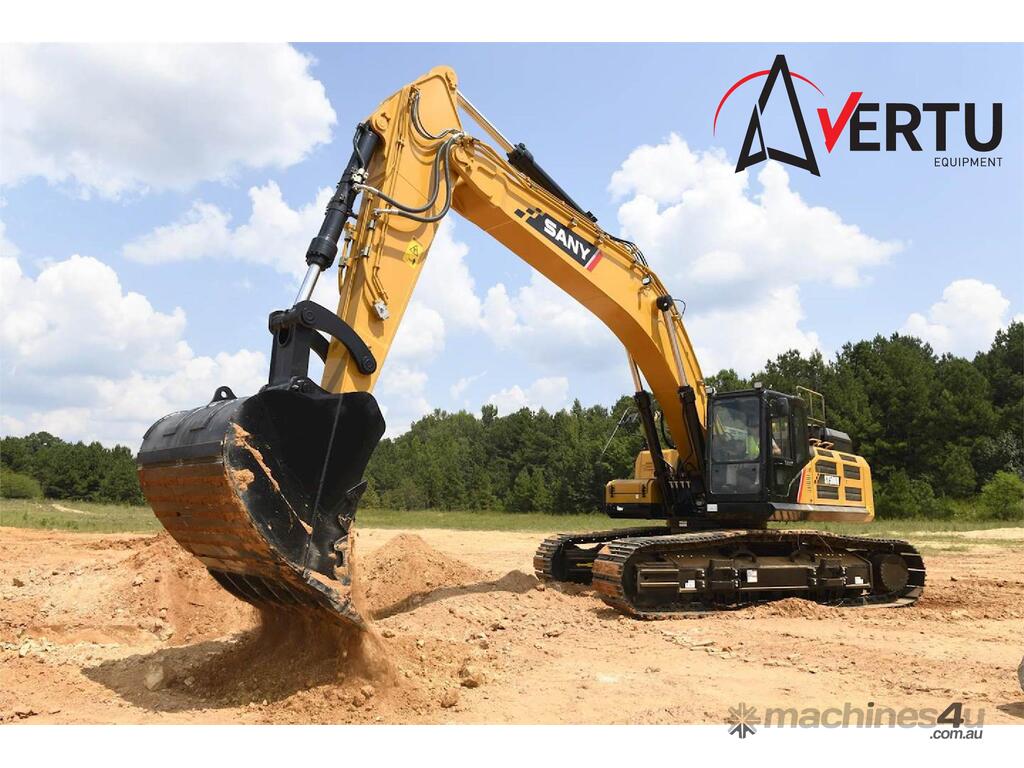

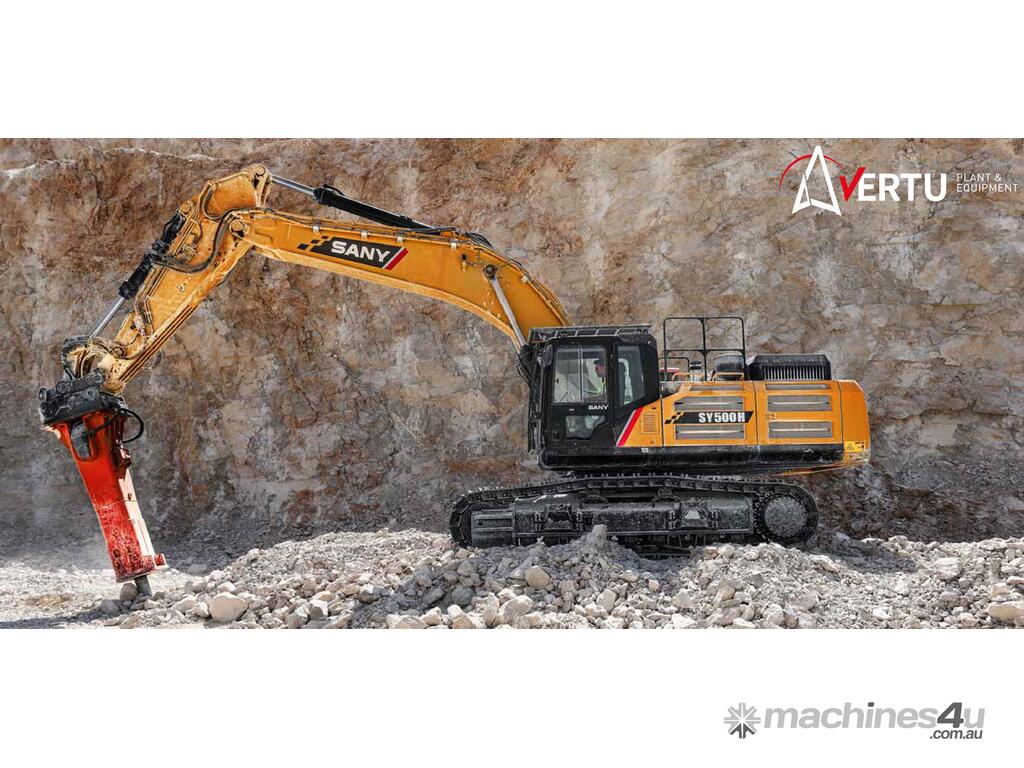

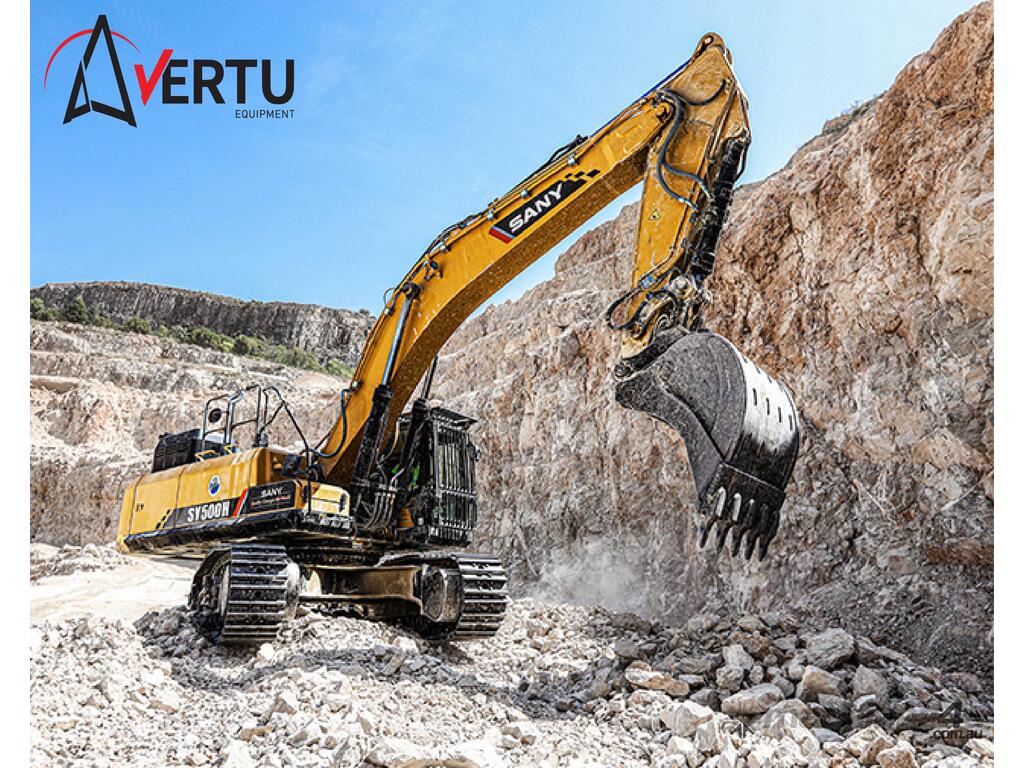

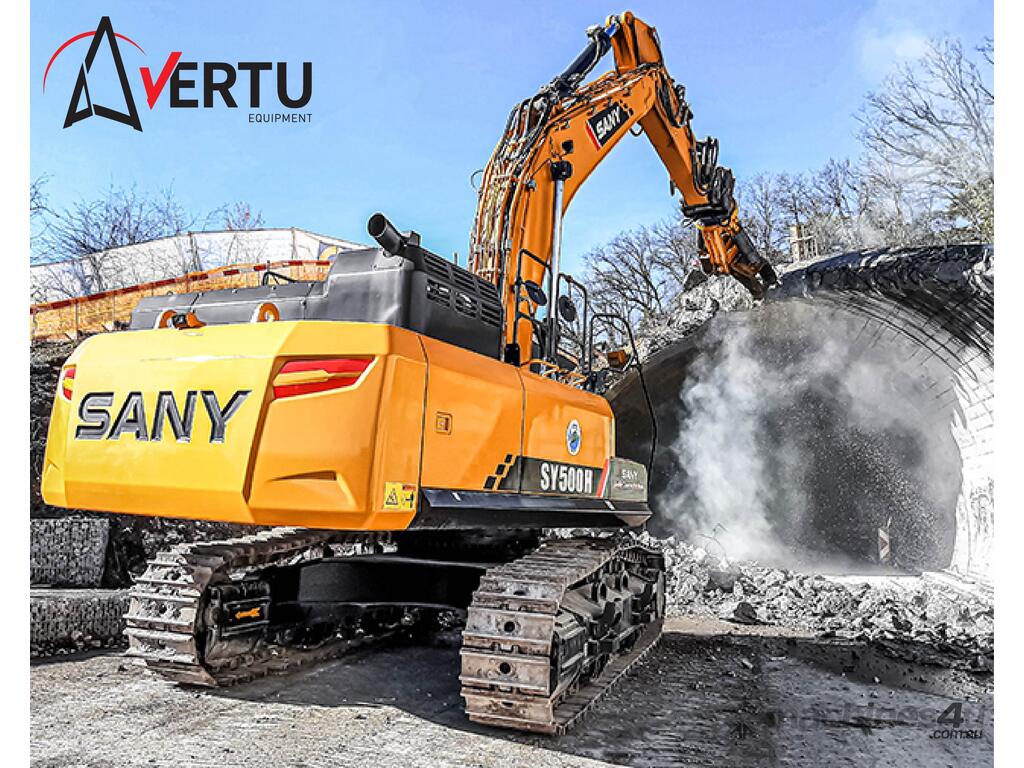

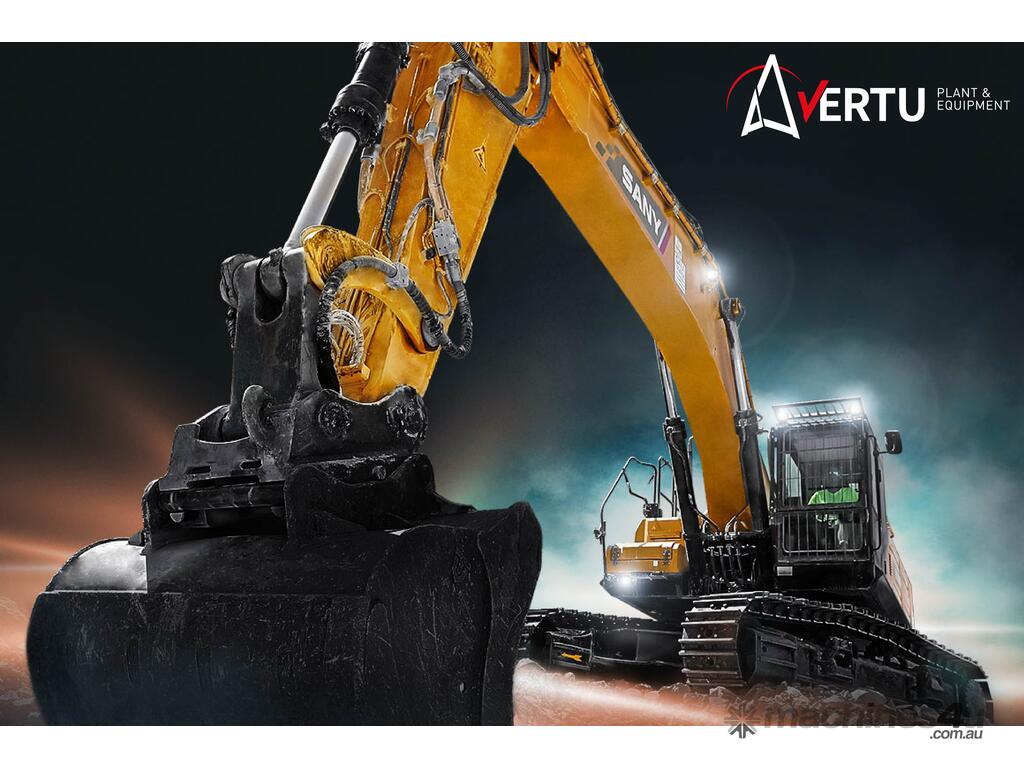

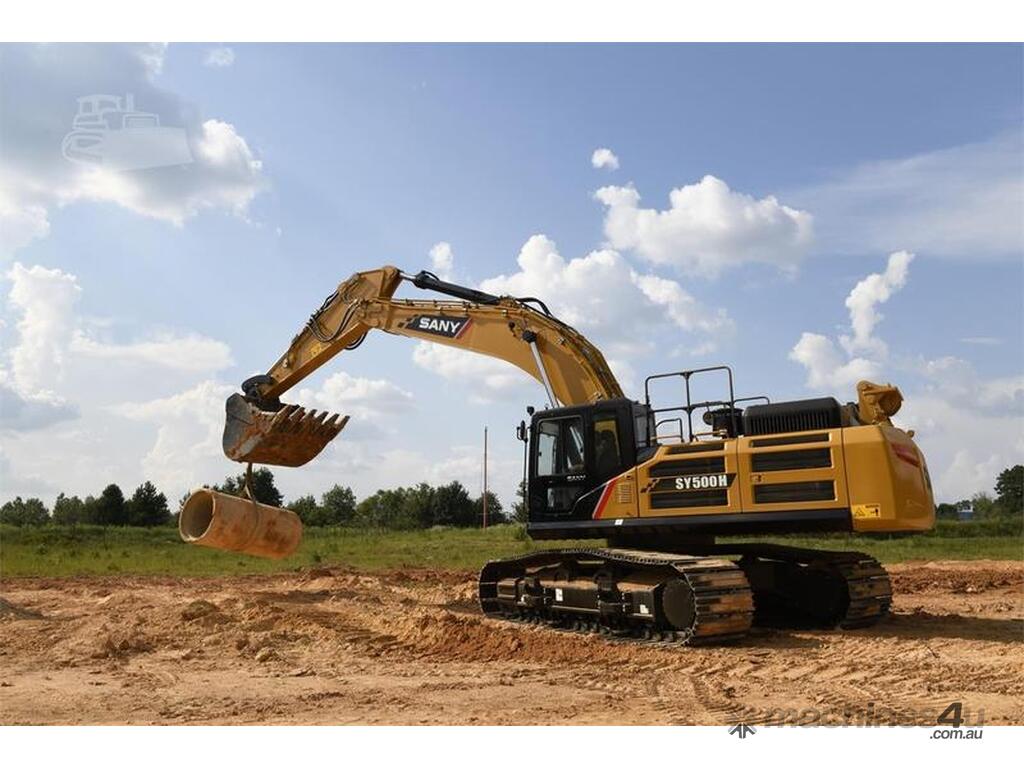

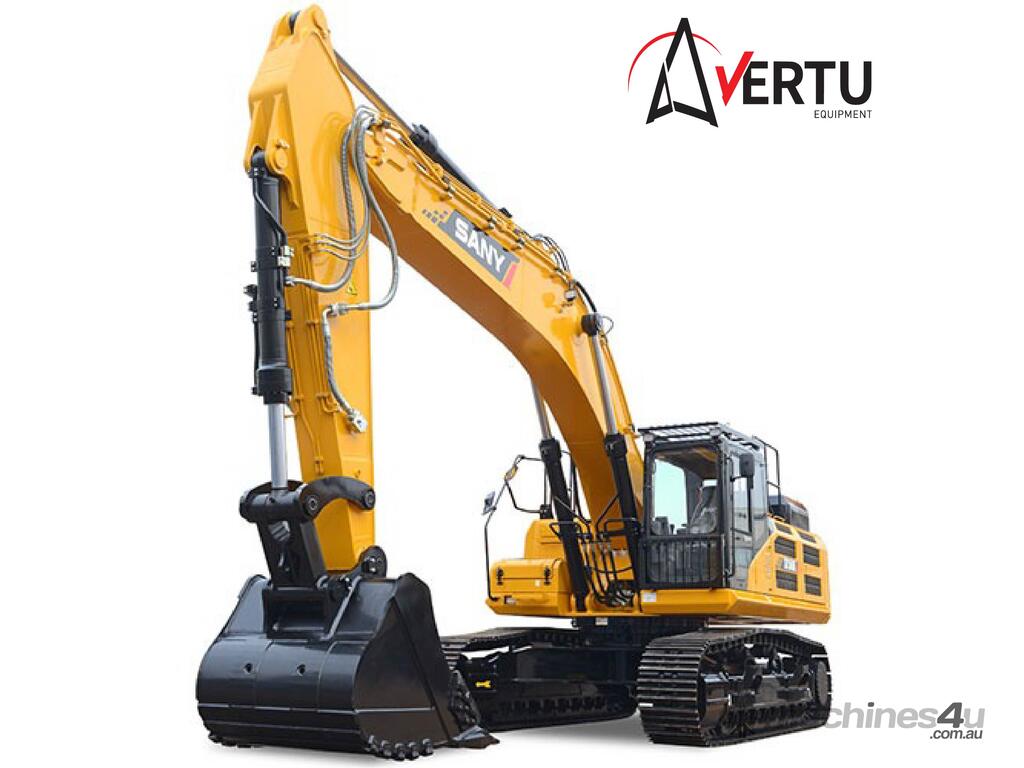

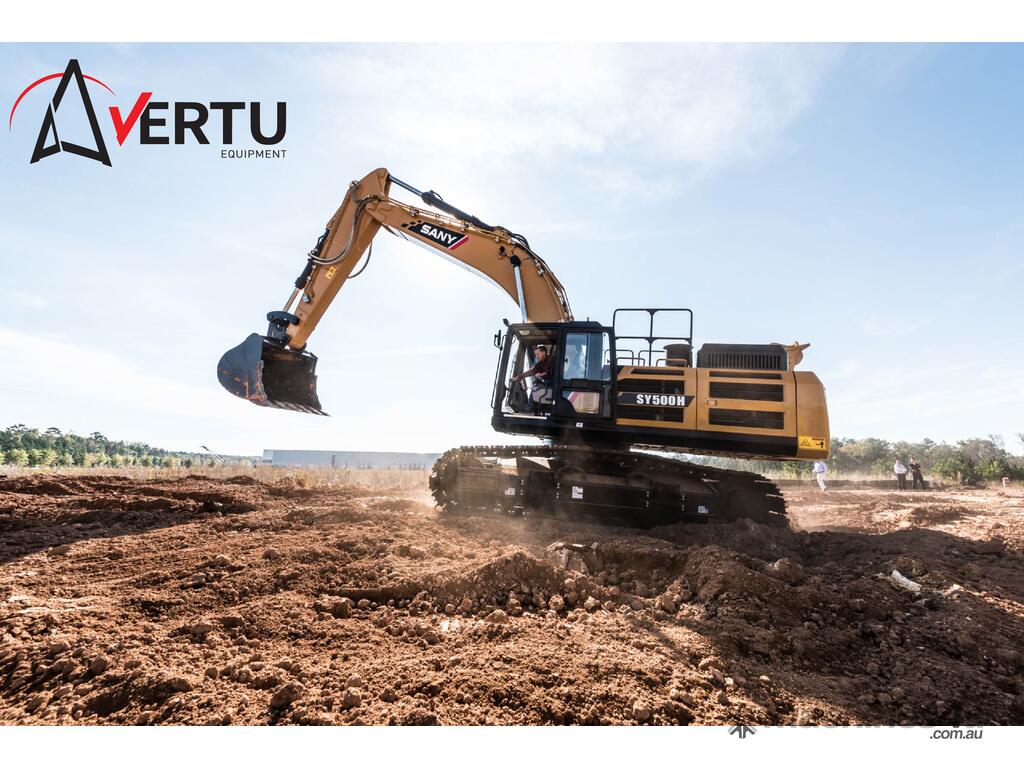

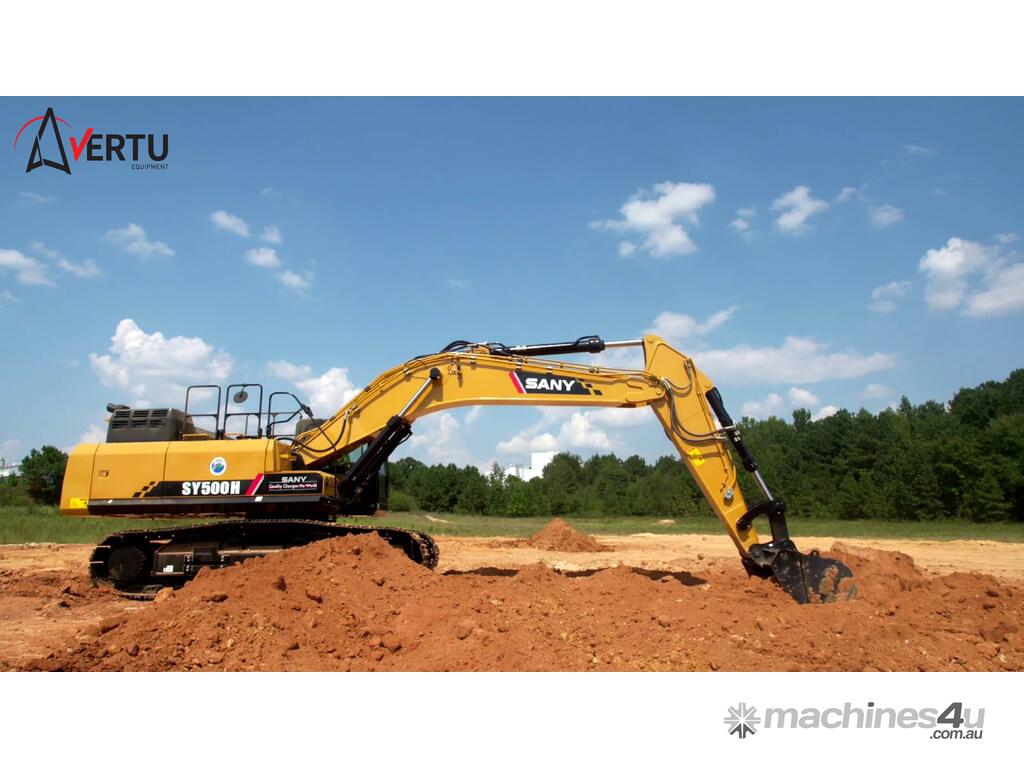

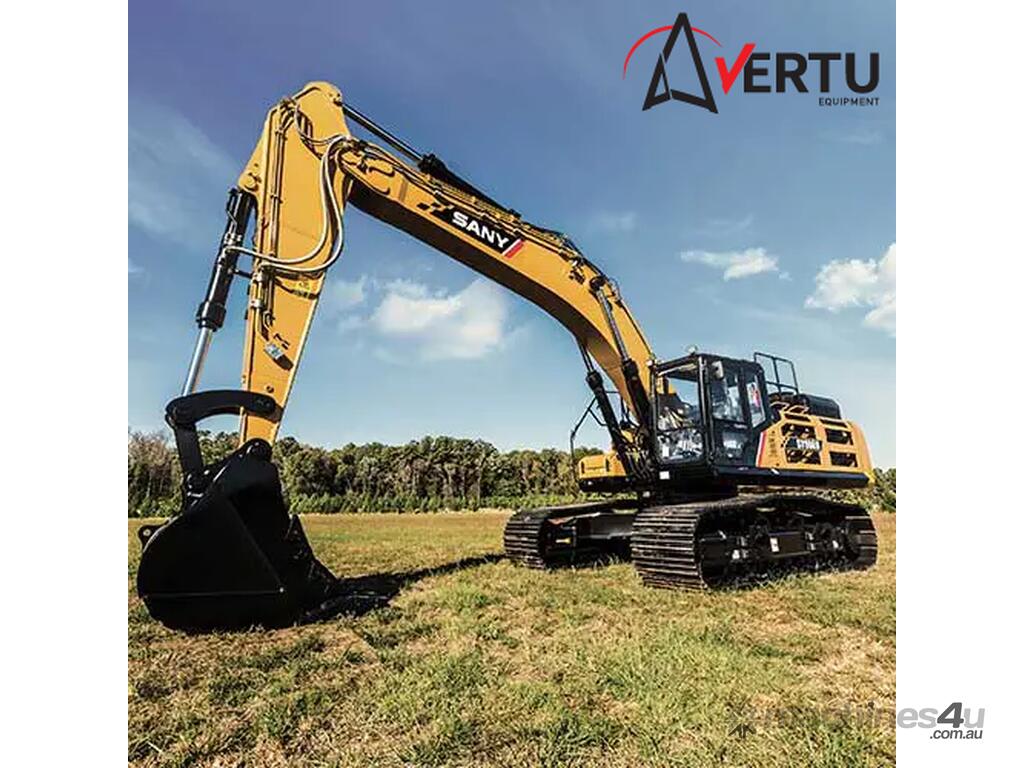

SANY SY500H 50.5 Tonne Excavator/Digger – Unmatched Power and Performance for the Toughest Jobs!

SANY’s most powerful large excavator, the SY500H is a powerhouse, boasting 400 HP and a digging depth of over 25 feet. A durable Cummins diesel engine delivers the performance you need for any job, while the selectable working modes allow you to match performance to the job application to balance power and efficiency. Positive flow hydraulics further improve operating efficiency, while fuel-efficient design features help you save on fuel costs.

ENGINE
Displacement 11.8L
Engine model Cummins Tier 4
Rated power 300Kw/1800rpm

OPERATION RANGE
Height at min. swing radius
Max. depth of blade down
Max. digging depth 7705mm
Max. digging height 10,929mm
Max. digging reach 12,035mm
Max. dumping height 7647mm
Max. excavating distance
Max. ground clearance of blade up 560mm
Max. vertical digging depth 6278mm
Min. swing radius 5216mm
Operating weight 52,000kg

DIMENSIONS
Blade height
Cab height 3423mm
Min. ground clearance 560mm
Tail swing radius 3850mm
Track length 5459mm
Transport height 3874mm
Transport length 12,194mm
Transport width 3640mnm
Upper width 3292mm

UNDERCARRIAGE/WORKING DEVICE
Arm length 3350mm
Boom length 7000mm
Bucket capacity 2.2 m³
Roller gauge
Track gauge 2740mm
Track width 900mm

PERFORMANCE
Arm digging force 207.0kN
Bucket digging force 275.0kN
Cooling system 50.0L
Engine oil 33.0L
Fuel tank capacity 680.0L
Gradeability 35°
Ground pressure 59kPa
Hydraulic tank capacity 480L
Swing speed 8.0 rpm
Travel speed 3.4/5.2 km/hr

HYDRAULIC SYSTEM
Hydraulic motors - swing 8.0 rpm
Hydraulic motors - travel
Main pump - maximum flow 720.0L/min

Vertu Equipment is a 100% locally owned dealer for SANY Excavators and construction equipment across Victoria, Australia, NZ, and the Pacific. We offer industry-leading value, superior support, and a commitment to quality and service. Contact us today.
