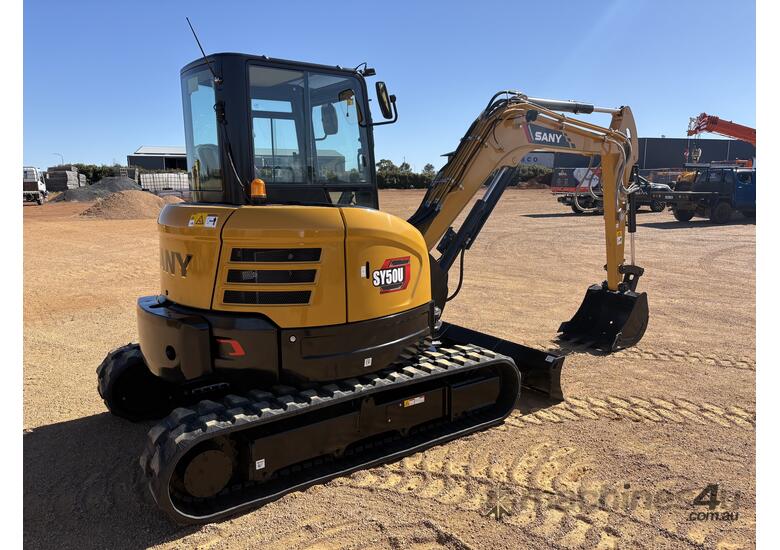

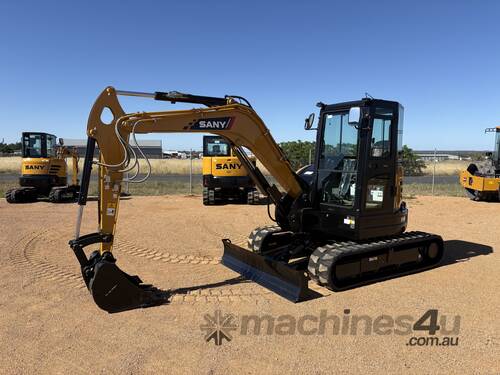

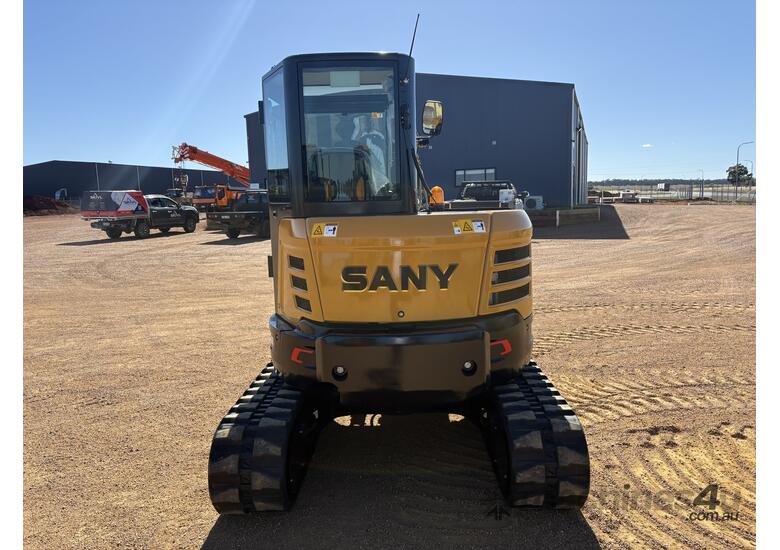

SANY SY50U Excavator

SANY SY50U Mini Excavator – Compact Strength. Serious Performance.

The SANY SY50U short-tail swing excavator delivers big power in a compact, highly manoeuvrable package. Designed for tight spaces and demanding jobs, it offers outstanding digging performance, fuel efficiency, and operator comfort. Ideal for construction, landscaping, and civil projects, this machine is built to perform where larger excavators can’t go.

Powered by a Yanmar 4TNV88CT engine (35.5 kW 2,400 rpm) and an efficient load-sensing hydraulic system, the SY50U ensures smooth operation, low fuel use, and reliable power for any task.

Key Features:
Compact short-tail design for confined or urban sites
Yanmar 4-cylinder turbo diesel engine with Stage V emissions compliance
Load-sensing hydraulics for precise, efficient control
Two auxiliary proportional control circuits with joystick operation
Floating dozer blade standard for easier leveling and backfilling
Spacious, quiet cab with adjustable seat, air conditioning & Bluetooth radio
Large display for easy machine monitoring
Safety valves on boom & arm for secure lifting operations
All-metal panels and robot-welded seams for durability
Easy ground-level maintenance access with wide-opening covers

Specifications:
Operating weight: 5,100 kg
Engine: Yanmar 4TNV88CT – 35.5 kW / 2,400 rpm
Bucket capacity: 0.15 m³
Max digging depth: 3,460 mm
Max reach: 5,880 mm
Bucket breakout force: 36.8 kN
Arm digging force: 24.5 kN
Travel speed: 4.2 km/h
Fuel tank: 72 L

Why Choose SANY:
Supported by Central West Machinery & Putzmeister Oceania with full national service coverage
Over 500,000 excavators sold worldwide
Engineered for efficiency, safety, and long-term reliability
Excellent value for money with low operating costs and strong resale value
Industry-leading warranty and after-sales support
