SAVE 10% Toughcut Heavy Duty CNC 3800mm Panel Saw 7 HP - Designed in Australia

WAS $22,726 + GST NOW ONLY $20,660 + GST JUNE SALE ONLY

Description

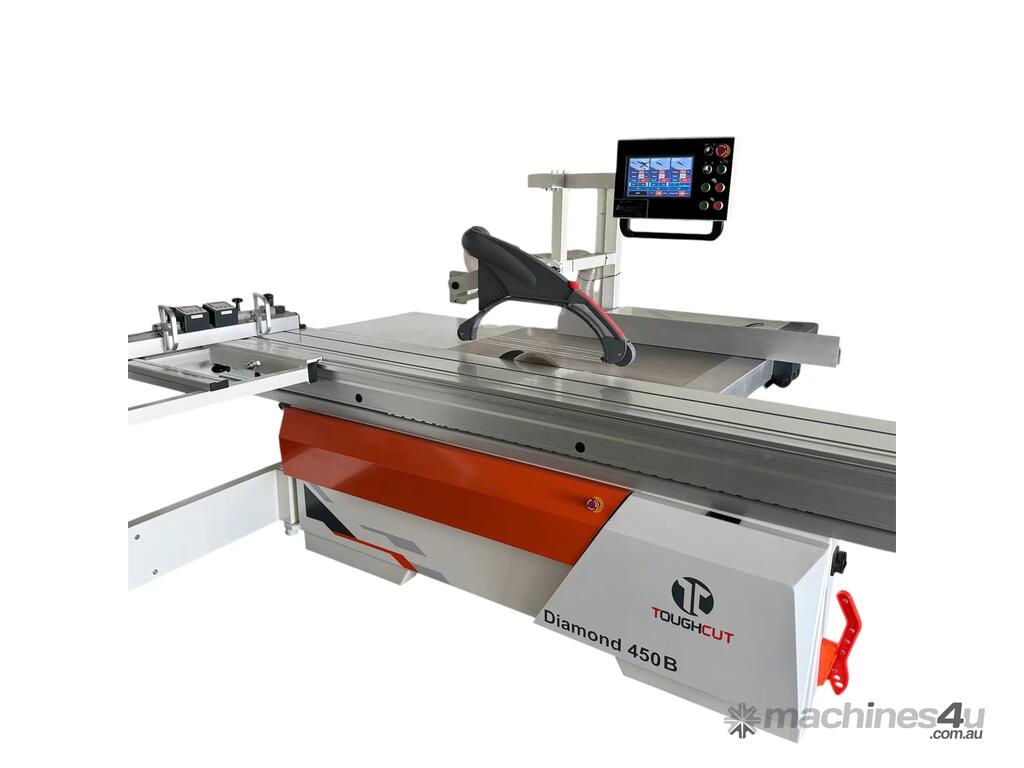

Toughcut Diamond 450B is a heavy-duty, professional quality panel saw ideal for any furniture manufacturing business. The perfect solution for easy and accurate cutting of panels up to 3600mm long with electric Rise/Fall/Tilt. PLC controlled Rip Fence, via fast and accurate Ball & Screw movement and three Cross Cut Stops with two Digital Readouts.
Features:
• The cast iron saw unit provides extra support and stability for reduced vibration.
• Large section profile crosscutting fence with reversible fence stops
• The saw unit is mounted on dual vertical shafts for smooth and accurate movement.
• Rolling along tempered and ground prismatic guides guarantees a smooth and precise sliding table.
• Three-speed design suits different materials and a quick tension release handle is convenient for speed changing

Technical

Technical Specifications:
Motor Power (Input): 7HP / 5.2KW
Power Source: 415V 50Hz Three Phase
Blade Type: Main Blade + Scoring Blade

Main Blade:
Diameter (Max.): 400 mm
Bore Size: 30 mm
Speed: 3000 RPM, 4000 RPM, 5000 RPM
Tilt: 0-45°

Scoring Blade:
Diameter (Max.): 120 mm
Bore Size: 20 mm
Speed: 8000 RPM

Dust Port:
1 x 100 mm
1 x 80 mm

Table Size:
1020 mm (690 + 720 mm)
Sliding Table Size: 3800 mm

Design & Manufacturing:
Designed, Researched & Developed in: Australia
Manufactured in: China

Features:
Variable Speed
Push Stick Included
Automatic Blade Scribe Rise and Lower
Electric Blade Tilt
CNC Controlled Rip Fence
CNC Optimization Software

Available in 3200mm Sliding Table $22,540 + GST

Safety Features:
Safety Switch
Rear Door Motor Brake
Emergency Stop Switch
Blade Guard
